README

Horizon-style queue dashboard for Laravel's database queue driver.

Horizon only works with Redis. Belvedere gives applications that run on the database driver (Laravel's default since version 11) the same visibility and the same actions: pending, running, completed and failed jobs, batches, workers, per-queue metrics, retries, purges and queue pausing. No Redis, no Node, no third-party service.

Status: 0.1.0, complete and tested on MySQL, MariaDB, PostgreSQL and SQLite. Until 1.0, a minor version may still change a configuration key, an API response or a table; the changelog says so when it happens.

Requirements

PHP 8.2+
Laravel 12 or 13 (Laravel 11 no longer receives security fixes and Composer refuses to install it by default)
MySQL 8.0 or newer (tested on 8.4 LTS and 9.7 LTS), MariaDB (tested on 11.8), PostgreSQL (tested on 17) or SQLite

Installation

composer require alexisgeneau/laravel-belvedere
php artisan belvedere:install
php artisan migrate

The dashboard is served at /belvedere with its assets inlined, so there is nothing to publish and nothing to refresh after an update. Outside the local environment, access is denied until you define the viewBelvedere gate:

use Illuminate\Support\Facades\Gate;

Gate::define('viewBelvedere', fn ($user) => in_array($user->email, ['you@example.com']));

or register a callback:

use Belvedere\Belvedere;

Belvedere::auth(fn ($request) => $request->user()?->isAdmin() ?? false);

Add the two commands to your scheduler:

Schedule::command('belvedere:prune')->daily();
Schedule::command('belvedere:check')->everyMinute();

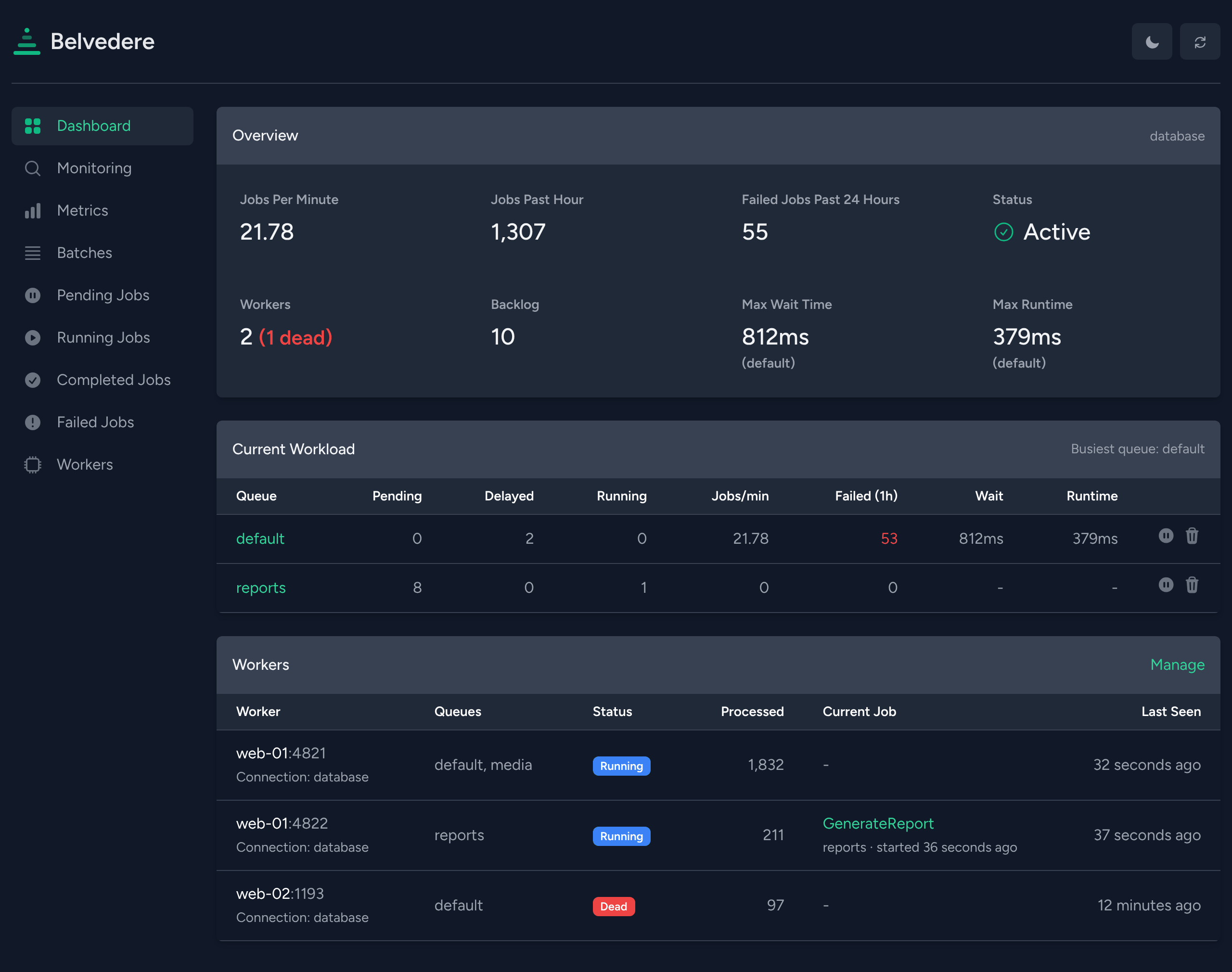

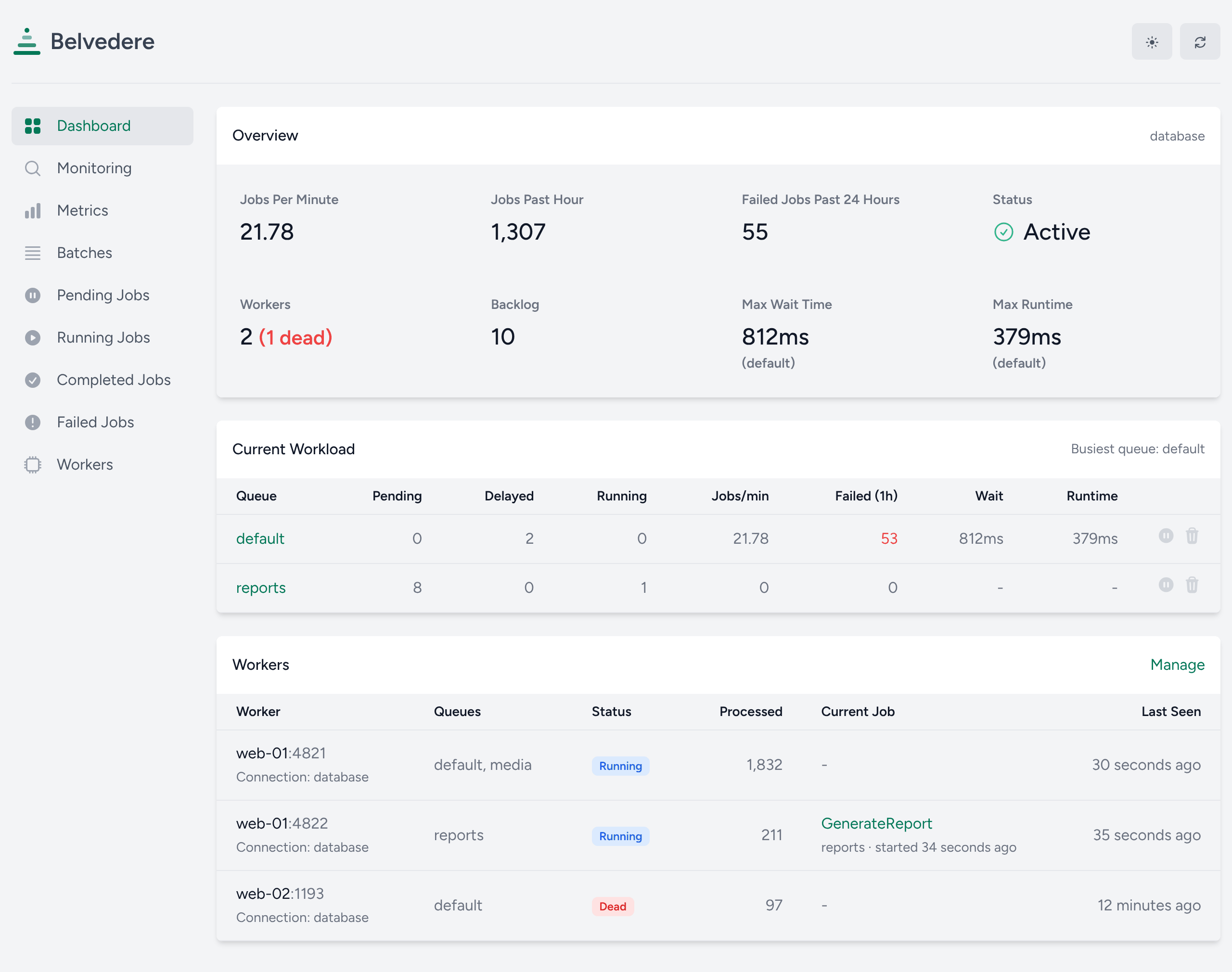

Dashboard

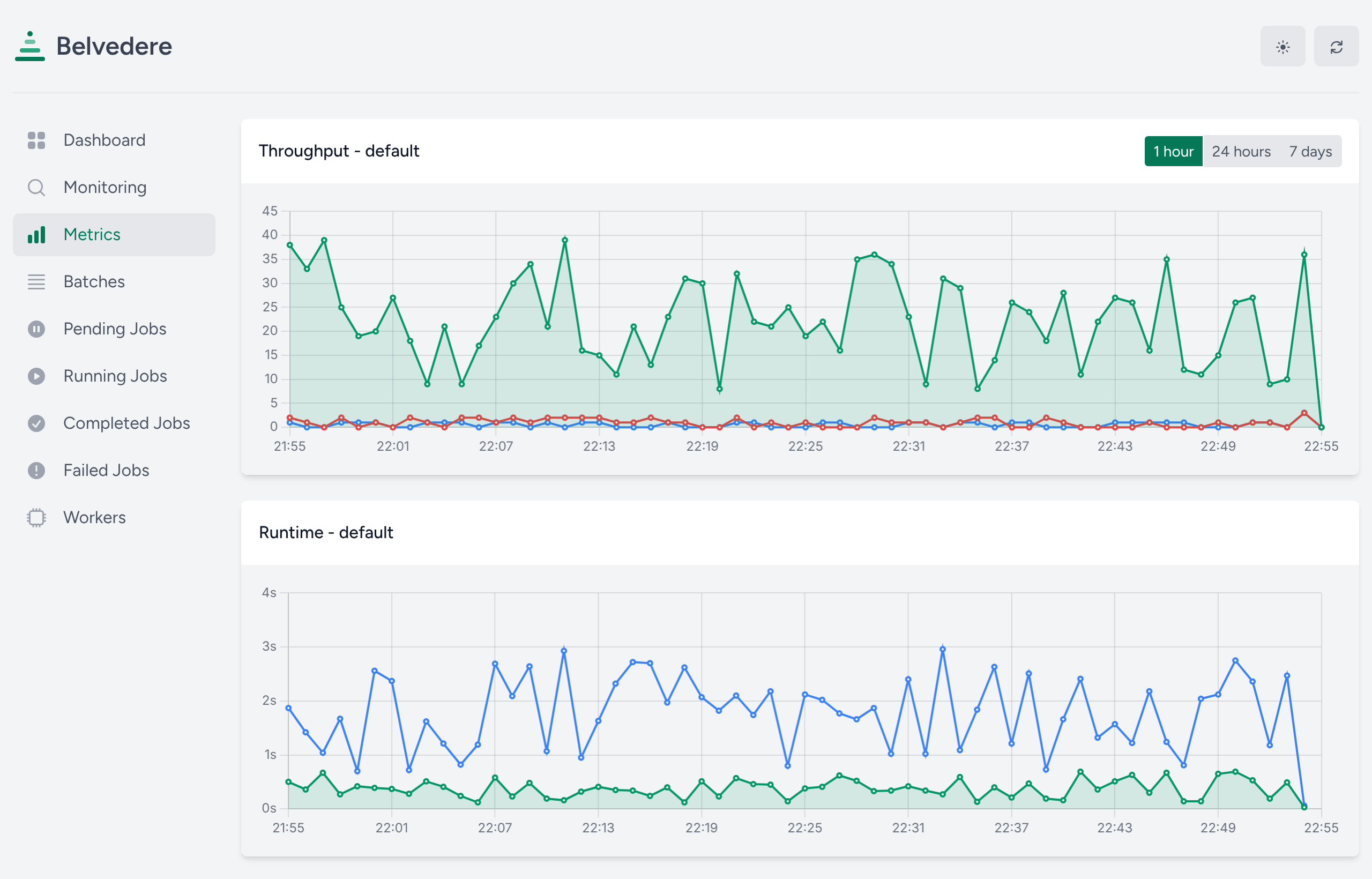

The interface is a fork of Horizon's, with the same layout and the same screens so nobody has to relearn anything: Dashboard (throughput, backlog, workers, per-queue workload with pause, resume and purge), Monitoring (tags), Metrics (throughput, runtime and wait time charts by job or by queue over 1 hour, 24 hours or 7 days), Batches, Pending Jobs (pending and delayed), Running Jobs (running and stuck), Completed Jobs (with silenced, released, timed-out and lost attempts), Failed Jobs (search, retry, retry all, flush) and Workers.

Every list refreshes itself (refresh_seconds), follows the system color scheme with a light/dark toggle, and can switch between observed connections. With read_only enabled, every action disappears from the interface and the API rejects it.

If the application sends a Content-Security-Policy header, call Vite::useCspNonce() in a middleware: Belvedere reuses that nonce on its inline style and script tags.

How it works

Belvedere listens to the queue events Laravel already dispatches (JobQueued, JobProcessing, JobProcessed, JobFailed, JobReleasedAfterException, JobTimedOut, Looping, WorkerStopping, QueueBusy) and stores one row per job execution in its own tables (belvedere_jobs, belvedere_job_tags, belvedere_workers, belvedere_metrics, belvedere_actions, belvedere_monitored_tags). Live state (pending, delayed, running, stuck) is read straight from Laravel's jobs, failed_jobs and job_batches tables, which are never modified except through the actions you trigger.

Tags follow Horizon's convention: a tags() method on the job, otherwise the Eloquent models found in its public properties. Tags, the batch id and a redacted snapshot of the job's public properties are computed when Laravel builds the payload (Queue::createPayloadUsing) and stored under its belvedere key, so they travel with the job through bulk pushes, batches and queue:retry. Jobs implementing ShouldBeEncrypted get tags but no snapshot. Payloads are never unserialized in the web process.

A failure to record (database down, lock timeout, deadlock) is reported through the application's exception handler and never reaches the worker: the job runs and finishes as if Belvedere were not there, and the execution is later marked lost if its outcome was never stored.

Cost

Each job costs four statements in three commits: one INSERT for the execution and one for its tags when the job is queued, in the same transaction, then one UPDATE when it starts and one when it finishes. Metrics are accumulated in memory by each worker and flushed at most every 5 seconds, so a worker killed with SIGKILL loses at most a few seconds of them; heartbeats are written every few seconds, not per job.

composer bench measures the overhead against a run with the collector disabled. On a laptop running the servers in Docker, with 2,000 jobs and PHP 8.4:

	Dispatch (p50)	Processing, per job
MySQL 8.4	0.7 ms → 2.1 ms	2.8 ms → 4.7 ms
MariaDB 11.8	0.2 ms → 0.7 ms	1.1 ms → 1.8 ms
PostgreSQL 17	0.2 ms → 0.8 ms	1.4 ms → 2.8 ms
SQLite 3.46	1.0 ms → 3.2 ms	2.9 ms → 5.9 ms

Each statement costs about what a commit costs on the server: MySQL 8.4 syncs its binary log as well as its redo log on every commit, and SQLite syncs its journal and its file on every statement outside a transaction. Figures move by about a third from one run to the next. Use sampling, disable snapshots or point storage.connection to a dedicated database to lower the cost further. On SQLite, setting journal_mode to wal and synchronous to normal on the connection makes every statement several times cheaper, Laravel's own queue table included.

With a million rows of history, every endpoint of the API answers in under 50 ms on the four databases (the slowest draws the 7-day metrics charts), and belvedere:prune deletes a million rows in 4 seconds on PostgreSQL and in about two minutes on MySQL, MariaDB and SQLite — in production it only ever has one day's worth to delete.

Lost executions

An execution whose outcome never arrives is marked lost instead of staying "running" or "queued" forever. belvedere:check does it every minute: a running execution is lost once its worker is reported dead or stopped, once a later attempt of the same job exists, or once it is older than the connection's retry_after (the queue has released the job by then); a queued execution is lost once its job has left the jobs table without being processed, which only happens when the queue is cleared or the job deleted outside the dashboard. Deleting or purging jobs and forgetting a worker from the dashboard mark the matching executions on the spot. The reason is stored where the exception would be, lost executions have their own tab under Completed Jobs and a counter on the dashboard, and they follow the completed retention. A worker that reports late overrides the verdict, and a queued execution is revived if its job runs after all.

Configuration

config/belvedere.php:

Key	Default	Purpose
`enabled`	`true`	Collect queue events and payload metadata (the dashboard itself stays available)
`path`	`belvedere`	URI prefix of the dashboard and its API
`middleware`	`['web']`	Middleware applied before the authorization check
`read_only`	`false`	Disable every action while keeping the dashboard readable
`connections`	`['database']`	Queue connections to observe
`storage.connection`	`null`	Database connection for Belvedere's tables (`null` = default)
`storage.prefix`	`belvedere_`	Table prefix
`sampling`	`1`	Record one job out of n (metrics stay exact for sampled jobs only)
`snapshot.*`	enabled, 16 KB, common secret keys	Snapshot of the job's public properties
`silenced`	`[]`	Job classes kept out of the Completed Jobs list, shown under a Silenced tab instead (still recorded and counted)
`retention.*`	7 days completed (released, timed-out and lost included), 30 days failed	Retention applied by `belvedere:prune`
`workers.dead_after_seconds`	`90`	A worker without heartbeat for this long is reported dead
`alerts.*`	mail / Slack routes, thresholds, cooldown	Alerts evaluated by `belvedere:check` (see below)

Alerts

belvedere:check sends a notification to the configured alerts.routes (mail, Slack) when a queue holds more than queue_size jobs, when the oldest job ready to run on a queue has waited longer than wait_seconds (wait_seconds_per_queue overrides it per connection:queue, 0 exempts a queue; paused queues are never reported), when the failure rate of a queue over window_minutes exceeds failure_rate_percent (once at least failure_rate_minimum_jobs were processed) and when a worker stops reporting. Each alert is sent once per cooldown_minutes.

Queue pausing

Pausing a queue sets a flag in the cache. Every queue:work process checks it through the Looping hook and sleeps while all the queues it consumes are paused. A worker started with --queue=high,default keeps running while only high is paused.

Other queue drivers

On redis, sqs or beanstalkd, Belvedere still records history, metrics, failures and workers from the events, but the live lists come from the database driver only: the dashboard shows the queue size and marks the connection as degraded.

Retrying failed jobs

A retry pushes the stored payload back with its attempts reset, exactly like queue:retry, and keeps the job UUID so batches stay consistent. Because the payload is not unserialized, a retryUntil deadline is dropped: the retried job then relies on tries.

Commands

Command	Purpose
`belvedere:install`	Publish the configuration and the migration
`belvedere:status`	Print every queue and the worker count in the console
`belvedere:check`	Mark lost executions, then evaluate backlogs, wait times, failure rates and dead workers and send alerts
`belvedere:prune`	Apply the retention periods
`belvedere:clear`	Delete everything Belvedere stored

JSON API

Every endpoint lives under /belvedere/api and accepts ?connection= when several connections are observed.

Method	Path	Purpose
GET	`overview`	Counts, throughput, wait and run times per queue, worker summary
GET	`queues`	Per-queue counts and pause state
POST	`queues/{connection}/{queue}/pause` · `/resume`	Pause or resume a queue
DELETE	`queues/{connection}/{queue}`	Purge the pending jobs of a queue
GET	`jobs/pending` · `delayed` · `running` · `stuck`	Live jobs from the `jobs` table
DELETE	`jobs/{connection}/{id}`	Delete a pending job
POST	`jobs/{connection}/{id}/run-now` · `/release`	Make a delayed job available now, release a stuck job
GET	`jobs/history` · `jobs/history/{uuid}`	Processed jobs with filters (`status`, `queue`, `name`, `tag`, `search`, `from`, `to`, `silenced`), detail with every attempt
GET	`jobs/failed` · `jobs/failed/{id}`	Failed jobs with filters, detail with the exception
POST	`jobs/failed/{id}/retry` · `jobs/failed/retry`	Retry one job, a list of `ids` or the current filter
DELETE	`jobs/failed/{id}` · `jobs/failed`	Forget one failed job or flush them all
GET	`batches` · `batches/{id}`	Batches with progress
POST	`batches/{id}/cancel` · `/retry`	Cancel a batch, retry its failed jobs
GET	`workers`	Workers with their status and current job
DELETE	`workers/{id}`	Forget a dead worker
GET	`metrics/{queue\|job}` · `metrics/{type}/{name}?range=1h\|24h\|7d`	Aggregates and time series
GET/POST/DELETE	`monitoring` · `monitoring/{tag}` · `monitoring/{tag}/jobs`	Monitored tags and their jobs

Development

composer install
composer test      # Pest
composer analyse   # PHPStan (Larastan, level 6)
composer lint      # Pint

The front end lives in resources/js and resources/sass (Vue 3, Vite, Bootstrap, Chart.js) and is compiled into resources/dist, which is committed; the CI fails when the committed build no longer matches the sources:

npm install
npm run build
npm run test:ui    # Playwright smoke test of every screen against the workbench

To try the dashboard against a disposable application seeded with sample jobs:

composer serve

then open http://127.0.0.1:8000/belvedere.

composer bench measures the overhead per job against a run with the collector disabled, the latency of every read endpoint once the history holds a million rows, and the duration of belvedere:prune. It runs on SQLite by default; set BENCH_DB_CONNECTION=mysql or pgsql with BENCH_DB_HOST, BENCH_DB_PORT, BENCH_DB_DATABASE, BENCH_DB_USERNAME and BENCH_DB_PASSWORD to measure the database you run in production. The script drops and recreates the queue and Belvedere tables of that database. composer bench -- --skip-api measures the overhead per job alone; --jobs= and --rows= change the sizes.

License

MIT. The user interface is derived from Laravel Horizon, also published under the MIT license; see NOTICE.md.
