README

Makes the "Used on" tab of files in Silverstripe CMS 6 tell you where a file is used, so you can find every page it's on before you change or remove it.

Without this module	With this module

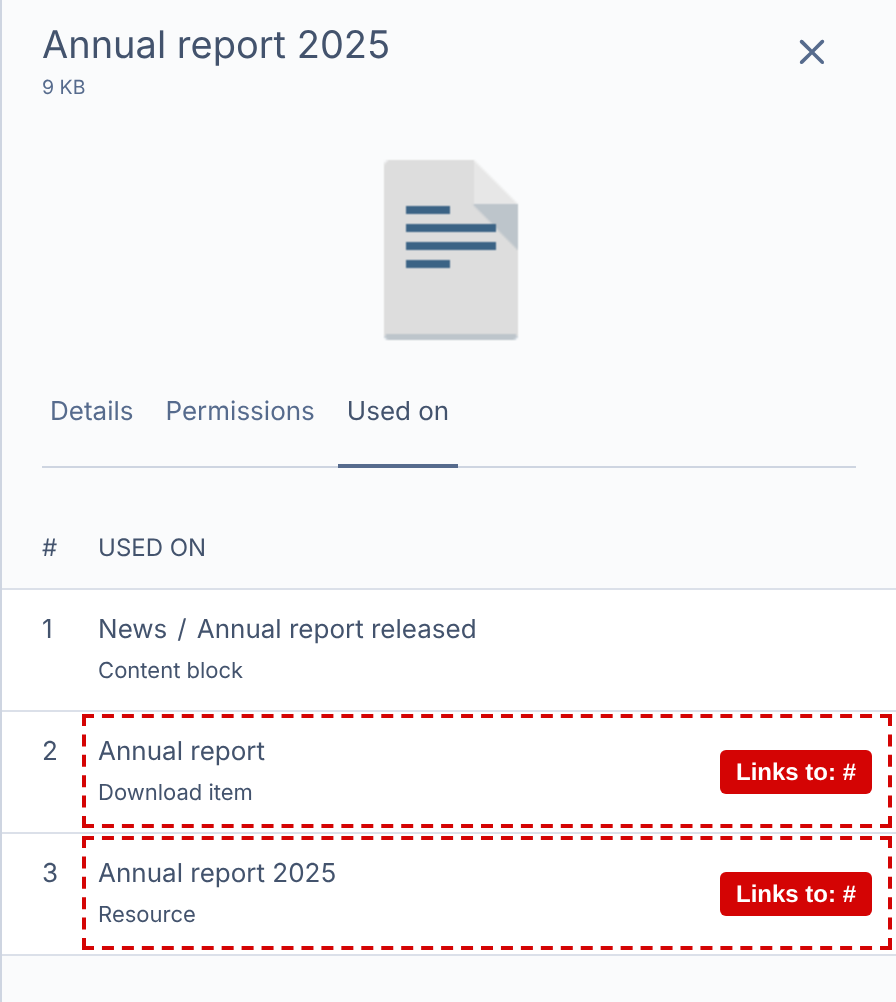

Without it, records other than pages and blocks, like an item in a list on a block, or a resource selected by blocks, often have a broken link (#), and the tab doesn't say which page they're on.

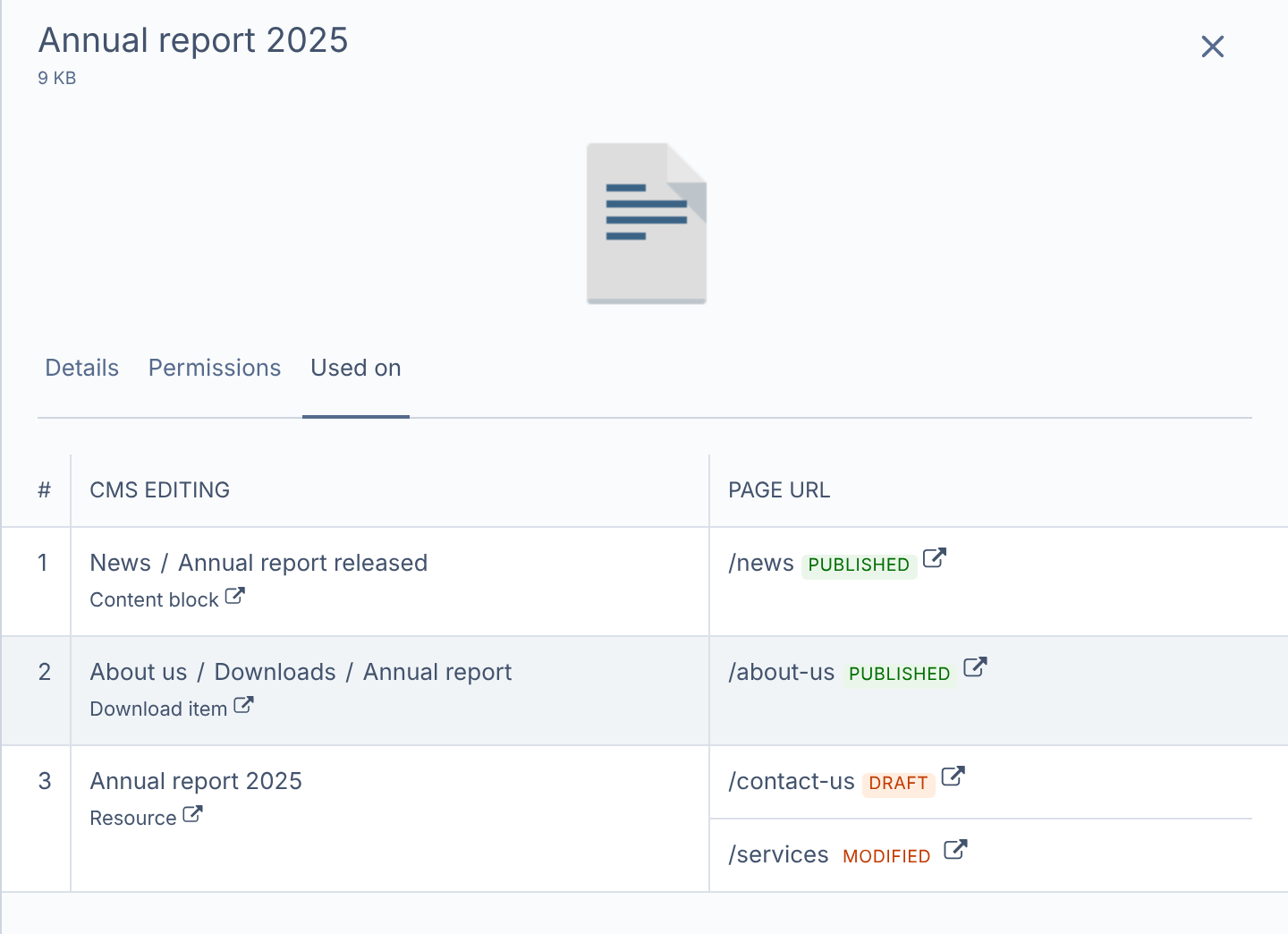

With it, each usage:

links to where it's edited in the CMS, even when that's inside a block or another record (on the right tab)
shows its parents, ie. About us / Downloads / Annual report
lists the page(s) it's on, with a link to view the page and its status: Draft, Modified or Published

Installation

composer require normann/silverstripe-used-on

Then flush (vendor/bin/sake flush, or ?flush=1).

Module version	Branch	Silverstripe CMS	PHP
1.x	`1`	6	8.3+

Elemental and linkfield are optional: blocks and file links already link correctly without this module, which covers the records on or behind them (ie. items in a list on a block).

Setup

Pages and blocks need no setup; they get the "Page URL" column automatically. For your own records that use files, apply one of two extensions, depending on how the record is edited:

	`ManagedRecordExtension`	`SharedRecordExtension`
For	Child records, edited in a GridField on their parent	Records used by other records, edited on their own
Relation	Has one parent (a `has_one`)	Used by many records (ie. selected by blocks on several pages)
Example	A download item in a list on a block	A resource in a ModelAdmin, featured by blocks
Adds	Its CMS edit link, parents, and page	Every page it's used on

Child records

App\Blocks\DownloadItem:
  extensions:
    - Normann\UsedOn\Extensions\ManagedRecordExtension

The parent is found via the Parent has_one, and the GridField by looking through the parent's CMS fields.

Shared records

App\Models\Resource:
  extensions:
    - Normann\UsedOn\Extensions\SharedRecordExtension
    # Its CMS edit link, if it's edited in a ModelAdmin (core Silverstripe)
    - SilverStripe\Admin\CMSEditLinkExtension
  cms_edit_owner: App\Admin\ResourceAdmin
  # The relation(s) to the records using it, ie. has_many Blocks => ResourceBlock.Resource
  used_on_used_by: Blocks

The relation must be declared on this class (has_many, many_many, belongs_many_many), or be a method returning the records. The records using it can be pages, blocks, child records, or other shared records.

Options

Option	Set on	Default	Description
`used_on_parent_relation`	Child records	`Parent`	The `has_one` relation to the parent
`used_on_grid_field`	Child records	Found automatically	The name of the GridField on the parent
`used_on_used_by`	Shared records	None	The relation, or list of relations, to the records using it
`page_column`	`Normann\UsedOn\Forms\UsedOnTable`	`true`	Show the "Page URL" column (and widen the file's pane to fit it)
`link_to_tab`	`Normann\UsedOn\Forms\UsedOnTable`	`true`	Link to the tab with the field using the file, ie. `#Root_Settings`

Good to know

Links open in a new tab, so you stay on the file.
Page links go to the draft site (?stage=Stage), so you see the latest version.
A page is Modified if the page or anything on it (ie. its blocks) has unpublished changes.
File links left behind by deleted records aren't used anywhere, so they're hidden.

Development

composer install
composer lint   # PHP code style
npm install
npm run build   # Builds client/dist (committed)
npm test        # JavaScript tests

The PHP tests run in a Silverstripe project with elemental, linkfield, and this module installed from source, ie. with composer require --prefer-source, or a symlinked Composer path repository (copies leave the tests out):

vendor/bin/phpunit vendor/normann/silverstripe-used-on/tests/php

JavaScript strings are in client/lang/src/ (run npm run build:lang after changing them).

License

BSD-3-Clause
