README

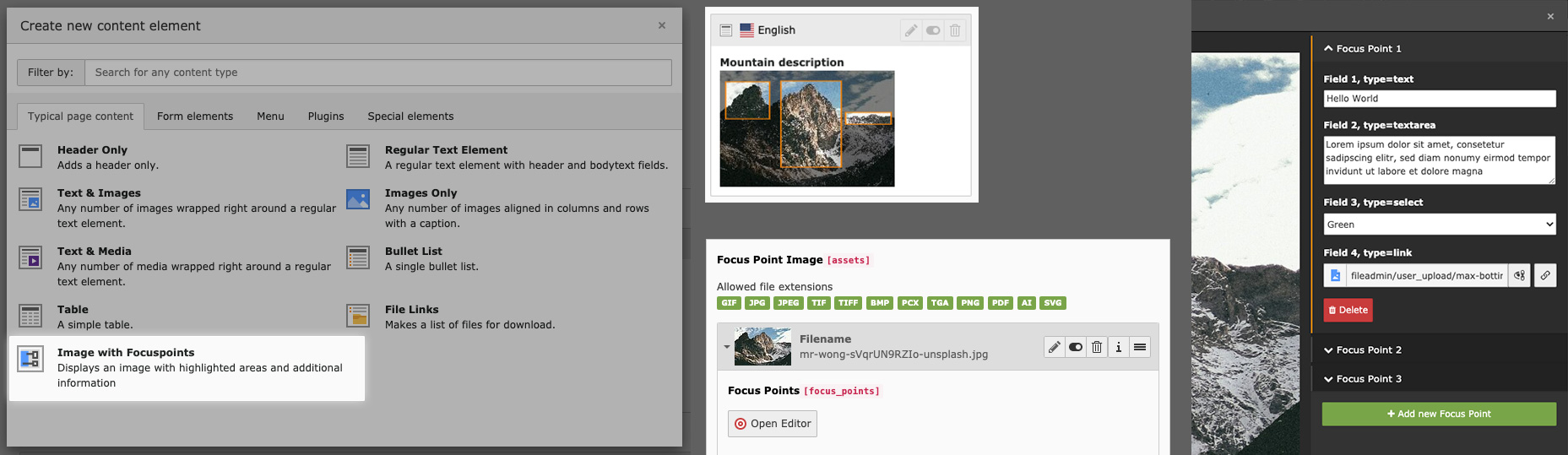

With this TYPO3 extension you can create responsive image maps in the backend. This extension ships an image editor that can be used to add areas and information to an image.

Examples

Example 1: Default output

Frontend output with configuration of example PageTS

Example 2: SVG Animation

In this example the focus areas are animated via SVG. The additional information are displayed next to the image with some delay.

For administrators

Installation

Install via composer

composer require blueways/bw-focuspoint-images

Include TypoScript

Enable the extension in the Extension Manager and include the static TypoScript template or manually include setup and constants.
Define your own wizard fields

There are no default fields defined! An example with working frontend output can be found in the PageTS section.

Usage

Add the new content element "Image with Focuspoints" to any page, link a new image and start adding your focus areas.

Configuration

To configure the fields in the focus point wizard, use the following PageTS settings. You can choose between text, textarea, select, link and checkbox inputs in the wizard.

This example configuration is used to generate the output shown in Example 1

mod.tx_bwfocuspointimages.settings.fields {

    name {
        title = LLL:EXT:bw_focuspoint_images/Resources/Private/Language/locallang_db.xlf:wizard.fields.name
        type = text
        useAsName = 1
    }

    description {
        title = LLL:EXT:bw_focuspoint_images/Resources/Private/Language/locallang_db.xlf:wizard.fields.description
        type = textarea
    }

    color {
        title = LLL:EXT:bw_focuspoint_images/Resources/Private/Language/locallang_db.xlf:wizard.fields.color
        type = select
        options {
            red = LLL:EXT:bw_focuspoint_images/Resources/Private/Language/locallang_db.xlf:wizard.fields.color.red
            green = LLL:EXT:bw_focuspoint_images/Resources/Private/Language/locallang_db.xlf:wizard.fields.color.green
            blue = LLL:EXT:bw_focuspoint_images/Resources/Private/Language/locallang_db.xlf:wizard.fields.color.blue
        }
        default = red
    }

    hasLink {
        title = LLL:EXT:bw_focuspoint_images/Resources/Private/Language/locallang_db.xlf:wizard.fields.hasLink
        type = checkbox
        label = LLL:EXT:bw_focuspoint_images/Resources/Private/Language/locallang_db.xlf:wizard.fields.hasLink.yes
        default = true
    }

    link {
        title = LLL:EXT:bw_focuspoint_images/Resources/Private/Language/locallang_db.xlf:wizard.fields.link
        type = link
        displayCond = FIELD:hasLink:REQ:true
    }

}

Field Display Conditions

You can use displayCond in your wizard field configuration to control when a field should be visible, similar to TYPO3's TCA displayCond feature.

mod.tx_bwfocuspointimages.settings.fields {
    description {
        title = Description
        type = textarea
        displayCond = FIELD:name:REQ:true  # Show only if name field has a value
    }
}

Field Overrides

You can override the default configuration of the fields on a per-element basis, similar to the TYPO3 TCEFORM configuration: mod.tx_bwfocuspointimages.settings.fields.[fieldName].types.[typeName].[propertyName].

mod.tx_bwfocuspointimages.settings.fields {
    description {
        title = Description
        type = textarea
        types.my_custom_ctype.disabled = 1
    }

    title {
        title = Default Title
        types.tx_myextension_domain_model_mytype.title {
            title = Custom Title
            default = Custom Default
        }
    }
}

Adjusting the link wizard

You can customize the display of the link wizard. Use the additional linkPopup to change the list of allowed file extensions, the displayed link fields or link options. The configuration is done like for link inputs.

mod.tx_bwfocuspointimages.settings.fields {

    email {
        title = Hide all wizard tabs but email
        type = link
        linkPopup {
            blindLinkOptions = file, folder, page, spec, telephone, url
        }
    }

    pdf {
        title = Only files of .pdf or .docx extension
        type = link
        linkPopup {
            blindLinkFields = pdf, docx
            blindLinkOptions = email, folder, page, spec, telephone, url
            blindLinkFields = class, params, target, title
        }
    }

}

Constants

To override templates set your own paths via constants:

plugin.tx_bwfocuspointimages {
    view {
        templateRootPath =
        partialRootPath =
        layoutRootPath =
    }
}

For developers

The table sys_file_references becomes extended for the field focus_points. This field is used to save the settings made in the backend editor in json format.

To use the editor in other content elements with FAL images, use the following TCA to activate the palette:

$GLOBALS['TCA']['tt_content']['types']['your_list_type']['columnsOverrides'] = [
    'assets' => [
        'config' => [
            'overrideChildTca' => [
                'types' => [
                    \TYPO3\CMS\Core\Resource\File::FILETYPE_IMAGE => [
                        'showitem' => 'focus_points,--palette--;;filePalette'
                    ],
                ],
                'columns' => [
                    'uid_local' => [
                        'config' => [
                            'appearance' => [
                                'elementBrowserAllowed' => $GLOBALS['TYPO3_CONF_VARS']['GFX']['imagefile_ext']
                            ],
                        ],
                    ],
                ],
            ]
        ]
    ]
];

This snippet assumes that references are done via assets column. Change this to your needs.

To decode the JSON data and use the information in your template, use the FocuspointProcessor:

tt_content.your_list_type {
    dataProcessing {
        15 = Blueways\BwFocuspointImages\DataProcessing\FocuspointProcessor
        15 {
            references.fieldName = assets
            as = image
        }
    }
}

License

This project is licensed under GNU General Public License 2.0 (or later).

Contribute

This extension was made by Maik Schneider: Feel free to contribute!

Please have a look at CONTRIBUTING.md.

Thanks to blueways and XIMA!
