README

Zero-config responsive images for TYPO3. The integrator writes no sizes and no per-image breakpoints: at render time the extension emits a real <picture>/<img> with a quantized width-ladder srcset and sizes="auto", so the browser's preload scanner fetches the correctly-sized image in a single request.

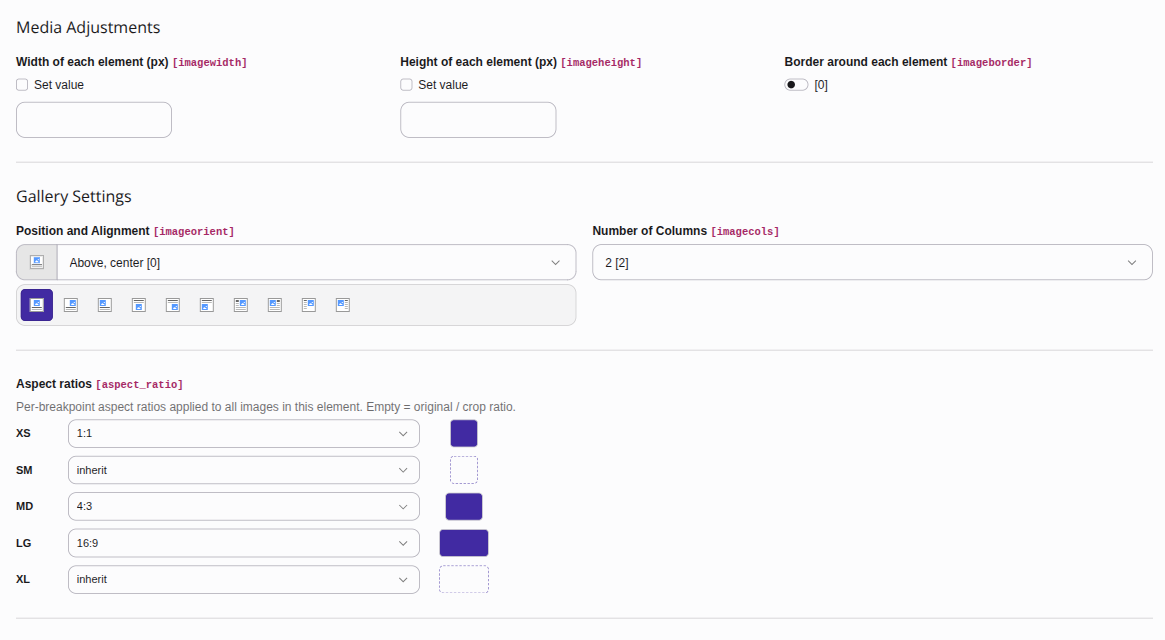

For editors. A backend aspect-ratio field per content element lets editors pick the framing once — per breakpoint — and get uniform, consistent images across every element of that type, no more ragged grids from mismatched upload dimensions. Crop and focus area are honored, so the chosen subject stays in frame at every size.

For developers. Drop one <i:image> and get sharp, perfectly-sized images on every device — no hand-tuned sizes, no breakpoint lists, no layout shift (CLS). Stop shipping oversized images: the width ladder bounds processing to a fixed set of sizes, so you serve fewer, smaller bytes and score better Core Web Vitals (LCP/CLS) out of the box.

Features. Quantized width-ladder srcset + sizes="auto" · a single uniform output format (AVIF by default, or WebP) · per-breakpoint art direction (crop variants + focus area honored) · low-quality placeholders (ThumbHash, dominant-color, or none) · priority images get fetchpriority="high" and skip lazy-loading · pluggable processing — classic sync on first request, async via a signed middleware endpoint (default), or an external processor (e.g. imgproxy).

JavaScript is never required for sharpness — it's only a polyfill for Safari < 27.

Requirements

PHP 8.3+ (tested 8.3 / 8.4 / 8.5)
TYPO3 13.4 LTS or 14.3 LTS
A working image processor (GraphicsMagick or ImageMagick — TYPO3's standard GFX settings) for local processing; alternatively an external processor (e.g. imgproxy)
A non-empty encryptionKey (standard on every TYPO3 install — see Signing below)

Installation

composer require schliesser/imaginator

A Composer install activates the extension automatically. Installing it is enough to use the <i:image> ViewHelper — no Site Set or TypoScript is required. Configure it under Settings → Extension Configuration (see below).

Usage

Declare the ViewHelper namespace once per template and call <i:image>:

<html xmlns:i="http://typo3.org/ns/Schliesser/Imaginator/ViewHelpers"
      data-namespace-typo3-fluid="true">

    {# Simplest case: one ratio, renders an <img> with the full ladder #}
    <i:image image="{fileReference}" aspectRatio="16:9" alt="{fileReference.description}"/>

    {# By file UID or path #}
    <i:image src="{file.uid}" treatIdAsReference="0" aspectRatio="4:3" alt="A product"/>

    {# Art direction: per-breakpoint ratios render a <picture> with one <source media> each.
       The map is {breakpoint: ratio}; keys are preconfigured breakpoint aliases (see extension
       config) or a px min-width, with 0 / xs as the base. Tiers are mobile-first (min-width
       only); the base (min-width 0) tier becomes the <img> fallback, larger tiers become
       <source>s. #}
    <i:image image="{image}"
             aspectRatio="{0: '1:1', 'lg': '16:9'}"
             alt="This is an image"/>

    {# LCP / above-the-fold image: drops lazy-loading, adds fetchpriority="high"
       and an explicit sizes="100vw" #}
    <i:image image="{hero}" aspectRatio="16:9" alt="Hero" priority="1"/>
</html>

Arguments

Argument	Type	Default	Description
`image`	`File`/`FileReference`	–	FAL object (use this or `src`)
`src`	string	`''`	File UID or path (e.g. `fileadmin/img/x.jpg`)
`treatIdAsReference`	bool	`false`	Treat `src` as a `sys_file_reference` UID
`aspectRatio`	string \| map	`16:9`	`"W:H"`, or a `{breakpoint: "W:H"}` map for art direction
`cropVariant`	string	`default`	FAL crop variant to use
`alt`	string	`''`	Alternative text
`class`	string	–	CSS class on the `<img>`
`priority`	bool	`false`	Mark as the LCP image (see below)

width/height are always emitted from the largest rung, so there is zero layout shift.

Priority / LCP images

Set priority="1" on the above-the-fold (LCP) image. Imaginator then:

drops loading="lazy" and adds fetchpriority="high" on the <img>;
renders an explicit sizes="100vw" instead of sizes="auto";
adds a <link rel="preload" as="image" imagesrcset="…" imagesizes="100vw" type="image/…" fetchpriority="high"> to the <head>, so the request is discoverable in the initial document before the body is parsed.

Only the most-preferred format is preloaded (gated by type, so other browsers don't double-download), and its imagesrcset/imagesizes mirror the rendered tier exactly so the browser reuses the preload. This satisfies Lighthouse's "LCP request is discoverable", "not lazily loaded" and "fetchpriority should be applied" audits. Use it on one image per page.

`sizes="auto"` and the Safari polyfill

Zero-config sizing relies on sizes="auto", which lets the browser pick the right srcset candidate from the laid-out width — no hand-written sizes, no per-image breakpoints. Chrome/Edge (126+) and Firefox (150+) support it natively; Safari and iOS Safari only from version 27 (WebKit landed it in March 2026; Safari 27 ships in the 2026 cycle). On older Safari/iOS an unsupported sizes="auto" falls back to 100vw, so they fetch an oversized (but still sharp) candidate. (sizes="auto" is spec-valid only on loading="lazy" images, which is exactly where Imaginator emits it — priority/eager images get an explicit sizes="100vw" instead.)

To close that gap, whenever a processed <i:image> renders, Imaginator queues a tiny progressive-enhancement script via the AssetCollector (head, async, registered once per page): the vendored Shopify/autosizes polyfill (MIT, Resources/Public/JavaScript/frontend/autosizes.js). It self-detects native support and backs off; on Safari it measures the rendered width and writes a concrete pixel sizes, so the browser picks a right-sized candidate. It is never load-bearing — sharpness comes from the server-rendered ladder, so the page works fully with JavaScript disabled — and it only touches <img loading="lazy" sizes="auto">, so priority/LCP images are untouched (they carry an explicit sizes="100vw" and loading="eager"). Pages without any <i:image> ship no extra JS.

Crop & focus areas

When an image (a FAL FileReference) is rendered, the editor's crop variant is resolved server-side: it reads the reference's crop JSON and fits the requested ratio inside the crop area, centered on the focus area — so the framing the editor chose is honored and no crop geometry is exposed in the URL. The ladder is bounded by the crop area, so a tightly-cropped region is never upscaled. A src given as a path or plain file uid (f…) has no crop data and is center-cropped to the ratio.

Configuration

Configuration is instance-wide Extension Configuration. Edit it under Settings → Extension Configuration → imaginator in the backend, or set it in config/system/settings.php:

$GLOBALS['TYPO3_CONF_VARS']['EXTENSIONS']['imaginator'] = [
    'lqip' => 'dominant-color',
    'ladder' => '320,640,960,1280,1920',
];

Setting	Default	Description
`processor`	`local:async`	Image processor: `local:async` (signed endpoint + 302), `local:sync` (static `srcset`, no middleware) or `imgproxy` (offloaded)
`maxDimension`	`3840`	Largest image dimension in px; the ladder is capped to it
`ladder`	`320,420,560,740,980,1300,1720,2000,2560,3200,3840`	Width-ladder rungs (comma-separated), covering up to 4K (UHD) displays
`format`	`avif`	Single uniform output format: `avif` or `webp`
`quality.avif`	`50`	AVIF quality (AVIF's scale sits lower than JPEG/WebP for the same perceived quality)
`quality.webp`	`72`	WebP quality
`lqip`	`thumbhash`	Low-quality placeholder: `thumbhash`, `dominant-color` or `none`

The signing secret is derived from the global encryptionKey; when it changes, flush the frontend caches so re-rendered HTML carries freshly signed URLs. Settings are global by design, so the render path and the signed-endpoint verify path always agree (a per-site model would risk mismatched ladders → spurious 403s).

Content Security Policy

The placeholder is not rendered as an inline style="" attribute (those cannot carry a CSP nonce). The <img> only gets a CSS class; the actual rule is registered through TYPO3's AssetCollector and emitted as a <style> element, which TYPO3 nonces automatically when frontend CSP is enabled. Identical placeholders are deduplicated to a single rule.

CSP directives you may need:

thumbhash (default): the blurred preview is a data: background-image, so allow img-src data: (TYPO3's default frontend CSP already does).
dominant-color: a plain background color — needs nothing beyond the nonced <style>.
none: no placeholder, no extra directive.

The local:async image endpoint

Each async candidate URL has one of these forms:

reference: /_imaginator/{16-hex-signature}/r{referenceUid}/{cropVariant}/{width}x{height}.{ext}
file:      /_imaginator/{16-hex-signature}/f{fileUid}/{cropVariant}/{width}x{height}.{ext}

The uid is site-unique, so no storage segment is needed. A PSR-15 middleware verifies the signature, re-checks the width against the ladder, processes the image and 302-redirects to the processed file with Cache-Control: public, max-age=31536000, immutable. A forged or tampered URL returns 403, and only ladder-quantized widths are ever processed — so the endpoint cannot be abused to exhaust the server with arbitrary sizes.

If the derivative already exists at render time, the static processed-file URL is written straight into the markup — so the web server serves it directly, with no middleware/PHP roundtrip.

The signing secret is derived automatically from $GLOBALS['TYPO3_CONF_VARS']['SYS']['encryptionKey']. No configuration is needed, but note that changing encryptionKey invalidates previously generated URLs (they will re-sign on the next render).

Contributing

A reproducible DDEV demo instance, the full test workflow, and the coding/PR conventions are documented in CONTRIBUTING.md. In short:

ddev start && ddev setup && ddev demo   # demo at https://imaginator.ddev.site/ (admin / Password.1)
ddev test all && ddev lint

License

GPL-2.0-or-later.
