README

A Filament plugin for labeling images — draw rectangles and polygons, name them, color them, all inside one form field. Built on Annotorious, with a polymorphic persistence layer so any Eloquent model can keep its annotations.

Features

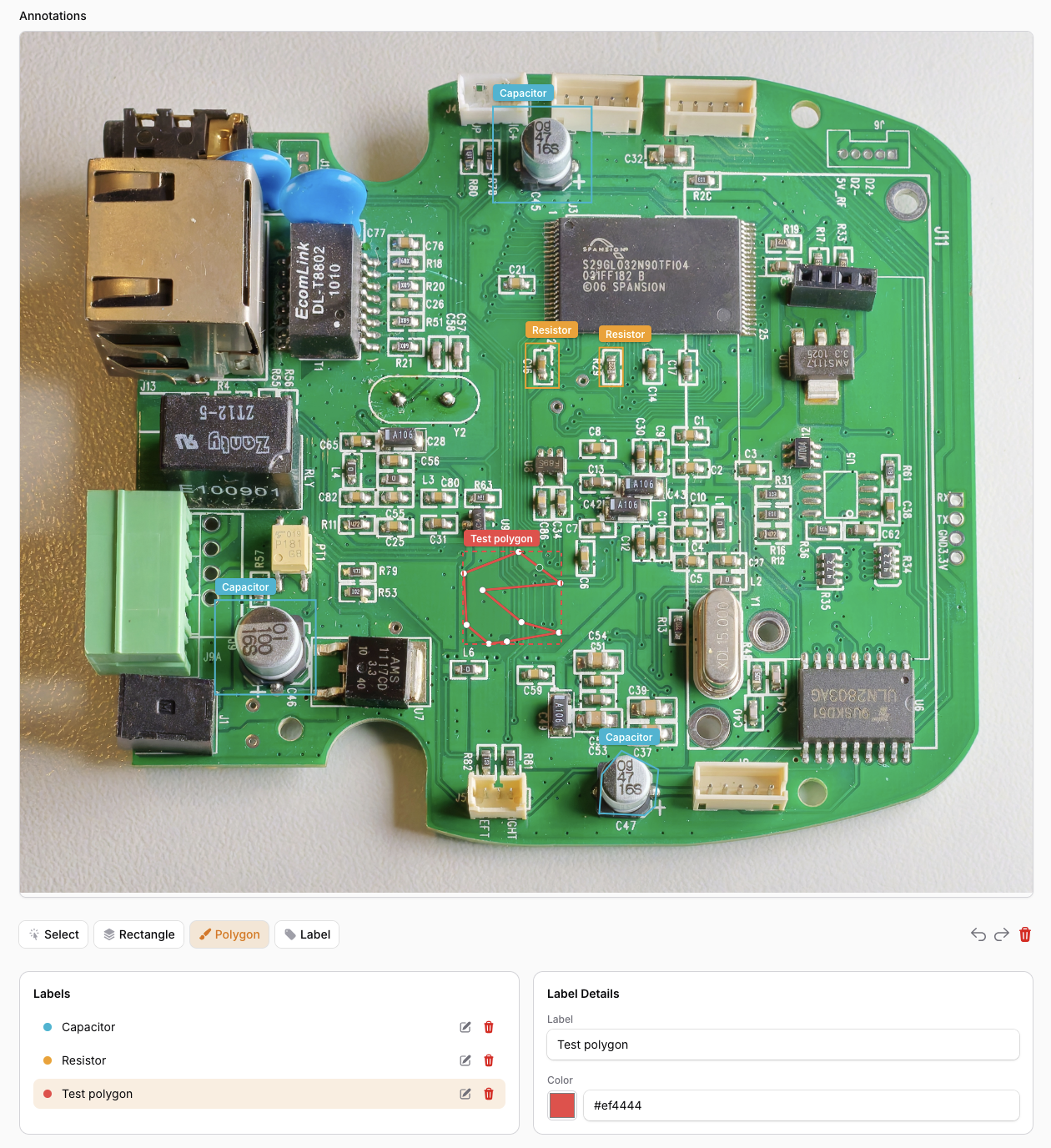

Annotation canvas with a toolbar under the image: Select / Rectangle / Polygon / Label, plus undo / redo / delete
Built-in Labels panel — every distinct label gets a row with a color dot, edit and delete
Built-in Label Details panel — rename a label (renames every shape using it) and pick its color
Label pills rendered over the shapes on the canvas
Two-way selection: click a shape to load its label, click a row to select the shape
Polymorphic annotations table — attach annotations to any model
HasAnnotations trait with syncAnnotations() for easy CRUD
Optional entity links — link a shape to a record in your own app (a Person, a Building, anything): an inline entity picker in the Label Details panel searches across the types you configure, the linked entity shows as a chip (optionally clickable — a template Action opens its URL or modal), and the first link seeds an empty label with the record's display string
Optional automatic annotation — a model overrides autoAnnotate() to turn an image into suggestions (any backend you like: local model, detection API, LLM); the editor gets an Annotate button, optionally auto-running when the image loads
Works with private/public file storage, Filament v5 compatible, translations (en/de/pl)
Laravel Boost aware — ships an AI guideline + agent skill so coding agents write correct ImageLabel usage (see AI coding agents)

Installation

composer require zielu92/filament-image-labeler
php artisan migrate

AI coding agents (Laravel Boost)

This package ships first-class Laravel Boost resources so AI coding agents (Claude Code, Cursor, etc.) generate correct code for it out of the box:

resources/boost/guidelines/core.blade.php — a short always-on guideline (what the package is, install, and a pointer to the skill).
resources/boost/skills/filament-image-labeler-development/ — an on-demand skill with the full field API, the persistence mapping, entity links and automatic annotation.

Boost discovers these automatically. To load them into your app's agent files, run php artisan boost:install and tick zielu92/filament-image-labeler in the third-party packages prompt (the choice is remembered in boost.json; use php artisan boost:update --discover on an existing Boost install). Nothing is injected without that opt-in. The skill requires Laravel Boost 2.x; the guideline also works on 1.x.

How It Works

ImageLabel is a self-contained form field. Its Livewire state is an array of shapes:

[
    {
        "id": "uuid",
        "target": {
            "selector": {
                "type": "RECTANGLE",
                "geometry": { "x": 693, "y": 88, "w": 256, "h": 160, "bounds": { "minX": 693, "minY": 88, "maxX": 949, "maxY": 248 } }
            }
        },
        "label": "Microcontroller",
        "color": "#ef4444",
        "entity": { "type": "App\\Models\\Part", "id": 12 }
    }
]

target.selector is Annotorious' internal geometry — pixel coordinates in the image's natural size; polygons use { "type": "POLYGON", "geometry": { "points": [[x, y], ...], "bounds": {...} } }. Store it as-is, it round-trips.
label is free text; shapes sharing a label share a row in the Labels panel.
color is assigned deterministically from a hash of the label name and can be overridden per label in the UI. Colors are denormalized onto each shape, so the state array is all you need to persist.
entity is the entity link — a reference to one record — and only appears on fields configured with ->linkableTo().

Usage

1. Add the trait to your model

use Zielu92\FilamentImageLabeler\Concerns\HasAnnotations;

class Photo extends Model
{
    use HasAnnotations;
}

This gives your model $photo->annotations() (morphMany), $photo->syncAnnotations(array $data) and automatic cascade delete.

2. Add the field to your Filament form

use Zielu92\FilamentImageLabeler\Forms\Components\ImageLabel;

ImageLabel::make('annotations')
    ->image(fn ($get, $record) => /* resolve the current photo URL */)
    ->live()
    ->columnSpanFull()

The image closure is re-evaluated whenever the form renders, so the canvas follows the form: make the photo field ->live() and resolve the URL from its state (this also covers freshly uploaded, not-yet-saved files):

->image(fn ($get, $record) => $record?->exists
    ? $record->getFirstMedia()?->getTemporaryUrl(now()->addHour())
    : ($get('photo') instanceof \Livewire\Features\SupportFileUploads\TemporaryUploadedFile
        ? $get('photo')->temporaryUrl()
        : null))

As a fallback the field also reacts to a Livewire::dispatch('image-labeler-update-url', $url) event. Pass the field's state path as a second argument (..., $url, 'annotations')) when a page renders multiple ImageLabel fields, so only the matching one updates.

Keyboard

In edit mode: Delete / Backspace removes the selected shape(s), Esc deselects or cancels an in-progress polygon, and Ctrl/Cmd+Z / Ctrl/Cmd+Y (or the toolbar arrows) undo/redo.

3. Persist on save, hydrate on edit

Map the field state onto syncAnnotations() — the app decides what goes into metadata:

/** @param array<array{id: string, target: array, label: string, color: string, entity?: array{type: string, id: int|string}|null}> $shapes */
function annotationRows(array $shapes): array
{
    return collect($shapes)->map(fn ($s) => [
        'annotation_id' => $s['id'],
        'geometry' => $s['target'],
        'metadata' => ['label' => $s['label'] ?? '', 'color' => $s['color'] ?? null],
    ])->all();
}

// CreatePhoto.php
class CreatePhoto extends CreateRecord
{
    protected function mutateFormDataBeforeCreate(array $data): array
    {
        $this->annotationData = annotationRows($data['annotations'] ?? []);
        unset($data['annotations']);

        return $data;
    }

    protected function afterCreate(): void
    {
        $this->record->syncAnnotations($this->annotationData);
    }
}

// EditPhoto.php
use Zielu92\FilamentImageLabeler\Support\AnnotationColor;

class EditPhoto extends EditRecord
{
    protected function mutateFormDataBeforeFill(array $data): array
    {
        $data['annotations'] = $this->record->annotations()->orderBy('id')->get()
            ->map(fn ($ann) => [
                'id' => $ann->annotation_id,
                'target' => $ann->geometry,
                'label' => $ann->metadata['label'] ?? '',
                'color' => $ann->metadata['color'] ?? AnnotationColor::forLabel($ann->metadata['label'] ?? ''),
            ])
            ->values()
            ->all();

        return $data;
    }

    protected function mutateFormDataBeforeSave(array $data): array
    {
        $this->annotationData = annotationRows($data['annotations'] ?? []);
        unset($data['annotations']);

        return $data;
    }

    protected function afterSave(): void
    {
        $this->record->syncAnnotations($this->annotationData);
    }
}

AnnotationColor::forLabel('USB Port') returns the same color the canvas picks for a label by default — use it when your metadata was saved without an explicit color.

The `syncAnnotations` Method

$model->syncAnnotations([
    [
        'annotation_id' => 'uuid-from-canvas',
        'geometry' => ['selector' => ['type' => 'RECTANGLE', 'geometry' => ['x' => 693, 'y' => 88, 'w' => 256, 'h' => 160, 'bounds' => ['minX' => 693, 'minY' => 88, 'maxX' => 949, 'maxY' => 248]]]],
        'metadata' => ['label' => 'Microcontroller', 'color' => '#ef4444'],
    ],
]);

Behavior: creates missing rows (matched by annotation_id), updates existing ones, deletes rows whose annotation_id is absent, [] clears all. geometry accepts an array or JSON string; metadata is nullable and yours to shape. Entity links: pass entity_type + entity_id as a pair; an explicit null clears the link, omitting the keys leaves the stored link untouched, and a half pair (one set, one null) is coerced to a full clear.

Entity links

A shape can point at one record from your own app — a Person, a Building, a Place — beside its free-text label. The link survives label renames and lives in its own entity_type / entity_id columns, never in metadata. Everything below is opt-in: no linkableTo() means no picker, no chip, no links.

1. Enable the feature

Declare which record types a field allows. Each entry is a LinkableType:

use Zielu92\FilamentImageLabeler\Forms\Components\ImageLabel;
use Zielu92\FilamentImageLabeler\Support\LinkableType;

ImageLabel::make('annotations')
    ->image(/* ... */)
    ->linkableTo([
        // Display convention: name column, else title, else "#<id>".
        LinkableType::make(Building::class),

        // Custom display: you must also tell the picker which columns to search.
        LinkableType::make(Person::class)
            ->display(fn (Person $person): string => "{$person->first_name} {$person->last_name}")
            ->searchBy(['first_name', 'last_name']),

        // Override the type heading shown above grouped picker results, and
        // allow creating a record from the picker with a form schema
        // (pass your Filament resource's form here if you have one).
        LinkableType::make(Vendor::class)
            ->typeLabel('Supplier')
            ->creatable(fn () => [TextInput::make('name')->required()]),
    ])
    ->columnSpanFull()

`LinkableType` method	What it does
`->display(fn ($record): string)`	How a linked record is shown on the chip and in results. If you set a custom display you must also set `searchBy()`, or the picker can't find anything.
`->searchBy(array $columns)`	The columns the picker runs indexed `LIKE` matches against. Defaults to `name` / `title` when present.
`->typeLabel(string)`	The heading above that type's group in the results list. Defaults to the humanized model name.
`->creatable(array\|Closure)`	Lets the picker offer "Create ", opening a modal with your schema and binding the new record to the selected shape.

linkableTo() also takes a Closure returning the array, so the allow-list can depend on the record or the user.

2. Link shapes in the editor

With the feature on, the Label Details panel grows an entity picker — an inline search box (not a modal):

Type to search every linkable type at once; results are grouped under their type heading. Selecting a row links it to the currently selected shape; there is no link without an active shape.
Linking seeds the shape's label with the record's display string only when the label is empty, and colors it like any typed label.
A linked shape shows an entity chip (type + display string) with an unlink × on the right; relinking a shape replaces its link.
creatable() types add a "Create " row in the picker; the new record binds automatically. Which types offer creation is controlled field-wide with ->allowEntityCreation(): true (default) enables every type that has a schema, false disables all, and an array of model classes enables exactly those.

3. Persist and hydrate the link

The field state carries entity: ['type' => ..., 'id' => ...] per shape. Map it onto the syncAnnotations keys on save:

/** @param array<array{id: string, target: array, label: string, color: string, entity?: array{type: string, id: int|string}|null}> $shapes */
function annotationRows(array $shapes): array
{
    return collect($shapes)->map(fn ($s) => [
        'annotation_id' => $s['id'],
        'geometry' => $s['target'],
        'metadata' => ['label' => $s['label'] ?? '', 'color' => $s['color'] ?? null],
        'entity_type' => $s['entity']['type'] ?? null,
        'entity_id' => $s['entity']['id'] ?? null,
    ])->all();
}

And put it back into the shape on edit so the chip reappears:

$data['annotations'] = $this->record->annotations()->orderBy('id')->get()
    ->map(fn ($ann) => [
        'id' => $ann->annotation_id,
        'target' => $ann->geometry,
        'label' => $ann->metadata['label'] ?? '',
        'color' => $ann->metadata['color'] ?? AnnotationColor::forLabel($ann->metadata['label'] ?? ''),
        'entity' => $ann->entity_type ? ['type' => $ann->entity_type, 'id' => $ann->entity_id] : null,
    ])
    ->values()
    ->all();

syncAnnotations() treats the pair like any other key: null clears a link, omitting the keys leaves the stored link untouched, and a half pair (one set, one null) coerces to a full clear.

4. Clean up dangling links

Add the LinkableEntity trait to every linkable model. Deleting a record then nulls all links pointing at it (the shape and its label survive):

use Zielu92\FilamentImageLabeler\Concerns\LinkableEntity;

class Person extends Model
{
    use LinkableEntity;
}

Without the trait links dangle — the editor still renders them (with a class-name fallback) but nothing cleans them up. Stale links to types removed from linkableTo() keep rendering too; only the picker stops offering them.

5. Run an action from the link (entity link action)

Give linked entities a click action — open a record's show page, or run a modal right inside the editor — with one template Filament\Actions\Action whose closures receive the linked record:

use Filament\Actions\Action;

ImageLabel::make('annotations')
    ->image(/* ... */)
    ->linkableTo([LinkableType::make(Place::class)])
    ->entityAction(
        Action::make('viewPlace')
            ->url(fn (Place $record): ?string => route('places.show', $record))
    )

How it behaves:

The chip is the action. In edit mode, when the action is visible for the record the whole entity chip becomes clickable (mouse + Enter/Space); the unlink × keeps its own slot and stops propagation. Return false from ->visible(fn ($record) => ...) for a record and the chip is plain — no affordance to run.
URL or modal. A non-null ->url() for the record navigates in the same tab; without a URL the Action's own modal config (->schema(), ->modalHeading(), ->modalContent(), …) opens over the editor. A single template covers every type — branch on the record inside the closures. Action::make() needs a name for identification; the editor registers it internally as openLinkedEntity (one action per field).
Auto-created and auto-annotated links pick up the same affordance as soon as their display strings resolve.

Read-only mode. On a readOnly() field there is no Details panel or chip, so the affordance moves to the canvas: a single click on a linked, actionable shape runs its action (navigate, or open the modal); other shapes keep the hover-tooltip-only behavior. Link the field up exactly as in edit mode — the click handler activates on shapes whose link resolves to a visible action:

ImageLabel::make('annotations')
    ->image(fn ($record) => $record->getFirstMedia()?->getUrl())
    ->readOnly()
    ->dehydrated(false)
    ->linkableTo([LinkableType::make(Place::class)])
    ->entityAction(
        Action::make('viewPlace')
            ->url(fn (Place $place): ?string => route('places.show', $place))
            // Or an in-editor modal instead of a URL:
            // ->schema(fn (Place $place) => [ /* read-only display components */ ])
            // ->modalHeading(fn (Place $place) => $place->name)
    )
    ->columnSpanFull()

Guards. Clicks are re-validated server-side every mount: the type must be in linkableTo() and the record must still exist — a violation throws, and stale links simply render with no affordance. The resolved url() is cached per session mount, so a mid-session rename shows the old href until reload; the modal path is always fresh (the record is re-resolved on open).

Automatic annotation

Let a model label its own images. The package defines only that it happens and what shape the answer has — how you find things in the image is entirely yours (local model, hosted detector, vision LLM, hardcoded test data).

1. Override the hook on your model. The contract: return a list of AnnotationSuggestion DTOs (label + normalized box/polygon). The trait default returns null, which keeps the feature off:

use Zielu92\FilamentImageLabeler\Concerns\HasAnnotations;
use Zielu92\FilamentImageLabeler\Support\AnnotationSuggestion;

class Photo extends Model
{
    use HasAnnotations;

    /**
     * @return list<AnnotationSuggestion>|null  one DTO per finding
     */
    public function autoAnnotate(string $url, ?string $path): ?array
    {
        // $url  - the image URL the editor currently displays
        // $path - a local temp file for that URL, when the package could fetch it (null otherwise)
        // Coordinates are normalized: fractions of the image's width/height.

        return [
            AnnotationSuggestion::box('USB Port', 0.42, 0.11, 0.18, 0.09),
            AnnotationSuggestion::polygon('Heatsink', [[0.1, 0.1], [0.3, 0.12], [0.28, 0.4]]),
        ];
    }
}

AnnotationSuggestion is the DTO the package defines (src/Support/AnnotationSuggestion.php): immutable, validates its geometry, exposes label + normalized points. Build it with ::box($label, $x, $y, $w, $h) / ::polygon($label, [[x, y], ...]). A plain array ['label' => ..., 'box' => ...] is accepted too — the package converts it with AnnotationSuggestion::fromArray() — so JSON straight from a detection API works without ceremony.

2. Choose what does the thinking — it's your method, per model. The package never calls anything itself, so every model can annotate completely differently: a YOLO endpoint here, a face-detection service there, an LLM somewhere else, an ONNX runtime in-process, a python sidecar, hardcoded fixtures in tests. Models share a strategy via a trait/base class, or branch inside the hook by whatever you know about the record:

use Illuminate\Support\Facades\Http;

class Photo extends Model
{
    use HasAnnotations;

    public function autoAnnotate(string $url, ?string $path): ?array
    {
        return match (true) {
            $this->isPortrait() => $this->detectFaces($url),
            $this->isHardware() => $this->detectParts($url),
            default => null,                       // this photo opts out
        };
    }

    protected function detectParts(string $url): ?array
    {
        // Any HTTP detector will do - map its response into suggestions.
        $detections = Http::timeout(20)->post('https://detector.test/v1/detect', [
            'image' => $url,
            'classes' => $this->source?->part_labels ?? ['*'],
        ])->json('detections', []);

        return array_map(
            fn (array $d): AnnotationSuggestion => AnnotationSuggestion::box(
                label: $d['class'],
                x: $d['bbox']['x1'],
                y: $d['bbox']['y1'],
                w: $d['bbox']['x2'] - $d['bbox']['x1'],
                h: $d['bbox']['y2'] - $d['bbox']['y1'],
            ),
            $detections,
        );
    }
}

Return null (or an empty array) when there is nothing to report — the field simply gets no shapes.

3. Enable the field:

ImageLabel::make('annotations')
    ->image(/* ... */)
    ->enableAutoAnnotation()   // arms the feature for this field
    ->autoAnnotateOnLoad()     // optional: run when the image appears
    ->autoAnnotateButton(false) // optional: hide the toolbar button (load-only)
    ->columnSpanFull()

What happens: clicking Annotate (or image load, with autoAnnotateOnLoad()) calls your autoAnnotate(), then the editor turns every suggestion into a normal shape right there on the canvas — the normalized points are scaled against the image the browser displays, so placement works for any URL, including protected/private ones. From there it is manual work: keep editing, undo, save through syncAnnotations() as usual. Results are never silently replaced on re-run; new shapes are appended (a multiple(false) field replaces).

Notes:

The button renders only when the field is enabled and the record actually overrides the hook; read-only fields never annotate.
Execution is synchronous with a spinner; a slow backend can hit request timeouts — that's your method's contract to keep snappy (queued execution may come later).
If your method throws, the editor shows the error under the toolbar and leaves your shapes untouched.
$path: the package hands your method a local file when it can get one without requesting your own server — plain paths, public /storage/... URLs, remote http(s) downloads (max 20 MB). Same-host URLs (e.g. Livewire's local upload preview route) yield null; write your method so the URL alone is enough when that matters.
Security: remote $path downloads refuse destinations that resolve to private, loopback, link-local (e.g. the cloud metadata address 169.254.169.254) or reserved IP ranges, and never follow redirects — so an app that builds image URLs from user-controlled state can't turn the fetch into an SSRF probe. If your images genuinely live on an internal host, opt in via config('filament-image-labeler.allow_private_image_hosts') (publishable config file, env IMAGE_LABELER_ALLOW_PRIVATE_IMAGE_HOSTS). Results are also discarded if the image is swapped or cleared mid-request.

ImageLabel Configuration

Method	Description	Default
`->image(string\|Closure $url)`	Image URL to annotate	required
`->enableSquare(bool\|Closure)`	Show the Rectangle tool button	`true`
`->enablePolygon(bool\|Closure)`	Show the Polygon tool button	`true`
`->enableClear(bool\|Closure)`	Show the delete/clear toolbar button	`true`
`->multiple(bool\|Closure)`	Allow multiple shapes (new shape replaces old when `false`)	`true`
`->coloredAnnotations(array\|null $palette)`	Palette used for default label colors	`ImageLabel::DEFAULT_PALETTE`
`->readOnly(bool\|Closure $condition)`	Display mode: shapes render, hovering shows the label; no toolbar or panels	`false`
`->linkableTo(array\|Closure $types)`	Enable entity links for these `LinkableType`s	off
`->allowEntityCreation(array\|bool\|Closure)`	Which linkable types offer in-picker record creation (needs `creatable()`)	`true`
`->entityAction(Action\|Closure\|null)`	Entity link action run from the chip / read-only canvas click	off
`->enableAutoAnnotation(bool\|Closure)`	Show the Annotate button (needs an `autoAnnotate()` override on the model)	`false`
`->autoAnnotateOnLoad(bool\|Closure)`	Also run automatic annotation when the image (re)loads	`false`
`->autoAnnotateButton(bool\|Closure)`	Show the toolbar button at all (turn off for hands-off, load-only annotation)	`true`
`->autoAnnotateButtonLabel(string\|Closure\|null)`	Button text	`'Annotate'` (translated)
`->autoAnnotateButtonIcon(string\|Closure\|null)`	Button icon; `null` for none	`'heroicon-m-sparkles'`

Read-only display

To show a saved photo's annotations without editing — e.g. on a view page or anywhere a form field fits — hydrate the same state and mark the field read-only:

ImageLabel::make('annotations')
    ->image(fn ($record) => $record->getFirstMedia()?->getUrl())
    ->readOnly()
    ->dehydrated(false)
    ->columnSpanFull()

Shapes are drawn in their label colors; hovering a shape shows a tooltip with its label and color. No drawing, selection, or panels — except that an entity link action turns a single click on a linked shape into a navigate-or-modal.

In edit mode the canvas, toolbar and the Labels / Label Details panels appear only while an image is set — the field owns label state internally, no repeater wiring needed.

Testing

public function test_sync_creates_annotations(): void
{
    $photo = Photo::factory()->create();

    $photo->syncAnnotations([
        [
            'annotation_id' => 'ann-1',
            'geometry' => ['selector' => ['type' => 'RECTANGLE', 'geometry' => ['x' => 10, 'y' => 20, 'w' => 100, 'h' => 50, 'bounds' => ['minX' => 10, 'minY' => 20, 'maxX' => 110, 'maxY' => 70]]]],
            'metadata' => ['label' => 'Person'],
        ],
    ]);

    $this->assertCount(1, $photo->annotations);
    $this->assertEquals('Person', $photo->annotations->first()->metadata['label']);
}

Changelog

Please see CHANGELOG for more information on what has changed recently.

Credits

This package uses Annotorious for the image annotation canvas, licensed under the BSD 3-Clause License.

License

The MIT License (MIT). Please see License File for more information.

zielu92 / filament-image-labeler

Package info

Security

Fund package maintenance!

Statistics

README

Features

Installation

AI coding agents (Laravel Boost)

How It Works

Usage

1. Add the trait to your model

2. Add the field to your Filament form

Keyboard

3. Persist on save, hydrate on edit

The `syncAnnotations` Method

Entity links

1. Enable the feature

2. Link shapes in the editor

3. Persist and hydrate the link

4. Clean up dangling links

5. Run an action from the link (entity link action)

Automatic annotation

ImageLabel Configuration

Read-only display

Testing

Changelog

Credits

License

zielu92 / filament-image-labeler

Package info

Security

Fund package maintenance!

Statistics

README

Features

Installation

AI coding agents (Laravel Boost)

How It Works

Usage

1. Add the trait to your model

2. Add the field to your Filament form

Keyboard

3. Persist on save, hydrate on edit

The syncAnnotations Method

Entity links

1. Enable the feature

2. Link shapes in the editor

3. Persist and hydrate the link

4. Clean up dangling links

5. Run an action from the link (entity link action)

Automatic annotation

ImageLabel Configuration

Read-only display

Testing

Changelog

Credits

License

The `syncAnnotations` Method
