99x/craft-swish-suite

Craft CMS plugin for Swish payment integration

0.0.1 2026-08-10 18:42 UTC

Requires

• php: >=8.2
• craftcms/cms: ^5.0
• endroid/qr-code: ^5.0
• guzzlehttp/guzzle: ^7.0
• ramsey/uuid: ^4.0

Requires (Dev)

• composer/pcre: ~3.3.2
• craftcms/commerce: ^5.0
• craftcms/ecs: dev-main
• craftcms/phpstan: dev-main
• friendsofphp/php-cs-fixer: ^3.20
• phpunit/phpunit: ^10.0
• symplify/easy-coding-standard: ^10.3

Suggests

• craftcms/commerce: ^5.0 — Required to use Swish Suite as a Commerce payment gateway

MIT

Published on Packagist.org on 2026-08-10 18:56 UTC

README

Professional Craft CMS 5 plugin for seamless Swish payment integration. Supports both E-Commerce and M-Commerce flows with asynchronous callback processing, comprehensive logging, and a full-featured Control Panel.

Swish is Sweden's leading mobile payment service, enabling quick and secure payments via QR codes or push notifications.

Features

• ✅ Full Swish API Integration — Payment requests, refunds, and status lookups
• ✅ Flexible Payment Flows — E-Commerce (push notification) and M-Commerce (QR code)
• ✅ Works With or Without Commerce — Standalone Swish payments, or an optional Craft Commerce gateway
• ✅ Asynchronous Processing — Queue-based callback handling prevents timeouts
• ✅ Control Panel Dashboard — Monitor payments, manage refunds, and diagnose issues
• ✅ Environment Configuration — Secure certificate and credential management
• ✅ Structured Logging — Async file logging with audit trails
• ✅ Partial Refunds — Full and partial refund support with Swish API validation
• ✅ Validated Callbacks — Per-payment callback identifiers and HTTPS enforcement

Table of Contents

• Requirements
• Installation
• Configuration
• Environment Variables
• Payment Flow
• Routes
• Craft Commerce Integration
• Control Panel
• Callbacks and Security
• Refunds
• Logging and Debugging
• Troubleshooting
• Architecture
• Development
• Security Considerations
• License

Requirements

Software

• PHP 8.2+ (same as your Craft CMS 5 installation)
• Craft CMS 5.0+

Craft Commerce 5.0+ is optional. Install it only if you want Swish available as a Commerce payment gateway. Without Commerce, the plugin runs as a standalone Swish payment solution — payments, refunds, callbacks, and the Control Panel all work on a regular Craft CMS site.

Swish Credentials

Before installing this plugin, you'll need:

• Merchant Swish Number (e.g., 1234679304)
• Client Certificate (.p12 file provided by Swish)
• Certificate Password (provided by Swish)
• CA Certificate (Swish_TLS_RootCA.pem — downloadable from Swish)

📌 Tip: Request your credentials from Swish Integration Support

Installation

Step 1: Install via Composer

composer require 99x/craft-swish-suite

Step 2: Enable in Craft Control Panel

1. Log in to the Craft Control Panel
2. Navigate to Settings → Plugins
3. Find Swish Suite and click Install

The plugin will automatically create required database tables.

Step 3: Configure Credentials

1. Go to Settings → Swish Suite
2. Enter your Swish merchant credentials:
   • Merchant Swish Number
   • Certificate Path
   • Certificate Password
   • CA Certificate Path
3. Choose Test Mode for development, disable for production
4. Click Save

💡 Security Tip: Use environment variables for sensitive credentials (see Environment Variables below)

Local Development with Path Repository

If you're developing the plugin locally:

{
  "repositories": [
    {
      "type": "path",
      "url": "../swish-payment-plugin/craft-swish-suite"
    }
  ],
  "require": {
    "99x/craft-swish-suite": "@dev"
  }
}

Then run:

composer update 99x/craft-swish-suite

Configuration

Configuration is managed in the Control Panel at Settings → Swish Suite.

Configuration Fields

Field	Required	Description
Swish Number	✅	Your 10-digit merchant Swish number (e.g., 1234679304)
Certificate Path	✅	Absolute path to your .p12 client certificate
Certificate Password	✅	Password protecting your certificate
CA Path	✅	Path to Swish root CA certificate (Swish_TLS_RootCA.pem)
Success URL	❌	Redirect after successful payment (default: /)
Cancel URL	❌	Redirect after cancelled payment (default: /shop/cart)
Checkout Title	❌	Payment method name in checkout (default: Pay with Swish)
Test Mode	❌	Use Swish MSS test environment (default: enabled)
Enable Logs	❌	Enable async logging for debugging (default: enabled)

Using Environment Variables

For security and environment-specific configuration, use environment variable aliases:

$SWISH_NUMBER
$SWISH_CERT_PATH
$SWISH_CERT_PASSWORD
$SWISH_CA_PATH

Example in CP field:

$SWISH_CERT_PATH

This will load the value from your .env file automatically.

Environment Variables

All credentials and configuration can be managed via environment variables — recommended for security and multi-environment deployments.

Required Variables

Variable	Purpose	Example
SWISH_NUMBER	Merchant Swish number	1234679304
SWISH_CERT_PATH	Path to .p12 certificate	/var/www/certs/merchant.p12
SWISH_CERT_PASSWORD	Certificate password	your-secure-password
SWISH_CA_PATH	Path to CA certificate	/var/www/certs/Swish_TLS_RootCA.pem

Optional Variables

Variable	Purpose	Default
SWISH_BASE_URL	Custom API endpoint	Automatic (test or prod)
SWISH_CALLBACK_URI	Public callback route	/swish/callback

Example .env Configuration

# Swish Integration
SWISH_NUMBER=1234679304
SWISH_CERT_PATH=/var/www/certs/swish-merchant.p12
SWISH_CERT_PASSWORD=your-secure-password-here
SWISH_CA_PATH=/var/www/certs/Swish_TLS_RootCA.pem

# Optional: Override API endpoint for testing
SWISH_BASE_URL=https://mss.cpc.getswish.net/swish-cpcapi/api/v2

# Optional: Custom callback route
SWISH_CALLBACK_URI=/payments/swish-callback

Critical: Callback URL Configuration

The callback endpoint must be:

• ✅ Publicly accessible over HTTPS
• ✅ Reachable from Swish servers (not localhost)
• ✅ Properly configured with Swish or using ngrok tunneling

Local Development Setup

For testing locally, use ngrok to expose your server:

# Terminal 1: Start ngrok tunnel
ngrok http 80

# Terminal 2: Copy the HTTPS URL and use in .env
# Example: https://abc123.ngrok.io
SWISH_CALLBACK_URI=/swish/callback

⚠️ Important: If the callback URL is unreachable, payments will remain in CREATED status indefinitely and never confirm.

Payment Flow

The plugin supports two payment flows depending on whether a Swish phone number is provided:

E-Commerce Flow (with Swish Phone Number)

Optimized for online purchases with immediate push notification:

User enters phone → Payment request created → Push notification sent
→ User confirms in Swish app → Callback received → Order confirmed

Advantages:

• Fast payment confirmation (no QR scan needed)
• Better user experience
• Real-time payment status updates

M-Commerce Flow (without Phone Number)

QR-based payments for in-store or mobile scenarios:

Payment request created → QR code displayed → User scans with Swish app
→ User confirms → Callback received → Order confirmed

Advantages:

• No phone number needed
• Works for POS systems
• Flexible payment options

Transaction Lifecycle

1. Payment Request — Plugin calls Swish API, stores payment record locally
2. Awaiting Confirmation — User approves in Swish app (push or QR)
3. Callback Received — Swish posts payment status to /swish/callback
4. Status Updated — Plugin updates payment record and creates Commerce transaction
5. Order Confirmed — Customer notified, order processing begins

Routes

The plugin registers the following routes:

Route	Purpose
/swish/checkout	Checkout screen
/swish/pay	Payment entry point
/swish/payments/process	Creates the Swish payment request
/swish/payments/waiting	Waiting screen shown while the payer confirms in the Swish app
/swish/payments/poll	Status polling endpoint used by the waiting screen
/swish/payments/success	Success page
/swish/payments/cancel	Cancellation page
/swish/callback	Async payment/refund status callback (configurable)

Note: The callback route is configurable via SWISH_CALLBACK_URI environment variable.

Craft Commerce Integration

Swish Suite seamlessly integrates with Craft Commerce 5 as a payment gateway.

Setting Up the Gateway

1. Navigate to Commerce → Settings → Gateways
2. Click New Gateway
3. Select Swish Suite as the gateway type
4. Enter a display name (e.g., "Swish Mobile Payment")
5. The handle is automatically set to swish-suite
6. Configure address conditions if needed
7. Save

The gateway automatically inherits merchant number, certificates, and test mode settings from the plugin configuration.

Checkout Template Example

{# In your Craft Commerce checkout template #}
{% set cart = craft.commerce.carts.cart %}

<form method="post">
  {{ csrfInput() }}
  {{ actionInput('commerce/payments/pay') }}

  {% for gateway in craft.commerce.gateways.allCustomerEnabledGateways %}
    {% if gateway.handle == 'swish-suite' %}
      <div class="payment-method">
        <h3>Pay with Swish</h3>

        {# Render the payment form (asks for optional phone number) #}
        {{ gateway.getPaymentFormHtml({}) | raw }}

        <input type="hidden" name="gatewayId" value="{{ gateway.id }}">
        <input type="hidden" name="redirect" value="{{ cart.returnUrl }}">

        <button type="submit" class="btn btn-primary">
          Pay {{ cart.totalPrice | commerceCurrency(cart.paymentCurrency) }} with Swish
        </button>
      </div>
    {% endif %}
  {% endfor %}
</form>

Payment Form Behavior

The Swish payment form includes:

• Optional Swish Phone Number — Field for user to enter their Swish-linked phone number
• E-Commerce vs M-Commerce — Form automatically selects the right flow:
  • Phone provided → E-Commerce (push notification)
  • No phone → M-Commerce (QR code display)

Transaction Status Updates

The order payment status is updated asynchronously via callback, not when users return to your site:

Status	Meaning
Processing	Payment request created, awaiting confirmation
Paid	Swish callback confirmed payment success
Failed	Swish callback reported payment declined or error

💡 Note: Always rely on Swish callbacks for payment confirmation, never on page redirects.

Control Panel

The plugin adds a Swish Suite section to the Craft Control Panel with five main areas:

Welcome

Quick-start guide and status overview for new installations.

Diagnostics

Configuration troubleshooting and health checks:

• Verifies certificate paths are readable
• Validates Swish API connectivity
• Tests callback endpoint reachability
• Confirms environment variables are set correctly

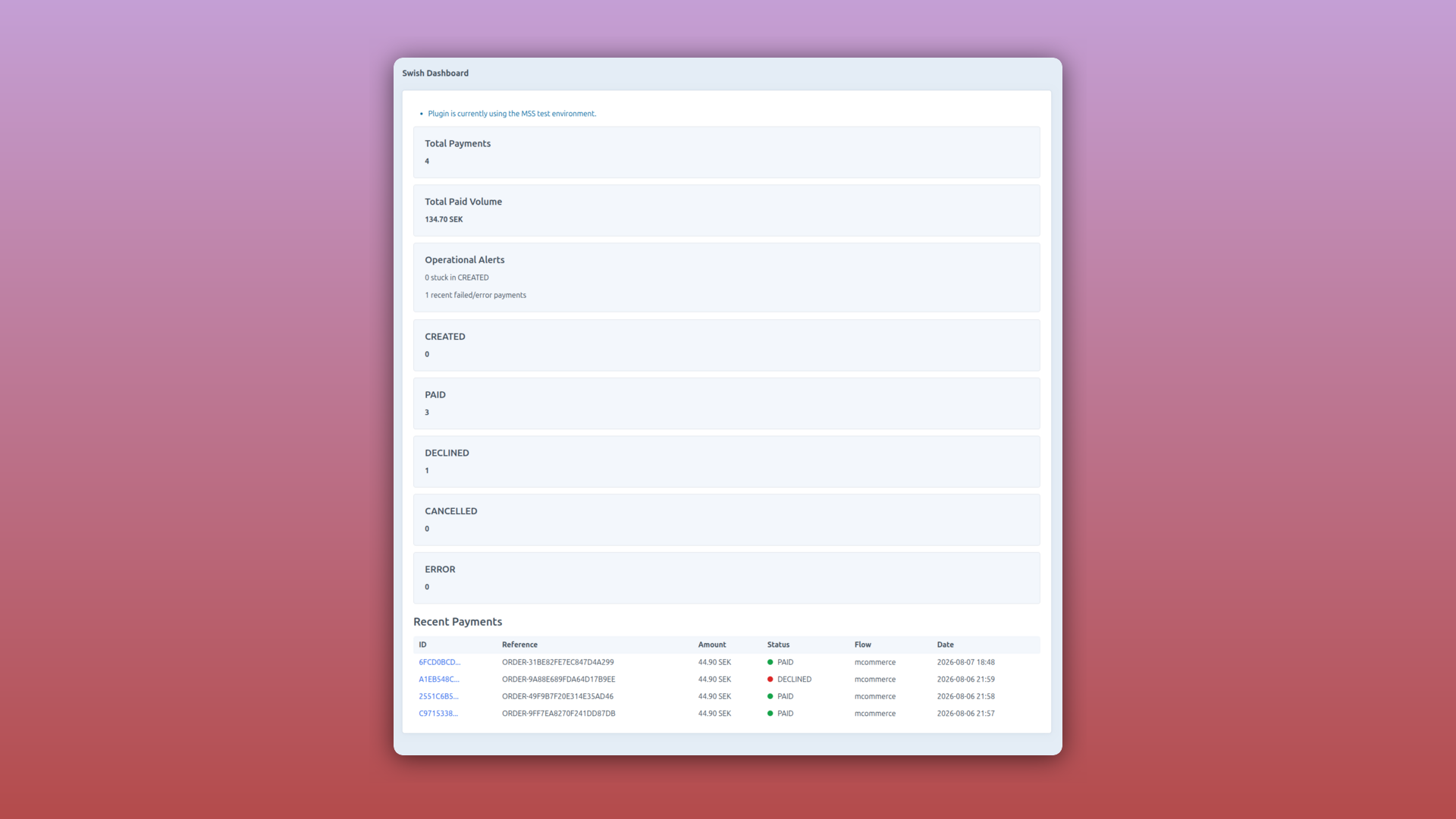

Dashboard

Operational overview of payment activity:

• Total payments, revenue, and success rate
• Recent payments with status indicators
• Payment state distribution (created, paid, failed)
• Quick filters by date range

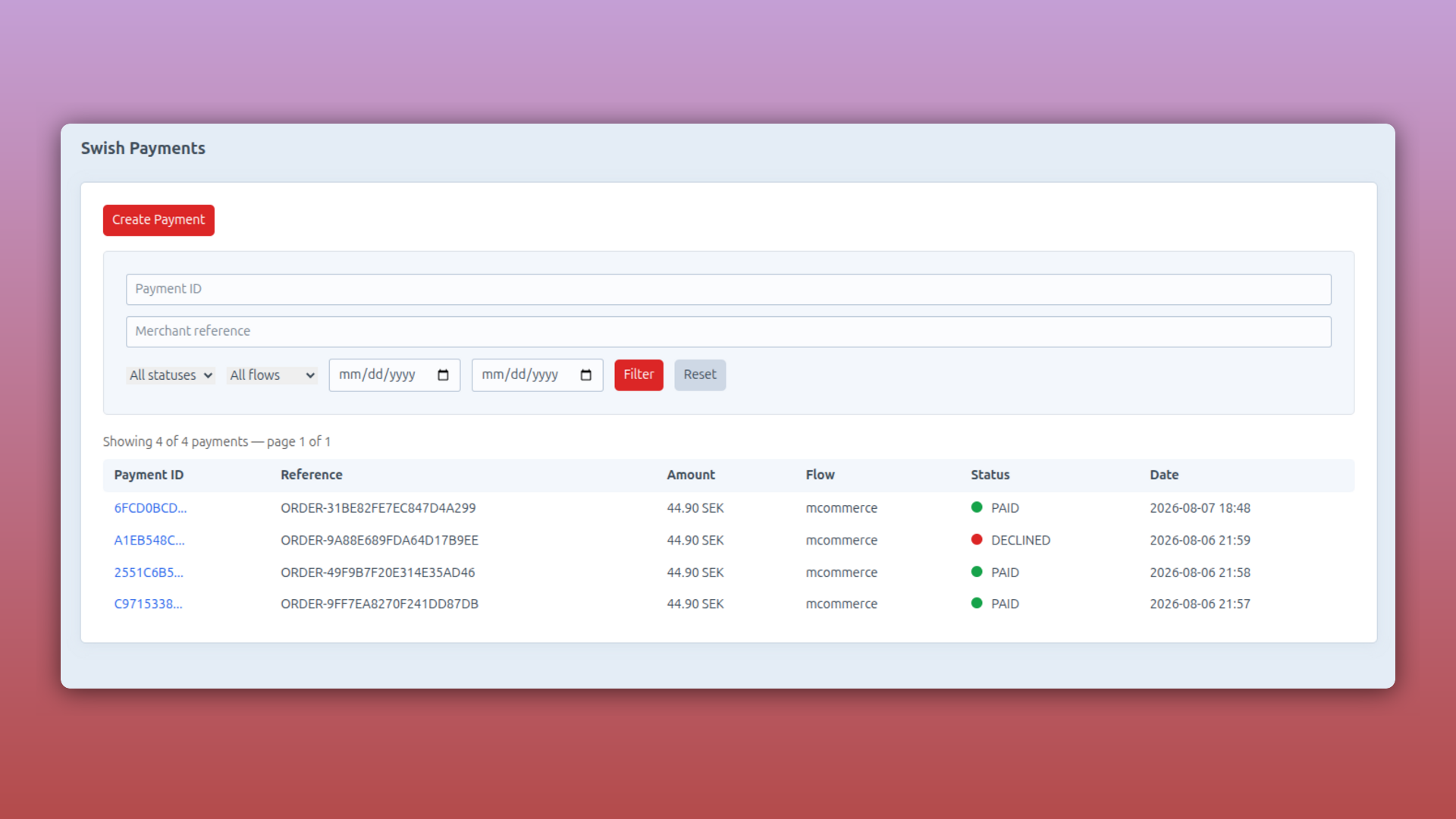

Payments

Complete payment history and management:

• Search and filter by payment ID, status, amount, or date
• Pagination and sortable columns
• Manual status refresh (lookup from Swish API)
• Payment details, response payload, and audit logs
• Export functionality for reports

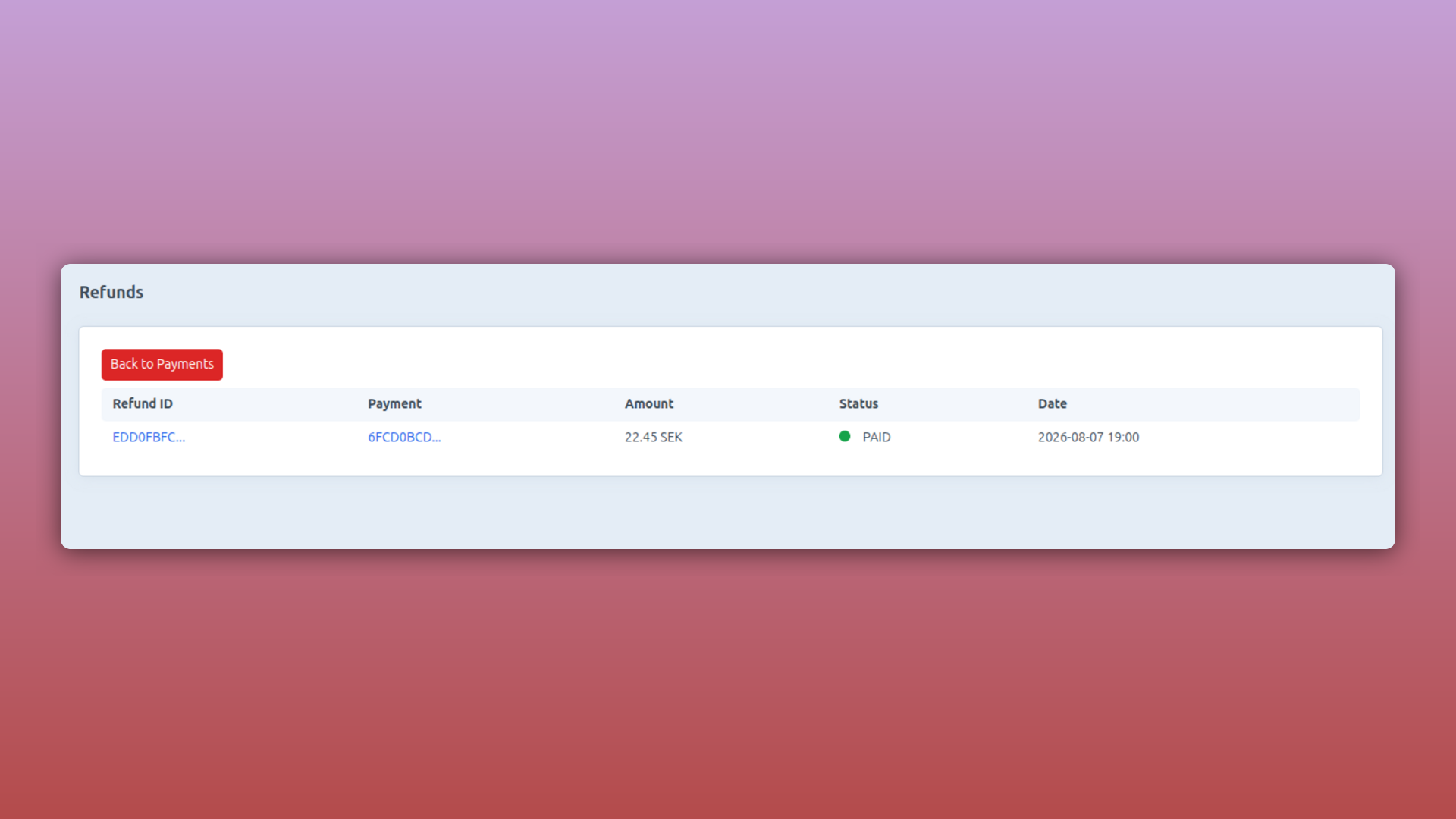

Refunds

Manage refunds for completed payments:

• List all refunds with status tracking
• Create new refunds (full or partial)
• Refund validation and balance checks
• Audit trail and response logs

All screens feature real-time status updates and detailed logging for troubleshooting.

Callbacks and Security

Callback Validation

The callback endpoint (/swish/callback) applies the following:

✅ Identifier Validation — Each callback is matched against the callbackIdentifier UUID generated for that specific payment ✅ HTTPS Only — Enforced for production environments ✅ CSRF Exemption — Required for payment gateway callbacks ✅ Anonymous Access — Allows Swish infrastructure to post without authentication ✅ Request Logging — Full body and headers logged for audit trails

Note on validation strength: the plugin does not verify a cryptographic signature (there is no HMAC). Callbacks are authenticated by the unguessable per-payment callbackIdentifier UUID, which Swish echoes back. This is shared-secret validation, not signature verification — treat the callback URL and identifiers as secrets, and keep the endpoint on HTTPS.

Callback Processing

1. Incoming callback is validated against the payment's callbackIdentifier
2. Request body and headers are logged
3. Processing is queued asynchronously to prevent timeouts
4. Payment record is updated with Swish response
5. Commerce transaction is created if payment confirmed (PAID status)
6. Event is triggered for custom handling if needed

Invalid Callbacks

Invalid or inconsistent callbacks are:

• Logged with full details for debugging
• Always responded to with HTTP 200 to prevent Swish retry storms
• Never processed or used to update payment status

Logging

All callbacks are logged with:

• Timestamp and IP address
• Request body (payment/refund details)
• Response headers and validation results
• Processing status and errors

Logs are available in Swish Suite → Payments or in the file system at storage/logs/swish-suite-YYYY-MM-DD.log.

Refunds

The plugin supports full and partial refunds through the Swish API with full Craft Commerce integration.

Refund Rules

Before creating a refund, the plugin verifies:

• ✅ Original payment exists and has status PAID
• ✅ Payment has a valid paymentReference from Swish
• ✅ Refund amount doesn't exceed available balance (original amount minus prior refunds)
• ✅ Refund amount is positive and properly formatted

Issuing a Refund

Via Craft Commerce

1. Go to Orders → [Order] → Transactions
2. Click Refund on the successful payment transaction
3. Enter refund amount (or leave blank for full refund)
4. Confirm

The gateway will:

1. Validate the original payment and available balance
2. Send refund request to Swish API
3. Create a child refund transaction in Commerce (initial status: Processing)
4. Wait for Swish callback to confirm refund status

Via Swish Suite Control Panel

1. Go to Swish Suite → Refunds
2. Click New Refund
3. Select the payment and enter refund amount
4. Confirm

Refund Status

Refunds progress through these statuses, updated via Swish callbacks:

Status	Meaning
CREATED	Refund request sent to Swish, awaiting confirmation
PAID	Refund successfully processed by Swish
DECLINED	Swish rejected the refund (insufficient balance, expired, etc.)
ERROR	Processing error (invalid reference, API error, etc.)

Refund Limits

• Per transaction: Cannot exceed the original payment amount
• Partial refunds: Full support via Swish API
• Multiple refunds: Can issue multiple partial refunds for the same payment
• Refund timeline: Typically processes within 1-2 business days

Monitor refund status in Swish Suite → Refunds or check the payment details in Swish Suite → Payments.

Logging and Debugging

Enable Logging

1. Go to Settings → Swish Suite
2. Enable Enable Logs toggle
3. Save settings

View Logs

Logs are written to: storage/logs/swish-suite-YYYY-MM-DD.log

Each log entry includes:

• Timestamp
• Log level (INFO, WARNING, ERROR)
• Event (payment callback, refund, API call, etc.)
• Payment or refund ID
• Error message (if applicable)

Diagnostic Screen

Access Swish Suite → Diagnostics to check:

• ✅ Certificate files readable and valid
• ✅ Swish API endpoint reachable
• ✅ Callback URL publicly accessible
• ✅ Environment variables configured
• ✅ Database tables created

Troubleshooting

Payment stuck in "Created" status

Symptom: Payment was submitted but status never updates to PAID or DECLINED.

Causes & Solutions:

• Callback URL unreachable — Verify callback URL is public HTTPS (use ngrok if testing locally)
• Firewall blocking requests — Check firewall/WAF rules allow POST from Swish IPs
• Wrong callback URI — Verify SWISH_CALLBACK_URI matches Swish configuration
• Log rotation issue — Check storage/logs/ for errors and recent activity

How to check:

1. Go to Swish Suite → Diagnostics and verify callback reachability
2. Check logs for callback attempts: tail -f storage/logs/swish-suite-*.log
3. Manually trigger status update: Swish Suite → Payments → Click payment → Refresh Status

"Certificate not found or not readable"

Symptom: Error message in diagnostics or payment attempt fails.

Solution:

1. Verify certificate file path exists: ls -la /path/to/cert.p12
2. Check file permissions: chmod 644 /path/to/cert.p12
3. Use absolute paths (not relative paths)
4. Test with local path first, then environment variable

Example:

# Good
/var/www/certs/swish-merchant.p12

# Bad (relative)
./certs/swish-merchant.p12
./certs/merchant.p12

Invalid callback identifier

Symptom: Logs show "Callback validation failed" but payment is from Swish.

Causes:

• Database corrupted or payment record deleted
• Multiple plugins processing the same callback
• Callback processed twice simultaneously

Solution:

1. Check Swish Suite → Payments — is the payment record there?
2. Verify callbackIdentifier column exists and has a value
3. Check database integrity: php craft db/migrate --track=false
4. Contact Swish support with payment ID and timestamp

"Test Mode" vs Production

Symptom: Payments work in test mode but not in production.

Solution:

1. Go to Settings → Swish Suite
2. Disable "Test Mode" for production
3. Update certificates for production (different from test certificates)
4. Update Swish Number for production account (different from test)
5. Clear any cached settings: php craft cache/flush-all

Refund amount exceeds available balance

Symptom: Cannot issue refund even for full payment amount.

Causes:

• Prior partial refunds reduced available balance
• Payment was already partially refunded
• Currency conversion issues (öre vs SEK)

Solution: Check Swish Suite → Payments → Payment details to see:

• Original payment amount (in öre)
• All refunds issued (sum of refund amounts)
• Available balance for new refunds

Architecture

Directory Structure

src/
  controllers/              # Frontend and Commerce controllers
  controllers/cp/           # Control Panel controllers
  migrations/               # Database migrations
  models/                   # Settings and form models
  queue/jobs/               # Async job queue handlers
  records/                  # Database models (Payment, Refund)
  services/                 # Core services (Swish API, callbacks, helpers)
  templates/                # Twig templates for CP and frontend
  twig/                     # Custom Twig filters and extensions
  enums/                    # Status enums (PaymentStatus, RefundStatus)
  events/                   # Custom events for plugins to hook into
  gateways/                 # Craft Commerce gateway implementation

Key Services

• SwishPaymentService — Handles API calls to Swish (payments, refunds, status lookups)
• CallbackHandlerService — Processes async payment/refund callbacks
• HelperFunctionService — Logging and utility functions

Development

Setup

All tooling runs inside ddev, so nothing needs to be installed on your machine beyond ddev itself. Every contributor gets the same PHP version and the same database, matching CI.

git clone https://github.com/99x/craft-swish-suite.git
cd craft-swish-suite

ddev start              # PHP 8.3 + MySQL 8.0 containers
ddev composer install
ddev composer check     # everything: style, static analysis, tests

Running Checks

# Everything, in order — fails fast on the first problem
ddev composer check

# Individually, while working:
ddev composer check-cs      # code style (ECS)
ddev composer fix-cs        # auto-fix code style
ddev composer phpstan       # static analysis (level 5)
ddev composer unit          # unit tests — no database needed
ddev composer integration   # integration tests — boots a real Craft app

CI runs these same scripts as separate steps, so a green ddev composer check locally means a green pipeline.

Test Suites

• Unit (tests/unit) — fast, no database, no Craft application. Covers behavior that doesn't need SwishSuite::getInstance() to resolve.
• Integration (tests/integration) — bootstraps a real Craft + Commerce application against the ddev database and exercises the gateway end to end, stubbing only the outbound Swish API call. The throwaway Craft install lives in tests/craft/ and is created automatically on first run.

Code Quality Tools

• PHPStan — static analysis at level 5, using the official craftcms/phpstan extension so Craft's types resolve correctly. No baseline: the codebase is clean.
• ECS — code formatting against Craft's own ruleset
• PHPUnit — unit and integration tests

Making a Pull Request

1. Create a feature branch: git checkout -b feature/my-feature
2. Make your changes
3. Run ddev composer check and make sure it passes
4. Commit with clear messages
5. Push and open a pull request

Security Considerations

Best Practices

• ✅ Always use HTTPS for callback URL (enforced in production)
• ✅ Store certificates outside webroot
• ✅ Use environment variables for sensitive credentials (not in .php files)
• ✅ Enable plugin logging for audit trails
• ✅ Run php craft cache/flush-all after updating credentials
• ✅ Monitor logs for suspicious activity

Sensitive Data

The plugin never stores:

• ❌ Certificate contents in database
• ❌ Certificate passwords in logs
• ❌ Credit card information (Swish doesn't transmit this)

The plugin does store, in plain database columns (not encrypted):

• Payment and refund amounts
• Payer phone numbers, when provided
• Payment status and Swish references
• Full Swish API responses, as JSON, for auditing

⚠️ Payer phone numbers are personal data. Because these columns are not encrypted at the application level, protect them at the infrastructure level — restrict database access, use encryption at rest, and include these tables in your data-retention and GDPR processes.

License

MIT License — See LICENSE file for details.

Made with ❤️ by 99x

For support, issues, or questions, please open an issue on GitHub.
