README

Harken is a long-running MQTT client runtime for Laravel. It does for MQTT what Laravel Reverb does for WebSockets: one php artisan harken:start process holds the broker connection, routes incoming messages to plain Laravel handlers, and publishes what your application asks it to, from handlers, timers, queued jobs or web requests.

It is a client, not a broker: run it next to EMQX, Mosquitto or any MQTT 3.1.1 / 5.0 broker.

// routes/harken.php
use App\Mqtt\HeartbeatHandler;
use App\Mqtt\StatusHandler;
use Whatef\Harken\Facades\Harken;

Harken::topic('devices/{id}/heartbeat', HeartbeatHandler::class)->qos(1);
Harken::topic('devices/{id}/status', StatusHandler::class)->qos(1)->queued();

Harken::every(5, fn () => app(PendingCommands::class)->sweep());

// anywhere in your application, for example a controller
Harken::urgent()->publish("devices/{$id}/command", json_encode(['open' => true]), qos: 1);

Features

Routes like Laravel routes. Topic patterns with {parameters}, invokable handlers resolved from the container, raw payload bytes, MQTT 5 properties.
Handlers on the event loop or on your queue. Short handlers run inline; ->queued() hands a message to a Laravel queue worker so a slow handler never holds up the loop.
Publishing from anywhere. Inside the runtime a publish goes straight out on its connection; from web requests and jobs it is queued in a Redis stream and published by the runtime, at least once, with an urgent lane.
Several replicas, each message handled once. By default one elected leader replica receives the routes (Redis or PostgreSQL lease, fixed client id, persistent session), and a standby takes over in about a second after a deployment or within the lease after a crash. Routes can opt into MQTT shared subscriptions or into every replica.
PostgreSQL LISTEN/NOTIFY and timers on the same loop, on the leader by default.
MQTT 5 and 3.1.1, TLS, reconnect with backoff, keepalive, broker limits and reason codes.
Operations built in. Graceful shutdown on SIGTERM, harken:restart for deployments, memory and time limits, harken:status for health checks, an HTTP /health endpoint, Laravel events, Laravel Pulse cards, Prometheus metrics and a Grafana dashboard.
Testable. Harken::fake() records publishes and simulates incoming messages; handlers are plain classes.

Requirements

PHP 8.4 or 8.5 and Laravel 12 or 13, on Linux x86_64 or aarch64 (both tested in Docker). No PHP extension is required; ext-pcntl (signals), ext-pgsql (NOTIFY without polling) and ext-uv are used when present.
An MQTT broker. Harken is tested against EMQX 5.8 and with Mosquitto clients.
Redis for publishing from outside the runtime and for the leader lock (or PostgreSQL 14+ for the lock).

Installation

composer require whatef/harken
php artisan vendor:publish --tag=harken-config --tag=harken-routes

Point it at your broker in .env:

HARKEN_HOST=mqtt.example.internal
HARKEN_PORT=8883
HARKEN_TLS=true
HARKEN_USERNAME=backend
HARKEN_PASSWORD=secret

Usage

Handlers

namespace App\Mqtt;

use Whatef\Harken\Runtime\Message;

final class HeartbeatHandler
{
    public function __construct(private DeviceRegistry $devices) {}

    public function __invoke(Message $message): void
    {
        // $message->payload holds the exact bytes the device sent
        $this->devices->sawHeartbeat($message->param('id'), $message->payload);
    }
}

Inline handlers run on the event loop: keep them short and move database-heavy or slow work to ->queued(). Handlers that take longer than 100 ms are logged.

Distribution across replicas

Harken::topic('devices/{id}/up', ReportHandler::class);              // the leader only (default)
Harken::topic('jobs/{id}', JobHandler::class)->shared('workers');     // one replica per message
Harken::topic('config/changed', RefreshCache::class)->broadcast();   // every replica

Harken::listen('outbox_ready', SweepPending::class);                  // PostgreSQL NOTIFY, leader only
Harken::every(60, fn () => Stats::flush())->broadcast();             // a timer on every replica

Publishing

Harken::publish('devices/42/state', $json, qos: 1, retain: true);
Harken::clearRetained('devices/42/state');
Harken::urgent()->publish('devices/42/command', $json, qos: 1);

Outside the runtime, publish() stores the message in a Redis stream (one XADD) and returns at once; every running replica takes part in publishing the stream, and an entry is removed only after the broker acknowledged it.

Running

php artisan harken:start

Run it like a queue worker: under a process manager, or as a container of your application image.

harken:
  image: my-app
  command: php artisan harken:start
  deploy:
    replicas: 2
  stop_grace_period: 15s
  healthcheck:
    test: ["CMD", "php", "artisan", "harken:status"]

Run php artisan harken:restart on deployment so every runtime stops gracefully and starts again with the new code.

Testing

Harken::fake();

$this->post('/doors/42/open');

Harken::assertPublished('devices/42/command', fn (string $payload) => json_decode($payload)->open === true);

Harken::simulate('devices/42/heartbeat', '{"battery":81}'); // runs the handler through the real router

Performance

Measured with real harken:start processes on a small virtual machine: 2 vCPU, 3.8 GB RAM, Ubuntu 24.04, PHP 8.5 (StreamSelectLoop, no ext-uv), with EMQX 5.8.9, Redis 7.4 and the load generators on the same two cores. Each device message is a QoS 1 report of about 400 bytes that the handler parses as JSON, checks against an HMAC-SHA256 signature and stores in memory.

Scenario	Result
Inbound, one runtime process, 10,000 msg/s	0 lost, broker publish → handler p50 1.1 ms, p99 3.2 ms, 27 % of one core, 55 MB RSS
Inbound, one runtime process, 15,000 msg/s	0 lost, p50 1.6 ms, p99 26.5 ms, 34 % of one core
Outbox: queued messages published to the broker	~17,000 QoS 1 publishes/s, each acknowledged by the broker before it is removed
`Harken::publish()` in a web request	p50 0.07 ms, p99 0.11 ms (one Redis `XADD`)
A command published while receiving 10,000 msg/s and a handler blocks for 50 ms five times a second	p99 3.4 ms with the slow handler `->queued()` (34 ms inline; 50 ms in a synchronous MQTT loop doing the same work)
Leader replica stopped by a deployment (SIGTERM)	standby receiving after 0.13 s, no QoS 1 message lost
Leader replica killed (SIGKILL)	standby receiving after 5.1 s (the 5 s lease), no QoS 1 message lost
Broker unreachable for 30 s	reconnects on its own, no QoS 1 message lost, a retained message published meanwhile arrives
24 hours at 1,000 msg/s, two replicas, outbox and PostgreSQL NOTIFY traffic	86.4 million messages, 0 lost, memory flat (leader RSS +0.02 MB from the second hour to the last), 6 % of one core
MQTT 5 codec, 400-byte PUBLISH	474,000 decoded/s, 587,000 encoded/s

On two cores these numbers are a floor rather than a ceiling: at 20,000 messages per second the broker and the generators used up the machine. Resized to six cores, with the runtime on a core of its own:

A message costs 28 µs of CPU, handler included, or 20 µs with the handler bound as a singleton and the JIT on.
One runtime process received 30,000 QoS 1 messages per second without loss (p99 3.6 ms, 60 % of its core with the singleton and the JIT). Above that the limit was the broker's delivery to one session (EMQX max_inflight), not the process: at QoS 0 the same process took 60,000 per second without loss, and two replicas sharing the route took 40,000 QoS 1 messages per second.
->queued() costs the event loop 110 – 170 µs per message (the Redis push), so queue slow work, not every message.

Method, every run and the scripts are in docs/benchmarks.md.

Monitoring

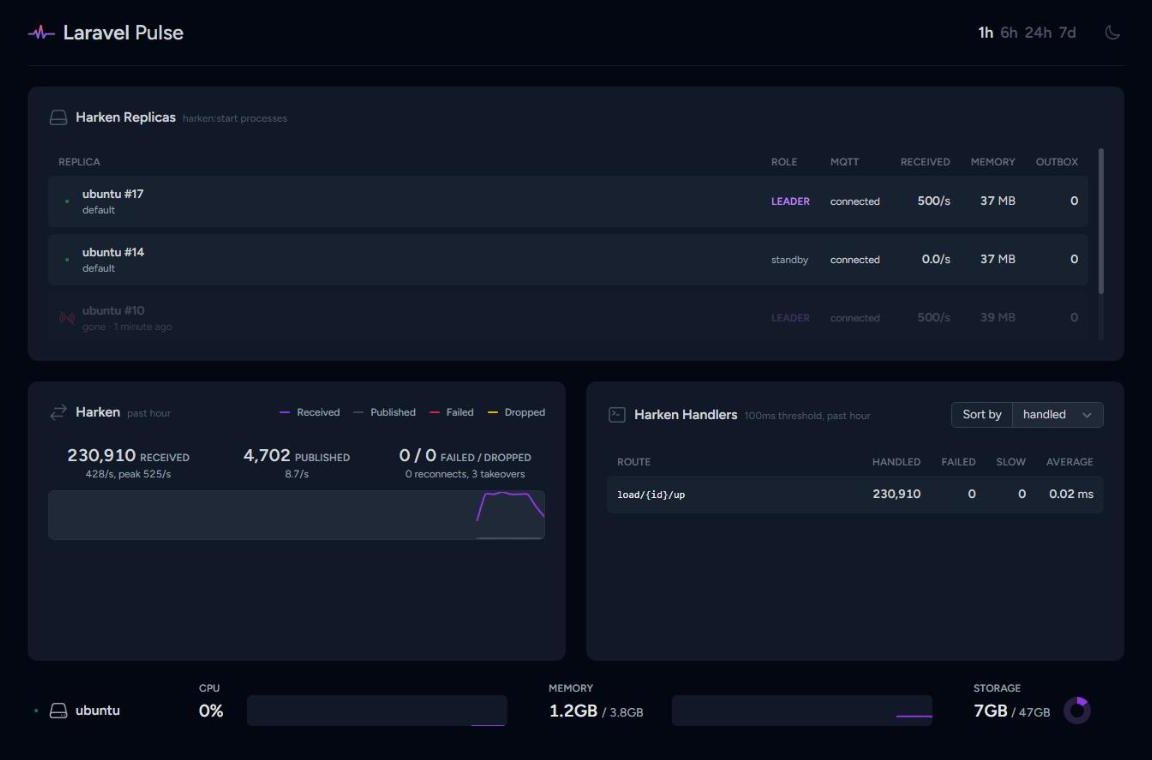

Laravel Pulse. With Pulse in your application, set HARKEN_METRICS_DRIVER=pulse and add the Harken cards to its dashboard, like Reverb's: replicas and the leader, messages received and published, and every route's handler.

<livewire:harken.replicas cols="full" />
<livewire:harken.messages cols="6" />
<livewire:harken.handlers cols="6" />

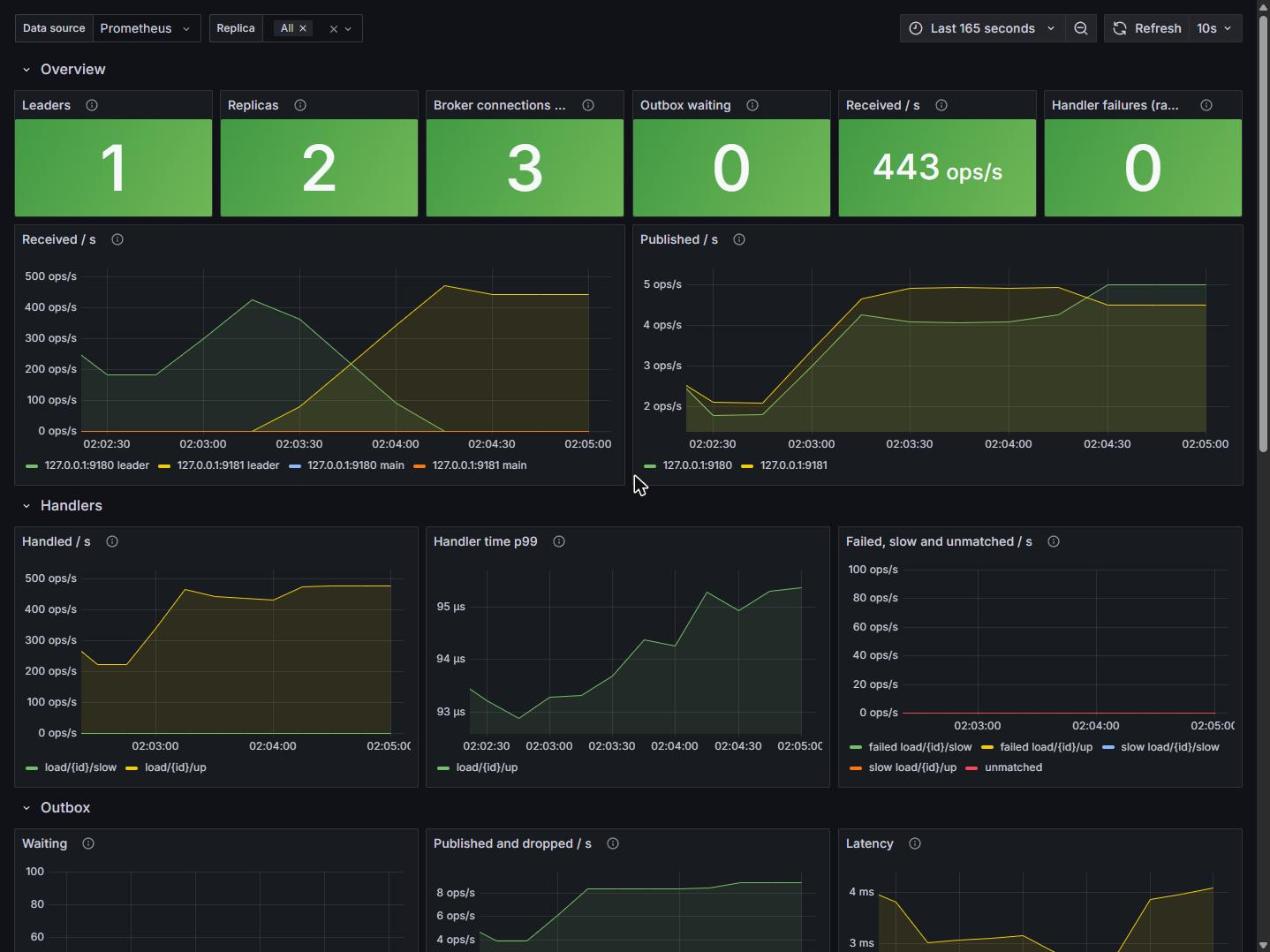

Prometheus and Grafana. Set HARKEN_METRICS_DRIVER=prometheus and every runtime serves /metrics and /health on port 9180. docker/monitoring holds a Prometheus and Grafana stack with the Harken dashboard: leader and replicas, traffic, handlers, the outbox, takeovers and broker drops.

The drivers can run together, for example HARKEN_METRICS_DRIVER=prometheus,pulse, and log adds a periodic summary line to the log.

Documentation

docs/api.md: routes, handlers, publishing, NOTIFY, distribution, configuration, events, metrics and operations
docs/benchmarks.md: end-to-end checks and measurements
docs/spikes: the experiments behind the design

License

Harken is open-source software licensed under the MIT license.
