tommasomusetti/filament-doc-studio

PDF template builder for end users, inside Filament.

v1.0.0 2026-08-15 08:39 UTC

Requires

• php: ^8.2
• dompdf/dompdf: ^3.0
• filament/filament: ^4.0|^5.0
• filament/forms: ^4.0|^5.0
• spatie/laravel-package-tools: ^1.15.0

Requires (Dev)

• larastan/larastan: ^3.0
• laravel/pint: ^1.0
• nunomaduro/collision: ^8.0
• orchestra/testbench: ^10.0|^11.0
• pestphp/pest: ^3.7|^4.0
• pestphp/pest-plugin-arch: ^3.0|^4.0
• pestphp/pest-plugin-laravel: ^3.0|^4.0
• rector/rector: ^2.0

MIT

• Tommaso Musetti

• laravel
• filament
• filament-plugin
• filamentphp
• Tommaso Musetti
• filament-doc-studio

Published on Packagist.org on 2026-08-15 08:43 UTC

README

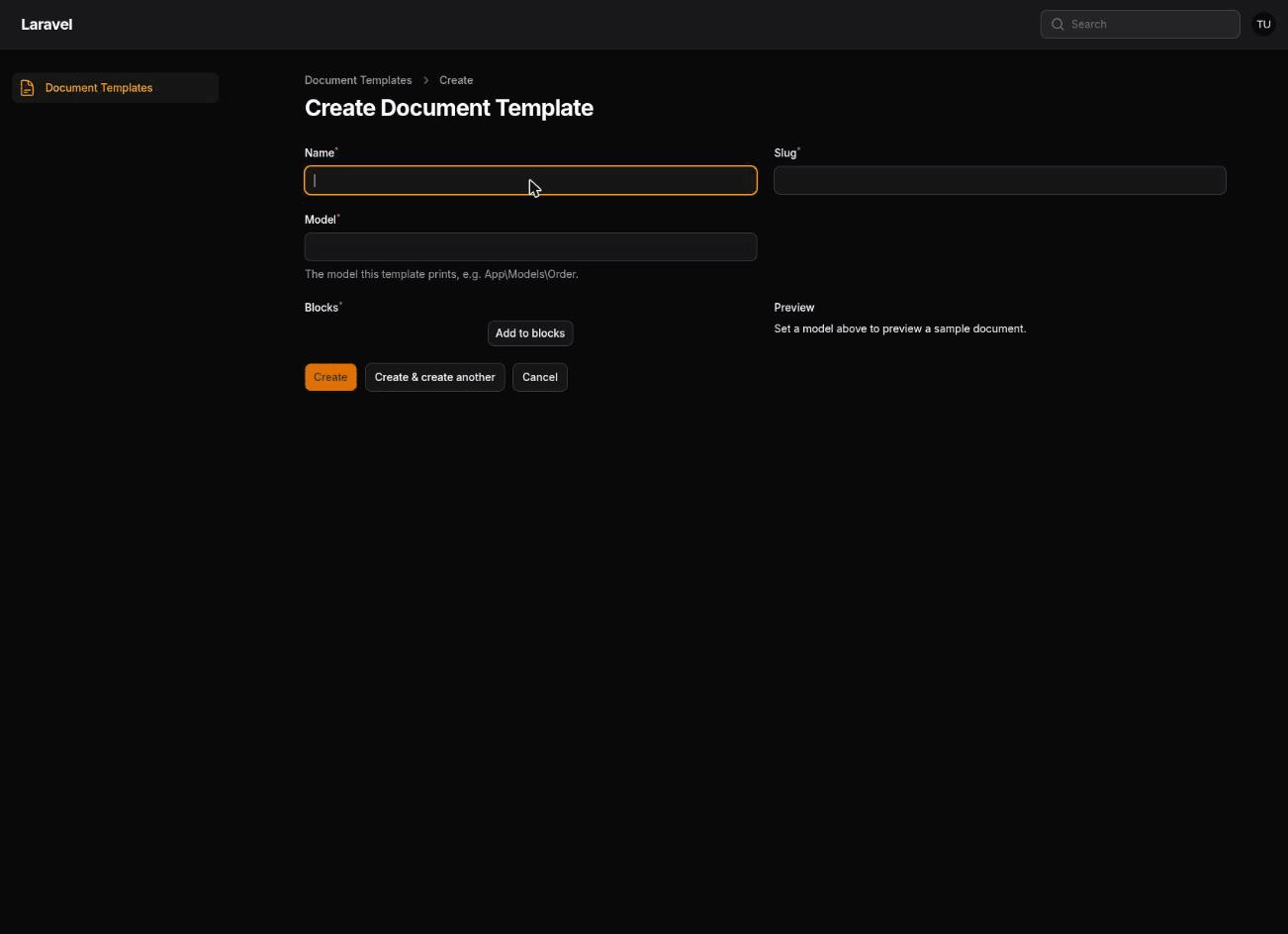

A PDF template builder for end users, inside Filament. Your client drags blocks into a template and prints a record as a PDF — without a developer touching a Blade file for every "can you change the quote layout?".

v1.0.0. The full v1 scope is out: 3 blocks, merge fields, a live preview, dompdf rendering. Feedback and issues are welcome.

Status

Editor	Filament Builder field, inside your panel
Blocks	heading, paragraph (with merge fields), table (line items)
Merge fields	yes — a whitelist you declare per model
Preview	live, next to the editor, rendered against a sample record
Engine	dompdf (pure PHP, nothing to install on the server)

Installation

composer require tommasomusetti/filament-doc-studio
php artisan doc-studio:install

The install command publishes the migration and offers to run it. By hand:

php artisan vendor:publish --tag="doc-studio-migrations"
php artisan migrate

Then add the plugin to the panel that should get the editor:

use TommasoMusetti\DocStudio\DocStudioPlugin;

public function panel(Panel $panel): Panel
{
    return $panel
        // ...
        ->plugins([
            DocStudioPlugin::make(),
        ]);
}

Templates now live under Document templates in that panel.

Rendering a PDF

use TommasoMusetti\DocStudio\DocumentRenderer;
use TommasoMusetti\DocStudio\Models\DocumentTemplate;

$template = DocumentTemplate::where('slug', 'quote')->firstOrFail();

$pdf = app(DocumentRenderer::class)->pdf($template); // raw PDF bytes

The renderer never touches Filament, so this works from a queued job or a console command as well as from a panel.

Whitelisting merge fields and line item tables

The paragraph and table blocks pull data from a model, but only through a DocumentDataSource you write — a template can never reach an Eloquent attribute you didn't explicitly expose:

use TommasoMusetti\DocStudio\Contracts\DocumentDataSource;

class OrderDataSource implements DocumentDataSource
{
    public static function model(): string
    {
        return Order::class;
    }

    public function fields(): array
    {
        return [
            'customer_name' => [
                'label' => 'Customer name',
                'resolver' => fn (Order $order): string => $order->customer->name,
            ],
        ];
    }

    public function collections(): array
    {
        return [
            'line_items' => [
                'label' => 'Line items',
                'columns' => ['name' => 'Item', 'qty' => 'Qty'],
                'resolver' => fn (Order $order): iterable => $order->lines
                    ->map(fn ($line) => ['name' => $line->name, 'qty' => $line->qty]),
            ],
        ];
    }

    public function sample(): Order
    {
        // The record the live preview renders against while editing.
        return Order::query()->latest()->first() ?? new Order(['id' => 0]);
    }
}

Register it once, in a service provider's boot():

app(DocumentRenderer::class)->registerDataSource(OrderDataSource::class);

The paragraph block's merge tag picker and the table block's collection picker both read this whitelist — a field or column disappears from the editor the moment you stop declaring it, without touching saved templates.

Restricting the blocks a panel offers

DocStudioPlugin::make()->blocks([
    HeadingBlock::class,
]);

A panel can only narrow the list. It cannot offer a block the renderer does not know: disabling a block must never break templates already saved with it.

Adding your own block

A block is one class with two faces — an editor field set, and print HTML:

use Filament\Forms\Components\Builder\Block;
use Filament\Forms\Components\TextInput;
use TommasoMusetti\DocStudio\Blocks\DocumentBlock;
use TommasoMusetti\DocStudio\RenderContext;

class StampBlock extends DocumentBlock
{
    public static function make(): Block
    {
        return Block::make('stamp')->schema([
            TextInput::make('text')->required(),
        ]);
    }

    public function render(array $data, RenderContext $context): string
    {
        return '<p class="stamp">' . e($data['text'] ?? '') . '</p>';
    }
}

Register it with the renderer, in a service provider's boot():

app(DocumentRenderer::class)->register(StampBlock::class);

Write the HTML dompdf first: table layouts, conservative CSS, no flexbox or grid. And escape anything the user typed — a template is user written content.

Local development

workbench/ is a small Laravel app with a real Filament panel, so the plugin can be opened in a browser:

composer serve   # http://127.0.0.1:8000/admin

Log in with [e-mail] / password. The same panel is registered in the test suite, so the panel tests run against what you see in the browser.

composer test
composer analyse
composer lint

Contributing

Please see CONTRIBUTING.

Security

Please review our security policy on how to report security vulnerabilities.

Credits

• Tommaso Musetti

License

The MIT License (MIT). Please see License File for more information.
