technobase/laravel-system-status adds a live status page to a Laravel backoffice, in the style of githubstatus.com. It shows whether every part of the application works (database, queues, APIs, backoffice screens, payment and delivery integrations), keeps 90 days of history, opens incidents by itself and alerts you on Telegram.

Probes: small read-only checks that run every few minutes (database, Redis, Horizon, queues, HTTP endpoints, CDN, Telegram, and your own integrations).
Real traffic: every request is counted per component and route; 5xx responses are failures.
Signals: one line around calls that cost money or have side effects (SMS, OTP, social login, paid AI APIs) reports whether they worked.
No false alarms: a status changes only after two checks in a row agree.
Incidents and alerts: each change opens or closes an incident, sends one Telegram message and fires a Laravel event you can listen to.
History: real time (1 hour), 24 hours, 7 days and 90 days.
Languages: English, Arabic and Sorani Kurdish, right-to-left included.

Used in production by Khatun-Ecommerce and CloudNova-OnlineShopping.

Screenshots
How it works
Requirements
Installation
Integrating it into an application
Configuration reference
Probes
Signals
Reacting to status changes
Access
Look and feel
Translations
Commands and schedule
Database tables
Claude Code skill
Deployment
Troubleshooting
Upgrading and releases
License

Screenshots

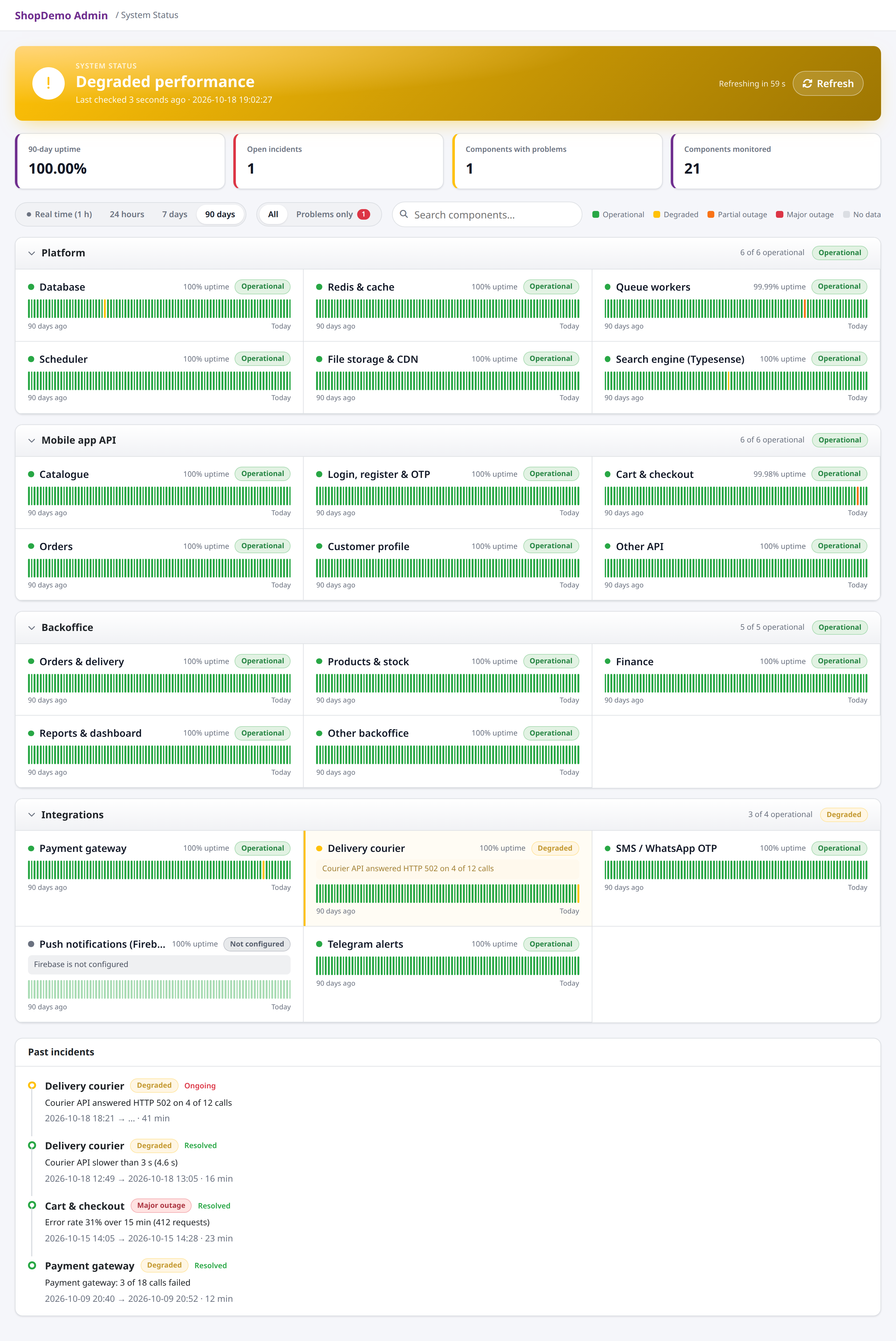

The whole page (90 days): banner, key numbers, every component with its history bars, and past incidents.

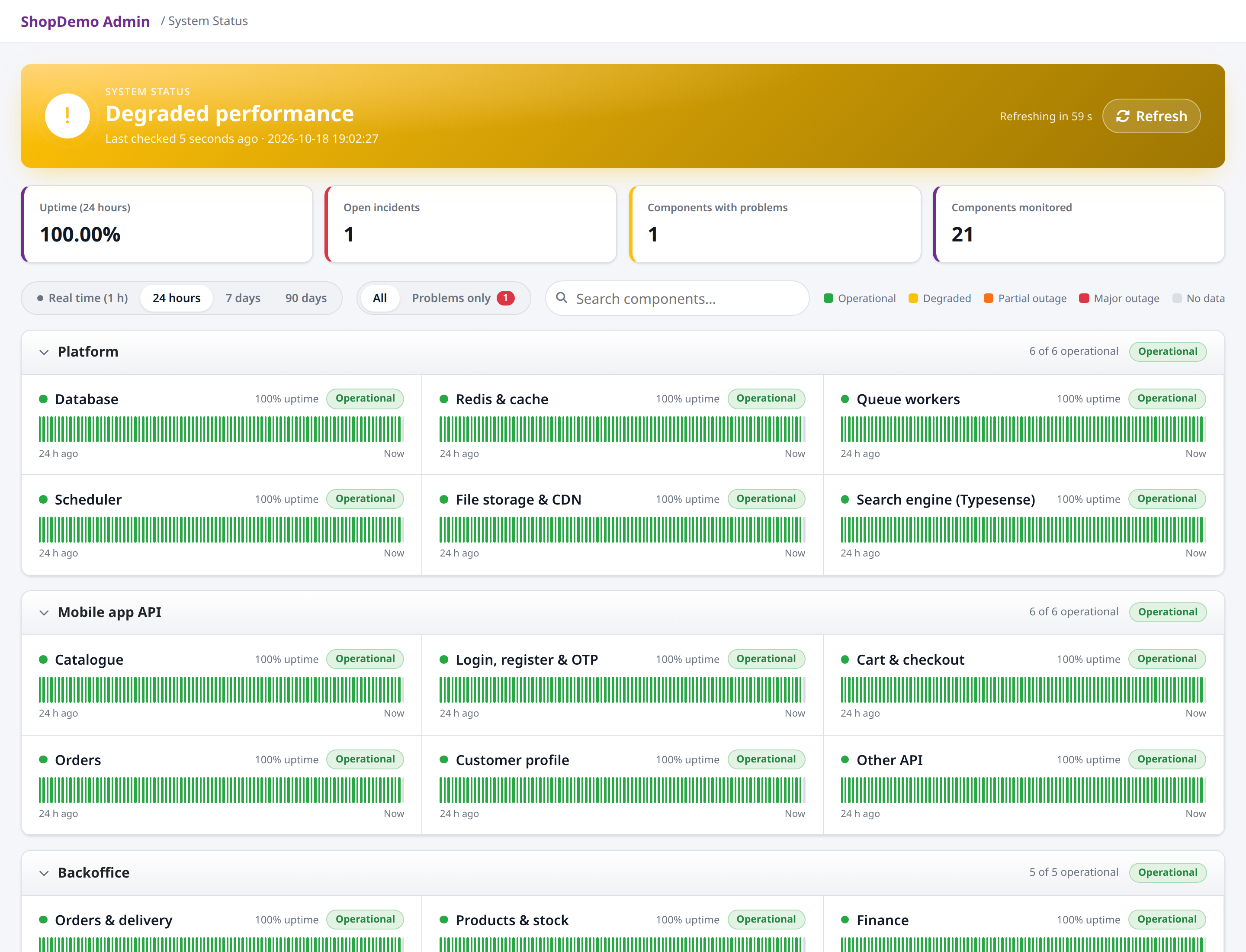

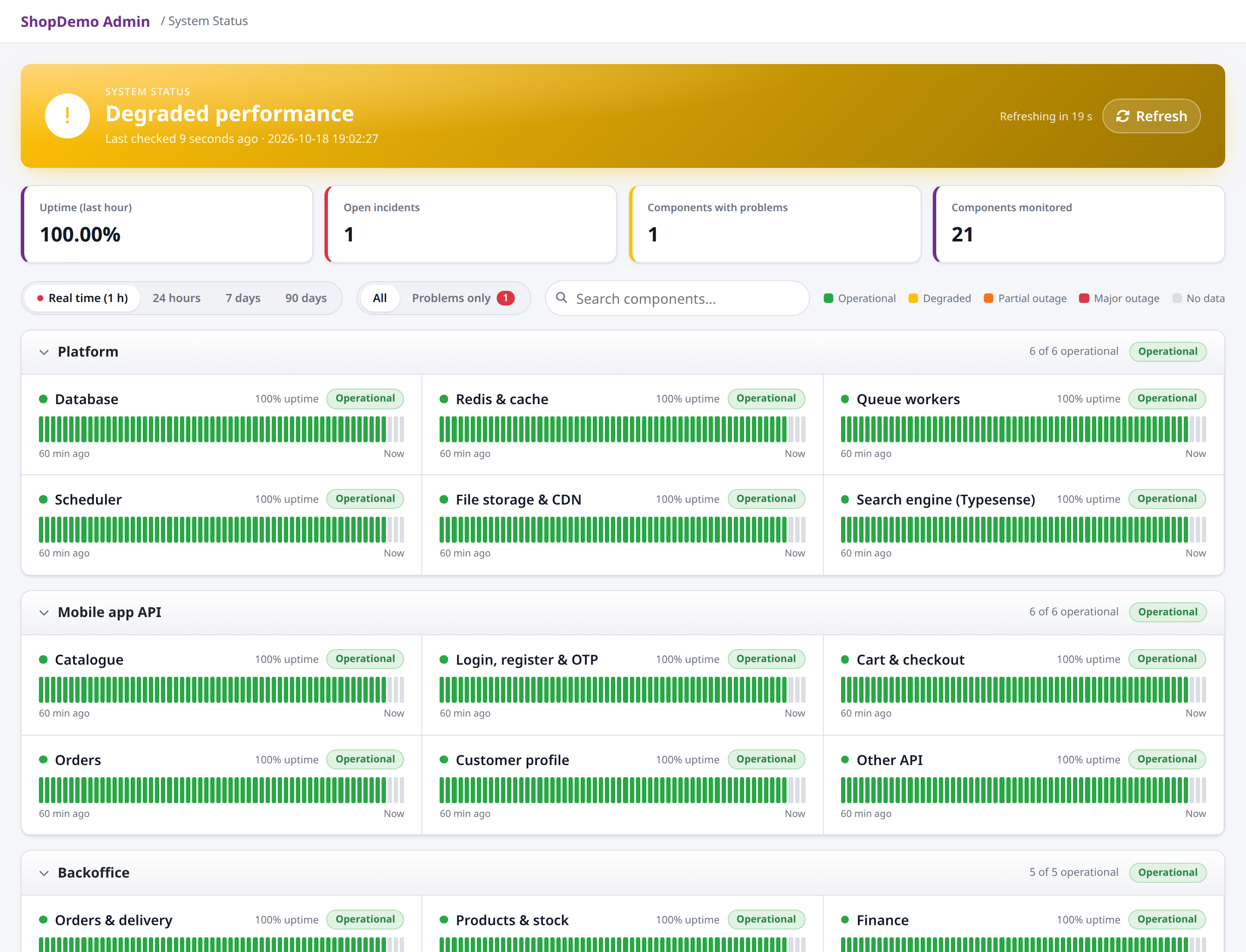

Time ranges: real time (1 hour, one bar per minute), 24 hours and 7 days.

Real time (1 hour)	7 days

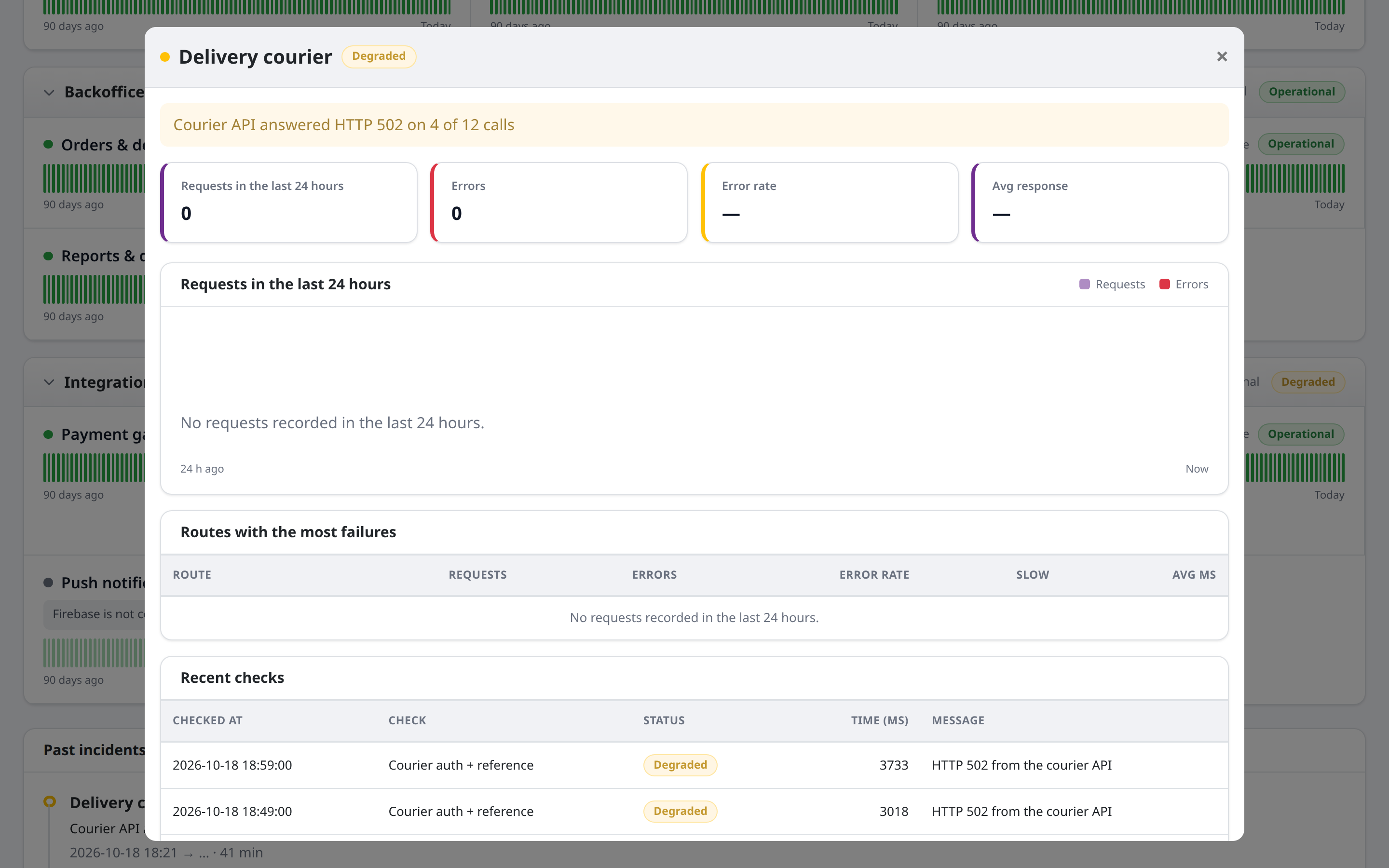

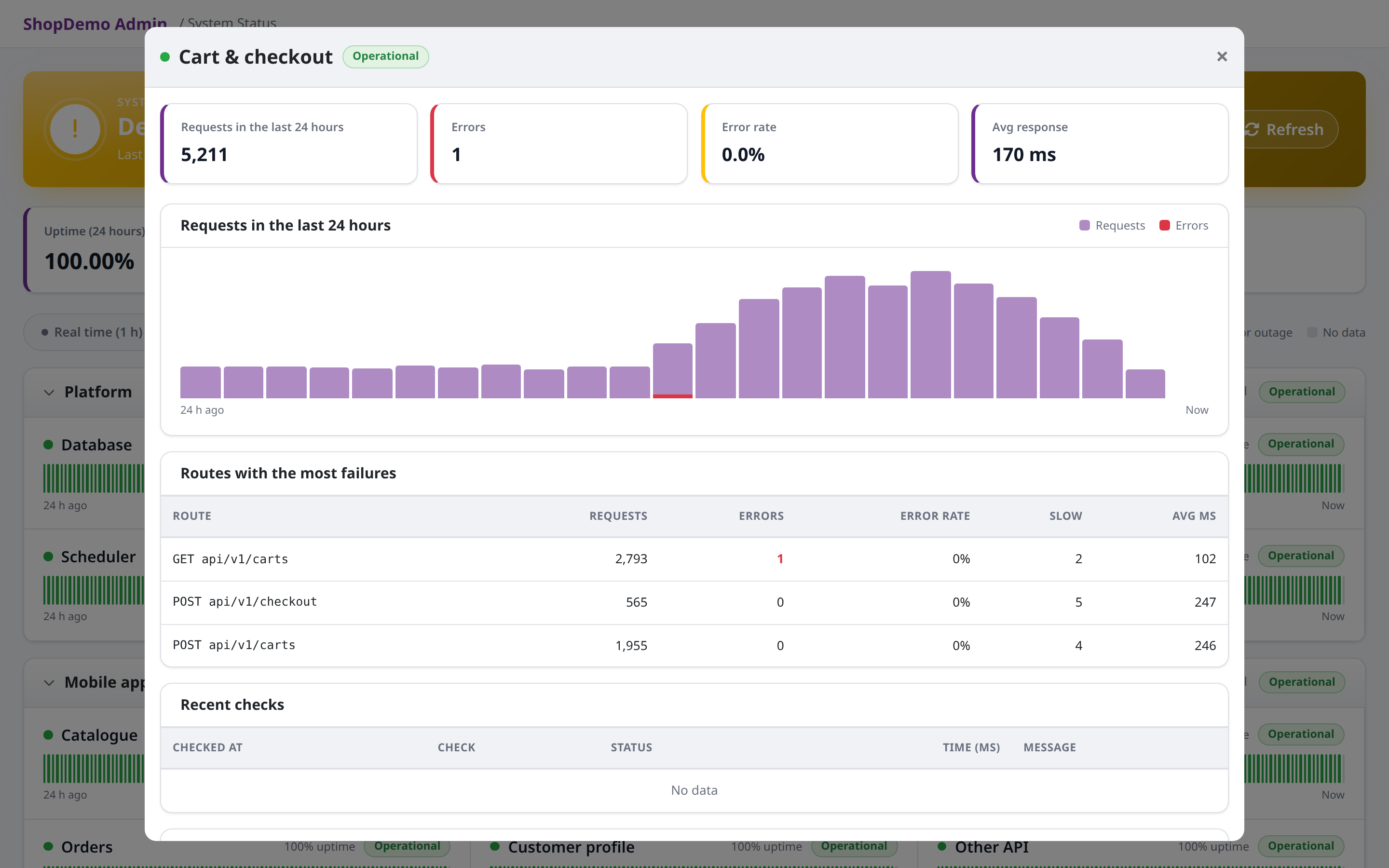

Component details: requests and errors per hour, the routes with the most failures and the latest checks. Click any component name.

Healthy component	Component with an ongoing problem

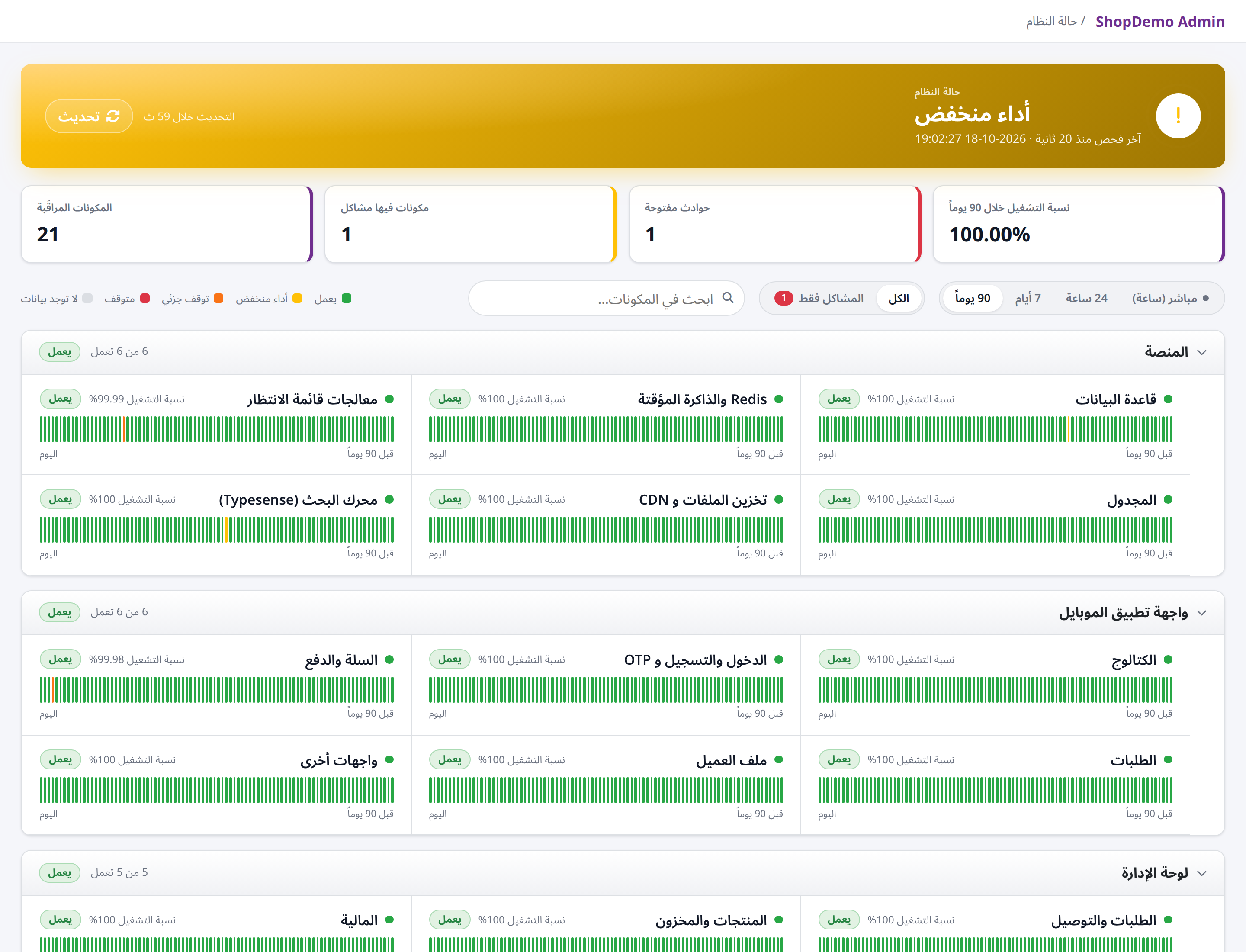

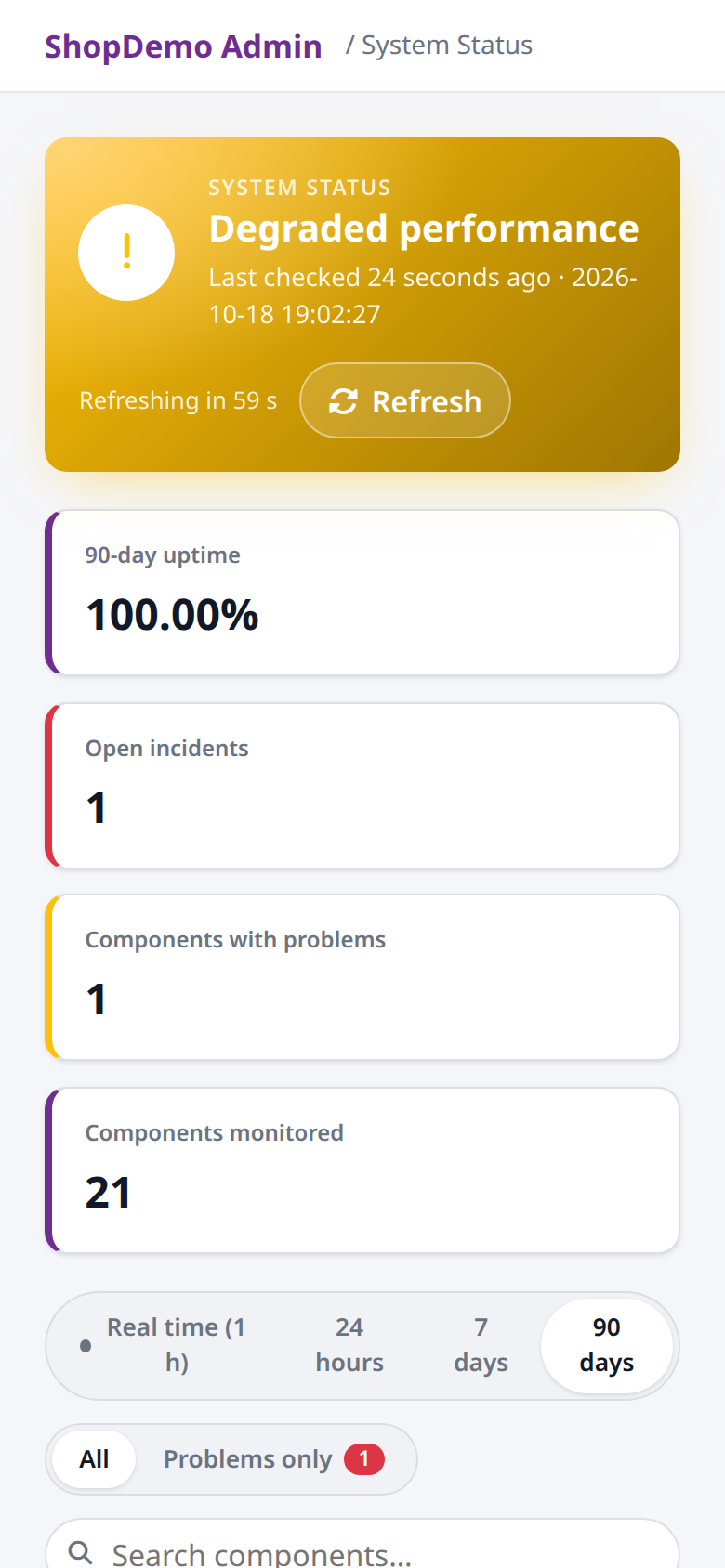

Arabic (right to left) and phone:

Arabic	Phone

The screenshots come from a demo shop with sample data.

How it works

                 every minute                              every request
  scheduler ──▶ status:check ◀── Redis counters ◀── RecordRouteHealth middleware
                    │   ▲
                    │   └── StatusSignal::success() / failure()   (your code)
                    ▼
        probes ──▶ worst source wins ──▶ 2 runs agree? ──▶ status changes
                                                            │
                         incidents · daily history · Telegram alert · ComponentStatusChanged event
                                                            │
                               page /system-status ◀────────┘  (refreshes itself)

You describe your application as components in groups (for example Platform, Mobile API, Backoffice, Integrations) in config/system-status.php.
Each component gets its status from up to three sources, and the worst one wins:
- its probes, run every every minutes by status:check;
- its routes: real requests matched by route name or URI. Over the last 15 minutes an error rate of 5 % or more is degraded, 25 % or more is a major outage, as long as there were at least 20 requests;
- its signal: success and failure reports from your code (at least 3 calls).
A new status is confirmed only when two runs in a row agree, so one slow answer never pages anyone.
A confirmed change opens, upgrades or resolves an incident, sends one Telegram message and fires ComponentStatusChanged.
The scheduler cannot report its own outage: the first run after a gap records a resolved scheduler incident for the gap, and the page shows the scheduler red while runs are late.

A component with no data yet shows No data, never a fake Operational. A probe that is not configured (missing API key, integration turned off) shows Not configured and does not count as a failure.

Requirements


PHP	8.3 or newer
Laravel	12 or 13
Database	PostgreSQL, MySQL 8 / MariaDB, or SQLite
Redis	for the per-minute traffic counters (any connection; see `redis_connection`). Apps that share one Redis need different key prefixes (`REDIS_PREFIX` / `APP_NAME`), or they will read each other's traffic
Scheduler	`php artisan schedule:work` or a cron entry running `schedule:run` every minute
`spatie/laravel-health`	installed automatically; used for the database, Redis, cache and Horizon checks
Layout	none required: without a backoffice layout the page renders as its own full HTML page (see Layout)
Front end	jQuery, the Bootstrap 4 modal plugin and Font Awesome 5 or 6; the standalone page loads them itself

Optional:

spatie/laravel-permission, for the default role check (or use a Gate, see Access);
laravel-notification-channels/telegram, for Telegram alerts.

Installation

Install the package from Packagist with Composer, publish the config and run the migrations:

composer require technobase/laravel-system-status
php artisan vendor:publish --tag=system-status-config
php artisan migrate

The service provider is discovered automatically. Out of the box it:

registers the page at /system-status (route names system_status.index, system_status.summary, system_status.component) behind web + auth and the access check;
adds the traffic middleware to every request;
schedules status:check every minute and status:prune every day at 03:30;
registers the commands status:check, status:prune and status:routes.

Open /system-status as a Super Admin. Until the first status:check run the banner says Waiting for the first status check.

Integrating it into an application

A complete integration takes five steps.

1. Describe your components

In config/system-status.php, list groups and components. A component needs at least one source: probes, routes (names / uris) or a signal.

use Spatie\Health\Checks\Checks\DatabaseCheck;
use Spatie\Health\Checks\Checks\HorizonCheck;
use Spatie\Health\Checks\Checks\RedisCheck;
use Technobase\SystemStatus\Probes\CdnStorageProbe;
use Technobase\SystemStatus\Probes\HttpEndpointProbe;
use Technobase\SystemStatus\Probes\QueueHeartbeatProbe;
use Technobase\SystemStatus\Probes\SpatieCheckProbe;

'groups' => [
    'platform' => [
        'database' => ['probes' => [['class' => SpatieCheckProbe::class, 'with' => ['check' => DatabaseCheck::class], 'every' => 1]]],
        'redis'    => ['probes' => [['class' => SpatieCheckProbe::class, 'with' => ['check' => RedisCheck::class], 'every' => 1]]],
        'queue'    => ['probes' => [
            ['class' => SpatieCheckProbe::class, 'with' => ['check' => HorizonCheck::class], 'every' => 1],
            ['class' => QueueHeartbeatProbe::class, 'every' => 1],
        ]],
        'scheduler' => [],   // decided by status:check itself
        'storage'  => ['probes' => [['class' => CdnStorageProbe::class, 'with' => ['disk' => 's3'], 'every' => 5]]],
    ],

    'mobile_api' => [
        'api_catalogue' => [
            'probes' => [['class' => HttpEndpointProbe::class, 'with' => ['path' => '/api/v1/categories'], 'every' => 2]],
            'uris' => ['api/v1/categories*', 'api/v1/products*'],
        ],
        'api_auth' => ['uris' => ['api/v1/auth*']],
        'api_social_login' => ['uris' => ['api/v1/auth/social*'], 'signal' => true],
        'api_other' => [],
    ],

    'backoffice' => [
        'bo_orders' => ['uris' => ['order', 'order/*', 'orders/*']],
        'bo_other' => [],
    ],

    'integrations' => [
        'payments' => [
            'probes' => [['class' => App\Probes\PaymentGatewayProbe::class, 'every' => 10]],
            'uris' => ['api/v1/webhooks/payments*'],
        ],
        'sms_otp' => ['signal' => true],
    ],
],

How routes are matched:

names (route-name patterns, e.g. website.*) are tried first, then uris (e.g. api/v1/orders*). * matches anything.
The longest matching pattern wins, so api/v1/auth/social* beats api/v1/auth*.
Unmatched routes go to fallback: api/* → api_other, everything else → bo_other.
ignore_uris are not counted at all (Horizon, debug tools, health checks, this page).

Check the result:

php artisan status:routes --fallback          # routes that matched no component
php artisan status:routes --component=api_auth

2. Add probes for your integrations

For every external service that has a free, read-only call (a "verify key" endpoint, a list of cities, an account lookup), write a probe. See Probes.

3. Add signals where a call costs money or has side effects

SMS and OTP gateways, social login, paid AI APIs: wrap the existing call. See Signals.

4. Name your components

Add labels for components the package does not know in every locale. See Translations.

// lang/vendor/system-status/en/status.php
return [
    'status_component_payments' => 'Payment gateway',
    'status_component_sms_otp' => 'SMS / WhatsApp OTP',
];

5. Link it from the sidebar

@if(auth()->user()?->hasRole('Super Admin'))
    <li class="nav-item">
        <a href="{{ route('system_status.index') }}" class="nav-link {{ request()->is('system-status*') ? 'active' : '' }}">
            <i class="fa-solid fa-heart-pulse"></i>
            <span>@lang('system-status::status.system_status')</span>
        </a>
    </li>
@endif

Done. Run php artisan status:check once, open the page, and make sure the scheduler runs.

Configuration reference

All options live in config/system-status.php.

Key	Default	What it does
`path`	`system-status`	URL of the page; the data endpoints are `<path>/summary` and `<path>/components/{key}`
`middleware`	`['web', 'auth']`	middleware of the page routes (the access check is always added)
`access.roles`	`['Super Admin']`	roles allowed in, checked with `$user->hasRole()`
`access.gate`	`null`	a Gate ability name; when set, it replaces the role check
`layout`	`layouts.app`	Blade layout the page extends; `'standalone'` (or `null`, or a view that does not exist) = the package's own full page
`stacks.styles` / `.modals` / `.scripts`	`styles` / `modals` / `scripts`	stack names in that layout
`standalone.css` / `.js`	Bootstrap 4.6, Font Awesome 6, jQuery 3.7 from a CDN	assets of the standalone page; point them at local files for an offline server or a strict CSP
`standalone.rtl_locales`	`ar`, `ku`, `ckb`, `fa`, `he`, `ur`	locales the standalone page shows right to left
`standalone.brand`	`TechnoBase`	name in the standalone page's top bar, browser title and description line
`standalone.back_url`	`null` (`/`)	where the back button goes when there is no previous page of the application
`extra_css`	`null`	absolute path of a CSS file added after the package styles
`refresh_seconds`	`['1h' => 20, 'default' => 60]`	seconds between automatic refreshes, per range
`record_traffic`	`true`	count every request (global middleware)
`schedule`	`true`	schedule `status:check` and `status:prune`
`redis_connection`	`null`	Redis connection of the traffic counters (`null` = default)
`thresholds.window_minutes`	`15`	window for traffic and signal error rates
`thresholds.min_requests`	`20`	fewer requests in the window = operational
`thresholds.min_signals`	`3`	fewer signal calls in the window = operational
`thresholds.degraded_error_rate`	`5`	% of failures for degraded
`thresholds.outage_error_rate`	`25`	% of failures for major outage
`thresholds.slow_request_ms`	`2000`	a request slower than this counts as slow
`thresholds.slow_probe_ms`	`3000`	an `HttpEndpointProbe` slower than this is degraded
`thresholds.confirm_runs`	`2`	runs in a row that must agree before a status changes
`thresholds.heartbeat_stale_minutes`	`3`	scheduler and queue heartbeats older than this are an outage
`thresholds.probe_timeout_seconds`	`10`	HTTP timeout of the probes
`probe_base_url`	`env('STATUS_PROBE_BASE_URL')`	send HTTP probes straight to the app (e.g. `http://nginx`); `APP_URL`'s host is kept in `Host`
`probe_verify_ssl`	`env('STATUS_PROBE_VERIFY_SSL', true)`	`false` skips TLS checks, only for an internal probe base URL
`probe_user_agent`	`SystemStatusProbe/1.0`	User-Agent of the HTTP probes (allow it in your firewall)
`alerts.enabled`	`env('SYSTEM_STATUS_ALERTS_ENABLED', true)`	send Telegram alerts; `SYSTEM_STATUS_ALERTS_ENABLED=false` in `.env` turns them off
`alerts.telegram_chat_id`	`env('SYSTEM_STATUS_TELEGRAM_CHAT_ID')`	chat that receives the alerts
`alerts.prefix`	`[APP_NAME status]`	first words of every alert
`retention_days`	checks 7, route_buckets 7, daily 90, incidents 90	what `status:prune` keeps
`queues`	`[['connection' => null, 'queue' => 'default']]`	queues that get a heartbeat job every run
`ignore_uris`	tools, health checks, this page	URIs that are never counted
`fallback`	`api/` → `api_other`, `` → `bo_other`	component for unmatched routes
`groups`	platform, mobile_api, backoffice	your components (see above)

A component definition:

Key	Example	Meaning
`probes`	`[['class' => X::class, 'with' => [...], 'every' => 5]]`	probe classes; `with` = constructor arguments, `every` = minutes
`names`	`['website.*']`	route-name patterns
`uris`	`['api/v1/orders*']`	URI patterns
`signal`	`true`	accepts `StatusSignal` calls

Probes

Built-in probes

Probe	Options (`with`)	Checks
`SpatieCheckProbe`	`check` (a spatie/laravel-health check class)	database, Redis, cache, Horizon, disk space, or any custom Spatie check
`HttpEndpointProbe`	`path`, `json` (default `true`)	a GET request to a path of the application; on failure it says whether the app or a proxy (e.g. Cloudflare) answered
`QueueHeartbeatProbe`	–	the heartbeat jobs on every queue in `queues` were processed
`CdnStorageProbe`	`disk` (default `s3`)	a HEAD request to the disk's public URL
`TelegramProbe`	–	the bot token works (`getMe`)

Writing a probe

namespace App\Probes;

use App\Services\PaymentGateway;
use Technobase\SystemStatus\Probes\Probe;
use Technobase\SystemStatus\Probes\ProbeResult;
use Throwable;

class PaymentGatewayProbe implements Probe
{
    public function __construct(private readonly PaymentGateway $gateway) {}

    public function name(): string
    {
        return 'Payment gateway verify-key';
    }

    public function run(): ProbeResult
    {
        if (blank(config('services.payments.key'))) {
            return ProbeResult::skipped('Payment gateway is not configured');
        }

        try {
            $this->gateway->verifyKey();          // free and read-only
        } catch (Throwable $e) {
            return ProbeResult::outage('Gateway refused the key ('.class_basename($e).')');
        }

        return ProbeResult::ok();
    }
}

Results: ProbeResult::ok(), degraded($message), outage($message), skipped($message). A probe decides its own status; return degraded() yourself when the service is slow.

Rules for probes:

Read-only and free. Never create orders, payments, shipments, messages or OTPs, never call a paid API, never POST to the application. Use a signal for those.
No secrets in messages. No URLs with tokens, no raw exception messages from HTTP clients (they often contain the URL); use the exception class or a short text.
Return skipped() while the service is not configured, so it shows Not configured instead of an outage.

Signals

For calls you cannot test for free, report each real call:

use Technobase\SystemStatus\Support\StatusSignal;

try {
    $this->smsGateway->send($phone, $code);
    StatusSignal::success('sms_otp');
} catch (Throwable $e) {
    StatusSignal::failure('sms_otp', class_basename($e));

    throw $e;   // behaviour unchanged
}

The component needs 'signal' => true.
Signals never throw and never change the caller's behaviour.
The status follows the error rate of the last 15 minutes, with at least 3 calls.
The last failure reason is shown in the component's detail popup.

Reacting to status changes

Every confirmed change fires Technobase\SystemStatus\Events\ComponentStatusChanged:

Property	Type
`component`	`string` key, e.g. `payments`
`label`	`string` display name
`previous`, `current`	`Technobase\SystemStatus\Enums\ComponentStatus` (`Operational`, `Degraded`, `MajorOutage`)
`message`	`?string` reason
`changedAt`	`CarbonInterface`
`isRecovery()`	`true` when the component is operational again

Send it to mail, Slack or a webhook:

use Illuminate\Support\Facades\Event;
use Technobase\SystemStatus\Events\ComponentStatusChanged;

Event::listen(function (ComponentStatusChanged $event) {
    Notification::route('mail', 'ops@example.com')->notify(new SystemStatusChanged($event));
});

A failing listener is logged and never stops the status run. To use only your own channel, set SYSTEM_STATUS_ALERTS_ENABLED=false in .env (or alerts.enabled to false).

Telegram alerts need laravel-notification-channels/telegram, the bot token in services.telegram-bot-api.token and alerts.telegram_chat_id. They are never sent in the local environment (they are logged instead). Example messages:

[Shop status] 🟠 Delivery courier: degraded. Courier API answered HTTP 502 on 4 of 12 calls
[Shop status] ✅ Delivery courier recovered after 38 min.

Access

The page shows infrastructure details, so it is closed by default.

Roles (default): access.roles = ['Super Admin'], checked with hasRole() from spatie/laravel-permission. A user model without hasRole() is refused.

Gate: set access.gate to an ability name and define it:

Gate::define('viewSystemStatus', fn (User $user) => $user->is_admin);

The page always needs a signed-in user (middleware). The data endpoints follow the same rules.

Look and feel

The page follows the host theme: its colours use --success, --warning, --danger, --primary, --border and --muted when the theme defines them.

Brand colours with a small CSS file:

'extra_css' => resource_path('css/system-status.css'),

.sst {
    --sst-accent: #0f766e;     /* KPI accents, selected range */
    --sst-ok: #16a34a;
    --sst-degraded: #f59e0b;
    --sst-partial: #f97316;
    --sst-major: #dc2626;
    --sst-radius: .5rem;
}

Layout

The page works in any Laravel application, with or without a backoffice:

Inside your backoffice (sidebar, header, your theme): set layout to your layout view and stacks to its stack names. The layout needs @yield('title'), @yield('content'), the three stacks, and jQuery, the Bootstrap 4 modal plugin and Font Awesome.
As its own page: set layout to 'standalone'. The package renders a complete HTML page (system-status::layouts.standalone) that loads Bootstrap, jQuery and Font Awesome itself (standalone.css / standalone.js), follows the locale's direction (RTL for Arabic and Kurdish) and needs nothing from the application. Its top bar has a back button (to the previous page, or standalone.back_url) and the standalone.brand name.

When the configured layout view does not exist, the standalone page is used, so a fresh install never fails on a missing layouts.app. Access rules are the same in both modes.

Full control: publish the view and edit it.

php artisan vendor:publish --tag=system-status-views   # resources/views/vendor/system-status/index.blade.php

A published view no longer receives the package's changes to the page; prefer extra_css when it is enough.

Translations

The package ships English (en), Arabic (ar) and Sorani Kurdish (ku) for every text on the page, plus labels for common components (database, redis, queue, scheduler, storage, search, api_*, bo_*, firebase, telegram, …).

Add or override any key per locale in lang/vendor/system-status/<locale>/status.php:

return [
    'status_component_payments' => 'بوابة الدفع',
    'status_group_integrations' => 'التكاملات',
    'system_status_description' => 'Live health of every part of the shop.',
];

Component label: status_component_<key>; group label: status_group_<group>.
A component without a label is shown as its key in words (api_orders → Api Orders).
system_status_description can use :app (the application name).
To copy all package texts for editing: php artisan vendor:publish --tag=system-status-lang.
The page direction follows the layout (dir="rtl" for Arabic and Kurdish).

Commands and schedule

Command	When	What
`status:check`	every minute (`withoutOverlapping(5)`, in background)	flushes traffic counters, runs due probes, evaluates every component, confirms changes, writes incidents, history and alerts, sends queue heartbeats
`status:prune`	daily at 03:30	deletes history older than `retention_days`
`status:routes`	by hand	shows which component every route counts under (`--fallback`, `--component=`)

Set schedule to false to schedule them yourself.

Database tables

Table	Holds	Kept
`status_components`	current status, candidate status, message, `configured`, last check	always
`status_checks`	one row per probe run	7 days
`status_route_buckets`	requests, errors, slow requests and total time per component, route and 5 minutes; signals use route `(signal)`	7 days
`status_daily`	runs and degraded / outage runs per component and day	90 days
`status_incidents`	incidents opened and resolved by `status:check`	90 days after resolution

The migration creates a table only when it does not exist yet, so it is safe on a database that already has them.

Claude Code skill

The package ships a Claude Code skill that teaches the assistant how the status page works in your application: where components live, how to add a probe or a signal, and the rules (read-only probes, no secrets in messages, never edit vendor/).

php artisan vendor:publish --tag=system-status-skill   # .claude/skills/system-status/SKILL.md

Fill in its last section, This application, with your components and probes, and commit it.

Deployment

Composer. The package is public on Packagist, so a normal composer install --no-dev --prefer-dist --no-interaction works on any server or Docker image; no SSH key, deploy key or GitHub token is needed.
Moving from the old private setup. If your application still has the vcs repository for TechnoBase-krd/laravel-system-status (and preferred-install for technobase/*) in its composer.json, remove them, delete any auth.json / COMPOSER_AUTH added only for this package, and run composer update technobase/laravel-system-status.
Scheduler. schedule:run must run every minute (cron or a scheduler container), otherwise the page shows the scheduler red and nothing updates.
Queues. List in queues only queues that always have a worker.
Firewall. HTTP probes go through APP_URL. If Cloudflare or a WAF answers them with 403, allow your probe_user_agent, or set STATUS_PROBE_BASE_URL to reach the app directly.
Migration. php artisan migrate (runs unattended).

Troubleshooting

What you see	Why	Fix
"Waiting for the first status check"	`status:check` never ran	run it once; start the scheduler
Scheduler red	no run for more than `heartbeat_stale_minutes`	check the scheduler container / cron
Queue red, "heartbeat not processed"	no worker on a queue in `queues`	start the worker or remove the queue
An HTTP probe fails with "Cloudflare, not the app"	the firewall blocks the probe	allow the user agent or set `STATUS_PROBE_BASE_URL`
A component shows "No data"	no probe ran and no traffic yet	wait a run, or add a source to the component
A component shows "Not configured"	its probes return `skipped()`	configure the integration, or accept it
Traffic from another application shows up	two apps share one Redis with the same key prefix	give each app its own `REDIS_PREFIX` (or `redis_connection`)
A component name looks like "Api Orders"	no label for it	add `status_component_<key>` in `lang/vendor/system-status`
403 on the page	the user has none of `access.roles` (or fails `access.gate`)	change the access settings
No Telegram alerts	`local` environment, no chat id, no bot token, `SYSTEM_STATUS_ALERTS_ENABLED=false`, or the Telegram package missing	check those
Routes counted under `api_other` / `bo_other`	no rule matches them	`php artisan status:routes --fallback`, then add `uris`

Upgrading and releases

Versions follow semantic versioning: 1.x releases never rename or remove a config key, route name, translation key, class or event property. See CHANGELOG.md and the GitHub Releases.

Releases are automatic. Packagist picks up every new tag through the GitHub webhook. On every push to main, the Release workflow (.github/workflows/release.yml) checks the PHP syntax and composer.json, reads the commit messages since the last tag and, when needed, creates the next tag and a GitHub Release with notes:

Commits since the last release	Next version
`feat!:` / `fix!:` (any `type!:`) or a `BREAKING CHANGE:` line in the body	major, e.g. `v2.0.0`
`feat:`	minor, e.g. `v1.2.0`
`fix:`, `perf:`, `refactor:`, `revert:`	patch, e.g. `v1.1.1`
only `docs:`, `chore:`, `ci:`, `style:`, `test:`	no release

To force a release, open Actions → Release → Run workflow and choose patch, minor or major. Never create or move v* tags by hand.

composer update technobase/laravel-system-status

To work on the package itself, see .claude/skills/laravel-system-status/SKILL.md.

Contributing

Issues and pull requests are welcome on GitHub. Use Conventional Commits messages (feat:, fix:, docs:, …): they decide the next version.

License

The MIT License (MIT). See LICENSE.

technobase / laravel-system-status

Package info

Security

Statistics
