README

A standalone Laravel + Livewire admin page for the SwitchBot AI Art Frame. Upload photos, optimize them for the E Ink Spectra 6 panel, push them to the frame, and read the real battery level from SwitchBot's change-report webhook — all from one self-contained page that ships its own compiled CSS, so it does not depend on your application's Tailwind build. Optionally, generate and iteratively edit art with AI right from the page (see AI Image Studio).

Requirements

PHP 8.4+
Laravel 12 or 13, Livewire 4
ext-gd (image optimization); ext-exif recommended (phone-photo orientation)
laravel/sanctum for the default auth:sanctum middleware (or change the middleware in the config)
laravel/ai (optional) to enable the AI Image Studio
A SwitchBot Hub (Hub Mini or Hub 2) paired with the frame

Note

This package controls the frame through SwitchBot's Cloud API, so a SwitchBot Hub is required to work remotely — the Hub bridges the AI Art Frame to the SwitchBot cloud. Without a Hub, the Cloud API cannot reach the frame.

Installation

composer require spaanproductions/laravel-switchbot-frame

# publish the migrations into your app, then run them
php artisan vendor:publish --tag=switchbot-frame-migrations
php artisan migrate

Add your SwitchBot Open API credentials to .env (Profile → Preferences → tap App Version ~10× in the SwitchBot app to unlock Developer Options):

SWITCHBOT_TOKEN=
SWITCHBOT_SECRET=
SWITCHBOT_DEVICE_ID=        # optional — auto-discovers the first AI Art Frame if empty
SWITCHBOT_DISK=s3
SWITCHBOT_WEBHOOK_TOKEN=    # long random string, verifies incoming webhook calls

The page is served at /switchbot by default and requires login — it ships with ['web', 'auth:sanctum'] route middleware. Add any further authorization (roles, gates, a super-admin guard) via the config (see Configuration).

Configuration

Publish the config to change the URL, middleware, disk, preview aspect ratios, and the back-link:

php artisan vendor:publish --tag=switchbot-frame-config

// config/switchbot.php
'routes' => [
    'prefix' => 'switchbot',
    'middleware' => ['web', 'auth:sanctum'], // add further authorization here
    'webhook' => ['prefix' => '', 'middleware' => ['api']],
],

'back_link' => ['label' => 'Back', 'url' => null], // shown only when url (or route) is set

'aspect' => [
    'now_showing' => 'portrait',   // portrait | landscape | square
    'dropzone' => 'portrait',
],

AI Image Studio

Generate frame art from a text prompt — and iteratively edit it in a chat — powered by the optional laravel/ai package. Describe an image (optionally starting from an uploaded photo), refine it with follow-up prompts, then save the result straight into your library, where it's optimized for the panel like any other image. Past conversations are browsable, and deleting one also deletes its generated preview images.

The Studio is opt-in: it only appears when laravel/ai is installed and enabled in config, so you can leave it off even when the package is present.

composer require laravel/ai
php artisan vendor:publish --provider="Laravel\Ai\AiServiceProvider"
php artisan migrate

A Create with AI button then appears on the gallery, linking to the Studio at /switchbot/studio (behind the same route middleware as the rest of the page). Each library card also gets an Edit with AI button to start a conversation from that image.

Image generation uses laravel/ai's own provider configuration and auth tokens (OPENAI_API_KEY, GEMINI_API_KEY, …) from your .env. Supported image providers are OpenAI, Gemini, xAI, Azure, Bedrock and OpenRouter — the providers supported at the time of writing. Actual support depends on your installed laravel/ai version; see laravel/ai provider support for the current list.

SWITCHBOT_AI_ENABLED=true         # turn the Studio off even when laravel/ai is installed

# Image generation (empty = use config/ai.php defaults):
SWITCHBOT_AI_IMAGE_PROVIDER=      # optional — pin an image provider (e.g. openai)
SWITCHBOT_AI_IMAGE_MODEL=         # optional — pin an image model
SWITCHBOT_AI_IMAGE_ASPECT=        # default shape (portrait|landscape|square); empty follows now_showing

# "Improve prompt" is a text task — uses config/ai.php's default text provider unless overridden:
SWITCHBOT_AI_IMPROVE_PROVIDER=
SWITCHBOT_AI_IMPROVE_MODEL=

# EXPERIMENTAL, indicative-only cost estimation (see the note below):
SWITCHBOT_AI_COST_ESTIMATION=false
SWITCHBOT_AI_COST_REFRESH_HOURS=24

Note

laravel/ai ships with Gemini as its default image provider. If you'd rather use OpenAI (e.g. you already have OPENAI_API_KEY), set SWITCHBOT_AI_IMAGE_PROVIDER=openai — otherwise add a GEMINI_API_KEY.

Warning

Cost estimation is experimental. When enabled, a queued job estimates the USD cost of each generation and prompt improvement from token counts and public per-token prices from LiteLLM's price sheet (fetched and cached, refreshed every SWITCHBOT_AI_COST_REFRESH_HOURS). Figures are a rough indication only and must not be used for invoicing, budgeting or any correctness-sensitive purpose.

Important

Image generation and the e-ink optimization run on the queue and can take a while. GenerateAiImageJob allows up to 120 seconds, so your queue worker's timeout must be at least that — run php artisan queue:work --timeout=120 (or set the supervisor's timeout to 120+ in config/horizon.php when using Horizon). If the worker runs under Supervisor, set its stopwaitsecs higher than the worker timeout (e.g. 130) so a deploy/restart doesn't kill a job mid-generation, and keep the connection's retry_after (config/queue.php) above the timeout as well, or a slow generation may be retried while it is still running.

Standalone CSS

Out of the box the page loads a pre-compiled Tailwind stylesheet from the package route route('switchbot.assets.css') — no host build step required. Publish it to have the web server serve it statically instead (faster, and lets you tweak the compiled file):

php artisan vendor:publish --tag=switchbot-frame-assets

Once it exists at public/vendor/switchbot/app.css, the page links to it directly and the route serves it too — so your published (or customized) copy always wins.

Customizing the layout

Every layout partial (head, styles, header, scripts) and the Livewire views are publishable and overridable:

php artisan vendor:publish --tag=switchbot-frame-views

Edit resources/views/vendor/switchbot/partials/head.blade.php to add SEO/meta/favicons, or .../partials/styles.blade.php to change the accent colour and fonts.

Battery webhook

The status API reports the battery stuck at 0%, so the real level comes from SwitchBot's change-report webhook. Register this app's public HTTPS receiver:

php artisan switchbot:webhook          # register
php artisan switchbot:webhook --list   # list registered
php artisan switchbot:webhook --delete # remove

Screenshots

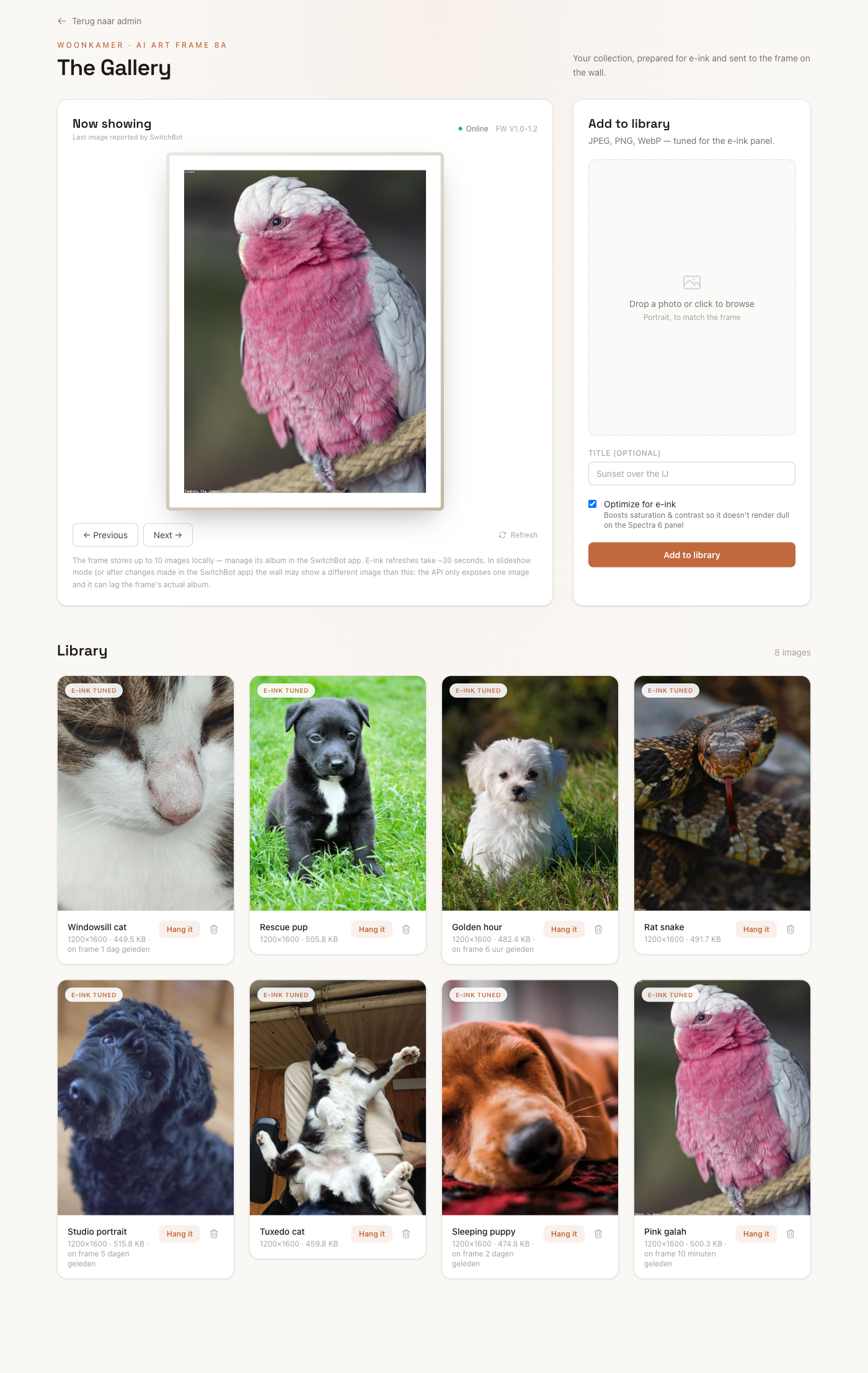

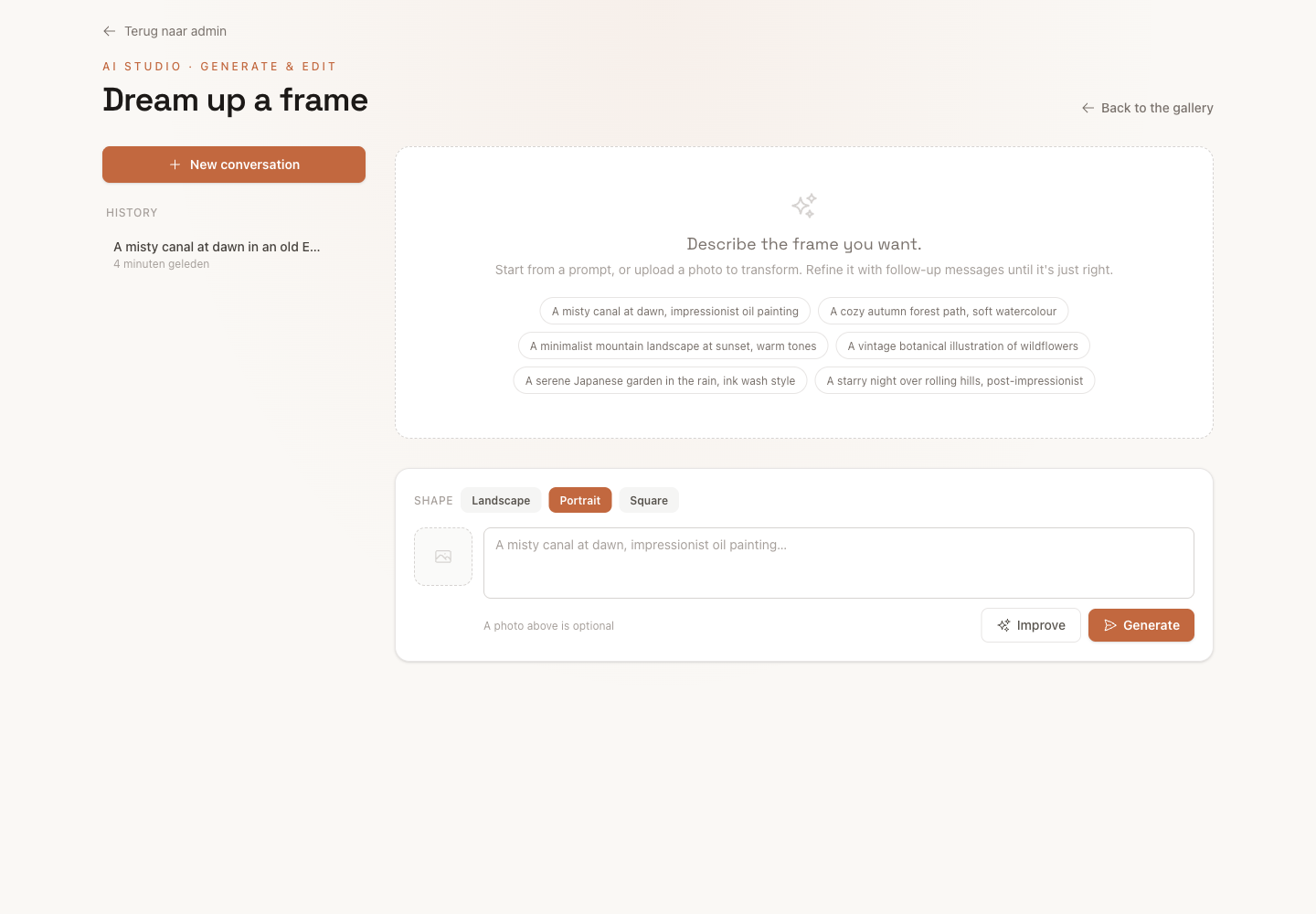

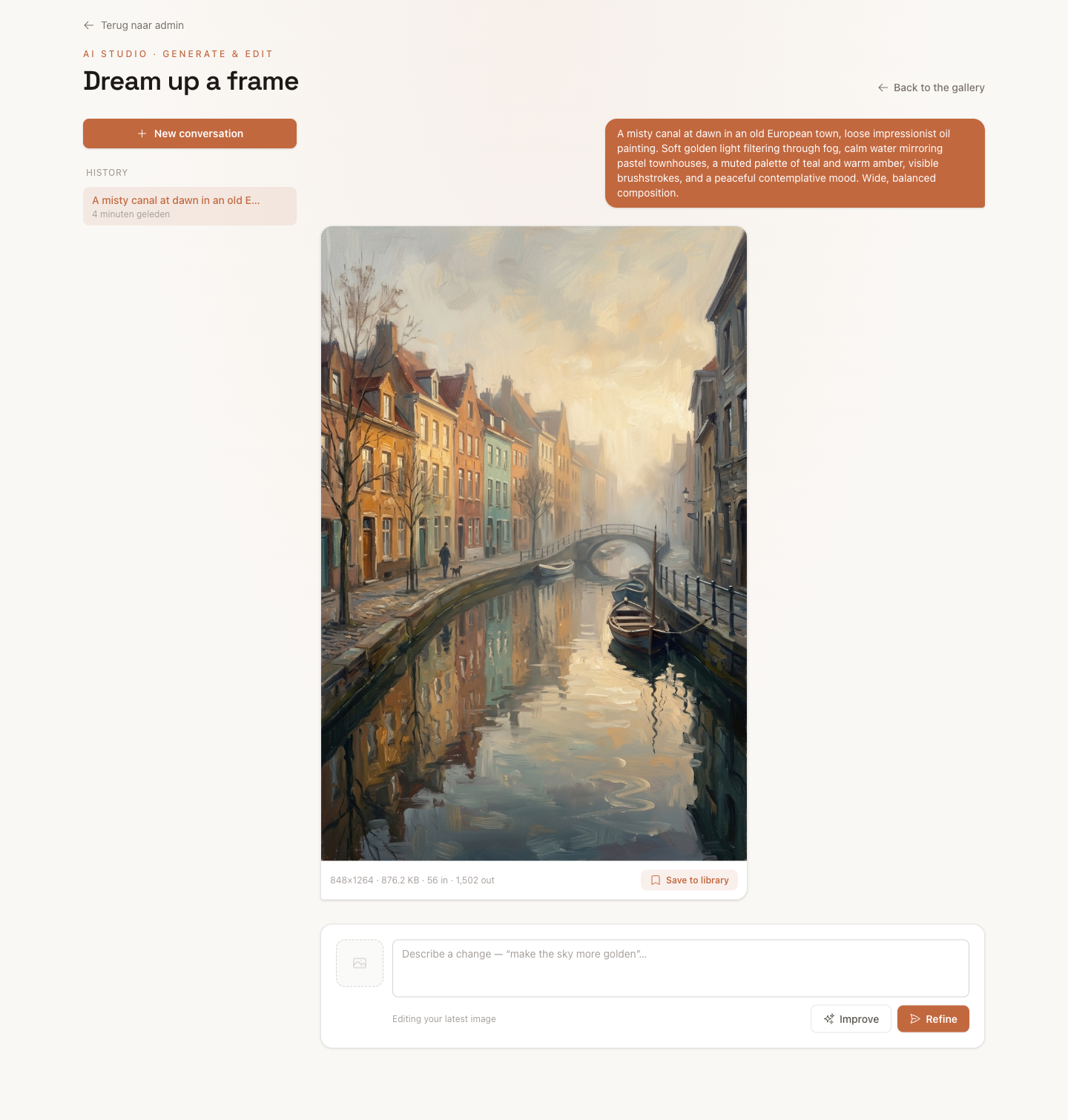

The gallery	AI Studio — empty	AI Studio — a conversation

Your library, the live frame preview and the battery webhook.	Start a new conversation: choose a shape, tap an example or write your own prompt, and optionally improve it with AI.	Generate & refine: the result with its size and token counts, ready to refine further or save to the library.

_{Click a screenshot for the full-size version.}
