README

Page builder plugin
Introduction
Features
Installation
- Pre-requisites
Usage
- Command for generating blocks
- Additional configuration options
Credits
License

Introduction

This FilamentPHP plugin is aimed at allowing you to seamlessly integrate page builder functionality into your Filament admin panel, preview changes in real-time via iframe or view files, and manage your content with ease using FilamentPHP form fields.

Features

Predefined form and infolist component which can be fully customized
Previewing changes in real-time via iframes or view files
Easily customizable page builder block components
Ability to use every FilamentPHP field inside component blocks
Ability to fully customize formatting of page builder blocks
Predefined table and trait for easily adding page builder functionality to your resources

Installation

Pre-requisites

PHP 8.1 or higher
Laravel 10.x or higher
Filament 3.x

You can install the package via composer:

composer require redberry/page-builder-plugin

You can publish and run the migrations with:

php artisan vendor:publish --tag="page-builder-plugin-migrations"
php artisan migrate

Optionally, you can publish the config file using:

php artisan vendor:publish --tag="page-builder-plugin-config"

Optionally, you can publish the views using

php artisan vendor:publish --tag="page-builder-plugin-views"

Usage

add trait to the model you want to have page building functionality to

<?php
use Redberry\PageBuilderPlugin\Traits\HasPageBuilder;

class Page extends Model
{
    use HasPageBuilder;
}

this trait simply adds relationship to the model.

next add PageBuilder form field to schema which you want to have page builder, like this:

<?php

$form->schema([
    PageBuilder::make('website_content')
        ->blocks([]),
]);

when blocks are empty it will not show any blocks, blocks can be created by running command:

php artisan page-builder-plugin:make-block --type=view

this command will create a block class in the app/Filament/{id of admin panel}/Blocks directory and also create a view file in the resources/views/blocks/ directory.

in block class that you just created you will notice function getBlockSchema.

in getBlockSchema function you must return schema of the block, this blocks are rendered just like filament forms, so you can use any filament form field and their features inside the block.

for example:

<?php

class Description extends BaseBlock
{
    public static function getBlockSchema(): array
    {
        return [
            RichEditor::make('text')
                ->required()
        ];
    }
}

now you can add new block that we just created to the page builder field like this:

<?php

$form->schema([
    PageBuilder::make('website_content')
        ->blocks([
            Description::class,
        ]),
]);

that's it, now you can add, edit and delete blocks to the page builder field.

Command for generating blocks

since in most project there will be many blocks, we decided to write command for generating blocks, this command will create block class and view file if you specify type as an view, otherwise it will create only block class.

php artisan page-builder-plugin:make-block

if you wish to customize any of the files that are created by the command you can do so by publishing the stubs using this command:

php artisan vendor:publish --tag="page-builder-plugin-stubs"

and modify them to your heart's content.

Additional configuration options

Enable reorders

you can enable reordering of blocks by adding reorderable() method to the page builder field like this:

<?php

$form->schema([
    PageBuilder::make('website_content')
        ->reorderable(),
]);

Previewing in real time with iframe

by default components in preview are rendered using normal views, but sometimes you might want to preview them in iframe, in cases which components are located in another repository.

to enable iframe previewing call renderPreviewWithIframes method on the page builder field like this:

<?php

$form->schema([
    PageBuilder::make('website_content')
        ->renderPreviewWithIframes(
            condition: true,
            createUrl: 'http://localhost:5173',
        ),
]);

sadly this is not all and some configurations are required to be done on the website that you will be using preview for. considering the fact that many frontend frameworks can not accept data right away from iframe you will need to notify filament about the fact that framework is fully hydrated and ready to load data, to do this after your framework is ready to be used run this code below:

// replace * with the url of your filament admin panel
window.parent.postMessage({
      type: "readyForPreview",
}, "*");

this will send message to admin panel letting it know that page is ready to send data. to accept that data you will need to attach message event listener to the window like this:

window.addEventListener("message", (event) => console.log(event.data));

and that it. now website rendered via iframe will receive data from filament in real time.

Formatting page builder data for preview

sometimes there might be a case where you will have the need to format the data before sending it to frontend for example retrieving full url for the image, this can be done by declaring formatForSingleView or formatForListingView on a block like this:

<?php

class Description extends BaseBlock
{
    // ...

    public static function formatForSingleView(array $data): array
    {
        $data['text'] = url($data['text']);
        $data['image'] = self::getUrlForFile($data['image']);

        return $data;
    }
}

formatForListingView also calls this function so no need to duplicate the code, data is the same.

Note that I'm using getUrlForFile. This is done because sometimes the image can be a temporary upload. This is just a helper for properly parsing the URL and returning it, so I would recommend using it.

Formatting block label

there are multiple ways to change label of the block on on page builder. if you just want to auto generate label based on one of the block attributes you can do so by declaring getBlockTitleAttribute and returning name of the attribute you want to use as a label, like this:

<?php

class Description extends BaseBlock
{
    // ...

    public static function getBlockTitleAttribute(): string
    {
        return "logo.name";
    }
}

or if you want to completely customize label structure you can do so by declaring getBlockLabel function on base block class, like this:

<?php

class Description extends BaseBlock
{
    // ...

    public static function getBlockLabel(array $state, ?int $index = null)
    {
        return data_get($state, $key) . $index;
    }
}

grouping blocks

many times you will have too many blocks and will have the need to group them, this can be done by declaring getCategory method on BaseBlock class like so:

class Description extends BaseBlock
{
    public static function getCategory(): string
    {
        return 'About';
    }
}

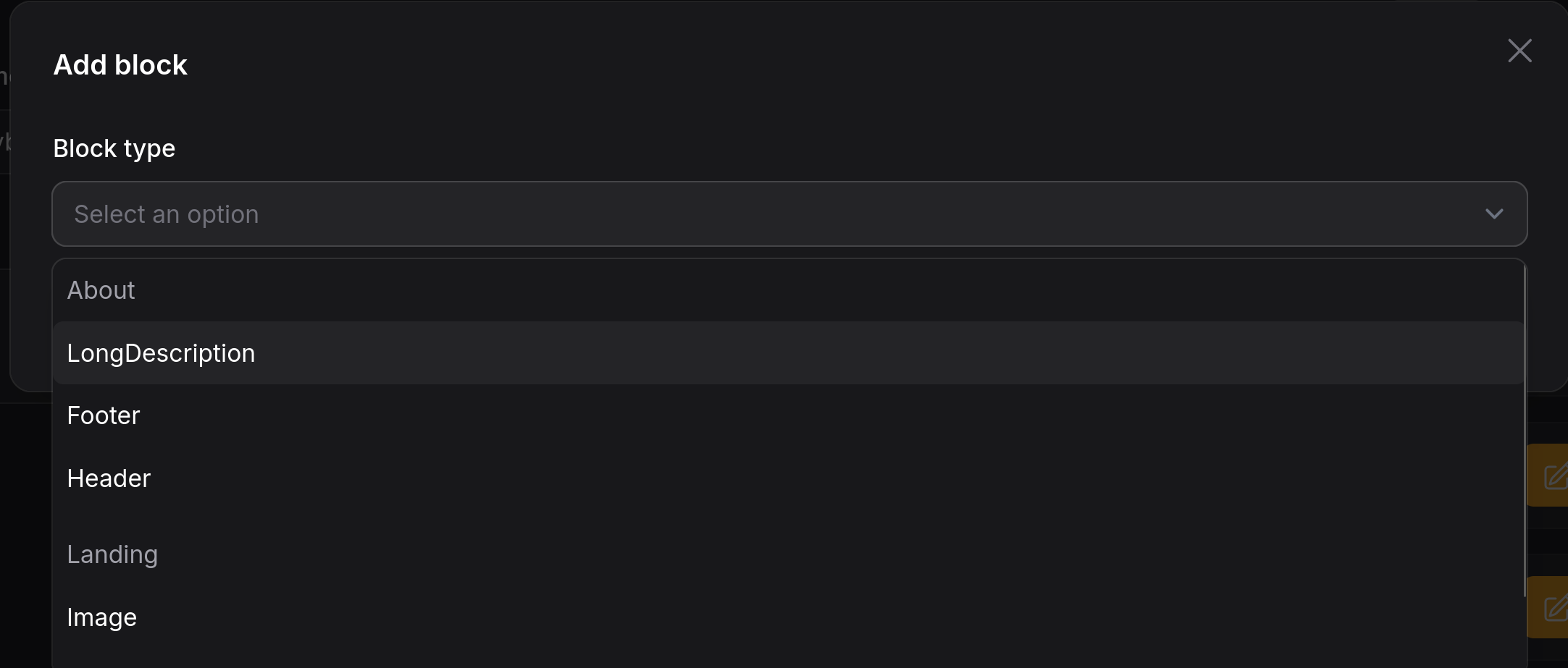

result look will like this:

iframe resizing

iframe height can not be adjusted based on content of iframe because of CORS issues, because of this there are two ways to size iframe height to not cause components to hide.

one is to just provide default height to iframe like this:

for PageBuilderPreview and PageBuilderPreviewEntry:

<?php

PageBuilderPreview::make('...')
    // ...
    ->iframeAttributes([
        'height' => '500px'
    ]);
])

or incase of PageBuilder like this:

<?php

PageBuilder::make('...')
// ...
->createAction(function (PageBuilder $action) {
    return $action->pageBuilderPreviewField(function (PageBuilderPreview $field) {
        return $field->iframeUrl('http://localhost:5173')->autoResizeIframe()->iframeAttributes([
            'height' => '500px'
        ]);
    });
})

considering above solution is not the best, we provide ability to auto resize iframe height based on frontend events, to do this first configure backend to track auto resize

for PageBuilder field:

<?php

PageBuilder::make('...')
    ->renderPreviewWithIframes(
        condition: true,
        autoResize: true,
        createUrl: 'http://localhost:5173',
    ),

for PageBuilderPreview and PageBuilderPreviewEntry simply add autoResizeIframe method to the preview field like this:

<?php

  PageBuilderPreview::make('...')
    // ...
    ->autoResizeIframe();

after configuring backend website that is rendered in iframe also needs some extra configuration. whenever height of the page changes you will need to send event to FilamentPHP like so:

// replace * with the url of your filament admin panel
window.parent.postMessage(
    {
        height: document.body.scrollHeight,
        type: 'previewResized',
    },
    '*'
);

we recommend doing this on page load and on height change of the document, you can do this by using mutation observer.

whenever this event is received by filament it will resize iframe height to the height that is provided in the message.

Parameter injection

there will be cases when you will need to modify data, schema, label based on some condition, because of this we provide parameter injection for getBlockSchema, formatForListingView, formatForSingleView and getBlockLabel methods. parameter injection refers to declaring $record parameter for function and it getting injected with record that is being used on page similar to how filament works, for example:

<?php

class Description extends BaseBlock
{
    // make sure that injecting parameter is nullable
    public static function getBlockSchema(?Model $record = null): array
    {
        return [
            RichEditor::make('text')
                ->default($record->text)
                ->required()
        ];
    }
}

this will inject record that is being used on page into getBlockSchema function, this works for all of the above mentioned functions.

injections that are provided depends on where this function is used, if this is used on infolist for example same parameters that can be injected in normal FilamentPHP can also be injected in one of the above functions, refer to FilamentPHP documentation about what parameters are available for injection.

one thing to note is that because formatForListingView uses formatForSingleView internally if you wish to inject something in formatForSingleView you will need to inject it in formatForListingView as well, otherwise it will not work.

Rendering page builder items on infolist

outside of form you might want to render page builder items on infolist, for this we provide two prebuilt entries: PageBuilderEntry and PageBuilderPreviewEntry

PageBuilderEntry is used to render page builder items without rendering part itself,

PageBuilderPreviewEntry functions in same way that PageBuilderPreview does, but it is used to render page builder items on infolist which is about only difference.

both of these feature same type of confuguration including requirment to provide iframe urls, and blocks list.

example:

<?php

$infolist
->schema([
    PageBuilderEntry::make('website_content')
        ->blocks([LongDescription::class])
        ->columnSpan(1),
    PageBuilderPreviewEntry::make('website_content_preview')
        ->blocks([LongDescription::class])
        ->iframeUrl('http://localhost:5173')
        ->autoResizeIframe()
        ->columnSpan(2),
]);

Rendering page builder item previews on forms

by default preview is rendered for create and edit. the same component that is used in create and edit actions can be used for listing as well, all you have to do is add PageBuilderPreview to the schema and provide name of PageBuilder field like so:

<?php

PageBuilderPreview::make('website_content_preview')
    ->pageBuilderField('website_content')
    ->iframeUrl('http://localhost:5173')
    ->autoResizeIframe()

this will render preview of items selected in PageBuilder field and it will update in real time.

Customizing actions and button rendering

only component which has actions is PageBuilder, all of this actions have their own modifier functions and are moved to the own class, so you can easily customize them, here is the list of actions, functions to modify them and their classes:

Action name	Class	Modifier function
Create	`CreatePageBuilderBlockAction`	`createAction`
Edit	`EditPageBuilderBlockAction`	`editAction`
Delete	`DeletePageBuilderBlockAction`	`deleteAction`
Reorder	`ReorderPageBuilderBlockAction`	`reorderAction`
Select block	`SelectBlockAction`	`selectBlockAction`

Customizing buttons for actions

one strange thing about this package is how buttons are customized, because of how filamentphp actions are structured each button render comes with lot baggage to say so, multiple views, many checks and etc. while this is not too much of a problem if you are using couple of actions but due to nature of components for building a page there will be need for many many actions, 3 actions per component, its hard to quanitify exactly how much performance disadvantage this causes but in large project we first used this package in it became a massive problem to a point where removing those actions increase paged speeding 2-3 times, same numbers are replicable in this package on smaller scale as well, for example page which was rendering 65 components took around 500ms on local machine with using normal actions and no additional logic on their part while using simple buttons took around 150ms on average because of this drastic performance deference we decided to opt into using simple button rather than action. most buttons are rendered like this:

<?php

return view('filament::components.button.index', [
    'slot' => $deleteAction->getLabel(),
    'labelSrOnly' => true,
    'icon' => 'heroicon-o-trash',
    'color' => 'danger',
    'disabled' => $deleteAction->isDisabled(),
    'attributes' => collect([
        'wire:click' => "mountFormComponentAction('$statePath', '{$this->getDeleteActionName()}', { item: '$item', index: '$index' } )",
    ]),
])

as you can see we are using filament button to render our buttons, this gives us advantage of having pretty much same capabilities as filament actions but without all the performance issues that come with using them.

this buttons can also be easily change, even the component view itself using modifier functions provided on PageBuilder component, this functions are injected with: $action $item $index and $attributes which can be injected via passing a closure to the modifier function, this is a list of modifier functions and their corresponding actions:

Action name	Modifier function
Delete	`deleteActionButton`
Edit	`editActionButton`
Reorder	`reorderActionButton`

here is example on how to use this modifier functions:

<?php

PageBuilder::make('website_content')
    ->deleteActionButton(function ($action, $item, $index, $attributes) {
        return view('filament::components.button.index',
            [
                ...$attributes,
                'id' => 'delete-button'
            ]
        );
    })

Credits

License

The MIT License (MIT). Please see License File for more information.
