README

Symfony bundle that adds the possibility to find Twig templates and blocks used for rendering HTML pages faster during development.

Features

✅ Inspect Twig templates directly in the browser
✅ Visual overlay showing which templates render which HTML elements
✅ Click to open templates in your IDE
✅ Works with Symfony Web Profiler
✅ Cookie-based activation (no code changes needed)
✅ Supports nested blocks and templates
✅ Configurable template/block exclusion (with wildcard support)
✅ Template usage metrics in Web Profiler
✅ Performance optimized (skips processing when disabled)
✅ Flexible configuration for different use cases

Installation

composer require nowo-tech/twig-inspector-bundle:^1.0.3 --dev

Then, register the bundle in your config/bundles.php:

<?php

return [
    // ...
    Nowo\TwigInspectorBundle\NowoTwigInspectorBundle::class => ['dev' => true, 'test' => true],
];

Usage

Enable the bundle (only in dev and test environments)
Access your application with Symfony Web Profiler enabled

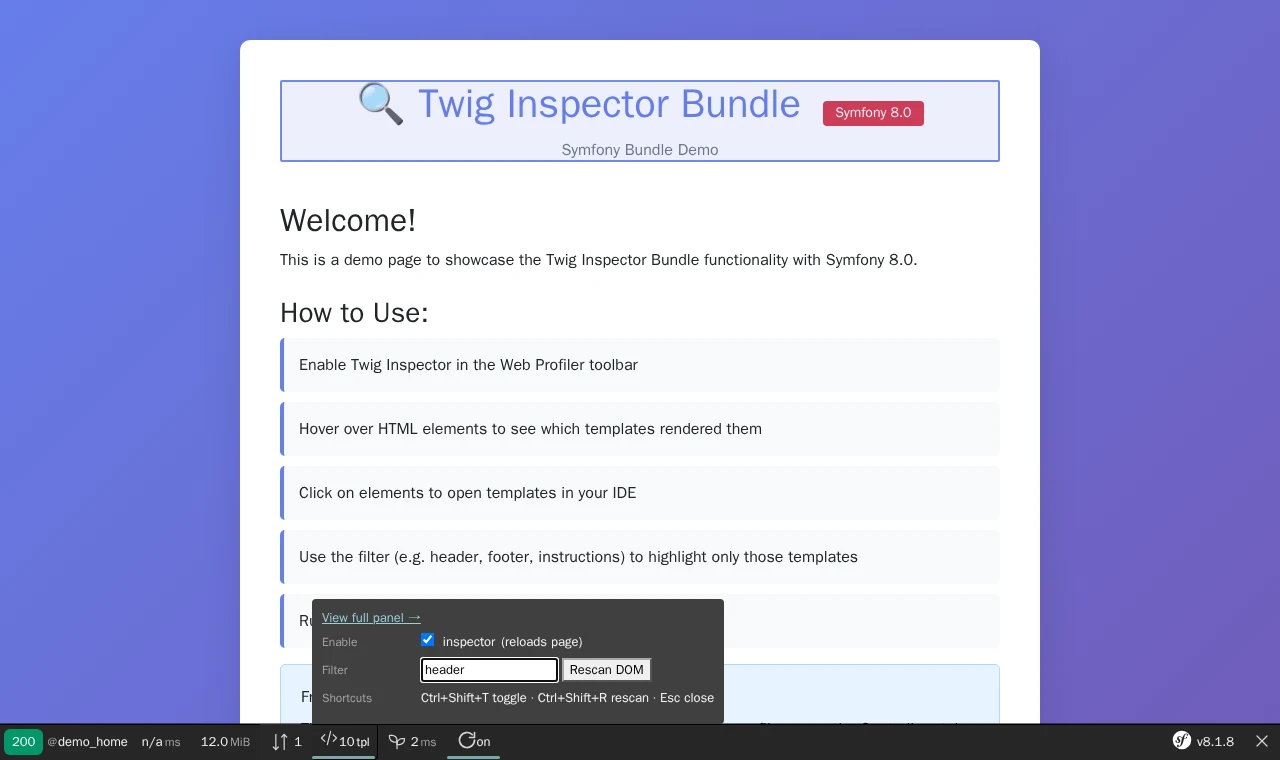

In the Web Profiler toolbar, you'll see a new icon </>
Enable Twig Inspector by checking the checkbox in the toolbar

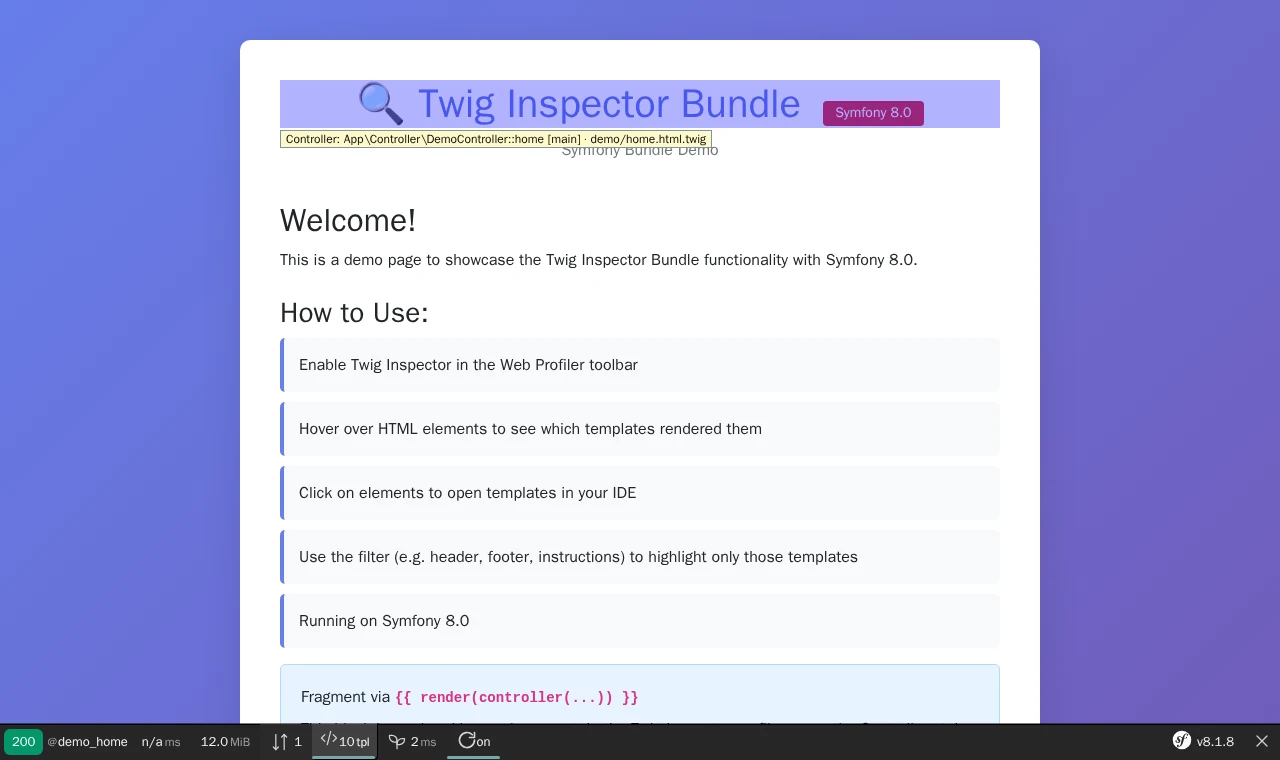

Hover over HTML elements in your page to see which Twig templates rendered them
Click on elements to open the template in your IDE

How It Works

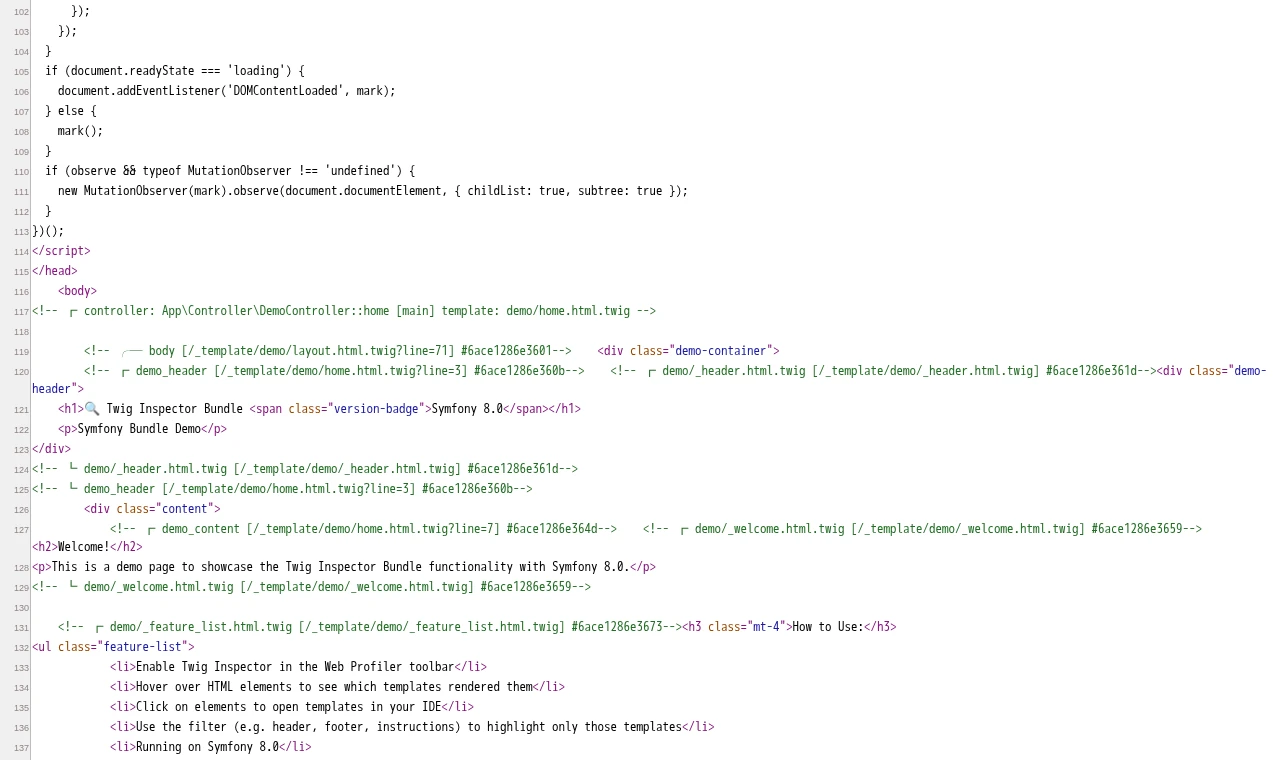

The bundle adds HTML comments before and after every Twig block and template:

<!-- ┏━ template_name [/_template/template.html.twig] #abc123 -->
<div>Your content</div>
<!-- ┗━ template_name [/_template/template.html.twig] #abc123 -->

When enabled, a JavaScript overlay shows which templates correspond to which HTML elements, and clicking on them opens the template in your IDE.

Configuration

The bundle works out of the box with default settings. No configuration file is required - the bundle uses sensible defaults defined in Configuration.php.

Important: The configuration file (nowo_twig_inspector.yaml) is optional. You only need to create it if you want to customize the default behavior.

How Configuration Works

Default Values: The bundle uses default values from Configuration.php if no config file exists
YAML Merging: If a YAML file exists, Symfony automatically merges it with default values
No Auto-Deletion: When uninstalling the bundle, the YAML file is not automatically deleted (you may want to keep your custom configuration)

Bundle Configuration

Symfony Flex Recipe (Automatic - Recommended)

If the bundle is installed via Symfony Flex (from Packagist), both the configuration file and routes will be created automatically during composer require:

config/packages/nowo_twig_inspector.yaml (configuration)
config/routes.yaml (route import, if file doesn't exist)

You don't need to do anything else - everything is set up automatically.

Note: Flex Recipes only work when the bundle is published in the official Symfony Flex repository (Packagist). If you're using a private bundle or installing from a Git repository, Flex Recipes won't work and you'll need to use the install command below.

Install Command (For manual installation or private bundles)

Only use this command if:

You're installing a private bundle (not from Packagist)
The Flex Recipe didn't create the file automatically
You want to regenerate the configuration file for a different environment
You want to recreate the file after deleting it

To create the configuration file manually:

php bin/console nowo:twig-inspector:install

This command will:

Create the configuration file at config/packages/dev/nowo_twig_inspector.yaml
Create or update config/routes.yaml with the bundle route import (if needed)
Include all available options with comments
Ask for confirmation if the config file already exists (use --force to overwrite)

You can also specify a different environment:

# For test environment
php bin/console nowo:twig-inspector:install --env=test

# Overwrite existing file
php bin/console nowo:twig-inspector:install --force

Manual Installation

Alternatively, you can create the configuration file manually:

# Create the configuration file (optional)
touch config/packages/dev/nowo_twig_inspector.yaml

Then configure the bundle behavior:

# config/packages/dev/nowo_twig_inspector.yaml
nowo_twig_inspector:
    # List of template file extensions to inspect
    enabled_extensions:
        - '.html.twig'
        # - '.twig'  # Uncomment to also inspect .twig files

    # Templates to exclude from inspection (supports wildcards with *)
    excluded_templates:
        - 'admin/*'           # Exclude all admin templates
        - 'email/*.html.twig' # Exclude email templates

    # Blocks to exclude from inspection (supports wildcards with *)
    excluded_blocks:
        - 'javascript'        # Exclude 'javascript' block
        - 'head_*'            # Exclude blocks starting with 'head_'

    # Enable template usage metrics in Web Profiler
    enable_metrics: true

    # Optimize performance by skipping output buffering when disabled
    optimize_output_buffering: true

    # Custom cookie name for enabling/disabling inspector
    cookie_name: 'twig_inspector_is_active'

Default Values (used when no config file exists):

enabled_extensions: ['.html.twig'] - Only .html.twig files are inspected
excluded_templates: [] - No templates excluded by default
excluded_blocks: [] - No blocks excluded by default
enable_metrics: true - Metrics collection enabled
optimize_output_buffering: true - Performance optimization enabled
cookie_name: 'twig_inspector_is_active' - Default cookie name

Configuration Options:

enabled_extensions: Array of template file extensions to inspect (default: ['.html.twig'])
excluded_templates: Array of template names or patterns to exclude (supports * wildcard)
excluded_blocks: Array of block names or patterns to exclude (supports * wildcard)
enable_metrics: Enable collection of template usage statistics (default: true)
optimize_output_buffering: Skip output buffering when inspector is disabled (default: true)
cookie_name: Name of the cookie used to enable/disable inspector (default: 'twig_inspector_is_active')

Note: All configuration options are optional. If you don't create a config file, the bundle will use the default values listed above.

Configuration File Behavior

If YAML exists: Symfony automatically loads and merges it with default values. Your custom configuration takes precedence over defaults.

If YAML doesn't exist: The bundle uses default values from Configuration.php. No file is required.

When uninstalling: The YAML file is not automatically deleted. This is intentional because:

You may have customized the configuration
You might want to keep it for reference
Symfony cannot determine if the file is still needed
You can manually delete it if desired: rm config/packages/dev/nowo_twig_inspector.yaml

For detailed information about how configuration works, see docs/CONFIGURATION.md.

IDE Integration

To open templates in your IDE, configure the ide option in your Symfony configuration:

# config/packages/dev/framework.yaml
framework:
    ide: 'phpstorm://open?file=%%f&line=%%l'

Supported IDEs:

PhpStorm: phpstorm://open?file=%%f&line=%%l
VS Code: vscode://file/%%f:%%l
Sublime Text: subl://open?url=file://%%f&line=%%l
Atom: atom://core/open/file?filename=%%f&line=%%l

Security

The bundle includes comprehensive security measures to prevent path traversal attacks and unauthorized access:

Template name validation: Rejects path traversal attempts (..), null bytes, and absolute paths
File path verification: Ensures resolved template paths are within allowed Twig template directories
Parameter validation: Line numbers must be positive integers
Route restrictions: Routes should only be available in dev and test environments

Important: The bundle routes are automatically added to config/routes.yaml during installation (via Flex Recipe or Install Command). The routes are restricted to dev and test environments:

# config/routes.yaml (created automatically)
when@dev:
    nowo_twig_inspector:
        resource: '@NowoTwigInspectorBundle/Resources/config/routes.yaml'

Note:

If routes aren't configured or available (e.g., in production), the bundle handles this gracefully by using fallback URLs. This prevents "route does not exist" errors when generating template links.
The route pattern allows slashes in template names to support templates in subdirectories (e.g., admin/users/list.html.twig). Security validations in the controller prevent path traversal attacks.

If you need to add the routes manually, add the above configuration to your config/routes.yaml file.

Template Usage Metrics

When enable_metrics is set to true (default), the bundle collects template usage statistics that are available in the Symfony Web Profiler:

Templates used: List of all templates rendered in the request
Blocks used: List of all blocks rendered in the request
Usage counts: How many times each template/block was used
Totals: Total number of unique templates and blocks

Access the metrics by:

Opening the Symfony Web Profiler toolbar
Clicking on the </> (Twig Inspector) icon
Viewing the collected statistics

Note: Metrics are only collected when the inspector is enabled (cookie is set to true).

Requirements

PHP >= 8.1, < 8.6
Symfony >= 6.0 || >= 7.0 || >= 8.0
Symfony Web Profiler Bundle (for development)
Twig >= 3.8 || >= 4.0

Demo Projects

The bundle includes three demo projects, one for each supported Symfony version. Each demo has its own docker-compose.yml and can be run independently:

Symfony 6.4 Demo: demo/demo-symfony6/ (Port 8001 by default, configurable via PORT env variable)
Symfony 7.0 Demo: demo/demo-symfony7/ (Port 8001 by default, configurable via PORT env variable)
Symfony 8.0 Demo: demo/demo-symfony8/ (Port 8001 by default, configurable via PORT env variable)

Quick Start with Docker

Each demo can be started independently:

# Symfony 6.4 Demo
cd demo/demo-symfony6
docker-compose up -d
docker-compose exec php composer install
# Access at: http://localhost:8001 (default port)

# Symfony 7.0 Demo
cd demo/demo-symfony7
docker-compose up -d
docker-compose exec php composer install
# Access at: http://localhost:8001 (default port)

# Symfony 8.0 Demo
cd demo/demo-symfony8
docker-compose up -d
docker-compose exec php composer install
# Access at: http://localhost:8001 (default port)

Or use the Makefile helper commands from the demo/ directory:

cd demo

# Start and install Symfony 6.4 demo
make up-symfony6
make install-symfony6

# Start and install Symfony 7.0 demo
make up-symfony7
make install-symfony7

# Start and install Symfony 8.0 demo
make up-symfony8
make install-symfony8

Each demo includes:

Independent docker-compose.yml for easy setup
Complete test suite to verify bundle integration
Code coverage configuration (100% coverage for demo code)
Example controller and templates
Web Profiler integration

Running Demo Tests

Each demo has its own test suite with code coverage:

cd demo

# Run tests for a specific demo
make test-symfony6
make test-symfony7
make test-symfony8

# Run tests with coverage for a specific demo
make test-coverage-symfony6
make test-coverage-symfony7
make test-coverage-symfony8

# Run all tests with coverage
make test-coverage-all

Or directly in each demo directory:

cd demo/demo-symfony6
docker-compose exec php composer test
docker-compose exec php composer test-coverage

See demo/README.md for more details.

Development

Using Docker (Recommended)

# Start the container
make up

# Install dependencies
make install

# Run tests
make test

# Run tests with coverage
make test-coverage

# Run all QA checks
make qa

Without Docker

composer install
composer test
composer test-coverage
composer qa

Testing

The bundle has comprehensive test coverage with 128 tests covering all functionality. All tests are located in the tests/ directory.

Current Coverage: 97.55% (358/367 lines), 92.00% methods (46/50), 76.92% classes (10/13)

Note: The remaining uncovered lines are edge cases that require system-level conditions (e.g., file_get_contents returning false, filesystem permission errors) that are difficult to test without advanced PHP extensions. The code handles these cases correctly, and 97.5% is our realistic coverage target.

Running Tests

# Run all tests
composer test

# Run tests with coverage report
composer test-coverage

# View coverage report
open coverage/index.html

Test Structure

tests/NowoTwigInspectorBundleTest.php - Bundle class tests
tests/DependencyInjection/ - Extension tests
tests/Controller/ - Controller tests
tests/DataCollector/ - Data collector tests
tests/Twig/ - Twig extension tests
tests/BoxDrawingsTest.php - Box drawings utility tests

Code Quality

The bundle uses PHP-CS-Fixer to enforce code style (PSR-12).

# Check code style
composer cs-check

# Fix code style
composer cs-fix

CI/CD

The bundle uses GitHub Actions for continuous integration:

Tests: Runs on PHP 8.1, 8.2, 8.3, 8.4, and 8.5 with Symfony 6.4, 7.0, and 8.0
- PHP 8.1: Symfony 6.4 only (Symfony 7.0+ requires PHP 8.2+, Symfony 8.0 requires PHP 8.4+)
- PHP 8.2: Symfony 6.4 and 7.0 (Symfony 8.0 requires PHP 8.4+)
- PHP 8.3: Symfony 6.4 and 7.0 (Symfony 8.0 requires PHP 8.4+)
- PHP 8.4: Symfony 6.4, 7.0, and 8.0
- PHP 8.5: Symfony 6.4, 7.0, and 8.0
Code Style: Automatically fixes code style on push
Coverage: Validates minimum 97.5% code coverage requirement (realistic target given edge case limitations)
Dependabot: Automatically updates dependencies

See .github/workflows/ci.yml for details.

Building Assets

The bundle uses TypeScript and SCSS for its frontend assets. To build them:

# Install dependencies
npm install

# Build for production
npm run build

# Build for development
npm run build:dev

# Watch for changes
npm run watch

Or using Make:

make build-assets      # Production build
make build-assets-dev  # Development build
make watch-assets      # Watch mode

The built files are located in src/Resources/assets/dist/:

index.min.js - Compiled TypeScript
style.min.css - Compiled SCSS

License

The MIT License (MIT). Please see LICENSE for more information.

Author

Created by Héctor Franco Aceituno at Nowo.tech

Based on Oro Twig Inspector by Oro, Inc.

nowo-tech / twig-inspector-bundle

Maintainers

Details
