README

A live circuit-breaker dashboard for your Filament panel, on top of harris21/laravel-fuse.

What it does

Dashboard — a tile for your circuit that turns red the moment it opens, refreshed every few seconds.

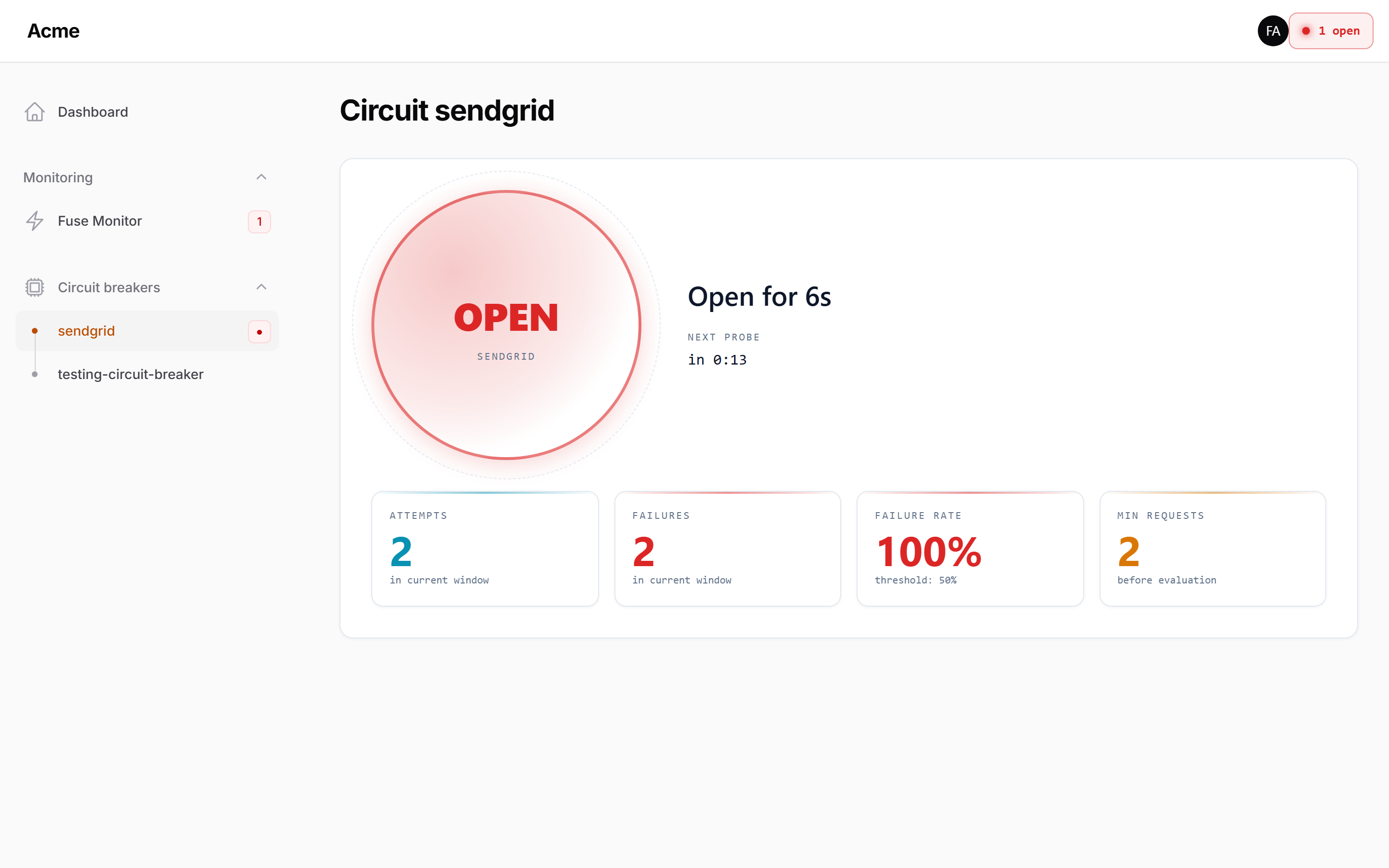

Circuit page — live state, how long it has been that way, when the next probe is due, and the four counters behind it: attempts, failures, failure rate, minimum requests.
Topbar indicator and navigation badge — the open count, on every page of the panel.
Drills — open a circuit on purpose to see the dashboard respond before you need it to.
One permission, viewFilamentFuse, for panels that already have roles.
No database. Everything is read from Fuse's own cache: no migrations, no models.

It monitors one circuit. A Pro edition that monitors all of them and keeps their history is on the way.

Requirements

PHP 8.3+ · Laravel 11, 12 or 13 · Filament 5 · harris21/laravel-fuse ^0.10

Fuse keeps circuit state in the cache, so CACHE_STORE must be one your web requests, CLI and queue workers share — not array.

Install

composer require konspyracylabs/filament-fuse

# only if Fuse is not set up yet — this creates config/fuse.php
php artisan vendor:publish --tag=fuse-config

Declare at least one circuit in config/fuse.php (an empty array uses Fuse's defaults):

'services' => [
    'stripe' => [],
],

Run the installer. It publishes config/filament-fuse.php, asks which circuit to monitor and offers to write that to your .env:

php artisan filament-fuse:install

use KonspyracyLabs\FilamentFuse\FilamentFusePlugin;

$panel->plugin(FilamentFusePlugin::make());

php artisan filament:assets

Fuse Monitor is now in your panel's navigation, under Monitoring.

Minimum configuration

Nothing is required. These are the settings most installs touch:

FILAMENT_FUSE_CIRCUIT=stripe          # the one circuit to monitor; blank = the first one declared
FILAMENT_FUSE_TESTING_CIRCUIT=true    # registers the package's own circuit, for drills

Env	Default
`FILAMENT_FUSE_ENABLED`	`true`	Master switch. Off shows nothing to anyone.
`FILAMENT_FUSE_CIRCUIT`	(blank)	The circuit to monitor. Must be declared in `config/fuse.php`.
`FILAMENT_FUSE_POLL`	`5`	Seconds between refreshes. `0` stops polling.
`FILAMENT_FUSE_TIMEZONE`	(blank)	Falls back to Filament's, then the app's, then UTC.
`FILAMENT_FUSE_ENFORCE_PERMISSIONS`	`false`	See Permissions.
`FILAMENT_FUSE_TESTING_CIRCUIT`	`false`	Enables drills.
`FILAMENT_FUSE_TESTING_CIRCUIT_NAME`	`testing-circuit-breaker`	Must not be the name of a real circuit.
`FILAMENT_FUSE_TESTING_CIRCUIT_DURATION`	`300`	Seconds a drill holds the circuit open.
`FILAMENT_FUSE_TESTING_CIRCUIT_SCHEDULE`	`false`	Close finished drills from the scheduler.
`FILAMENT_FUSE_TESTING_CIRCUIT_PRODUCTION`	`false`	Allow a drill to start in production.

The slug, navigation group, icons, indicator and badge are in config/filament-fuse.php, each with a comment, and can be set per panel on the plugin:

FilamentFusePlugin::make()->slug('circuits')->navigationGroup('Ops')->poll(10);

Commands

Command
`php artisan filament-fuse:install`	Publish the config and choose the circuit to monitor.
`php artisan filament-fuse:drill`	Open the package's testing circuit for the configured duration.
`php artisan filament-fuse:drill --for=60`	…or for this many seconds.
`php artisan filament-fuse:drill --stop`	Close it now.
`php artisan filament-fuse:drill --tick`	Close it if its time is up. What the scheduler runs.

A drill only ever opens the package's own testing circuit, which carries no traffic. It is refused in production unless FILAMENT_FUSE_TESTING_CIRCUIT_PRODUCTION=true, and refused outright if the testing circuit's name belongs to a circuit you declared yourself.

Fuse's own commands are not guarded by anybody. php artisan fuse:open {service} on a real circuit is an outage you caused: that service's jobs stop going out until it closes. fuse:close {service} closes one circuit; fuse:reset closes all of them and clears their counters, which hides an outage rather than ending it. Keep them to local and staging.

Permissions

By default any signed-in user of the panel can see the dashboard — your circuit's name, its thresholds, and how many other circuits you have declared. Guests never can. On a panel your customers log into, hand the decision to your Gate:

FILAMENT_FUSE_ENFORCE_PERMISSIONS=true

Gate::define('viewFilamentFuse', fn (User $user): bool => $user->isAdmin());

With spatie/laravel-permission, create a permission named viewFilamentFuse and grant it to a role. To decide per panel instead, pass a callback; $user may be null:

FilamentFusePlugin::make()->authorize(fn (?User $user): bool => $user?->hasRole('sre') ?? false);

Troubleshooting

Nothing in the navigation, or a 403. FILAMENT_FUSE_ENFORCE_PERMISSIONS=true with nobody granted viewFilamentFuse, or FILAMENT_FUSE_ENABLED=false.
"No circuits are being monitored." config/fuse.php declares no services. Publish it with --tag=fuse-config and add one.
The wrong circuit is shown. FILAMENT_FUSE_CIRCUIT names a circuit that is not declared, so the first declared one is used; the dashboard's subheading says so.
A change to .env does nothing. Your config is cached. Run php artisan config:cache again, or config:clear.
The tile never turns red. Fuse protects queued jobs that carry its middleware; a job run synchronously never trips a circuit. Or the cache store is array, or not the same one your workers use.
"State unreadable." The cache store could not be reached. The tile says so rather than guessing.
The dashboard is unstyled. Run php artisan filament:assets.
A drill refuses to start. The testing circuit is off, you are in production, or its name is also a circuit in config/fuse.php. The command says which.
A drill is still open. php artisan filament-fuse:drill --stop. If you renamed the testing circuit while it ran, php artisan fuse:close {old name}.
Customised views stopped updating. Published views win over the package's. Do not publish filament-fuse-views unless you mean to own those files.

Screenshots

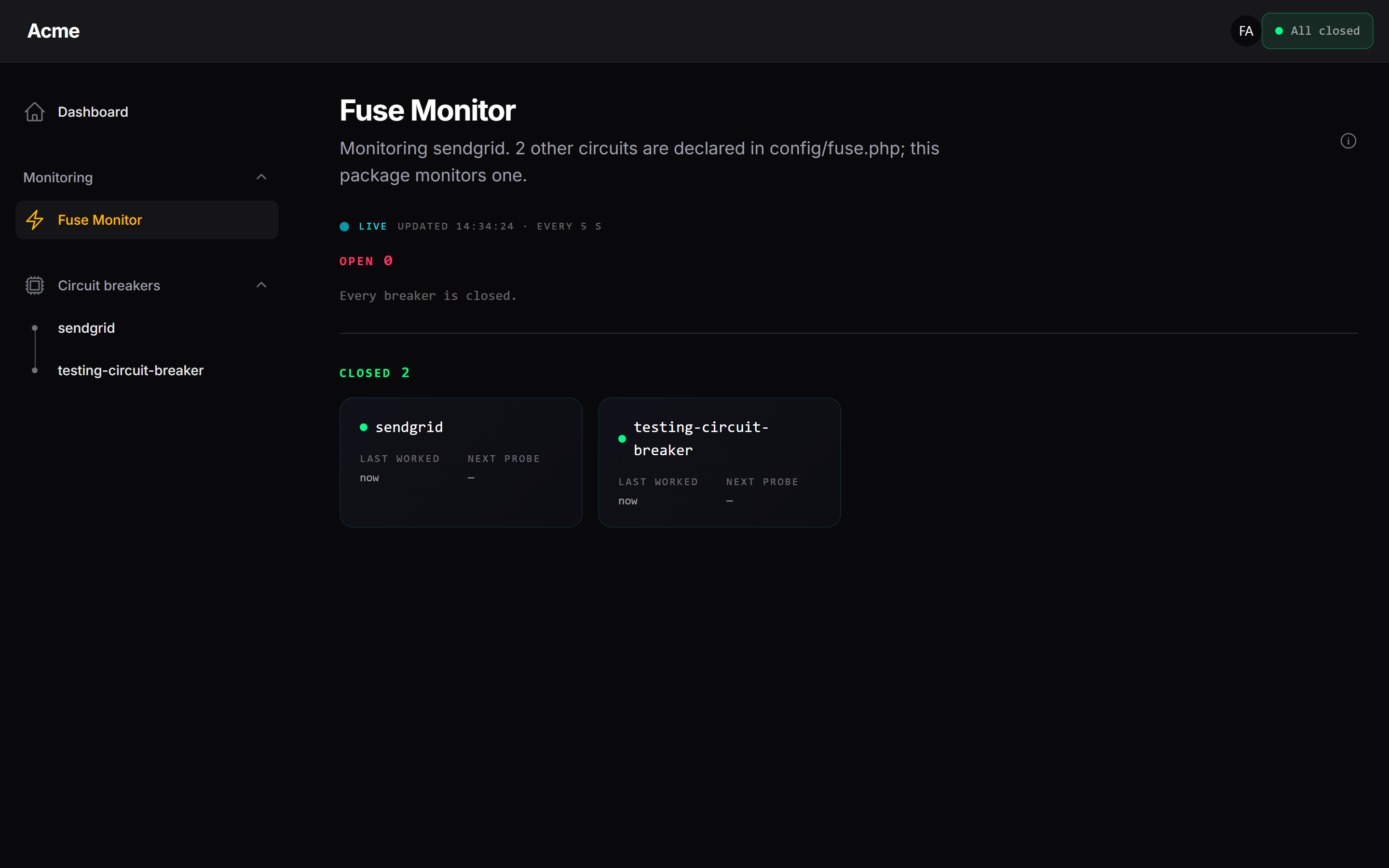

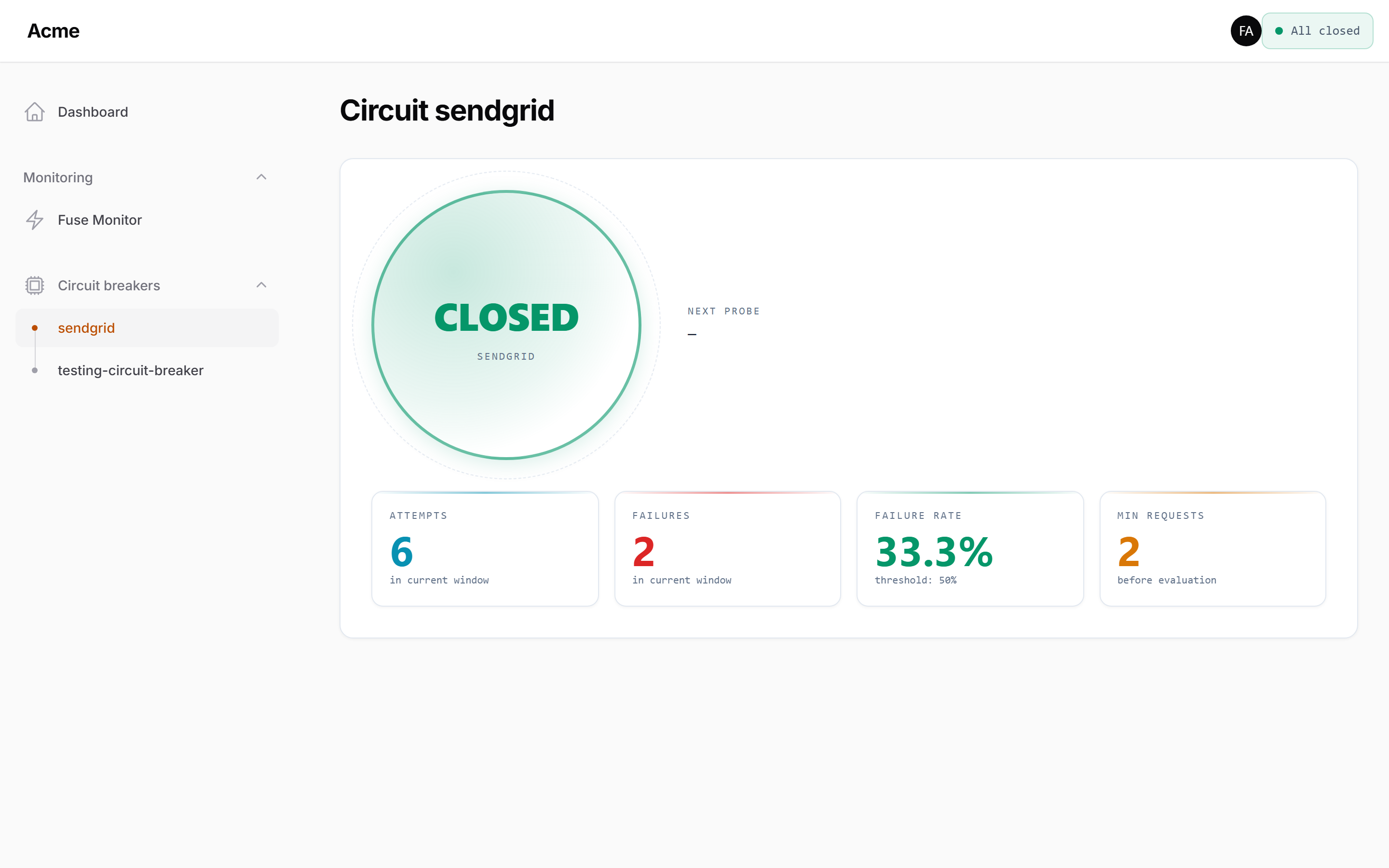

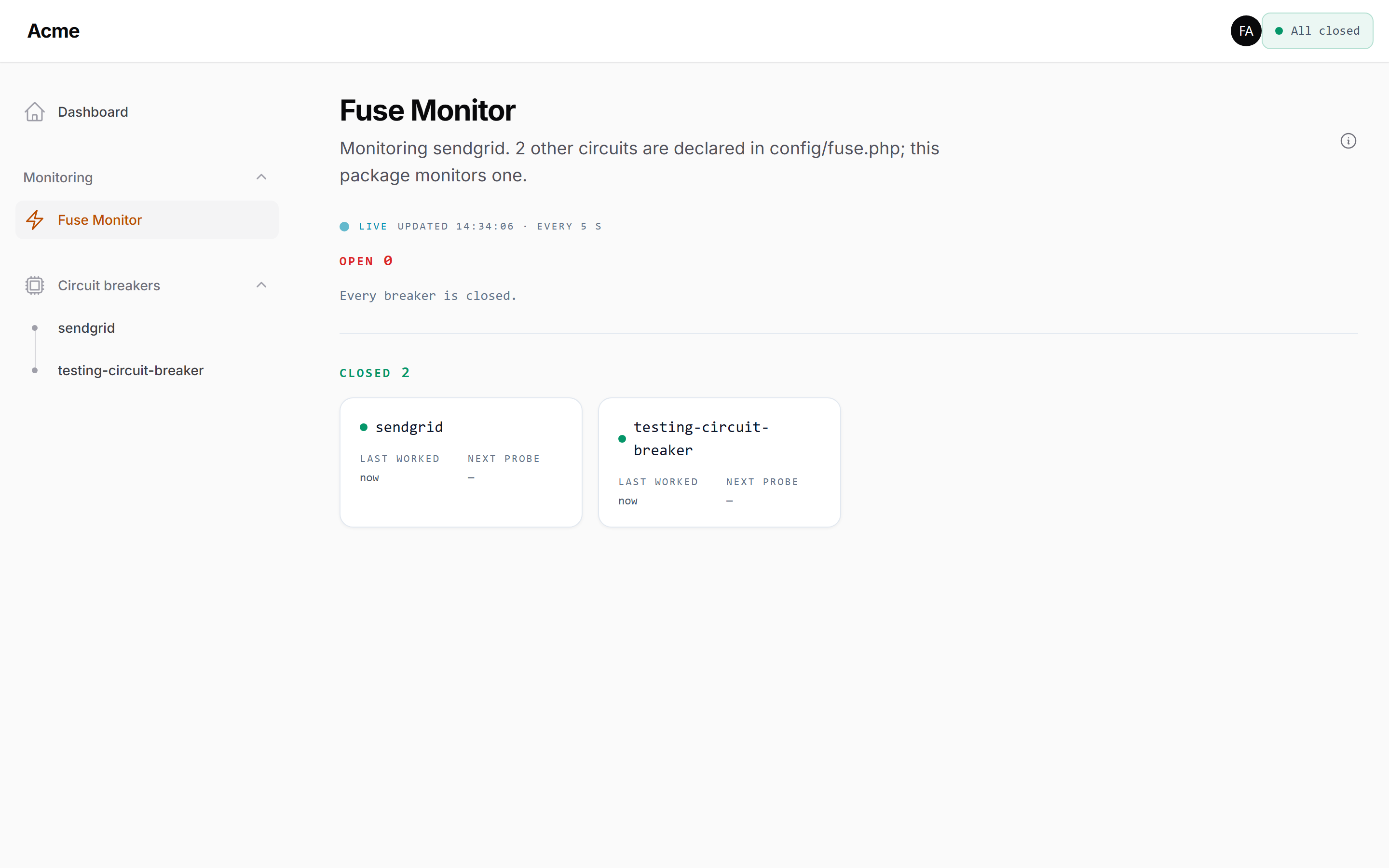

Closed, the circuit page, a drill, dark mode

Pro edition

Coming soon. This package watches one circuit and keeps no history; the Pro edition will monitor every circuit in config/fuse.php, record each outage and recovery attempt, and add an incident history and per-circuit email notifications. It is not available yet — watch this repository for the announcement.

License

MIT. See LICENSE.md.
