README

Request performance overlay for PHP. A pill in the corner of the page reports what the request cost: database queries, server timings, browser metrics, and every XHR and fetch the page makes with its own server-side query count.

Framework-agnostic core. Integrations for Laravel, Evolution CMS 3, PSR-15 and plain PDO.
No runtime dependencies, no build step, no published assets: the CSS and the JS are inlined before </body>.
Off by default. While off, nothing is collected and nothing is rendered.
Statements are stored as fingerprints, so bind values never reach the page.

Install

composer require --dev hkyss/sonar:^0.2

The root namespace is hkyss\Sonar\, lowercase vendor. PHP resolves class names case-insensitively but Composer matches PSR-4 prefixes case-sensitively, so use Hkyss\Sonar\Sonar; gets you a class that PHP considers the same and the autoloader cannot find. Copy the imports as written.

Enable

SONAR takes false (off), true (visible to everyone) or gated (collected always, shown only to whoever the gate allows).

SONAR=true
SONAR_MAX_QUERIES=200

Two settings refuse to do the dangerous thing:

true is ignored when the environment is production, because it shows the overlay to anonymous visitors. To look at a live site, use gated.
gated without a gate is off. There is no default gate to fall back on.

Laravel

The service provider is auto-discovered. It listens for QueryExecuted, attaches SonarMiddleware to every matched route, injects the overlay into HTML responses and adds X-Sonar-* headers to the rest.

php artisan vendor:publish --tag=sonar-config

// config/sonar.php
return [
    'enabled' => env('SONAR', false),
    'max_queries' => 200,
    'gate' => fn ($app) => $app['auth']->user()?->isAdmin() ?? false,
];

Under Octane the provider hooks RequestReceived to open each request. Nothing to configure.

Evolution CMS 3

Register the EVO provider instead of the Laravel one. It injects through OnWebPagePrerender, which also covers pages served from the EVO page cache, and gates on a manager login.

// core/custom/config/app/providers/SonarServiceProvider.php
<?php return \hkyss\Sonar\Integration\Evolution\SonarEvolutionServiceProvider::class;

Set SONAR=gated in core/custom/.env or in the web server environment (env[SONAR] in the php-fpm pool, SetEnv SONAR gated for mod_php).

Queries arrive from two places. EVO 3.1 runs its legacy evo()->db API on an Illuminate connection but calls logQuery() with seconds where Illuminate reports milliseconds. The integration tells them apart through Connection::beforeExecuting, which only fires for Illuminate-driven queries, and normalises the legacy timings. evo()->executedQueries is not used — EVO never increments it.

Registration is idempotent: a package chain where several providers extend one another and each registers Sonar wires the listeners once.

PSR-15

use hkyss\Sonar\Config;
use hkyss\Sonar\Integration\Psr15\SonarMiddleware;
use hkyss\Sonar\Sonar;

Sonar::boot(Config::fromEnv());

$pipeline->pipe(new SonarMiddleware($streamFactory));

The middleware opens a new request on the way in, which is what keeps the figures per-request under RoadRunner, Swoole and friends. Mount it first. If it has to sit behind other middleware, pass new SonarMiddleware($factory, false) and call Sonar::start() yourself at the real request boundary.

Plain PHP

use hkyss\Sonar\Config;
use hkyss\Sonar\Integration\Pdo\TracingPdo;
use hkyss\Sonar\Sonar;

Sonar::boot(Config::fromValue(true));

$pdo = new TracingPdo('mysql:host=localhost;dbname=app', $user, $password);

echo Sonar::inject($html);

API

Call	Purpose
`Sonar::boot(?Config)`	Start collecting; returns `null` when disabled
`Sonar::start(?Config)`	Open a new request: drop what was collected, restart the clock
`Sonar::record($sql, $ms, $source)`	Log one statement
`Sonar::add($source, $count, $ms)`	Log totals for a source that cannot report statements
`Sonar::addUsing($source, $resolver)`	Same, resolved at snapshot time
`Sonar::mark($name, $ms)` / `Sonar::timer($name)`	Named timing, e.g. SSR or a template render
`Sonar::meta($key, $value)`	Extra row in the panel; a closure is resolved at snapshot time
`Sonar::snapshot()`	Everything collected, as an array
`Sonar::headers()`	`X-Sonar-*` headers for the current request
`Sonar::inject($html)`	Overlay inserted before `</body>`

Connecting a system Sonar has never heard of is these calls and nothing else — see docs/integrations.md.

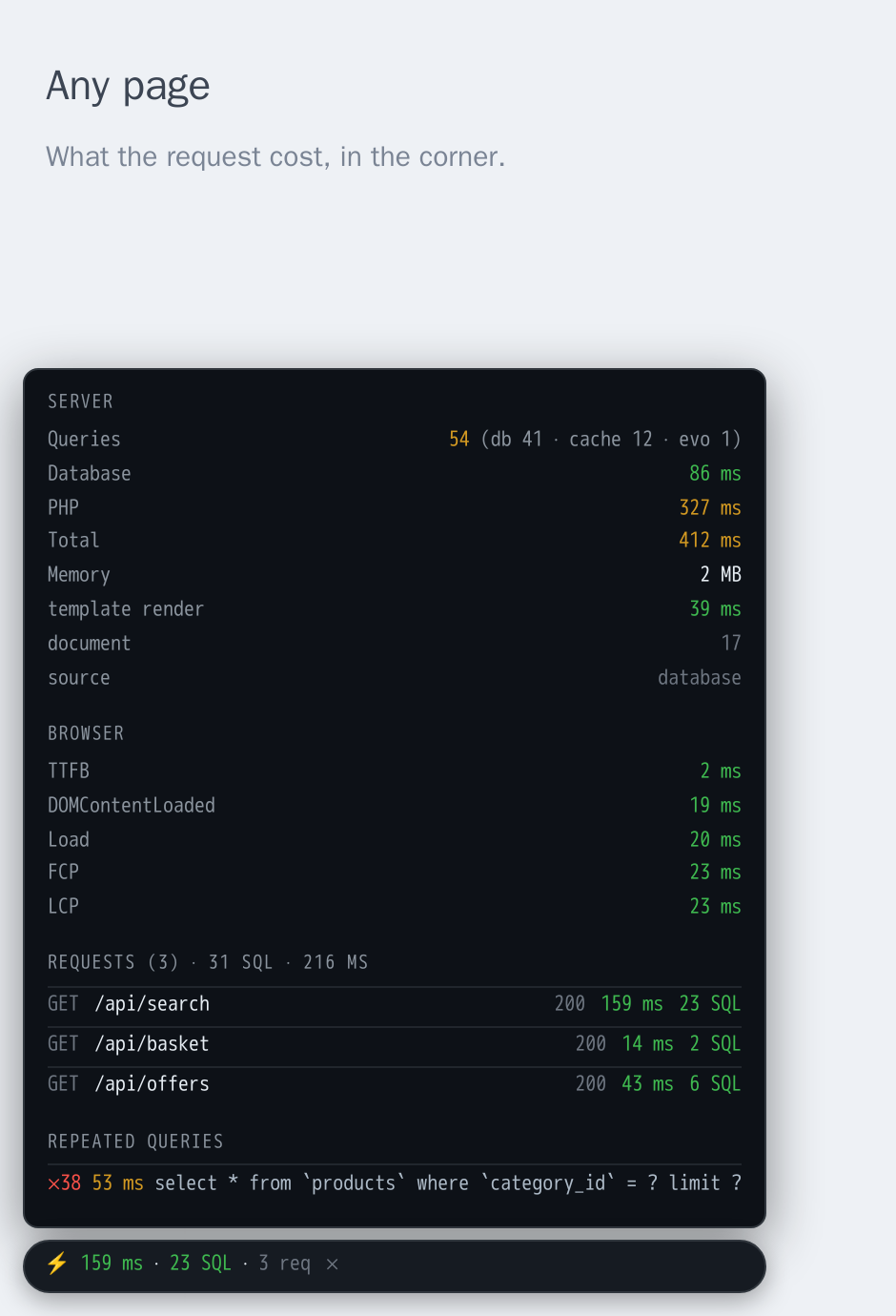

Reading the overlay

The pill reads the last request the application answered — its round trip and its query count — and shows the document's own figures until there has been one. On a page that navigates by fetch, that makes it the cost of the screen just loaded rather than a total that only ever climbs. Running totals across every request head the Requests section in the panel.

Row	Meaning
`Queries`	Total across all sources, broken down per source
`Database` / `PHP` / `Total`	Wall clock split between SQL and everything else
`Requests`	XHR and fetch calls, each with its own server-side query count from the response headers
`Repeated queries`	The same statement run more than once

Identical statements collapse into one row with a counter, so an N+1 reads as ×40 rather than forty lines. What is shown is the fingerprint — literals replaced by ? — which is both what makes the grouping meaningful and what keeps bind values off the page.

Client metrics (TTFB, DOMContentLoaded, Load, FCP, LCP) come from the Navigation Timing and Performance Observer APIs.

Notes and limits

The overlay script is a classic inline script, so it wraps fetch and XHR before any deferred module bundle runs.
Cross-origin XHR needs Access-Control-Expose-Headers; the middlewares set it.
gated collects on every request, whether or not anyone can see the result. Keep SONAR unset in production unless that cost is acceptable.
The Laravel middleware is attached on RouteMatched, so a request that matches no route — a 404, most notably — gets neither the overlay nor the headers.
Listeners are registered in register() rather than boot(), on purpose: anything else loses the queries a request runs while the application boots.

Development

composer install
composer check

composer check runs the style check, PHPStan and PHPUnit. The overlay script has its own suite:

npm install
npm test

See CONTRIBUTING.md.

License

MIT — see LICENSE.
