README

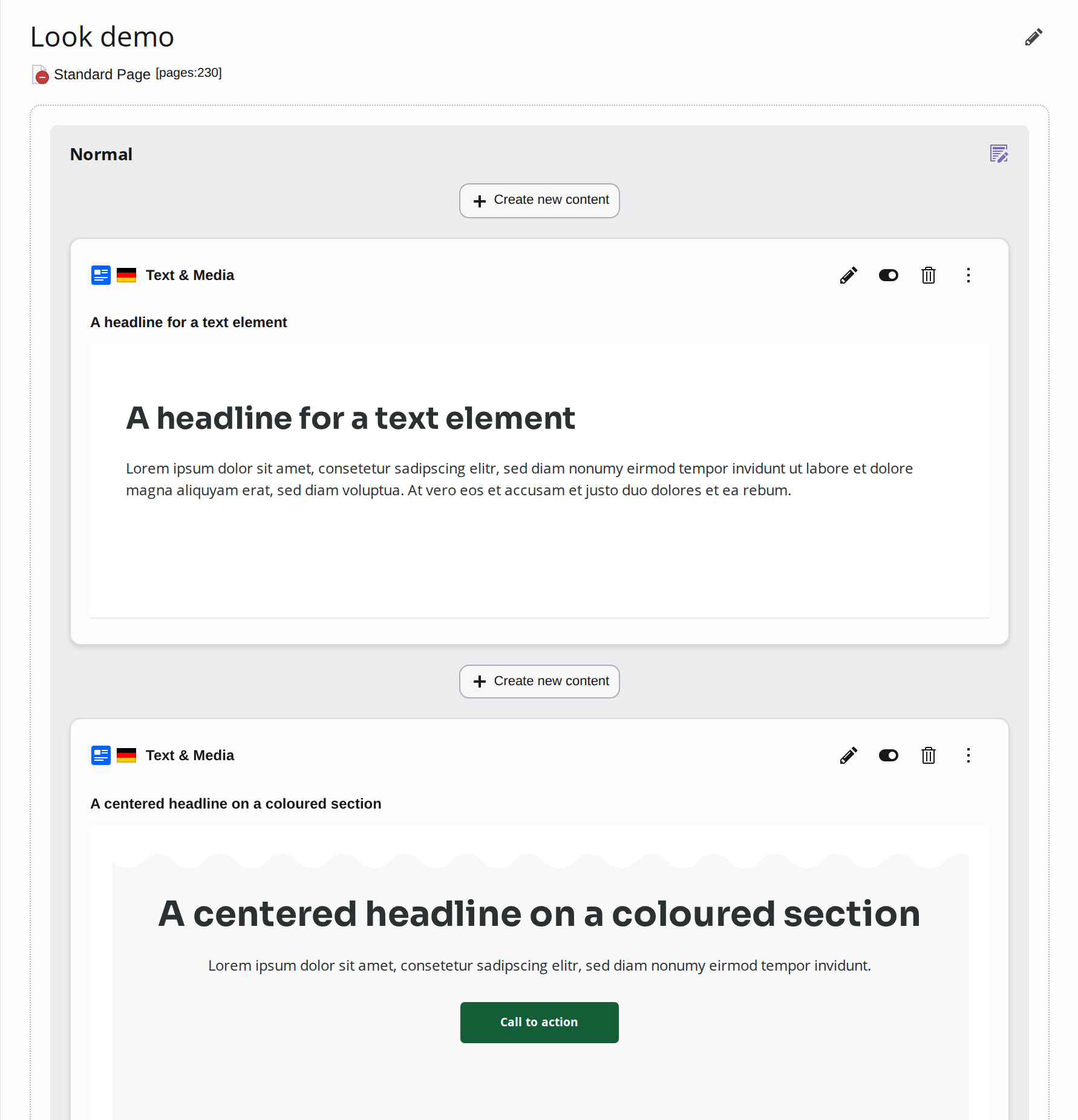

"Look" what you'll see on your website. Look renders content elements in the TYPO3 page module with the real frontend templates, CSS and images of your site, inside an isolated preview frame. Editors see what visitors get, without switching to the frontend.

What it does

Real rendering. One Fluid view helper wraps the frontend markup of a content element and shows it scaled down in the page module. No second set of preview templates to maintain.
Isolated by default. Every preview is a sandboxed <iframe> with an opaque origin: no access to the backend, its session or storage, no forms, no navigation, no clicks. A Content Security Policy limits scripts to the ones Look emits; media files and embedded players are blocked until allowed.
Fits the page module. The frame adapts its height to the content, or you cap it and get a fade-out. Scale and height are configured once for the whole site.
Assets stay in the frame. Stylesheets and scripts registered with f:asset.css / f:asset.script inside the preview land in the frame, not in the backend page.

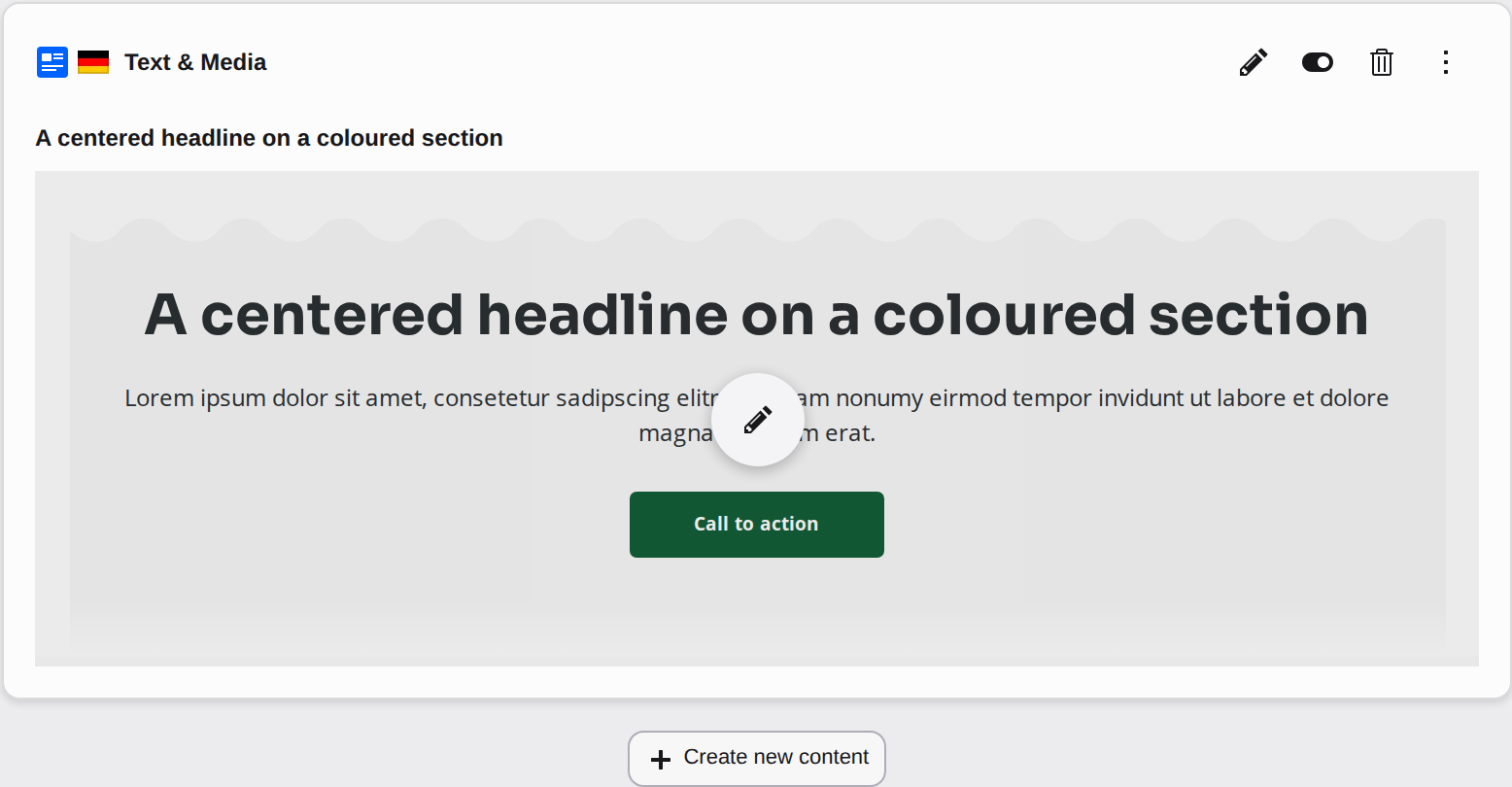

Click to edit. Optionally, hovering a preview shows the familiar edit icon and a click opens the element for editing (contextual edit panel on TYPO3 14.3+, classic form before), only for users who may edit it.

Requirements

TYPO3 13.4 LTS or 14.3+
PHP 8.2 to 8.5

No web server configuration is needed. Two things are worth knowing about the sandboxed frame: web fonts of your frontend build need Access-Control-Allow-Origin on their path, and the preview inherits the backend Content Security Policy, which blocks assets from other hosts unless you extend it. Both are covered in the documentation.

Installation

composer require flowd/typo3-look
vendor/bin/typo3 extension:setup

Quick start

Wrap the frontend rendering of a content element in the view helper. With Content Blocks this is the backend-preview.html of the block:

<html data-namespace-typo3-fluid="true"
      xmlns:f="http://typo3.org/ns/TYPO3/CMS/Fluid/ViewHelpers"
      xmlns:look="http://typo3.org/ns/Flowd/Typo3Look/ViewHelper"
      xmlns:my="http://typo3.org/ns/Vendor/MySite/Components/ComponentCollection">
<f:layout name="Preview" />
<f:section name="Content">
    <look:backend.contentPreview
        bodyClass="application"
        css="{0: 'EXT:my_site/Resources/Public/Build/main.css'}"
        js="{0: 'EXT:my_site/Resources/Public/Build/main.js'}">
        <main class="page-content">
            <my:element.textmedia record="{data}" />
        </main>
    </look:backend.contentPreview>
</f:section>
</html>

Classic content elements use the same view helper in the template registered via mod.web_layout.tt_content.preview.<CType>.

Argument	Description
`css`	Stylesheets to load inside the frame (`EXT:` paths or URLs)
`js`	JavaScript modules to load inside the frame (needs `allowSiteScripts`)
`bodyClass`	Class attribute of the `<body>` inside the frame
`scale`	Zoom factor, default from the extension configuration (0.5)
`height`	Maximum height in pixels with fade-out, default from the extension configuration (0 = unlimited)

Configuration

Extension configuration (Admin Tools > Settings > Extension Configuration > look): contentPreview.scale and contentPreview.height set the defaults for all previews.

Feature flags in config/system/settings.php or additional.php, all off by default. Turning a flag on always grants the preview an additional capability:

$GLOBALS['TYPO3_CONF_VARS']['SYS']['features']['look.contentPreview.allowSiteScripts'] = true; // run the site's JavaScript inside the frame
$GLOBALS['TYPO3_CONF_VARS']['SYS']['features']['look.contentPreview.allowMedia'] = true;       // load video, audio and embedded players
$GLOBALS['TYPO3_CONF_VARS']['SYS']['features']['look.contentPreview.editOverlay'] = true;      // hover overlay that opens the edit form

Documentation

The full manual (installation, usage, configuration, security model, known problems and their fixes) lives in Documentation/ and is rendered at https://docs.typo3.org/p/flowd/typo3-look/main/en-us/.

Development

composer install     # creates .Build/ with the tool chain
composer check       # PHP-CS-Fixer, PHPStan (level max), Rector, unit tests
composer fix         # apply Rector and PHP-CS-Fixer

Releases: publish a GitHub release whose tag equals the version in ext_emconf.php; the publish workflow uploads the extension to the TER (secret TYPO3_API_TOKEN).

License

GPL-2.0-or-later. Made by Flowd GmbH.
