digitalkaoz/yuml-php

a PHP Adapter for http://yuml.me

Installs: 705

Dependents: 0

Stars: 30

Watchers: 4

Forks: 1

Open Issues: 3

Language: PHP

1.0.2 2014-06-18 07:29 UTC

README

a php adapater for http://yuml.me

Scrutinizer Code Quality SensioLabsInsight Build status... Code Coverage Latest Stable Version Total Downloads License HHVM Status

Installation

Installation with composer

"require" : {
    "digitalkaoz/yuml-php":  "@stable",
    "andrewsville/php-token-reflection":    "dev-develop@dev"
},
"repositories" : [
    {
        "type" : "vcs",
        "url" : "https://github.com/digitalkaoz/PHP-Token-Reflection"
    }
],

You need to add my custom PHP-Token-Reflection Fork, since it has some unmerged but needed improvements!

Installation with PHAR

wget http://digitalkaoz.github.io/yuml-php/yuml-php.phar

Usage

the classes command generates a class diagram from all classes in the given folder

Usage:
    classes [--console] [--debug] [--properties] [--methods] [--filter] folder

Arguments:
    folder      the folder to scan for classes

Options:
    --console     log to console
    --debug       debug
    --properties  build with properties
    --methods     build with methods
    --filter      to include/exclude files/folder
yuml-php classes src/

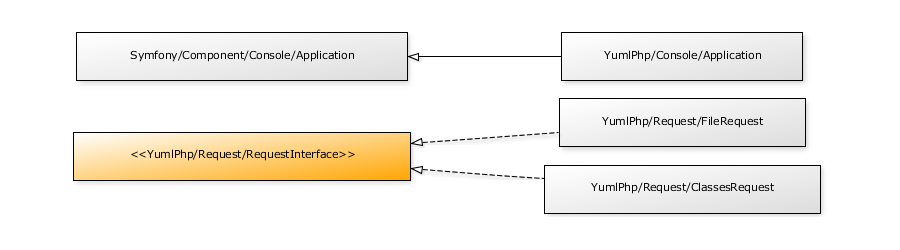

Class Diagram

the activity command generates an activity diagram from a given file

Usage:
    activity [--console] [--debug] file

Arguments:
    file          the file to read

Options:
    --console     log to console
    --debug       debug
yuml-php activity activities.txt

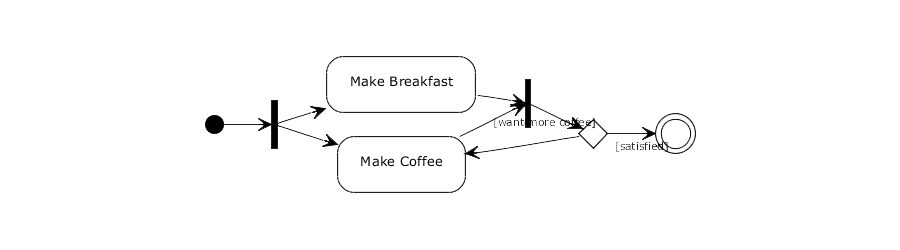

Activity Diagramm

the use-case command generates a use-case diagram from a given file

Usage:
    use-case [--console] [--debug] file

Arguments:
    file          the file to read

Options:
    --console     log to console
    --debug       debug
yuml-php use-case use-cases.txt

Use-Case Diagramm

Building the PHAR

php vendor/bin/box build

Tests

php bin/vendors.php
phpunit

TODO
