README

Deutsche Fassung: README.de.md

Image galleries maintained centrally in a backend module (“Content > Galleries”): create galleries, upload images by drag and drop, sort them, hide images and galleries. Galleries are not tied to pages – editors maintain them in one place and content elements display them anywhere.

Upload via the FAL API: format check by file content, EXIF/GPS removed, images reduced to a maximum size, HEIC converted to JPG
Responsive frontend: srcset/sizes, lazy loading, four layouts (justified rows, grid, masonry columns, large cover image), “Show all X photos”
Accessible lightbox (PhotoSwipe 5): swipe, arrow keys, ESC, caption and credits, counter, focus handling
No jQuery, works with TYPO3’s Content Security Policy, English and German included

Live demo: https://demotypo14.conrat-projects.de/fotogalerie · Documentation: https://docs.typo3.org/p/conratwebsolutions/crgalerie/main/en-us/ · Product page: https://somesolutions.de/typo3-bildergalerie/ · TER: https://extensions.typo3.org/extension/crgalerie · Packagist: https://packagist.org/packages/conratwebsolutions/crgalerie

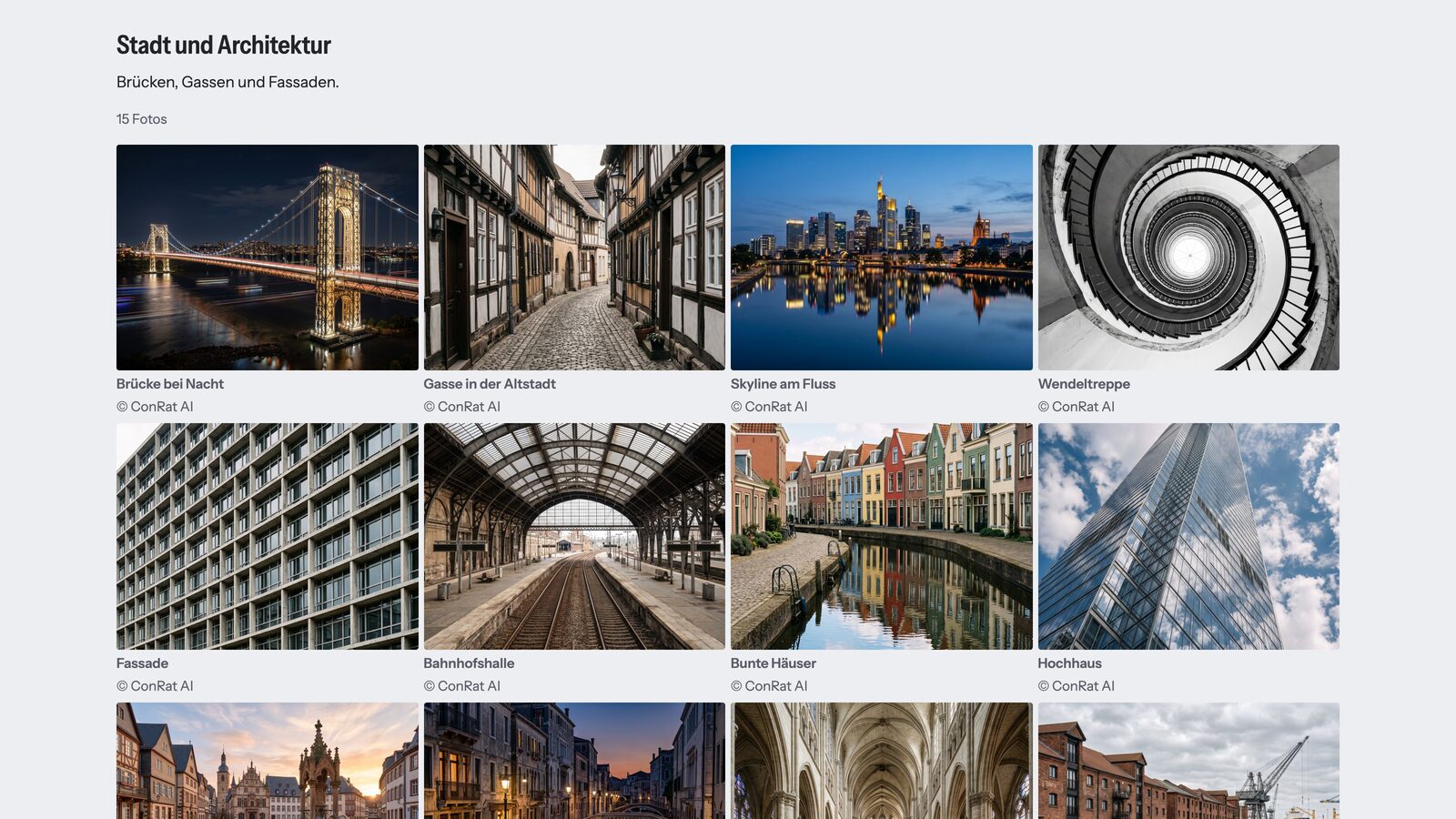

Mosaic in rows	Grid

Mosaic in columns	Large cover image and grid

Lightbox	Backend module

Requirements

TYPO3 14.3, PHP 8.2–8.5
ImageMagick or GraphicsMagick enabled in the Install Tool (HEIC upload needs a build with HEIC support)

Installation

composer require conratwebsolutions/crgalerie
vendor/bin/typo3 extension:setup

Configuration

Extension configuration (Settings > Extension Configuration > crgalerie):
- storagePid – folder in which the module stores new galleries and images. Older galleries are often on the root level (pid 0); only admins can edit those – move them into the folder for editors.
- previewPid – page with a “Gallery overview” element, used for the preview links in the module
- uploadFolder – FAL folder for uploaded images (default 1:/galerien/); one subfolder <uid>-<slug of the title> is created per gallery (e.g. 12-summer-party-2026)
- maxBildgroesse – longest side in pixels to which images are reduced on upload (default 2560)
Site set “ConRat Photo Gallery” (conrat/crgalerie): add it as a dependency in the site configuration.
Site settings (optional):
- crgalerie.pageTitle – page title when a gallery is shown, e.g. {galerie} – Photo gallery
- crgalerie.metadata.creditField – author column in sys_file_metadata, e.g. creator
- crgalerie.metadata.licenseField – license column, e.g. copyright
- crgalerie.frontend.photoCount – set to false to hide the line “21 photos” above galleries by default; content elements can override it (tab “Display”)
- crgalerie.frontend.css – set to false to use your own CSS (the lightbox CSS is always loaded)

Limitations

One gallery collection per installation: galleries and categories are not tied to pages and storagePid is global. In installations with several sites, module and content elements show the galleries of all sites; they can only be separated by categories.
Translation: galleries and images are not translated; image titles and captions come from the file metadata (sys_file_metadata) or the image record in the default language.
Workspaces: the module always shows the live state.

Content elements

Gallery – shows one selected gallery.
Gallery overview – tiles of all galleries (or of one category); a click opens the gallery on the same page.

Frontend

Layout (per element): justified rows (default), grid, masonry columns, large cover image with grid.
Images shown at first: default 12, 0 = all; further images appear via “Show all X photos”. They are delivered with hidden (so the browser does not preload them). Without JavaScript, a <noscript> stylesheet shows all images.
Overview tiles: title below the image (default) or on the image.
Lightbox with PhotoSwipe 5 (swipe, arrow keys, ESC, zoom) showing title, caption and credits. It is a named, modal dialog (“Image viewer: ”, aria-modal="true"); focus moves into the dialog on opening – also by mouse or touch – and back to the opened image on closing.
The lightbox sits above cookie banners and other overlays (z-index 2147483000, see --crg-lightbox-z).
Lists and links of gallery and overview are protected against typical project rules (bullets, indentation, underlined links, * { margin: 0 auto }), see “Robust against project CSS”.

Customising the look

The bundled CSS only reads CSS variables with a default (var(--crg-…, default)) and never sets them. Your values therefore always win – on :root for the whole page or on .crg (gallery) or .crg-uebersicht (overview), regardless of whether the project CSS is loaded before or after the crgalerie CSS:

:root {
    --crg-abstand: 12px;            /* gap between images, default 8px */
    --crg-radius: 0;                /* corner radius, default 4px */
    --crg-akzent: #b0002a;          /* button and focus outline, default currentColor */
    --crg-text-gedaempft: #555;     /* secondary texts, default #666 */
    --crg-zeilenhoehe: 260px;       /* justified rows from 600 px, default 220px */
    --crg-zeilenhoehe-mobil: 120px; /* below 600 px, default 100px */
}
.crg {
    --crg-spalten: 5;               /* from 1024 px, default 4 (overview 3) */
    --crg-spalten-tablet: 3;        /* 600–1023 px, default 3 (overview 2) */
    --crg-spalten-mobil: 1;         /* below 600 px, default 2 (overview 1) */
}
.pswp { --crg-lightbox-hintergrund: #111; }
:root { --crg-lightbox-z: 10000; }  /* lightbox layer, default 2147483000 */

The column count applies to grid, cover image and masonry columns (gallery) and to the overview tiles. Breakpoints have their own variables, so --crg-spalten only affects desktop widths.

The sizes values of the thumbnails are tuned to the defaults (DPR 2 phones get sharp images, DPR 3 phones aim at double instead of triple density):

Justified rows: per image from aspect ratio r and row height, via the ViewHelper crg:zeilenSizes: (min-width: 600px) min(100vw, r × 308 px), (min-resolution: 2.5dppx) min(100vw, r × 88 px), min(100vw, r × 133 px) (row height × reserve for stretching: 220 px × 1.4 from 600 px, 100 px × 1.33 or × 0.88 from DPR 2.5 below).
Grid/columns: (min-width: 1024px) min(25vw, 360px), (min-width: 600px) 33vw, 34vw.
Cover image (first image): (min-width: 1024px) min(50vw, 720px), 67vw.
Overview: (min-width: 1024px) 33vw, (min-width: 600px) 50vw, 100vw with variants 400/800.

If you change row heights or columns, adapt sizes in your own Partials/Galerie/Bilder.html, otherwise images become blurry or unnecessarily large: with --crg-spalten-mobil: 1, 34vw is far too small (image ≈ 100vw); for other row heights pass them to the ViewHelper, e.g. {crg:zeilenSizes(verhaeltnis: quellen.verhaeltnis, zeilenhoehe: 260, zeilenhoeheMobil: 120)} (pixel values only).

Own CSS instead of the bundled one: site setting crgalerie.frontend.css: false. Your CSS must then contain at least .crg__bild[hidden] { display: none; } (otherwise the images behind “Show all X photos” are visible at once).

Robust against project CSS

Global rules from site packages such as .frame-default ul li { list-style: disc; padding: 4px 0 }, a, a span { text-decoration: underline } or * { margin: 0 auto } do not affect gallery and overview: lists, list items (including ::before/::marker), tile links, image links, the “Show all” button and the back link are reset with a doubled class (specificity 0,2,x, without !important). To change these properties deliberately, use at least two classes as well, e.g. .crg-uebersicht .crg-uebersicht__kachel { color: … }.

Pre-generating image variants

TYPO3 renders three thumbnail sizes (400/800/1200 px) and one lightbox variant (longest side 2560 px) per image. Uploads in the module do this immediately. For existing images (e.g. after a migration or after clearing _processed_), run once so that the first page view does not have to render all variants at once:

vendor/bin/typo3 crgalerie:vorwaermen             # all visible images
vendor/bin/typo3 crgalerie:vorwaermen --galerie=7 # one gallery only

Texts and translations

All texts live in Resources/Private/Language/ – English as source language (locallang*.xlf), German in de.locallang*.xlf. The frontend follows the site language (locale), the backend module follows the editor’s language. For further languages add a <language>.locallang.xlf with the same keys.

Change single frontend texts with TypoScript:

plugin.tx_crgalerie._LOCAL_LANG.en {
    frontend.showAll = View all %d pictures
}

Or override whole files (frontend and backend), e.g. in the ext_localconf.php of your site package:

$GLOBALS['TYPO3_CONF_VARS']['LANG']['resourceOverrides']['EXT:crgalerie/Resources/Private/Language/locallang.xlf'][]
    = 'EXT:my_sitepackage/Resources/Private/Language/Overrides/crgalerie.xlf';

Permissions for editors

The module writes via the DataHandler and the FAL API. Checklist for the editor group (verified by the functional tests with the fixture Tests/Functional/Fixtures/ModulRedakteurMitRechten.csv):

Module access “Content > Galleries” (web_crgalerie)
Tables (listing and modify): gallery (tx_crgalerie_domain_model_galerie), gallery image (tx_crgalerie_domain_model_bilder), file reference (sys_file_reference), file (sys_file), file metadata (sys_file_metadata)
Allowed excludefields: “Hidden” (hidden) of gallery and gallery image
DB mount on the gallery folder (storagePid) with “Edit content” permission
File mount on the upload folder (uploadFolder, e.g. 1:/galerien/) with the file permissions read folder, add folder, read file, add file, write file, delete file
Image processing (ImageMagick/GraphicsMagick) enabled in the Install Tool

Galleries on the root level (pid 0) can only be edited by admins.

Overriding templates

plugin.tx_crgalerie.view {
    templateRootPaths.20 = EXT:my_sitepackage/Resources/Private/Crgalerie/Templates/
    partialRootPaths.20 = EXT:my_sitepackage/Resources/Private/Crgalerie/Partials/
}

The template for a gallery is Partials/Galerie/Bilder.html, for the overview Templates/Uebersicht/List.html.

Variables: galerie (gallery object), bilder (list with datei, titel, beschreibung, credit), showDescription (0–3), darstellung, anzahlStart, sizes, sizesTitel, cssEinbinden, fotoanzahlZeigen, elementUid, titelEbene (2–6); in the overview galerien (with titel, erstesBild, anzahlBilder) and kachelstil.

The ViewHelper <crg:bildQuellen datei="{…}" as="quellen"> (namespace Conrat\Crgalerie\ViewHelpers) provides src, srcset, breite, hoehe, grossUrl, grossBreite, grossHoehe, verhaeltnis. Arguments: breiten (thumbnail widths, default {0: 400, 1: 800, 2: 1200}; src is the middle one) and gross (longest side of the lightbox variant, default 2560; 0 = no own variant, grossUrl is then src).

Markup contract for own gallery templates

galerie.js (lightbox and “Show all”) and the CSS rely on these hooks – keep them when overriding Bilder.html:

<f:render partial="Galerie/Assets" arguments="{cssEinbinden: cssEinbinden}" /> – includes CSS, PhotoSwipe and galerie.js (lightbox: 0 omits lightbox CSS and script, as in the overview).
data-crg-galerie on the container of a gallery (one lightbox per container).
data-crg-text-dialog, -close, -zoom, -previous, -next, -error on the container: translated lightbox texts (if missing, galerie.js uses English texts).
.crg__liste with data-crg-anzahl-start="{anzahlStart}", containing one .crg__bild per image.
.crg__titel in the container: its text names the lightbox dialog.
a.crg__link with href="{quellen.grossUrl}", data-pswp-width and data-pswp-height (size of the large variant); data-cropped="true" if the thumbnail is cropped (grid, rows, cover image).
[data-crg-lightboxtext] (with hidden) in the same .crg__figur – shown as caption in the lightbox.
[data-crg-mehr] (with hidden) as the “Show all X photos” button.
Images after anzahlStart delivered with hidden, plus the <noscript> stylesheet from Bilder.html (galerie-noscript.css). Do not use a <style> element: TYPO3’s Content Security Policy blocks it.

In the “masonry columns” layout images flow column by column; lightbox, keyboard and screen readers follow the HTML order, which differs from the visual arrangement.

Development

Install dependencies and run the checks (requires ImageMagick or GraphicsMagick):

composer install
.Build/bin/phpstan analyse -c Build/phpstan.neon
typo3DatabaseDriver=pdo_sqlite .Build/bin/phpunit -c Build/phpunit/FunctionalTests.xml

Support and contributing

Bug reports and feature requests: GitHub issues. Security issues: please do not open a public issue, see SECURITY.md. Contributions are welcome, see CONTRIBUTING.md.

License

GPL-2.0-or-later, see LICENSE. Bundles PhotoSwipe 5.4.4 (MIT license, see Resources/Public/Vendor/photoswipe/LICENSE).

Developed by ConRat WebSolutions GmbH – product page: somesolutions.de/typo3-bildergalerie.
