A PHP library to support implementing representations for HATEOAS REST web services.

Installation
- Working With Symfony
Usage
Reference
Internals
Versioning

Installation

The recommended way to install Hateoas is through Composer. Require the willdurand/hateoas package by running the following command:

composer require willdurand/hateoas

This will resolve the latest stable version.

Otherwise, install the library and setup the autoloader yourself.

If you want to use annotations for configuration you need to install the doctrine/annotations package:

composer require doctrine/annotations

If your app uses PHP 8.1 or higher it is recommended to use native PHP attributes. In this case you don't need to install the Doctrine package.

Working With Symfony

There is a bundle for that! Install the BazingaHateoasBundle, and enjoy!

Usage

Important:

For those who use the 1.0 version, you can jump to this documentation page.

For those who use the 2.0 version, you can jump to this documentation page.

The following documentation has been written for Hateoas 3.0 and above.

Introduction

Hateoas leverages the Serializer library to provide a nice way to build HATEOAS REST web services. HATEOAS stands for Hypermedia as the Engine of Application State, and adds hypermedia links to your representations (i.e. your API responses). HATEOAS is about the discoverability of actions on a resource.

For instance, let's say you have a User API which returns a representation of a single user as follow:

{
    "user": {
        "id": 123,
        "first_name": "John",
        "last_name": "Doe"
    }
}

In order to tell your API consumers how to retrieve the data for this specific user, you have to add your very first link to this representation, let's call it self as it is the URI for this particular user:

{
    "user": {
        "id": 123,
        "first_name": "John",
        "last_name": "Doe",
        "_links": {
            "self": { "href": "http://example.com/api/users/123" }
        }
    }
}

Let's dig into Hateoas now.

Configuring Links

In Hateoas terminology, links are seen as relations added to resources. It is worth mentioning that relations also refer to embedded resources too, but this topic will be covered in the Embedding Resources section.

A link is a relation which is identified by a name (e.g. self) and that has an href parameter:

Annotation (PHP < 8.1)

use JMS\Serializer\Annotation as Serializer;
use Hateoas\Configuration\Annotation as Hateoas;

/**
* @Serializer\XmlRoot("user")
*
* @Hateoas\Relation("self", href = "expr('/api/users/' ~ object.getId())")
*/
class User
{
    /** @Serializer\XmlAttribute */
    private $id;
    private $firstName;
    private $lastName;

    public function getId() {}
}

Attribute (PHP 8.1 and greater)

use JMS\Serializer\Annotation as Serializer;
use Hateoas\Configuration\Annotation as Hateoas;

#[Serializer\XmlRoot('user')]
#[Hateoas\Relation('self', href: "expr('/api/users/' ~ object.getId())")]
class User
{
    #[Serializer\XmlAttribute]
    private $id;
    private $firstName;
    private $lastName;

    public function getId() {}
}

In the example above, we configure a self relation that is a link because of the href parameter. Its value, which may look weird at first glance, will be extensively covered in The Expression Language section. This special value is used to generate a URI.

In this section, annotations/attributes are used to configure Hateoas. XML and YAML formats are also supported. If you wish, you can use plain PHP too.

Important: you must configure both the Serializer and Hateoas the same way. E.g. if you use YAML for configuring Serializer, use YAML for configuring Hateoas.

The easiest way to try HATEOAS is with the HateoasBuilder. The builder has numerous methods to configure the Hateoas serializer, but we won't dig into them right now (see The HateoasBuilder). Everything works fine out of the box:

use Hateoas\HateoasBuilder;

$hateoas = HateoasBuilder::create()->build();

$user = new User(42, 'Adrien', 'Brault');
$json = $hateoas->serialize($user, 'json');
$xml  = $hateoas->serialize($user, 'xml');

The $hateoas object is an instance of JMS\Serializer\SerializerInterface, coming from the Serializer library. Hateoas does not come with its own serializer, it hooks into the JMS Serializer.

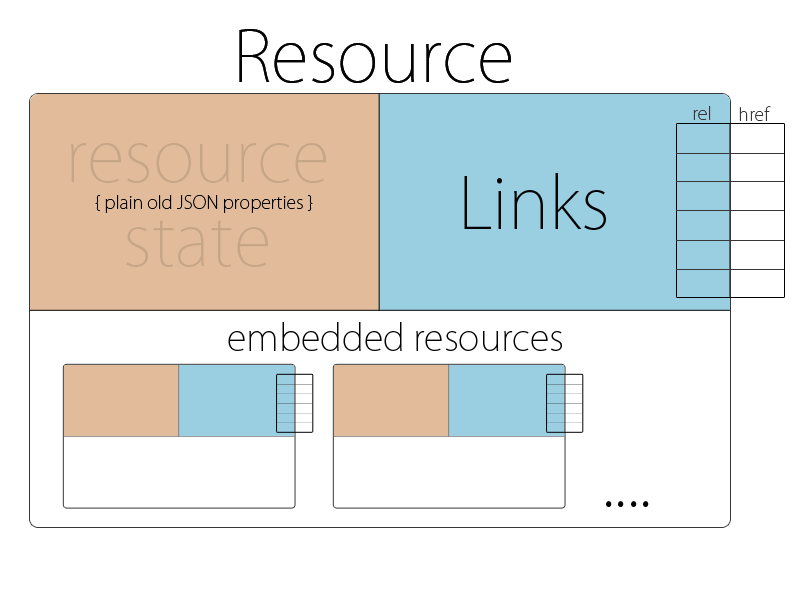

By default, Hateoas uses the Hypertext Application Language (HAL) for JSON serialization. This specifies the structure of the response (e.g. that "links" should live under a _links key):

{
    "id": 42,
    "first_name": "Adrien",
    "last_name": "Brault",
    "_links": {
        "self": {
            "href": "/api/users/42"
        }
    }
}

For XML, Atom Links are used by default:

<user id="42">
    <first_name><![CDATA[Adrien]]></first_name>
    <last_name><![CDATA[Brault]]></last_name>
    <link rel="self" href="/api/users/42"/>
</user>

It is worth mentioning that these formats are the default ones, not the only available ones. You can use different formats through different serializers, and even add your owns.

Now that you know how to add links, let's see how to add embedded resources.

Embedding Resources

Sometimes, it's more efficient to embed related resources rather than link to them, as it prevents clients from having to make extra requests to fetch those resources.

An embedded resource is a named relation that contains data, represented by the embedded parameter.

Annotation (PHP < 8.1)

use JMS\Serializer\Annotation as Serializer;
use Hateoas\Configuration\Annotation as Hateoas;

/**
 * ...
 *
 * @Hateoas\Relation(
 *     "manager",
 *     href = "expr('/api/users/' ~ object.getManager().getId())",
 *     embedded = "expr(object.getManager())",
 *     exclusion = @Hateoas\Exclusion(excludeIf = "expr(object.getManager() === null)")
 * )
 */
class User
{
    ...

    /** @Serializer\Exclude */
    private $manager;
}

Attribute (PHP 8.1 and greater)

use JMS\Serializer\Annotation as Serializer;
use Hateoas\Configuration\Annotation as Hateoas;

#[Hateoas\Relation(
     'manager',
     href: "expr('/api/users/' ~ object.getManager().getId())",
     embedded: "expr(object.getManager())",
     exclusion: new Hateoas\Exclusion(excludeif: "expr(object.getManager() === null)"),
 )]
class User
{
    ...

    #[Serializer\Exclude]
    private $manager;
}

Note: You will need to exclude the manager property from the serialization, otherwise both the serializer and Hateoas will serialize it. You will also have to exclude the manager relation when the manager is null, because otherwise an error will occur when creating the href link (calling getId() on null).

Tip: If the manager property is an object that already has a _self link, you can re-use that value for the href instead of repeating it here. See LinkHelper.

$hateoas = HateoasBuilder::create()->build();

$user = new User(42, 'Adrien', 'Brault', new User(23, 'Will', 'Durand'));
$json = $hateoas->serialize($user, 'json');
$xml  = $hateoas->serialize($user, 'xml');

For json, the HAL representation places these embedded relations inside an _embedded key:

{
    "id": 42,
    "first_name": "Adrien",
    "last_name": "Brault",
    "_links": {
        "self": {
            "href": "/api/users/42"
        },
        "manager": {
            "href": "/api/users/23"
        }
    },
    "_embedded": {
        "manager": {
            "id": 23,
            "first_name": "Will",
            "last_name": "Durand",
            "_links": {
                "self": {
                    "href": "/api/users/23"
                }
            }
        }
    }
}

In XML, serializing embedded relations will create new elements:

<user id="42">
    <first_name><![CDATA[Adrien]]></first_name>
    <last_name><![CDATA[Brault]]></last_name>
    <link rel="self" href="/api/users/42"/>
    <link rel="manager" href="/api/users/23"/>
    <manager rel="manager" id="23">
        <first_name><![CDATA[Will]]></first_name>
        <last_name><![CDATA[Durand]]></last_name>
        <link rel="self" href="/api/users/23"/>
    </manager>
</user>

The tag name of an embedded resource is inferred from the @XmlRoot annotation (xml_root_name in YAML, xml-root-name in XML) coming from the Serializer configuration.

Dealing With Collections

The library provides several classes in the Hateoas\Representation\* namespace to help you with common tasks. These are simple classes configured with the library's annotations.

The PaginatedRepresentation, OffsetRepresentation and CollectionRepresentation classes are probably the most interesting ones. These are helpful when your resource is actually a collection of resources (e.g. /users is a collection of users). These help you represent the collection and add pagination and limits:

use Hateoas\Representation\PaginatedRepresentation;
use Hateoas\Representation\CollectionRepresentation;

$paginatedCollection = new PaginatedRepresentation(
    new CollectionRepresentation(array($user1, $user2, ...)),
    'user_list', // route
    array(), // route parameters
    1,       // page number
    20,      // limit
    4,       // total pages
    'page',  // page route parameter name, optional, defaults to 'page'
    'limit', // limit route parameter name, optional, defaults to 'limit'
    false,   // generate relative URIs, optional, defaults to `false`
    75       // total collection size, optional, defaults to `null`
);

$json = $hateoas->serialize($paginatedCollection, 'json');
$xml  = $hateoas->serialize($paginatedCollection, 'xml');

The CollectionRepresentation offers a basic representation of an embedded collection.

The PaginatedRepresentation is designed to add self, first, and when possible last, next, and previous links.

The OffsetRepresentation works just like PaginatedRepresentation but is useful when pagination is expressed by offset, limit and total.

The RouteAwareRepresentation adds a self relation based on a given route.

You can generate absolute URIs by setting the absolute parameter to true in both the PaginatedRepresentation and the RouteAwareRepresentation.

The Hateoas library also provides a PagerfantaFactory to easily build PaginatedRepresentation from a Pagerfanta instance. If you use the Pagerfanta library, this is an easier way to create the collection representations:

use Hateoas\Configuration\Route;
use Hateoas\Representation\Factory\PagerfantaFactory;

$pagerfantaFactory   = new PagerfantaFactory(); // you can pass the page,
                                                // and limit parameters name
$paginatedCollection = $pagerfantaFactory->createRepresentation(
    $pager,
    new Route('user_list', array())
);

$json = $hateoas->serialize($paginatedCollection, 'json');
$xml  = $hateoas->serialize($paginatedCollection, 'xml');

You would get the following JSON content:

{
    "page": 1,
    "limit": 10,
    "pages": 1,
    "_links": {
        "self": {
            "href": "/api/users?page=1&limit=10"
        },
        "first": {
            "href": "/api/users?page=1&limit=10"
        },
        "last": {
            "href": "/api/users?page=1&limit=10"
        }
    },
    "_embedded": {
        "items": [
            { "id": 123 },
            { "id": 456 }
        ]
    }
}

And the following XML content:

<?xml version="1.0" encoding="UTF-8"?>
<collection page="1" limit="10" pages="1">
    <entry id="123"></entry>
    <entry id="456"></entry>
    <link rel="self" href="/api/users?page=1&amp;limit=10" />
    <link rel="first" href="/api/users?page=1&amp;limit=10" />
    <link rel="last" href="/api/users?page=1&amp;limit=10" />
</collection>

If you want to customize the inlined CollectionRepresentation, pass one as third argument of the createRepresentation() method:

use Hateoas\Representation\Factory\PagerfantaFactory;

$pagerfantaFactory   = new PagerfantaFactory(); // you can pass the page and limit parameters name
$paginatedCollection = $pagerfantaFactory->createRepresentation(
    $pager,
    new Route('user_list', array()),
    new CollectionRepresentation($pager->getCurrentPageResults())
);

$json = $hateoas->serialize($paginatedCollection, 'json');
$xml  = $hateoas->serialize($paginatedCollection, 'xml');

If you want to change the xml root name of the collection, create a new class with the xml root configured and use the inline mechanism:

Annotation (PHP < 8.1)

use JMS\Serializer\Annotation as Serializer;

/**
 * @Serializer\XmlRoot("users")
 */
class UsersRepresentation
{
    /**
     * @Serializer\Inline
     */
    private $inline;

    public function __construct($inline)
    {
        $this->inline = $inline;
    }
}

$paginatedCollection = ...;
$paginatedCollection = new UsersRepresentation($paginatedCollection);

Attribute (PHP 8.1 and greater)

use JMS\Serializer\Annotation as Serializer;

#[Serializer\XmlRoot('users')]
class UsersRepresentation
{
    #[Serializer\Inline]
    private $inline;

    public function __construct($inline)
    {
        $this->inline = $inline;
    }
}

$paginatedCollection = ...;
$paginatedCollection = new UsersRepresentation($paginatedCollection);

Representations

As mentionned in the previous section, representations are classes configured with the library's annotations in order to help you with common tasks. The collection representations are described in Dealing With Collection.

VndErrorRepresentation

The VndErrorRepresentation allows you to describe an error response following the vnd.error specification.

$error = new VndErrorRepresentation(
    'Validation failed',
    42,
    'http://.../',
    'http://.../'
);

Serializing such a representation in XML and JSON would give you the following outputs:

<?xml version="1.0" encoding="UTF-8"?>
    <resource logref="42">
    <message><![CDATA[Validation failed]]></message>
    <link rel="help" href="http://.../"/>
    <link rel="describes" href="http://.../"/>
</resource>

{
    "message": "Validation failed",
    "logref": 42,
    "_links": {
        "help": {
            "href": "http://.../"
        },
        "describes": {
            "href": "http://.../"
        }
    }
}

Hint: it is recommended to create your own error classes that extend the VndErrorRepresentation class.

The Expression Language

Hateoas relies on the powerful Symfony ExpressionLanguage component to retrieve values such as links, ids or objects to embed.

Each time you fill in a value (e.g. a Relation href in annotations or YAML), you can either pass a hardcoded value or an expression. In order to use the Expression Language, you have to use the expr() notation:

Annotation (PHP < 8.1)

use Hateoas\Configuration\Annotation as Hateoas;

/**
 * @Hateoas\Relation("self", href = "expr('/api/users/' ~ object.getId())")
 */

Attribute (PHP 8.1 and greater)

use Hateoas\Configuration\Annotation as Hateoas;

#[Hateoas\Relation('self', href: "expr('/api/users/' ~ object.getId())")]

You can learn more about the Expression Syntax by reading the official documentation: The Expression Syntax.

Context

Natively, a special variable named object is available in each expression, and represents the current object:

expr(object.getId())

We call such a variable a context variable.

You can add your own context variables to the Expression Language context by adding them to the expression evaluator.

Adding Your Own Context Variables

Using the HateoasBuilder, call the setExpressionContextVariable() method to add new context variables:

use Hateoas\HateoasBuilder;

$hateoas = HateoasBuilder::create()
    ->setExpressionContextVariable('foo', new Foo())
    ->build();

The foo variable is now available:

expr(foo !== null)

Expression Functions

For more info on how to add functions to the expression language, please refer to https://symfony.com/doc/current/components/expression_language/extending.html

URL Generators

Since you can use the Expression Language to define the relations links (href key), you can do a lot by default. However if you are using a framework, chances are that you will want to use routes to build links.

You will first need to configure an UrlGenerator on the builder. You can either implement the Hateoas\UrlGenerator\UrlGeneratorInterface, or use the Hateoas\UrlGenerator\CallableUrlGenerator:

use Hateoas\UrlGenerator\CallableUrlGenerator;

$hateoas = HateoasBuilder::create()
    ->setUrlGenerator(
        null, // By default all links uses the generator configured with the null name
        new CallableUrlGenerator(function ($route, array $parameters, $absolute) use ($myFramework) {
            return $myFramework->generateTheUrl($route, $parameters, $absolute);
        })
    )
    ->build()
;

You will then be able to use the @Route annotation:

Annotation (PHP < 8.1)

use Hateoas\Configuration\Annotation as Hateoas;

/**
 * @Hateoas\Relation(
 *      "self",
 *      href = @Hateoas\Route(
 *          "user_get",
 *          parameters = {
 *              "id" = "expr(object.getId())"
 *          }
 *      )
 * )
 */
class User

Attribute (PHP 8.1 and greater)

use Hateoas\Configuration\Annotation as Hateoas;

#[Hateoas\Relation(
    'self',
    href: new Hateoas\Route(
        'user_get',
        parameters: [
            'id' => 'expr(object.getId())',
        ],
    )
)]
class User

{
    "id": 42,
    "first_name": "Adrien",
    "last_name": "Brault",
    "_links": {
        "self": {
            "href": "/api/users/42"
        }
    }
}

Note that the library comes with a SymfonyUrlGenerator. For example, to use it in Silex:

use Hateoas\UrlGenerator\SymfonyUrlGenerator;

$hateoas = HateoasBuilder::create()
    ->setUrlGenerator(null, new SymfonyUrlGenerator($app['url_generator']))
    ->build()
;

Helpers

Hateoas provides a set of helpers to ease the process of building APIs.

LinkHelper

The LinkHelper class provides a getLinkHref($object, $rel, $absolute = false) method that allows you to get the href value of any object, for any given relation name. It is able to generate a URI (either absolute or relative) from any link relation:

$user = new User(123, 'William', 'Durand');

$linkHelper->getLinkHref($user, 'self');
// /api/users/123

$linkHelper->getLinkHref($user, 'self', true);
// http://example.com/api/users/123

The `link` Function

The feature above is also available in your expressions (cf. The Expression Language) through the link(object, rel, absolute) function:

Annotation (PHP < 8.1)

/**
 * @Hateoas\Relation(
 *     "self",
 *     href = @Hateoas\Route("post_get", parameters = {"id" = "expr(object.getId())"})
 * )
 */
class Post {}

/**
 * @Hateoas\Relation(
 *     "self",
 *     href = @Hateoas\Route("user_get", parameters = {"id" = "expr(object.getId())"})
 * )
 * @Hateoas\Relation(
 *     "post",
 *     href = "expr(link(object.getPost(), 'self', true))"
 * )
 * @Hateoas\Relation(
 *     "relative",
 *     href = "expr(link(object.getRelativePost(), 'self'))"
 * )
 */
class User
{
    ...

    public function getPost()
    {
        return new Post(456);
    }

    public function getRelativePost()
    {
        return new Post(789);
    }
}

Attribute (PHP 8.1 and greater)

#[Hateoas\Relation(
    'self',
    href: new Hateoas\Route(
        'post_get',
        parameters: [
            'id' => 'expr(object.getId())',
        ],
    ),
)]
class Post {}

#[Hateoas\Relation(
    'self',
    href: new Hateoas\Route(
        'user_get',
        parameters: [
            'id' => 'expr(object.getId())',
        ],
    ),
)]
#[Hateoas\Relation(
    'post',
    href: "expr(link(object.getPost(), 'self', true))",
)]
#[Hateoas\Relation(
    'relative',
    href: "expr(link(object.getRelativePost(), 'self'))",
)]
class User
{
    ...

    public function getPost()
    {
        return new Post(456);
    }

    public function getRelativePost()
    {
        return new Post(789);
    }
}

Pay attention to the href expressions for the post and relative relations, as well as their corresponding values in the following JSON content:

{
    "user": {
        "id": 123,
        "first_name": "William",
        "last_name": "Durand",
        "_links": {
            "self": { "href": "http://example.com/api/users/123" },
            "post": { "href": "http://example.com/api/posts/456" },
            "relative": { "href": "/api/posts/789" }
        }
    }
}

It is worth mentioning that you can force whether you want an absolute or relative URI by using the third argument in both the getLinkHref() method and the link function.

Important: by default, all URIs will be relative, even those which are defined as absolute in their configuration.

$linkHelper->getLinkHref($user, 'post');
// /api/posts/456

$linkHelper->getLinkHref($user, 'post', true);
// http://example.com/api/posts/456

$linkHelper->getLinkHref($user, 'relative');
// /api/posts/789

$linkHelper->getLinkHref($user, 'relative', true);
// http://example.com/api/posts/789

Twig Extensions

Hateoas also provides a set of Twig extensions.

LinkExtension

The LinkExtension allows you to use the LinkHelper into your Twig templates, so that you can generate links in your HTML templates for instance.

This extension exposes the getLinkHref() helper's method through the link_href Twig function:

{{ link_href(user, 'self') }}
{# will generate: /users/123 #}

{{ link_href(will, 'self', false) }}
{# will generate: /users/123 #}

{{ link_href(will, 'self', true) }}
{# will generate: http://example.com/users/123 #}

Serializers & Formats

Hateoas provides a set of serializers. Each serializer allows you to generate either XML or JSON content following a specific format, such as HAL, or Atom Links for instance.

The JsonHalSerializer

The JsonHalSerializer allows you to generate HAL compliant relations in JSON. It is the default JSON serializer in Hateoas.

HAL provides its linking capability with a convention which says that a resource object has a reserved property called _links. This property is an object that contains links. These links are key'ed by their link relation.

HAL also describes another convention which says that a resource may have another reserved property named _embedded. This property is similar to _links in that embedded resources are key'ed by relation name. The main difference is that rather than being links, the values are resource objects.

{
    "message": "Hello, World!",
    "_links": {
        "self": {
            "href": "/notes/0"
        }
    },
    "_embedded": {
        "associated_events": [
            {
                "name": "SymfonyCon",
                "date": "2013-12-12T00:00:00+0100"
            }
        ]
    }
}

The XmlSerializer

The XmlSerializer allows you to generate Atom Links into your XML documents. It is the default XML serializer.

<?xml version="1.0" encoding="UTF-8"?>
<note>
    <message><![CDATA[Hello, World!]]></message>
    <link rel="self" href="/notes/0" />
    <events rel="associated_events">
        <event>
            <name><![CDATA[SymfonyCon]]></name>
            <date><![CDATA[2013-12-12T00:00:00+0100]]></date>
        </event>
    </events>
</note>

The XmlHalSerializer

The XmlHalSerializer allows you to generate HAL compliant relations in XML.

HAL in XML is similar to HAL in JSON in the sense that it describes link tags and resource tags.

Note: the self relation will actually become an attribute of the main resource instead of being a link tag. Other links will be generated as link tags.

<?xml version="1.0" encoding="UTF-8"?>
<note href="/notes/0">
    <message><![CDATA[Hello, World!]]></message>

    <resource rel="associated_events">
        <name><![CDATA[SymfonyCon]]></name>
        <date><![CDATA[2013-12-12T00:00:00+0100]]></date>
    </resource>
</note>

Adding New Serializers

You must implement the SerializerInterface that describes two methods to serialize links and embedded relations.

The HateoasBuilder

The HateoasBuilder class is used to easily configure Hateoas thanks to a powerful and fluent API.

use Hateoas\HateoasBuilder;

$hateoas = HateoasBuilder::create()
    ->setCacheDir('/path/to/cache/dir')
    ->setDebug($trueOrFalse)
    ->setDefaultXmlSerializer()
    ...
    ->build();

All the methods below return the current builder, so that you can chain them.

XML Serializer

setXmlSerializer(SerializerInterface $xmlSerializer): sets the XML serializer to use. Default is: XmlSerializer;
setDefaultXmlSerializer(): sets the default XML serializer (XmlSerializer).

JSON Serializer

setJsonSerializer(SerializerInterface $jsonSerializer): sets the JSON serializer to use. Default is: JsonHalSerializer;
setDefaultJsonSerializer(): sets the default JSON serializer (JsonHalSerializer).

URL Generator

setUrlGenerator($name = null, UrlGeneratorInterface $urlGenerator): adds a new named URL generator. If $name is null, the URL generator will be the default one.

Expression Evaluator/Expression Language

setExpressionContextVariable($name, $value): adds a new expression context variable;
setExpressionLanguage(ExpressionLanguage $expressionLanguage);

(JMS) Serializer Specific

includeInterfaceMetadata($include): whether to include the metadata from the interfaces;
setMetadataDirs(array $namespacePrefixToDirMap): sets a map of namespace prefixes to directories. This method overrides any previously defined directories;
addMetadataDir($dir, $namespacePrefix = ''): adds a directory where the serializer will look for class metadata;
addMetadataDirs(array $namespacePrefixToDirMap): adds a map of namespace prefixes to directories;
replaceMetadataDir($dir, $namespacePrefix = ''): similar to addMetadataDir(), but overrides an existing entry.

Please read the official Serializer documentation for more details.

Others

setDebug($debug): enables or disables the debug mode;
setCacheDir($dir): sets the cache directory.

Configuring a Cache Directory

Both the serializer and the Hateoas libraries collect metadata about your objects from various sources such as YML, XML, or annotations. In order to make this process as efficient as possible, it is recommended that you allow the Hateoas library to cache this information. To do that, configure a cache directory:

$builder = \Hateoas\HateoasBuilder::create();

$hateoas = $builder
    ->setCacheDir($someWritableDir)
    ->build();

Configuring Metadata Locations

Hateoas supports several metadata sources. By default, it uses Doctrine annotations (PHP < 8.1) or native PHP attributes (PHP >= 8.1), but you may also store metadata in XML, or YAML files. For the latter, it is necessary to configure a metadata directory where those files are located:

$hateoas = \Hateoas\HateoasBuilder::create()
    ->addMetadataDir($someDir)
    ->build();

Hateoas would expect the metadata files to be named like the fully qualified class names where all \ are replaced with .. If you class would be named Vendor\Package\Foo the metadata file would need to be located at $someDir/Vendor.Package.Foo.(xml|yml).

Extending The Library

Hateoas allows frameworks to dynamically add relations to classes by providing an extension point at configuration level. This feature can be useful for those who want to to create a new layer on top of Hateoas, or to add "global" relations rather than copying the same configuration on each class.

In order to leverage this mechanism, the ConfigurationExtensionInterface interface has to be implemented:

use Hateoas\Configuration\Metadata\ConfigurationExtensionInterface;
use Hateoas\Configuration\Metadata\ClassMetadataInterface;
use Hateoas\Configuration\Relation;

class AcmeFooConfigurationExtension implements ConfigurationExtensionInterface
{
    /**
     * {@inheritDoc}
     */
    public function decorate(ClassMetadataInterface $classMetadata): void
    {
        if (0 === strpos('Acme\Foo\Model', $classMetadata->getName())) {
            // Add a "root" relation to all classes in the `Acme\Foo\Model` namespace
            $classMetadata->addRelation(
                new Relation(
                    'root',
                    '/'
                )
            );
        }
    }
}

You can access the existing relations loaded from Annotations, XML, or YAML with $classMetadata->getRelations().

If the $classMetadata has relations, or if you add relations to it, its relations will be cached. So if you read configuration files (Annotations, XML, or YAML), make sure to reference them on the class metadata:

$classMetadata->fileResources[] = $file;

Reference

XML

<?xml version="1.0" encoding="UTF-8"?>
<serializer>
<class name="Acme\Demo\Representation\User" h:providers="Class::getRelations expr(sevice('foo').getMyAdditionalRelations())" xmlns:h="https://github.com/willdurand/Hateoas">
        <h:relation rel="self">
            <h:href uri="http://acme.com/foo/1" />
        </h:relation>
        <h:relation rel="friends">
            <h:href route="user_friends" generator="my_custom_generator">
                <h:parameter name="id" value="expr(object.getId())" />
                <h:parameter name="page" value="1" />
            </h:ref>
            <h:embedded xml-element-name="users">
                <h:content>expr(object.getFriends())</h:content>
                <h:exclusion ... />
            </h:embedded>
            <h:exclusion groups="Default, user_full" since-version="1.0" until-version="2.2" exclude-if="expr(object.getFriends() === null)" />
        </h:relation>
    </class>
</serializer>

See the hateoas.xsd file for more details.

YAML

Acme\Demo\Representation\User:
    relations:
        -
            rel: self
            href: http://acme.com/foo/1
        -
            rel: friends
            href:
                route: user_friends
                parameters:
                    id: expr(object.getId())
                    page: 1
                generator: my_custom_generator
                absolute: false
            embedded:
                content: expr(object.getFriends())
                xmlElementName: users
                exclusion: ...
            exclusion:
                groups: [Default, user_full]
                since_version: 1.0
                until_version: 2.2
                exclude_if: expr(object.getFriends() === null)

    relation_providers: [ "Class::getRelations", "expr(sevice('foo').getMyAdditionalRelations())" ]

Annotations

@Relation

This annotation can be defined on a class.

Annotation (PHP < 8.1)

use Hateoas\Configuration\Annotation as Hateoas;

/**
 * @Hateoas\Relation(
 *     name = "self",
 *     href = "http://hello",
 *     embedded = "expr(object.getHello())",
 *     attributes = { "foo" = "bar" },
 *     exclusion = ...,
 * )
 */

Attribute (PHP 8.1 and greater)

use Hateoas\Configuration\Annotation as Hateoas;

#[Hateoas\Relation(
    name: 'self',
    href: 'http://hello',
    embedded: 'expr(object.getHello())',
    attributes: ['foo' => 'bar'],
    exclusion: '...',
)]

Important: attributes are only used on link relations (i.e. combined with the href property, not with the embedded one).

@Route

Annotation (PHP < 8.1)

use Hateoas\Configuration\Annotation as Hateoas;

/**
 * @Hateoas\Relation(
 *     name = "self",
 *     href = @Hateoas\Route(
 *         "user_get",
 *         parameters = { "id" = "expr(object.getId())" },
 *         absolute = true,
 *         generator = "my_custom_generator"
 *     )
 * )
 */

Attribute (PHP 8.1 and greater)

use Hateoas\Configuration\Annotation as Hateoas;

#[Hateoas\Relation(
    name: 'self',
    href: new Hateoas\Route(
        'user_get',
        parameters: ['id' = 'expr(object.getId())'],
        absolute: true,
        generator: 'my_custom_generator',
    ),
)]

This annotation can be defined in the href property of the @Relation annotation. This is allows you to your URL generator, if you have configured one.

@Embedded

Annotation (PHP < 8.1)

use Hateoas\Configuration\Annotation as Hateoas;

/**
 * @Hateoas\Relation(
 *     name = "friends",
 *     embedded = @Hateoas\Embedded(
 *         "expr(object.getFriends())",
 *         exclusion = ...,
 *         xmlElementName = "users"
 *     )
 * )
 */

Attribute (PHP 8.1 and greater)

use Hateoas\Configuration\Annotation as Hateoas;

#[Hateoas\Relation(
    name: 'friends',
    embedded: new Hateoas\Embedded(
        'expr(object.getFriends())',
        exclusion: '...',
        xmlElementName: 'users',
    ),
)]

This annotation can be defined in the embedded property of the @Relation annotation. It is useful if you need configure the exclusion or xmlElementName options for the embedded resource.

@Exclusion

This annotation can be defined in the exclusion property of both the @Relation and @Embedded annotations.

All values except excludeIf act the same way as when they are used directly on the regular properties with the serializer.

excludeIf expects a boolean and is helpful when another expression would fail under some circumstances. In this example, if the getManager method is null, you should exclude it to prevent the URL generation from failing:

Annotation (PHP < 8.1)

use Hateoas\Configuration\Annotation as Hateoas;

/**
 * @Hateoas\Relation(
 *     "manager",
 *     href = @Hateoas\Route(
 *         "user_get",
 *         parameters = { "id" = "expr(object.getManager().getId())" }
 *     ),
 *     exclusion = @Hateoas\Exclusion(excludeIf = "expr(null === object.getManager())")
 * )
 */
class User
{
    public function getId() {}

    /**
     * @return User|null
     */
    public function getManager() {}
}

Attribute (PHP 8.1 and greater)

use Hateoas\Configuration\Annotation as Hateoas;

#[Hateoas\Relation(
    name: 'manager',
    href: new Hateoas\Route(
        'user_get',
        parameters: ['id' => 'expr(object.getManager().getId())'],
    ),
    exclusion: new Hateoas\Exclusion(excludeIf: 'expr(null === object.getManager())')
)]
class User
{
    public function getId() {}

    public function getManager(): ?User {}
}

@RelationProvider

This annotation can be defined on a class. It is useful if you wish to serialize multiple-relations(links). As an example:

{
  "_links": {
    "relation_name": [
      {"href": "link1"},
      {"href": "link2"},
      {"href": "link3"}
    ]
  }
}

It can be "name":

A function: my_func
A static method: MyClass::getExtraRelations
An expression: expr(service('user.rel_provider').getExtraRelations())

Here and example using the expression language:

Annotation (PHP < 8.1)

use Hateoas\Configuration\Annotation as Hateoas;

/**
 * @Hateoas\RelationProvider("expr(service('user.rel_provider').getExtraRelations())")
 */
class User
{
    ...
}

Attribute (PHP 8.1 and greater)

use Hateoas\Configuration\Annotation as Hateoas;

#[Hateoas\RelationProvider("expr(service('user.rel_provider').getExtraRelations())")]
class User
{
    ...
}

Here the UserRelPrvider class:

use Hateoas\Configuration\Relation;
use Hateoas\Configuration\Route;

class UserRelPrvider
{
    private $evaluator;

    public function __construct(CompilableExpressionEvaluatorInterface $evaluator)
    {
        $this->evaluator = $evaluator;
    }

    /**
     * @return Relation[]
     */
    public function getExtraRelations(): array
    {
        // You need to return the relations
        return array(
            new Relation(
                'self',
                new Route(
                    'foo_get',
                    ['id' => $this->evaluator->parse('object.getId()', ['object'])]
                )
            )
        );
    }
}

$this->evaluator implementing CompilableExpressionEvaluatorInterface is used to parse the expression language in a form that can be cached and saved for later use. If you do not need the expression language in your relations, then this service is not needed.

The user.rel_provider service is defined as:

user.rel_provider:
    class: UserRelPrvider
    arguments:
      - '@jms_serializer.expression_evaluator'

In this case jms_serializer.expression_evaluator is a service implementing CompilableExpressionEvaluatorInterface.

Internals

This section refers to the Hateoas internals, providing documentation about hidden parts of this library. This is not always relevant for end users, but interesting for developers or people interested in learning how things work under the hood.

Versioning

willdurand/hateoas follows Semantic Versioning.

End Of Life

As of October 2013, versions 1.x and 0.x are officially not supported anymore (note that 1.x was never released).

Stable Version

Version 3.x is the current major stable version.

Version 2.x is maintained only for security bug fixes and for major issues that might occur.

Contributing

See CONTRIBUTING file.

Running the Tests

Install the Composer dev dependencies:

php composer.phar install --dev

Then, run the test suite using PHPUnit:

bin/phpunit

License

Hateoas is released under the MIT License. See the bundled LICENSE file for details.

willdurand / hateoas

Maintainers

Details

README

Installation

Working With Symfony

Usage

Introduction

Configuring Links

Embedding Resources

Dealing With Collections

Representations

VndErrorRepresentation

The Expression Language

Context

Adding Your Own Context Variables

Expression Functions

URL Generators

Helpers

LinkHelper

The link Function

Twig Extensions

LinkExtension

Serializers & Formats

The JsonHalSerializer

The XmlSerializer

The XmlHalSerializer

Adding New Serializers

The HateoasBuilder

XML Serializer

JSON Serializer

URL Generator

Expression Evaluator/Expression Language

(JMS) Serializer Specific

Others

Configuring a Cache Directory

Configuring Metadata Locations

Extending The Library

Reference

XML

YAML

Annotations

@Relation

@Route

@Embedded

@Exclusion

@RelationProvider

Internals

Versioning

End Of Life

Stable Version

Contributing

Running the Tests

License

The `link` Function
