README

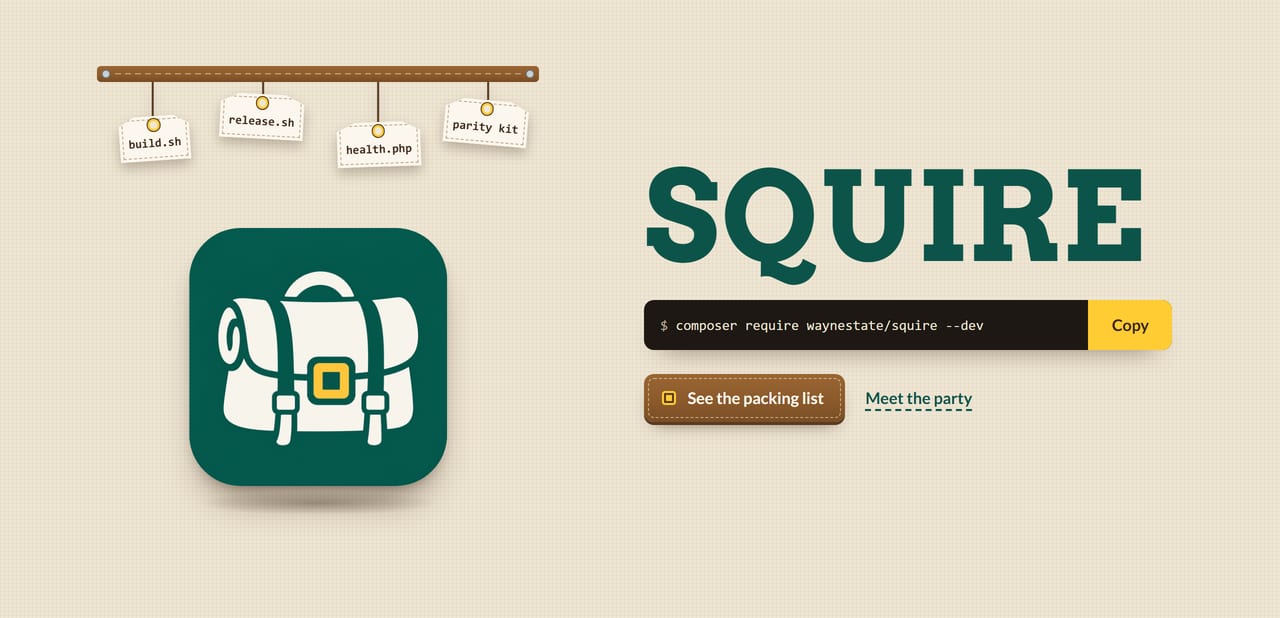

Squire's front page: the headline Squire and the composer require command beside the squire's satchel, with build.sh, release.sh, health.php and the parity kit hanging as luggage tags from a leather rail.

Squire

php ^8.3 license MIT exit codes 0, 1, 2 GitHub CI

Suits you up for deploy day. A squire carries the kit, readies the armor and gets the knight on the field.

Documentation: squire.apps.wayne.edu/docs/

Checks: composer ci (the same command runs on GitLab and GitHub).

Squire is the Citadel kit: build.sh, the release script, the health check, and local parity on the real images. Its docs builder turns docs/ into the committed pages under site/docs/, with a changelog page generated from CHANGELOG.md when the nav lists one. It is part of WELD, the Wayne State application stack, beside WayneUI (project 0, the interface layer), CREED, PROCTOR, Preflight, SESAME, HELMET, Pinstripe, Sourdough and Parity. Squire gets the app onto Citadel; Parity runs Citadel on your computer, and takes over from Squire's own parity kit, which is deprecated (see Local parity).

Not to be confused with: squire doctor checks deploy setup only; standards checks are PROCTOR's.

A knight never suits up alone. Your app shouldn't deploy alone either.

Front page: site/index.html, a static page you can serve from anywhere. On Citadel it is served by the raw-PHP deploy layer in deploy/: a Squire kit whose front controller serves site/ behind HELMET's security headers. For local development, keep serving site/ directly.

Status: 0.11.1, tagged and on Packagist.

Where the code lives

The canonical repository is git.wayne.edu/enterprise-apps/squire; clone it over SSH as git@git.wayne.edu:enterprise-apps/squire.git or over HTTPS as https://git.wayne.edu/enterprise-apps/squire.git. Open issues and merge requests there; tags are cut there, by a maintainer, with an approver. GitHub (waynestate/squire) is a read-only push mirror of it: Packagist reads from it, and nobody pushes to it. Your squire serves one banner, and it flies over git.wayne.edu.

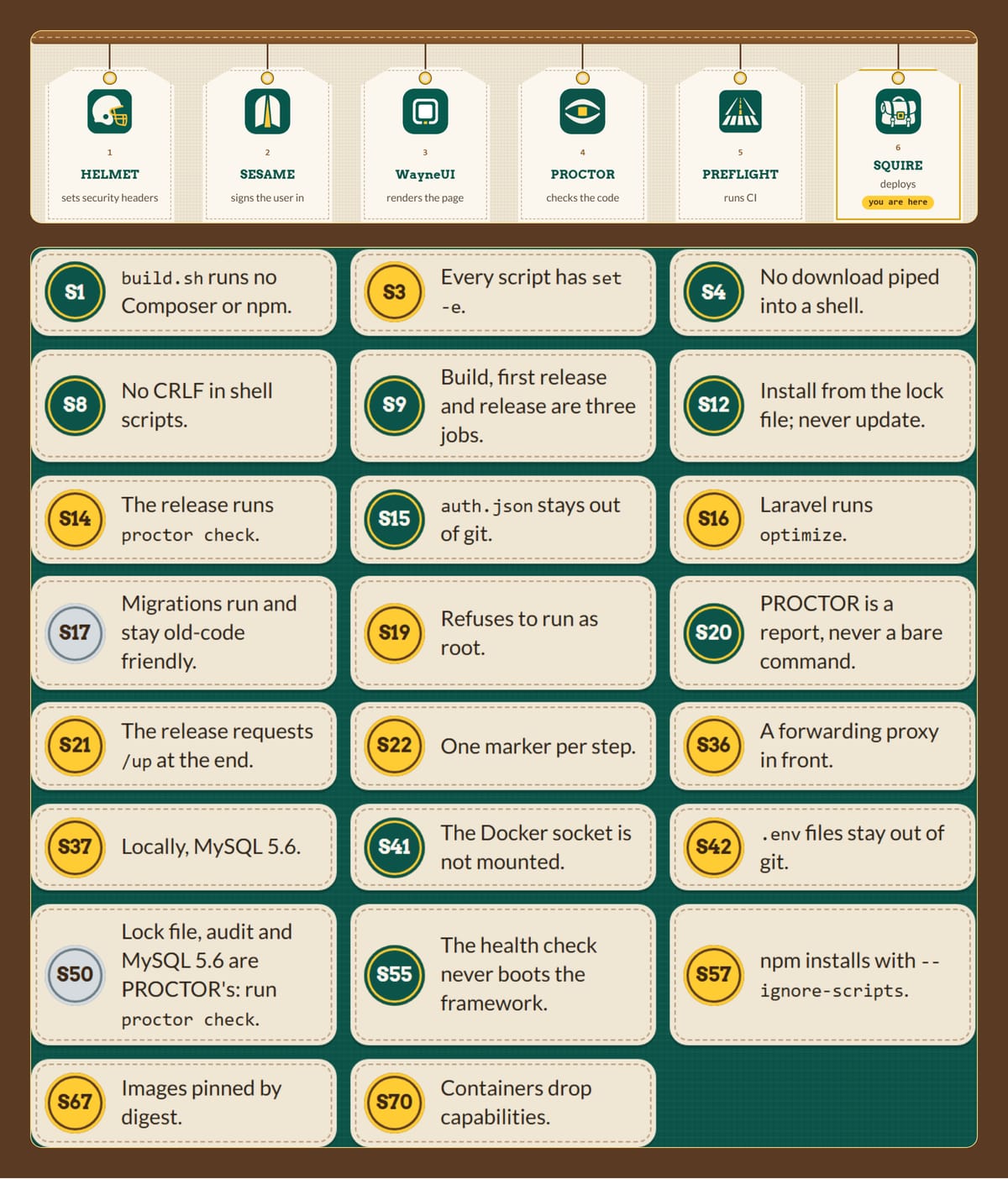

Open the bag: two more cuts of the front page Two cuts of Squire's front page: the riding order of the stack's parts hung as tags on a strap, ending in Squire, and the S-rules that doctor checks, each sewn on as a round patch.
The kit bag's label: the brand board Squire's brand board: the satchel mark, lockups, the green, gold and cream palette, type, favicons, and do and don't panels.

Docs

The pages under docs/ build into the committed site at site/docs/: rebuild with composer docs, check with composer docs:check.

What it does

  • squire init writes the scripts a Citadel app needs from templates, for raw PHP, Laravel or a static site, and detects a Vue/Inertia layer from package.json, adding the layer's release script and Node 22 parity service. squire init --check reports when your copies have drifted from the templates (depend, do not copy). In a directory below the repository root (a deploy/ layer, say), init also keeps the .gitignore honest: it appends /vendor/, .env and .env.squire when they are missing, never touches a line the app added, and leaves the repository root's .gitignore to the app.
  • squire update takes the new template versions for the files you never edited, writes the template files a newer release added to a group the kit records (recording them in .squire.json), and shows a diff for the ones you did. It never overwrites your edits, and it runs the same in CI and on a laptop.
  • squire doctor checks an app against the best practices a machine can decide (BEST_PRACTICES.md). The lock file, composer audit and MySQL 5.6 checks are owned by PROCTOR; doctor hands off to it (S50) instead of repeating them.
  • squire facts fills the marked squire-facts: regions in your files from the committed .squire/facts.json snapshot; squire facts --check writes nothing and exits 1 when a region has drifted, so CI can gate on it. squire facts --snapshot rebuilds the snapshot itself from the CREED policy and the ADVISOR project data in vendor, so a scheduled bot can keep it honest while CI only checks.
  • A local setup that runs your app on the Citadel PHP image, behind a proxy like Citadel's, with the same MySQL 5.6. Deprecated as of 0.10.5: Parity does this job now.
  • Squire's maintainers send platform improvement proposals to the platform team privately. Squire never touches a server.

Install

composer require waynestate/squire --dev
vendor/bin/squire init
vendor/bin/squire doctor

PHP ^8.3. Tested on 8.3, 8.4 and 8.5. The package runs on your machine or in CI, not on Citadel; what lands on Citadel is the scripts it wrote.

Commands

vendor/bin/squire init   [--path=.] [--target=auto|raw|laravel|static] [--only=release|parity] [--check] [--force]
vendor/bin/squire update [--path=.] [--target=raw|laravel|static] [--only=release|parity] [--dry-run]
vendor/bin/squire doctor [--path=.] [--format=text|json]

Exit codes: 0 pass, 1 findings (init --check: drift; update: an edited file still differs from the template; doctor: a failed rule), 2 the tool itself could not run.

vendor/bin/squire doctor oracle runs the same plain-language Oracle connection check that release.sh runs on Citadel, from your terminal or sail php vendor/bin/squire doctor oracle. It reads the ORACLE_* settings from the environment and the app's .env, prints setting names and never values, and stays silent when the app has no Oracle settings. Add -v for the client version.

init never overwrites a file you edited, or a file it did not write, unless you pass --force. It records a SHA-256 of each file in .squire.json; commit that file. --only=release writes just the Citadel scripts, --only=parity just the local setup. When the parity group is in play, init and update end with one line that says it is deprecated and points at Parity, and doctor adds an S35 info line that says the same. The release installs from the lock file, so when the app has no composer.json or no composer.lock, init ends with a "Heads up" line: commit both before the first deploy (composer init, then composer update), or the release stops at step 1.

A Vue/Inertia app is a layer on raw, laravel or static, not a fourth target: init detects vue in package.json (dependencies or devDependencies) and writes the layer's .npmrc and its docker-compose.squire.yml (with a Node 22 service) beside the target's files. Every app, Vue or not, gets the one common scripts/release.sh, which installs the frontend from the lock file and runs the build script whenever there is a package.json.

A raw PHP app (--target=raw, the default without an artisan file) gets a front controller, public/index.php, and an .htaccess that sends every request to it. The front controller has three answers:

  • a real file in public/ (CSS, images, fonts, an HTML page) is served with its type, an ETag and an hour of cache, with HELMET's headers when HELMET is installed, and HELMET's CSP nonce on every <script> of an HTML page;
  • a 404 for a dot file (.htaccess, .git), a NUL byte, a path that climbs out of public/, any .php or .phar other than the front controller, and any file that is not a site asset (a .sql dump, a .bak, a .md with no .html beside it);
  • everything else goes to the app's entry: app.php beside public/, or the file SQUIRE_APP_ENTRY names (relative to the app directory, for example src/bootstrap.php). A POST, PUT or DELETE always goes to the entry.

The entry is the only PHP file the front controller runs, and it must sit inside the app directory and end in .php; anything else is a plain 500 that names SQUIRE_APP_ENTRY and no path. The entry boots its own HELMET with its own settings: the front controller boots HELMET (citadel preset) only for the answers it gives itself, never before the entry, so HELMET is never booted twice. public/up.php answers on its own, because the .htaccess lets Apache run it directly. The path checks and the MIME map are the static target's, and the tests keep the two in step.

An app that already has its own public/index.php or public/.htaccess keeps it: init reports the file as app-owned, never records or overwrites it (not even with --force), and init --check does not count it as drift. Delete your copy and run init to take Squire's. A front controller Squire wrote is tracked like any other file.

A static site is a target of its own: --target=static writes everything the raw target writes, with its own front controller, public/index.php, and an .htaccess that routes every request that is not a real file to it. The site itself is plain files you commit; the front controller serves them with HELMET's headers, injects the CSP nonce into the HTML, and caches the assets. The site folder is ../../site by default (the app lives in deploy/ beside it); point SQUIRE_STATIC_ROOT at a different folder. public/up.php still answers the health check, because a real file is served straight by Apache and never reaches the front controller.

update reads that record: a file you never edited takes the new template, a file you edited is left alone and shown as a diff, a file a newer release added to a recorded group is written and recorded, and a file Squire did not write is never touched. A squire polishes the armor; the knight keeps the sword. --dry-run prints the plan and writes nothing.

Which command when

Several stack commands sound alike (weld:doctor, squire doctor, proctor check) and do different jobs. Find your question in the second column and run the command beside it. The doctors look at setup, the proctor grades against policy, and the gate decides deploys: same waiting room, different appointments.

Command What it checks When to run it Where it runs
composer ci Will my pipeline pass? The repo's own CI contract, the same command the pipeline runs: validation, the tests, Pint, PHPStan, composer audit and whatever checks the repo adds. Before every push. App repo, CI
bin/weld.sh doctor or .\bin\weld.ps1 doctor (both run php artisan weld:doctor) Does my WELD app hold together? The app key, writable storage and bootstrap/cache, the database connection and pending migrations. One PASS, WARN or FAIL line each; exit 1 on a FAIL. Standards are PROCTOR's. After up, when the app will not start, and after every deploy off Citadel. App repo (in the app container), deploy host (in the app container)
vendor/bin/squire doctor Is my Citadel release setup right? build.sh, the release scripts, the health check, script hygiene, line endings, secrets kept out of git and the local parity setup, against Squire's rules. Exit 1 on a failed rule. The lock file, audit and MySQL 5.6 checks are handed to PROCTOR. After squire init or squire update, and before the first deploy. App repo, CI
vendor/bin/squire init --check Have the files Squire wrote drifted from its templates? Missing, outdated or edited copies. Writes nothing; exit 1 on drift. After you upgrade Squire (then run squire update), and in CI. App repo, CI
vendor/bin/squire doctor oracle, or php artisan oracle:check in WELD and Sourdough's Laravel apps Can my app reach Oracle? The ORACLE_* settings, the host, the port, the oci8 driver and the login, in plain language, printing setting names and never values. Silent when the app has no Oracle settings. After you fill in the ORACLE_* settings, or when a connection fails. Squire's release.sh runs the same check on every release, as a report. App repo, deploy host
vendor/bin/proctor check (composer proctor in WELD and Sourdough's apps) Does my app meet CREED's policy? The PHP floor, Laravel, Node and MySQL end of life, the committed lock, composer audit, open-ended constraints, portability, MySQL 5.6 safety, overrides and the rest of its checks. Exit 1 on a FAIL. Before you merge; the pipeline runs it too. App repo, CI
vendor/bin/proctor gate May this commit deploy? The deploy-time subset of proctor check, ratcheted against the last release's verdict, so a deploy that makes nothing worse goes. Exit 1 is a no-go. At deploy time. Squire's release.sh calls it for you. Deploy host
sourdough manifest --check Which managed files did I change since Sourdough baked my app? Managed files that changed or are missing against .sourdough/manifest.json; seeded files are yours and never reported. Exit 1 on a change. Before sourdough feed. App repo, CI
sourdough feed --dry-run Is my app behind its Sourdough template? The plan a feed would apply, with nothing written. Exit 1 when feeding would change files. After you install a new Sourdough, and in CI to catch an app falling behind. App repo, CI
booster plan What does my upgrade take? The ordered PHP, Laravel and front-end hops, the dependencies that block them, and advisory PHPCompatibility and PHPStan scans. Changes nothing. Before an upgrade, and when PROCTOR says your PHP or Laravel is past support. App repo
booster replay check Does my app still answer the same after a change? Replays the requests in booster-replay.json and compares the answers with the ones booster replay record saved. Exit 1 on a changed answer. After an upgrade hop or a hand fix, once you have a recording. App repo (in Docker)
booster init --check Are Booster's coding-tab playbooks current? The playbooks in .agents/skills. Changes nothing; exit 1 when one is missing or out of date. After you upgrade Booster, and in CI. App repo, CI
php bin/regen-check.php --generated <dir> Is WELD still Sourdough's Inertia shape? WELD, file by file, against a fresh sourdough new --inertia; fails only on drift that .sourdough/regen-baseline.json does not already accept. When Sourdough's Inertia shape or WELD changes. WELD repo, CI
rollcall report Where does the whole fleet stand? The latest scan's totals against CREED's policy: PHP, Laravel, the auth package, PROCTOR results and the end-of-life burn-down. Always exit 0; it never gates. After rollcall scan, on the scan's schedule. CI (a scheduled scan job)

The canonical copy of this table is in WELD's docs: Which command when.

What lands in your app

File What it is
build.sh Citadel's build hook: system packages only, POSIX sh, runs as root with no app source. No Composer, no npm.
deployments/001-first-release.sh Runs once per app: calls the release script with the smoke test off (Apache is not up yet).
scripts/release.sh The idempotent release: preconditions, composer install --no-dev from the lock file, audit, PROCTOR's deploy gate (proctor gate, a report by default, a stop with SQUIRE_PROCTOR=enforce), frontend build, Laravel migrate --force and optimize, an Oracle connection check (a report, never a gate), /up smoke test. Use it as the Quick Update post-script as well.
health.php Citadel's health check (["php","health.php"]): one HTTP request to /up, never boots the framework.
oracle-check.php The plain-language Oracle connection check the release runs: settings, host, port, driver, login. A report, never a gate; silent when the app has no ORACLE_* settings.
public/up.php Raw PHP and static: the endpoint that answers ok. Laravel has /up built in.
public/index.php Raw: the front controller that serves public/ files safely and hands the rest to the app's entry. Static: the one that serves the committed site with HELMET's headers. Never written over an app's own.
public/.htaccess Raw: sends every request but index.php and up.php to the front controller. Static: routes every request that is not a real file to it.
.npmrc Vue layer only: sets min-release-age=1 for the frontend install.
Vue docker-compose.squire.yml Vue layer only: the common parity compose plus a Node 22 service for frontend tooling.
docker-compose.squire.yml, .squire/, .env.squire.example, scripts/parity.sh, scripts/parity.ps1 Local parity.
.squire/portable.Dockerfile, .squire/portable/ The portable image for platforms other than Citadel: one image as web, worker, scheduler or migrate, non-root in group 0 on 8080. Citadel never reads it.
A leather strap hangs a luggage tag for each file Squire packs: build.sh, deployments/001-first-release.sh, scripts/release.sh, health.php and the parity kit of 19 files. Each tag is stamped Packed, then the satchel's own tag reads From my-app, Holds 25 files.
The packing list for deploy day: each tag lands on the strap and gets its stamp.

Every shell script uses set -euo pipefail (build.sh uses set -eu, because Citadel runs it with /bin/sh), prints a [squire] ==> step N: ... marker for each step, and can be run twice with the same result.

The release also runs an Oracle connection check (oracle-check.php) after the migrations and before the smoke test. It is a report, never a gate: a finding prints in the deployment log and the release goes on. When the app does not use Oracle (no ORACLE_* settings) it prints nothing. It checks, in order, that the settings are present, that the host resolves, that the port answers within 3 seconds, that the oci8 driver is loaded, and that the login works, stopping at the first failure so a bad port never costs a login attempt. Settings: ORACLE_USERNAME, ORACLE_PASSWORD, and either ORACLE_TNS (Easy Connect host:port/service, or a full (DESCRIPTION=...) descriptor) or ORACLE_HOST, ORACLE_PORT and ORACLE_SERVICE_NAME. Only setting names are ever printed, never values.

Copies of Squire's templates

Sourdough carries a generated copy of Squire's deploy templates instead of writing its own. The copy began when its apps could not composer require Squire from an internal repository (no internal URLs may be committed). Squire is on Packagist now, and Sourdough requires it as a dev dependency and regenerates its copy from the package. Squire owns the templates; the copy is checked in and verified, never hand-edited.

php bin/export-templates.php --to=templates/squire            # write the copy
php bin/export-templates.php --to=templates/squire --check    # verify it; exit 1 on drift

The copy holds, for each kind (raw, laravel, static) and for the Vue layer (vue), the files a new app gets from squire init, at their target paths, with each file's mode recorded so executables stay executable. catalog.json lists which files each kind and layer installs and where; manifest.json records the Squire version and a SHA-256 per file. Refresh the copy when Squire's templates move on, and run --check in CI to keep it honest. A squire keeps the armor polished; the copy stays in step.

The agent-ready kit

Every stack repo carries the same bytes: a Markdown twin beside every page in the site folder, plus llms.txt, llms-full.txt, robots.txt and sitemap.xml, styled by the kit's agent-ready.css and agent-ready.js in the site's assets/ folder. Squire owns the kit, and a site takes a new version from a Squire checkout with php bin/agent-ready.php --sync-to=<repo>, which copies the kit and the tool itself. The site then regenerates its files with php bin/agent-ready.php and commits them, and runs --check in CI to stay honest.

A library package that carries the kit should keep it out of Composer downloads: add to its .gitattributes

/bin/agent-ready.php export-ignore
/site export-ignore

so a composer require of the package never ships the kit. A squire packs what the knight will carry, and only that.

The docs builder

bin/docs-site.php turns the Markdown under docs/ into committed, accessible HTML pages under site/docs/: one page per file, in the order of docs/nav.json, with a sidebar, an "On this page" list, prev and next links, and the version stamped from the top of CHANGELOG.md. The optional source and mirrors keys in docs/nav.json render a Source link in the header and footer, with the mirrors beside it, so the canonical repo home is one config value, never a hard-coded URL. Pages are styled by WayneUI plus the kit's docs.css and docs.js in the site's assets/ folder, so every stack repo reads the same way. docs.js adds a copy button to every code block (it says Copied or Failed, and tells screen readers too; over the code it keeps its resting width and shows a check or a cross when the word would not fit, so it never covers the first line) and puts a block that scrolls sideways in the tab order, so a keyboard can reach it (a block inside a code tab is measured again when its tab shows). Squire owns the kit, and a repo takes a new version from a Squire checkout with php bin/docs-site.php --sync-to=<repo>, which copies the kit and the tool itself. The repo then builds with php bin/docs-site.php (or composer docs) and commits site/docs/, and runs --check (or composer docs:check) in CI to fail when a page is stale or a finding is present. A squire keeps the map current, so the knight never asks for directions twice.

Generated blocks

A page may hold a region the builder owns, marked in the Markdown source:

<!-- generated:commands -->
...whatever the builder wrote last time...
<!-- /generated -->

docs/docs.json defines the blocks by name. Each block rewrites its region from the repo's own state: json-table and symfony-commands run a command from the repo root (a leading php means the PHP binary, so the same file works on Windows, macOS and Linux) and render the command's JSON output, and env scans the source files for the environment variables the code reads.

The json-table type runs its run command, takes the list at its path key from the JSON output, and renders a Markdown table: each column is [heading, key] or [heading, key, "code"] for a code span, a missing key gives an empty cell, booleans print yes or no, lists print comma separated, Symfony console style tags are stripped so a help cell reads plain, and pipes in a cell are escaped.

{
    "blocks": {
        "hops": {
            "type": "json-table",
            "run": "php bin/booster hops --format=json",
            "path": "hops",
            "columns": [["Hop", "id", "code"], ["What it does", "summary"]]
        }
    }
}

The symfony-commands type runs <run> list --format=json and renders the command reference: an overview table of command and description, then per command a heading at level (default 3), its description, one Usage: line per usage string, an Arguments table when it has arguments, and an Options table when it has options. An option prints its shortcut first (-p, --path=VALUE) and gets =VALUE only when it takes a value; its default prints in a code span, or stays empty when it is false. The built-in commands (help, list, completion, _complete) and hidden commands are skipped, and the application-level options (--help, --quiet, --verbose, --version, --ansi, --no-ansi, --no-interaction) are listed once, under "Options every command accepts".

{
    "blocks": {
        "commands": {
            "type": "symfony-commands",
            "run": "php bin/console",
            "cli": "bin/console",
            "level": 3
        }
    }
}

The env type walks the scan folders for quoted environment variable names that start with prefix, skips the names in ignore (an exact name, or a trailing * for a prefix), and renders one row per variable, sorted by name: its meaning and default from describe (a [meaning, default] pair) and the first file that reads it. A variable the code reads that describe does not list, and a variable describe lists that no scanned file reads, are findings.

{
    "blocks": {
        "environment": {
            "type": "env",
            "scan": ["src", "config"],
            "prefix": "APP_",
            "ignore": ["APP_KEY"],
            "describe": {
                "APP_NAME": ["The app name", "Demo"],
                "APP_ENV": ["The environment", "production"]
            }
        }
    }
}

A plain run rewrites stale regions in the sources and then builds; --check reports a stale region instead of writing. A region whose name is not in docs.json, a block no page places, a block placed twice, and an opening marker with no closing marker are findings.

Changelog page

When docs/nav.json lists a page whose path is changelog, the builder owns docs/changelog.md: a plain run writes it from the repo's CHANGELOG.md before building, and --check never writes. The page takes the usual front matter (title: "Changelog" and a description), a marker comment naming its source, and the changelog's body with its top-level heading dropped, so every version heading stays as written: ## Unreleased, ## [Unreleased], ## 0.5.0 (2026-11-03) and ## [0.1.9] - 2026-11-03 all keep their shape and get the page's usual anchors. Links follow the site's rules: an http(s) link stays, a relative link becomes a blob link under the nav.json source when there is one, and loses its link, keeping its label, when there is not. The blob path follows the source's host: a GitHub source (github.com or www.github.com) gets /blob/main/ (https://github.com/acme/app/blob/main/README.md) and any other host keeps GitLab's /-/blob/main/ (https://repo.example.com/acme/app/-/blob/main/README.md). Links inside a code span or a fenced code block are left as written. A nav entry without a CHANGELOG.md is a finding, and a changed CHANGELOG.md or a missing docs/changelog.md is drift.

Callouts

A blockquote whose first line is a marker alone becomes a callout instead of a quotation:

> [!NOTE]
> The body keeps the note.

The marker is case-insensitive and one of [!NOTE], [!TIP], [!WARNING] or [!DANGER]. The builder renders an <aside> with the classes docs-callout and docs-callout--note (one per kind), role="note", a visible label, and the body below it, and drops the marker line from the body. A blockquote without a marker, or with a marker that is not one of the four, stays a plain blockquote. The kit's docs.css styles all four kinds from WayneUI tokens, in light and dark themes.

Code tabs

Consecutive fenced code blocks whose info string carries tab="LABEL" (double quotes, label up to 40 characters) render as one labeled tab set instead of separate code blocks:

```bash tab="composer"
composer install
```

```bash tab="sail"
./vendor/bin/sail up
```

The word before tab="..." stays the language, so the first panel keeps its language-bash class. The builder wraps the run in a docs-tabs element keyed by the lowercased labels joined by | (data-tabs="composer|sail"), and gives each panel a docs-tabs__panel element carrying its label and the code escaped exactly like a plain fenced block, so every example reads without JavaScript. A lone tab="..." block renders as a plain code block with the tab="..." word dropped from its language class, and a run broken by anything else becomes separate sets. The kit's docs.js turns each set into an accessible tablist (click, arrow keys, Home and End), remembers the chosen label per key in localStorage, and keeps every set sharing a key in step; docs.css styles the tabs from WayneUI tokens, and print shows every panel.

Task lists

A GitHub task list item (- [ ] Protect the default branch) renders a disabled checkbox. The builder wraps the checkbox and the item's own text in a <label class="docs-task">, so the checkbox is named by what it checks; a nested list or a second paragraph stays outside the label.

Theme

An optional theme key in docs/docs.json wears the site's own brand on the pages, without touching the kit:

{
    "theme": {
        "css": "docs-theme.css",
        "header": "_header.html"
    }
}

Both members are optional and independent, and both are plain relative paths against docs/: no leading slash, no drive letter, no .. segment, no backslash. A non-object theme, a non-string member, an unknown key, an empty string or a path that does not exist is a tool error naming the key.

css names a stylesheet the builder copies byte for byte to site/docs/theme/<basename> and links after docs.css on every page, so its rules win. It is a builder-owned file like a copied image: --check compares it, reports it stale when it differs, and flags a copy under site/docs/theme/ as a leftover once the key goes away. The builder never reads the CSS: colors, fonts and every --dk-* override live there, and its url() values are written relative to site/docs/theme/. Dark mode lives in the theme CSS too (prefers-color-scheme and a data-theme override), not in the builder.

header names an HTML fragment with exactly one <header>...</header> element. It replaces the generic docs header in place, after the skip link; the skip link, the mobile menu, the sidebar, the pager and the footer stay. The fragment may not carry a <script>, an id="main", a wsu-skip-link, a docs-menu or a <main>: those belong to the builder. Relative href, src and srcset URLs in the partial are written against site/ (the way the front page writes them), and the builder prefixes each with the page depth; #, /, // and scheme URLs stay put. On every page the first link to docs/index.html or docs/ gets aria-current="page", unless it already carries an aria-current. The placeholders {{project}} (the HTML-escaped project name) and {{version}} (the docs stamp) are filled; any other {{...}} fails the build, naming it. With no theme key, or an empty one, every generated byte matches the unthemed build.

The front page gets the same stamp: in a top-level site/*.html page, an element that carries data-docs-version (for example <span class="brand__version" data-docs-version>0.6.0</span>) holds the docs stamp as its only text. A plain run writes it, --check reports the page stale when a release moves the stamp, and an element with markup inside is a finding. So the header chip on the front page and the one on the docs can never disagree.

A small, realistic partial:

<header class="brand-header">
  <a class="brand-mark" href="index.html#top"><img src="brand/mark-256.png" alt=""></a>
  <span class="brand-name">{{project}}</span>
  <nav aria-label="Site">
    <a href="index.html#start">Start</a>
    <a href="docs/index.html">Docs</a>
  </nav>
</header>

Squire's own docs wear this hook: docs/_header.html is the front page's masthead (the satchel, Squire, the same links and the version tag) and docs/theme/squire.css carries the front page's canvas, leather, Arvo titles, luggage tags and terminals, with a derived dark set. To change how Squire's docs look, edit those two files and rebuild; never edit the kit.

Dark mode

The kit's docs.css holds every color behind a --dk-* alias as var(--wsu-token, fallback), and the fallbacks follow WayneUI's own resolution order: an explicit choice first (data-theme="dark" or data-theme="light" on the root element, which WayneUI writes from the reader's saved preference), then the reader's system setting through a prefers-color-scheme: dark query scoped to :root:not([data-theme="light"]), else light. The light :root block stays the default; :root[data-theme="dark"] and the media-query block carry the dark fallbacks, and each declares color-scheme so form controls and scrollbars follow the theme. With WayneUI loaded its tokens resolve instead and it switches them itself, so the hex fallbacks only apply when WayneUI is absent. Every text pair (ink, muted, links, callout labels, code, and the accent's on-color) meets WCAG AA contrast in both themes, and nothing outside the three alias blocks carries a hard-coded color.

What the check proves

  • For a symfony-commands block, a code span or fenced line that starts with the CLI name must name a real command (help and list always pass), and every --option on it must be an option of that command or an application option; an unknown command or option is a finding.
  • Every command and every option the CLI keeps must appear in the docs at least once (the generated block counts); a command or option nobody documented is a finding.
  • A fenced block whose info string contains docs-test: skip is not scanned, and plain prose is never scanned.
  • Every link a person wrote in the docs reaches something the site serves: a built page, a file under site/, or an external address; a relative link to a file the site does not serve (for example ../README.md) is a finding.
  • A fragment in a link must name a real heading on the page it points at, whether that is the page itself (#setup) or another built page (guides/start.html#setup); a missing id is a finding.
  • Every image a page references (a Markdown image or an HTML <img>) must name a file under docs/, resolved against the source page's folder, and the build copies it byte for byte to the same relative path under site/docs/ so the built page's relative src still resolves; a missing image is a finding, and unreferenced files are never copied.
  • Every page carries the version stamp as a docs-version meta tag and in the footer, so a reader sees which release the docs describe.
  • A composer.json with a version field must agree with the stamp; a different version is a finding.
  • --require-release fails when CHANGELOG.md has no released heading yet, because the stamp would be unreleased.
  • --require-tag fails when the repo's latest version tag does not match the stamp (a tag such as v1.6.0 counts as 1.6.0); the flag is off by default, so an untagged repo builds clean.
  • When the nav lists a changelog page, docs/changelog.md mirrors CHANGELOG.md (front matter, marker comment, no top-level heading); a changed CHANGELOG.md or a missing page is drift, and a nav entry without a CHANGELOG.md is a finding.

Tested examples

php bin/docs-site.php --examples runs the tagged command examples in the docs and fails when reality drifts from what they promise. A fenced block whose info string is bash run, sh run, console run or shell run (optionally exit=N, default 0) is a command block: each non-empty line is a command (a leading $ is stripped), run in order in a fresh temp copy of the examples.cwd folder; the next fenced block, when its info string is exactly output, is the expected output (stdout then stderr). Both sides are normalized before the comparison: CRLF to LF, trailing spaces trimmed per line, trailing blank lines removed, the example working directory and the repo root rewritten to the placeholders below, plus every regex rule in examples.normalize:

<cwd>
<root>

Every shell block (bash, sh, shell, console, powershell or pwsh) must be tagged run or carry an HTML comment line reading docs-test: skip REASON directly before it; a block with neither, and a marker without a reason, are findings naming the file and line. Skips are counted and grouped by the words before the first comma, case-folded, in the one-line summary (Examples: 7 run, 12 skipped (reasons: needs network 5, needs Docker 4)), and examples.maxSkips in docs/docs.json caps them. The other keys of examples are optional: cwd names the repo folder copied into each example working directory, alias replaces a matching first word with another command (a leading php means the PHP binary, a relative script path resolves against the repo root), env adds environment variables, and timeout caps each command in seconds (default 60). Generated-block regions are ignored, and a plain build and --check never run examples.

JavaScript tests

The kit's docs.js carries its own tests in tests/js/ (node:test with jsdom, pinned exactly in package.json and package-lock.json), and they run the same way locally and in CI. With Node 22 on the PATH:

npm ci && npm test

or, with only Docker:

docker run --rm -v "$PWD:/app" -w /app node:22-alpine sh -c "npm ci && npm test"

The js-tests job runs the same two commands on GitLab and GitHub. It stays out of composer ci because the PHP image has no Node.

Use Squire from your coding agent (ADVISOR)

Squire ships an ADVISOR module, so a coding agent that runs ADVISOR can run Squire's checks without leaving its sandbox. In the app, install ADVISOR as a dev dependency (composer require --dev waynestate/advisor), put the module in a manifest of your own (for example advisor-modules.json), and point ADVISOR_MODULES_FILE at it. ADVISOR reads its own modules.json and that one extra file, nothing else:

{
    "modules": [
        "Waynestate\\Squire\\Advisor\\SquireModule"
    ]
}

Two tools appear. Both are read-only, and each takes exactly one argument: a path inside the project root.

  • squire_doctor runs Squire's deploy-setup checks (the S-rules, S1 to S78) against the app folder and returns the same JSON report vendor/bin/squire doctor --format=json prints. It runs in-process: no subprocess, no network, nothing written.
  • squire_drift reports which of the files Squire wrote into the app have drifted from the current templates, the same check vendor/bin/squire init --check performs: missing, outdated, edited or untracked, per file. It writes nothing; squire init is the fix, and it never overwrites an edit.

Every answer labels its source and says plainly what ran. Squire reports; Squire in CI decides pass or fail. A squire can tell you where the armor is dented; only the knight gets to charge.

Citadel setup

  1. In the dashboard set the build script to build.sh, the health check to ["php","health.php"], and the Quick Update post-script to ./scripts/release.sh (user citadel).
  2. Commit composer.lock, and package-lock.json, pnpm-lock.yaml or yarn.lock if you have a frontend.
  3. Mark the scripts executable in git. On Windows: git update-index --chmod=+x build.sh scripts/*.sh deployments/*.sh.
  4. Set SQUIRE_* values in the app's ./.env configuration file (below), not in a file in the repository. The dashboard has no environment field; its configuration-files step, after the wizard, writes ./.env into the source tree. A Laravel app reads ./.env already; a raw PHP app loads it with vlucas/phpdotenv (Dotenv\Dotenv::createUnsafeImmutable($root)->safeLoad()), so getenv() sees the values and a real environment variable wins.

Local parity

Use Parity to run Citadel on your computer. It is the stack's own tool for this job: one program for Windows, macOS and Linux, for any app, with or without Squire, on Docker or Podman (Podman recommended), with Citadel's PHP image, Citadel's proxy and MySQL 5.6. It runs the files Squire writes the way Citadel does, applies the app's sign_in setting and runs its Citadel-style cron entries. Coming from this kit, run parity init --from-squire in the app's folder: it carries the kit's settings over (never its passwords) and deletes nothing. Then parity image get and parity up. Full page: Local parity.

Squire's parity kit is deprecated as of 0.10.5. It still works. It is removed no sooner than two minor releases and 60 days later, so Squire 0.12.0 and not before 2027-01-08 (the stack's ADR-0022); squire update will then remove only the kit files you never edited. The portable image files stay with Squire, in a group of their own. The rest of this section is the kit, for teams still on it.

Needs Docker with Compose v2. Windows needs Docker Desktop with the WSL 2 backend; no shell other than PowerShell is required.

On Windows, keep the source in the WSL 2 filesystem. Advice, not a requirement: keep the app's source tree inside the WSL 2 Linux filesystem (for example under ~/src in your WSL distribution) and run scripts/parity.sh from there, not from a Windows folder such as C:\Users\you\... reached through /mnt/c. Bind mounts from the Windows side are much slower (Composer and npm installs feel it most), and file ownership and permissions do not map cleanly; that is the cause of the Permission denied failure described under the bind-mount question (OPEN_QUESTIONS 15). The PowerShell scripts\parity.ps1 still works from a Windows folder, only slower.

Engines and licenses

Squire needs any engine that runs Docker Compose v2 compatible files. The ones named here:

  • Docker Engine on Linux: open source, Apache 2.0.
  • Docker Desktop on Windows with the WSL 2 backend: a commercial product, free for small business, personal and educational use, and paid for larger organizations, so check your own license.
  • Podman with a Compose v2 compatible provider, and Colima on macOS: expected to work, not tested here.

Only Docker Desktop and Docker Engine have been run.

# Linux and macOS
cp .env.squire.example .env.squire     # then set the passwords
scripts/parity.sh up                   # or: scripts/parity.sh up --fallback

# Windows (PowerShell 5.1 or 7)
Copy-Item .env.squire.example .env.squire
scripts\parity.ps1 up                  # or: scripts\parity.ps1 up -Fallback

parity.ps1 has run end to end on Windows PowerShell 5.1 (2026-11-10); apps made earlier take the 5.1 fix with squire update. Give each app its own SQUIRE_PROJECT in .env.squire: apps on one name share the database and the record of which deployments/ files already ran, so the second app's release never runs. up warns while the name is the default squire-app.

Commands: up, down, reset (also removes volumes), logs [service], shell [service], status, pin (prints the digests of the images you have pulled, so you can pin them).

It starts the app container from the Citadel image (built by Citadel's build_images command, or pulled from wherever you keep it) with your source mounted at /citadel/src, runs your deployments/ as the citadel user the way Citadel does, and puts an HA-Proxy in front that adds the same forwarding headers. MySQL 5.6.51 is reachable from the app as host mysql and from your machine on 127.0.0.1:3307. Containers drop capabilities, set no-new-privileges, and carry memory and process limits. The database port is bound to loopback only. The Vue layer's compose file adds a Node 22 service, pinned to the same major as the Citadel image, for frontend tooling.

No access to the real image? --fallback builds an approximation from the official php image plus Citadel's extensions. It is good for trying Squire out and not for proving parity. If the build step fails with a permission error writing vendor/, the source folder is not writable by the container's citadel user (uid 1000 by default); on Linux set SQUIRE_SOURCE_UID and SQUIRE_SOURCE_GID to yours.

Image hardening

What the kit's images harden, and the switch for each, is on the docs page Image hardening. In short:

  • Apache (the fallback base, .squire/apache-hardening.conf): ServerTokens Prod, ServerSignature Off, TraceEnable Off. It lives in the base, not the app image, so a run on the real Citadel image shows what that image really says.
  • opcache (.squire/php.ini): on for the web, 128 MB, 20000 files, and set by how code arrives. Pulled into a running container (Citadel, a bind mount, or unknown): files are checked every 2 seconds, the default. Baked into an immutable image: build with SQUIRE_OPCACHE_VALIDATE=0 and they are never checked. The release script warns when a release in place meets 0.
  • disable_functions (.squire/php-web.ini, the web only): exec, passthru, shell_exec, system, pcntl_exec, phpinfo, show_source, highlight_file. proc_open and popen stay for mail and Laravel's Process; the CLI (Composer scripts, artisan, the health check) keeps everything. SQUIRE_PHP_DISABLE_FUNCTIONS=none turns it off.
  • Secrets stay out of every image layer: on Citadel they are configuration files (./.env) written into the source tree at deploy time; with Docker, Compose or OpenShift they are files mounted at /run/secrets, which the release script and the fallback entrypoint turn into variables (SQUIRE_SECRETS_DIR). Tests keep secrets out of the Dockerfiles, the build context and build.sh.

The portable image

Citadel builds its own image, and .squire/Dockerfile stays a mirror of it. For OpenShift, Coolify or raw Docker (ADR-0010's portable path), .squire/portable.Dockerfile bakes the code in and runs as any of four roles, picked by the first argument or SQUIRE_ROLE: web (Apache on 8080), worker (php artisan queue:work --tries=3 --max-time=3600 --sleep=3), scheduler (php artisan schedule:work) and migrate (once per release). It runs as USER 10001:0, and every folder it writes belongs to group 0 and is group-writable, so OpenShift's arbitrary UID runs it as it is (docker run --user 1000123:0 shows the same). It stops gracefully on SIGTERM, logs to stdout and stderr, and caches Laravel's config when a container starts, never at build. The compose file's portable profile runs the four roles from one image; a plain up still starts only the parity stack. Full page: The portable image.

Oracle-ready images (local)

Apps that talk to Oracle need the Instant Client and the oci8 extension. Squire ships two opt-in Docker recipes that carry both, so nobody compiles them by hand:

  • squire/oracle-sail:<php>: Laravel Sail's own runtime plus the Oracle install. In your docker-compose.yml, swap the service's build: block for image: squire/oracle-sail:8.4 and keep the rest of the service as Sail wrote it; the image keeps Sail's entrypoint contract, including the WWWUSER UID remap.
  • squire/oracle-parity:<php>: the official php:<php>-cli-bookworm image with the extensions Citadel apps use (intl, ldap, soap, zip, gd, pdo_mysql, mysqli, bcmath, pcntl, exif, redis, imagick), Composer and git, plus the Oracle install. This is the flavour WELD's compose.oracle.yaml points its services at. It runs as a non-root app user whose UID is a build argument (APP_UID) and can still be overridden at run time.

The names above are the local names of scripts/oracle-image-build.sh. The published images live in the group's images project (the stack's shared image registry; Squire's own GitLab has no container registry), at <registry>/enterprise-apps/images/squire-oracle-parity:8.4 and <registry>/enterprise-apps/images/squire-oracle-sail:8.4 (<registry> is the registry address of the images project shown on its Container Registry page), plus :8.4-<squire version> for a fixed one; a Sail app swaps build: for image: with that path.

Every tag so far published linux/arm64 only. From Squire 0.10.5, a tag publishes both flavors for PHP 8.3, 8.4 and 8.5 for linux/arm64 (Apple silicon, arm64 Linux hosts). The pipeline now builds linux/amd64 natively on an amd64 runner as well, so the next tag publishes both architectures in one list; until a tag has, on an amd64 computer, Citadel-shaped hosts included, build the images locally with scripts/oracle-image-build.sh (MAINTAINING.md, Publishing the Oracle images). The 0.10.5 tag published all six; the Oracle guide lists their digests for pinning.

Both flavors download Oracle's Instant Client Basic Light at build time under Oracle's license and never commit it: the install script pins the exact SHA-256 of each zip. Oracle does not publish a 21.x client for arm64, so the line differs per architecture: linux/amd64 gets 21.7.0.0.0 and linux/arm64 gets 19.32.0.0.0.

scripts/oracle-image-build.sh --flavour sail --php 8.4        # or: --flavour parity
scripts/oracle-image-test.sh --flavour all --platform linux/amd64

Configuration

All optional. On Citadel, add ./.env.squire as a configuration file (the configuration-files step after the wizard; the wizard has no environment field) and keep it out of git. release.sh reads the release options from it, and a variable already in the environment wins. Locally, the same file holds the parity settings.

Release script (scripts/release.sh):

Variable Default Meaning
SQUIRE_APP_DIR parent of scripts/ App root.
SQUIRE_FRAMEWORK auto auto, laravel or raw. Laravel is detected from artisan.
SQUIRE_ALLOW_ROOT 0 1 allows running as root.
SQUIRE_REQUIRE_ENV auto 1 requires a .env file; auto means Laravel does.
SQUIRE_WRITABLE_DIRS Laravel: storage, bootstrap/cache Directories to create.
SQUIRE_COMPOSER_AUDIT report report, fail or skip.
SQUIRE_NPM auto auto or skip (for committed built assets).
SQUIRE_NPM_IGNORE_SCRIPTS 1 Install with --ignore-scripts.
SQUIRE_NPM_REBUILD empty Packages, separated by spaces, whose install scripts run after the install (npm rebuild --ignore-scripts=false, or pnpm rebuild; pnpm 10 also needs them in pnpm.onlyBuiltDependencies). The escape hatch for a package that needs its own scripts, such as a native addon.
SQUIRE_NPM_BUILD_SCRIPT build The package.json script to run.
SQUIRE_CACHE_DIR .cache/squire Where Composer and npm keep their download caches between releases, inside the app folder so a Citadel Update keeps them; off leaves their defaults.
SQUIRE_MIGRATE 1 Laravel: migrate --force.
SQUIRE_ARTISAN_OPTIMIZE 1 Laravel: optimize.
SQUIRE_ARTISAN_RESTART 1 Laravel: tell queue workers and schedule:work to restart on the new code (reload, or queue:restart and schedule:interrupt). Report only.
SQUIRE_PROCTOR auto auto, skip or enforce. The release asks proctor gate for a go or no-go (proctor check on a PROCTOR without the gate). By default a no-go is a report and never stops the release; enforce makes a no-go stop it, before the frontend build and the migrations.
SQUIRE_PROCTOR_BIN vendor/bin/proctor, then PATH, then the fetch below Where PROCTOR is. It is a dev dependency, so --no-dev removes it; set this to use a copy of your own (PROCTOR's tagged phar works, marked executable).
SQUIRE_PROCTOR_FETCH 1 When no PROCTOR is found, install the version composer.lock pins as a dev package into .cache/squire/proctor/<version> (composer create-project --no-dev, once per version) and run that. 0 turns it off. A failed fetch is a warning, or a stop under enforce. Needs SQUIRE_CACHE_DIR on.
SQUIRE_PROCTOR_POLICY vendor/waynestate/creed/policy/policy.json, when installed Path to the policy file. When unset, the script falls back to the policy the CREED package ships (the deploy wizard has no environment field); when CREED is not installed, PROCTOR runs on its own default policy with a notice. An explicit value always wins.
SQUIRE_PROCTOR_RECORD_DIR storage/squire Where the gate keeps its verdicts, relative to the app root: proctor-gate.json (the last verdict) and proctor-gate-baseline.json (the verdict of the last release that went on, the next run's baseline). The folder gets a .gitignore of *, so it never reaches git.
SQUIRE_PHP_RUNTIME auto The PHP version the gate grades for PROCTOR's unpatched check, passed as --php-runtime: auto reads the php that runs release.sh (it is the one serving the app; a suffix such as -dev is cut), skip grades no runtime, and an X.Y.Z value is graded as given. A value that is not X.Y.Z is a note and grades nothing. Only proctor gate gets it; the older proctor check fallback does not.
SQUIRE_SMOKE 1 Request the health URL at the end and fail unless it answers 200.
SQUIRE_SMOKE_URL http://127.0.0.1:80/up (Laravel), /up.php (raw and static) Full URL.
SQUIRE_SMOKE_RETRIES 5 Attempts.
SQUIRE_SMOKE_DELAY 2 Seconds between attempts.
SQUIRE_SECRETS_DIR /run/secrets A folder of secret files: each file named like a variable becomes that variable, unless the environment sets it.

Front controller (raw public/index.php): SQUIRE_APP_ENTRY (app.php), the app's entry, relative to the app directory. Static public/index.php: SQUIRE_STATIC_ROOT (../../site).

Health check (health.php): SQUIRE_HEALTH_PATH, SQUIRE_HEALTH_PORT (80), SQUIRE_HEALTH_TIMEOUT (5, at most 14, inside Citadel's 15), SQUIRE_HEALTH_VENDOR (1 also requires vendor/autoload.php).

PHP in the image (.squire/php.ini, read from the container's environment): SQUIRE_OPCACHE_VALIDATE (1; 0 for an image that bakes its code in), SQUIRE_OPCACHE_MEMORY (128), SQUIRE_OPCACHE_MAX_FILES (20000), SQUIRE_PHP_DISABLE_FUNCTIONS (the web's list, from .squire/php-web.ini; none disables nothing).

Local parity (.env.squire): SQUIRE_PROJECT, SQUIRE_BASE_IMAGE, SQUIRE_PROXY_IMAGE, SQUIRE_MYSQL_IMAGE, SQUIRE_PUBLIC_DIR, SQUIRE_SERVER_NAME, SQUIRE_TZ, SQUIRE_ENVIRONMENT, SQUIRE_DEPLOYMENTS, SQUIRE_HTTP_PORT, SQUIRE_APP_MEMORY, SQUIRE_SOURCE_UID, SQUIRE_SOURCE_GID, SQUIRE_DB_NAME, SQUIRE_DB_USER, SQUIRE_DB_PASSWORD, SQUIRE_DB_ROOT_PASSWORD, SQUIRE_DB_PORT, SQUIRE_DB_MEMORY. The Vue layer's compose file also reads SQUIRE_NODE_IMAGE (default node:22.23.4-bookworm-slim, pinned by digest), SQUIRE_NODE_ENV (default production) and SQUIRE_NODE_MEMORY (default 512m). The compose file refuses to start without the two passwords. See .env.squire.example; it holds placeholders only.

Development

Maintainers: how to build, test and release this project, and where its data comes from, is in MAINTAINING.md.

composer install
composer ci          # validate, phpunit, pint, phpstan, audit

PHPStan and Pint follow Pinstripe, the stack's coding standard: phpstan.neon includes Pinstripe's raw PHP preset (vendor/waynestate/pinstripe/phpstan/raw.neon) and keeps only Squire's own paths and PHP version range, and Pint runs the same built-in per preset that Pinstripe's pint/per.json wraps, so pint.json stays local with Squire's own excludes.

Run it in Docker the same way CI does:

docker run --rm -v "$PWD:/app" -w /app composer:2.11.1 sh -c "composer install --no-interaction && composer ci"

The shell templates are linted with shellcheck in Docker (scripts/lint-shell.sh, or scripts/lint-shell.ps1 on Windows) and the PowerShell with PSScriptAnalyzer (scripts/lint-powershell.ps1). The tests run the real shell templates against stub composer, curl, npm, corepack and proctor programs, and start a PHP server to test health.php.

The front page has its own accessibility gate: scripts/a11y.sh on Linux and macOS, scripts\a11y.ps1 on Windows. It runs Preflight's own a11y checker, vendored in tools/a11y/check.mjs from the same Preflight tag the CI job runs at and pinned by tests/A11yCheckerPinTest.php, in a real Chromium (Playwright in Docker, so no host browser is needed): every page of site/ in light and dark mode at 320 px and 1280 px, with the WCAG 2.2 AA tag set and the WCAG 1.4.10 reflow check. It stays out of composer ci because CI has no browser; GitHub runs it as a separate a11y job.

Known limits

See OPEN_QUESTIONS.md. The big ones: the local php.ini holds safe defaults rather than the platform's file, the Citadel image has no digest to pin, and a full Update may not refresh vendor/. The release asks PROCTOR's proctor gate for a go or no-go, and installs the PROCTOR version the lock pins when --no-dev left it out.

  • The release script and the image hardening are contract-tested inside the built fallback image on GitHub (both platforms), and by hand on Citadel's own citadel/php-apache:8.5r3 (scripts/contract-image.sh --base-image, 2026-11-10), not yet in CI on the real image or on GitLab (OPEN_QUESTIONS 19, "Contract suite on the real image and on GitLab").

License

MIT, copyright Wayne State University. A squire carries the armor; the knight still has to show up.

The rest of the party

WayneUI CREED PROCTOR SESAME HELMET Sourdough Squire Parity Preflight Pinstripe Booster Rollcall Drawbridge ADVISOR WELD

A squire is only as good as the party it rides with. Mind the buckle.
