README

Excel-style, keyboard-first datagrid for Laravel + Livewire. Extracted from a production accounting system built for spreadsheet-trained operators, then made app-neutral.

The engine is framework-free vanilla JavaScript that owns every cell it paints: the grid body lives inside a wire:ignore region, Livewire never morphs a row, and all server traffic runs over renderless RPCs. The result is spreadsheet-grade speed with Laravel-grade authority — every edit is validated, authorized, and recomputed server-side.

Everything is configured in your component class with chained methods. No blade wiring, no JavaScript to write, no npm step — composer require is the entire install.

The three modes
Requirements
Installation
Quick start — a readonly list
Quick start — an editable entry grid
Row lifecycle & blank rows
Ending entry — the completion flow
- ->endOfListOption() — the picker exit
- ->completeWhenBalanced() — the balancing guard
- What "complete" does
Server hooks — enrichment & row consistency
Display-only mode
Column types
Grid definition reference
Actions
Toolbar, search & filters
Keyboard
Theming
- Shipped color schemes
- Custom tokens
Extending
Host events
Configuration
Troubleshooting
Testing
License

The three modes

Mode	Declare with	What you get
Display	rows passed to the tag	Paints in-memory rows. Works on plain Blade pages without any Livewire component.
Readonly server-side	`->query(fn () => Model::query())`	Sort, global search, filters, pagination through a whitelisted fail-closed pipeline. Page 1 ships in the initial payload (zero-round-trip first paint); later pages stream over an RPC with an LRU cache and idle prefetch of the next page.
Editable	`->editable()->rowsFrom('lines')`	The full spreadsheet: optimistic client, authoritative server, typed op protocol, validation on both sides, formula columns, async pickers with row enrichment, auto-append, live footer totals.

Both interactive modes share one keyboard model, one selection engine, one theming system.

Requirements

PHP ^8.1
Laravel 10 / 11 / 12 / 13
Livewire ^4.1 — installed automatically as a dependency

Installation

composer require unnathianalytics/laragrid

That's all. The service provider auto-discovers, and the prebuilt script + stylesheet auto-inject into any page that renders a grid. No layout directives, no build step.

Optional publishes:

php artisan vendor:publish --tag=laragrid-config   # config/laragrid.php (global defaults)
php artisan vendor:publish --tag=laragrid-views    # blade views (mount + badge/edit-link cells)
php artisan vendor:publish --tag=laragrid-assets   # copy dist/ to public/vendor/laragrid

Asset delivery is configurable: set laragrid.inject_assets => false to place @laragridStyles / @laragridScripts yourself, or point laragrid.asset_url at a CDN or the published copy. Asset URLs carry a content hash, so upgrades bust browser caches automatically.

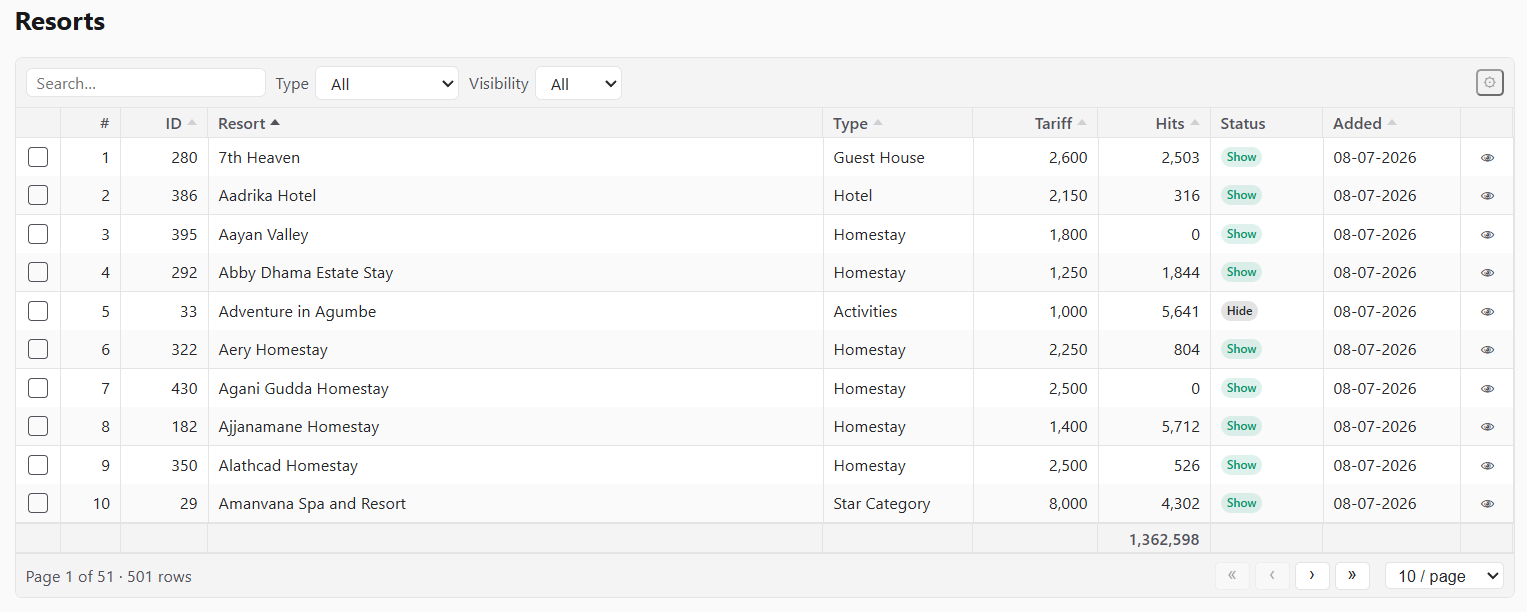

Quick start — a readonly list

use App\Models\Resort;
use LaraGrid\Actions\Action;
use LaraGrid\Aggregate;
use LaraGrid\Columns\{SerialColumn, TextColumn, IntegerColumn, DateColumn, ComputedColumn};
use LaraGrid\Filters\SelectFilter;
use LaraGrid\Grid;
use LaraGrid\Livewire\WithLaraGrid;
use LaraGrid\Support\CellHtml;
use Livewire\Component;

class ResortsIndex extends Component
{
    use WithLaraGrid;   // ← required: provides gridDefinition() and the grid RPCs

    protected function grids(): array
    {
        return ['resorts' => Grid::make('resorts')
            ->query(fn () => Resort::query())
            ->authorize('resort.viewAny')            // mandatory — grids are fail-closed
            ->paginate(25, [10, 25, 50, 100])
            ->defaultSort('name')
            ->searchable(['name', 'shortcode', 'resorts.slug'])   // see note below
            ->filters([
                SelectFilter::make('type')->label('Type')
                    ->options(fn () => Resort::distinct()->orderBy('type')->pluck('type', 'type')),
                SelectFilter::make('visibility')->label('Visibility')
                    ->options(['show' => 'Show', 'hide' => 'Hide']),
            ])
            ->columns([
                SerialColumn::make(),
                TextColumn::make('name')->label('Resort')->sortable()->searchable()->grow(),
                TextColumn::make('type')->sortable()->width(120),
                IntegerColumn::make('hits')->sortable()->width(90),
                ComputedColumn::make('status')->html()->width(90)
                    ->state(fn (array $row) => $row['visibility'] === 'show'
                        ? CellHtml::badge('green', 'Show')
                        : CellHtml::badge('zinc', 'Hide')),
                DateColumn::make('created_at')->label('Added')->sortable()->width(110),
            ])
            ->footer([Aggregate::sum('hits')->format('number')])
            ->actions([
                Action::make('edit')->icon('✎')->url(fn ($row) => route('resorts.edit', $row['id'])),
                Action::make('delete')->icon('✕')->confirm('Delete this resort?')
                    ->call(fn (array $row) => Resort::whereKey($row['id'])->delete()),
            ])
            ->stickyHeader()->striped()->maxHeight('70vh')];
    }

    public function render()
    {
        return view('livewire.resorts-index');
    }
}

<x-laragrid :grid="$this->gridDefinition('resorts')" />

Search targets: bare names in ->searchable() must be declared columns — a typo fails loudly at build time instead of silently searching nothing. To search a database column you don't display, table-qualify it ('resorts.slug'); the dot marks it as an explicit DB column.

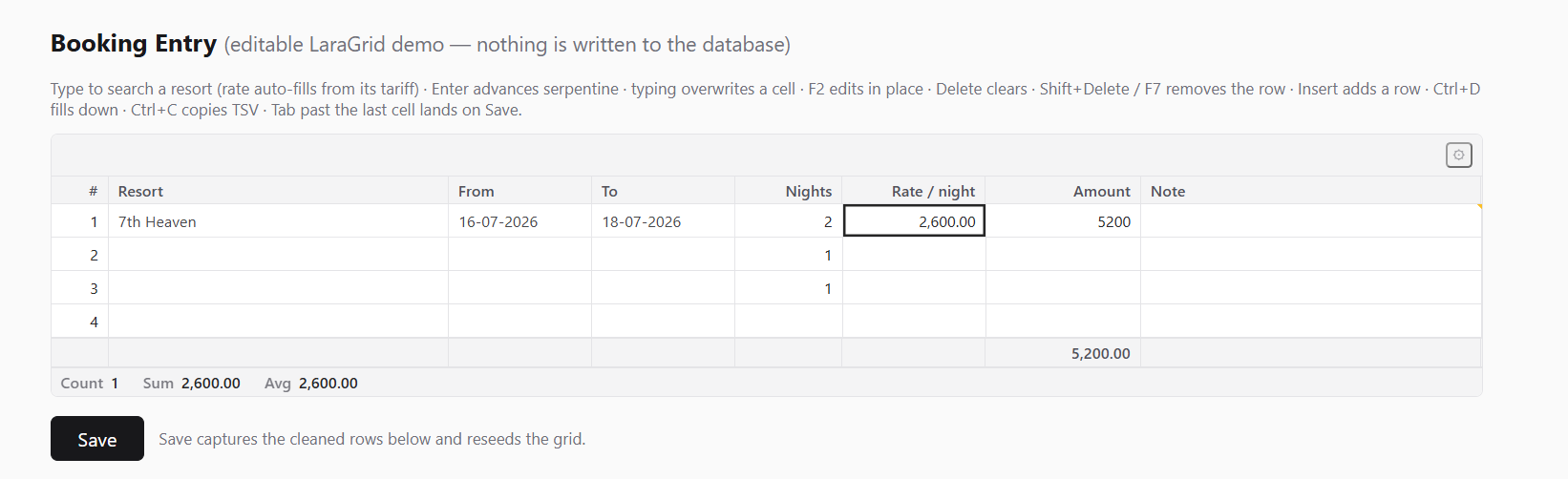

Quick start — an editable entry grid

use LaraGrid\Columns\{SerialColumn, SearchSelectColumn, IntegerColumn, DecimalColumn, FormulaColumn, TextColumn};
use LaraGrid\Editing\RowContext;

class BookingEntry extends Component
{
    use WithLaraGrid;

    /** @var list<array<string, mixed>> */
    public array $lines = [];

    public function mount(): void
    {
        $this->lines = $this->gridMountRows('lines');   // seeds defaultRows via the factory
    }

    protected function grids(): array
    {
        return ['lines' => Grid::make('lines')
            ->editable()
            ->rowsFrom('lines')                         // binds public array $lines
            ->authorize(fn () => $this->authorize('booking.create'))
            ->defaultRows(3)
            ->newRowUsing(fn () => ['nights' => 1])     // template for seeded AND inserted rows
            ->minRows(1)
            ->autoAppend()                              // Enter past the last cell grows the grid
            ->focusOnMount()
            ->focusOutTo('[data-save]')                 // Tab past the last cell lands on Save
            ->columns([
                SerialColumn::make(),
                SearchSelectColumn::make('resort_id')->label('Resort')
                    ->optionsUsing(fn (string $term) => Resort::query()
                        ->when($term !== '', fn ($q) => $q->where('name', 'like', "%{$term}%"))
                        ->limit(50)->get(['id', 'name'])
                        ->map(fn ($r) => ['value' => (string) $r->id, 'label' => $r->name])
                        ->all())
                    ->onSelect(function (RowContext $row, mixed $value): void {
                        // Enrichment: the pick pre-fills the rate; write-backs reconcile
                        // into the client row automatically.
                        $row->set('rate', Resort::whereKey($value)->value('comparison_tariff'));
                    })
                    ->required()->minChars(0)->debounce(250)->grow(),
                IntegerColumn::make('nights')->rules(['integer', 'min:1'])->required()->width(90),
                DecimalColumn::make('rate')->scale(2)->rules(['numeric', 'min:0'])->width(120),
                FormulaColumn::make('amount')->formula('round(nights * rate, 2)')->width(130),
                TextColumn::make('note')->maxLength(100)->grow(),
            ])
            ->footer([Aggregate::sum('amount')->format('number', ['scale' => 2])])];
    }

    public function save(): void
    {
        $rows = $this->gridRows('lines');       // cleaned: blank trailing rows + bookkeeping stripped

        Booking::createFromLines($rows);        // your persistence — the grid never owns it

        $this->lines = $this->gridMountRows('lines');
        $this->reseedGrid('lines');             // required after any out-of-band rows change
    }
}

The editable contract in one paragraph: the client applies every keystroke optimistically and streams typed ops to the server, where each write is authorized, cast, validated, run through your hooks, and formula columns are recomputed — the response reconciles authoritative values back into the grid. Rows are addressed by stable keys, never positions. Blank trailing rows (the auto-append artifact) are invisible to validation, totals, and gridRows().

Row lifecycle & blank rows

Understanding what counts as a blank row explains most editable-grid behavior, so here is the full contract.

Where rows come from. An editable grid binds a public array on your component (->rowsFrom('lines')); every row carries a stable client key _k. You get initial rows from $this->gridMountRows('lines'), which builds ->defaultRows(n) rows through the new-row template: every declared column set to null, overlaid with your ->newRowUsing(fn () => [...]) defaults. The same template builds rows grown at runtime — Enter-past-the-last-cell (auto-append), the Insert key, and paste-created rows — so a seeded row and a grown row are indistinguishable, server- and client-side.

What "blank" means. A row is blank when every editable cell still equals the new-row template — factory defaults are not operator data. A booking grid seeded with ['nights' => 1] therefore still treats an untouched row as blank; the moment the operator types anything real, it isn't. Non-editable carried values (ids, formula results, computed cells) never make a row non-blank.

What blankness controls. Blank trailing rows (the auto-append artifact at the bottom) are exempt from validation (a required() column never flags a row nobody touched), excluded from footer totals, stripped by gridRows() at save, not counted by ->minRows(n), and are where the end-of-list exit appears (next section).

Row keys are law. Every op addresses rows by _k, never by position — so sorting, insertion and concurrent edits can never target the wrong row. If your host code ever replaces the bound rows outside the op protocol (a save reset, importing lines), call $this->reseedGrid('lines') so the client adopts the new set wholesale; skipping it leaves the client referencing keys the server no longer has.

Ending entry — the completion flow

Fast keyboard entry needs a deliberate end: with ->autoAppend(), Enter past the last cell keeps growing the grid forever. LaraGrid ships two "the operator is done" signals, both funnelled through one channel so your page reacts identically regardless of how entry ended.

`->endOfListOption()` — the picker exit

SearchSelectColumn::make('item_id')
    ->endOfListOption()                                  // default label: <-- End of List -->
    // ->endOfListOption('— Done adding lines —')        // custom label
    // ->endOfListOption(allowOnEmpty: true)             // offer it even on an empty grid

Declared on a picker column (SelectColumn / SearchSelectColumn — the build fails loud anywhere else), it injects a synthetic first entry into that column's dropdown, but only where ending makes sense: on a blank trailing row, and only once the grid holds at least one real row (pass allowOnEmpty: true for grids whose entries are optional — a charges grid a document may legitimately have zero of). Choosing it commits no value; it fires the completion signal. This mirrors classic data-entry systems where the operator ends line entry inside the same dropdown they've been picking from, instead of tabbing out cell by cell.

`->completeWhenBalanced('dr', 'cr')` — the balancing guard

For double-entry grids: while Σdr ≠ Σcr the grid keeps auto-appending; the moment the two columns balance (both above zero), Enter past the last cell fires the completion signal instead of growing the grid. With autofill (on by default), landing on an empty amount cell of the deficit side pre-fills the balancing amount through the normal commit pipeline — the operator accepts with Enter or overtypes.

What "complete" does

Completion dispatches a bubbling lgrid:complete DOM event from the grid root (detail: { grid }). Declare ->onCompleteFocus('[data-save]') and the grid also moves focus to that selector — with a built-in retry loop, so a Save button that only enables once the grid is valid still receives focus. The result is the full keyboard circuit: enter lines → end entry (exit option or balance) → focus lands on Save → Enter posts. For anything fancier, listen for the event yourself:

document.addEventListener('lgrid:complete', (e) => {
    if (e.detail.grid === 'lines') { /* open a confirm dialog, scroll a summary… */ }
});

Server hooks — enrichment & row consistency

Three server-side hooks let a grid keep its rows internally consistent without any client code. All of them receive a RowContext — get('col'), set('col', $value), setLabel('col', $text) for picker display labels — and every set() rides the op response back into the client row. Crucially, formula columns recompute after the hooks in the same operation, so a hook that sets nights also refreshes amount = nights × rate in one round trip.

// 1. Per-pick enrichment (SearchSelectColumn): the pick pre-fills dependent cells.
SearchSelectColumn::make('item_id')
    ->onSelect(function (RowContext $row, mixed $value): void {
        $item = Item::find($value);
        $row->set('rate', $item?->rate);
        $row->set('uom', $item?->uom);
    })

// 2. Grid-wide row consistency: runs after EVERY applied cell change (typing, paste,
//    fill-down). Example — derive nights from a date range:
->afterCellChange(function (RowContext $row, string $column): void {
    if (! in_array($column, ['fromDate', 'toDate'], true)) {
        return;
    }
    if ($row->get('fromDate') && $row->get('toDate')) {
        $nights = Carbon::parse($row->get('fromDate'))
            ->diffInDays(Carbon::parse($row->get('toDate')), false);
        $row->set('nights', $nights >= 1 ? (int) $nights : null);
    }
})

// 3. After a row removal — recompute host-side chrome (an "Allocated" total, a balance badge):
->afterRowRemove(fn () => $this->recomputeTotals())

The hooks are the authoritative half of the optimistic model: the client already painted the keystroke; the server decides the truth and patches back anything the hooks changed.

Display-only mode

<x-laragrid :grid="$grid" :rows="[['name' => 'Alpha'], ['name' => 'Beta']]" />

No ->query(), no ->editable() — the rows are painted as-is with full keyboard navigation, selection, copy, column chooser, and footer totals. No Livewire component is required. To refresh a display grid's data later, call $this->reseedGrid('name', $freshRows).

Column types

Column	Editor	Value	Notes
`SerialColumn`	—	row number	the `#` gutter
`TextColumn`	text	string	`->maxLength()`, `->upper()`/`->lower()`
`IntegerColumn`	number	int	grouping-tolerant input
`DecimalColumn`	number	fixed-scale string	`->scale(n)`; precision never rides a float
`DateColumn`	date	ISO `Y-m-d`	fuzzy typed input (`31/12`, `311226`); display pattern configurable; financial-year inference opt-in
`SelectColumn`	dropdown	option id	`->options([...])` embedded whitelist
`SearchSelectColumn`	async picker	option id	`->optionsUsing(fn ($term, $row))`, `->onSelect()` enrichment, `->minChars()`, `->debounce()`, `->limit()`
`CheckboxColumn`	instant toggle	bool
`FormulaColumn`	—	computed	`->formula('qty * rate')` — evaluated live client-side, authoritatively server-side
`ComputedColumn`	—	server-baked	`->state(fn ($row))`, pair with `->html()` for badges/links via `CellHtml`
`ReadonlyColumn` / `HiddenColumn`	—	display / carried	writes rejected server-side

Shared column chains: label, width / minWidth / maxWidth / grow, align, visible, frozen, sortable(bool|'db.column'), searchable, filterable(Filter), required / required(fn), readonly / readonly(fn), rules([...]), lockedWhen('col', value), requiredWhen('col', value), whenFilled(sets: [...], clears: [...]), endOfListOption() (see Ending entry), opensPanel('name'), html().

Grid definition reference

Data — query(fn) · authorize(ability|fn) · paginate(per, [options]) · defaultSort(col, dir) · searchable([...]) · filters([...]) · rowKey('id') · rowActivate(fn ($row) => ?url) — Enter/double-click opens a row, permission-gated per row.

Editable — editable() · rowsFrom('prop') · defaultRows(n) · newRowUsing(fn) · minRows(n) · autoAppend() · padRows(n) · sync(SyncPolicy::PerCell|PerRow|Deferred) · refreshesHost([...]) (re-render host chrome when listed columns change) · completeWhenBalanced('dr', 'cr') · afterCellChange(fn) · afterRowRemove(fn).

Behavior — keymap('entry'|'excel') · toolbar(...) / toolbar(false) · focusOnMount() · focusOutTo(selector) · onCompleteFocus(selector) · emptyState(text) · statusBar(bool) · persistWidths() (column layout survives reloads).

Layout — stickyHeader() · freezeColumns(n) · striped() · density(GridDensity::Compact|Normal|Comfortable) · height('420px') · maxHeight('60vh') · fillParent() · themeClass('my-theme') · rowClass(fn) · cellClass(fn).

Actions

->actions([          // per-row buttons in a trailing column
    Action::make('edit')->icon('✎')->url(fn ($row) => route('items.edit', $row['id'])),
    Action::make('archive')->confirm('Archive?')->visible(fn ($row) => ! $row['archived'])
        ->call(fn (array $row) => Item::whereKey($row['id'])->archive()),
])
->bulkActions([      // run over checked rows; a selector gutter + toolbar bulk bar appear
    Action::make('delete')->confirm('Delete selected?')
        ->call(fn (array $keys) => Item::whereKey($keys)->delete()),
])
->toolbarActions([   // grid-scoped buttons in the toolbar
    Action::make('new')->label('New Item')->url(fn () => route('items.create')),
])

Actions are fail-closed end to end: the client only echoes an action name (plus row keys) — the server re-authorizes the grid gate, the per-action ->authorize(), re-resolves the row from its authoritative source, and re-checks ->visible() before the closure runs. A hidden button is an unusable button. url() actions bake their per-row URL server-side; rows where the resolver returns null get no button. After a call() action, readonly grids refetch their current page and editable grids receive a reseed payload automatically. Throw a ValidationException inside a callback to show the operator a refusal message.

Toolbar, search & filters

The toolbar renders itself from the definition: a debounced search box (when the grid declares ->searchable()), one control per grid-level filter, the bulk bar, toolbar action buttons, and the column chooser. Suppress or tune it: ->toolbar(false), ->toolbar(search: false). Filter options accept a {value => label} map (the pluck() idiom), a list of ['value' => , 'label' => ] rows, or plain scalars. SelectFilter and TernaryFilter (All / Yes / No) ship in core; column header funnels via ->filterable() run through the same whitelisted pipeline.

Keyboard

Keys	Action
Arrows / Tab / Home / End / PageUp / PageDown / Ctrl+edges	navigate
Shift + movement, Ctrl+A	extend / select all
Ctrl+C	copy selection as TSV (pastes into Excel; paste back round-trips)
Type / F2 / double-click	overwrite / edit a cell
Enter	commit + advance — serpentine in `entry`, down in `excel`
Delete	clear selected cells
Shift+Delete or F7	delete the row (minRows-guarded)
Insert / Ctrl+D	insert row / fill down
Ctrl+E	jump to the first error
ContextMenu / Shift+F10	open the row's actions menu
Escape	clear selection / cancel edit

Paste is bulk-aware: a multi-row TSV paste maps onto editable cells, auto-appends rows as needed, and flushes as one batch (with a confirm above 500 cells).

Theming

Shipped color schemes

Six presets ship with the package, each with a coordinated light and dark variant: zinc · blue · emerald · amber · rose · violet.

Grid::make('items')->theme('blue')        // per grid (unknown names fail loud at build time)

// config/laragrid.php — app-wide default; any grid's ->theme() overrides it
'theme' => 'emerald',

A scheme tints the accent (active-cell ring, selection, focus), header/footer surfaces, stripes, and borders as one coordinated family; the dark variant applies automatically under your .dark class. Internally each preset is just an accent pair — every surface derives from it via a shared color-mix formula — so all schemes stay tonally consistent, and adding your own is two custom properties on a class you pass to ->themeClass():

.lgrid--theme-brand { --lgrid-theme-accent: #0f766e; --lgrid-theme-accent-dark: #2dd4bf; }

Custom tokens

Every visual is a --lgrid-* CSS token (row height, paddings, all colors) with self-contained defaults — the grid looks right on a page with no CSS framework at all. In a Tailwind v4 app it adopts your --color-* @theme palette automatically. Override tokens globally, under your own ->themeClass(), or under .dark (dark mode is token-flipping, nothing more). All elements carry stable lgrid-* semantic classes, so any part is restylable and nothing is ever purged by a build tool. Print collapses to a clean black-on-white table.

Extending

// A custom column type is just a class:
class RatingColumn extends \LaraGrid\Columns\Column
{
    public function painterId(): string { return 'rating'; }
    public function editorId(): ?string { return 'rating'; }
    public function parseSpec(): array { return ['kind' => 'int']; }
}

// App-specific formatters and parse kinds register in a service provider:
app(\LaraGrid\Formatting\FormatRegistry::class)->register('inr', new InrFormatter);
app(\LaraGrid\Casting\CastRegistry::class)->register('paise', new PaiseCast);

// The window.LaraGrid seams (load your script after the grid bundle):
LaraGrid.registerPainter('rating', (cellEl, ctx) => { /* draw the cell */ });
LaraGrid.registerEditor('rating', RatingEditor);        // { mount, value, focus, destroy }
LaraGrid.registerFormatter('inr', (value, args) => …);  // twin of the PHP formatter
LaraGrid.registerCast('paise', { parse, editText });    // twin of the PHP cast

Formatting and casting run in both runtimes — the client for instant paint, the server for authority. Every PHP formatter/cast you register must have a behaviourally identical JS twin under the same name, pinned by a shared vector in tests/fixtures/grid-vectors/ (the package's own suite runs 122 vectors through both runtimes on every build).

Host events

Grid → host (bubbling DOM events): lgrid:complete (entry finished), lgrid:activate (row opened), lgrid:panel (cell hands off to a host modal), lgrid:column-resized, lgrid:column-visibility. Host → grid: lgrid:reseed (use $this->reseedGrid(...)), lgrid:panel-done (use $this->gridPanelDone(...)), lgrid:toolbar (drive the grid from fully custom host chrome).

Configuration

config/laragrid.php holds app-wide defaults only — density, keymap preset, date display pattern, financial-year start month (off by default), toolbar defaults, asset injection and asset URL. Any grid overrides any of them through its chained definition.

Troubleshooting

"Method …::gridMountRows does not exist" — add use WithLaraGrid; inside the component class (importing the trait at the top of the file is not enough).
"No hint path defined for [layouts]" on a bare Livewire 4 app — pin the layout on your full-page component: #[Layout('components.layouts.app')].
"searchable target [x] is not a declared column" — declare the column, or table-qualify the target ('items.slug') to search an undisplayed DB column.
Stale assets after upgrading — none: tags carry a content hash. If a proxy interferes, hard-refresh once.

Testing

Package suite: composer test (Pest via Testbench) and npm test (Node vector runners) — PHP and JS are asserted against the same committed vectors. Your app tests drive grids through the public RPCs, exactly as the browser does:

Livewire::test(BookingEntry::class)
    ->call('gridOps', 'lines', ['ops' => [
        ['t' => 'set', 'seq' => 1, 'row' => $key, 'col' => 'nights', 'v' => '3'],
    ]])
    ->call('gridAction', 'resorts', 'delete', [$id]);

unnathianalytics / laragrid

Maintainers

Package info

Statistics

Security

README

Contents

The three modes

Requirements

Installation

Quick start — a readonly list

Quick start — an editable entry grid

Row lifecycle & blank rows

Ending entry — the completion flow

`->endOfListOption()` — the picker exit

`->completeWhenBalanced('dr', 'cr')` — the balancing guard

What "complete" does

Server hooks — enrichment & row consistency

Display-only mode

Column types

Grid definition reference

Actions

Toolbar, search & filters

Keyboard

Theming

Shipped color schemes

Custom tokens

Extending

Host events

Configuration

Troubleshooting

Testing

License

unnathianalytics / laragrid

Maintainers

Package info

Statistics

Security

README

Contents

The three modes

Requirements

Installation

Quick start — a readonly list

Quick start — an editable entry grid

Row lifecycle & blank rows

Ending entry — the completion flow

->endOfListOption() — the picker exit

->completeWhenBalanced('dr', 'cr') — the balancing guard

What "complete" does

Server hooks — enrichment & row consistency

Display-only mode

Column types

Grid definition reference

Actions

Toolbar, search & filters

Keyboard

Theming

Shipped color schemes

Custom tokens

Extending

Host events

Configuration

Troubleshooting

Testing

License

`->endOfListOption()` — the picker exit

`->completeWhenBalanced('dr', 'cr')` — the balancing guard
