skphp1989/swoole-jobs

基于swoole的job调度组件，类似gearman的分布式任务处理系统

v1.0.2 2019-05-21 09:55 UTC

Requires

• php: >=7.0
• ext-redis: *
• ext-swoole: >=1.8.9
• bramus/router: ^1.3
• enqueue/amqp-ext: ^0.8
• guzzlehttp/guzzle: ^6.3
• monolog/monolog: ^1.24
• symfony/console: ^2.7 || ^3.0 || ^4.0

Requires (Dev)

• phpunit/phpunit: ^4.8.35 || ^5.7

MIT

• skphp1989

• job
• scheduler
• swoole
• 调度

README

中文介绍

• Distributed task processing system,similar to gearman,based on swoole
• High performance / dynamic multi woker process consumption queue to accelerate backend time consuming service
• There is no need to configure a crontab like gearman worker, swoole-jobs is responsible for managing all worker states
• Support for pushing queues by HTTP API（swoole http server） , does not depend on php-fpm

1. Explain

• Slower logic in web, such as statistical /email/ SMS / picture processing, etc.
• Support redis/rabbitmq/zeromq or any other queue message store.
• It is more stable and faster than the Yii / laravel framework itself.
• With yii2/phalcon/yaf/ThinkPHP5 integration example, other frameworks can refer to src/Action code.
• yii2 demo
• ThinkPHP5 demo

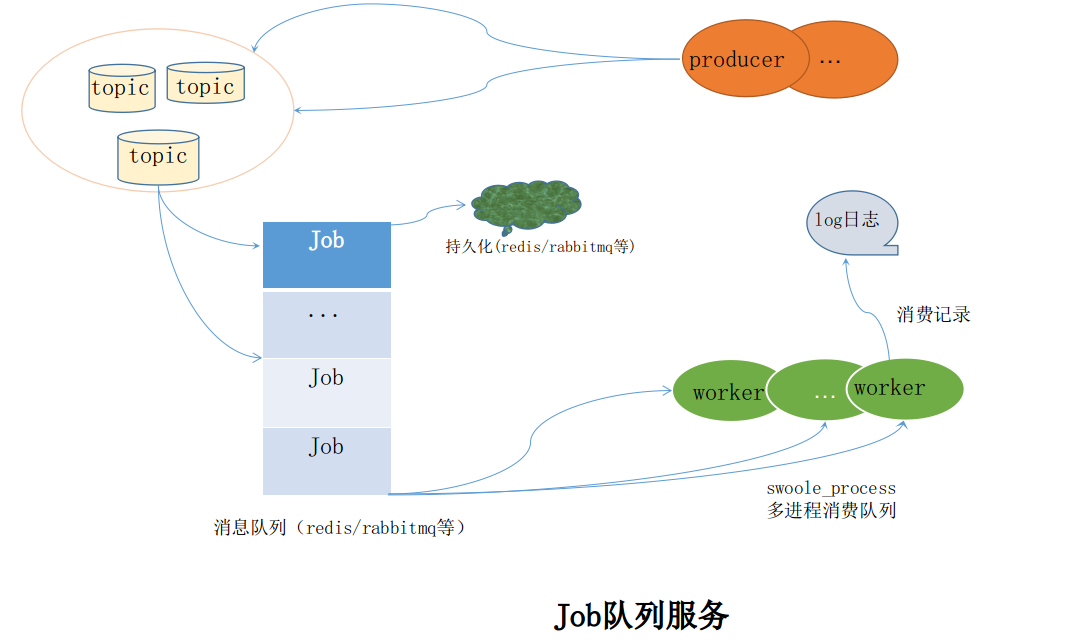

2. Architecture diagram

3. Characteristic

• job scheduling component based on swoole; distributed task processing system similar to gearman;

• redis/rabbitmq/zeromq and any other queue message store (currently only redis/rabbitmq).

• use swoole process to realize multi process management, the number of processes can be configured, and the worker process will automatically pull up after exiting.

• the number of cycles of child processes can be configured to prevent memory leakage from business code; the default stop command will wait for the child process to exit smoothly.

• support topic features, different job binding different topic;

• each topic starts the corresponding number of sub processes to eliminate the interaction between different topic.

• according to the queue backlog, the sub process starts the process dynamically, and the number of the largest sub processes can be configured.

• support composer, which can be integrated with any framework;

• log file automatic cutting, default maximum 100M, up to 5 log files, prevent log brush full disk;

• backlog, support for nail robot and other news alerts.

4. Install

4.1 composer

git clone https://github.com/kcloze/swoole-jobs.git
cd swoole-jobs

composer install

4.2 docker

• git clone https://github.com/kcloze/swoole-jobs.git
• cd swoole-jobs and composer install
• Building a mirror based on the root directory Dockerfile
• docker build -t swoole-jobs .
• docker run -it -v ~/data/code/php:/data swoole-jobs /bin/bash
• After entering the docker container, enter the project directory:php swoole-jobs.php start

5. How to running

5.1 example

1.edit config.php

2.start service
php ./swoole-jobs.php start >> log/system.log 2>&1

3.push jobs
php ./tests/testJobsSerialzie.php

4.start api server
php ./swoole-jobs.php start http

5.stop api server
php ./swoole-jobs.php stop http

5.2 Start parameter description

NAME
      php swoole-jobs - manage swoole-jobs

SYNOPSIS
      php swoole-jobs command [options]
          Manage swoole-jobs daemons.


WORKFLOWS



      help [command]
      Show this help, or workflow help for command.

      restart
      Stop, then start swoole-jobs master and workers.

      start
      Start swoole-jobs master and workers.

      start http
      Start swoole http server for apis.

      stop
      Wait all running workers smooth exit, please check swoole-jobs status for a while.

      stop http
      Stop swoole http server for api.

      exit
      Kill all running workers and master PIDs.

      exit http
      Stop swoole http server for api.

5.3 API parameter description

5.3.1 api url

• http://localhost:9501/pushJobs

5.3.2 api params:

Params	Type	Demo
jobData	json	{"topic":"MyJob","jobClass":"\Kcloze\Jobs\Jobs\MyJob","jobMethod":"test2","jobParams":["kcloze",1532857253,"oop"],"jobExtras":[],"serializeFunc":"php"}

6. Service management

There are two ways to start and close the service online:

6.1 The startup script is added to the crontab timing task, which is executed once a minute (swoole-jobs automatically checks if it is executing, avoiding repeated startup).

* * * * * /usr/local/bin/php /***/swoole-jobs.php start >> /***/log/system.log 2>&1

6.2 Using SYSTEMd Management (failure restart, boot up)

more

1. According to your own project path, modify： docs/systemd/swoole-jobs.service
2. sudo cp -f systemd/swoole-jobs.service /etc/systemd/system/
3. sudo systemctl --system daemon-reload
4. Service management
#start service
sudo systemctl start swoole-jobs.service
#reload service
sudo systemctl reload swoole-jobs.service
#stop service
sudo systemctl stop swoole-jobs.service

7.System screenshot

htop

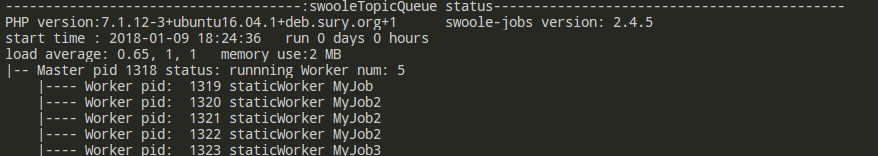

status

dingding message

8. Change log

• change log

9. Matters needing attention

• If you embed your own framework, you can refer to src/Action code to inherit the abstract class Kcloze\Jobs\Action\BaseAction.
• Various framework services will start slightly different, for specific reference: Code for example/bin projects.

10. Pressure measurement

• Bottleneck: redis/rabbitmq queue storage itself and job execution speed
