saccharine / bpmn

v0.5.0-alpha 2026-10-17 14:44 UTC

Requires

• php: ^8.3
• durable-workflow/workflow: ^1.0
• illuminate/support: ^12.0 || ^13.0
• symfony/expression-language: ^7.0

Requires (Dev)

• orchestra/testbench: ^10.0 || ^11.1
• pestphp/pest: ^4.7
• pestphp/pest-plugin-laravel: ^4.1

MIT

• Matthew Wegner

• workflow
• laravel
• bpmn
• orchestration
• saccharine

Published on Packagist.org on 2026-10-17 15:01 UTC

README

A lightweight, PHP-native BPMN 2.0 workflow orchestrator and visual designer for Laravel. Design long-running business processes visually and execute them as resilient, durable background jobs—without external Java dependencies or enterprise runtime servers (such as Camunda or Zeebe).

Saccharine BPMN bridges the gap between executable process diagrams and Laravel applications by pairing bpmn-js for interactive modeling with durable-workflow for stateful, queue-backed coroutines.

Status: v0.5.0-alpha
Actively developed. The execution engine, state projection, live token tracking, and manual intervention layers are operational. Best suited for testing, evaluation, and community feedback.

• Supported Elements: Exclusive Gateways (condition expressions), Parallel Gateways (AND splits/joins via child coroutines), User Tasks (signals/wait states), Service Tasks (activity classes), Message Start Events (Eloquent model triggers), and Boundary Error/Timer events.
• Roadmap / Open for Contribution: Multi-instance loops, complex event sub-processes, dynamic form builders (e.g., form-js), and in-flight instance version migration.

50-Second Walkthrough

demo.mp4

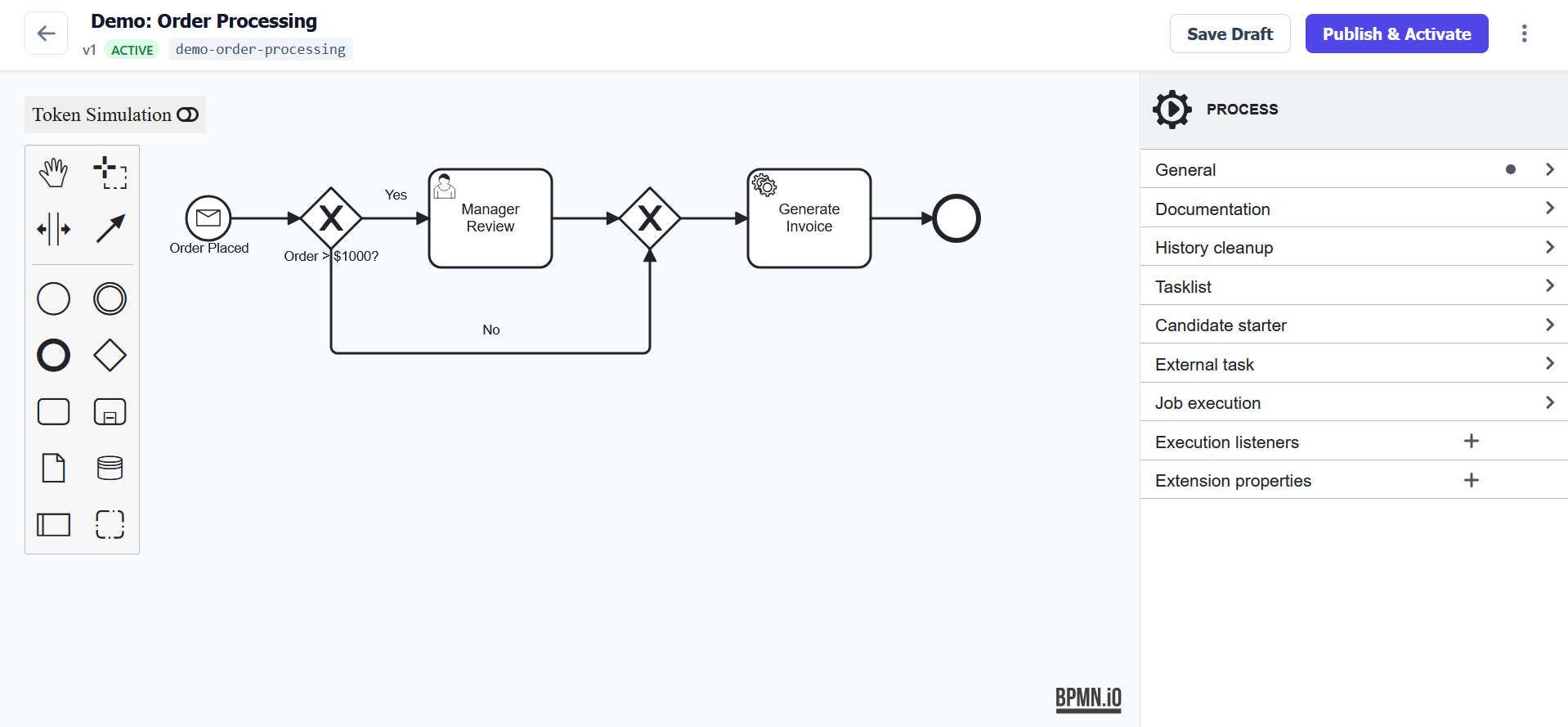

1. Model: Configure dynamic parameters inside the visual designer and activate the version.
2. Trigger: An Eloquent DemoOrder event fires, matching the process start event.
3. Hibernate: The workflow evaluates an Exclusive Gateway and pauses at a User Task wait state.
4. Resume & Deliver: An operator submits the task from the Live Cockpit, resuming the coroutine and delivering a real notification to Mailpit.

Quickstart

1. Require and Install

Install the package via Composer:

composer require saccharine/bpmn

Run the installation command to publish configuration, migrations, and frontend assets:

php artisan bpmn:install

2. Scaffold and Run the Demo

Scaffold the demo order workflow, sample activities, and trigger events:

php artisan bpmn:demo

Start your queue worker to process workflow steps:

php artisan queue:work

In another terminal, trigger a test order:

php artisan bpmn:test-order --amount=250 --email=[e-mail]

Navigate to /bpmn/workflows/definitions (or your Filament admin panel) to inspect the diagram and trace live execution tokens.

Key Features

• Zero External Services: Runs on your existing Laravel queue infrastructure (database, Redis, SQS) using pure PHP coroutines.
• Resilient & Crash-Proof: Workflows persist state deterministically. If a queue worker crashes or restarts mid-task, execution resumes from the exact boundary node.
• Integrated Visual Modeler: Embedded, responsive drag-and-drop designer powered by bpmn-js with custom properties and element templates.
• Event-Driven Triggers: Automatically launch workflows from Eloquent model lifecycle hooks (created, updated, deleted) or custom domain events.
• Parallel Splits & Synchronization: Spawns concurrent child workflows at Parallel Gateways and joins execution paths cleanly without serialization errors.
• Human-in-the-Loop Interventions: Pause workflows indefinitely awaiting user forms or external webhooks, then resume execution seamlessly.
• Filament & Standalone Ready: Works out of the box with a built-in Blade dashboard or embeds cleanly into Filament admin panels.

Technical Requirements

• PHP 8.3+
• Laravel Framework (^11.0 || ^12.0)
• Symfony Expression Language (^7.0): Sandboxed evaluation of gateway condition expressions.
• Durable Workflow (^1.0): Event-sourced coroutine engine for durable background execution.
• bpmn-js: Interactive client-side modeling and diagram visualization.

Documentation

• Usage Guide: Comprehensive guide to routing, configuration, custom activities, triggers, element templates, and human tasks.
• Architecture & Internals: Deep dive into the XML relational parser, Strategy Pattern node handlers, parallel child workflows, and state projection.

License & Acknowledgments

This package is open-source software licensed under the MIT License.

Saccharine BPMN would not be possible without the incredible work of the open-source community:

• bpmn-js by bpmn.io / Camunda: The gold standard for web-based BPMN 2.0 visualization.
• durable-workflow: The elegant coroutine orchestration layer that makes suspendable, durable PHP processes a reality.
• Symfony & Laravel: For providing the ultimate foundation of modern enterprise PHP development.
