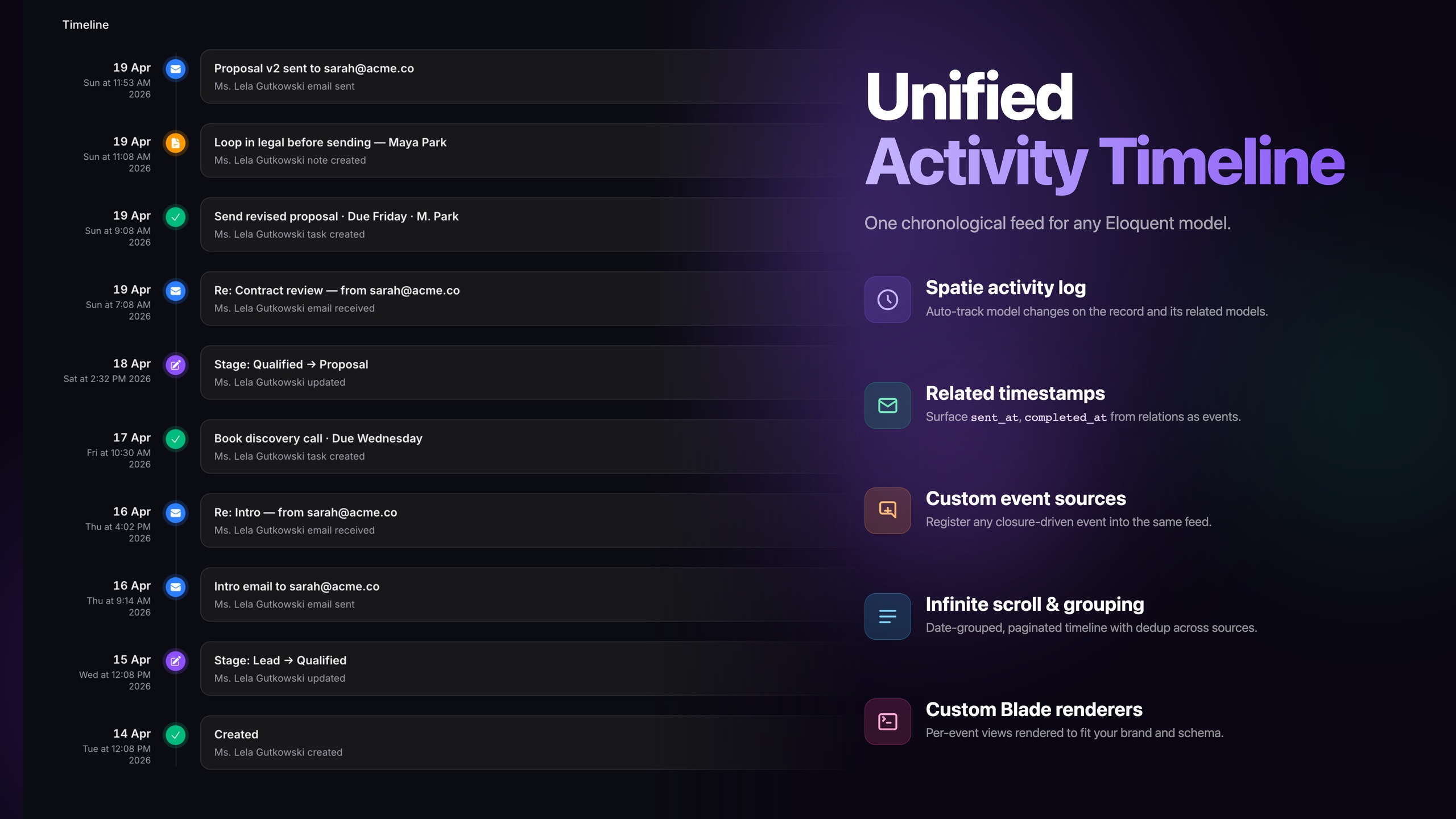

A reusable Filament v5 plugin that renders a unified chronological timeline for any Eloquent model. It aggregates events from spatie/laravel-activitylog (both the model's own log and logs of its related models), timestamp columns on related models (e.g. emails.sent_at, tasks.completed_at), and any custom source you define.

The plugin ships an infolist component, two relation managers, two header actions, and a facade for registering custom renderers.

Requirements
Installation
Quick start
Core concepts
Data sources
Filtering, sorting, dedup
Filament UI integrations
Custom renderers
Caching
Configuration reference
Tailwind
Performance notes
Testing

Requirements

PHP 8.4+
Laravel 12
Filament 5
spatie/laravel-activitylog ^5

Installation

1. Require the package

composer require relaticle/activity-log

The service provider (Relaticle\ActivityLog\ActivityLogServiceProvider) is auto-discovered. It registers:

Config file (config/activity-log.php)
Blade views namespaced as activity-log::*
Translations
RendererRegistry and TimelineCache singletons
Two Livewire components: timeline-livewire, activity-log-list

2. Publish the config (optional)

php artisan vendor:publish --tag=activity-log-config

3. Ensure the `activity_log` table is indexed

The plugin does not ship a migration (the table is owned by spatie/laravel-activitylog). For good performance on timeline queries, add this compound index:

$table->index(['subject_type', 'subject_id', 'created_at']);

4. Add the Tailwind source (for custom panel themes)

If your panel uses a custom theme.css, add the plugin's views to its source list so Tailwind compiles the utilities used by the Blade templates:

/* resources/css/filament/{panel}/theme.css */
@source '../../../../vendor/relaticle/activity-log/resources/views/**/*';

Quick start

1. Mark the model as timeline-capable

Implement the HasTimeline contract, use the InteractsWithTimeline trait for the helper methods, and define a timeline(): TimelineBuilder method:

use Illuminate\Database\Eloquent\Model;
use Relaticle\ActivityLog\Concerns\InteractsWithTimeline;
use Relaticle\ActivityLog\Contracts\HasTimeline;
use Relaticle\ActivityLog\Timeline\TimelineBuilder;
use Relaticle\ActivityLog\Timeline\Sources\RelatedModelSource;
use Spatie\Activitylog\Traits\LogsActivity;

class Person extends Model implements HasTimeline
{
    use InteractsWithTimeline;
    use LogsActivity;

    public function timeline(): TimelineBuilder
    {
        return TimelineBuilder::make($this)
            ->fromActivityLog()
            ->fromActivityLogOf(['emails', 'notes', 'tasks'])
            ->fromRelation('emails', function (RelatedModelSource $source): void {
                $source
                    ->event('sent_at', 'email_sent', icon: 'heroicon-o-paper-airplane', color: 'primary')
                    ->event('received_at', 'email_received', icon: 'heroicon-o-inbox-arrow-down', color: 'info')
                    ->title(fn ($email): string => $email->subject ?? 'Email')
                    ->causer(fn ($email) => $email->from->first());
            });
    }
}

2. Render the timeline on the resource's view page

use Filament\Schemas\Schema;
use Relaticle\ActivityLog\Filament\Infolists\Components\ActivityLog;

public static function infolist(Schema $schema): Schema
{
    return $schema->components([
        ActivityLog::make('timeline')
            ->heading('Activity')
            ->groupByDate()
            ->perPage(20)
            ->columnSpanFull(),
    ]);
}

That's the minimum setup. The sections below cover customization.

Core concepts

Concept	What it represents
`TimelineBuilder`	Fluent builder that composes sources, applies filters, and returns paginated `TimelineEntry` collections. Built per-record via `$record->timeline()`.
`TimelineSource`	Produces `TimelineEntry` objects from a specific origin (spatie log, related timestamps, custom closure). Implementations: `ActivityLogSource`, `RelatedActivityLogSource`, `RelatedModelSource`, `CustomEventSource`.
`TimelineEntry`	Immutable value object describing a single event: `event`, `occurredAt`, `title`, `description`, `icon`, `color`, `subject`, `causer`, `relatedModel`, `properties`, plus an optional `renderer` key.
`TimelineRenderer`	Converts a `TimelineEntry` into a Blade `View` or `HtmlString`. The default renderer handles every entry; you register custom renderers per `event` or `type`.
Priority	Each source carries a priority. When two entries share a `dedupKey`, the higher-priority one wins. Defaults: `activity_log`=10, `related_activity_log`=10, `related_model`=20, `custom`=30.

Data sources

All sources are registered fluently on TimelineBuilder. You can mix any number of them in one timeline.

`fromActivityLog()` — the record's own spatie log

TimelineBuilder::make($this)->fromActivityLog();

Reads rows from activity_log where subject_type + subject_id match $this. Entry event = the spatie event column (or description as fallback).

`fromActivityLogOf(array $relations)` — related models' spatie logs

TimelineBuilder::make($this)->fromActivityLogOf(['emails', 'notes', 'tasks']);

For each named relation, reads activity_log rows whose subject matches any related record. Useful for "show me everything that happened to anything attached to this person."

`fromRelation(string $relation, Closure $configure)` — timestamp columns

Turns rows on a related model into timeline entries keyed by a timestamp column. Ideal when related records already carry canonical timestamps (sent_at, completed_at, created_at) and you don't need spatie-style change logs.

->fromRelation('tasks', function (RelatedModelSource $source): void {
    $source
        ->event('completed_at', 'task_completed', icon: 'heroicon-o-check-circle', color: 'success')
        ->event('created_at', 'task_created', icon: 'heroicon-o-plus-circle')
        ->with(['creator', 'assignee'])                               // eager loads
        ->using(fn ($query) => $query->whereNull('archived_at'))      // extra constraints
        ->title(fn ($task): string => $task->title ?? 'Task')
        ->description(fn ($task): ?string => $task->summary)
        ->causer('creator');                                           // relation name or Closure
})

RelatedModelSource API:

Method	Purpose
`event(string $column, string $event, ?string $icon, ?string $color, ?Closure $when)`	Register one event per timestamp column. `when` is an optional row-level filter (return `bool`).
`with(array $relations)`	Eager-loads relations on every event query — prevents N+1 in renderers.
`using(Closure $modifier)`	Arbitrary query modifier (scope injection, tenant scoping, etc.).
`title(Closure)` / `description(Closure)`	Per-row resolver for display fields.
`causer(Closure\|string)`	Resolves the actor. `string` is a relation name on the row; closure returns a `Model` (or `null`).

`fromCustom(Closure $resolver)` — anything else

When the data isn't in activity_log and isn't a relation (e.g. entries coming from an external API), yield your own TimelineEntry objects:

->fromCustom(function (Model $subject, Window $window): iterable {
    foreach (ExternalApi::events($subject, $window->from, $window->to, $window->cap) as $row) {
        yield new TimelineEntry(
            id: 'external:'.$row['id'],
            type: 'custom',
            event: $row['event'],
            occurredAt: CarbonImmutable::parse($row['at']),
            dedupKey: 'external:'.$row['id'],
            sourcePriority: 30,
            title: $row['title'],
        );
    }
})

`addSource(TimelineSource $source)` — drop-in custom sources

For reusable sources, implement Relaticle\ActivityLog\Contracts\TimelineSource and pass it directly. Useful when the resolution logic warrants its own class.

Filtering, sorting, dedup

All methods are chainable on TimelineBuilder:

$record->timeline()
    ->between(now()->subMonth(), now())            // CarbonInterface|null on each side
    ->ofType(['related_model', 'activity_log'])     // allow-list
    ->exceptType(['custom'])                        // deny-list
    ->ofEvent(['email_sent', 'task_completed'])
    ->exceptEvent(['draft_saved'])
    ->sortByDateDesc()                              // default; use sortByDateAsc() for ascending
    ->deduplicate(false)                            // default: true
    ->dedupKeyUsing(fn ($entry) => $entry->type.':'.$entry->event.':'.$entry->occurredAt->toDateString())
    ->paginate(perPage: 20, page: 1);

Dedup behaviour: entries sharing a dedupKey collapse to the highest sourcePriority (first occurrence wins on ties). Override the key with dedupKeyUsing() if the default identity isn't right for your use case.

Methods that run the query

Method	Returns
`get()`	`Collection<int, TimelineEntry>` — all entries up to the internal 10 000 cap.
`paginate(?int $perPage, int $page = 1)`	`LengthAwarePaginator<int, TimelineEntry>`. Uses `activity-log.default_per_page` if `$perPage` is null.
`count()`	`int` (runs `get()`).

Filament UI integrations

Infolist components

Two infolist entries are shipped. Both call $record->timeline() and require HasTimeline.

use Relaticle\ActivityLog\Filament\Infolists\Components\ActivityLog; // spatie-style flat activity log
use Relaticle\ActivityLog\Filament\Infolists\Components\Timeline;    // unified date-grouped timeline

ActivityLog::make('activity')
    ->heading('Activity')
    ->groupByDate()                  // group by today / yesterday / this week / last week / this month / older
    ->collapsible()                  // allow collapsing groups (only meaningful with groupByDate)
    ->perPage(20)                    // overrides activity-log.default_per_page
    ->emptyState('No activity yet.') // custom empty-state message
    ->infiniteScroll(false)          // false = "Load more" button (default for ActivityLog); true = wire:intersect
    ->using(fn (Person $record) => $record->timeline()->exceptEvent(['draft_saved']))
    ->columnSpanFull();

Timeline::make('timeline')
    ->heading('Timeline')
    ->groupByDate()
    ->perPage(3)                     // Timeline default
    ->infiniteScroll(true)           // true = wire:intersect (default for Timeline); false = "Load more" button
    ->columnSpanFull();

Pass ->using(Closure) to mutate or replace the builder (e.g., for role-based filtering).

Pagination UX: `infiniteScroll(bool)`

Both entries expose an infiniteScroll() fluent flag that switches the bottom control:

true — renders a wire:intersect sentinel; the next page loads automatically as the user scrolls (Livewire 4).
false — renders a Load more button the user clicks.

Defaults: ActivityLog = false, Timeline = true.

Relation managers

Two read-only relation managers render the timeline as a tab on the resource's view/edit page:

use Relaticle\ActivityLog\Filament\RelationManagers\ActivityLogRelationManager; // flat list, spatie-style
use Relaticle\ActivityLog\Filament\RelationManagers\TimelineRelationManager;    // date-grouped, unified

public static function getRelations(): array
{
    return [TimelineRelationManager::class];
}

Both override canViewForRecord() to always return true. They declare a dummy HasOne relationship so they don't write to the DB — the page just hosts a Livewire component.

Each relation manager carries a protected static bool $infiniteScroll default (false for ActivityLogRelationManager, true for TimelineRelationManager) that is forwarded to the Livewire component. Flip it from a service provider if you want the opposite UX:

TimelineRelationManager::$infiniteScroll = false;

Header actions

Show the timeline in a slide-over modal from any resource table or page header:

use Relaticle\ActivityLog\Filament\Actions\TimelineAction;
use Relaticle\ActivityLog\Filament\Actions\ActivityLogAction;

protected function getHeaderActions(): array
{
    return [
        TimelineAction::make(),     // unified timeline (emails/notes/tasks + spatie)
        ActivityLogAction::make(),  // spatie-style flat activity list
    ];
}

Both actions open a 2XL slide-over with the relevant Livewire component. Customize label/icon/modal width as with any Filament action.

Custom renderers

Out of the box, every entry renders via DefaultRenderer (emits title, description, causer, relative time, and a colored icon). For branded output per event type, register a custom renderer.

Registering via the panel plugin

use Relaticle\ActivityLog\ActivityLogPlugin;

$panel->plugin(
    ActivityLogPlugin::make()->renderers([
        'email_sent'   => \App\Timeline\Renderers\EmailSentRenderer::class,
        'note_added'   => 'my-app::timeline.note-added',          // view name
        'task_done'    => fn ($entry) => new HtmlString('...'),   // closure
    ]),
);

Registering via the facade (e.g., from a service provider)

use Relaticle\ActivityLog\Facades\Timeline;

Timeline::registerRenderer('email_sent', \App\Timeline\Renderers\EmailSentRenderer::class);
Timeline::registerRenderer('note_added', 'my-app::timeline.note-added');
Timeline::registerRenderer('task_done', fn ($entry) => new HtmlString('...'));

Registering via config

// config/activity-log.php
'renderers' => [
    'email_sent' => \App\Timeline\Renderers\EmailSentRenderer::class,
],

Renderer resolution order

For each TimelineEntry, the registry checks:

$entry->renderer (an explicit override the source set)
bindings[$entry->event]
bindings[$entry->type]
DefaultRenderer fallback

Renderer forms

A renderer binding can be any of:

Class string implementing Relaticle\ActivityLog\Contracts\TimelineRenderer
Closure fn (TimelineEntry $entry): View|HtmlString => ...
View name (e.g., 'my-app::timeline.email-sent') — receives $entry in scope

final class EmailSentRenderer implements \Relaticle\ActivityLog\Contracts\TimelineRenderer
{
    public function render(\Relaticle\ActivityLog\Timeline\TimelineEntry $entry): \Illuminate\Contracts\View\View
    {
        return view('app.timeline.email-sent', ['entry' => $entry]);
    }
}

Caching

Opt-in per call — disabled by default.

$record->timeline()->cached(ttlSeconds: 300)->paginate();

Invalidate when mutations occur (consumer-driven; the plugin doesn't observe your models):

$record->forgetTimelineCache();

Configure the cache store and key prefix in config/activity-log.php under cache.

Configuration reference

// config/activity-log.php
return [
    // Default page size when ->perPage() isn't called.
    'default_per_page' => 20,

    // Per-source over-fetch buffer: cap = perPage * (page + buffer).
    // Higher = safer dedup/filtering at higher pages; more DB work.
    'pagination_buffer' => 2,

    // Whether dedup is on by default (builder->deduplicate(bool) overrides).
    'deduplicate_by_default' => true,

    // Per-source priority. Higher wins on dedup collisions.
    'source_priorities' => [
        'activity_log'         => 10,
        'related_activity_log' => 10,
        'related_model'        => 20,
        'custom'               => 30,
    ],

    // Labels the infolist component uses when ->groupByDate() is enabled.
    'date_groups' => ['today', 'yesterday', 'this_week', 'last_week', 'this_month', 'older'],

    // Event-or-type → renderer binding. Merged with bindings from the plugin/facade.
    'renderers' => [
        // 'email_sent' => \App\Timeline\Renderers\EmailSentRenderer::class,
    ],

    'cache' => [
        'store'       => null,           // null = default cache store
        'ttl_seconds' => 0,              // 0 = no caching (use ->cached() per call)
        'key_prefix'  => 'activity-log',
    ],
];

Tailwind

The plugin's Blade views use Tailwind utilities. If your panel has a compiled theme, include the plugin's views in its source list:

/* resources/css/filament/{panel}/theme.css */
@source '../../../../vendor/relaticle/activity-log/resources/views/**/*';

Performance notes

Every source batch-loads; no N+1 in the core path. Use ->with([...]) on RelatedModelSource if your renderer/title resolver reads relations.
Pagination over-fetches by perPage × (page + pagination_buffer) per source so dedup/filtering stays correct at higher pages. Tune pagination_buffer if your sources rarely collide.
get() is capped at 10 000 entries. For unbounded history, paginate.
Add the ['subject_type', 'subject_id', 'created_at'] compound index on activity_log.

Testing

cd Plugins/ActivityLog
composer install
vendor/bin/pest

The package ships fixtures (Person, Email, Note, Task) in tests/Fixtures/ and uses Orchestra Testbench for isolation.

relaticle / activity-log

Maintainers

Package info

Statistics

Security
