README

A Filament plugin that integrates Univer Sheet — a powerful, modern spreadsheet engine — as form fields, infolist entries, and table columns.

Features
Requirements
Installation
Usage
Configuration
- Plugin Configuration
- Config File
API Reference
Development
Testing
Changelog
License

Features

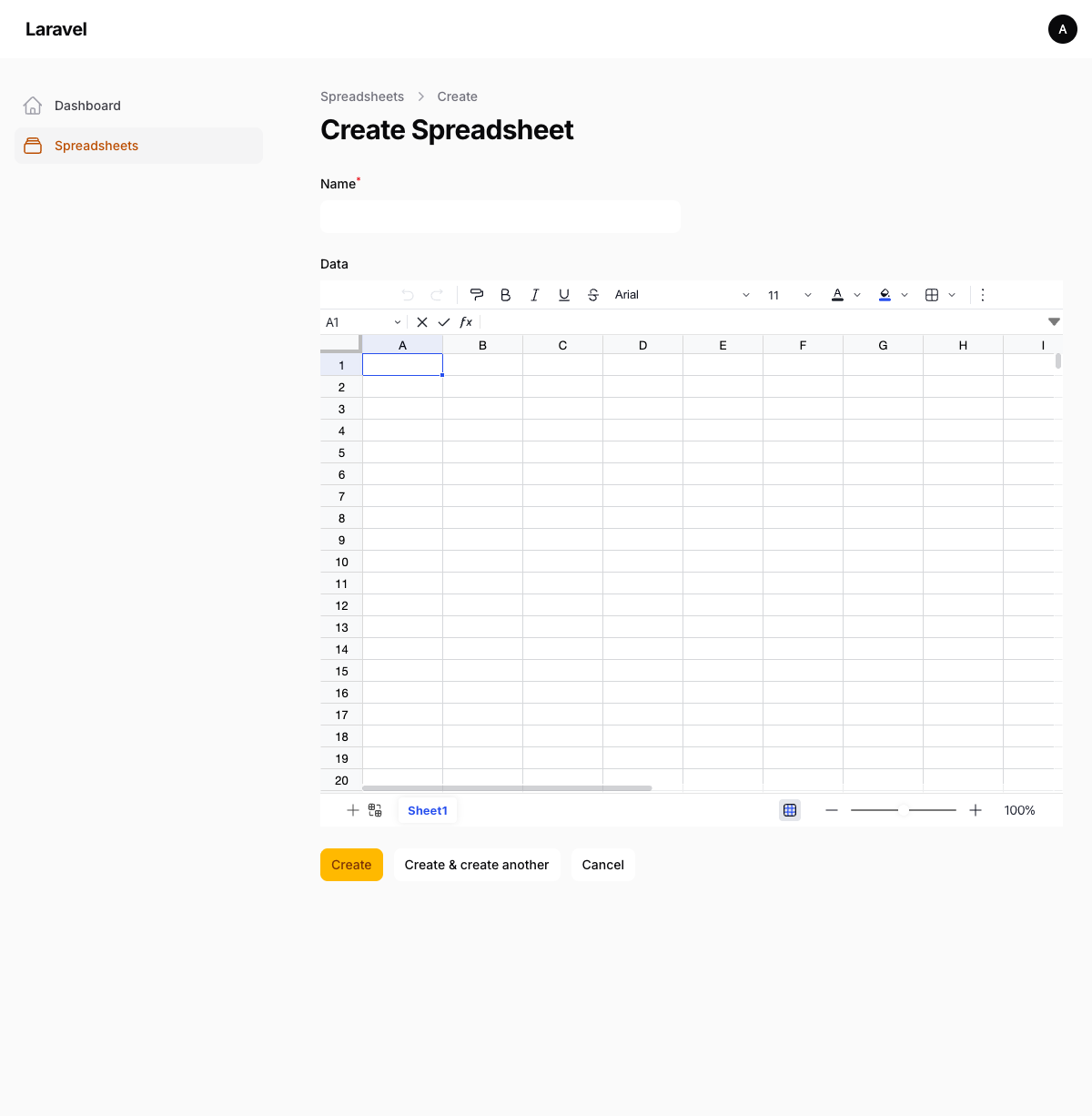

Full spreadsheet editor in Filament forms with toolbar, formula bar, and multi-sheet support
Read-only spreadsheet display in infolists (editing disabled, selection disabled)
Compact spreadsheet preview in table columns with row numbers
Data persisted as JSON — compatible with Eloquent's json cast
Configurable toolbar, formula bar, header bar, sheet tab, and context menu visibility
Ribbon type selection (collapsed, simple, classic)
English and Japanese translations included
Supports Filament 5.x

Requirements

PHP 8.3+
Laravel 11+
Filament 5.x

Installation

Install the package via Composer:

composer require qalainau/filament-univer-sheet

Publish the Filament assets:

php artisan filament:assets

use Qalainau\UniverSheet\UniverSheetPlugin;

public function panel(Panel $panel): Panel
{
    return $panel
        ->plugins([
            UniverSheetPlugin::make(),
        ]);
}

Optionally, publish the config file:

php artisan vendor:publish --tag=filament-univer-sheet-config

Usage

Form Field

Use SpreadsheetField to add a full spreadsheet editor to your forms:

use Qalainau\UniverSheet\SpreadsheetField;

public static function form(Schema $schema): Schema
{
    return $schema
        ->components([
            SpreadsheetField::make('data')
                ->columnSpanFull(),
        ]);
}

You may customize the appearance:

SpreadsheetField::make('data')
    ->height('600px')
    ->minHeight('400px')
    ->showToolbar(false)
    ->showFormulaBar(false)
    ->showSheetTabs(false)
    ->showHeaderBar(false)
    ->showContextMenu(false)
    ->ribbonType('collapsed') // 'collapsed', 'simple', or 'classic'
    ->columnSpanFull(),

Infolist Entry

Use SpreadsheetEntry to display spreadsheet data in a read-only view. Editing and selection are automatically disabled:

use Qalainau\UniverSheet\SpreadsheetEntry;

public static function infolist(Schema $schema): Schema
{
    return $schema
        ->components([
            SpreadsheetEntry::make('data')
                ->height('500px')
                ->columnSpanFull(),
        ]);
}

Note

By default, SpreadsheetEntry hides the toolbar and formula bar. You may re-enable them with ->showToolbar() and ->showFormulaBar().

Table Column

Use SpreadsheetColumn to show a compact spreadsheet preview in your table:

use Qalainau\UniverSheet\SpreadsheetColumn;

public static function table(Table $table): Table
{
    return $table
        ->columns([
            SpreadsheetColumn::make('data')
                ->previewRows(6)
                ->previewColumns(5),
        ]);
}

The preview renders as a mini spreadsheet with row numbers, header styling, and right-aligned numbers.

Database Setup

Store spreadsheet data in a longText or json column:

// Migration
Schema::create('spreadsheets', function (Blueprint $table) {
    $table->id();
    $table->string('name');
    $table->longText('data')->nullable();
    $table->timestamps();
});

// Model
protected $fillable = ['name', 'data'];

protected function casts(): array
{
    return [
        'data' => 'json',
    ];
}

Warning

Do not use dehydrateStateUsing(fn ($state) => json_encode($state)). Eloquent's JSON cast handles serialization automatically — double-encoding will corrupt the data.

Configuration

Plugin Configuration

Configure defaults via the plugin instance in your panel provider:

UniverSheetPlugin::make()
    ->showToolbar(false)
    ->showFormulaBar(false)
    ->showSheetTabs(false)
    ->showHeaderBar(false)
    ->showContextMenu(false)
    ->ribbonType('collapsed')
    ->locale('ja-JP'),

Config File

After publishing, you may edit config/univer-sheet.php:

return [
    'show_toolbar' => true,
    'show_formula_bar' => true,
    'show_sheet_tabs' => true,
    'show_header_bar' => true,
    'show_context_menu' => true,
    'ribbon_type' => null, // 'collapsed', 'simple', or 'classic'
    'locale' => 'en-US',
];

API Reference

SpreadsheetField

Method	Default	Description
`height(string\|Closure\|null)`	`null` (`60vh`)	Fixed height of the spreadsheet
`minHeight(string\|Closure)`	`'400px'`	Minimum height
`showToolbar(bool\|Closure)`	`true`	Show/hide the toolbar
`showFormulaBar(bool\|Closure)`	`true`	Show/hide the formula bar
`showSheetTabs(bool\|Closure)`	`true`	Show/hide sheet tabs at the bottom
`showHeaderBar(bool\|Closure)`	`true`	Show/hide the header bar (ribbon tabs, toolbar, formula bar area)
`showContextMenu(bool\|Closure)`	`true`	Show/hide the right-click context menu
`ribbonType(string\|Closure\|null)`	`null`	Ribbon display style: `'collapsed'`, `'simple'`, or `'classic'`

SpreadsheetEntry

Method	Default	Description
`height(string\|Closure)`	`'300px'`	Height of the spreadsheet
`showToolbar(bool\|Closure)`	`false`	Show/hide the toolbar
`showFormulaBar(bool\|Closure)`	`false`	Show/hide the formula bar
`showSheetTabs(bool\|Closure)`	`true`	Show/hide sheet tabs
`showHeaderBar(bool\|Closure)`	`false`	Show/hide the header bar
`showContextMenu(bool\|Closure)`	`false`	Show/hide the right-click context menu
`ribbonType(string\|Closure\|null)`	`null`	Ribbon display style

SpreadsheetColumn

Method	Default	Description
`previewRows(int\|Closure)`	`4`	Number of rows to display
`previewColumns(int\|Closure)`	`4`	Number of columns to display
`previewHeight(string\|Closure\|null)`	`null` (auto)	Max height of the preview

Development

Building JS Assets

The plugin bundles Univer Sheet via esbuild. To rebuild:

cd packages/filament-univer-sheet
npm install
node bin/build.js

Then publish the assets from the project root:

php artisan filament:assets

Watch Mode

node bin/build.js --watch

Testing

php artisan test --testsuite=UniverSheet

Changelog

Please see CHANGELOG for more information on what has changed recently.

Contributing

Please see CONTRIBUTING for details.

Credits

Univer — The spreadsheet engine
Filament — The admin panel framework

License

The MIT License (MIT). Please see License File for more information.

This package bundles Univer which is licensed under the Apache License 2.0. See NOTICE for details of bundled third-party dependencies.
