Laravel Flow Admin

Pixel-perfect, dark-first admin panel for padosoft/laravel-flow — runs, approvals, outbox & definitions in one Blade + Alpine cockpit.

🚀 Quick Start · 📸 Screenshots · ⚙️ Configuration · 🔒 Authorization · 🤝 Contributing

📚 Table of Contents

✨ Why this package
🎯 Features
📸 Screenshots
📦 Requirements
🚀 Quick Start (5 minutes)
📖 Step-by-Step Setup
- 1. Install the underlying engine
- 2. Install the admin panel
- 3. Publish assets and config
- 4. Configure middleware & routes
- 5. Wire your authorizer
- 6. Visit the panel
⚙️ Configuration
🔒 Authorization (mutations)
🎨 Customization
🧪 Demo Mode (no DB needed)
🗺️ Routes
🏛️ Architecture
🤖 AI Vibe Coding Pack
⚖️ Comparison
🛣️ Roadmap
✅ Quality Gates
🤝 Contributing
🔐 Security
📜 License
💜 Credits

✨ Why this package

padosoft/laravel-flow is intentionally headless — a deterministic, queue-driven workflow engine you can drop into any Laravel app.

laravel-flow-admin is the operator console for it. A production-style control plane for runs, approvals, outbox webhooks and configuration — without leaking the engine's internal namespaces into your app.

Think Horizon for queues, Pulse for metrics — and Flow Admin for the lifecycle of long-running, multi-step business workflows.

🎯 Features

📊 Overview dashboard — KPI tiles, sparklines, recent runs, queue health, error rate.

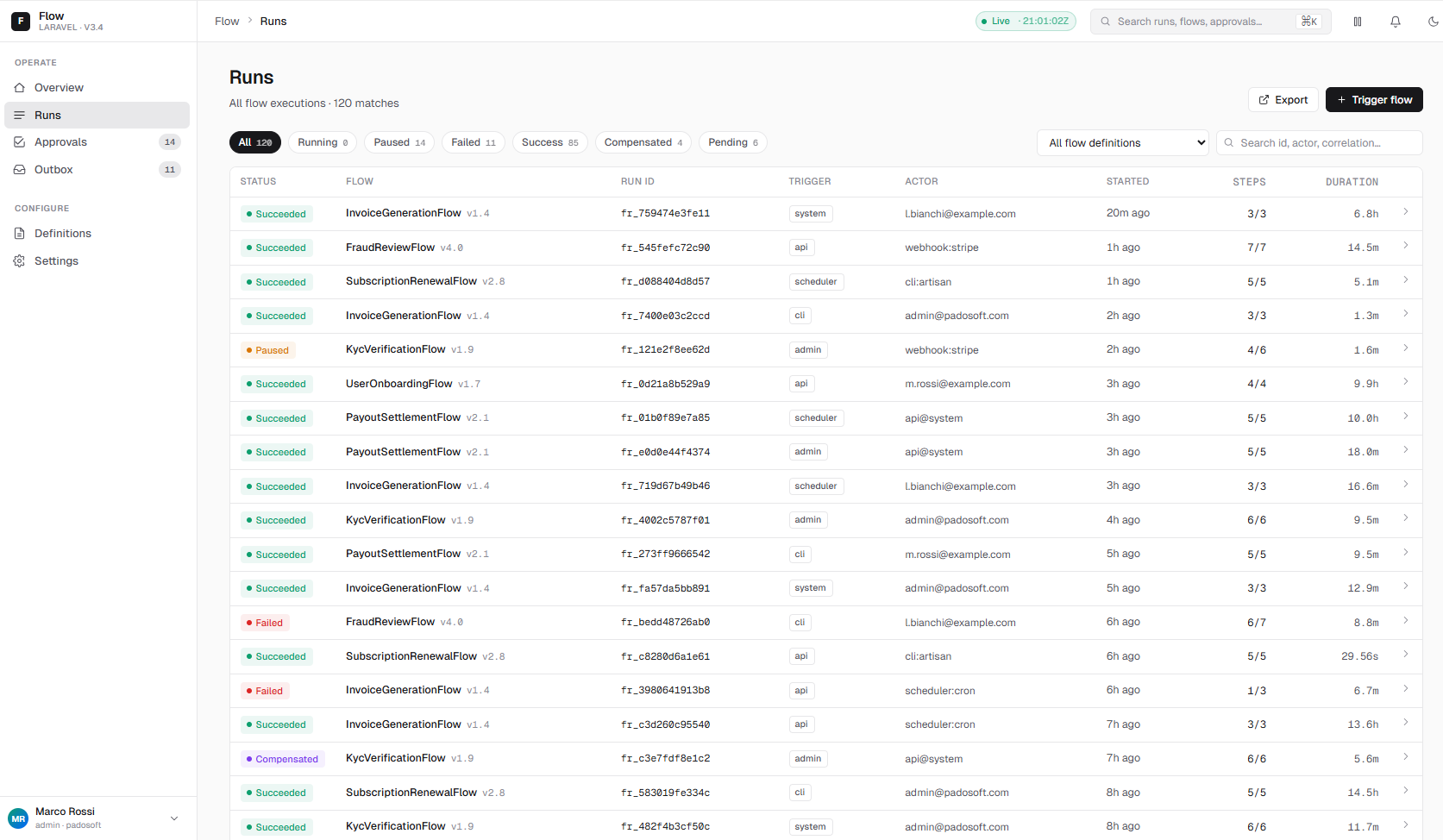

🏃 Runs index & detail — filterable list, full timeline (timeline / Gantt / DAG), payload diff, retry/cancel actions.

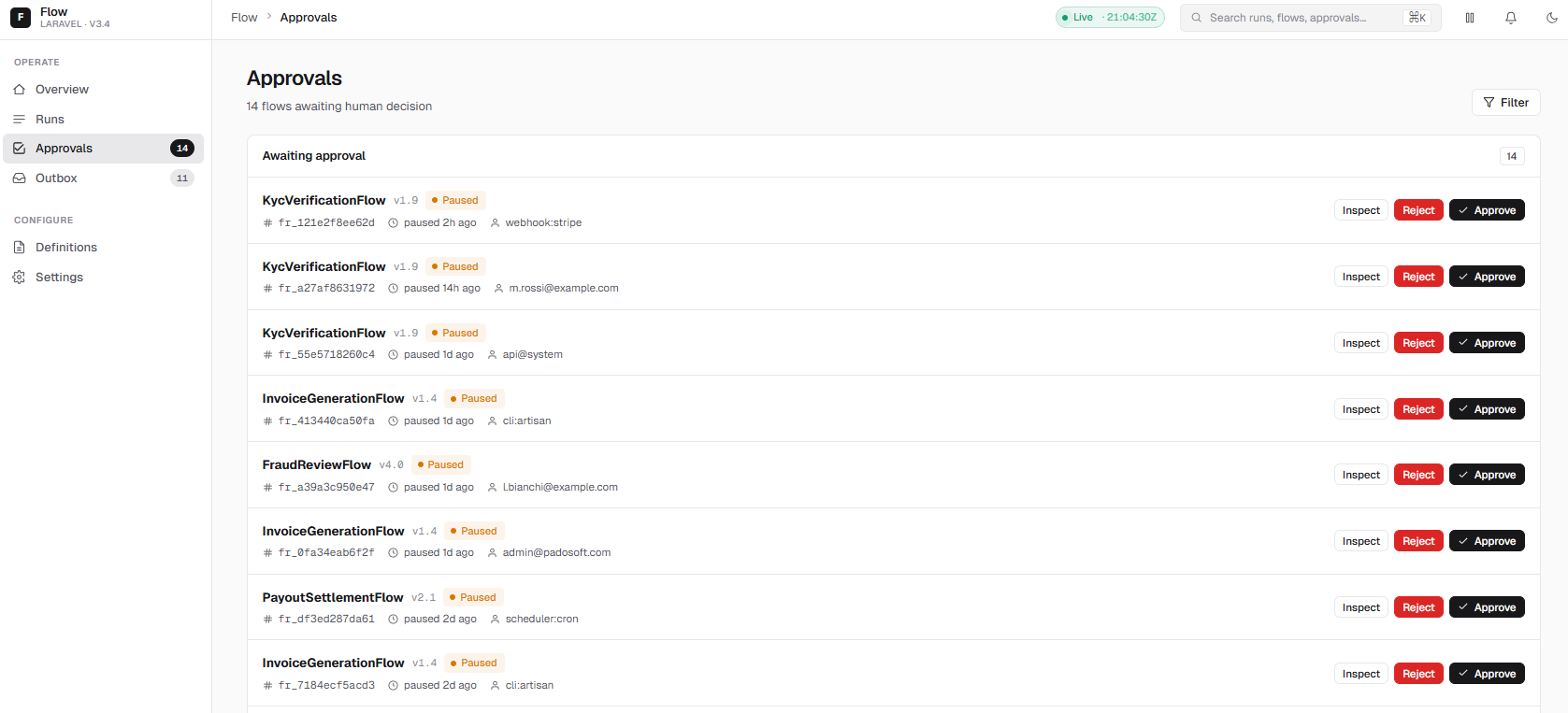

✅ Approvals inbox — pending decisions with one-click approve / reject through your own authorizer.
📤 Webhook outbox — delivery state, replay failed jobs, inspect headers/payloads.

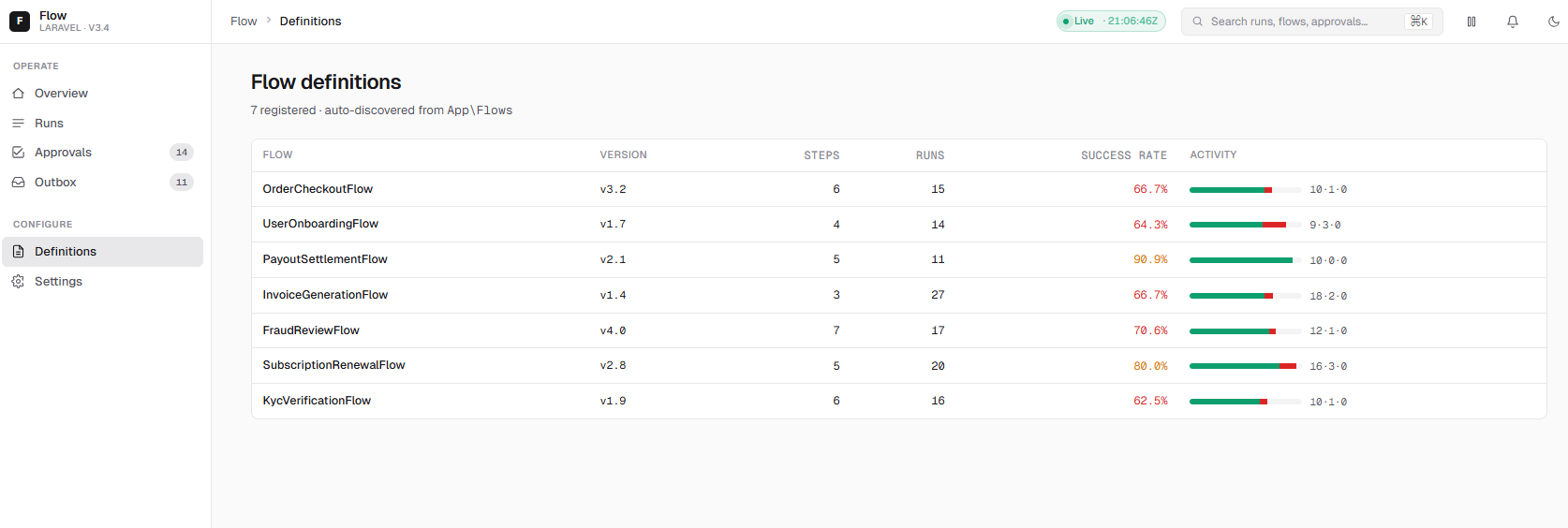

📋 Flow definitions — registered workflows, version, last activity at a glance.
⚡ ⌘K command palette — jump anywhere in two keystrokes.
🎨 Pixel-perfect dark + light themes — persisted in cookie, switchable per user.
🛡️ Deny-by-default authorizer — every mutation goes through your ActionAuthorizer. No accidents.
🔁 Auto-refreshing pages — configurable polling (/flow/api/live).
🧱 Adapter pattern — eloquent for prod, array for demos / E2E (deterministic seed-42 fixtures).
🧪 Battle-tested — 101 PHPUnit tests, 18 Playwright scenarios across Chromium / Firefox / WebKit.
📦 Zero-coupling — built on a public Contracts\* surface; engine internals stay @internal.

📸 Screenshots

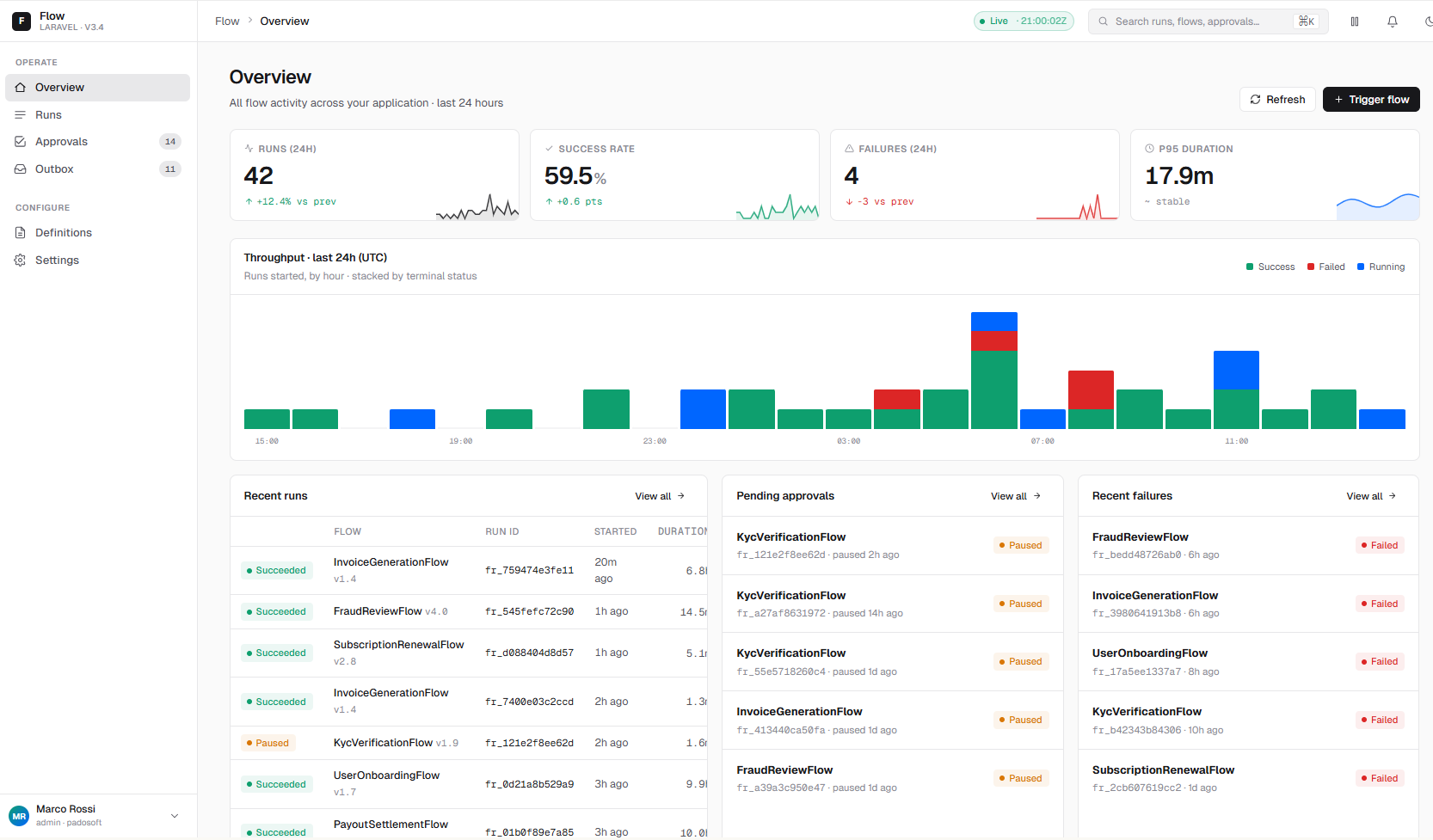

Overview & KPIs _{Live counters, run frequency, error rate, latest activity.}	Runs _{Filter by status, definition, time window. Sortable, paginated.}

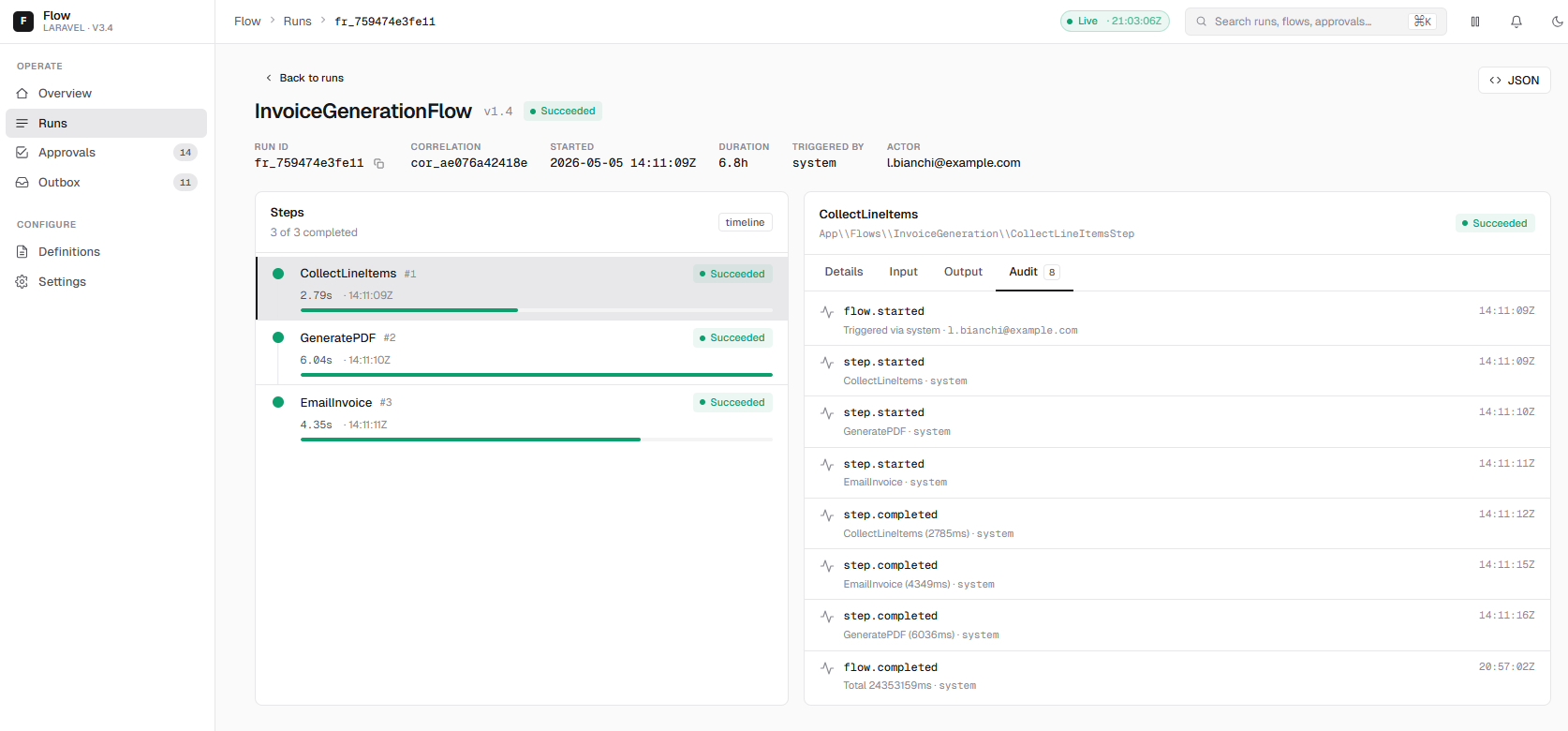

Run detail _{Per-step timeline, JSON payloads, retry / cancel mutations.}	Approvals _{Pending decisions; resume / reject via your authorizer.}

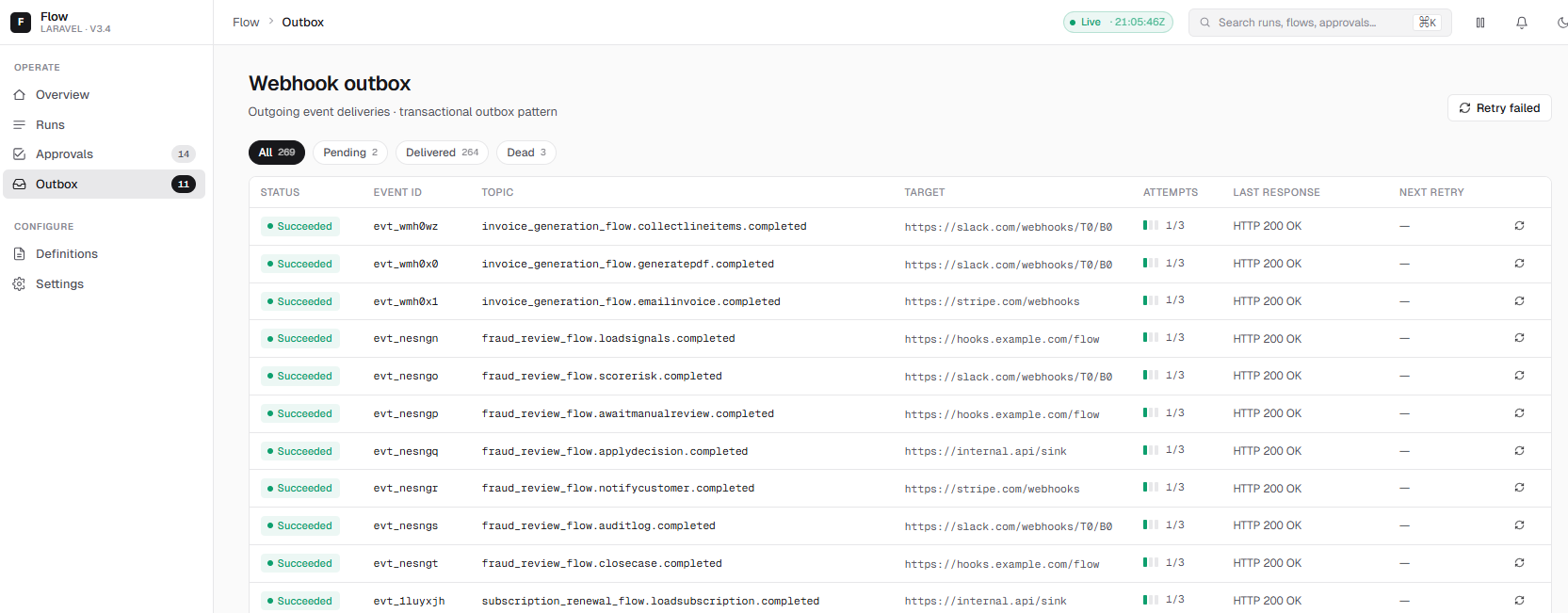

Webhook outbox _{Delivery state, attempts, last error. Replay with one click.}	Flow definitions _{Registered flows, versions, last seen.}

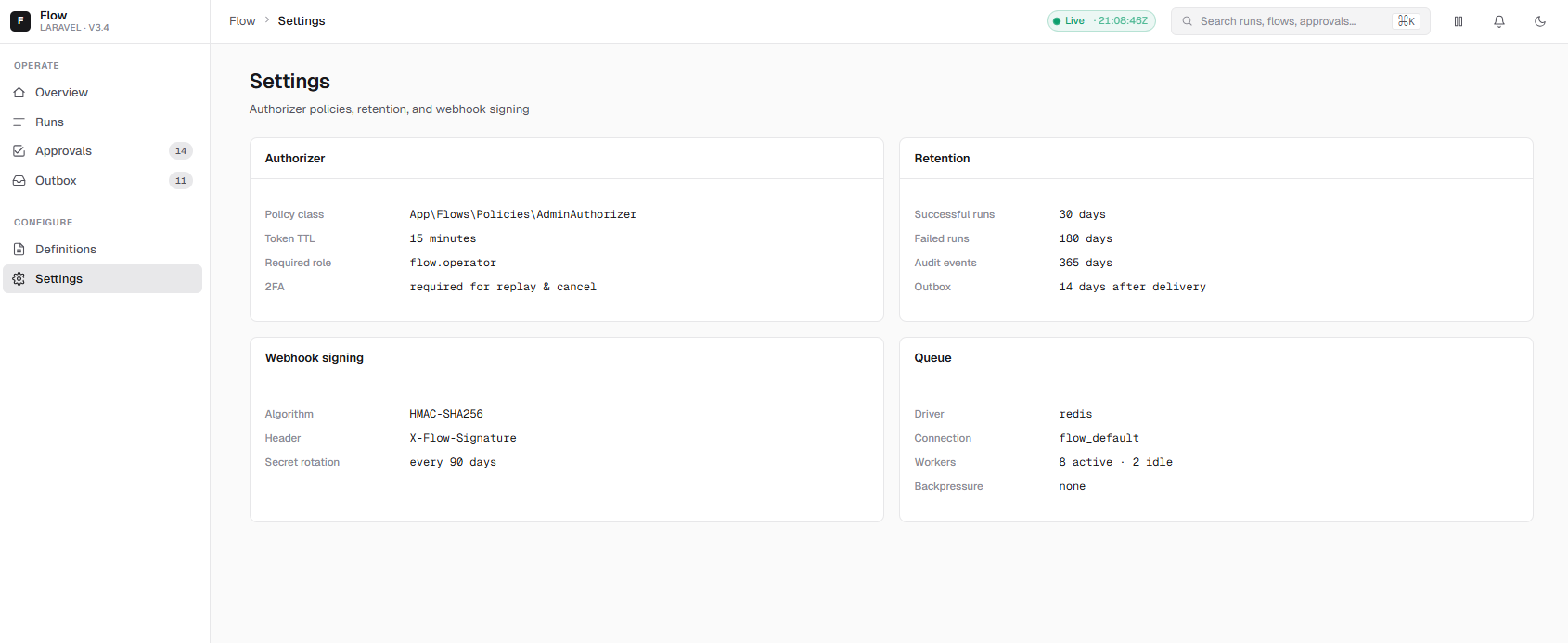

Configuration _{Effective settings: prefix, middleware, adapter, polling, theme, step viz default.}

📦 Requirements

Requirement	Version
PHP	`^8.3` (also tested on 8.4)
Laravel	`^13.0`
`padosoft/laravel-flow`	`^1.0`
Node.js (only if you want to rebuild assets)	`>=20`
Database	any Laravel-supported driver (or `array` adapter for demos)

💡 You do not need Node.js to use this package. Pre-built assets ship inside the package and are publishable via vendor:publish.

🚀 Quick Start (5 minutes)

# 1. Install both packages
composer require padosoft/laravel-flow-admin

# 2. Publish config + assets
php artisan vendor:publish --tag=flow-admin-config
php artisan vendor:publish --tag=flow-admin-assets

# 3. Run flow-engine migrations (from padosoft/laravel-flow)
php artisan migrate

# 4. Visit the admin panel
php artisan serve
# 👉  http://localhost:8000/flow

That's it. The panel is read-only by default (deny-all authorizer) so you can safely browse production data on day 1, then opt-in to mutations when you've wired your permission rules.

📖 Step-by-Step Setup

1. Install the underlying engine

laravel-flow-admin is a UI on top of padosoft/laravel-flow. If you don't already have it, install it first:

composer require padosoft/laravel-flow
php artisan vendor:publish --tag=flow-config
php artisan vendor:publish --tag=flow-migrations
php artisan migrate

This creates the flow_runs, flow_steps, flow_approvals, flow_webhook_outbox and related tables that this admin panel reads from.

📖 Full engine docs: github.com/padosoft/laravel-flow

2. Install the admin panel

composer require padosoft/laravel-flow-admin

The service provider is auto-discovered. Routes, views, config and migrations are loaded out-of-the-box from the package.

3. Publish assets and config

# Publish the config (config/flow-admin.php) — recommended
php artisan vendor:publish --tag=flow-admin-config

# Publish compiled CSS/JS to public/vendor/flow-admin (required for styling)
php artisan vendor:publish --tag=flow-admin-assets

# Optional: publish Blade views to resources/views/vendor/flow-admin (for customization)
php artisan vendor:publish --tag=flow-admin-views

⚠️ Don't skip flow-admin-assets in production. The panel relies on the published CSS/JS bundle.

4. Configure middleware & routes

By default the panel mounts at /flow and runs through web,auth middleware. Override with environment variables:

FLOW_ADMIN_PREFIX=ops/flow
FLOW_ADMIN_MIDDLEWARE="web,auth,verified,can:access-flow-admin"
FLOW_ADMIN_THEME=dark
FLOW_ADMIN_STEP_VIZ=timeline
FLOW_ADMIN_POLLING_MS=4000

🛡️ If you set FLOW_ADMIN_MIDDLEWARE="" we fall back to ['web'] instead of leaving the panel unauthenticated. Setting it empty was a known footgun, so we close it explicitly.

5. Wire your authorizer

The panel ships with DenyAllAuthorizer so every mutation (resume, reject, replay, cancel, retry-webhook) is blocked by default. To enable mutations, implement your own:

// app/Flow/AdminAuthorizer.php
namespace App\Flow;

use Padosoft\LaravelFlowAdmin\Contracts\ActionAuthorizer;

final class AdminAuthorizer implements ActionAuthorizer
{
    public function canResume(string $runId): bool
    {
        return auth()->user()?->can('flow.runs.resume') ?? false;
    }

    public function canCancel(string $runId): bool
    {
        return auth()->user()?->can('flow.runs.cancel') ?? false;
    }

    public function canApprove(string $approvalId): bool
    {
        return auth()->user()?->can('flow.approvals.act') ?? false;
    }

    public function canReject(string $approvalId): bool
    {
        return auth()->user()?->can('flow.approvals.act') ?? false;
    }

    public function canReplayWebhook(string $outboxId): bool
    {
        return auth()->user()?->can('flow.outbox.replay') ?? false;
    }
}

Bind it in AppServiceProvider::register():

use Padosoft\LaravelFlowAdmin\Contracts\ActionAuthorizer;
use App\Flow\AdminAuthorizer;

$this->app->bind(ActionAuthorizer::class, AdminAuthorizer::class);

…or set 'authorizer' => App\Flow\AdminAuthorizer::class in config/flow-admin.php.

6. Visit the panel

php artisan serve

Open http://localhost:8000/flow and you should see the dashboard. Press ⌘K (or Ctrl+K) anywhere to open the command palette.

⚙️ Configuration

All keys live in config/flow-admin.php. They are also overridable via environment variables.

Key	Env	Default	Description
`prefix`	`FLOW_ADMIN_PREFIX`	`flow`	URI prefix for all routes (`/flow`, `/flow/runs`, …).
`middleware`	`FLOW_ADMIN_MIDDLEWARE`	`web,auth`	Comma-separated middleware stack. Empty/whitespace falls back to `['web']`.
`adapter`	`FLOW_ADMIN_ADAPTER`	`eloquent`	`eloquent` (prod) or `array` (deterministic demo fixtures).
`authorizer`	—	`DenyAllAuthorizer`	FQCN of your `ActionAuthorizer` implementation.
`polling_interval_ms`	`FLOW_ADMIN_POLLING_MS`	`4000`	Auto-refresh interval for live pages.
`theme_default`	`FLOW_ADMIN_THEME`	`dark`	`dark` or `light`. Per-user override stored in `flow_admin_theme` cookie.
`step_viz_default`	`FLOW_ADMIN_STEP_VIZ`	`timeline`	Default visualization on run detail: `timeline`, `gantt`, or `dag`.

🔒 Authorization (mutations)

Every mutation route (resume, reject, replay, cancel, retry-webhook) consults your ActionAuthorizer before the controller runs. This is non-negotiable: there is no "global admin" bypass and no way to short-circuit the gate from a Blade view.

Public extension surface (semver-stable from v0.1.0 →):

Padosoft\LaravelFlowAdmin\Contracts\ActionAuthorizer
Padosoft\LaravelFlowAdmin\Contracts\ReadModelAdapter
Padosoft\LaravelFlowAdmin\Contracts\ViewModelFactory (and family)
config/flow-admin.php keys
Publish tags: flow-admin-config, flow-admin-views, flow-admin-assets
Route names: flow-admin.*

Everything under Adapters\, Http\Controllers\, Support\, ViewModels\ is internal and may change between minor versions until v1.0.

🎨 Customization

Override Blade views

php artisan vendor:publish --tag=flow-admin-views

Edit anything under resources/views/vendor/flow-admin/. Component slots and named layout sections are preserved across upgrades.

Override CSS tokens

The published bundle exposes CSS custom properties for colors, radii, spacing and font sizing. Wrap the panel in a custom theme by overriding tokens:

:root[data-flow-admin-theme="dark"] {
  --flow-admin-color-accent: #6366f1;
  --flow-admin-color-bg: #0b0d12;
}

Switch theme programmatically

POST /flow/theme
X-CSRF-TOKEN: …
theme=dark|light

🧪 Demo Mode (no DB needed)

For showcases, screenshots, or end-to-end tests you can bypass the database entirely:

FLOW_ADMIN_ADAPTER=array

The ArrayReadModelAdapter produces deterministic fixtures (seed=42) so KPI numbers, run IDs and timelines are reproducible across screenshots and Playwright runs.

🗺️ Routes

All routes live under the configured prefix (default /flow) and the flow-admin.* route-name namespace.

Method	URI	Name	Purpose
`GET`	`/`	`flow-admin.overview`	Dashboard
`GET`	`/runs`	`flow-admin.runs.index`	Runs list
`GET`	`/runs/{id}`	`flow-admin.runs.show`	Run detail + timeline
`GET`	`/approvals`	`flow-admin.approvals.index`	Approvals inbox
`GET`	`/outbox`	`flow-admin.outbox.index`	Webhook outbox
`GET`	`/definitions`	`flow-admin.definitions.index`	Registered flows
`GET`	`/settings`	`flow-admin.settings.index`	Effective configuration
`GET`	`/api/search`	`flow-admin.api.search`	⌘K palette backend
`GET`	`/api/live`	`flow-admin.api.live`	Live polling JSON
`POST`	`/theme`	`flow-admin.theme.toggle`	Persist theme cookie

🏛️ Architecture

HTTP request
   │
   ├─► routes/flow-admin.php  (prefix + middleware + name)
   │
   ├─► Http/Controllers/*Controller   ◄── thin: request → DTO → factory → view
   │       │
   │       ├─► Http/Requests/*Request   (validation, sorting, filtering DTOs)
   │       ├─► ViewModels/*Factory      (read-side view assembly)
   │       └─► Contracts/ActionAuthorizer (gate for any mutation)
   │
   ├─► Adapters/Eloquent | Array       (ReadModelAdapter implementations)
   │       └─► reads flow_* tables OR seed-42 fixtures
   │
   └─► resources/views/* + Alpine stores + Vite bundle

Design source-of-truth lives under .design-source/project/ (pixel reference) and is enforced through Playwright visual regression on chromium / firefox / webkit.

🤖 AI Vibe Coding Pack

This repository ships a contributor pack under .claude/:

Rules — Laravel 13 defaults, admin-panel UX, query optimization, naming conventions, exception handling, logging security.
Skills — orchestrators for create-admin-interface, playwright-enterprise-tester, copilot-pr-review-loop, pre-push-self-review, test-count-readme-sync.
Runbooks — macro/subtask branch workflow used during initial implementation.

If you build with Claude Code or another agent, copy .claude/ into your downstream project for a head start.

⚖️ Comparison

Tool	Workflow runs lifecycle	Approvals UI	Webhook outbox	Drop-in for Laravel Flow
Laravel Flow Admin	✅	✅	✅	✅
Laravel Horizon	⚠️ queue/job only	❌	❌	❌
Laravel Pulse	⚠️ app metrics	❌	❌	❌
Custom dashboard	depends	depends	depends	⏳ slow to bootstrap
Temporal UI	✅ (for Temporal)	✅	⚠️	❌

🛣️ Roadmap

v0.1 — core pages, eloquent + array adapters, theme cookie, ⌘K palette, Playwright matrix.
v0.1.1 — public release hardening, README polish, GitHub release artifacts.
v0.2 — bulk actions on runs, saved filter presets, CSV/JSON export.
v0.3 — Pulse-style sparkline cards, alerting hooks.
v1.0 — frozen public surface, SemVer guarantees, downstream-stable Adapters.

✅ Quality Gates

Every push runs through this gate (matrix php: 8.3, 8.4 × laravel: 13):

composer validate --strict --no-check-publish
composer format:test          # Laravel Pint
composer analyse              # PHPStan / Larastan level 8
composer test                 # PHPUnit — 101 tests, 584 assertions
npm run lint                  # ESLint flat config
npm run build                 # Vite build verification
npm run test:e2e              # Playwright on chromium + firefox + webkit

Latest local run: 101 tests / 584 assertions / 18 E2E scenarios passed.

🤝 Contributing

PRs welcome! Please:

Open an issue first for non-trivial changes.
Branch from main as task/<short-name> or subtask/<short-name>.
Run the full local gate (above) before pushing.
Add tests — unit, feature, or Playwright depending on the change.
Update docs/PROGRESS.md if your PR closes a roadmap item, and docs/LESSON.md if you discover a reusable insight.

See CONTRIBUTING.md for the full workflow and CODE_OF_CONDUCT.md.

🔐 Security

If you discover a security vulnerability, please do not open a public issue. Email hello@padosoft.com directly. See SECURITY.md for our disclosure policy.

📜 License

💜 Credits

Padosoft — package author and maintainer.
padosoft/laravel-flow — the headless workflow engine this panel operates.
Laravel, Alpine.js, Vite, Playwright — the giants whose shoulders this is built on.

Made with ❤️ by Padosoft — workflows are hard, the UI shouldn't be.
