opencoreemr/oce-module-sinch-fax

OpenEMR Sinch Fax integration module for secure fax sending and receiving, by OpenCoreEMR Inc

0.5.1 2025-12-04 18:57 UTC

Requires

• php: >=8.2
• ext-curl: *
• ext-filter: *
• ext-json: *
• guzzlehttp/guzzle: ^7.0
• openemr/oe-module-installer-plugin: ^0.1.5
• symfony/event-dispatcher: ^6.0 || ^7.0
• symfony/http-foundation: ^6.0 || ^7.0
• twig/twig: ^3.0

Requires (Dev)

• ergebnis/composer-normalize: ^2.44
• maglnet/composer-require-checker: ^4.0
• phpstan/phpstan: ^2.1
• rector/rector: ^2.0
• squizlabs/php_codesniffer: ^4.0

GPL-3.0-or-later

• Michael A. Smith

• module
• fax
• healthcare
• sinch
• hipaa
• openemr

README

A secure fax integration module for OpenEMR using the Sinch Fax API.

Features

• Send Faxes: Send faxes to one or multiple recipients
• Multiple File Formats: Support for PDF, TIFF, PNG, JPEG, DOC, and DOCX
• Security: Encrypted storage of API credentials, secure file handling
• Patient Integration: Link faxes to patient records
• Audit Trail: Complete tracking of all fax activity

Requirements

• OpenEMR 7.0.0 or later
• PHP 8.2 or later
• MySQL 5.7 or later / MariaDB 10.2 or later
• Sinch Fax account with API credentials

Installation

Via Composer (Recommended)

1. Navigate to your OpenEMR installation directory

2. Install the module via Composer:

   composer require opencoreemr/oce-module-sinch-fax

3. Log into OpenEMR as an administrator

4. Navigate to Administration > Modules > Manage Modules

5. Find "OpenCoreEMR Sinch Fax" in the list and click Register

6. Click Install

7. Click Enable

Manual Installation

1. Download the latest release
2. Extract to interface/modules/custom_modules/oce-module-sinch-fax (relative to your OpenEMR root directory)
3. Follow steps 3-7 from the Composer installation

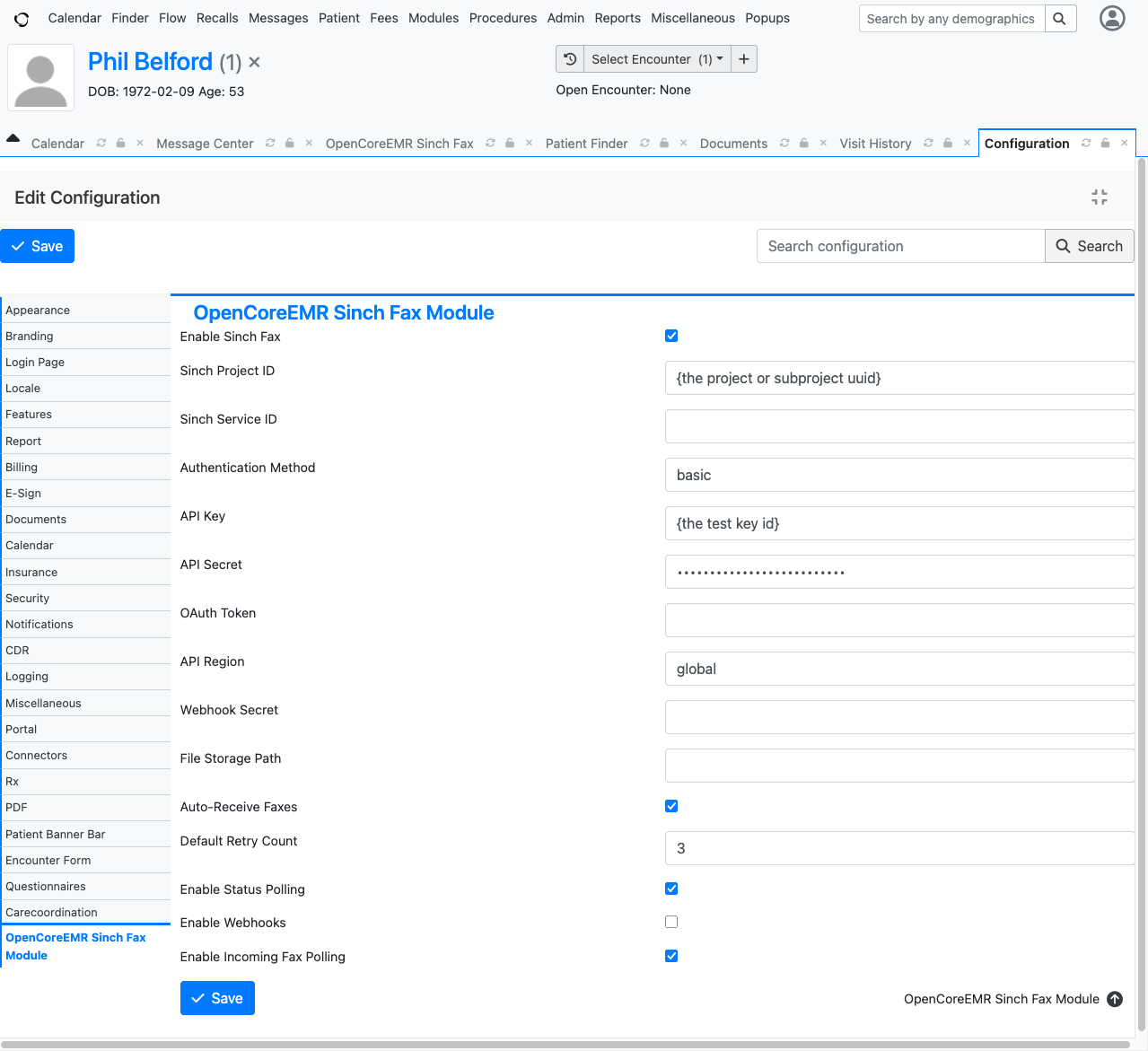

Configuration

1. Navigate to Administration > Globals > OpenCoreEMR Sinch Fax Module

2. Configure the following settings:

   • Sinch Project ID: Your Sinch project ID
   • Sinch Service ID: Your Sinch service ID (optional)
   • API Authentication: Choose Basic Auth or OAuth2
   • API Key/Secret: Your Sinch API credentials
   • API Region: Select your preferred region (or leave as 'global')

3. Save the settings

Usage

Accessing the Module

Once installed and configured, you can access the module from the Modules menu:

Sending a Fax

The module supports the following file formats: PDF, TIFF, PNG, JPEG, DOC, and DOCX.

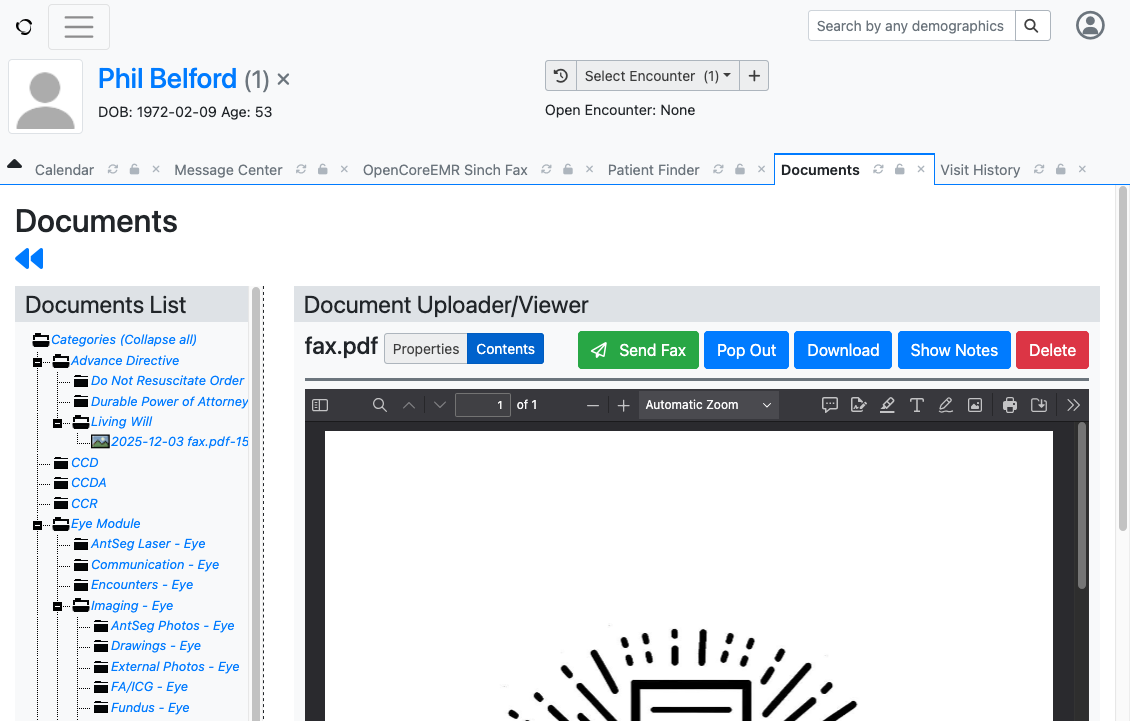

From Patient Documents (Recommended)

In real-world usage, you'll typically send faxes directly from a patient's document:

1. Navigate to a patient's Documents tab
2. Select the document you want to fax
3. Click the Send Fax button in the document viewer toolbar

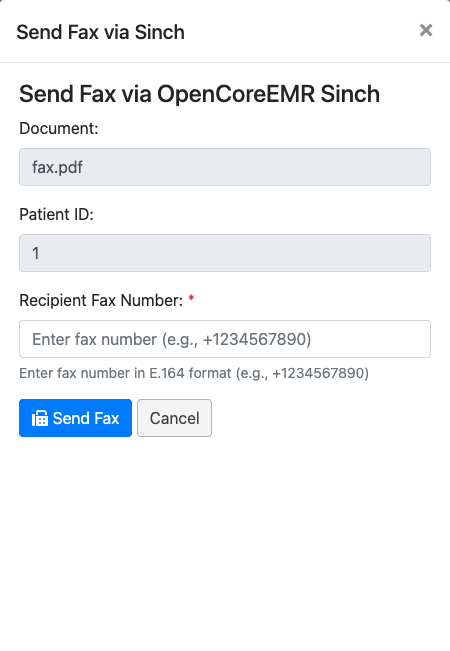

1. In the Send Fax dialog, the document and patient are already pre-filled
2. Enter the recipient fax number in E.164 format (e.g., [phone])
3. Click Send Fax

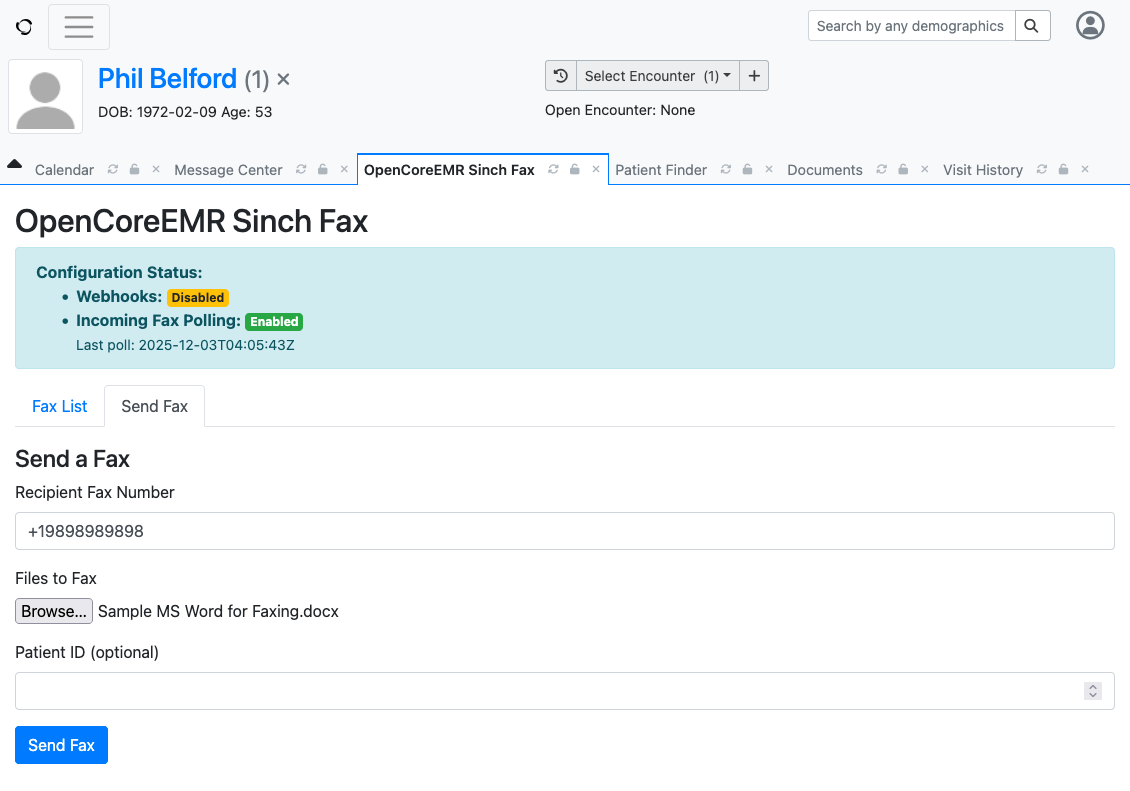

From the Module Interface

Alternatively, you can upload and send files directly:

1. Navigate to Modules > OpenCoreEMR Sinch Fax
2. Click the Send Fax tab
3. Enter the recipient fax number(s)
4. Select or upload the file(s) to fax
5. Optionally link to a patient record
6. Click Send Fax

Upon successful submission, you'll receive a fax ID that can be used to track the fax in progress.

Note: The screenshots show demo data. Patient information displayed is for demonstration purposes only, and [phone] is Sinch's demo fax number for testing.

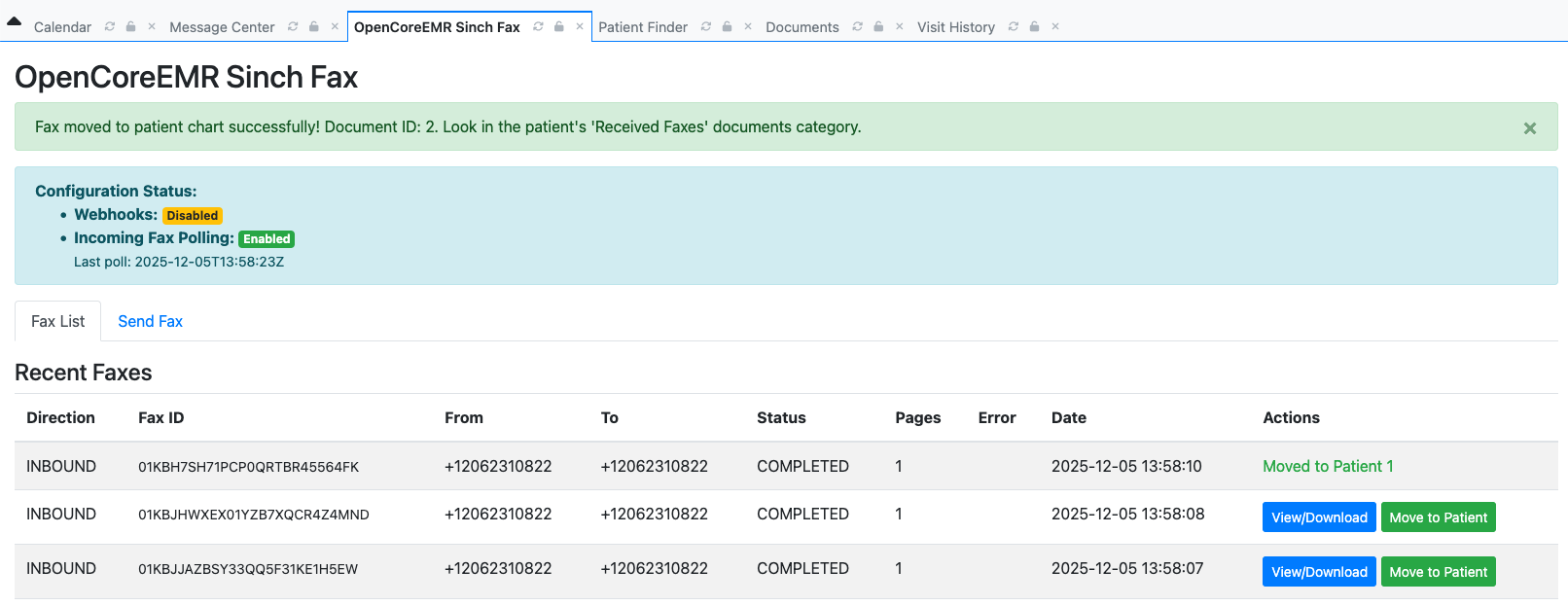

Receiving Faxes

Incoming faxes are automatically received via webhook and stored in the module:

1. Navigate to Modules > OpenCoreEMR Sinch Fax
2. Click the Fax List tab to view all received faxes
3. Locate the received fax you want to assign to a patient
4. Click the Move to Patient button
5. Select the patient to associate the fax with

Once moved to a patient, the fax will:

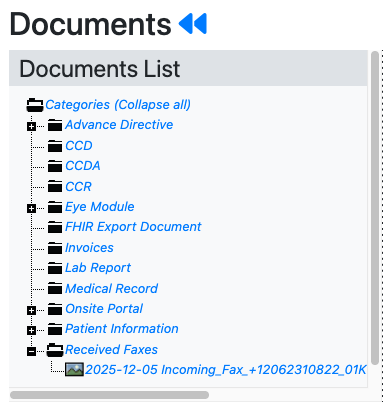

• Appear in the patient's Documents tab under the Received Faxes category
• Remain visible in the Fax List but marked as "Moved to Patient X" in the Actions column
• Be managed like any other patient document in the patient's chart

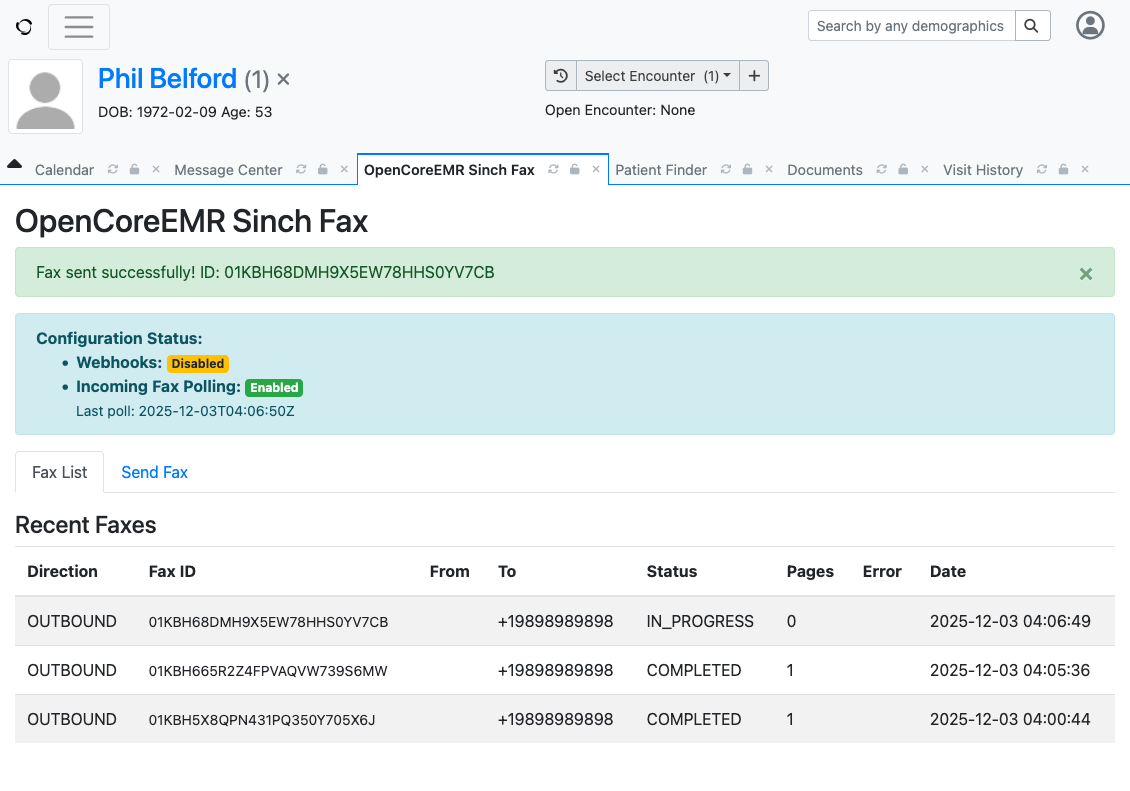

Viewing Faxes

1. Navigate to Modules > OpenCoreEMR Sinch Fax
2. Click the Fax List tab to view all sent and received faxes
3. The list shows direction, fax ID, recipient/sender, status, and timestamp
4. Use filters to search by date, direction, status, or patient

Security

• API credentials are encrypted in the database
• Fax files are stored with restricted permissions
• All file uploads are validated
• Audit logging for all fax operations

Support

• Email: [e-mail]
• Issues: https://github.com/opencoreemr/oce-module-sinch-fax/issues

License

GNU General Public License v3.0 or later

Credits

Developed by OpenCoreEMR Inc
