magepsycho/magento2-opentelemetry

OpenTelemetry integration package for Magento 2 applications with complete observability stack

v1.0.0 2026-08-12 16:58 UTC

Requires

• php: ^8.1
• magento/framework: *
• open-telemetry/api: ^1.2
• open-telemetry/exporter-otlp: ^1.2
• open-telemetry/sdk: ^1.2
• open-telemetry/sem-conv: ^1.30

MIT

• Raj KB

• magento
• apm
• magento2
• tracing
• observability
• opentelemetry
• otel

Published on Packagist.org on 2026-08-12 17:05 UTC

README

Magento 2 OpenTelemetry Instrumentation

OpenTelemetry integration package for Magento 2 applications with complete observability stack

📖 Overview

A Composer library that adds OpenTelemetry tracing to Magento 2. It hooks into Magento core classes at runtime to automatically create spans for:

• HTTP requests — REST API, GraphQL, Backend admin, HTTP client
• Database — SQL query tracing
• Cache — Page cache, Redis, Varnish
• CLI — Commands, cron jobs, indexer operations
• Entity — EAV and flat entity load/save
• Business logic — Pricing, shipping, inventory, sales rules, repositories

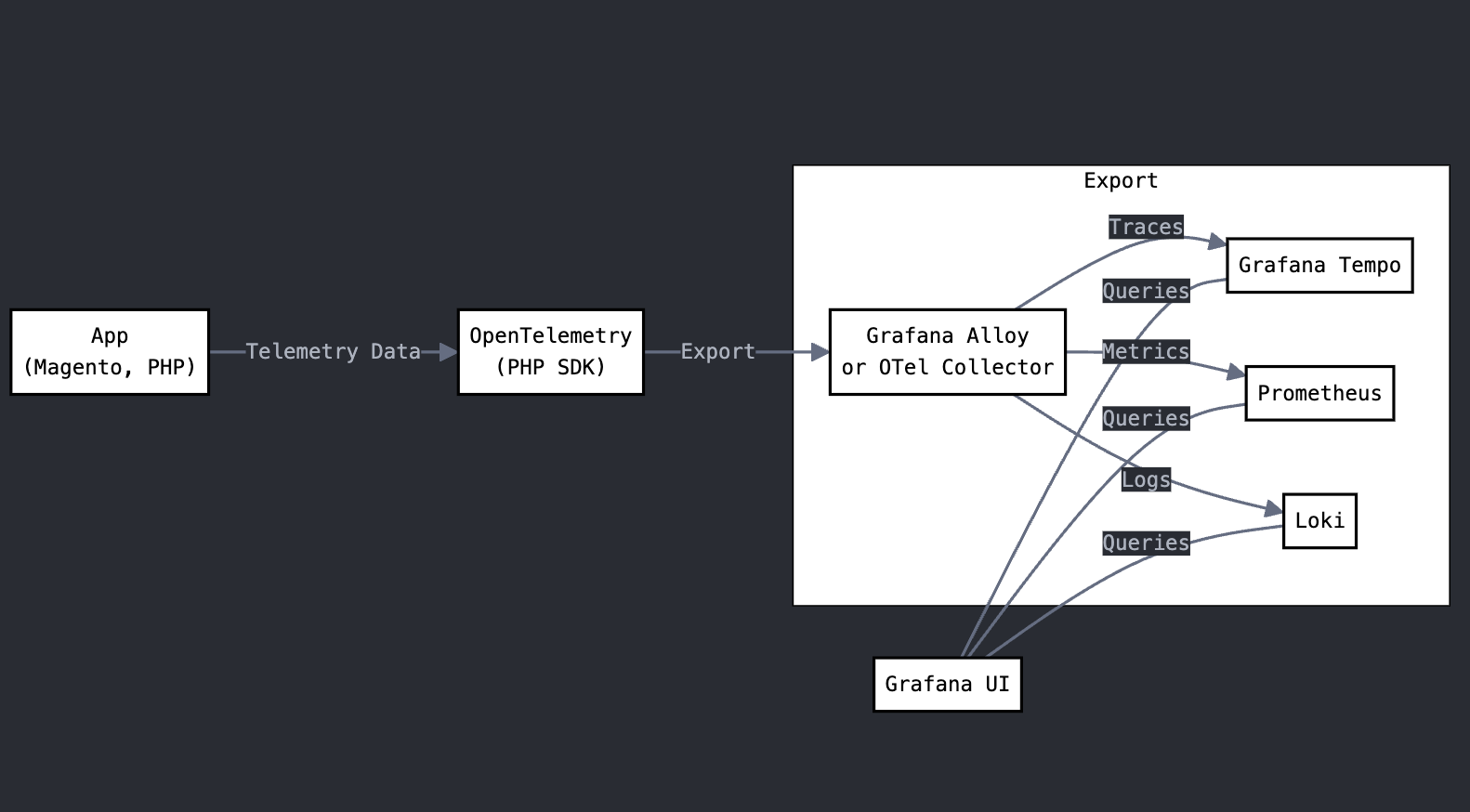

🔄 OpenTelemetry Flow

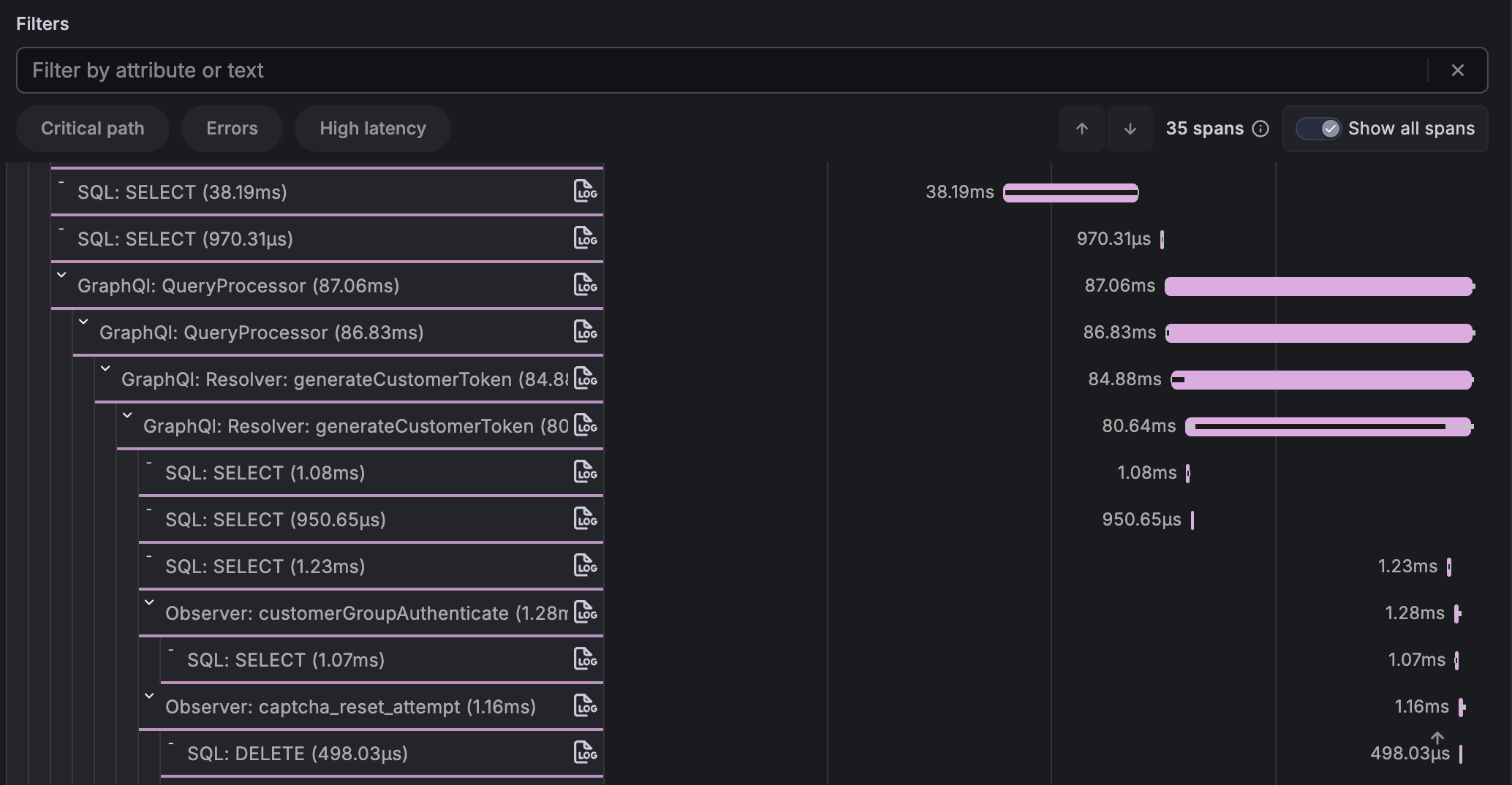

📊 Grafana Traces

⚙️ How OpenTelemetry PHP SDK Works Under the Hood

1. PHP registers shutdown handler:
   OpenTelemetry\SDK\Common\Util\ShutdownHandler::register()

2. During shutdown:
   │
   └─> OpenTelemetry\SDK\Common\Util\ShutdownHandler::handleShutdown()
       │
       └─> Executes registered callbacks including:
           │
           └─> OpenTelemetry\SDK\Trace\TracerProvider->shutdown()
               │
               └─> Delegates to:
                   │
                   └─> OpenTelemetry\SDK\Trace\TracerSharedState->shutdown()
                       │
                       └─> Processes all span processors:
                           │
                           └─> OpenTelemetry\SDK\Trace\SpanProcessor\BatchSpanProcessor->shutdown()
                               │
                               └─> Final flush:
                                   │
                                   └─> OpenTelemetry\SDK\Trace\SpanProcessor\BatchSpanProcessor->flush()
                                       │
                                       └─> Delegates export to:
                                           │
                                           └─> OpenTelemetry\Contrib\Otlp\SpanExporter->export()
                                               │
                                               ├─> Serializes spans
                                               └─> Makes network call to collector

📋 Prerequisites

• PHP 8.0+
• PECL
• Composer
• OpenTelemetry PHP extension + PHP SDK
• Magento Application
  • Docker
  • Host

🔧 OpenTelemetry Setup

1. Install OpenTelemetry PHP Extension

pecl install opentelemetry

2. Configure the .ini Settings

Add the following to your PHP .ini file (e.g. php.ini or a custom opentelemetry.ini):

OTEL_PHP_AUTOLOAD_ENABLED="true"
OTEL_SERVICE_NAME=magento2
OTEL_TRACES_EXPORTER=otlp
OTEL_EXPORTER_OTLP_PROTOCOL=http/protobuf
OTEL_EXPORTER_OTLP_ENDPOINT=http://[COLLECTOR-IP]:4318
OTEL_PROPAGATORS=baggage,tracecontext
;OTEL_PHP_DISABLED_INSTRUMENTATIONS=magento2
;OTEL_PHP_EXCLUDED_URLS="health_check.php,get.php"

3. Verify the Extension

php -m | grep opentelemetry
php --ri opentelemetry

4. Install the PHP SDK

composer require open-telemetry/sdk open-telemetry/api open-telemetry/sem-conv open-telemetry/exporter-otlp

Note: These packages are automatically installed as dependencies when you install magepsycho/magento2-opentelemetry. You only need to install them manually if you're setting up OpenTelemetry without this package.

📦 Package Installation

composer require magepsycho/magento2-opentelemetry

No Magento module setup is needed — the package bootstraps automatically via Composer's autoload mechanism.

Migrating from mumzworld/magento2-opentelemetry

Remove the old package first — both register the same runtime hooks, so running them together emits duplicate spans:

composer remove mumzworld/magento2-opentelemetry
composer require magepsycho/magento2-opentelemetry

The PHP namespace changed from Mumzworld\OpenTelemetry\ to MagePsycho\OpenTelemetry\. If you referenced any class directly, update those imports.

🔗 Distributed Tracing

Magento participates in traces that start elsewhere, and passes its own context onward.

Inbound — the trace context is extracted in Bootstrap::run(), which is where the root span opens. Extracting any later would leave an unparented local root above a remote-parented child and split the trace in two. The carrier is $_SERVER, since no request object exists that early.

Outbound — every HTTP client listed below injects the current span's context into the request headers, so the receiving service continues the same trace rather than starting a new one.

Which headers travel is decided by OTEL_PROPAGATORS (see the .ini settings above) — tracecontext emits traceparent/tracestate. Requests without trace headers are unaffected, and CLI runs simply start their own trace.

Spans record host and path only, never the full URL with its query string, and the route is masked — /V1/orders/40021 is reported as /V1/orders/{id} so one span name covers every order instead of one per order.

🔍 What Is Auto-Instrumented

Once installed, this package automatically instruments the following Magento areas — no code changes required.

Core

Instrumentation	Hooked Class	Method
Magento Bootstrap	Magento\Framework\App\Bootstrap	run(), terminate()
Exception Handling	Magento\Framework\App\Http	catchException()
Profiler	Magento\Framework\Profiler	start(), stop()
Event Observers	Magento\Framework\Event\InvokerInterface	dispatch()

HTTP

Instrumentation	Hooked Class	Method
REST API	Magento\Webapi\Controller\Rest\Interceptor	dispatch()
REST Exceptions	Magento\Framework\Webapi\Exception	__construct()
GraphQL Dispatch	Magento\GraphQl\Controller\GraphQl\Interceptor	dispatch()
GraphQL Query	Magento\Framework\GraphQl\Query\QueryProcessor	process()
GraphQL Resolver	Magento\Framework\GraphQl\Query\ResolverInterface	resolve()
Backend Admin	Magento\Backend\App\AbstractAction	dispatch()
HTTP Client (Guzzle)	GuzzleHttp\Client	send()
HTTP Client (Magento)	Magento\Framework\HTTP\ClientInterface	get(), post()
HTTP Client (Laminas)	Magento\Framework\HTTP\LaminasClient	send()
HTTP Client (async)	Magento\Framework\HTTP\AsyncClientInterface	request()
HTTP Transport	Magento\Framework\HTTP\Adapter\Curl	write(), read()

Outbound spans record the host and path only — query strings routinely carry API keys and tokens. The Laminas client is the one that matters for checkout: PayPal Payflow, USPS, DHL and the currency imports all go through it, and it shares no interface with the other clients.

Database

Instrumentation	Hooked Class	Method
SQL Queries	Magento\Framework\DB\Adapter\Pdo\Mysql	query()

Cache

Instrumentation	Hooked Class	Method
FormKey Flush	Magento\PageCache\Observer\FlushFormKey\Interceptor	execute()
Full Cache Flush	Magento\CacheInvalidate\Observer\FlushAllCacheObserver	execute()
Cache Invalidation	Magento\PageCache\Observer\InvalidateCache	execute()
Redis	Magento\Framework\Cache\Backend\Redis	test(), save(), remove(), clean()
Varnish Purge	Magento\CacheInvalidate\Model\PurgeCache	sendPurgeRequest()

CLI

Instrumentation	Hooked Class	Method
CLI Runner	Magento\Framework\Console\Cli	doRun()
Console Commands	Symfony\Component\Console\Command\Command	run()
Cron Jobs	Magento\Cron\Observer\ProcessCronQueueObserver	tryRunJob()
Reindex	Magento\Indexer\Model\Processor	reindexAllInvalid()
Mview Actions	Magento\Framework\Mview\View	executeAction()
Mview Execute	Magento\Framework\Mview\ActionInterface	execute()
Mview Changelog	Magento\Framework\Mview\View\ChangelogInterface	clear()

Entity (EAV)

Instrumentation	Hooked Class	Method
Product	Magento\Catalog\Model\ResourceModel\Product\Interceptor	load(), save(), delete()
Category	Magento\Catalog\Model\ResourceModel\Category\Interceptor	load(), save(), delete()
Customer	Magento\Customer\Model\ResourceModel\Customer\Interceptor	load(), save(), delete()
Customer Address	Magento\Customer\Model\ResourceModel\Address\Interceptor	load(), save(), delete()

Entity (Flat)

Instrumentation	Hooked Class	Method
Quote	Magento\Quote\Model\ResourceModel\Quote	load(), save(), delete()
Quote Item	Magento\Quote\Model\ResourceModel\Quote\Item	load(), save(), delete()
Order	Magento\Sales\Model\ResourceModel\Order	load(), save(), delete()
Order Item	Magento\Sales\Model\ResourceModel\Order\Item	load(), save(), delete()
Invoice	Magento\Sales\Model\ResourceModel\Order\Invoice	load(), save(), delete()
Credit Memo	Magento\Sales\Model\ResourceModel\Order\Creditmemo	load(), save(), delete()

Business Logic (Misc)

Opt-in. This group is disabled by default — it produces the highest-volume spans (per-rule sales-rule evaluation, repository calls, pricing/tax calculation, address totals, etc.) and is best enabled selectively. Activate it by setting OTEL_MAGENTO_MISC_INSTRUMENTATION=true in your environment (.env, docker-compose.yml, nginx fastcgi_param, php-fpm pool, or export for CLI).

Instrumentation	Hooked Class	Method
Abstract DB	Magento\Framework\Model\ResourceModel\Db\AbstractDb	load(), save(), delete()
Product Repository	Magento\Catalog\Model\ProductRepository	get(), getById()
Category Repository	Magento\Catalog\Model\CategoryRepository	get()
Customer Repository	Magento\Customer\Model\ResourceModel\CustomerRepository	get(), getById()
Shipping Rates	Magento\Shipping\Model\Shipping	collectRates()
Final Price	Magento\Catalog\Model\Product\Type\Price	getFinalPrice(), _applyTierPrice()
Tax Calculation	Magento\Tax\Model\Calculation	getRate()
Sales Rules	Magento\SalesRule\Model\Validator	process()
Inventory	Magento\CatalogInventory\Observer\QuantityValidatorObserver	execute()
Totals Collector	Magento\Quote\Model\Quote\TotalsCollector\Interceptor	collectAddressTotals()
Address Totals	Magento\Quote\Model\Quote\Address\Total\AbstractTotal	collect()
Totals Collector	Magento\Quote\Model\Quote\Address\Total\Collector	collect()
Discount Calc	Magento\SalesRule\Model\Rule\Action\Discount\AbstractDiscount	calculate()

🚀 Optimization Tips

Install ext-protobuf PHP Extension

Preferred over the pure-PHP library google/protobuf for production:

pecl install protobuf

Option	Package	Performance
C extension (recommended)	ext-protobuf via pecl install protobuf	Native speed, minimal overhead
Pure-PHP library	google/protobuf via Composer	Slower serialization, higher CPU usage

NOTE: To reduce the latency imposed by the OTel exporter:

1. Use a local OTel collector (instead of remote)
2. Use the ext-protobuf C extension instead of the Composer package

Limiting the Number of Spans

See OpenTelemetry SDK Environment Variables — Attribute Limits for details on:

• Limiting the number of span attributes
• Limiting the length of span attribute values
• Limiting the number of events

Export Settings

Setting	Purpose	Default	Suggested	Effect of Tuning
OTEL_BSP_MAX_QUEUE_SIZE	Max number of spans buffered in memory	2048	10000+	Prevents spans being dropped under high load
OTEL_BSP_MAX_EXPORT_BATCH_SIZE	Max spans exported per batch	512	1000–5000	Reduces export cycles, improves throughput
OTEL_BSP_SCHEDULE_DELAY	How often (ms) the processor checks the queue for exporting	5000 ms	100–200 ms	Faster flushing during long-running requests
OTEL_BSP_EXPORT_TIMEOUT	Max time (ms) allowed for a single export batch	30000 ms	1000–2000 ms	Prevents request shutdown from blocking if exporter is slow/hangs

⚡ Performance Considerations

• Sampling: Use appropriate sampling rates for production (0.1 = 10%)
• Batching: Configure batch processors in collector
• Resource Limits: Set memory and CPU limits
• Network: Use gRPC for better performance
• Storage: Configure appropriate retention policies

🤝 Contributing

1. Fork the repository
2. Create a feature branch
3. Make your changes
4. Add tests
5. Submit a pull request

📄 License

This package is licensed under the MIT License.

💬 Support

For support and questions:

• Create an issue in the repository
• Check the troubleshooting section
• Review the Magento 2 OpenTelemetry documentation

Built with ❤️ by MagePsycho

📄 License & Attribution

Released under the MIT License.

This package is derived from mumzworld-tech/magento2-opentelemetry, Copyright (c) 2025 mumzworld, licensed under MIT. The original copyright notice is retained in LICENSE and in the source file headers, as the MIT License requires.
