macocci7/php-histogram

it's easy to use for creating histograms.

1.3.0 2024-07-05 09:20 UTC

Requires

• php: >=8.1
• fakerphp/faker: ^1.23
• intervention/image: ^3.7
• macocci7/php-frequency-table: ^1.3
• macocci7/php-plotter2d: ^0.1
• nette/neon: ^3.4

Requires (Dev)

• php-parallel-lint/php-parallel-lint: ^1.4
• phpmd/phpmd: ^2.15
• phpstan/phpstan: ^1.11
• phpunit/phpunit: ^10.5
• squizlabs/php_codesniffer: ^3.7

MIT

• macocci7

README

1. Features

PHP-Histogram is a PHP Library which is easy to use for creating histograms.

You can create a simple Histogram just by setting class range and data and filepath to save.

Frequency Polygon, Cumulative Frequency Polygon, Cumulative Relative Frequency Polygon and plotting Frequency are supported.

Changing other properties, such as Caption, X Label, Y Label, Various Colors, Canvas Size, Frame Ratio and Various Width are supported.

Transparent background is also supported.

2. Contents

• 1. Freatures
• 2. Contents
• 3. Requirements
• 4. Installation
• 5. Usage
  • 5.1. Basic Usage
  • 5.2. Changing Properties By Methods
  • 5.3. Changing Properties By Neon File
  • 5.4. Changing Properties By Array
  • 5.5. Transparent Background
• 6. Examples
• 7. License

3. Requirements

• PHP 8.1 or later
• Imagick PHP Extention
• Composer

4. Installation

composer require macocci7/php-histogram

5. Usage

5.1. Basic Usage

• PHP: examples/BasicUsage.php

  <?php

  require_once __DIR__ . '/../vendor/autoload.php';

  use Macocci7\PhpHistogram\Histogram;

  $hg = new Histogram();
  $hg->setClassRange(5)
  ->setData([ 0, 5, 8, 10, 12, 13, 15, 16, 17, 18, 19, 20, 24, ])
  ->create('img/HistogramBasicUsage.png');

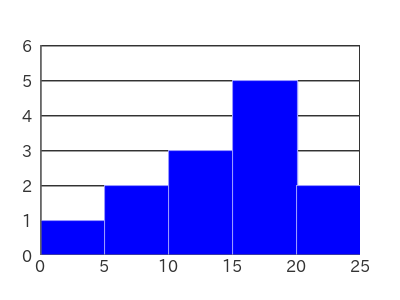

• Result:



• Details:

  • Import autoloader: require_once __DIR__ . '/../vendor/autoload.php'
  • Declare: use Macocci7\PhpHistogram\Histogram
  • Instantiate: new Histogram() or new Histogram($width, $height)
    • $width: canvas width, type of int, must be 50 <= $width, 400px as default.
    • $height: canvas height, type of int, must be 50 <= $height, 300px as default.
  • Set Class Range: setClassRange($classRange)
    • $classRange: type of positive int|float.
  • Set Data: setData($data)
    • $data: type of array<int|string, int|float>
  • Create: create($path2Save)
    • $path2Save: type of string.

5.2. Changing Properties By Methods

You can change properties of Histogram like as follows.

• PHP: examples/ChangePropsByMethods.php

  <?php

  require_once __DIR__ . '/../vendor/autoload.php';

  use Macocci7\PhpHistogram\Histogram;

  // Initialization
  $hg = new Histogram();
  $hg->setClassRange(5)
      ->setData([1, 5, 6, 10, 12, 14, 15, 16, 17, 18, 20, 24, 25])

      // Changing Props By Methods

      // Canvas Size: ($width, $height) / Deafult: (400, 300)
      // 50 <= $width / 50 <= $height
      ->resize(600, 400)

      ->plotarea( // this takes precedence over 'frame()'
          offset: [120, 80],   // [x, y] in pix, default=[]
          width: 360, // width in pix, default=0
          height: 240, // height in pix, default=0
          backgroundColor: null, // null as transparent, default=null
      )

      // Ratio of the size of the plot area to the Canvas Size
      // frame($width, $height) / Default: (0.8, 0.7)
      // 0 < $width <= 1.0 / 0 < $height <= 1.0
      ->frame(0.6, 0.6)

      // Canvas Background Color
      // only #rgb and #rrggbb formats are supported.
      ->bgcolor('#3333cc')

      // Axis: width in pix and color
      ->axis(3, '#ffffff')

      // Grid: width in pix and color
      ->grid(1, '#cccccc')

      // Color of bars
      ->color('#99aaff')

      // Border of bars: width in pix and color
      ->border(4, '#0000ff')

      // Frequency Polygon: width in pix and color
      ->fp(4, '#00ff00')

      // Cumulative Relative Frequency Polygon
      ->crfp(3, '#ffff00')

      // Font Path
      // Note: Set the real path to the true type font (*.ttf)
      //       on your system.
      ->fontPath('/usr/share/fonts/opentype/ipafont-gothic/ipagp.ttf')

      // Font Size in pix
      ->fontSize(20)

      // Font Color
      ->fontColor('#ffff99')

      // Visibility of Histogram bars. barOff() is also available
      ->barOn()

      // Visibility of frequency polygon. fpOff() is also available
      ->fpOn()

      // Visibility of cumulative frequency polygon. crfpOff() is also available
      ->crfpOn()

      // Visibility of frequency. frequencyOff() is also available
      ->frequencyOn()

      // X Label
      ->labelX('Class (Items)')

      // Y Label
      ->labelY('Frequency (People)')

      // Caption
      ->caption('Items Purchased / month（Feb 2024）')

      // Save
      ->create('img/ChangePropsByMethods.png');

• Result: examples/img/ChangePropsByMethods.png



5.3. Changing Properties By Neon File

You can change properties of Histogram like as follows.

First, create a Neon file.

• Neon File: examples/ChangePropsByNeon.neon

  canvasWidth: 600
  canvasHeight: 400
  canvasBackgroundColor: '#223399'
  plotarea:
      backgroundColor:    # `null` as transparent
  frameXRatio: 0.7
  frameYRatio: 0.6
  axisColor: '#999'
  axisWidth: 3
  gridColor: '#eee'
  gridWidth: 1
  gridHeightPitch: 1
  barBackgroundColor: '#ffcc33'
  barBorderColor: '#ff6600'
  barBorderWidth: 2
  frequencyPolygonColor: '#33cc00'
  frequencyPolygonWidth: 3
  cumulativeRelativeFrequencyPolygonColor: '#ff00ff'
  cumulativeRelativeFrequencyPolygonWidth: 7
  fontPath: 'fonts/ipaexm.ttf'
  fontSize: 24
  fontColor: '#eeeeee'
  showBar: true
  showFrequencyPolygon: true
  showCumulativeRelativeFrequencyPolygon: true
  showFrequency: true
  labelX: 'Class (Items)'
  labelXOffsetX: 0
  labelXOffsetY: 0
  labelY: 'Frequency (People)'
  labelYOffsetX: 0
  labelYOffsetY: 0
  caption: 'Items Purchased / month（Feb 2024）'
  captionOffsetX: 0
  captionOffsetY: 0

Second, Code PHP as follows.

• PHP: examples/ChangePropsByNeon.php

  <?php

  require_once __DIR__ . '/../vendor/autoload.php';

  use Macocci7\PhpHistogram\Histogram;

  $hg = new Histogram();
  $hg->setClassRange(5)
     ->setData([1, 5, 6, 10, 12, 14, 15, 16, 17, 18, 20, 24, 25])
     ->config('ChangePropsByNeon.neon')
     ->create('img/ChangePropsByNeon.png');

Then, run the PHP code and view the result.

• Result: examples/img/ChangePropsByNeon.png



5.4. Changing Properties By Array

You can change properties of Histogram like as follows.

• PHP:

  <?php

  require_once __DIR__ . '/../vendor/autoload.php';

  use Macocci7\PhpHistogram\Histogram;

  $props = [
      'canvasWidth' => 600,
      'canvasHeight' => 400,
      'canvasBackgroundColor' => '#224499',
      'plotarea' => [
          'offset' => [90, 80],
          'width' => 420, // 'width' takes precedence over 'frameXRatio'
          'height' => 240, // 'height' takes precedence over 'frameYRatio'
          'backgroundColor' => null,
      ],
      'frameXRatio' => 0.8,
      'frameYRatio' => 0.7,
      'axisColor' => '#999',
      'axisWidth' => 3,
      'gridColor' => '#eee',
      'gridWidth' => 1,
      'gridHeightPitch' => 1,
      'barBackgroundColor' => '#ffcc66',
      'barBorderColor' => '#ff6600',
      'barBorderWidth' => 2,
      'frequencyPolygonColor' => '#33cc00',
      'frequencyPolygonWidth' => 3,
      'cumulativeRelativeFrequencyPolygonColor' => '#ff5577',
      'cumulativeRelativeFrequencyPolygonWidth' => 7,
      'fontPath' => 'fonts/ipaexg.ttf',
      'fontSize' => 24,
      'fontColor' => '#eeeeee',
      'showBar' => true,
      'showFrequencyPolygon' => true,
      'showCumulativeRelativeFrequencyPolygon' => true,
      'showFrequency' => true,
      'labelX' => 'Class (Items)',
      'labelXOffsetX' => 0,
      'labelXOffsetY' => 0,
      'labelY' => 'Frequency (People)',
      'labelYOffsetX' => 0,
      'labelYOffsetY' => 0,
      'caption' => 'Items Purchased / month（Feb 2024）',
      'captionOffsetX' => 0,
      'captionOffsetY' => 0,
  ];

  $hg = new Histogram();
  $hg->setClassRange(5)
     ->setData([1, 5, 6, 10, 12, 14, 15, 16, 17, 18, 20, 24, 25])
     ->config($props)
     ->create('img/ChangePropsByArray.png');

• Result: examples/img/ChangePropsByArray.png



5.5. Transparent Background

Setting colors to transparent is supported.

For example,

• PHP: examples/TransparentBackground.php

  <?php

  require_once __DIR__ . '/../vendor/autoload.php';

  use Macocci7\PhpHistogram\Histogram;

  $hg = new Histogram();
  $hg->config([
          'canvasBackgroundColor' => null,
          'barBackgroundColor' => '#ccccff',
          'barBorderColor' => '#0000ff',
          'barBorderWidth' => 2,
          'gridColor' => '#cc6666',
          'gridWidth' => 1,
          'axisColor' => '#aa6633',
          'fontColor' => '#882222',
          'caption' => 'Transparent Background',
     ])
     ->setClassRange(5)
     ->setData([ 1, 5, 8, 10, 11, 14, 16, 19, 20, ])
     ->create('img/TransparentBackground.png');

• Result: examples/img/TransparentBackground.png



  Check if the image has transparent background with HTML:

  examples/TransparentBackground.html

6. Examples

• BasicUsage.php >> results in:



• ChangePropsByMethods.php >> results in:



• ChangePropsByNeon.php >> results in:



• ChangePropsByArray.php >> results in:



• TransparentBackground.php >> results in:



• HistogramExampleCase.php >> results in HistogramExampleCase.md

• OhtaniShoheiHistogram2023.php >> results in OhtaniShoheiHistogram2023.md

• PopulationInJapanHistogram2022.php >> results in PopulationInJapanHistogram2022.md

7. License

MIT

Document created: 2023/05/28

Document updated: 2024/07/05

Copyright 2023-2024 macocci7
