CRT catalog console for the Spaced Tracker API. The screen is a Vue 3 application. PHP serves it and the API on one origin, so the browser never sees a Space-Track password, a session cookie, or a model API key.

The layout follows a phosphor terminal: black-olive field, yellow-green rules, circular marks, stacked status panels, an inverted selected row, and a footer of key hints. The title is SPACED TRACKER / ORBITAL CATALOG SYSTEM. Color themes are phosphor (the default), green, amber, and white. Scanlines, vignette, and a light glow supply the CRT look. prefers-reduced-motion turns the remaining motion off.

The console guide walks through the index, the object file, and the ground tracks.

Install

Install kschroeder/spaced-tracker-ui from Packagist. Composer installs kschroeder/spaced-tracker-api and kschroeder/spaced-tracker from Packagist as well:

composer require kschroeder/spaced-tracker-ui:^1.0

To work on this repository, which has no lock file:

composer update
cd frontend
npm install
npm run build

npm run build writes the console to public/app/. That directory is generated. Commit the Vue source, not the build.

The PHP package depends on kschroeder/spaced-tracker-api, which depends on kschroeder/spaced-tracker, and on vlucas/phpdotenv and symfony/http-client. The HTTP client is what live mode uses to call Space-Track. This checkout's composer.json fetches the two Spaced Tracker packages from GitHub. Replace those repository entries with path repositories of ../spaced-tracker and ../spaced-tracker-api when Composer should symlink neighboring checkouts instead.

Run it

Copy the example environment and edit it:

cp .env.example .env

Leave SPACETRACK_IDENTITY empty to stay in demo mode. Set the identity and password for live Space-Track queries. The repository ignores .env. Do not commit it. bin/spaced-tracker-ui and public/index.php load that file. A variable already set in the process environment wins, including an empty value. The loader does not call putenv(). If .env is missing, an empty SPACETRACK_IDENTITY still selects demo mode. Restart the PHP server after adding or changing the file.

PHP built-in server, bound to loopback:

vendor/bin/spaced-tracker-ui

The default address is http://127.0.0.1:8088. SPACED_TRACKER_HOST and SPACED_TRACKER_PORT override it. The host must be a hostname or an IP address. The port must be an integer from 1 to 65535. The command sets the PHP built-in server document root to public/, which is required for /app assets.

A normal web server should use public/ as the document root and route every request that is not a real file through public/index.php. public/router.php is the router for the PHP built-in server. It serves a file only when FrontController::resolveInside() can prove the file stays inside public/.

Live mode configures the Space-Track client with a file cache. A successful query is reused for the cache default of 60 seconds. The session cookie is stored in that same cache until the session expires. Session lifetime stays on SPACETRACK_SESSION_TTL, whose default is 7200 seconds. The directory defaults to the system temp directory under kschroeder-spaced-tracker-ui. SPACED_TRACKER_CACHE_DIR and SPACED_TRACKER_CACHE_TTL override the directory and the 60 second default. Keep the cache directory outside public/. Demo mode does not use the cache.

SpacedTracker\Ui\FrontController is the entry class. It mounts the API at /api and serves public/app/index.html for every other route, so /catalog still loads the console.

use SpacedTracker\Ui\Environment;
use SpacedTracker\Ui\FrontController;

FrontController::fromEnvironment(Environment::load())->run();

Until the Vue app has been built, those routes answer 503 with the npm run build instruction.

Vite during development

Leave the PHP server on port 8088 and start Vite from frontend/:

npm run dev

Vite listens on http://127.0.0.1:5173 and proxies /api to http://127.0.0.1:8088. The production build uses the base path /app/ so PHP can serve the assets. The dev server uses /.

What the console calls

Control	Request
SYSTEM MODE CATALOG	`POST /api/query` class `satcat`
ELEMENTS	class `gp`
DECAY	class `decay`
REENTRY	class `tip`
OBJECT CLASS PAY, R/B, DEB	`OBJECT_TYPE` of `PAYLOAD`, `ROCKET BODY`, or `DEBRIS`
REGIME other than ALL	JSON field `orbit` (`LEO`, `MEO`, `GEO`, `HEO`)
SEARCH	`OBJECT_NAME` `~~` predicate
STATUS ON ORBIT	satcat `DECAY` `null-val` and `CURRENT` `Y`
STATUS DECAYED	satcat `DECAY` `<>null-val`
STATUS HISTORICAL	satcat `CURRENT` `N` and `DECAY` `null-val`
CATALOG order	`order_by` `LAUNCH` `desc`. Fixed for CATALOG. ELEMENTS, DECAY, and REENTRY omit it
SITE	buttons show `LAUNCH_SITE` from class `launch_site`. CATALOG sends `SITE` set to `SITE_CODE`. ALL omits it
PREV / NEXT	pages of 50. Page 1 omits `offset`. Later pages send it. `metadata` is true, and the footer reads `Total`

The console leaves format off the request, and the API defaults that to json. STATUS predicates and the launch sort are sent only for CATALOG. ELEMENTS, DECAY, and REENTRY do not share DECAY, CURRENT, LAUNCH, or SITE. Those modes still filter returned rows by status, and a selected site drops rows whose record has a different SITE. The site list scrolls inside its panel. The contact index keeps the column head fixed and scrolls the body.

Each index page asks for 50 rows. The footer shows the page and metadata.Total. REGIME still filters a page after the query returns, so a regime can shorten the rows on that page. The page count follows the query total.

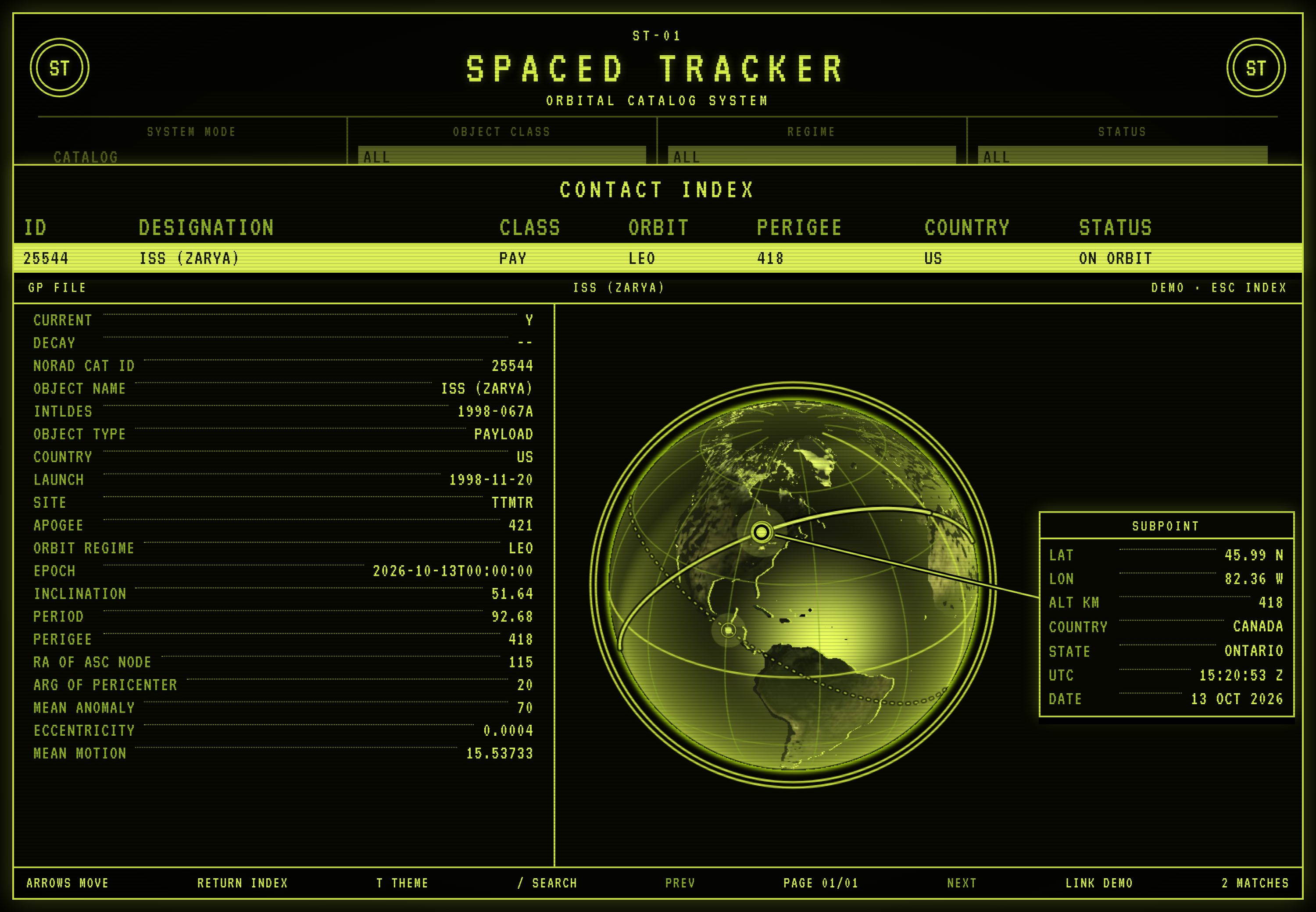

Opening a file draws one full ground track for every row on that page. A catalog row supplies the shape from inclination and period. An elements row also draws a dot at the subpoint from its epoch, node, and anomaly. The plate follows the open file.

The table columns are ID, designation, class, orbit, perigee, country, and status. Perigee renders as -- when the catalog row has no value. Arrow keys move the selection when focus is not in the search box. Return opens the object file. Escape closes it. T or the footer button cycles the CRT color. The choice is stored in localStorage under spaced-tracker-theme. / focuses search.

GET /api/health prints one footer value, LINK LIVE or LINK DEMO. A failed request sets LINK OFFLINE.

With an empty SPACETRACK_IDENTITY, or with SPACED_TRACKER_DEMO set, the API is in demo mode and the table fills from the built-in catalog. No Space-Track account is required.

Embed

FrontController::fromEnvironment() builds the API client, including the live-mode file cache, and mounts it at /api. Pass an application yourself when the process already has one. The constructor adds the /api prefix when the application does not have it yet. That application keeps whatever client it was given. Environment::load() reads this package's .env and passes the merged variables in. It does not read the file when you pass your own array to fromEnvironment().

use SpacedTracker\Ui\Environment;

$env = Environment::load();
$front = new FrontController(
    Application::fromEnvironment($env),
    __DIR__ . '/public',
);
$response = $front->handle($request);

Credentials belong in the package .env or the PHP environment. Do not add a login form. POST /api/session uses the server account and does not return a Set-Cookie header.

Tests

composer test
cd frontend && npm test

PHPUnit covers the same-origin split between /api and the console, the refusal to read files outside public/, the missing-build response, the live-mode file cache, and loading .env without overriding the process environment. Vitest covers the query builder, launch sites, the CRT themes, reduced motion, selecting a row, ground tracks, and the place under a subpoint.
