README

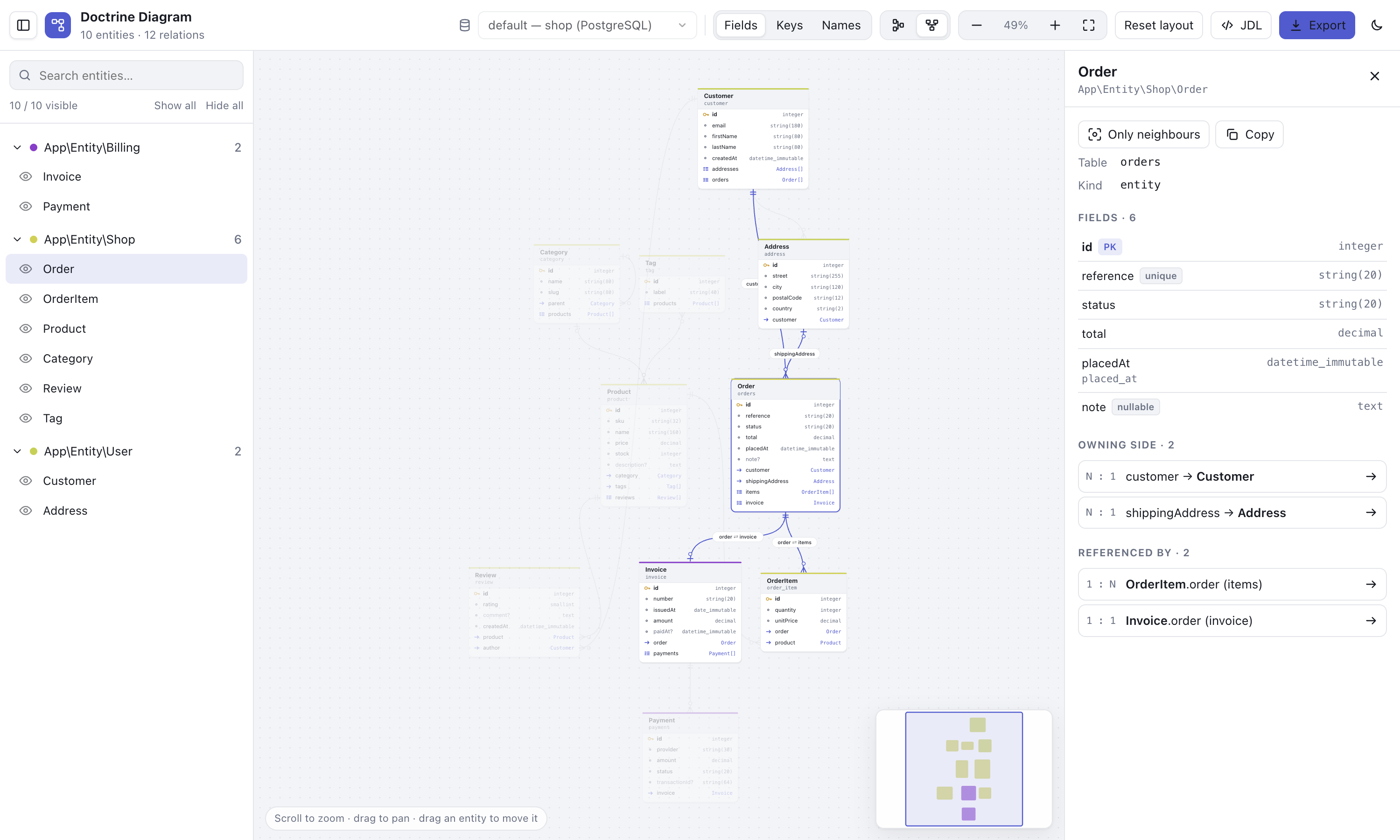

Visualise every Doctrine entity, field and relation of your Symfony application as an interactive entity-relationship diagram (ERD): one selector per database / entity manager, crow's foot relations, search, JDL editor, SVG / PNG export. A JSON API plus a React studio that plugs into Twig, plain JavaScript, React and Vue — without connecting to your databases.

Table of contents

• Why DiagramBundle
• Requirements · Installation · Routes · Configuration
• Embedding — Twig, plain JavaScript (Web Component), React, Vue
• Theming · Studio features · Security · FAQ

Why DiagramBundle

• Always up to date — the diagram is generated from your Doctrine mapping (attributes, annotations, XML or YAML), not drawn by hand.
• Every database — multi entity managers (MySQL, PostgreSQL, SQL Server, SQLite, Oracle…) in one selector, with database name and driver.
• No database connection needed — mappings can be read straight from the mapping driver: works on CI, on read replicas, on databases you cannot reach.
• Pluggable — embed the ERD in your admin with one tag (<doctrine-diagram>), a React or a Vue component, or a Twig function.
• Shareable — export SVG, PNG, JSON or JDL (JHipster Domain Language), import and edit JDL with a live preview.

Requirements

Package	Version
PHP	>= 7.2.5
Symfony	5.4, 6.4, 7.x
Doctrine ORM	2.7+, 3.x
Browser (studio)	evergreen browsers (Chrome, Firefox, Safari, Edge)

Installation

composer require benmacha/diagram-bundle

Register the bundle if Flex did not (config/bundles.php):

Benmacha\DiagramBundle\DiagramBundle::class => ['all' => true],

Import the routes with the prefix of your choice (config/routes/diagram.yaml):

diagram:
    resource: '@DiagramBundle/Resources/config/routes.yaml'
    prefix: /diagram

Publish the assets:

php bin/console assets:install public

Open /diagram/.

⚠️ The page and the API expose your whole database schema. Protect them — see Security.

Routes

Method	Path (prefix /diagram)	Description
GET	/diagram/	Full page studio (Twig)
GET	/diagram/api/managers	Entity managers and the database each one is connected to
GET	/diagram/api/schema?em=<name>	Entities, fields and relations of an entity manager (JSON)

GET /api/managers

{
  "default": "default",
  "managers": [
    { "name": "default", "connection": "default", "database": "app", "driver": "MySQL", "default": true },
    { "name": "legacy",  "connection": "legacy",  "database": "erp", "driver": "SQL Server", "default": false }
  ]
}

Database names and drivers are read from the connection parameters: no connection is opened and no host / user / password is ever exposed.

GET /api/schema?em=default

{
  "manager": "default",
  "managers": [ … ],
  "source": "factory",
  "title": "Doctrine Diagram",
  "entities": [
    {
      "id": "App\\Entity\\Book",
      "name": "Book",
      "namespace": "App\\Entity",
      "table": "book",
      "kind": "entity",
      "parent": null,
      "fields": [
        { "name": "id", "column": "id", "type": "integer", "nullable": false, "unique": false, "id": true, "length": null },
        { "name": "title", "column": "title", "type": "string", "nullable": false, "unique": false, "id": false, "length": 255 }
      ]
    }
  ],
  "relations": [
    {
      "id": "App\\Entity\\Book::author",
      "type": "ManyToOne",
      "source": "App\\Entity\\Book",
      "target": "App\\Entity\\Author",
      "field": "author",
      "inverseField": "books",
      "joinColumns": ["author_id"],
      "joinTable": null,
      "nullable": true
    }
  ]
}

• kind: entity, mapped_superclass, embeddable.
• Only the owning side of a relation is listed (with inverseField when bidirectional), so each relation appears once.
• source tells how the mapping was read (see metadata below).

Configuration

# config/packages/diagram.yaml
diagram:
    # Entity managers exposed (empty = all Doctrine ORM entity managers)
    entity_managers: []
    # Entity class prefixes to hide
    exclude: ['DH\Auditor\']
    # How mappings are read:
    #   auto    (default) factory when it will not open a connection, driver otherwise
    #   factory Doctrine ClassMetadataFactory — exact, but needs the database platform:
    #           without `server_version`, Doctrine connects to the database
    #   driver  mapping driver only (attributes / annotations / XML / YAML) — never connects
    metadata: auto
    # Role required by the page and the API (needs symfony/security-bundle)
    access_role: ~
    title: 'Doctrine Diagram'

Tip: set server_version on your DBAL connections — the exact factory mode is then used without ever touching the database. Both modes produce the same JSON (fields of mapped superclasses and embeddables are merged in driver mode).

Embedding

Twig

{{ diagram_widget({ height: '720px', theme: 'auto', locale: 'fr', manager: 'default' }) }}

Options: height, theme (light | dark | auto), locale (en | fr), manager, heading. diagram_api_url() returns the API base URL.

Plain JavaScript (Web Component)

<script src="/bundles/diagram/build/diagram.js" defer></script>

<doctrine-diagram api="/diagram" theme="auto" locale="fr" style="height: 80vh"></doctrine-diagram>

<script>
  const el = document.querySelector('doctrine-diagram');
  // Any option that is not a string: headers, fetch, schema…
  el.options = { headers: () => ({ Authorization: 'Bearer ' + localStorage.getItem('token') }) };
  el.addEventListener('entity-select', (e) => console.log(e.detail));
</script>

Attributes: api, manager, theme, locale, heading, storage-key (false disables localStorage). Events: entity-select, manager-change. The element renders in a Shadow DOM: the page CSS cannot break it.

Or mount it anywhere:

const diagram = DoctrineDiagram.mount(document.getElementById('erd'), { apiUrl: '/diagram' });
diagram.update({ theme: 'dark' });
diagram.unmount();

ES module build: /bundles/diagram/build/element.mjs (React included, nothing else to load).

React

The npm package is the bundle repository itself (package.json at its root). From a Symfony app, point your front-end to the installed bundle:

npm install ../vendor/benmacha/diagram-bundle   # or: "file:../path/to/diagram-bundle"

import { DiagramStudio } from '@benmacha/doctrine-diagram';

export function SchemaPage() {
  return (
    <div style={{ height: 'calc(100vh - 64px)' }}>
      <DiagramStudio
        apiUrl="https://api.example.com/diagram"
        headers={() => ({ Authorization: `Bearer ${getToken()}` })}
        theme="auto"
        locale="fr"
        onEntitySelect={(entity) => console.log(entity)}
      />
    </div>
  );
}

Add it to your router like any page (<Route path="/schema" element={<SchemaPage />} />). react and react-dom (≥ 18) are peer dependencies; styles are injected automatically (injectStyles={false} + import '@benmacha/doctrine-diagram/style.css' to manage them yourself).

Vue 3

<script setup>
import { DoctrineDiagram } from '@benmacha/doctrine-diagram/vue';
const headers = () => ({ Authorization: `Bearer ${localStorage.getItem('token')}` });
</script>

<template>
  <DoctrineDiagram api-url="/diagram" :headers="headers" theme="auto" locale="fr" height="80vh"
                   @entity-select="(e) => console.log(e)" />
</template>

React is bundled inside the Vue build: nothing else to install. You can also use the <doctrine-diagram> element directly (app.config.compilerOptions.isCustomElement = (tag) => tag === 'doctrine-diagram').

Static schema (no API)

Every flavour accepts a schema option (the JSON described above): handy for documentation sites or to render a schema exported with the studio.

Options (React / Vue / mount() / element.options)

Option	Type	Description
apiUrl	string	Base URL of the routes (/diagram)
manager	string	Entity manager shown first
schema	Schema	Static data, skips the API
headers	object | () => object | Promise<object>	Extra headers (authentication)
credentials	RequestCredentials	fetch credentials (default same-origin)
fetch	typeof fetch	Custom fetch (interceptors…)
theme	light | dark | auto	Default auto
locale	en | fr	Default: browser language
title	string	Toolbar title
height	string | number	Default 100%
storageKey	string | false	localStorage prefix for layout / hidden entities
injectStyles	boolean	Default true
onEntitySelect	(entity | null) => void
onManagerChange	(name) => void

Theming

Colours are CSS custom properties; set them on any ancestor (they also cross the Shadow DOM):

doctrine-diagram, .my-admin {
  --bmd-accent: #e11d48;
  --bmd-font: 'Inter', sans-serif;
}

/* follow a shadcn/ui (Tailwind) theme, light and dark */
.my-admin {
  --bmd-bg: hsl(var(--background));
  --bmd-surface: hsl(var(--card));
  --bmd-surface-2: hsl(var(--muted));
  --bmd-border: hsl(var(--border));
  --bmd-text: hsl(var(--foreground));
  --bmd-muted: hsl(var(--muted-foreground));
  --bmd-accent: hsl(var(--primary));
  --bmd-accent-foreground: hsl(var(--primary-foreground));
}

Tokens: --bmd-accent, --bmd-accent-foreground, --bmd-bg, --bmd-surface, --bmd-surface-2, --bmd-border, --bmd-text, --bmd-muted, --bmd-canvas, --bmd-grid, --bmd-edge, --bmd-danger, --bmd-radius, --bmd-font, --bmd-font-mono.

Studio features

• One selector for every entity manager, labelled with its database and driver.
• Automatic layout (dagre), horizontal or vertical; drag entities to rearrange (remembered).
• Detail levels: all fields, keys only, names only (large schemas start with keys).
• Crow's foot relations anchored on the foreign key rows, inheritance arrows.
• Search, show / hide entities and whole namespaces, "neighbours only" focus.
• Inspector: table, columns, types, nullability, relations (click to navigate).
• JDL editor: edit / import .jdl / .jh files, the diagram updates live.
• Export SVG, PNG, JSON, JDL. Mini-map, keyboard shortcuts (/ search, f fit, + / -, Esc).

Security

The schema is sensitive. Either:

# config/packages/diagram.yaml
diagram:
    access_role: ROLE_ADMIN

and/or restrict the path in security.yaml:

security:
    access_control:
        - { path: ^/diagram, roles: ROLE_ADMIN }

With a stateless API (JWT…) put the routes behind the firewall that authenticates your API calls and pass the token with the headers option. You can also import the routes only in dev (when@dev: in config/routes/diagram.yaml).

FAQ

How do I generate an ERD / entity diagram from Doctrine entities in Symfony? Install the bundle, import its routes and open /diagram/: the diagram is built from the Doctrine metadata of each entity manager.

Does it need a database connection? No in driver mode (and in auto mode when the connection has a server_version): the mapping files / attributes are read directly.

Can I embed the diagram in a React, Vue or Angular admin? Yes: React component, Vue 3 component, or the framework-agnostic <doctrine-diagram> Web Component.

Does it support several databases / entity managers? Yes, every Doctrine ORM entity manager appears in the selector (entity_managers to restrict the list).

Can I export the schema? SVG and PNG images, JSON schema and JDL (JHipster Domain Language) files.

Development

npm install
npm run build       # → src/Resources/public/build (committed: the bundle works without Node)
npm run typecheck

Sources: assets/src (TypeScript + React). PHP: src/.

Upgrading from 1.x

• The API is JSON (/api/schema, /api/managers); the JDL text route /sample.jdl is gone — JDL import / export now lives in the studio.
• The AngularJS / CodeMirror / nomnoml front-end is replaced by the React studio.
• Routes: @DiagramBundle/Resources/config/routes.yaml (the 1.x routing/routes.yml still works).
• Symfony 5.4+ and PHP 7.2.5+ are required.

License

MIT © Ali Ben Macha
