README

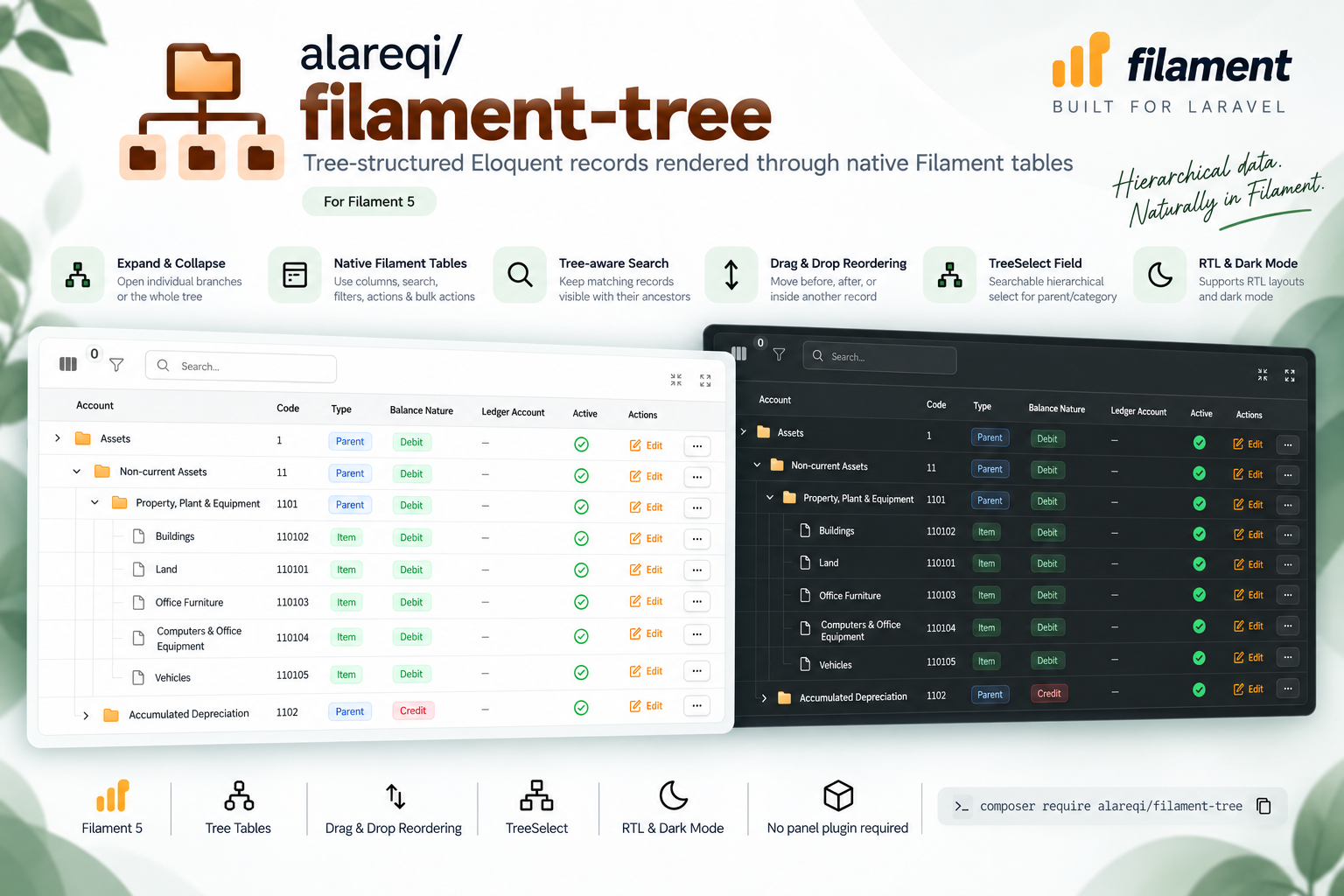

Display adjacency-list Eloquent models as expandable, searchable, filterable, and reorderable trees in Filament 5. The package also includes a searchable tree-select form field.

Features

Expand and collapse individual branches or the entire tree
Use normal Filament table columns, search, filters, actions, and bulk actions
Keep matching records visible together with their ancestors while filtering
Drag records before, after, or inside another record
Save all reorder changes together in a database transaction
Select a parent or category with the TreeSelect form component
Support integer and string keys, custom root values, RTL layouts, and dark mode
Load package styles automatically—no panel plugin or custom theme setup

Requirements

PHP 8.3 or later
Laravel with Eloquent
Filament 5

Installation

composer require alareqi/filament-tree

Laravel discovers the service provider automatically. The provider registers the package views, translations, and compiled CSS, so no panel registration or asset publishing is required.

Quick start

Assume categories is an adjacency-list table:

Schema::create('categories', function (Blueprint $table): void {
    $table->id();
    $table->string('name');
    $table->foreignId('parent_id')->nullable()->constrained('categories')->nullOnDelete();
    $table->unsignedInteger('sort_order')->default(0);
    $table->timestamps();
});

Add InteractsWithTreeTable to the resource's ListRecords page:

use Alareqi\FilamentTree\Concerns\InteractsWithTreeTable;
use Filament\Resources\Pages\ListRecords;

class ListCategories extends ListRecords
{
    use InteractsWithTreeTable;
}

Then use TreeColumn for the visible tree column and call tree() after defining the columns:

use Alareqi\FilamentTree\Columns\TreeColumn;
use Filament\Tables\Columns\TextColumn;
use Filament\Tables\Table;

public static function table(Table $table): Table
{
    return $table
        ->columns([
            TreeColumn::make('name')->searchable(),
            TextColumn::make('updated_at')->dateTime()->sortable(),
        ])
        ->reorderable('sort_order')
        ->tree(
            parentColumn: 'parent_id',
            treeColumn: 'name',
        );
}

The table starts expanded, root records have a null parent, and Filament's Enable reordering action starts tree reordering.

Important

The column named by treeColumn must be a TreeColumn, and the list page must use InteractsWithTreeTable. Call reorderable() before tree() so the package can read Filament's reorder configuration.

Tree select quick start

use Alareqi\FilamentTree\Forms\Components\TreeSelect;

TreeSelect::make('parent_id')
    ->label('Parent category')
    ->treeOptions(fn () => Category::query()
        ->orderBy('sort_order')
        ->get()
        ->map(fn (Category $category): array => [
            'value' => $category->getKey(),
            'parent' => $category->parent_id,
            'label' => $category->name,
        ]))
    ->placeholder('No parent')
    ->searchable();

The placeholder represents null when it is selectable, making this suitable for choosing an optional parent.

Documentation

License

Filament Tree is open-source software licensed under the MIT license.
