README

An order and customer timeline with internal staff notes for the Sylius 2 back office.

The Sylius 2 order page has no history: the History page only lists address changes, the customer's checkout note is read-only, and staff cannot leave a note on an order or a customer. The Sylius 1 plugins that did it were never ported.

This plugin records what happens to an order (placed, paid, shipped, cancelled, refunded, e-mails sent) and lets the team write internal notes, free and open source.

Features

Need	What the plugin does
Know what happened to an order, and who did it	Timeline card on the admin order page, newest first: order placed, order / payment / shipping state changes, each payment (method + amount) and shipment (method + tracking code), e-mails sent (with recipients). Each entry shows an icon, a label, the author (administrator name, Customer or System) and the date.
See the customer's checkout note in context	The checkout note becomes a Customer note entry at the time the order was placed.
Share information inside the team	Internal notes on orders and on customers: plain text up to 5,000 characters, line breaks kept, HTML escaped. Never shown in the shop.
Keep important information in sight	Pin a note: pinned notes are shown at the top of the order or customer page in a highlighted card.
Know the customer	Customer timeline on the admin customer page: customer notes and the key events of their orders (placed with number and total, cancelled, payments completed or refunded), last 50 entries with a link to the full paginated page.
Spot orders that need attention	Notes badge with the number of internal notes in the admin orders grid.
Install on a running shop	`tmonier:timeline:backfill` rebuilds a timeline for existing orders.

Also included: translations in English, French, German, Spanish, Italian, Dutch and Polish; Twig Hooks everywhere; MySQL, MariaDB and PostgreSQL support.

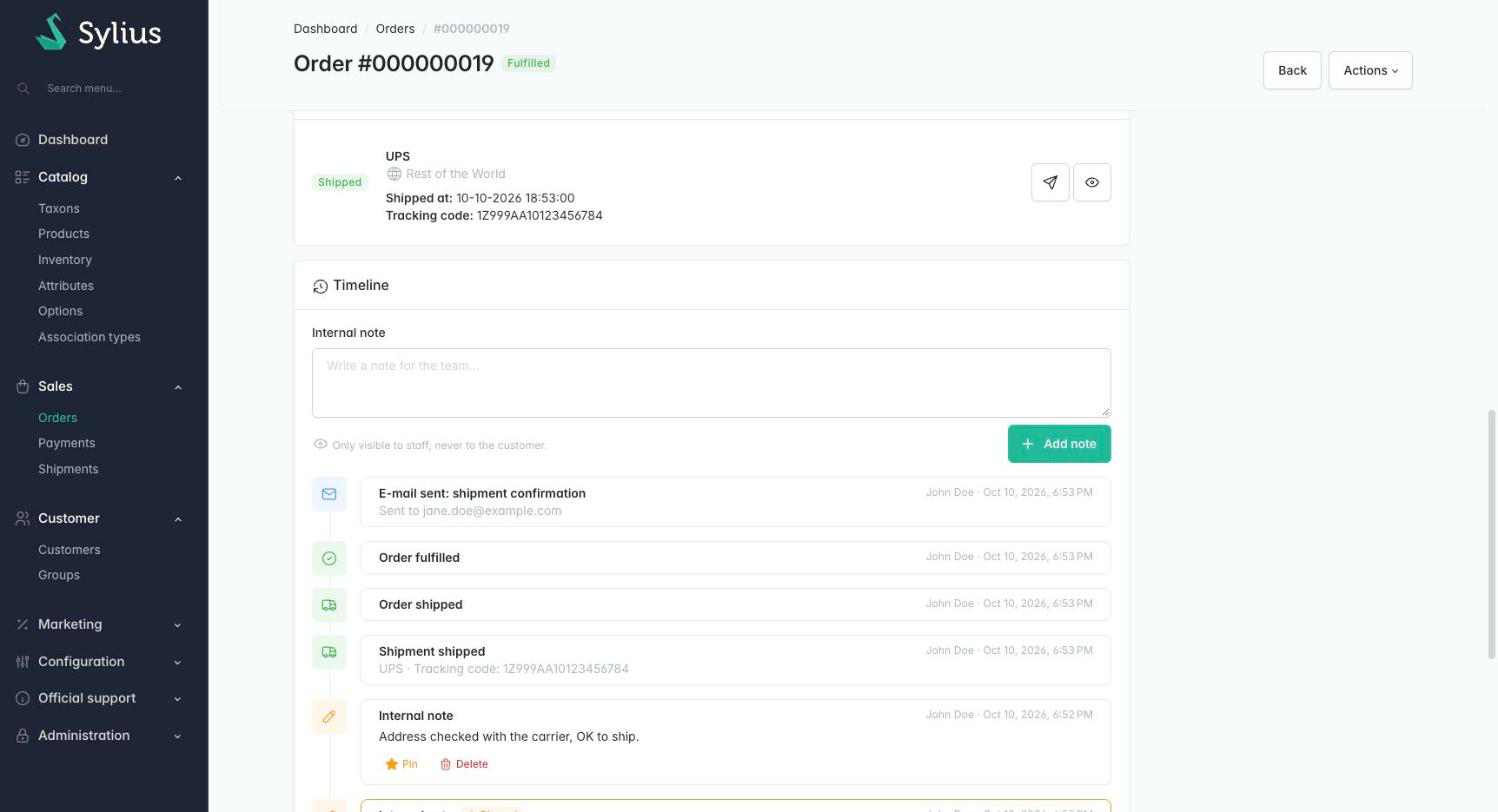

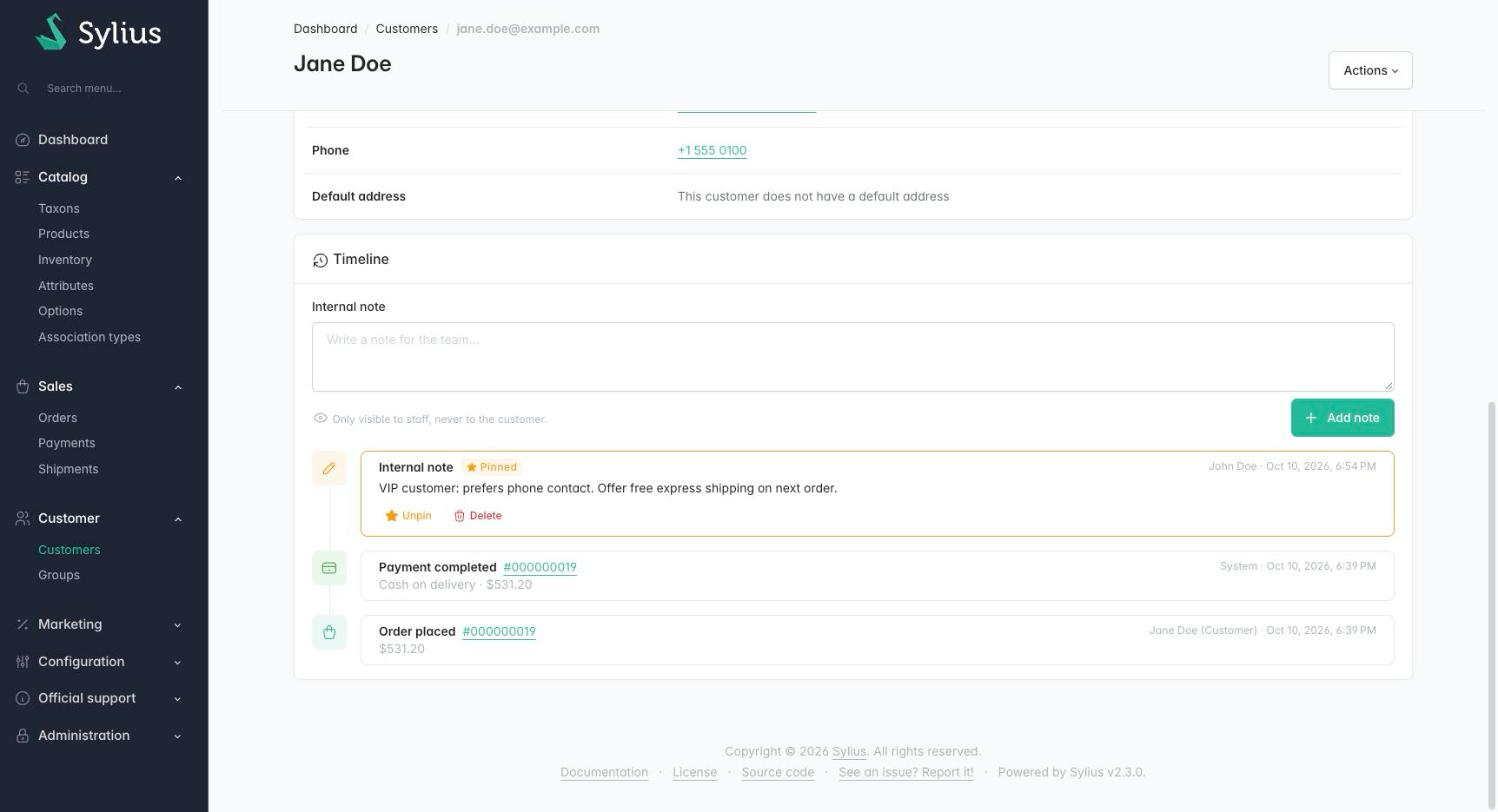

Screenshots

Requirements

	Version
PHP	8.2+
Sylius	2.2, 2.3
Symfony	6.4, 7.4, 8.0

The state machine abstraction must use the Symfony Workflow adapter (the Sylius 2 default, sylius_state_machine_abstraction.default_adapter: symfony_workflow). Graphs mapped to the Winzou adapter do not dispatch Symfony Workflow events and are not recorded.

Installation

Require the package:

composer require tmonier/sylius-timeline-plugin

Register the bundle in config/bundles.php (Symfony Flex does it automatically once a recipe exists):
```
Tmonier\SyliusTimelinePlugin\TmonierSyliusTimelinePlugin::class => ['all' => true],
```

Import the configuration in config/packages/tmonier_sylius_timeline.yaml:

imports:
    - { resource: "@TmonierSyliusTimelinePlugin/config/config.yaml" }

Import the admin routes in config/routes/tmonier_sylius_timeline.yaml:

tmonier_sylius_timeline:
    resource: "@TmonierSyliusTimelinePlugin/config/routes.yaml"

Run the migrations:
```
bin/console doctrine:migrations:migrate
```

Optionally, give the orders placed before the installation a timeline:

bin/console tmonier:timeline:backfill --dry-run
bin/console tmonier:timeline:backfill

Configuration

# config/packages/tmonier_sylius_timeline.yaml
tmonier_sylius_timeline:
    record_emails: true          # e-mails sent by the Sylius mailer about an order
    enabled_workflows:           # default value
        - sylius_order
        - sylius_order_payment
        - sylius_order_shipping
        - sylius_payment
        - sylius_shipment

enabled_workflows accepts any Symfony workflow whose subject is an order, a payment or a shipment, so your own workflows can be recorded too (they get a generic label, or your own tmonier_timeline.event.<workflow>.<transition> translation). The bookkeeping transitions applied while an order is placed (request_payment, request_shipping, payment create and process, shipment create) are never recorded, and neither is anything happening to a cart.

The TimelineEntry resource can be extended like any Sylius resource (tmonier_sylius_timeline.resources.timeline_entry.classes.model).

To hide the notes column of the orders grid:

sylius_grid:
    grids:
        sylius_admin_order:
            fields:
                tmonier_timeline_notes:
                    enabled: false

Customisation

The admin parts are built with Twig Hooks:

Hook	Content
`sylius_admin.order.show.content.sections#left` → `tmonier_timeline_pinned_notes`	Pinned notes (top of the order page)
`sylius_admin.order.show.content.sections#left` → `tmonier_timeline`	Timeline card (bottom of the order page)
`sylius_admin.order.show.content.sections.tmonier_timeline` → `note_form`, `entries`	Note form and entries of the order timeline
`sylius_admin.customer.show.content.sections` → `tmonier_timeline_pinned_notes`	Pinned notes (top of the customer page)
`sylius_admin.customer.show.content.sections` → `tmonier_timeline`	Timeline card (bottom of the customer page)
`sylius_admin.customer.show.content.sections.tmonier_timeline` → `note_form`, `entries`	Note form and entries (`configuration.limit`, default 50)
`tmonier_timeline.admin.customer.timeline`	Full customer timeline page

Templates can be overridden in templates/bundles/TmonierSyliusTimelinePlugin/. To record your own events, use the services:

public function __construct(
    private TimelineEntryFactoryInterface $entryFactory,
    private TimelineEntryWriterInterface $writer,
) {}

$entry = $this->entryFactory->createForOrder($order, TimelineEntryInterface::TYPE_TRANSITION, Actor::system());
$entry->setWorkflow('app_fraud_check');
$entry->setTransition('flag');
$this->writer->persist($entry); // flushed with your own changes

How events are recorded

Workflow transitions: a listener on workflow.completed records the transitions of the configured workflows. The entry is persisted without flushing, so it is saved by the flush that saves the state change itself, in the same transaction (and not at all if that change is rolled back). When the order is not persisted yet (fixtures, imports), the entry waits for the flush that inserts the order.
E-mails: a listener on sylius.email_send.post_send records e-mails whose data contains an order (or a shipment / payment of an order). E-mails are sent after the application flush, so the entry is flushed right away, but only when nothing else is pending in the unit of work; otherwise it waits for the application's next flush.
Authors: the authenticated administrator (name snapshot kept when the account is deleted), Customer for shop users and orders placed by guests, System otherwise (console, message consumers, payment notifications).
Failures never break a checkout: recording errors are caught and logged on the tmonier_timeline channel.

Notes rules

Notes are plain text (HTML is escaped, line breaks are kept), 5,000 characters maximum.
Any administrator can add, pin and unpin notes.
Only the author can delete a note. When the author's admin account has been deleted, any administrator can.
Notes cannot be edited: delete and write a new one.
Every action is a CSRF-protected POST.

Limitations

Changes made outside Symfony Workflow (direct SQL, Winzou-mapped graphs, setters without a transition) are not recorded. Address changes stay in the Sylius History page.
The backfill can only rebuild what an order still tells: placement (with the customer's checkout note), completed payments, shipped shipments and cancellation. Dates of payments and cancellations are approximated from updatedAt.
Entries record facts with a snapshot (payment method name, amount, tracking code); they are not updated when the order is edited later.
Sylius Plus RBAC is not integrated: every administrator can see and write notes.

Development

docker compose up -d mysql   # or your own MySQL
composer install
(cd vendor/sylius/test-application && yarn install && yarn build)
vendor/bin/console doctrine:database:create
vendor/bin/console doctrine:migrations:migrate -n
vendor/bin/console sylius:fixtures:load -n

vendor/bin/phpunit --testsuite unit
APP_ENV=test vendor/bin/phpunit --testsuite non-unit   # needs a test database with fixtures
vendor/bin/phpstan analyse
vendor/bin/ecs check

License

MIT. See LICENSE.
