README

Laravel API Watcher is a zero-latency, production-ready 360° API Observability Suite for Laravel applications. It monitors both Ingress (incoming API requests from users/clients) and Egress (outgoing HTTP requests to third-party services like Stripe, OpenAI, or Twilio) without impacting application response times.

🔬 System Architecture & Technical Features

1. ⚡ Zero-Latency Ingress Logging

Lifecycle Hook: Capture logic executes strictly after HTTP responses are dispatched to clients via Laravel's terminating middleware callback (dispatch()->afterResponse()). The client never waits for DB logging operations.
Fail-Safe Mechanism: All capture routines operate inside isolated try-catch blocks. Logging or database failures are swallowed silently, ensuring 100% uptime for core application routes.

2. 🌐 Egress Observability (Outgoing HTTP Interception)

Automatic Event Interception: Listens natively to Illuminate\Http\Client\Events\ResponseReceived and Illuminate\Http\Client\Events\ConnectionFailed.
Parent-Child Request Correlation: Automatically attaches a unique UUID (api_watcher_request_id) to the incoming request context, linking all outgoing HTTP calls triggered during that request execution.
Dedicated Egress Dashboard: View latencies, status codes, payload samples, and error rates per third-party domain (e.g. api.stripe.com, api.openai.com).

3. 🎯 Intelligent Sampling Engine

To optimize storage in high-volume production environments, the sampling algorithm evaluates every request against configured rules:

public function shouldSample(int $statusCode, float $durationMs): bool
{
    // Always sample 4xx/5xx errors
    if ($this->alwaysSampleErrors && $statusCode >= 400) {
        return true;
    }
    // Always sample slow requests exceeding configured threshold
    if ($this->alwaysSampleSlow && $durationMs >= $this->slowThresholdMs) {
        return true;
    }
    // Apply probabilistic sampling for 2xx OK requests
    return (mt_rand(1, 100) / 100.0) <= $this->samplingRate;
}

4. 🚀 High-Throughput Redis List Buffering

For high-traffic APIs (thousands of req/sec), bypass direct SQL writes during request handling:

Incoming Request -> Redis List Buffer (rpush) -> Background Worker (api-watcher:flush) -> Database Batch Insert

Memory Efficient: Buffers raw payload data into Redis lists using rpush.
Artisan Worker: php artisan api-watcher:flush pops buffered items via lpop and executes DatabaseDriver::storeBatch() using bulk insert().

5. 🛡️ Multilevel Data Redaction & Privacy (GDPR / PCI-DSS)

Recursive Array & String Sanitization: SensitiveDataRedactor recursively inspects arrays, JSON strings, and application/x-www-form-urlencoded query strings.
Custom Callbacks: Developers can register custom closures to redact application-specific sensitive fields:

'redaction' => [
    'fields' => ['password', 'secret', 'credit_card', 'authorization', 'token'],
    'replacement' => '[REDACTED]',
    'callback' => function (array $data) {
        unset($data['ssn']);
        return $data;
    },
]

6. 🧠 Diagnostic & Analytics Algorithmic Engine

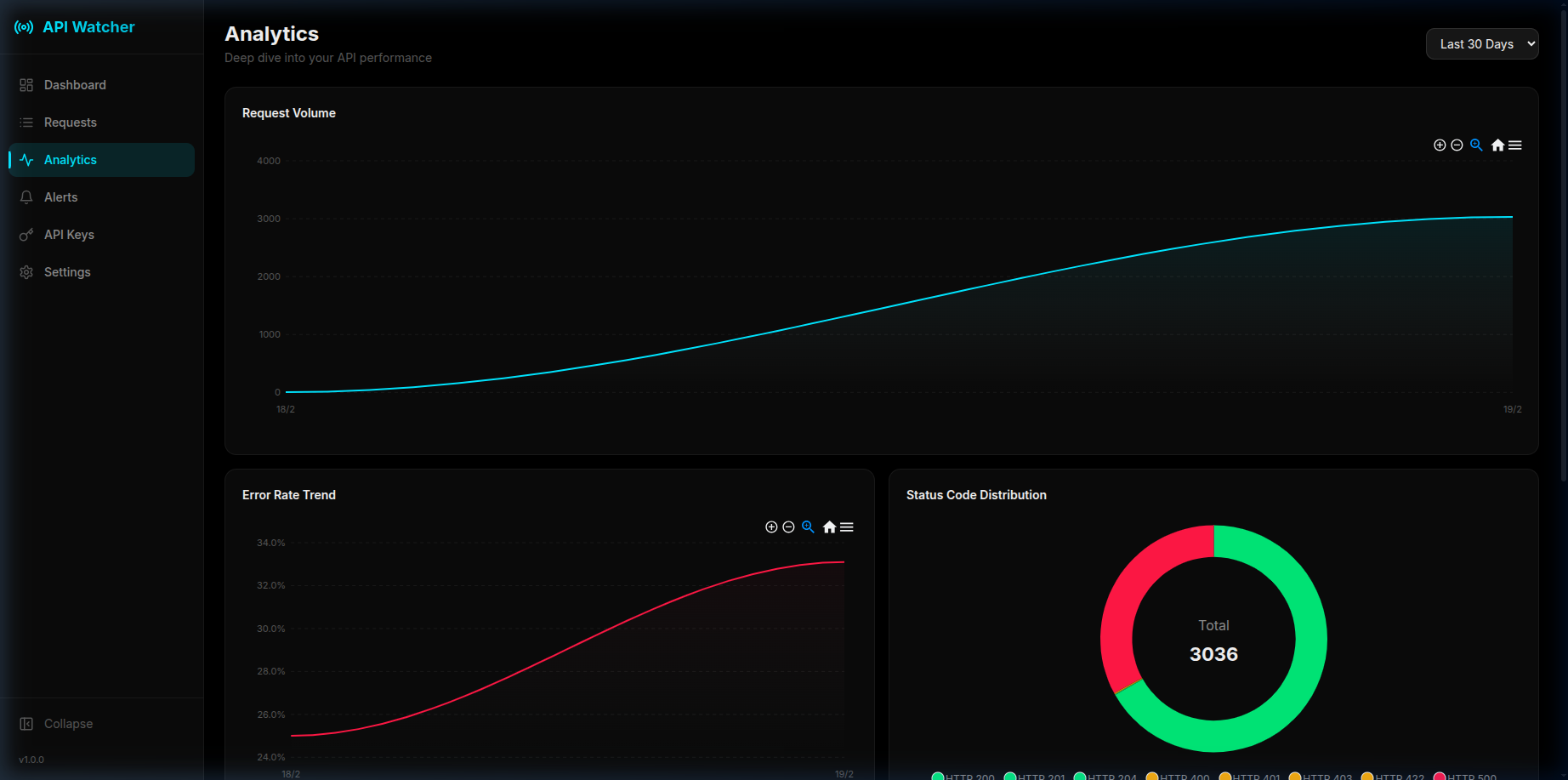

Visual Waterfall Execution Timeline: Correlates DB query execution time (DB::listen) with outgoing HTTP calls.
Side-by-Side Request Diffing: RequestDiff::compare($req1, $req2) computes structural JSON deltas, duration deltas, and header variations between any two requests.
Schema Drift Detector: SchemaDriftDetector computes a structural type-mapping hash (describeArraySchema) for JSON responses across time to notify developers of breaking payload changes.
Predictive Latency Trend Analyzer: TrendAnalyzer compares the 24-hour moving average against a 7-day baseline: $$\Delta% = \frac{\bar{T}{24h} - \bar{T}{baseline}}{\bar{T}_{baseline}} \times 100$$ Triggers a degradation warning when latency increases by $\ge 25%$.
Bot & Abuse Detector: AbuseDetector analyzes IP address distributions over a 60-minute window, flagging IPs with high request volumes or error rates ($\ge 30%$ 401/429/403 errors).

7. 📦 Memory-Efficient Streaming Exporters

Chunked Exporters: Exporting logs via php artisan api-watcher:export --format=json uses cursor() / chunk(500) with direct file stream pointers (fwrite), maintaining flat RAM usage even on multi-million row tables.
Postman Collection v2.1 Exporter: php artisan api-watcher:export-postman builds a ready-to-import Postman Collection v2.1 JSON file.
SLA & Uptime Report Generator: php artisan api-watcher:report compiles SLA Uptime percentages, P95/P99 latency calculations, and status code distributions into a structured report.

8. 🚨 Multichannel Proactive Alerting

Alerts trigger when error rates or average latencies breach configured thresholds. Supports:

Mail Notifications (Laravel Mail)
Slack Webhooks
Generic HTTP Webhooks (Teams, Discord, Custom Endpoints)

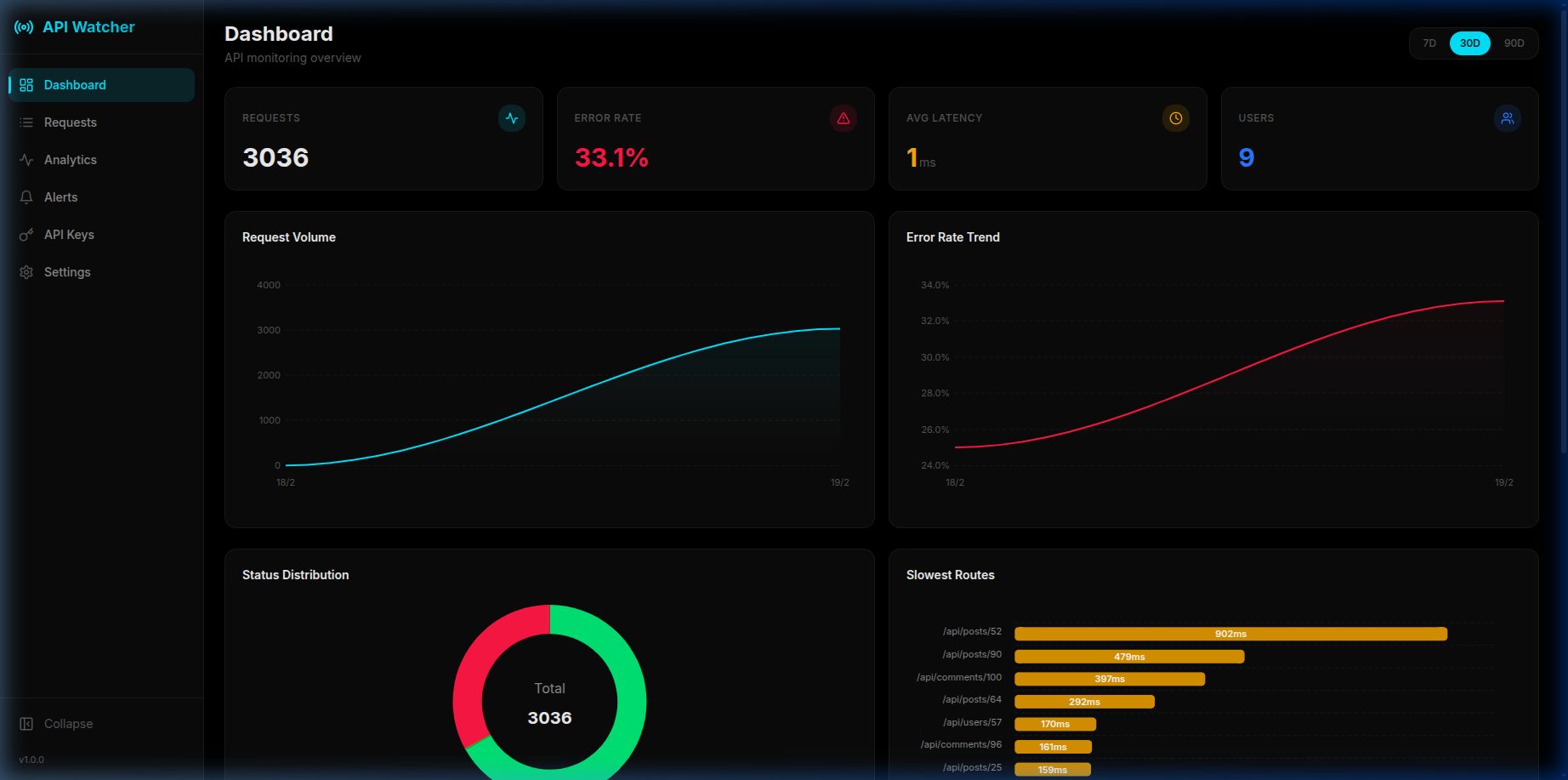

📸 Dashboard Preview

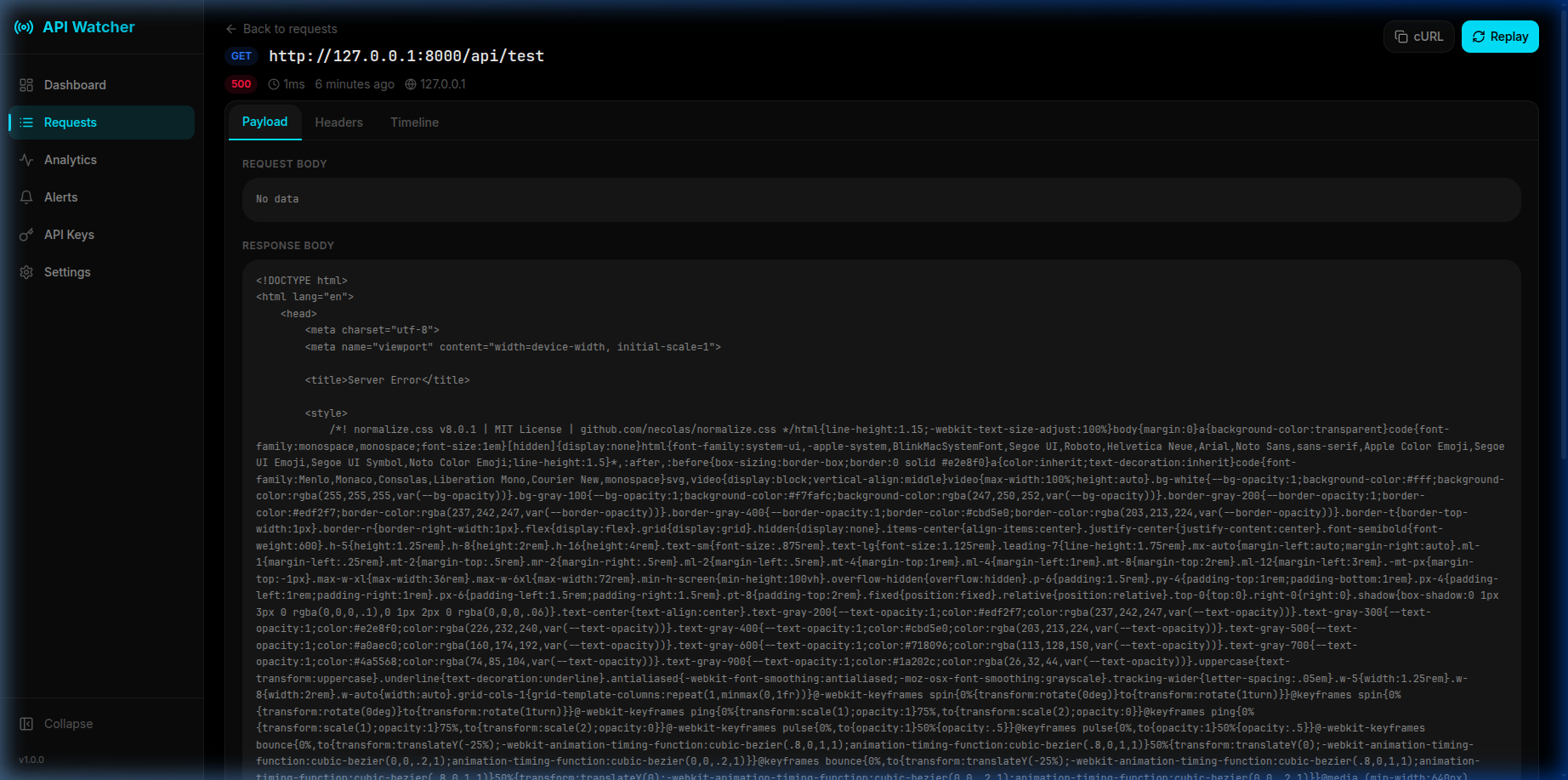

Request Inspector

Deep dive into request details with payload formatting, headers, DB queries, and timeline execution.

Egress & Outgoing Requests

Monitor third-party API call latencies, status codes, and error distributions.

🚀 Installation & Setup

1. Require Package

composer require taoshan98/laravel-api-watcher

2. Publish Assets & Configuration

php artisan vendor:publish --tag=api-watcher-config
php artisan vendor:publish --tag=api-watcher-assets

3. Run Migrations

php artisan migrate

4. Register Middleware

In Laravel 11 (bootstrap/app.php):

->withMiddleware(function (Middleware $middleware) {
    $middleware->api(prepend: [
        \Taoshan98\LaravelApiWatcher\Http\Middleware\CaptureApiRequest::class,
    ]);
})

In Laravel 10 (app/Http/Kernel.php):

protected $middlewareGroups = [
    'api' => [
        \Taoshan98\LaravelApiWatcher\Http\Middleware\CaptureApiRequest::class,
        // ...
    ],
];

5. Schedule Automated Maintenance & Monitoring

In routes/console.php:

use Illuminate\Support\Facades\Schedule;

// Monitor API health every 5 minutes
Schedule::command('api-watcher:monitor')->everyFiveMinutes();

// Flush Redis buffer every minute (if using Redis driver)
Schedule::command('api-watcher:flush')->everyMinute();

// Prune old logs daily
Schedule::command('api-watcher:prune --days=30')->daily();

🛠️ Artisan Command Reference

Command	Description	Options / Arguments
`api-watcher:export`	Export API logs to JSON or CSV	`--format=json\|csv`, `--path=/path/to/file`
`api-watcher:export-postman`	Generate Postman Collection v2.1	`--path=/path/to/collection.json`
`api-watcher:report`	Generate SLA & Uptime performance report	`--days=30`, `--path=/path/to/report.json`
`api-watcher:flush`	Flush Redis list buffer to Database	`--limit=500`
`api-watcher:monitor`	Check API health & dispatch alert notifications	None
`api-watcher:prune`	Prune logs older than retention period	`--days=30`
`api-watcher:clear`	Clear all recorded request logs	`--force`
`api-watcher:fake`	Generate synthetic mock API requests	`count` (default: 10)

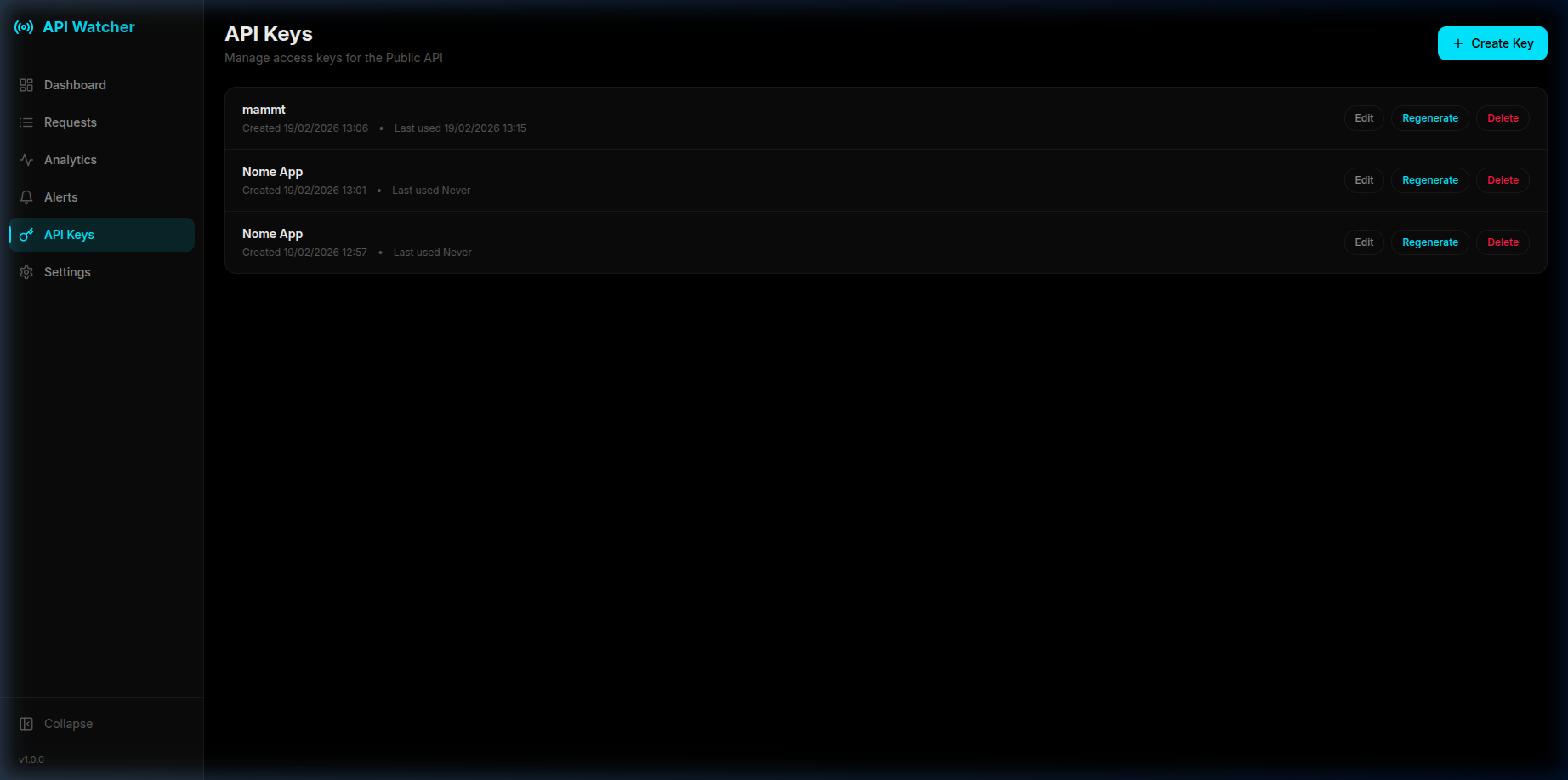

`api-watcher:create-key`	Create a new Public API access key	`name`, `--scopes=read:stats,read:requests`
`api-watcher:list-keys`	List all registered API keys	None
`api-watcher:rename-key`	Rename an existing API key	`id`, `name`
`api-watcher:regenerate-key`	Regenerate token for an API key	`id`
`api-watcher:delete-key`	Delete an API key	`id`

🔌 Public REST API

Laravel API Watcher exposes a secure REST API protected by SHA-256 hashed keys and scope permissions.

Enable API

In .env:

API_WATCHER_API_ENABLED=true

Authentication Header

Pass your API key token in the request header:

X-API-WATCHER-KEY: your-plain-text-token

Available Endpoints & Scopes

Method	Endpoint	Required Scope	Description
`GET`	`/api-watcher/api/v1/stats`	`read:stats`	Aggregated request volume, error rate, P95/P99 latency
`GET`	`/api-watcher/api/v1/requests`	`read:requests`	Paginated request logs with filters (`status_code`, `method`, etc.)
`GET`	`/api-watcher/api/v1/requests/{id}`	`read:requests`	Single request details with DB query metrics
`GET`	`/api-watcher/api/outgoing-requests`	`read:requests`	List captured third-party egress HTTP requests
`POST`	`/api-watcher/api/requests/diff`	`read:requests`	Side-by-side JSON diff comparison of 2 requests
`GET`	`/api-watcher/api/diagnostics`	`read:stats`	Latency trend analysis & suspicious IP abuse detection

🔒 Production Security Best Practices

Dashboard Gate Authorization: Restrict dashboard access in production (AppServiceProvider.php):

use Illuminate\Support\Facades\Gate;

public function boot(): void
{
    Gate::define('viewApiWatcher', function ($user) {
        return in_array($user->email, ['admin@company.com']);
    });
}

Data Encryption at Rest: Enable AES-256 payload encryption in .env:
```
API_WATCHER_ENCRYPT_BODY=true
```

🧪 Automated Testing & Code Quality Standards

# Run PHPStan Level 5 Static Analysis
./vendor/bin/phpstan analyse src --level=5

# Run Laravel Pint Code Formatter
./vendor/bin/pint --test

# Run Pest Feature & Unit Test Suite
./vendor/bin/pest

🤝 Contributing

Contributions are welcome! Please feel free to submit a Pull Request or open an Issue.

📄 License

Laravel API Watcher is open-sourced software licensed under the MIT license.
