README

Parse ZPL label code and render it to vector PDF, to SVG or to PNG, without a printer and without an online service. One ^XA ... ^XZ format becomes one PDF page, one SVG image or one PNG image. In the PDF and the SVG, bars, boxes and barcodes stay vector shapes, so the output is sharp at every zoom level. In the PDF, text stays text. In the SVG, text is drawn as glyph outlines, so the image needs no font.

composer require stilling/zpl-renderer

Requires PHP 8.3 with the mbstring and zlib extensions. PNG output needs the gd extension; PDF and SVG output do not.

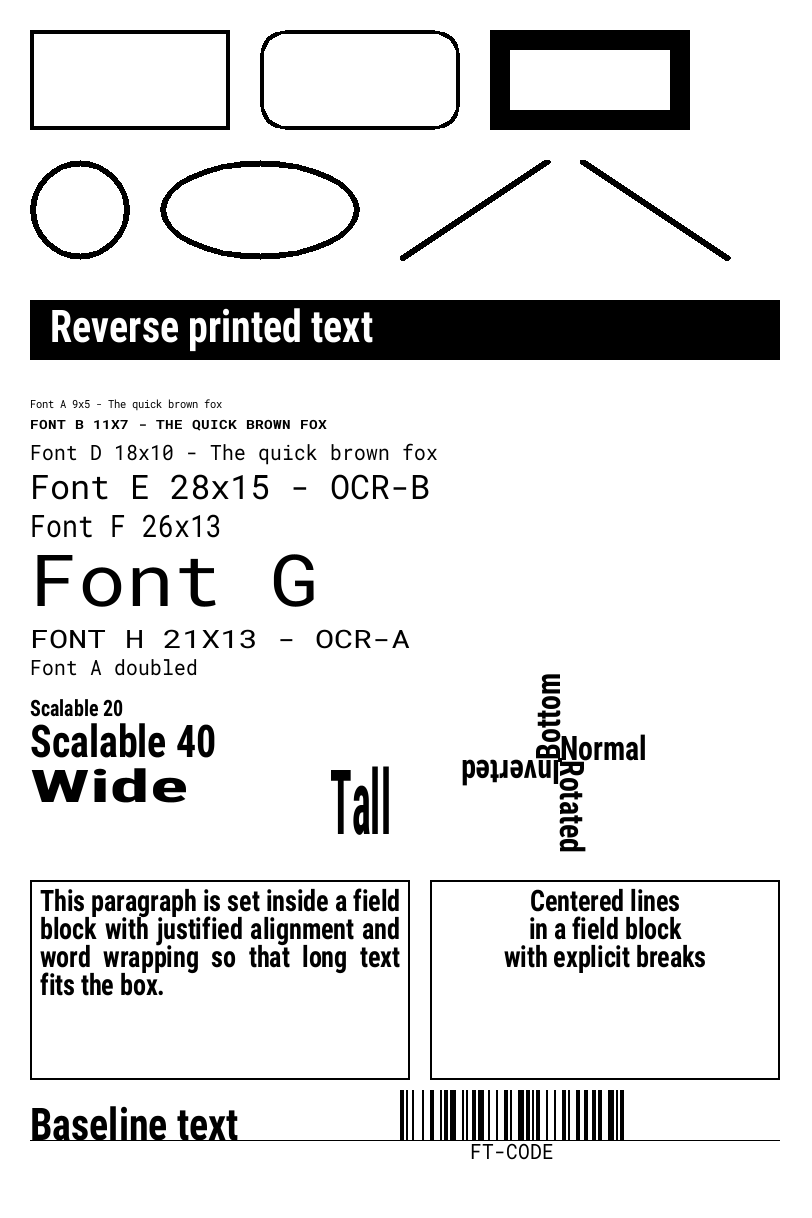

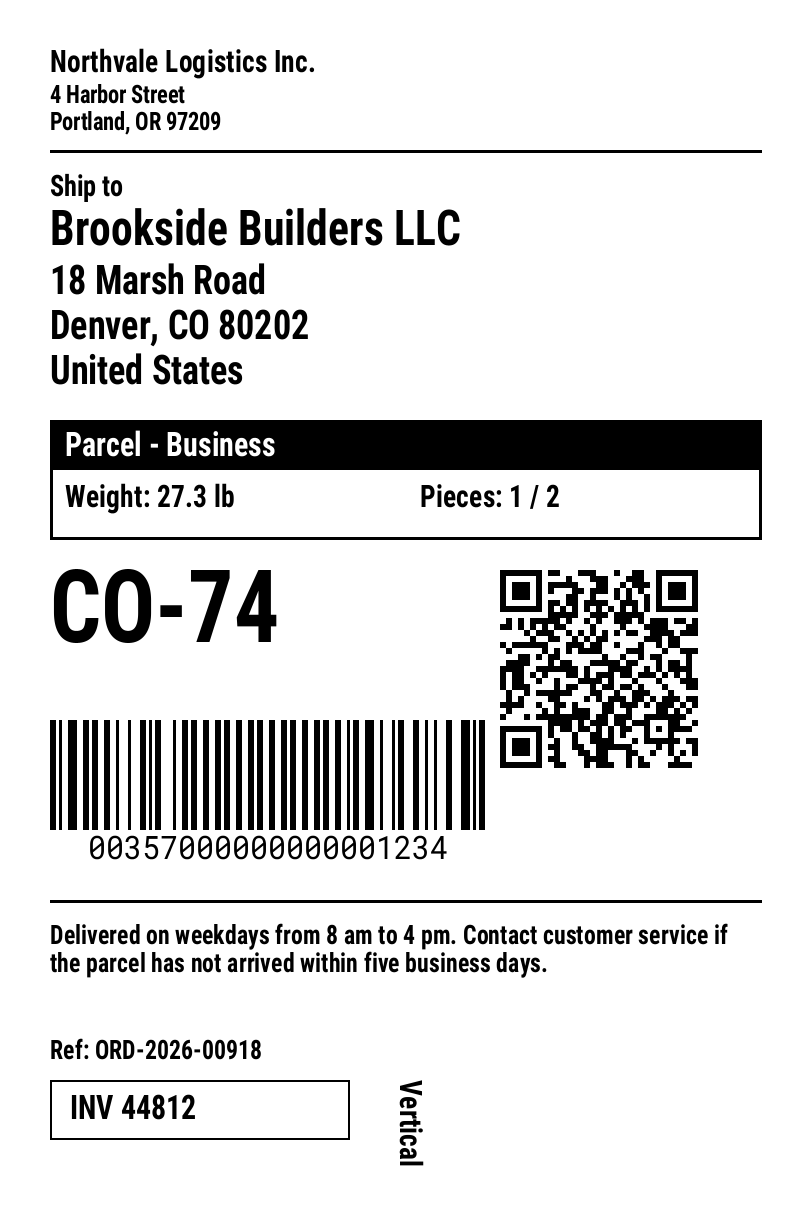

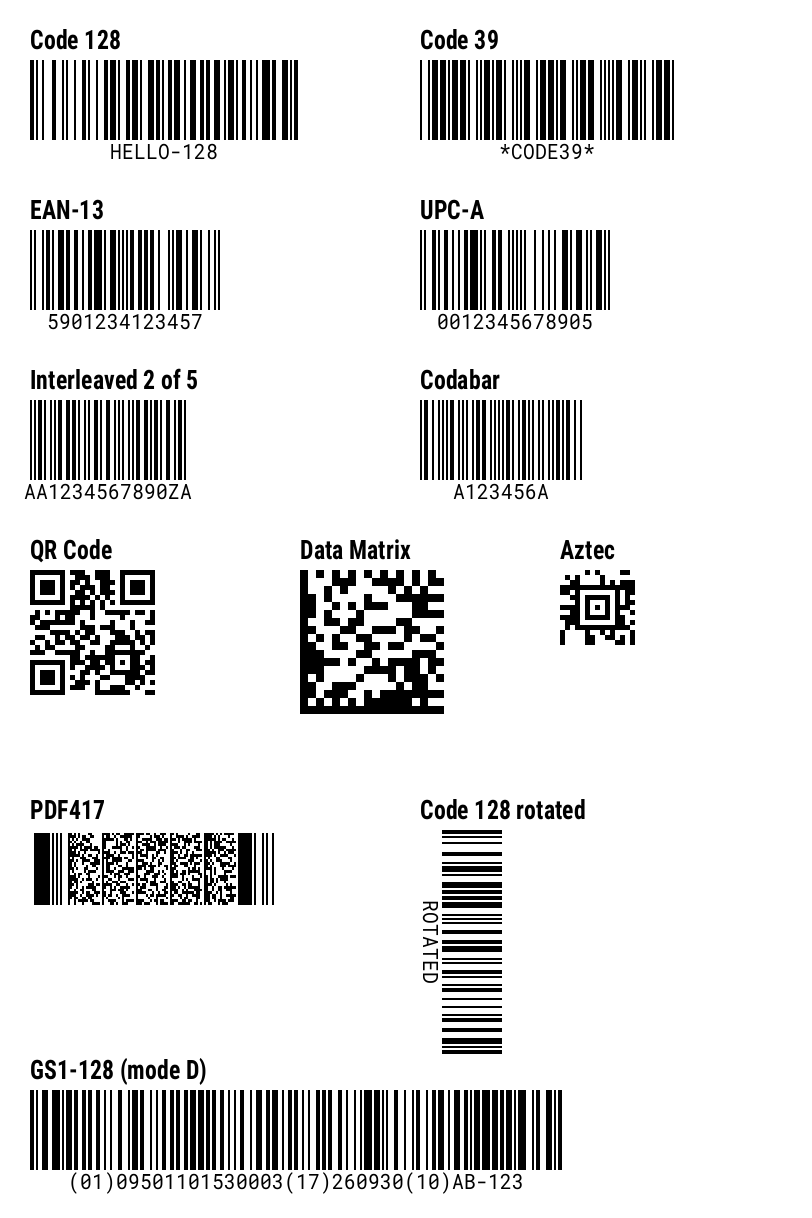

Shipping label	Barcodes	Shapes and fonts

ZPL · PDF · PNG · SVG	ZPL · PDF · PNG · SVG	ZPL · PDF · PNG · SVG

Usage

use Stilling\ZplRenderer\Options;
use Stilling\ZplRenderer\ZplRenderer;

$zpl = '^XA^FO50,50^A0N,40,40^FDHello^FS^FO50,120^BCN,80,Y,N,N^FD12345678^FS^XZ';
$options = new Options(dpmm: 8, widthMm: 101.6, heightMm: 152.4);
$options = (new Options())->dpmm(8)->widthMm(101.6)->heightMm(152.4);

file_put_contents('label.pdf', ZplRenderer::toPdf($zpl, $options));
file_put_contents('label.svg', ZplRenderer::toSvg($zpl, $options));
file_put_contents('label.png', ZplRenderer::toPng($zpl, $options));

ZplRenderer::toPdf() returns one PDF with a page per label, and a page per copy when ^PQ asks for more.
ZplRenderer::toSvg() returns one SVG. The third argument picks the label when the input holds several, counted from 0.
ZplRenderer::toSvgs() returns a list with one SVG per label.
ZplRenderer::toPng() returns one PNG. The third argument picks the label when the input holds several, counted from 0.
ZplRenderer::toPngs() returns a list with one PNG per label.
ZplRenderer::parse() returns the interpreted labels as a list of Label objects with their elements, for example to feed a different renderer.

The $options argument is optional. Without it, every method uses new Options().

Labels and elements

ZplRenderer::parse() returns one Label per ^XA ... ^XZ format. Every position and size in the model is in printer dots.

Property	Type	Meaning
`width`, `height`	`int`	Label size in dots.
`dpmm`	`int`	Print density in dots per millimeter.
`elements`	`list<Element>`	The fields on the label, in ZPL order.
`quantity`	`int`	Number of copies from `^PQ`.
`inverted`	`bool`	`^POI`: the label prints upside down.
`mirrored`	`bool`	`^PMY`: the label prints mirrored.

Every element has x and y, an orientation (Normal, Rotated, Inverted or BottomUp), reverse from ^FR or ^LR, typeset when the origin came from ^FT, and a justification. The subclasses hold the rest.

Class	Command	Properties
`TextElement`	`^FD`	`text` in UTF-8, `font` as a `FontSpec` with the font id and the cell size, `block` as a `FieldBlock` when `^FB` is set.
`BarcodeElement`	`^B...`	`matrix` as a `BarcodeMatrix` with `columns`, `rows` and the dark `bars` as `[x, y, width, height]` in modules, `moduleWidth` and `moduleHeight` in dots, `text` of the interpretation line, `textAbove`.
`BoxElement`	`^GB`	`width`, `height`, `thickness`, `rounding`, `black`.
`CircleElement`	`^GC`	`diameter`, `thickness`, `black`.
`EllipseElement`	`^GE`	`width`, `height`, `thickness`, `black`.
`DiagonalElement`	`^GD`	`width`, `height`, `thickness`, `black`, `rightLeaning`.
`ImageElement`	`^GF`, `^XG`, `^IM`, `~DY`	`bitmap` with one bit per dot, `magnificationX`, `magnificationY`.

use Stilling\ZplRenderer\Model\TextElement;

foreach (ZplRenderer::parse($zpl) as $label) {
    foreach ($label->elements as $element) {
        if ($element instanceof TextElement) {
            echo "{$element->text} at {$element->x},{$element->y}\n";
        }
    }
}

Errors

Every exception the package throws implements Stilling\ZplRenderer\Exceptions\ZplException. Catch that interface to catch them all.

Exception	Thrown when
`ParseException`	The ZPL is malformed or goes past a limit: an invalid command name, invalid `^GF` data, graphics larger than `maxGraphicBytes` or `maxTotalGraphicBytes`, or too many stored commands from `^XF`.
`UnsupportedException`	The input uses a feature the package does not render, or the `gd` extension is missing for PNG output.
`RenderException`	A label cannot be drawn: invalid barcode data, an unreadable font file, a PNG larger than `maxPngPixels`, fields that cover a PNG label too many times over, or a label index that does not exist.

Invalid Options values throw InvalidArgumentException from the setter or the constructor.

Options

Every option has a setter that returns an Options instance, so the calls chain. The constructor takes the same options as named arguments. Read an option back with getDpmm(), getWidthMm() and so on.

$options = (new Options())->dpmm(12)->pixelsPerDot(2)->antialias(false);
$options = new Options(dpmm: 12, pixelsPerDot: 2, antialias: false);

An Options setter changes the instance and returns it. An OptionsImmutable setter leaves the instance as it is and returns a changed copy. OptionsImmutable extends Options, so it goes wherever an Options is expected.

$base = new OptionsImmutable(dpmm: 8);
$sharp = $base->pixelsPerDot(4);   // $base still has pixelsPerDot 1

Option	Default	Effect
`dpmm`	`8`	Print density in dots per millimeter: 6, 8, 12 or 24.
`widthMm`	`101.6`	Label width. `^PW` overrides it for its label and the labels after it.
`heightMm`	`152.4`	Label height. `^LL` overrides it for its label and the labels after it.
`honorLabelSize`	`true`	Let `^PW` and `^LL` change the page size.
`maxLabelDots`	`32000`	Largest width or length in dots that `^PW` and `^LL` can set. A larger value is clamped to it. Lower it when untrusted ZPL is rendered to PNG, since the image holds every dot.
`honorQuantity`	`true`	Repeat a PDF page as many times as `^PQ` asks for.
`maxPages`	`1000`	Upper bound on pages per PDF, and on images per `toPngs()` or `toSvgs()` call. The labels after the limit are not rendered.
`maxGraphicBytes`	`8388608`	Upper bound on the size in bytes of one `^GF`, `~DG` or `~DY` graphic, decoded. A larger graphic throws a `ParseException`.
`maxTotalGraphicBytes`	`67108864`	Upper bound on the bytes of all graphics in one call. Every `^GF`, `~DG` and `~DY` graphic counts when it is decoded, and every `^XG` and `^IM` counts the graphic it places. A `~DY` PNG counts 4 bytes per pixel. More throw a `ParseException`.
`scalableFontCondense`	`0.887`	Horizontal scale of font 0 relative to the natural width of `scalableFontFile`.
`pixelsPerDot`	`1`	Pixels per printer dot in PNG output, 1 to 8.
`maxPngPixels`	`67108864`	Upper bound on the pixels of one PNG image, width times height. A larger image throws a `RenderException`. The renderer uses about 5 bytes of memory per pixel. The fields of one label can cover the image at most 8 times over, summed over the fields, and always 1048576 pixels. More throw a `RenderException`.
`antialias`	`true`	Smooth text edges in PNG output with gray pixels. `false` gives black and white only, like the printer.
`scalableFontFile`	Roboto Condensed Bold	TrueType file drawn for font 0.
`monoFontFile`	Roboto Mono	TrueType file drawn for fonts A and C to H.
`monoBoldFontFile`	Roboto Mono Bold	TrueType file drawn for font B.

Options::inches(8, 4, 6) builds the options from a label size in inches.

Command line

The package installs a zpl command in vendor/bin.

vendor/bin/zpl label.zpl pdf
vendor/bin/zpl label.zpl svg
vendor/bin/zpl label.zpl png --scale=2
vendor/bin/zpl label.zpl pdf out/label.pdf --size=4x6 --dpmm=8
cat label.zpl | vendor/bin/zpl - png > label.png

Without an output path the file is written next to the input with the new extension. A PNG or an SVG is one image per label; when the input holds several labels the files are numbered name-1.png, name-2.png and so on. An existing file is only replaced with --overwrite. Run vendor/bin/zpl --help for all options.

Supported commands

Format	Fields	Fonts and graphics	Label
`^XA` Start format	`^FO` Field origin	`^A` Font	`^PW` Print width
`^XZ` End format	`^FT` Field typeset	`^A@` Font by name	`^LL` Label length
`^DF` Download format	`^FS` Field separator	`^CF` Change default font	`^LH` Label home
`^XF` Recall format	`^FD` Field data	`^GB` Graphic box	`^LT` Label top
`^FX` Comment	`^FV` Field variable	`^GC` Graphic circle	`^LS` Label shift
`^CC` Change caret	`^SN` Serialization data	`^GD` Graphic diagonal line	`^LR` Label reverse print
`^CT` Change tilde	`^FN` Field number	`^GE` Graphic ellipse	`^PO` Print orientation
`^CD` Change delimiter	`^FR` Field reverse print	`^GF` Graphic field	`^PM` Mirror image
`^CI` Change encoding	`^FH` Field hex indicator	`~DG` Download graphic	`^PQ` Print quantity
	`^FB` Field block	`~DY` Download objects
	`^FW` Field orientation	`^XG` Recall graphic
		`^IM` Image move

^DF stores a format. ^XF recalls it and fills the ^FN fields from the recalling format. The recalls of one format apply at most 100000 stored commands. More throw a ParseException.

^PW, ^LL, ^LH, ^LS, ^LT, ^LR, ^PO, ^PM, ^CF, ^FW, ^BY and ^CI are printer settings. They stay in effect for the labels that follow, until a command changes them. ^PQ applies to its own label only. A ^LL after the first ^FS of a label sets the length of the labels after it, not of its own label. ^LR reverses the fields after it, until ^LRN. A field with ^FR under ^LR also prints reversed.

^XA^PW400^LL200^LRY^FO10,10^FDfirst^FS^XZ
^XA^FO10,10^FDsecond^FS^XZ

Both labels are 400 × 200 dots, and both fields print in reverse.

^GF takes ASCII hex, run-length compressed, :B64: and :Z64: data. ~DY takes GRF, and PNG through GD, as ASCII hex, :B64:, :Z64: or raw binary. Raw binary data is read by the byte count in the ~DY header when the format is not A, so a ^ or ~ byte in the data does not start a command.

Font 0 is the scalable CG Triumvirate Bold Condensed. Fonts A to H are the fixed-pitch bitmap fonts; they magnify in whole steps like the printer does, and fonts B and H print capital letters only. Any other font id is treated like font 0.

Barcodes

Linear	Retail and postal	2D and stacked
`^BC` Code 128	`^BE` EAN-13	`^BQ` QR Code
`^B3` Code 39	`^B8` EAN-8	`^BX` Data Matrix
`^BA` Code 93	`^BU` UPC-A	`^B7` PDF417
`^B2` Interleaved 2 of 5	`^B9` UPC-E	`^B0`, `^BO` Aztec
`^BI`, `^BJ` Standard 2 of 5	`^BS` UPC/EAN extensions	`^B4` Code 49
`^BK` Codabar	`^BR` GS1 DataBar
`^BM` MSI	`^BZ` POSTNET
`^BP` Plessey	`^B5` PLANET
`^B1` Code 11
`^BL` LOGMARS

^BC supports the > invocation codes and the modes N, A, U and D. The ^BY module width and default height apply to the linear symbologies. The interpretation line is printed in font A at the module magnification, below or above the bars.

Unsupported commands

Unknown commands are ignored, like the printer ignores them. ^BB Codablock, ^BD MaxiCode, ^BT TLC39 and ^BF MicroPDF417 throw an UnsupportedException.

Fonts

Font 0 is drawn with Roboto Condensed Bold, at the width of CG Triumvirate Bold Condensed. Fonts A to H are drawn with Roboto Mono, at the cell size and pitch of the printer bitmap fonts. The font files sit in resources/fonts with their licenses.

The PDF, the SVG and the PNG draw the same glyphs from the same font files, at the same positions. The PDF embeds only the characters that the document draws, so a font adds a few kilobytes. The SVG defines the outline of each character once and reuses it wherever the character appears. The PNG puts every character on a whole pixel, so the same character has the same pixels wherever it appears. Text edges in the PNG are smoothed with gray pixels; shapes, barcodes and images stay black and white, dot for dot. Set antialias: false to get black and white text, like the printer prints it.

Point the scalableFontFile, monoFontFile and monoBoldFontFile options at other TrueType files to draw with different glyphs. The file must have TrueType outlines (a glyf table). Set scalableFontCondense to the horizontal scale that gives the new font 0 file the width of the printer font.

Differences from a printer

The wide-to-narrow ratio in ^BY is ignored; Code 39, Interleaved 2 of 5, Codabar and MSI use a ratio of 3.
EAN and UPC interpretation lines are printed as one centered line, not split around the guard bars.
Reverse fields (^FR, ^LR) in the PDF use the Difference blend mode. Every current viewer supports it. In the SVG they use mix-blend-mode: difference. Browsers support it. A viewer without blend modes draws the field white.
Text outside Windows-1252 is printed as ?.
^MU unit conversion, ^GS symbols and binary ^GF data are not supported.

Examples

The examples folder holds sample labels: a shipping label, every barcode type, shapes and fonts, graphics, and a stored format with ^FN fields. The rendered PDF, SVG and PNG of each one sit next to it. Render them again with:

composer examples

Development

composer test
composer analyse
