Trinity

Row and column layouts for Craft CMS 5 Matrix fields.

A row is a nested entry in your content builder with a layout of 1–3 columns and a Matrix holding one cell entry per column, left to right. Everything is native Craft: drafts, revisions, propagation, search and eager loading keep working, and so do the fields when Trinity's control panel layer is unavailable.

Your project owns the entry types and the templates. Trinity provides:

Layout maths: column widths, the effective width on the page, mobile order, breakpoints and responsive image sizes
Validation: the number of cells matches the layout, every cell type fits its column, no blocked combinations
Field conditions: Column width, Column span and Row cells
A control panel layer: cells shown as the row's columns, empty columns, adding and merging columns, moving a cell to another row
Twig helpers: the data your templates need to render a row
craft trinity/doctor: checks your setup

Requirements

Craft CMS 5.10 or later, PHP 8.2 or later.

Installation

composer require statikbe/craft-trinity
php craft plugin/install trinity

Content model

Trinity finds your content model by handle (see Configuration; the defaults are in brackets). Create it in the control panel:

Part	What it is
Row entry type (`gridRow`)	An entry type in your content builder Matrix, with the two fields below. Add anything else a row needs (alignment, background, …).
Layout field (`gridLayout`)	A Button Group with these option values: `full`, `halves`, `thirds`, `thirdTwoThirds`, `twoThirdsThird`. Leave out the ones you don't want. Icons: `@statikbe/trinity/icons/layouts/<value>.svg`.
Cells field (`gridCells`)	A Matrix field in cards view, max 3 entries: one cell per column, left to right.
Cell entry types (`cell…`)	One entry type per kind of column content, e.g. `cellText`, `cellImage`. Their handle without the prefix is the cell's type in templates and CSS (`cellText` → `text`).
Mobile order field (`mobileOrder`)	A Dropdown with the options Auto (empty value), `1`, `2`, `3`, on every cell type.

The layouts are fixed: the validation, the conditions and the control panel layer are built around them.

Layout	Columns
`full`	1
`halves`	1/2 + 1/2
`thirds`	1/3 + 1/3 + 1/3
`thirdTwoThirds`	1/3 + 2/3
`twoThirdsThird`	2/3 + 1/3

Run php craft trinity/doctor to check the setup.

Configuration

Create config/trinity.php. Every setting is optional. Widths are fractions of the full page width, e.g. 2 / 3.

<?php

return [
    '*' => [
        // Pages where the content builder is narrower than the page (e.g. next to a sidebar), by entry type or section handle
        'pageWidths' => [
            'entryTypes' => ['pageWithSidebar' => 2 / 3],
            'sections' => [],
        ],
        // Cell types that need at least / can be at most this width of the page
        'minWidthPerType' => ['cellTable' => 1 / 2],
        'maxWidthPerType' => ['cellQuote' => 1 / 2],
        // Pairs of cell types that can't share a row
        'blockedCombinations' => [['cellQuote', 'cellFaq']],
    ],
];

Setting	Default	What it does
`rowEntryType`	`'gridRow'`	Handle of the row entry type
`layoutField`	`'gridLayout'`	Handle of the layout Button Group
`cellsField`	`'gridCells'`	Handle of the cells Matrix
`mobileOrderField`	`'mobileOrder'`	Handle of the mobile order Dropdown on every cell type
`cellTypePrefix`	`'cell'`	Prefix stripped from cell type handles to get their type (`cellText` → `text`)
`minColumnWidth`	`1 / 4`	Narrowest a column may be on the page; layouts with narrower columns aren't allowed (1/3 columns on a 2/3 page)
`pageWidths`	none	`entryTypes` / `sections` => `[handle => width]`: pages where the content builder is narrower than the page. An entry type wins over its section.
`narrowFromViewport`	`980`	Viewport width (px) from which those pages show the builder at that width; full width below it (for image sizes)
`minWidthPerType`	cards, table, FAQ, embed, form: `1 / 2`	Cell type handle => minimum width on the page. Your list replaces the default one.
`maxWidthPerType`	none	Cell type handle => maximum width on the page. A type with a maximum below full can't fill a row on its own.
`blockedCombinations`	none	Pairs of cell type handles that can't be in the same row. The same handle twice allows at most one of that type per row.
`containers`	`[480 => 448, 660 => 628, 820 => 788, 980 => 948, 1200 => 1168]`	Viewport width => page container width (px), matching your CSS; for image sizes
`columnGap`	`48`	Gap between columns (px), matching your CSS
`columnMinWidth`	`256`	Narrowest a column gets (px) before the row stacks its columns
`mobileSize`	`'95vw'`	Image size below the first container breakpoint

Widths on narrower pages

Every column on a page with a narrower content builder is that much narrower, and cell types are checked against that effective width: 1/2 + 1/2 on a 2/3 page is 1/3 of the page each. With the default minColumnWidth of 1/4:

Page width	Layouts	Column widths on the page
full	all	1, 1/2, 1/3, 2/3
3/4	all	3/4, 3/8, 1/4, 1/2
2/3	`full`, `halves`	2/3, 1/3

A row must sit directly in the page's content builder: its owner is the page.

Templates

Trinity renders no markup. In your row template, get the row's data with craft.trinity.row() and include a template per cell type:

{% set grid = craft.trinity.row(block) %}

<div class="grid grid-cols-1 gap-x-12 @container" data-row-layout="{{ grid.layout }}" data-row-cells="{{ grid.cellTypes|join(' ') }}">
    {% for column in grid.columns %}
        <div class="@container min-w-0" data-cell="{{ column.type }}">
            {% include '_grid/_' ~ column.type with { cell: column.cell, column: column } %}
        </div>
    {% endfor %}
</div>

craft.trinity.row(block) returns:

Key	What it is
`layout`	The layout value, e.g. `thirdTwoThirds` (`full` when none is chosen)
`pageWidth`	Width of the content builder on this page, e.g. `0.6667`
`breakpoint`	Row width (px) from which the columns sit side by side: their narrowest column is then `columnMinWidth` wide (560 for halves, 864 for layouts with a 1/3 column)
`cellTypes`	The cells' types, left to right, e.g. `['text', 'image']`
`columns`	Per cell, left to right: `cell` (the entry), `type`, `fraction` (share of the row), `width` (share of the page), `mobileOrder` (position while stacked, or `null` when every column is on Auto), `sizes` and `srcsetSizes` (for an image that fills the column)

Cells beyond the layout's columns (the layout was changed without removing them) come last with a fraction of 1; validation prevents saving that.

Fields of a cell that its field layout hides (any field condition, e.g. Column width) are emptied before you get the cell, so their last value never shows. For other elements, check craft.trinity.showsField(element, 'handle') before using a field with a condition: a hidden field keeps its last value.

Twig	Returns
`craft.trinity.row(row)`	The row data above
`craft.trinity.showsField(element, handle)`	Whether a field is shown for this element, following its field condition
`craft.trinity.pageWidth(page)`	Width of the content builder on this page
`craft.trinity.imageSizes(layout, fraction, pageWidth)`	`sizes` and `srcsetSizes` for an image filling such a column
`craft.trinity.settings`	The settings

CSS

Use container queries, not viewport breakpoints: the same row can be on a full-width page or next to a sidebar.

Columns side by side: from breakpoint (the row's width), e.g. container sizes --container-cols-2: 560px and --container-cols-3: 864px with @cols-2:grid-cols-2 / @cols-3:grid-cols-3. Change columnMinWidth / columnGap together with them.
Mobile order: below the breakpoint, give each column order-{{ column.mobileOrder }} when it's set. Only the visual order changes; the source order (screen readers, tabbing) stays left to right.
Image sizes follow containers, columnGap and narrowFromViewport: keep them in sync with your CSS. A mismatch only gives slightly wrong sizes, never a broken layout.

Field conditions

In a field layout, open a field's settings → Visibility Conditions → Entry Condition:

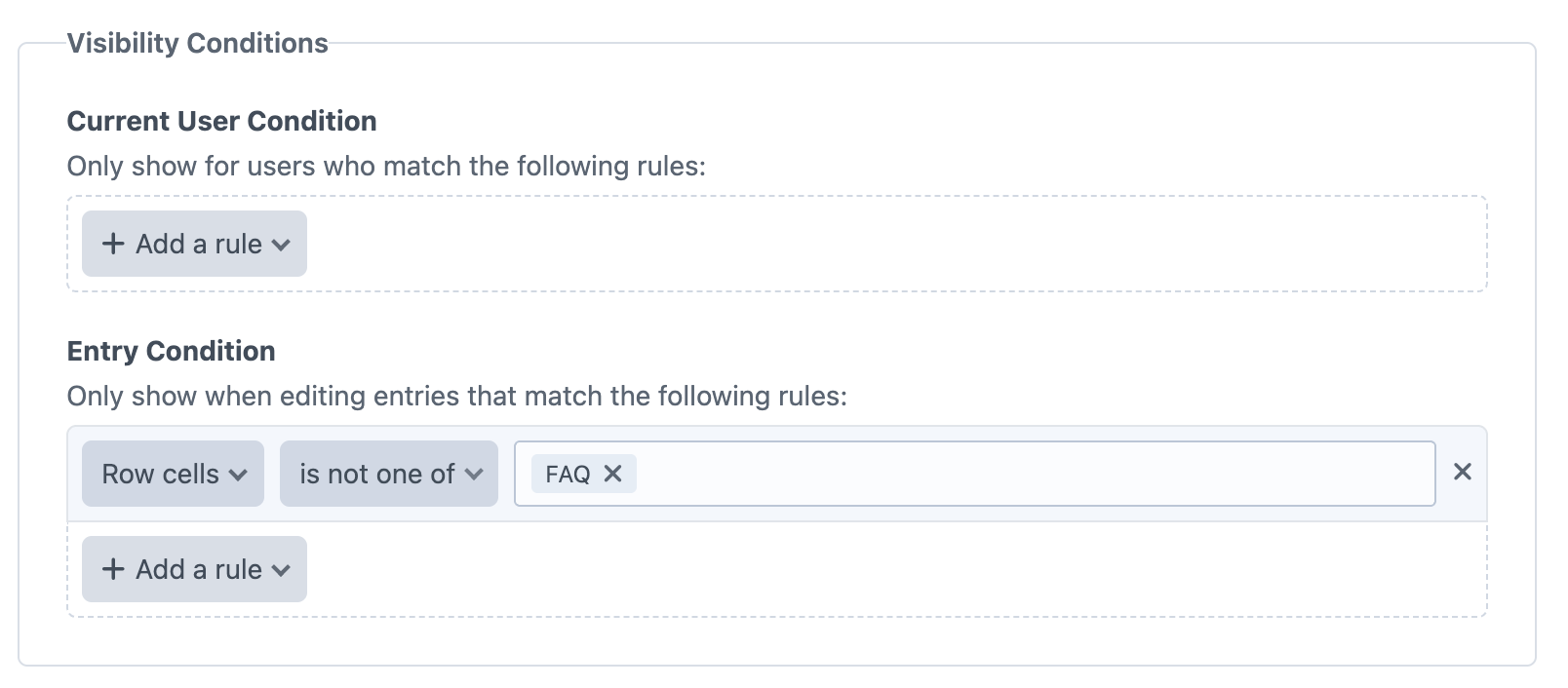

Row cells (in the row entry type's layout): whether the row has a cell of one of the chosen types, e.g. a background colour only when the row has no FAQ. The control panel re-checks it when cells are added or removed.
Column span (in a cell type's layout): the cell's share of the row: full row, 2/3, 1/2 or 1/3 of the row, the same on every page. For conditions about the layout, e.g. a field only when the cell has the row to itself.

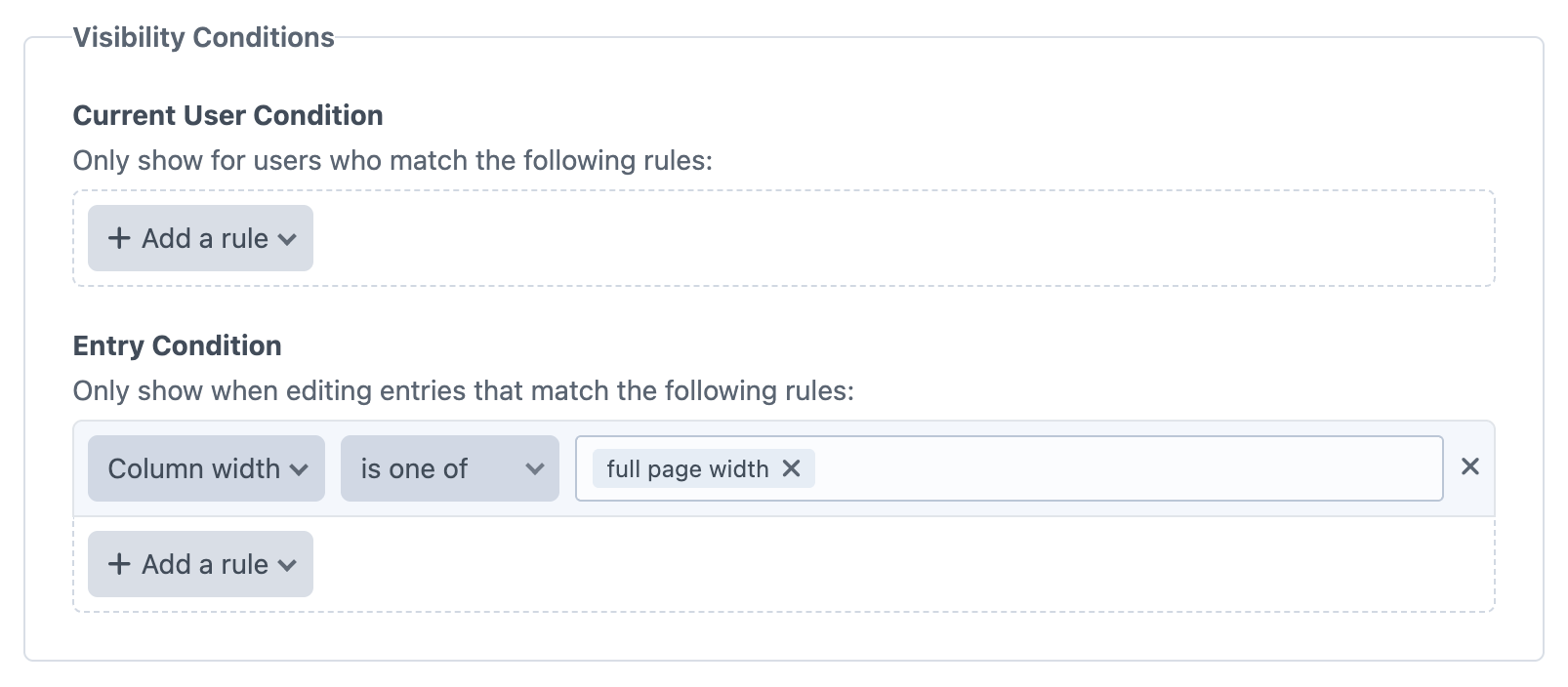

Column width (in a cell type's layout): the cell's effective width on the page, e.g. 1/3 of the page for a 1/2 column on a 2/3 page. For conditions about room, e.g. is not one of 1/4, 1/3 of the page for a field that needs some width.

Column span and Column width are only offered in the layouts of cell types (layouts with the mobile order field). A cell outside a row has no column: is not one of matches it. Their values are stored as hundredths (100, 67, 50, 33, …).

Control panel

On the cells field, Trinity:

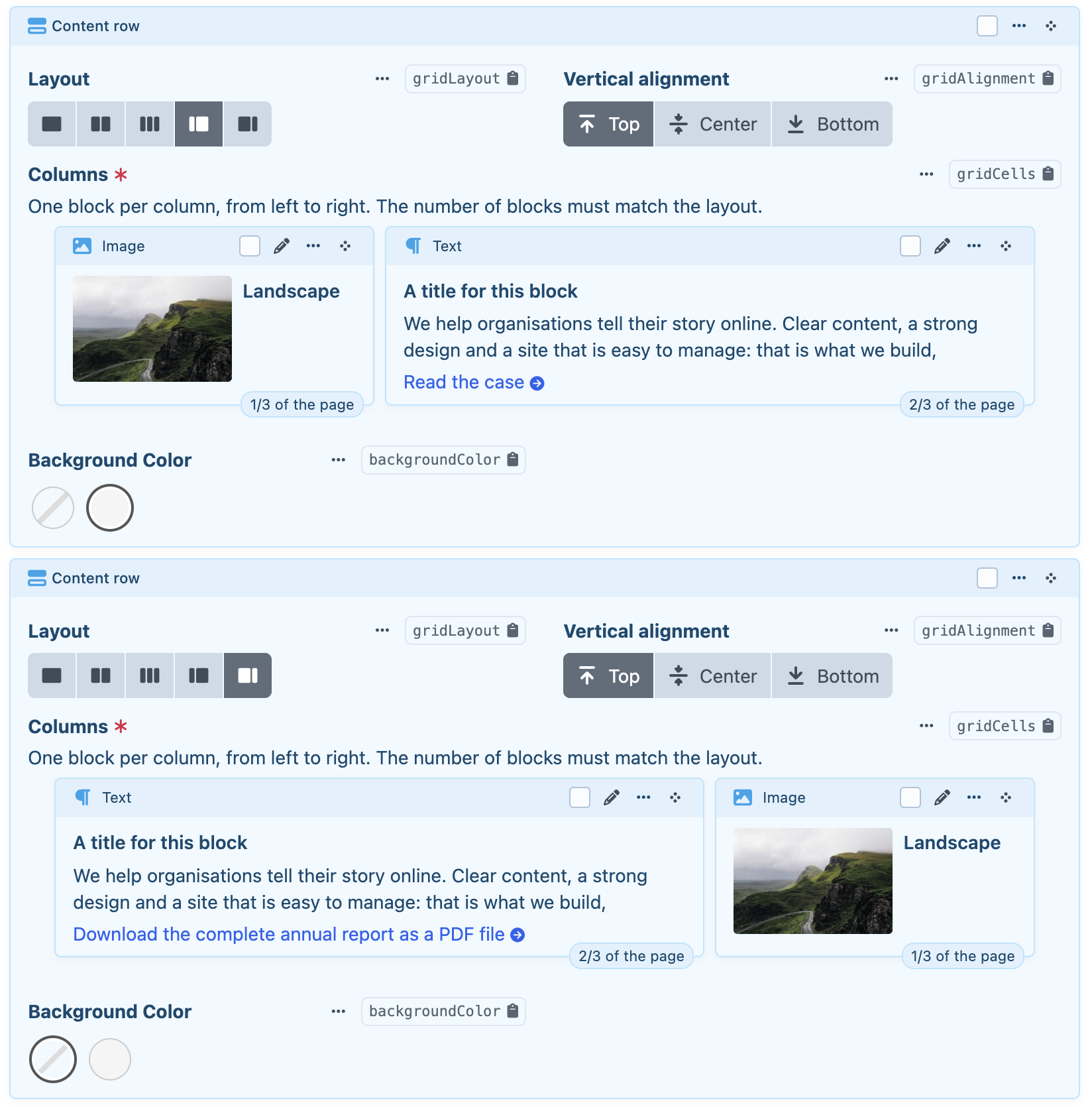

lays out the cell cards like the row's columns, each with its width on the page;

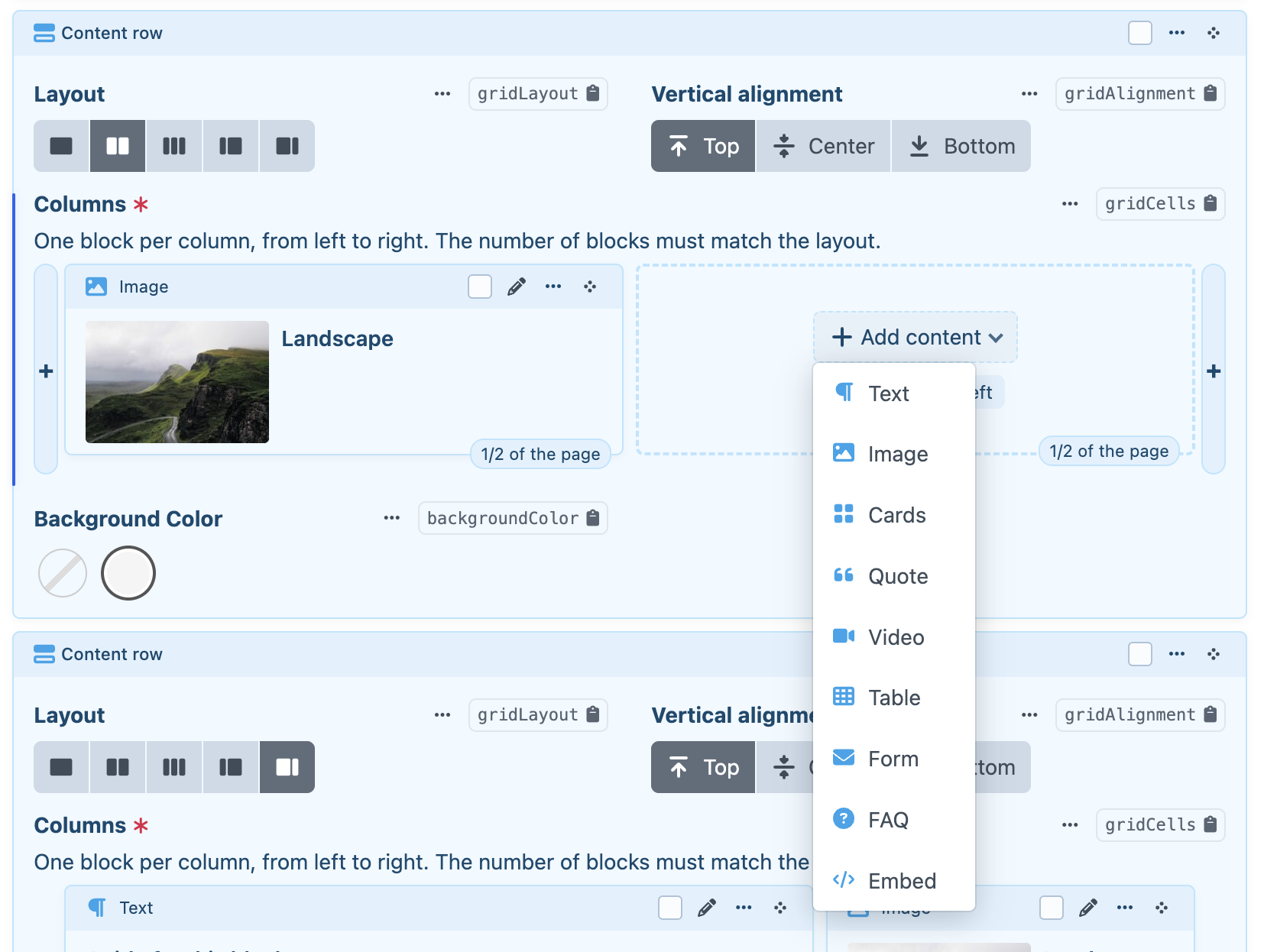

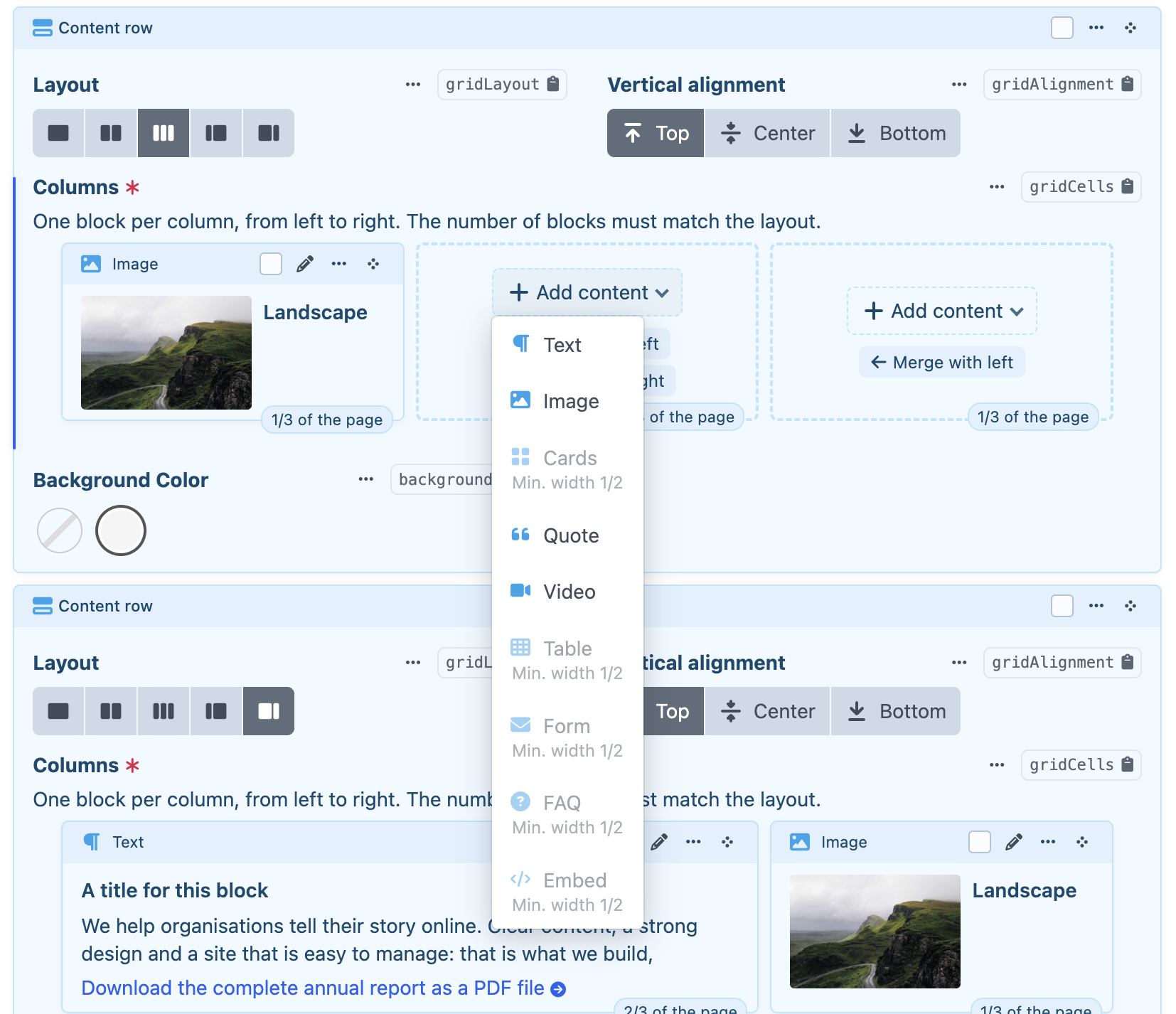

shows empty columns, with an Add content menu that lists the types that fit (others disabled, with the reason) and buttons to merge an empty column with the one next to it;
adds a column on the left or right (up to 3, as far as the page allows);
hides the layouts that can't be used on the page;
moves a cell dragged onto an empty column of another row (it's duplicated there and deleted here, in the page's draft, so discarding the draft undoes it);
puts the row's errors back on its fields after a failed save.

Empty columns only exist in the control panel: saving a row with fewer cells than columns fails validation. The layer is made for a content builder Matrix in blocks view (inline-editable blocks).

Validation

On live saves (drafts and autosaves can be incomplete), a row must have:

a layout that's allowed on its page;
one enabled cell per column;
every cell type within its minimum and maximum width;
no blocked combinations.

Events

use statikbe\trinity\events\DefinePageWidthEvent;
use statikbe\trinity\events\RegisterPageWidthsEvent;
use statikbe\trinity\services\Rows;
use yii\base\Event;

// The width of the content builder on a page, for pages pageWidths can't describe
Event::on(Rows::class, Rows::EVENT_DEFINE_PAGE_WIDTH, function(DefinePageWidthEvent $event) {
    if ($event->page->slug === 'narrow-page') {
        $event->width = 3 / 4;
    }
});

// Widths set through the event above, so "Column width" offers the column widths on those pages
Event::on(Rows::class, Rows::EVENT_REGISTER_PAGE_WIDTHS, function(RegisterPageWidthsEvent $event) {
    $event->widths[] = 3 / 4;
});

Adding a cell type

Create the entry type with the prefix (cellMap), add the mobile order field, and add it to the cells field.
Add its template (_grid/_map.twig, or wherever your row template includes it).
Optional: a minimum or maximum width (minWidthPerType / maxWidthPerType) or blocked combinations.

Validation, the control panel and the conditions pick it up automatically. Run php craft trinity/doctor.

Translations

The control panel texts are in English, Dutch and French (src/translations). To change one, add translations/<language>/trinity.php to your project.

License

MIT, see LICENSE.md.
