README

StackNuts Cloudflare Cache

Cloudflare as a first-class Full Page Cache type for Magento 2, right there in Stores → Configuration → Advanced → System → Full Page Cache, next to Built-in and Varnish, with cache tag support for only clearing content that's actually changed.

Why

Most Cloudflare integrations for Magento 2 just add support for clearing the whole cache and administering Cloudflare's settings from the Magento admin. Cloudflare never becomes a first-class choice in the admin, and cache invalidation stays all-or-nothing: any change purges everything, whether it's one product or the whole catalog.

This module takes the same approach Magento uses for Varnish itself: it adds "Cloudflare" as a genuine caching_application option, and wires purge requests into the same core events (clean_cache_by_tags, adminhtml_cache_flush_all, etc.) that Magento_CacheInvalidate uses for Varnish, just pointed at the Cloudflare API instead of a Varnish host. Magento's own tag generation (X-Magento-Tags) is untouched; this module mirrors it into a Cloudflare Cache-Tag response header on every cacheable page, which is what makes the targeted tags purges below possible.

Why Cloudflare instead of Varnish?

Varnish remains very fast when the request has already reached infrastructure close to the customer. Cloudflare adds value when traffic is geographically distributed, because the response can be served from an edge location near the shopper and the same control plane can handle caching, WAF, bot rules, DNS, SSL, and DDoS protection.

Concern	Cloudflare	Varnish
Geographic reach	Serves cached responses from 300+ edge locations worldwide	Usually serves from one or a small number of origin locations
Core Web Vitals	For visitors far from the origin, serving cached HTML from a nearby edge can reduce network time and improve real-user TTFB and sometimes LCP	Requests generally travel to the Varnish location before the cached response is returned; the benefit depends more on origin geography
Configuration	Dashboard and API rules; no VCL deployment required	VCL gives detailed control, but changes require VCL/config management
Security and traffic controls	CDN, WAF, bot rules, DNS, SSL, and DDoS protection in one service	Primarily an HTTP cache; security controls generally come from other infrastructure
Existing ecosystem investment	A natural fit if DNS, WAF, bot management, SSL, DDoS protection, and other traffic controls already run in Cloudflare; caching stays in the same control plane	Adds another cache layer and operational surface alongside those existing Cloudflare services
Observability	Cache status, hit ratio, bandwidth, and threat/bot reporting, depending on plan	Detailed cache behavior is available at the Varnish layer; other traffic reporting needs additional tooling
Origin resilience	Existing edge-cached responses can continue to be served during a temporary origin outage when the relevant Cloudflare settings allow it	Cached responses can survive some origin failures, but the cache is still located near the origin
Cache invalidation	This module can purge Cloudflare by Magento cache tags or flush the zone	Magento can invalidate Varnish through its native cache invalidation integration

Caching primarily improves network time and TTFB, which can contribute to better LCP for geographically distant visitors; it does not guarantee an improvement to every Core Web Vital. Measure the effect with real-user data such as CrUX, Search Console, or your RUM tooling.

The security, bot-management, origin-resilience, and observability features available in Cloudflare depend on the account plan and enabled settings. Confirm the capabilities of your plan before treating them as part of the caching design.

Installation

composer require stacknuts/magento-cloudflare-cache
bin/magento module:enable StackNuts_CloudflareCache
bin/magento setup:upgrade

The module requires PHP 8.1-8.4 and Magento components matching the version constraints in composer.json.

Quick start

Create a Cloudflare API token with Zone → Cache Purge permission for the storefront zone.
Add a Cloudflare Cache Rule for the storefront hostname with Eligible for cache and Edge TTL/Browser TTL set to Respect origin TTL.
Select Cloudflare as Magento's Caching Application, then enter the Cloudflare Zone ID and API Token under Cloudflare Configuration.
Run bin/magento stacknuts:cloudflare-cache:healthcheck and confirm the storefront changes from cf-cache-status: MISS to HIT on the next request.

See Detailed configuration below for purge modes, tag exclusions, the delayed purge queue, debug headers, and logging.

Detailed configuration

In the Cloudflare dashboard, create an API token scoped to Zone → Cache Purge for the zone you want to manage.
Add a Cache Rule for your storefront hostname (Caching → Cache Rules): hostname equals your store's domain, action Eligible for cache, Edge TTL and Browser TTL both Respect origin TTL. This step is required: Cloudflare does not cache HTML by default, only recognized static file extensions, so without this rule the module's purges have nothing to do and every page request shows cf-cache-status: DYNAMIC or BYPASS regardless of how caching is configured in Magento. "Respect origin TTL" matters too: Magento already sends the correct Cache-Control per page (public for cacheable pages, private/no-store for cart, checkout, customer account, admin), so overriding the edge TTL instead of respecting origin risks caching pages Magento explicitly marked private.
In Magento admin, go to Stores → Configuration → Advanced → System → Full Page Cache, and set Caching Application to Cloudflare.
Under the new Cloudflare Configuration section, enter the Zone ID (from the Cloudflare dashboard's zone Overview page) and the API Token.
Choose a Purge Mode:
- Purge by tag (default, recommended): targeted purges using Magento's own cache tags (cat_p_123, cms_p_45, etc.), mirrored into Cloudflare's Cache-Tag response header and purged via the tags API parameter, so saving one product only clears that product's pages. Available on every Cloudflare plan, but purge-request rate limits scale with plan (Free: 5 requests/minute; Pro: 5/second; Business: 10/second; Enterprise: 50/second), each request covering up to 100 tags. A very high-traffic Free/Pro store doing frequent saves could hit that limit.
- Full flush only: entity saves (product/category/CMS edits, etc.) never purge Cloudflare on their own. Only a global cache event (admin "Flush Cache Storage"/"Flush Magento Cache", a media/catalog-image cache clean, a cache-type refresh, or a theme reassignment) sends a purge_everything request. This avoids ever purging the whole zone over a single product edit, but it also means an edited page keeps serving the old Cloudflare-cached version until you purge it manually (Cloudflare dashboard or API) or its edge TTL expires.
In "Purge by tag" mode, optionally add Excluded Tag Patterns for tags that should never be sent to Cloudflare. Four patterns are excluded by default, none of which could ever appear in the Cache-Tag header of an actual Cloudflare-cached page (the plugin that sets that header only fires on HTML page rendering), so purging them just wastes purge-request quota for no effect:
- gql_* and inv_pl* - GraphQL resolver-cache tags (store config, currency, country, media gallery, in-store pickup locations), which relate to GraphQL response caching, not page caching.
- wishlist_* and compare_item_* - per-customer/per-visitor private content that Magento always keeps out of the shared page cache, never baked into a page any other visitor would see.
End a pattern with * to match a prefix (e.g. gql_* matches gql_store_config_1), or enter a tag exactly to match only that one. Applies whether the delayed purge queue below is on or off. Remove any of the defaults from the admin list if they turn out not to apply to your setup.
In "Purge by tag" mode, optionally enable the Delayed Purge Queue for high-traffic stores approaching the rate limits mentioned above:
- Enable Delayed Purge Queue: off (default) purges every tag instantly on save, exactly as above. On, tags are queued in a small database table instead and batched into a single purge on the schedule below - a burst of saves close together sends one purge request instead of one per save.
- Queue Run Frequency (minutes): how often the queue is drained, default 5. This directly controls the cron job's actual schedule (not just an in-code check), so it genuinely doesn't run more often than this. Requires cron to be running (bin/magento cron:run, or the system crontab).
- Backlog Alert Threshold: pending tag count above which an admin warning banner appears, default 50. Adjust based on your store's normal save volume.
A purge that fails is retried once on the next drain, then given up on, so one persistently-failing tag or a Cloudflare outage can't wedge the queue open indefinitely.
Optionally enable Add Debug Header. Cloudflare's edge strips the Cache-Tag header before it reaches the client, so there's normally no way to see which tags a page carries from outside the module. This mirrors the same tag list into an X-Cache-Tags response header instead, viewable in any browser's network tab, useful for confirming a page is tagged the way you expect without needing dashboard or API access.
Optionally adjust Log Level, default "Warning". Set to "Info" or "Debug" temporarily when troubleshooting a specific issue - Info logs every successful purge, which adds up quickly on a busy store not using the delayed queue. Set to "Off" to disable logging entirely.

Monitoring the delayed purge queue

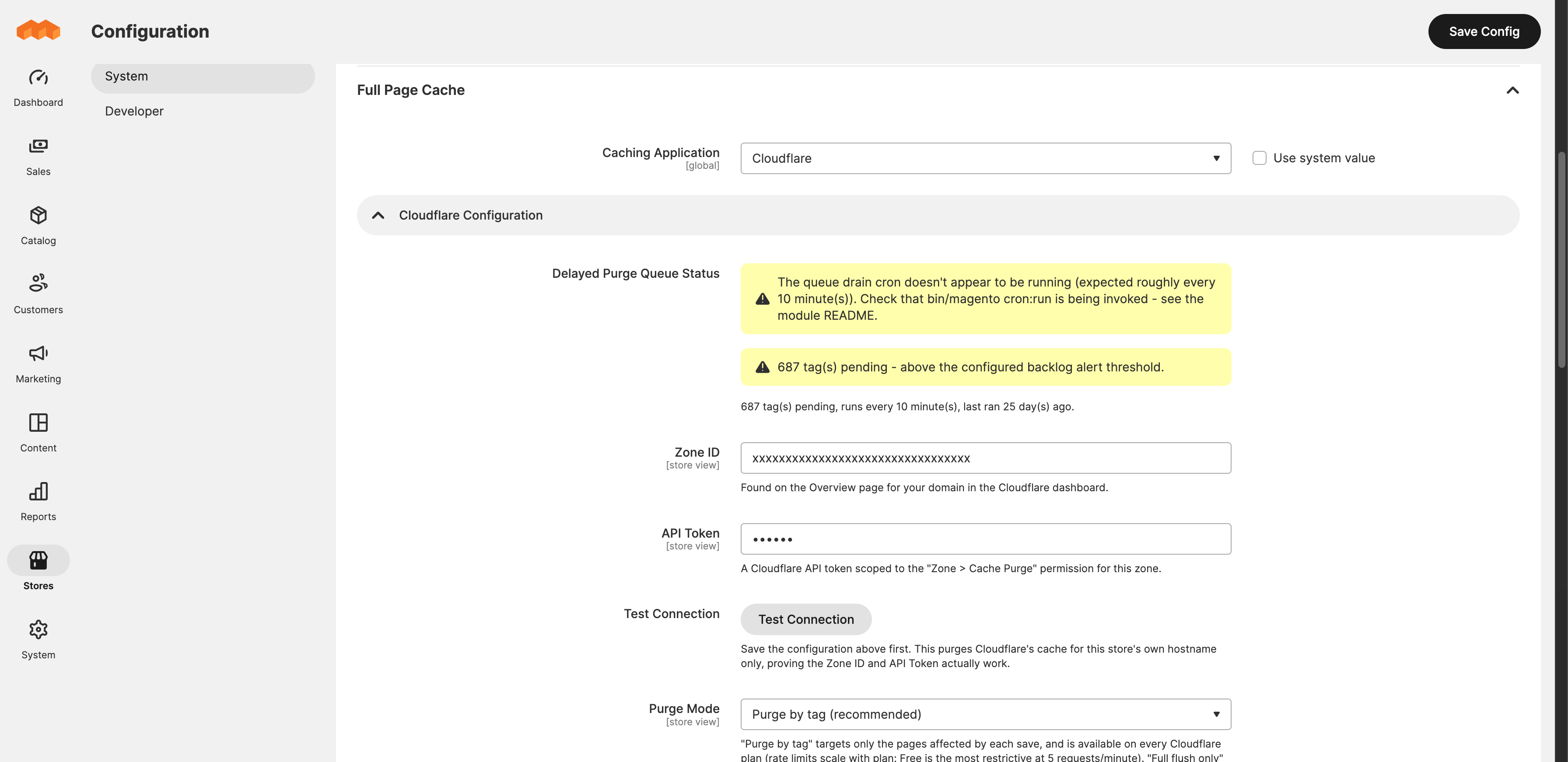

A Delayed Purge Queue Status overview sits at the top of the Cloudflare Configuration section (Stores → Configuration → Advanced → System → Full Page Cache) whenever the queue is enabled: pending tag count, configured run frequency, and when the drain cron last actually fired (tracked independently of whether there was anything to drain, so a healthy empty queue doesn't look like stalled cron).

If the queue is backlogged (pending count above the Backlog Alert Threshold) or the drain cron doesn't appear to be running (no run in roughly 3x the configured frequency), a warning banner also appears across every admin page, not just the configuration screen - so this doesn't require anyone to remember to go check it.

CLI

# Purge everything
bin/magento stacknuts:cloudflare-cache:purge --all

# Purge specific tags (only takes effect in "Purge by tag" mode)
bin/magento stacknuts:cloudflare-cache:purge cat_p_123 cms_p_45

Checking whether Cloudflare is actually caching

The admin "Test Connection" button (next to the API Token field) only proves the Zone ID/API Token are valid. It doesn't prove Cloudflare is actually caching and purging your storefront. For that, use:

bin/magento stacknuts:cloudflare-cache:healthcheck

This makes real HTTP requests to your store's public URL (through whatever DNS/proxy path a real visitor uses) and runs the same checks worked out by hand while building this module: that the response actually passed through Cloudflare, that Magento marked the page publicly cacheable, that no Set-Cookie header leaked onto a cacheable response (Cloudflare silently refuses to cache anything carrying one), and that a second request comes back as cf-cache-status: HIT. It purges the tested hostname first for a clean MISS → HIT proof (add --skip-purge to just inspect current headers instead), and exits non-zero if any check fails. Safe to run after a live/production deploy as an automated health check. Use --url to test a specific page instead of the default store's base URL.

When the Delayed Purge Queue is enabled, this also proves the queue actually works rather than just reporting how many tags are currently waiting in it: it takes a real tag from the cached page's own X-Magento-Tags header, pushes it through the same queue a real save would, forces an immediate drain (bypassing the cron schedule so the check doesn't have to wait), and fetches the page a third time to confirm it's no longer served from cache. This proves the write to the queue, the drain, and the actual Cloudflare purge all work, not just that rows can be written to a table.

Logging

Purge attempts and failures are logged to var/log/stacknuts_cloudflare_cache.log, at a severity controlled by the Log Level setting above (default: Warning - configuration problems, drain failures, and the header-size warning, but not the Info-level "purge succeeded" line that fires on every single purge).

License

MIT. See LICENSE.
