patel/biometric-2fa-bundle

Symfony bundle for biometric 2FA using WebAuthn

v1.0.0 2025-05-19 10:02 UTC

Requires

• php: ^8.3
• doctrine/dbal: ^4.2
• lbuchs/webauthn: ^2.1
• symfony/framework-bundle: ^6.3 || ^7.0

MIT

README

Symfony bundle for biometric 2FA using WebAuthn

patel/biometric-2fa-bundle is a Symfony bundle that enables biometric two-factor authentication (2FA) using WebAuthn with support for customizable user device storage, redirect paths, and logout integration.

🚀 Installation

composer require patel/biometric-2fa-bundle

Then enable the bundle in config/bundles.php (if not auto-loaded):

return [
    Biometric2FA\Biometric2FABundle\Biometric2FABundle::class => ['all' => true],
];

⚙️ Configuration

Create a config file:

# config/packages/biometric_2fa.yaml
biometric_2fa:
  rp_id: "localhost"
  rp_name: "Test App"
  device_entity: 'App\Entity\UserDevice'
  redirect_path: 'app_dashboard'
  logout_path: 'app_logout'

add this in doctrine.yaml

types:
    blob_string: Biometric2FA\Doctrine\DBAL\Types\BlobStringType

load bundle routes, (config/routes.yaml)

biometric_2fa:
    resource: '@Biometric2FABundle/Resources/config/routes.yaml'

add this in service.yaml, This line tells Symfony that whenever a service (like a controller or helper) needs the UserDeviceRepositoryInterface, it should use your actual UserDeviceRepository class.

Without it, Symfony cannot auto-wire the interface because interfaces can’t be instantiated, and you haven’t told Symfony which class to use.

Biometric2FA\Repository\UserDeviceRepositoryInterface: '@App\Repository\UserDeviceRepository'

🧩 Database Setup

Your app must implement a concrete UserDevice entity that extends the bundle's abstract class, and map User entity with it, so we can store user devices.

use Biometric2FA\Entity\UserDevice as BaseDevice;

class UserDevice extends BaseDevice
{
    #[ORM\ManyToOne(targetEntity: User::class)]
    #[ORM\JoinColumn(nullable: false)]
    private BiometricUserInterface $user;

    public function getUser(): BiometricUserInterface
    {
        return $this->user;
    }

    public function setUser(BiometricUserInterface $user): static
    {
        $this->user = $user;

        return $this;
    }
}

And a repository class that implements:

use Biometric2FA\Repository\UserDeviceRepositoryInterface;

class UserDeviceRepository extends ServiceEntityRepository implements UserDeviceRepositoryInterface
{
    public function getCredentialsForUser(UserInterface $user): array
    {
        return $this->createQueryBuilder('d')
            ->select('d.credentialId')
            ->where('d.user = :user')
            ->setParameter('user', $user)
            ->getQuery()
            ->getSingleColumnResult();
    }
}

🧠 User Interface Requirements

Your User entity should implement:

use Biometric2FA\Security\BiometricUserInterface;

class User implements BiometricUserInterface
{
    private bool $enableBioMetricsFor2fa = false;

    public function isBiometric2FAEnabled(): bool
    {
        return $this->enableBioMetricsFor2fa;
    }

    public function setBiometric2FAEnabled(bool $enabled): void
    {
        $this->enableBioMetricsFor2fa = $enabled;
    }
}

🛡️ Routes

The bundle exposes the following biometric routes (protected):

Route Name	Path	Purpose
app_biometric_auth	/biometric/auth	Biometric login UI
bio_metrics_get_args	/biometric/get-args	Generate WebAuthn challenge args
bio_metrics_create_args	/biometric/create-args	Setup credentials challenge args
bio_metrics_process_create	/biometric/process-create	Save credential
bio_metrics_verify	/biometric/verify	Verify login assertion
bio_metrics_bio_metrics_settings	/biometric/settings	For enable/disable biometric

✨ Usage in Twig

Biometric Settings UI:

<a href="{{ path(logout_path) }}">Logout</a>

📦 Features

• WebAuthn support for biometric authentication
• Device registration and secure verification
• Customizable redirect/logout path via config
• Event subscriber to enforce biometric check post-login

🧪 Testing

Ensure you call:

php bin/console doctrine:schema:update --force

Register your fingerprint and enable biometric login from the settings page.

📄 License

This bundle is released under the MIT License.

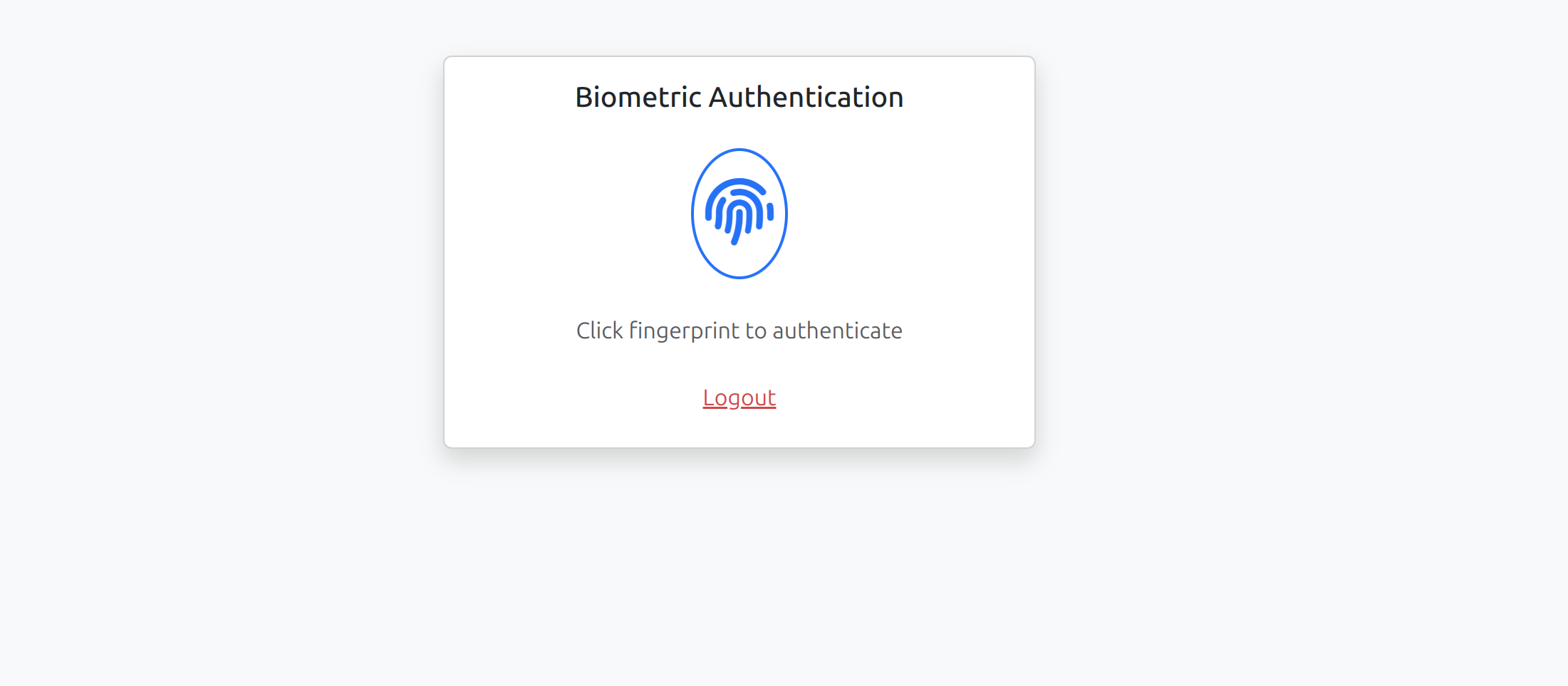

🔐 Biometric Authentication Flow

This screen prompts the user to authenticate using a biometric method such as fingerprint or Face ID. It appears automatically when biometric 2FA is required after login.

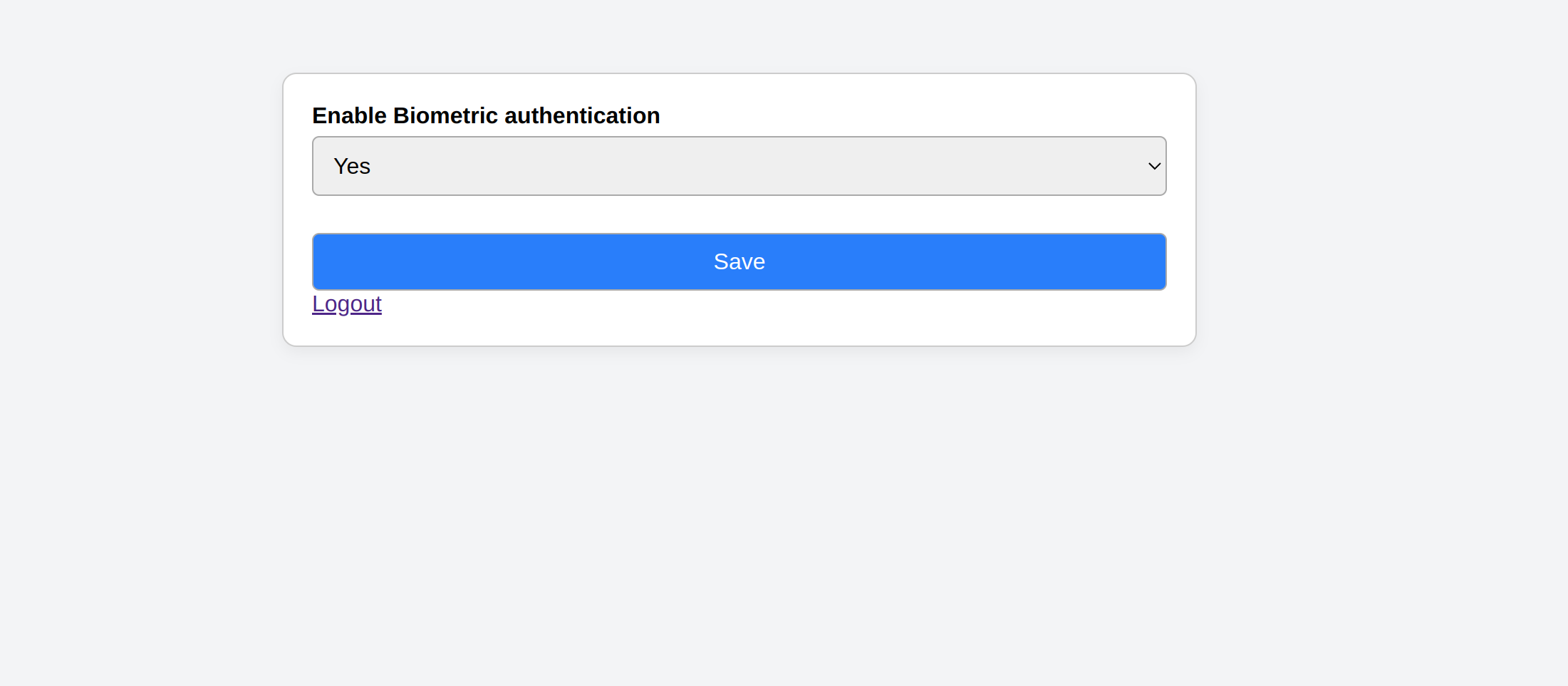

⚙️ Settings Page

This page allows users to enable or disable biometric authentication for their account. Changes are saved securely and reflected immediately in the login flow.

✨ Template Override Guide

You can fully override the default templates provided by the bundle while keeping the JavaScript functionality working.

✅ Required Steps

1. Include the JS files in your custom layout:

<script src="{{ path('common_biometrics_js') }}"></script>
<script src="{{ path('register_biometrics_js') }}"></script>
<script src="{{ path('verify_biometrics_js') }}"></script>

1. Use the following data-* attributes in your HTML to ensure JavaScript works correctly:

Purpose	Required Attribute
Biometric Auth Button	data-biometric-auth
Settings Form	data-biometric-settings-form

✅ Example Override for Authentication Page

{% extends '@Biometric2FA/layout.html.twig' %}

{% block biometric_auth_content %}
    <button data-biometric-auth class="btn">Authenticate</button>
{% endblock %}

✅ Example Override for Settings Page

{% extends '@Biometric2FA/layout.html.twig' %}

{% block biometric_auth_content %}
    <form data-biometric-settings-form>
        ...
    </form>
{% endblock %}

✅ Flash Message Rendering (included in layout)

The layout automatically renders flash messages on page reload using Symfony's FlashBag.
