migliori / visual-diff-merge

v1.0.2 2026-09-30 18:23 UTC

Requires

• php: >=7.2 || ^8.0
• ext-json: *
• league/mime-type-detection: ^1.16
• matthiasmullie/minify: ^1.3
• sebastian/diff: ^4.0

Requires (Dev)

• phpunit/phpunit: ^9.0

Suggests

• ext-tidy: For better HTML formatting in CodeBeautifier
• ext-tokenizer: For better PHP code formatting in CodeBeautifier

GPL-3.0-or-later

Published on Packagist.org on 2026-10-01 04:37 UTC

README

Visual Diff-Merge is a web-based tool for comparing, selecting, and merging code changes. With a split-view interface, it lets you view two versions side by side for easy diffing and merging. Built with PHP and JavaScript, it supports automatic language detection and syntax highlighting for over 180 programming languages, including HTML, Twig, PHP, JavaScript, JSON, TypeScript, Python, Ruby, Java, C#, CSS, XML, YAML, Markdown, SQL, and many more.

🔥 Try it online at visual-diff-merge.miglisoft.com - No installation required!

🚀 Features

• Side-by-side comparison of files with syntax highlighting
• Interactive merge capability to select changes from either version
• Multiple comparison modes:
  • File Browser: Compare files from a server directory
  • File Upload: Upload and compare two local files
  • Text Compare: Paste code snippets directly for comparison
  • URL Compare: Compare content from two URLs
• Syntax highlighting powered by highlight.js with support for over 180 programming languages
• Responsive design that works on desktop and tablet devices
• Customizable themes with both dark and light modes
• Language internationalization support

🏁 Quick Start

Option 1: Use Online Version

Visit visual-diff-merge.miglisoft.com to use the tool immediately:

• Upload your files
• Paste code snippets
• Compare content from URLs
• (Note: File Browser mode has limited functionality in the online version)

Option 2: Install with Composer (recommended)

The fastest way to use Visual Diff Merge in your own PHP project:

composer require migliori/visual-diff-merge

This installs the PHP classes (VisualDiffMerge\ namespace, PSR-4) and the ready-to-use frontend assets under vendor/migliori/visual-diff-merge/dist/.

Minimal integration example:

require_once __DIR__ . '/vendor/autoload.php';

use VisualDiffMerge\Config;

// Inject host configuration BEFORE any Config::get() / init() call
Config::loadArray([
    'php' => [
        'security' => [
            'allowedDirectories' => ['/absolute/path/to/dir-a', '/absolute/path/to/dir-b'],
        ],
    ],
    'javascript' => [
        'apiBaseUrl' => '/vendor/migliori/visual-diff-merge/api/',
        'lang'       => 'en',
    ],
]);

Then load the assets from the vendor directory and initialize the JS component, e.g. in File Browser mode (only api/ and dist/ need to be web-accessible):

<script>
window.diffConfig = {
    apiBaseUrl: '/vendor/migliori/visual-diff-merge/api/',
    lang: 'en'
};
</script>
<script src="/vendor/migliori/visual-diff-merge/dist/diff-viewer.min.js"></script>
<script src="/vendor/migliori/visual-diff-merge/dist/file-browser.min.js"></script>
<script>
window.fileBrowserManager = new FileBrowserManager();
</script>

Note: since api/config.php lives inside vendor/ and is not editable, use Config::loadArray() (or Config::setConfigPath() pointing to a host-managed file) to supply your settings. Host values passed to Config::loadArray() always win over defaults.

Option 3: Self-hosted from Source

Visual Diff Merge is a client-server application that requires both PHP backend and JavaScript frontend:

1. Download or clone the repository
2. Configure your PHP environment (see Installation)
3. Copy api/config.example.php to api/config.php and adjust settings
4. Access one of the example files through a web server:
   • diff-viewer/file-browser.php - Browse and compare server files
   • diff-viewer/file-upload.html - Upload local files to compare
   • diff-viewer/text-compare.html - Compare text/code snippets
   • diff-viewer/url-compare.html - Compare content from URLs

📸 Screenshots

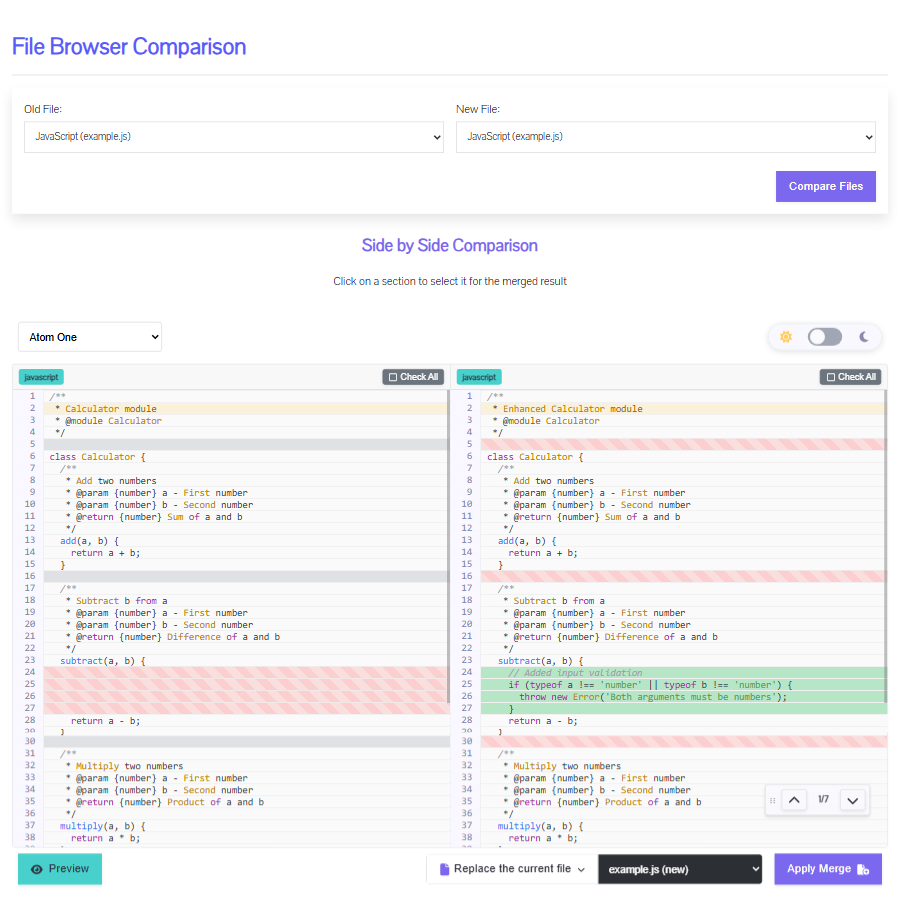

File Browser Mode

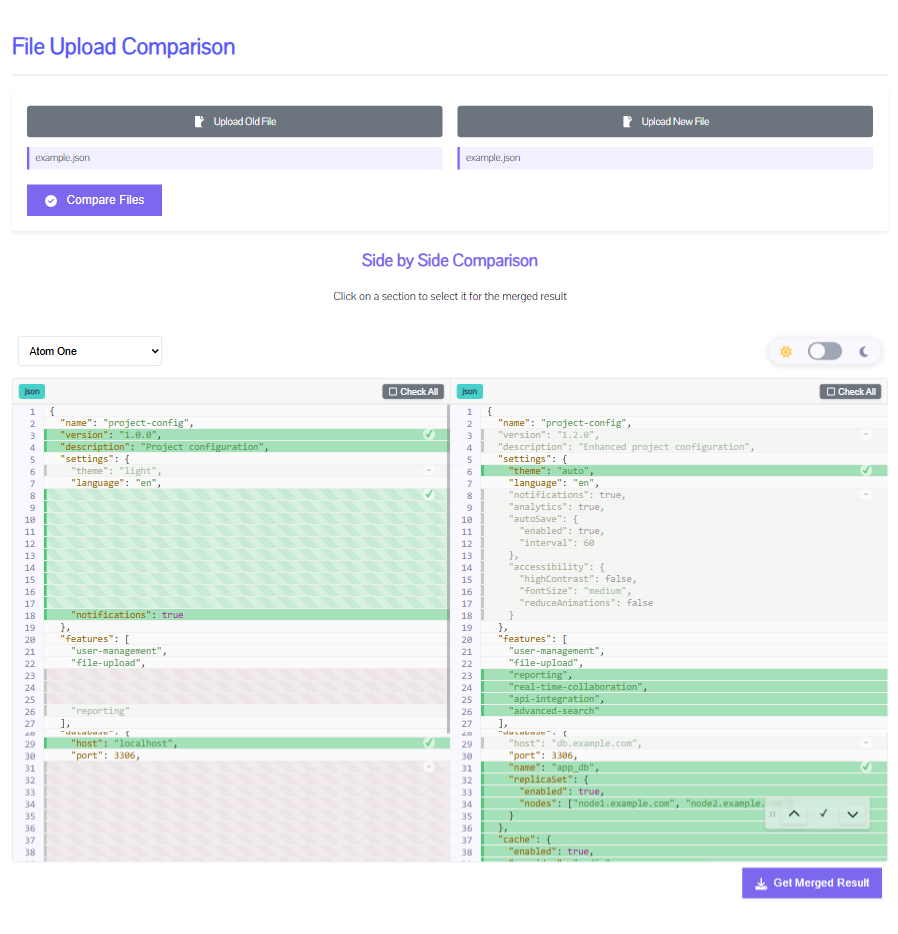

File Upload Mode

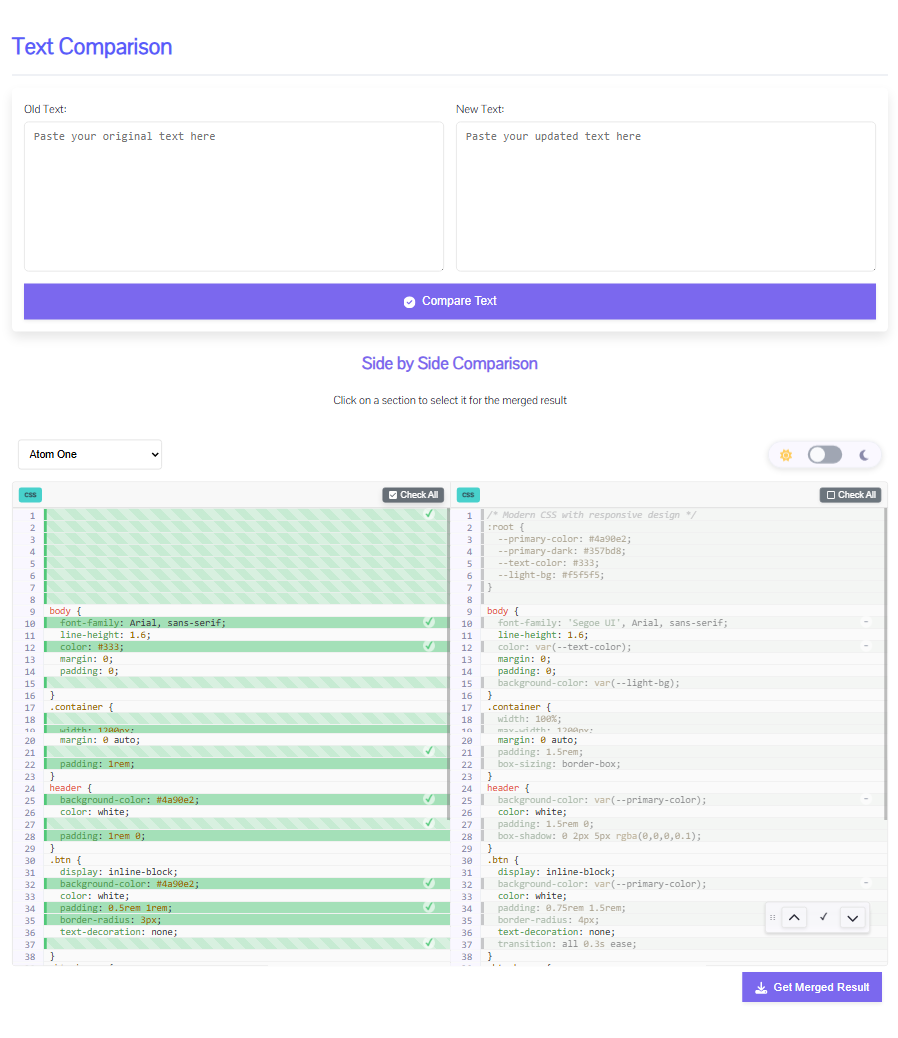

Text Compare Mode

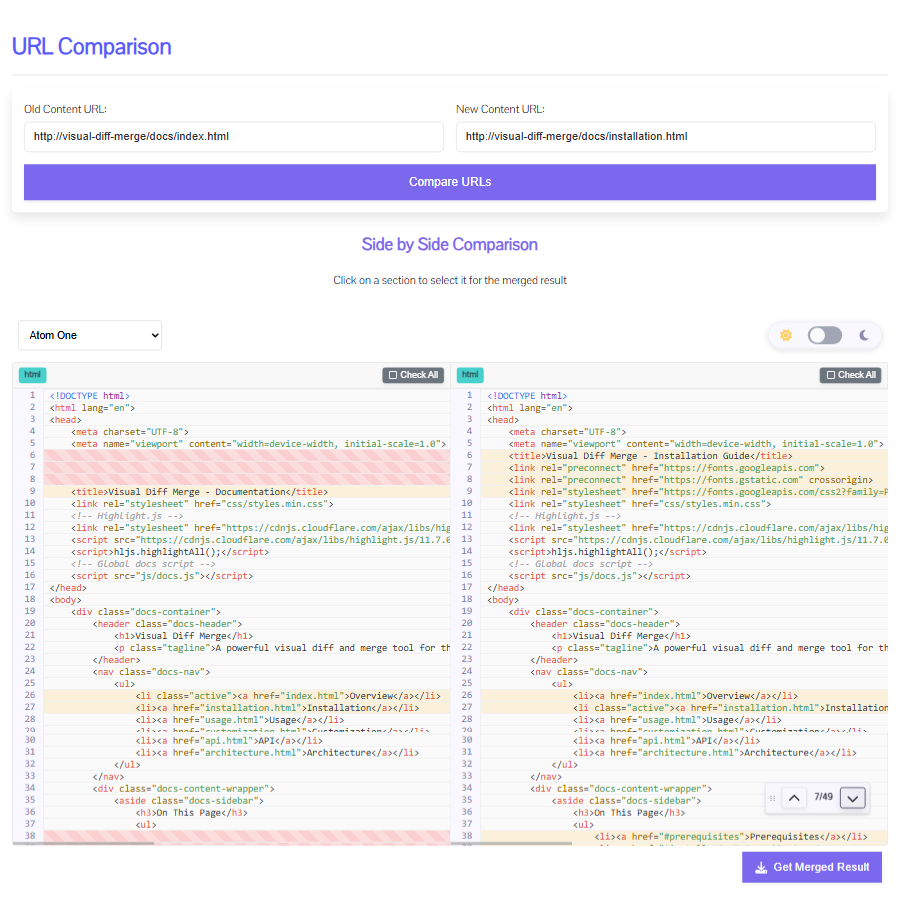

URL Compare Mode

🔧 Installation

Prerequisites

• PHP 7.4 or higher
• Web server (Apache, Nginx, etc.)
• Node.js 14.x or higher (for development only)
• npm 6.x or higher (for development only)

Server Setup

1. Clone the repository:

   git clone https://github.com/migliori/visual-diff-merge.git
   cd visual-diff-merge

2. Install PHP dependencies:

   composer install

3. Configure the project:

   • Copy api/config.example.php to api/config.php
   • Modify configuration options as needed (see Configuration)

4. Set up your web server to serve the project directory

   • Ensure PHP is properly configured
   • Make sure the api directory is accessible

📋 Usage Modes

Visual Diff Merge offers four distinct usage modes, each requiring specific files and setup:

1. File Browser Mode

• Required Files:
  • file-browser.php
  • file-browser.min.js
• Description: Browse files on the server and select two for comparison
• Example: diff-viewer/file-browser.php

2. File Upload Mode

• Required Files:
  • file-upload.html
  • file-upload.min.js
• Description: Upload two files from your local machine
• Example: diff-viewer/file-upload.html

3. Text Compare Mode

• Required Files:
  • text-compare.html
  • text-compare.min.js
• Description: Enter or paste code snippets to compare
• Example: diff-viewer/text-compare.html

4. URL Compare Mode

• Required Files:
  • url-compare.html
  • url-compare.min.js
• Description: Enter URLs to fetch and compare content
• Example: diff-viewer/url-compare.html

Each mode uses a specific manager component to handle its unique workflow before initializing the core DiffViewer component.

⚙️ Configuration

Visual Diff Merge uses a PHP configuration file to control both server and client behavior:

Main Configuration File

• Location: api/config.php (copy from api/config.example.php)
• Controls both PHP (server-side) and JavaScript (client-side) settings
• If no custom configuration file is created, the tool will use default settings as detailed in the documentation

Key Configuration Options

PHP Settings

'php' => [
    'debug' => [
        'enabled' => true,  // Enable server-side debugging
        'logLevel' => 3,    // Log verbosity level (1-3)
        'logFile' => 'debug-php-diff.log'  // Log filename
    ],
    'diff' => [
        'contextLines' => 3,  // Number of context lines around changes
        'ignoreWhitespace' => false,  // Ignore whitespace in comparisons
        'ignoreCase' => false  // Ignore case in comparisons
    ],
    // Security settings, path configurations, etc.
]

JavaScript Settings

'javascript' => [
    'lang' => 'en',  // Default UI language
    'debug' => false,  // Enable client-side debugging
    'logLevel' => 2,   // Client-side log verbosity level
    'theme' => [
        'defaultFamily' => 'atom-one',  // Syntax highlighting theme
        'defaultMode' => 'dark',  // Light or dark mode
        'showSelector' => true  // Show theme selector in UI
    ],
    // UI class customizations, translations, etc.
]

For complete configuration options, see the Configuration Documentation.

🏗️ Architecture

Visual Diff Merge follows a client-server architecture:

1. Backend (PHP):

   • Processes diff calculations via the DiffViewer PHP class
   • Provides API endpoints for file access and diff processing
   • Manages security and file system access

2. Frontend (JavaScript):

   • Mode-specific manager components handle UI interactions
   • Core DiffViewer component displays and manages diffs
   • Theme system provides syntax highlighting and UI theme options

See the Architecture Documentation for more details.

👨‍💻 Development

Building from Source

If you want to modify the source code:

1. Install Node.js dependencies:

   npm install

2. Development mode with auto-rebuild:

   npm run dev

3. Build for production:

   npm run build

Directory Structure

• src/ — Source JavaScript files
  • components/ — Core components including DiffViewer
  • utils/ — Utility functions
• php/ — PHP classes for backend processing
• api/ — PHP API endpoints
• dist/ — Compiled JavaScript files (generated)
• diff-viewer/ — Visual Diff Merge implementations
• docs/ — Documentation

🤝 Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

1. Fork the repository
2. Create your feature branch (git checkout -b feature/amazing-feature)
3. Commit your changes (git commit -m 'Add some amazing feature')
4. Push to the branch (git push origin feature/amazing-feature)
5. Open a Pull Request

📱 Browser Compatibility

• Fully supported: Chrome, Firefox, Safari, Edge (latest versions)
• Partial support: Internet Explorer 11
• Mobile: Works best on tablets; limited functionality on smartphones

📄 License

This project is licensed under the GNU General Public License v3.0 or later - see the LICENSE file for details.

👏 Acknowledgements

• highlight.js for syntax highlighting
• PHP-Diff for the diff generation

📚 Documentation: visual-diff-merge.miglisoft.com/docs/ 🌐 Website: visual-diff-merge.miglisoft.com 💬 Issues: GitHub Issues
