End-user-configurable dashboards for Filament v4/5 — drag, resize, and move widgets across named sections, with layouts defined as plain JSON files.

Introduction

Filament Dynamic Dashboard turns Filament's static widget grid into a fluid, end-user-configurable dashboard system. Drag widgets anywhere on the canvas, resize them from any corner, move them between named sections, and the layout persists in a single round-trip.

Widgets carry size constraints declared on the class itself, so a chart can lock its height while still letting users resize width; container resizes propagate to chart libraries automatically.

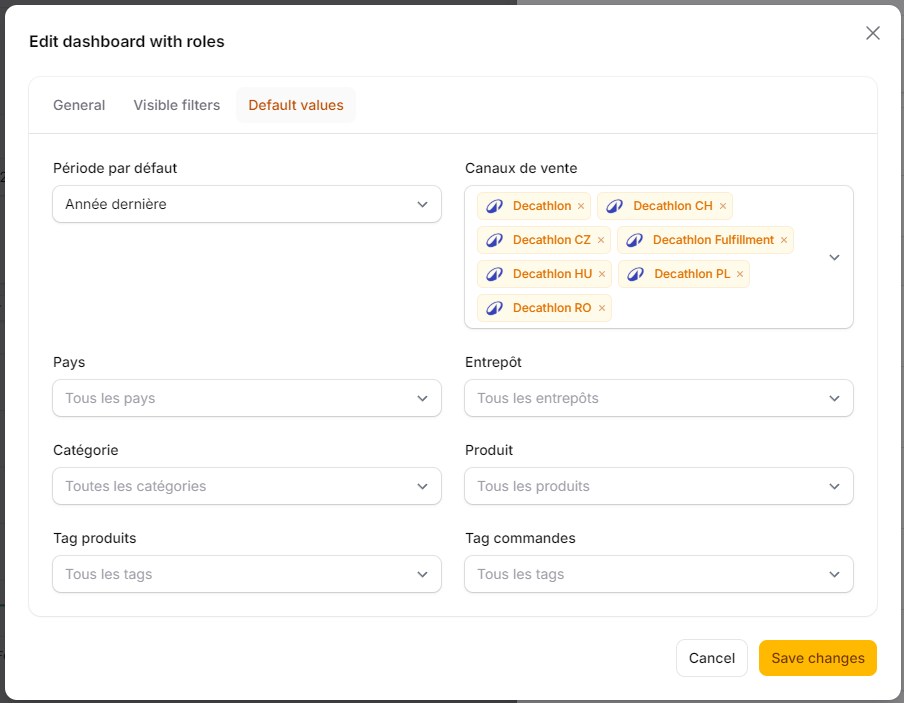

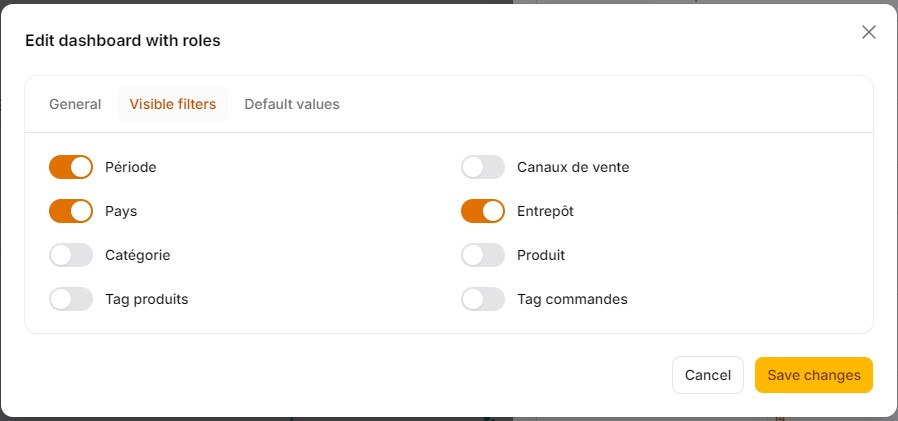

Per-dashboard filters, default filter values, per-filter visibility, and optional Spatie role-based access all work out of the box.

Built for Filament v4+, Laravel 10+, and powered by GridStack.js under the hood.

Key capabilities

Drag-and-drop widget moves within a section and across sections.
Corner-handle resize on both axes, constrained by static methods on the widget class.

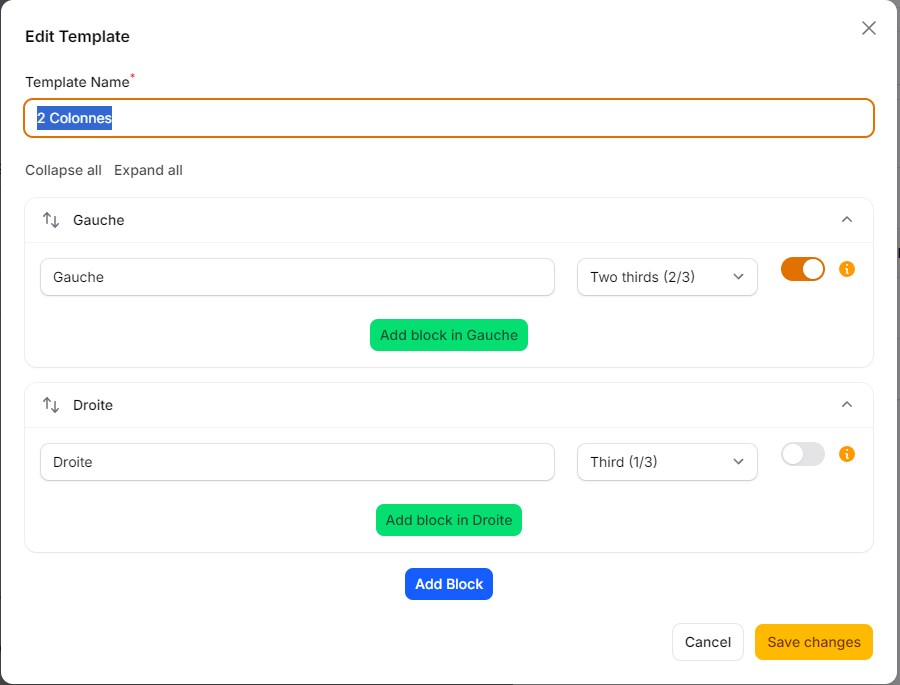

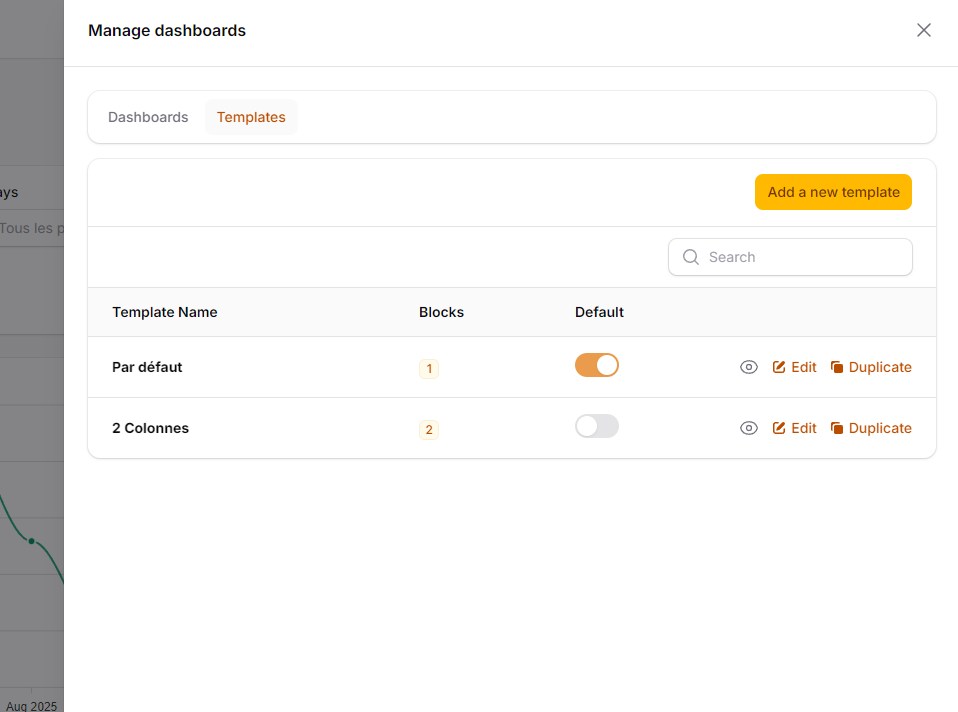

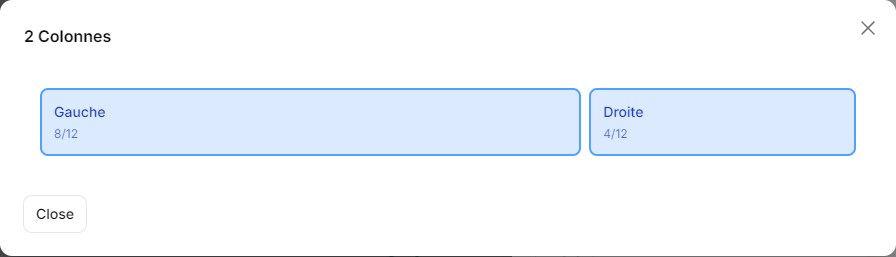

JSON layout templates with named sections, per-section column count, row span, and row height.
8 shipped layout presets — Standard, Split, Trio, Quad, Sidebar, Report, Showcase, KPI. Add your own as JSON files.

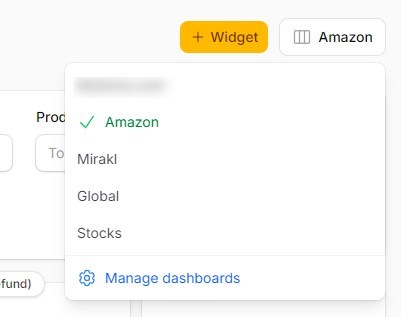

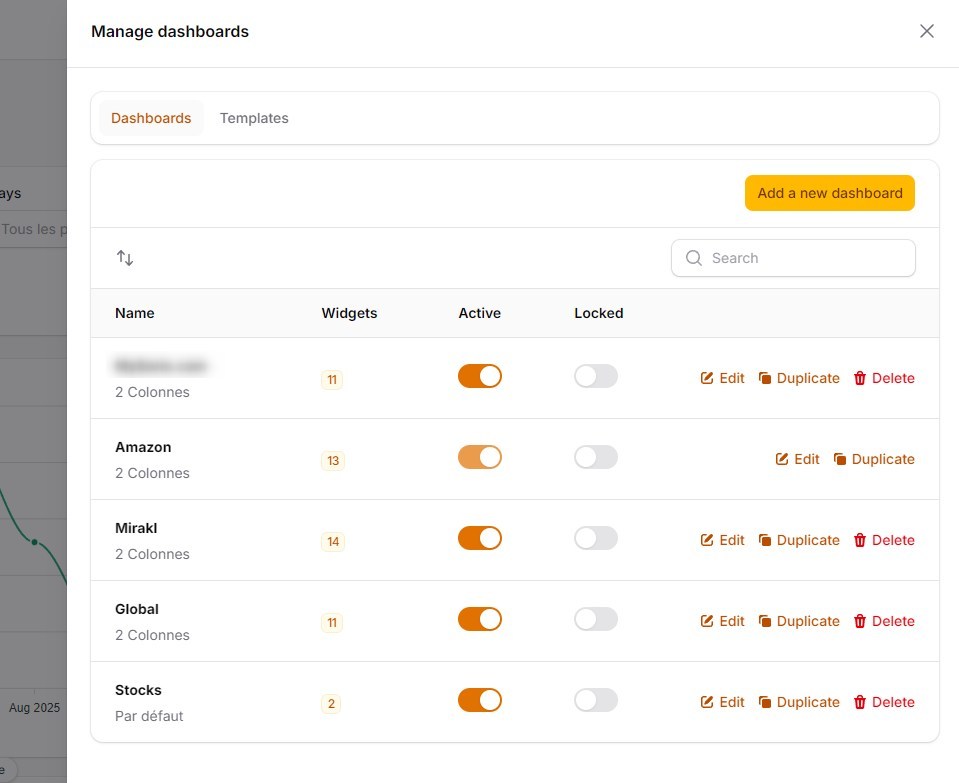

Multiple dashboards per page, each with its own filter state, default values, and visibility toggles.
Widget settings stored as JSON, hydrated as typed properties (primitives, BackedEnums, arrays of enums).
Lock a dashboard to make it read-only.
Personal dashboards — mark a dashboard as personal so only its creator sees it; globals stay shared as before. Picker groups them with a visual separator and a user icon.
Optional Spatie Permission integration for role-based dashboard visibility.

Requirements

PHP >= 8.3
Filament >= 4.1.10 (Filament 5 supported)
Laravel 10/11/12/13
(Optional) spatie/laravel-permission for role-based visibility

Installation

Install via Composer:

composer require mddev31/filament-dynamic-dashboard

Publish and run the migrations:

php artisan vendor:publish --tag=filament-dynamic-dashboard-migrations
php artisan migrate

Publish the JavaScript and CSS (GridStack + this package's own bundle):

php artisan filament:assets

Filament's panel layout injects them automatically — no <link> or <script> tags to add yourself.

Optionally publish the configuration file:

php artisan vendor:publish --tag=filament-dynamic-dashboard-config

Optionally publish translations:

php artisan vendor:publish --tag=filament-dynamic-dashboard-translations

Upgrading from version under 1.x

From v1.x replaces the database-backed grids/blocks with JSON layout templates and adds drag-and-resize via GridStack. Follow these steps in order:

Pull the new migration stub.
```
php artisan vendor:publish --tag=filament-dynamic-dashboard-migrations
```
Your existing create_dynamic_dashboard_tables migration is left untouched. A new upgrade_dynamic_dashboard_tables_to_v2 migration is added next to it.
Back up your database. The upgrade is intentionally not reversible — the down() step throws on purpose. Take a snapshot before continuing.
Run the migration.
```
php artisan migrate
```
The upgrade migration:
- Adds template_key on dashboards and section_slug, x, y, w, h on dashboard_widgets.
- Copies existing widget data: every widget gets section_slug = 'main', w = old columns, y = old ordering, h = 1, x = 0. GridStack compacts the layout on first render.
- Every dashboard gets template_key = 'flat-12' (the default single-section layout). Pick a different one in the manager afterwards if you want.
- Drops the obsolete dashboard_grid_id foreign key on dashboards, the columns, ordering, dashboard_grid_block_id columns on dashboard_widgets, and the dashboard_grids and dashboard_grid_blocks tables.
- Adds dashboards.is_personal (boolean, default false) and dashboards.created_by (nullable foreign key to your users table, resolved from config('auth.providers.users.model')). Existing rows stay global (is_personal = false, created_by = null) until you flip them in the manager. See Personal dashboards.
Publish the new assets.
```
php artisan filament:assets
```
Update your widget classes. v2 adds 6 static size methods to the DynamicWidget contract (getDynamicDashboardDefaultWidth, …Min/MaxHeight). The fastest fix is to add use HasSizeDefaults; to every widget class — sensible defaults are provided and you only override the axes you constrain. See Helper traits.

Clear caches.

php artisan view:clear
php artisan cache:clear

What survives the upgrade: dashboard names, descriptions, page assignments, filters, default filter values, widget names, types, settings, display_title, active/locked flags. What's intentionally lost: nested block hierarchies, per-instance widget sizes (now declared on the class), per-widget ordering selectors (drag instead).

Quick Start

A minimal dashboard page and a minimal widget:

namespace App\Filament\Pages;

use MDDev\DynamicDashboard\Pages\DynamicDashboard;

class Dashboard extends DynamicDashboard
{
    //
}

namespace App\Filament\Widgets;

use Filament\Widgets\StatsOverviewWidget;
use Filament\Widgets\StatsOverviewWidget\Stat;
use Filament\Widgets\Concerns\InteractsWithPageFilters;
use MDDev\DynamicDashboard\Concerns\HasEmptySettings;
use MDDev\DynamicDashboard\Concerns\HasSizeDefaults;
use MDDev\DynamicDashboard\Contracts\DynamicWidget;

class SimpleStatsWidget extends StatsOverviewWidget implements DynamicWidget
{
    use InteractsWithPageFilters;
    use HasEmptySettings;
    use HasSizeDefaults;

    public static function getWidgetLabel(): string
    {
        return 'Simple Stats';
    }

    protected function getStats(): array
    {
        return [
            Stat::make('Users', 1234),
            Stat::make('Sessions', 5678),
        ];
    }
}

Register the widget on your Filament panel as you would any other widget, visit the dashboard page, click Widget, pick Simple Stats, and drag it around. Done.

Creating a Dashboard Page

Extend DynamicDashboard. All standard Filament Page features (navigation icon, slug, group, etc.) remain available. Layout (parent column count, sections) is driven by the dashboard's template_key — see Layout Templates.

Overridable methods

Method	Signature	Purpose
`getDashboardFilters()`	`static array`	Return Filament `Field` components shown in the filter bar.
`getDefaultFilterSchema()`	`static array`	Return custom fields for editing default filter values (keyed by filter name).
`resolveFilterDefaults()`	`static array`	Transform stored defaults into actual filter values at apply time.
`canEdit()`	`static bool`	Whether the current user can add/edit/delete widgets and manage dashboards.
`canDisplay()`	`static bool`	Whether the current user can view a given dashboard.
`showWidgetLoader()`	`static bool`	Whether widgets show a loading overlay during their own Livewire commits.

Creating a Dynamic Widget

Any Filament widget can become a dynamic widget by implementing the DynamicWidget interface. The contract has three identity methods and six size methods:

Method	Returns	Purpose
`getWidgetLabel()`	`string`	Display name shown in the widget type selector.
`getSettingsFormSchema()`	`array<Component>`	Filament form components for widget-specific settings.
`getSettingsCasts()`	`array<string, string>`	Cast definitions for settings values (primitives, BackedEnums, arrays).
`getDynamicDashboardDefaultWidth()`	`int`	Width (columns) of new instances of this widget.
`getDynamicDashboardDefaultHeight()`	`int`	Height (rows) of new instances of this widget.
`getDynamicDashboardMinWidth()` / `…MaxWidth()`	`int`	Width resize range. Set both equal to lock width.
`getDynamicDashboardMinHeight()` / `…MaxHeight()`	`int`	Height resize range. Set both equal to lock height.

Why the prefix? Filament chart widgets define an instance method getMaxHeight(): ?string. PHP forbids a child class from overriding an inherited instance method with a static one of the same name, so the getDynamicDashboard… prefix avoids the collision.

Helper traits

Trait	Provides
`MDDev\DynamicDashboard\Concerns\HasSizeDefaults`	Sensible defaults for all six size methods (default 4×1, min 1×1, max 12×12). Override only what you constrain.
`MDDev\DynamicDashboard\Concerns\HasEmptySettings`	Empty `getSettingsFormSchema()` and `getSettingsCasts()` for widgets without configurable settings.

Simple widget (no settings, default size)

namespace App\Filament\Widgets;

use Filament\Widgets\StatsOverviewWidget;
use Filament\Widgets\Concerns\InteractsWithPageFilters;
use MDDev\DynamicDashboard\Concerns\HasEmptySettings;
use MDDev\DynamicDashboard\Concerns\HasSizeDefaults;
use MDDev\DynamicDashboard\Contracts\DynamicWidget;

class SimpleStatsWidget extends StatsOverviewWidget implements DynamicWidget
{
    use InteractsWithPageFilters;
    use HasEmptySettings;
    use HasSizeDefaults;

    public static function getWidgetLabel(): string
    {
        return 'Simple Stats';
    }

    protected function getStats(): array
    {
        // Access page filters via $this->pageFilters['country'] etc.
        return [/* ... */];
    }
}

Custom size constraints

Override only the axes you want to constrain — the trait keeps the rest as defaults:

class StatsBoardWidget extends StatsOverviewWidget implements DynamicWidget
{
    use HasEmptySettings;
    use HasSizeDefaults;

    public static function getDynamicDashboardDefaultWidth(): int  { return 6; }
    public static function getDynamicDashboardMinWidth(): int      { return 4; }   // never narrower than 4
    public static function getDynamicDashboardMinHeight(): int     { return 1; }
    public static function getDynamicDashboardMaxHeight(): int     { return 1; }   // height locked at 1 row
}

Widget with settings

namespace App\Filament\Widgets;

use App\Enums\ResultTypeEnum;
use App\Enums\GroupingEnum;
use Filament\Forms\Components\Select;
use Filament\Forms\Components\TextInput;
use Filament\Schemas\Components\Component;
use Filament\Widgets\Concerns\InteractsWithPageFilters;
use Leandrocfe\FilamentApexCharts\Widgets\ApexChartWidget;
use MDDev\DynamicDashboard\Concerns\HasSizeDefaults;
use MDDev\DynamicDashboard\Contracts\DynamicWidget;

class SalesChartWidget extends ApexChartWidget implements DynamicWidget
{
    use InteractsWithPageFilters;
    use HasSizeDefaults;

    public ResultTypeEnum $resultType = ResultTypeEnum::GrossRevenue;
    public GroupingEnum $groupBy = GroupingEnum::Channel;
    public ?int $limit = 5;

    public static function getWidgetLabel(): string
    {
        return 'Sales Chart';
    }

    /** @return array<Component> */
    public static function getSettingsFormSchema(): array
    {
        return [
            Select::make('resultType')
                ->label('Result type')
                ->options(ResultTypeEnum::class)
                ->required()
                ->default(ResultTypeEnum::GrossRevenue->value),

            Select::make('groupBy')
                ->label('Group by')
                ->options(GroupingEnum::class)
                ->required()
                ->default(GroupingEnum::Channel->value),

            TextInput::make('limit')
                ->label('Limit')
                ->numeric()
                ->required()
                ->default(5),
        ];
    }

    /** @return array<string, string|array{0: string, 1: class-string}> */
    public static function getSettingsCasts(): array
    {
        return [
            'resultType' => ResultTypeEnum::class,
            'groupBy'    => GroupingEnum::class,
            'limit'      => 'int',
        ];
    }

    protected function getOptions(): array
    {
        // $this->resultType, $this->groupBy, $this->limit are already cast.
        // $this->pageFilters contains the dashboard's filter values.
        return [/* ... */];
    }
}

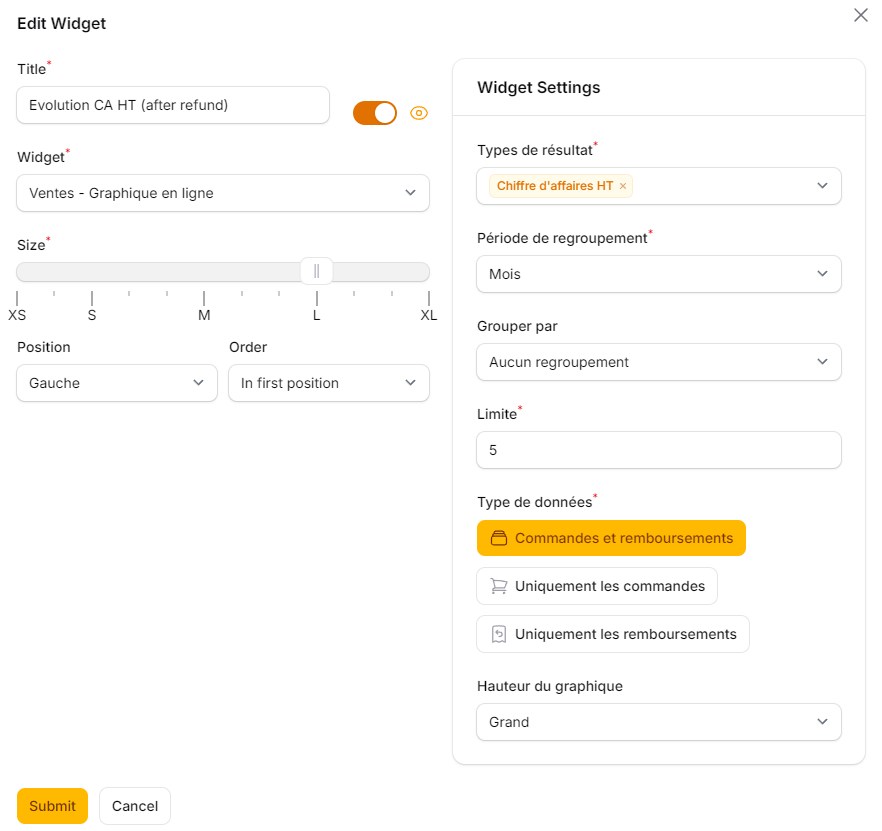

How settings work

Three pieces are linked by a shared key name:

Piece	Role
`public ResultTypeEnum $resultType`	Livewire property that receives the value at render time.
`Select::make('resultType')` in `getSettingsFormSchema()`	Form field the admin fills in (stored as JSON in the DB).
`'resultType' => ResultTypeEnum::class` in `getSettingsCasts()`	Type-cast rule applied when reading the JSON back.

The key name must be identical across all three. The form field name becomes the JSON key, which is then cast and injected into the matching public property.

Hydration flow:

Admin saves form
  → settings stored as JSON  {"resultType": "gross_revenue", "limit": 5}
  → on render, AsWidgetSettings cast applies getSettingsCasts()
  → cast values spread into Widget::make(['resultType' => ResultTypeEnum::GrossRevenue, 'limit' => 5, …])
  → Livewire hydrates public properties $this->resultType, $this->limit

Give every public property a default value — if a setting hasn't been saved yet, that default is used.

Settings casts

Cast	Example	Description
`'int'`, `'integer'`	`'limit' => 'int'`	Cast to integer.
`'float'`, `'double'`	`'ratio' => 'float'`	Cast to float.
`'string'`	`'label' => 'string'`	Cast to string.
`'bool'`, `'boolean'`	`'enabled' => 'bool'`	Cast to boolean.
`MyEnum::class`	`'type' => ResultTypeEnum::class`	Cast to a `BackedEnum` via `tryFrom()`.
`['array', MyEnum::class]`	`'types' => ['array', ResultTypeEnum::class]`	Cast each element of an array to an enum.

Restricting a widget to specific pages

Implement the optional availableForDashboard() method on your widget:

public static function availableForDashboard(): array
{
    return [
        \App\Filament\Pages\Dashboard::class,
        // listed dashboard pages only
    ];
}

An empty array (or omitting the method entirely) makes the widget available on every dynamic dashboard.

Widget visibility

Filament's canView() is respected automatically. If it returns false, the widget is hidden from the type selector and not rendered.

Widget metadata

Each widget can declare two optional public properties to receive its own id and title from the dashboard:

class MyWidget extends StatsOverviewWidget implements DynamicWidget
{
    public int $dynamicDashboardWidgetId;
    public string $dynamicDashboardWidgetTitle;

    protected function getStats(): array
    {
        // use $this->dynamicDashboardWidgetId / Title
        return [/* ... */];
    }
}

Declare only the ones you need.

Loading indicator

Every widget shows a loading overlay while its own Livewire component is committing. Toggle globally with showWidgetLoader() on the dashboard page, or per widget with an optional static showLoader() method:

class HeavyChartWidget extends ApexChartWidget implements DynamicWidget
{
    public static function showLoader(): ?bool
    {
        return false;
    }
}

Resolution order: per-widget showLoader() if it returns a non-null boolean; otherwise the dashboard's showWidgetLoader() (default true).

Resize-aware widgets

When a user drags a widget's resize handle, GridStack updates the container size — but chart libraries render their canvas at mount-time dimensions and don't know the box has changed. On every resizestop and dragstop, this package broadcasts two signals:

A native window.resize event — ApexCharts, Chart.js, ECharts, Plotly all listen for this and re-fit themselves automatically.
A Livewire event dynamic-dashboard:widget-resized with the resized widget's id — for widgets that need explicit control.

For the auto-resize to actually use the new size, the widget's own chart options must use responsive sizing:

ApexCharts — set chart.height: '100%' in getOptions():

protected function getOptions(): array
{
    return [
        'chart' => [
            'type' => 'bar',
            'height' => '100%',
        ],
        // ...
    ];
}

Chart.js (Filament native ChartWidget) — disable aspect-ratio locking:

protected function getOptions(): ?array
{
    return [
        'responsive' => true,
        'maintainAspectRatio' => false,
        // ...
    ];
}

Custom rendering / lazy loads — listen to the Livewire event:

use Livewire\Attributes\On;

class MyWidget extends Widget implements DynamicWidget
{
    use HasSizeDefaults;

    public int $dynamicDashboardWidgetId;

    #[On('dynamic-dashboard:widget-resized')]
    public function onResized(int $id): void
    {
        if ($id !== $this->dynamicDashboardWidgetId) {
            return;
        }

        // Re-render, reload data, dispatch a custom JS event to a canvas, etc.
    }
}

Layout Templates (JSON)

Templates are plain JSON files on disk. Each declares a parent column count and an ordered list of sections — named zones that host widgets. The package ships 10 presets and a dashboard references one via its template_key.

Template file format

A template is a JSON file in any directory listed by config('filament-dynamic-dashboard.template_paths'). The package's own preset directory is always loaded first; later paths override earlier ones by key, so app-level templates can replace shipped ones.

Single-section ("flat") template — one big canvas, no visible section header:

{
  "key": "flat-12",
  "name": "filament-dynamic-dashboard::templates.flat_12.name",
  "description": "filament-dynamic-dashboard::templates.flat_12.description",
  "columns": 12,
  "sections": [
    {
      "slug": "main",
      "name": null,
      "columns": 12,
      "row_height": 80
    }
  ]
}

Multi-section template — each section has its own column count, GridStack row height, and optional visible header. row_span lets a section occupy several parent rows so asymmetric layouts fall out of CSS Grid auto-flow:

{
  "key": "2-left-1-right",
  "name": "filament-dynamic-dashboard::templates.two_left_one_right.name",
  "description": "filament-dynamic-dashboard::templates.two_left_one_right.description",
  "columns": 12,
  "sections": [
    { "slug": "top-left",    "name": "filament-dynamic-dashboard::templates.two_left_one_right.top_left",    "columns": 6, "row_span": 1, "row_height": 80 },
    { "slug": "right",       "name": "filament-dynamic-dashboard::templates.two_left_one_right.right",       "columns": 6, "row_span": 2, "row_height": 80 },
    { "slug": "bottom-left", "name": "filament-dynamic-dashboard::templates.two_left_one_right.bottom_left", "columns": 6, "row_span": 1, "row_height": 80 }
  ]
}

Template fields

Field	Type	Notes
`key`	string	Unique identifier. Stored on the dashboard as `template_key`.
`name`	string	Translation key used by `__()` for the template's display name.
`description`	string	Translation key used by `__()` (helper text in the template select).
`columns`	int (1–24)	Parent CSS Grid column count.
`sections[]`	array	1 or more sections; rendered in source order via CSS Grid auto-flow.

Section fields

Field	Type	Notes
`slug`	string	Unique inside the template. Stored on widgets as `section_slug`.
`name`	string or `null`	Translation key for the visible header. `null` ⇒ no header.
`columns`	int (1–parent)	Both the section's column-span in the parent grid AND its inner GridStack columns.
`row_span`	int (≥1, default 1)	Number of parent rows the section spans. Use for asymmetric layouts.
`row_height`	int (20–500)	Inner GridStack `cellHeight` in pixels.

Translation keys

name and description on the template and name on each section are Laravel translation keys, not display strings. Lookup happens at render time via __(), so locale switches work without reloading templates. Missing keys fall back to the raw key string — useful as a "you forgot to translate this" signal.

Shipped translations live at resources/lang/{locale}/templates.php:

return [
    'flat_12' => [
        'name'        => 'Standard 12-column',
        'description' => '12 columns, 80px row. Sensible default for most dashboards.',
    ],
    'two_left_one_right' => [
        'name'        => 'Two-left + tall right',
        'description' => 'Two stacked sections on the left and one full-height section on the right.',
        'top_left'    => 'Top left',
        'right'       => 'Right (tall)',
        'bottom_left' => 'Bottom left',
    ],
    // …
];

For your own templates, drop the JSON in your configured path and ship the matching translation strings in your app's lang/*/<file>.php.

Shipped presets

Key	Display name	Sections
`flat-12`	Standard	1 — `main` (12c)
`2-columns`	Split	`left` (6) + `right` (6)
`3-columns`	Trio	`left` (4) + `middle` (4) + `right` (4)
`4-cells-2-rows`	Quad	`top-left` (6) + `top-right` (6) + `bottom-left` (6) + `bottom-right` (6)
`sidebar-main`	Sidebar	`sidebar` (4) + `main` (8)
`header-2cols-footer`	Report	`header` (12) + `left` (6) + `right` (6) + `footer` (12)
`2-left-1-right`	Showcase	`top-left` (6) + `right` (6, `row_span` 2) + `bottom-left` (6)
`kpi-strip-chart`	KPI	`kpi` (12) + `chart` (12)

Each preset also ships an SVG thumbnail alongside its JSON (same filename, .svg extension) — useful if you want to render a visual preview in your own UI via app(TemplateRegistry::class)->previewSvg($key).

Custom paths and disabling templates

Add your own template directories via template_paths:

// config/filament-dynamic-dashboard.php
return [
    'template_paths' => [
        resource_path('dashboard-templates'),
        base_path('custom/layouts'),
    ],
    // ...
];

To hide some shipped templates from the manager's selector — without breaking dashboards that already reference them — use disabled_templates:

'disabled_templates' => [
    'flat-24-dense',
    'kpi-strip-chart',
],

This is UI-only: TemplateRegistry::find() and default() still resolve disabled keys for already-existing dashboards.

Fallback behavior

template_key = null or unknown ⇒ the model resolves config('filament-dynamic-dashboard.default_template') (default 'flat-12'); if even that's missing, a hardcoded 12-column / 80-px single-section template is used so the page always renders.
A widget whose section_slug doesn't exist in the current template is rendered in the first section — never lost.
When a dashboard's template_key changes, widgets in now-removed sections are eagerly migrated to the new template's first section (stacked at the bottom). The DB is kept in sync.

Drag, Resize, and Cross-Section Moves

The dashboard renders as a CSS Grid of sections; each section is its own GridStack instance and all are linked, so users can drag widgets within a section AND between sections. Resize handles live at the bottom-right corner of each widget.

Interaction	What persists
Drag within section	`x`, `y` on the widget.
Drag to another section	`section_slug`, plus new `x`, `y` at the drop target.
Resize from the corner	`w` and/or `h`, clamped by the widget class's min/max.
Page refresh	GridStack reads `gs-x/y/w/h` attributes back from HTML.

During a drag, every peer section's grid is highlighted with a soft blue background and dashed outline; the section that owns the dragged widget is highlighted more strongly. After the drop (or a cancel), highlights disappear immediately.

Locked dashboards and read-only users

When a dashboard's is_locked toggle is on, or the current user's canEdit() returns false:

Every section's GridStack initialises with staticGrid: true — no drag, no resize, no drop targets.
The widget hover cluster (drag handle, edit, delete) is hidden.
The Add Widget button and Manage dashboards entry disappear from the page header.

The widgets still render normally, so non-editors see a clean read-only view.

Managing Filters

Defining filters

Override getDashboardFilters() to return an array of Filament Field components:

public static function getDashboardFilters(): array
{
    return [
        Select::make('country')
            ->label('Country')
            ->options(Country::pluck('name', 'id'))
            ->multiple()
            ->searchable(),

        DatePicker::make('start_date')
            ->label('Start date'),
    ];
}

Per-dashboard filter session

Each dashboard stores its filters independently in the session (keyed by page class + dashboard id). Switching dashboards restores the last-used filters for that dashboard.

Per-dashboard filter visibility

Admins toggle which filters are visible for each dashboard from the Visible filters tab in the dashboard manager.

Per-dashboard default values

Default filter values are stored in the dashboard's filters JSON column. They're applied on first visit and when the user clicks the reset button.

Custom default-value fields

Override getDefaultFilterSchema() to provide alternative field types for editing defaults — for example a relative period selector instead of a date picker:

public static function getDefaultFilterSchema(): array
{
    return [
        'period' => Select::make('period')
            ->label('Default period')
            ->options([
                'this_month'   => 'This month',
                'last_month'   => 'Last month',
                'last_7_days'  => 'Last 7 days',
                'last_30_days' => 'Last 30 days',
            ]),
    ];
}

Filters not present in this array fall back to their original component from getDashboardFilters().

Resolving defaults at apply time

Override resolveFilterDefaults() to transform stored defaults into actual filter values:

public static function resolveFilterDefaults(array $defaults): array
{
    if (! empty($defaults['period']) && is_string($defaults['period'])) {
        $defaults['period'] = match ($defaults['period']) {
            'this_month'   => now()->startOfMonth()->format('Y-m-d') . ' - ' . now()->format('Y-m-d'),
            'last_30_days' => now()->subDays(29)->format('Y-m-d') . ' - ' . now()->format('Y-m-d'),
            default        => $defaults['period'],
        };
    }

    return $defaults;
}

Accessing filters in widgets

Use Filament's InteractsWithPageFilters trait:

use Filament\Widgets\Concerns\InteractsWithPageFilters;

class MyWidget extends StatsOverviewWidget implements DynamicWidget
{
    use InteractsWithPageFilters;

    protected function getStats(): array
    {
        $country = $this->pageFilters['country'] ?? null;
        // ...
    }
}

The widget receives the active filter values as $this->pageFilters at mount, and the dashboard keeps them in sync automatically when the user edits a filter or resets the filter bar — no extra wiring needed.

Resetting filters

The filter bar includes a reset button. Clicking it calls resetFilters() on the page, which re-applies the dashboard's stored defaults (or clears filters if none are configured).

Dashboard User Interface

Dashboard selector

A dropdown button in the page header lets users switch between dashboards. The current dashboard is highlighted with a check icon. A Manage dashboards entry — visible to editors — opens the management slideover.

When the user has both global and personal dashboards visible, the dropdown groups them: globals first, then a visual separator, then personal entries — each prefixed with a user icon. The current dashboard always wins the check icon, even when it's personal.

Add Widget

The Add Widget button (visible to editors on unlocked dashboards) opens a modal with:

Title — display name for the widget.
Display title — toggle to show or hide the floating title badge above the widget.
Widget Type — dropdown of every available DynamicWidget implementation.
Section — which template section the widget lands in. Only shown when the template has more than one section; defaults to the first section.
Widget Settings — dynamic form section showing the selected widget's getSettingsFormSchema().

Size and position are deliberately absent — width and height come from the widget class's static methods, and (x, y) are managed visually by GridStack on the canvas. New widgets land at the bottom of the chosen section at the widget class's default size.

Widget wrapper

Each widget is wrapped with chrome that adds:

A floating title badge above the widget (when Display title is on).
A top-right hover cluster with three icons: drag handle (the move target — GridStack picks up the drag here), edit, delete.
A bottom-right GridStack resize handle.
A loading overlay while the inner Livewire widget is committing (toggleable, see Loading indicator).

Dashboard Manager slideover

A reorderable table of all dashboards. Personal dashboards display a small user icon in the Name column; other users' personal dashboards are not listed at all — the manager only shows globals plus the viewer's own personals.

Active toggle — enable or disable a dashboard. The last active dashboard and the currently viewed dashboard cannot be deactivated.
Locked toggle — flip a dashboard to read-only for everyone (no drag, resize, or widget add/edit/delete).

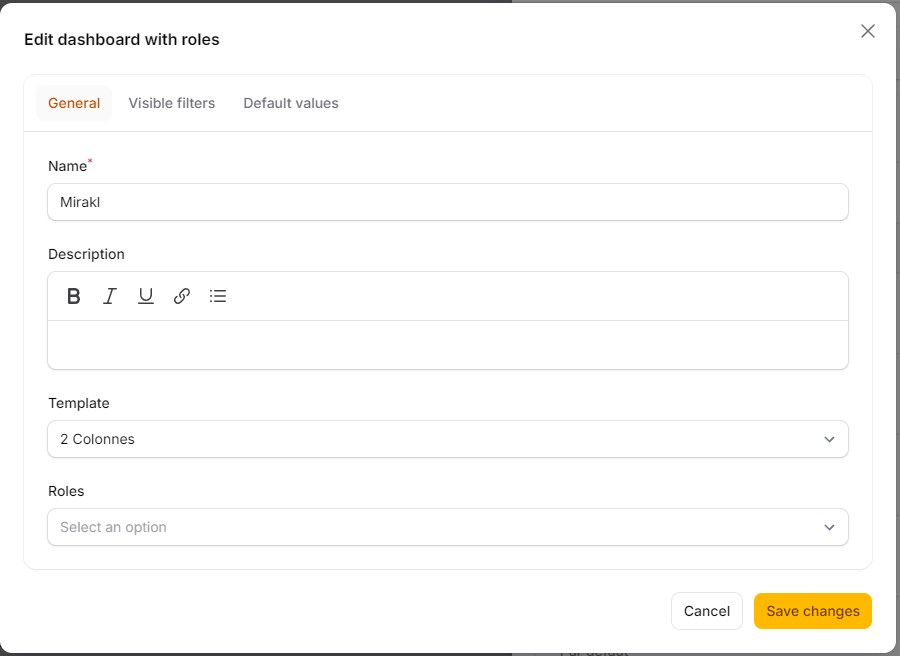

Edit action opens a tabbed modal:
- General — name, description, Template selector (populated from every JSON template the registry discovered, minus any disabled in config), Personal dashboard toggle (default from default_personal config), Spatie roles when enabled.
- Visible filters — toggles per filter field.
- Default values — set default filter values per filter.
Duplicate action deep-copies the dashboard with every widget, preserving each widget's section_slug and (x, y, w, h).
Delete action — protected against deleting the last active dashboard or the one currently viewed.

There is no template-management tab — templates are JSON files, edited on disk (or just shipped as presets).

Safety guards

Cannot deactivate or delete the last remaining active dashboard.
Cannot delete the currently viewed dashboard.
Locked dashboards disable drag/resize and hide the add/edit/delete widget buttons.

Permissions & Authorization

canEdit()

Override canEdit() to restrict who can manage dashboards and widgets. When it returns false, the Add Widget button, the widget edit/delete icons, and the Manage dashboards entry are all hidden.

public static function canEdit(): bool
{
    return auth()->user()?->hasRole('admin') ?? false;
}

canDisplay()

Override canDisplay() to control per-dashboard visibility. The default logic is:

Editors (canEdit() === true) always see every dashboard.
If the dashboard model has Spatie roles, check $user->hasAnyRole($dashboard->roles).
Fall back to the page-level canAccess().

public static function canDisplay(Dashboard $dashboard): bool
{
    if ($dashboard->name === 'Internal') {
        return auth()->user()?->is_staff ?? false;
    }

    return parent::canDisplay($dashboard);
}

Spatie Permission integration

Set use_spatie_permissions to true in the config.
The DashboardWithRoles model is automatically swapped in (it extends Dashboard and adds the HasRoles trait).
A Roles multi-select appears in the dashboard manager form.
canDisplay() checks $user->hasAnyRole($dashboard->roles) whenever roles are assigned.

Personal dashboards

Toggle Personal dashboard in the dashboard edit form to mark a dashboard as personal. Personal dashboards are scoped to their creator — even users for whom canEdit() returns true cannot see another user's personal dashboard in the picker, the manager table, or via a direct URL (canDisplay() short-circuits to false for non-owners). Globals continue to follow the existing canDisplay() / Spatie role logic.

Each dashboard also persists a created_by column (nullable foreign key to your users table, resolved from config('auth.providers.users.model')). The creator is captured automatically on creating; the Duplicate action re-assigns the new copy to the user who duplicated it.

When a user is deleted, the package's User::deleting hook deletes that user's personal dashboards. Global dashboards they created keep their row and have created_by set to null (audit residue rather than data loss).

Set the default for new dashboards with:

// config/filament-dynamic-dashboard.php
'default_personal' => false, // true to make new dashboards personal by default

Configuration

php artisan vendor:publish --tag=filament-dynamic-dashboard-config

Key	Type	Default	Description
`template_paths`	`array`	`[resource_path('dashboard-templates')]`	Extra directories scanned for layout JSON templates. The package's preset dir is always loaded first; user paths override on matching `key`.
`default_template`	`string`	`'flat-12'`	Template `key` used when a dashboard has none set, and as fallback when a referenced key is missing.
`disabled_templates`	`array`	`[]`	Template keys to hide from the manager's selector. Dashboards already pointing at a disabled template keep rendering — UI-only filter.
`use_spatie_permissions`	`bool`	`false`	Enable Spatie role integration.
`default_personal`	`bool`	`false`	When `true`, the Personal dashboard toggle in the create form defaults to on. Existing dashboards are unaffected.

Translations

Supported languages: English (en), French (fr), Spanish (es), Portuguese (pt), German (de), Russian (ru), Chinese (zh), Bulgarian (bg), Croatian (hr), Danish (da), Estonian (et), Finnish (fi), Greek (el), Hungarian (hu), Italian (it), Dutch (nl), Polish (pl), Romanian (ro), Swedish (sv), Czech (cs), Japanese (ja), Arabic (ar), Turkish (tr).

Publish translations to customize them:

php artisan vendor:publish --tag=filament-dynamic-dashboard-translations

All UI translation keys are namespaced under filament-dynamic-dashboard::dashboard.*; template name/description keys are under filament-dynamic-dashboard::templates.*.

Changelog

See CHANGELOG.md for release notes.

Credits

The Filament core team for the framework.
GridStack.js — the drag-and-drop / resize engine that makes the canvas tick.
filament-apex-charts by Leandro Ferreira — the spark behind this plugin.

License

The MIT License (MIT). See LICENSE.md for details.

mddev31 / filament-dynamic-dashboard

Maintainers

Package info

Statistics

Security
