Mage-OS Profiler

Overview

Mage-OS Profiler adds a tabular and a json profiler output type to Magento 2 — a third and fourth option next to the built-in html and csvfile.

It profiles all three request types from one switch: storefront and admin web requests, REST and GraphQL API requests, and CLI commands. The last two stock Magento cannot profile at all — html writes into the response body, which is useless for JSON endpoints and impossible for a console command. On web requests this writes to a log file instead of appending a table to the page.

No core file is patched: activation happens in bootstrap.php, before the ObjectManager exists, which is the only moment early enough to catch the whole request.

Warning

Development and staging use only — not for production.

Every profiled request pays instrumentation overhead on the DB adapter, search client, Redis commands and cache frontend. var/log/profiler_tabular.log appends forever and has no rotation of its own. With MAGE_PROFILER_SQL=query, bound values — customer emails, names, tokens — are written to disk unredacted.

Profile a production issue on a staging copy. If a live run is unavoidable, scope it to a single CLI command or one cookie-gated session, then verify bin/magento dev:profiler:status reports the gate closed. See Security.

Demo

`tabular` — a table you can read anywhere

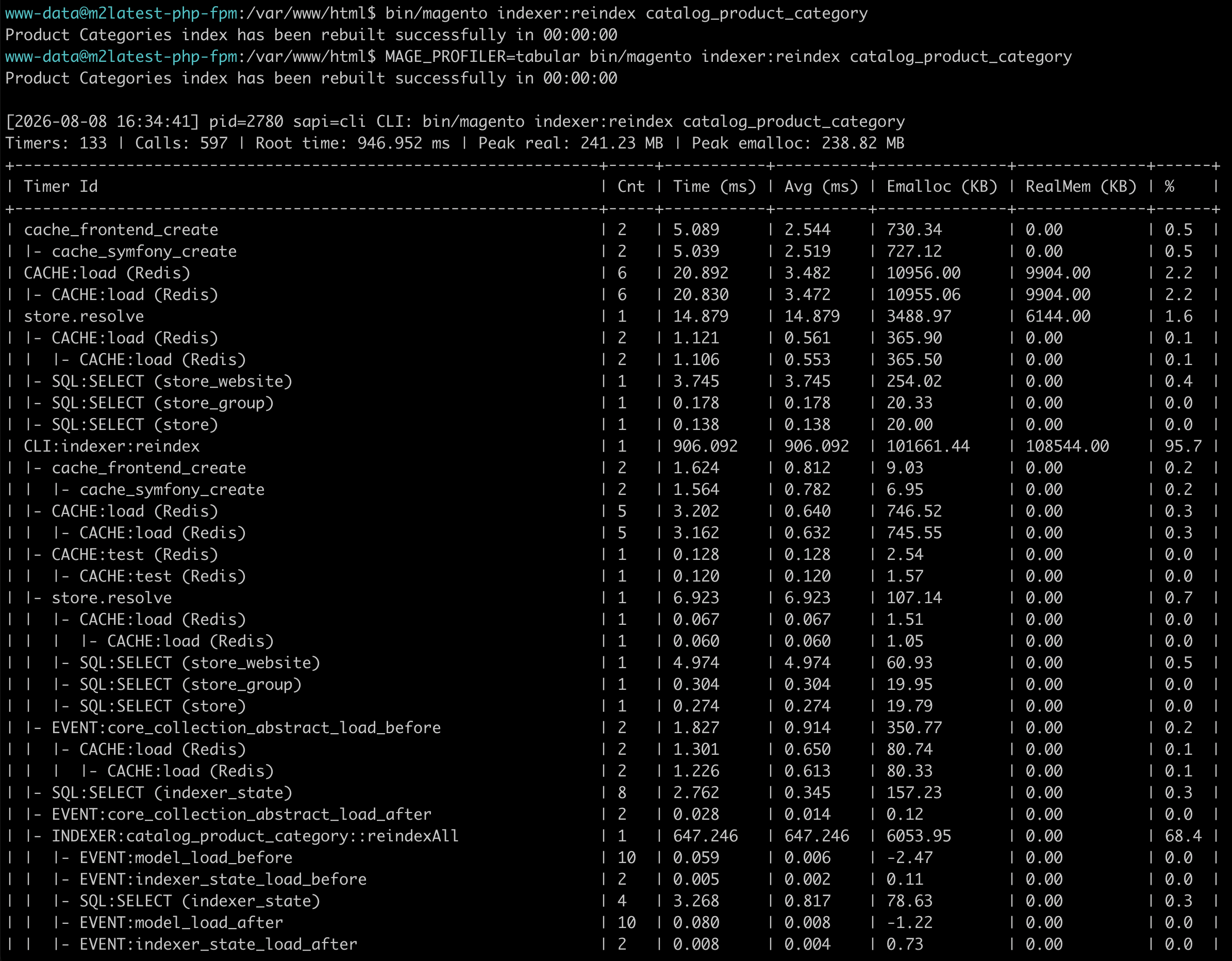

tabular output on a CLI command:

The same output covers every request type — storefront and admin web requests, REST, GraphQL and CLI alike. It is appended to var/log/profiler_tabular.log rather than to the response, so a browser or API run is read the same way a CLI run is:

tail -f var/log/profiler_tabular.log

On CLI it is also printed to STDERR, so the table lands in your terminal as soon as the command finishes. Turn that off with MAGE_PROFILER_CLI_STDERR=0 when you only want the log.

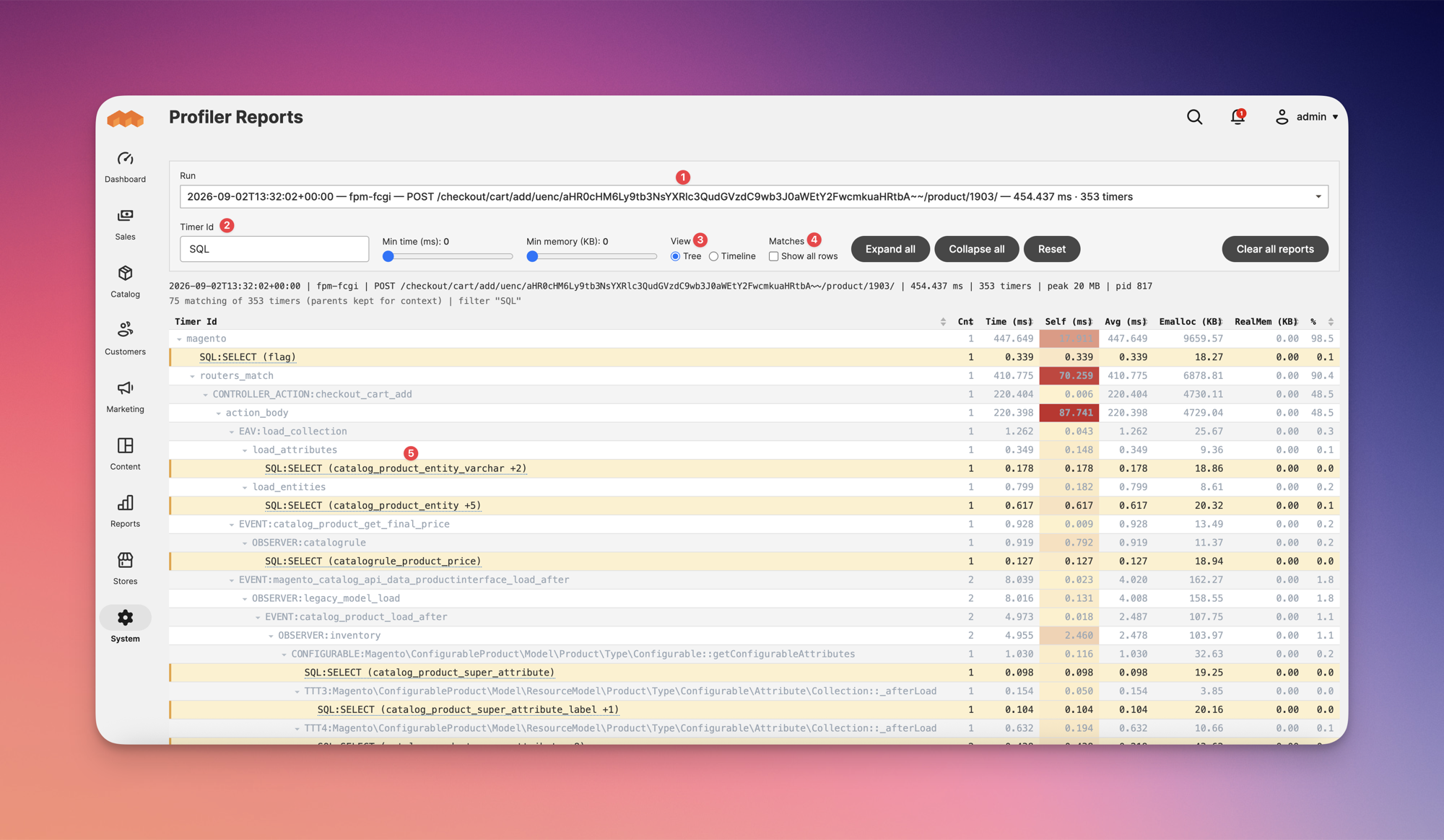

`json` — the same run, in the admin

json writes one structured file per run instead of a table. Install MageOS_ProfilerAdminUi to read those files at System > Tools > Profiler Reports:

composer require mage-os/module-profiler-admin-ui

A collapsible call tree, a sortable and filterable table with the Self column heat-shaded, and a timeline of every individual call — with the SQL behind any query timer one click away when the run was recorded with MAGE_PROFILER_SQL=query. The viewer only reads what this module writes and adds nothing to the recording side, so it can be left uninstalled in production. See its repository for details.

Both output types can run at once: MAGE_PROFILER=tabular,json.

Key Features

Profiles CLI commands and REST / GraphQL API requests — neither of which stock Magento can profile at all
Two output types that can run together: tabular (ASCII log) and json / timeline (structured per-run files)
Captures aggregate rows and per-call spans, so a timeline is available without deciding before the run
SQL query profiling on by default, with a per-table breakdown of every query
OpenSearch profiling per operation and index, covering the reindex path the search adapter never sees
Times DB, search, HTTP clients and the gateway transport, GraphQL resolvers, Web API, controller dispatch, indexers, mview, cron jobs, session handler, cache frontend, individual Redis commands, lock waits, image manipulation, mail sending, message queues and console commands
Per-job cron timing. Core measures each job against a private stat object and writes it out as JSON; this surfaces it in the same report as everything the job did
Checkout arithmetic — totals collection per collector, shipping rates per carrier, cart price rules per rule id: the place a real store's checkout time actually goes, and the one thing a wall of SQL rows never names
Thresholds default to zero — core's html output hides everything under 1ms / 10 calls / 10KB, which drops most of an API request
Filter noise by minimum duration or by PCRE on the timer id
Log output is confined to var/log/ and forced to a .log extension, so a report can never land somewhere web-served or executable
Cookie activation is gated behind developer mode or a shared secret
Benchmark helper for instrumenting your own code in a few lines

Feature Highlights

What Stock Magento Cannot Do

Stock profiler	This extension
`html` appends a table to the response body — unusable for JSON endpoints	Writes to a log file or STDERR, never to the response
CLI commands cannot be profiled	`MAGE_PROFILER=tabular bin/magento <command>` prints the table after the run
REST / GraphQL cannot be profiled	Same switch, same table, per request
Thresholds hide anything under 1ms / 10 calls / 10KB	Thresholds default to zero; opt into filtering when you want it
No SQL visibility	Every query timed, grouped by operation and table
No structured output	One JSON file per run, with per-call spans

Output Types

Run either, or both together as MAGE_PROFILER=tabular,json:

Type	Writes	Use
`tabular`	ASCII table appended to `var/log/profiler_tabular.log`	Reading in a terminal; STDERR on CLI
`json` (= `timeline`)	one structured file per run in `var/log/profiler/`	CI diffing, custom viewers, tooling

json and timeline are two names for the same capture — aggregate rows and per-call spans. Set MAGE_PROFILER_MAX_SPANS=0 for an aggregate-only file.

Turning It On

Three ways, in order of scope:

# 1. one CLI command (Docker: -e goes before the container name)
MAGE_PROFILER=tabular bin/magento indexer:reindex catalog_product_price

# 2. one browser session or API client — cookie
#    MAGE_PROFILER=tabular   (developer mode, or tabular:<secret> otherwise)

# 3. everything, until switched off — flag file at var/profiler.flag
bin/magento dev:profiler:enable tabular
bin/magento dev:profiler:status
bin/magento dev:profiler:disable

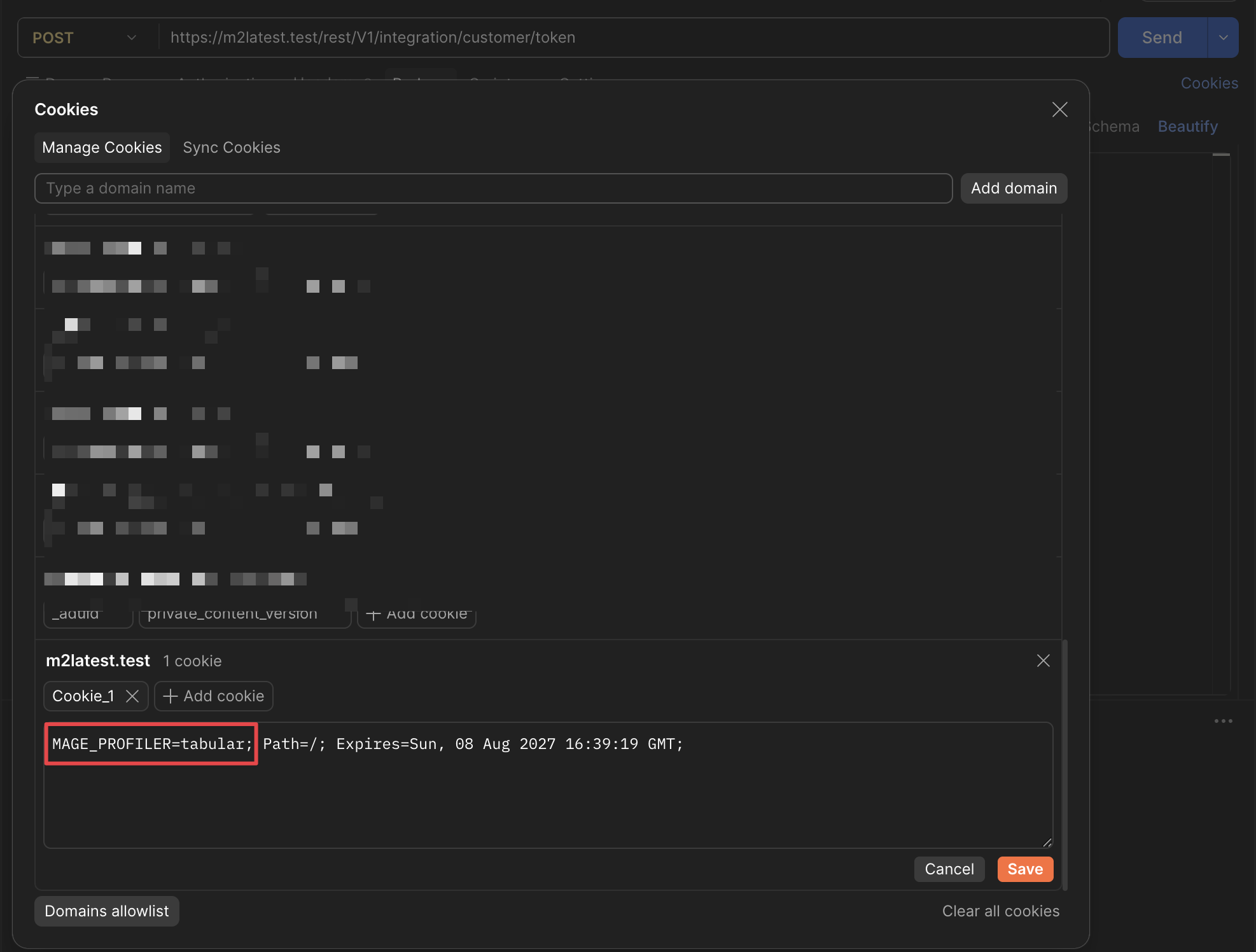

For REST / GraphQL requests from an API client such as Postman, send the cookie as a plain request header:

Cookie: MAGE_PROFILER=tabular

The cookie is honoured only in developer mode. Anywhere else it must carry the shared secret — set MAGE_PROFILER_SECRET in the PHP environment and append it after the last output type:

Cookie: MAGE_PROFILER=tabular:<secret>
Cookie: MAGE_PROFILER=tabular,json:<secret>

Store configuration cannot switch profiling on: activation happens during bootstrap, long before store config is readable. The admin settings control the output only.

Every Request Type Gets A Root

Nesting is only useful if something sits at the top of it. Core opens one root timer, magento, for web requests and nothing at all for the console, so a CLI profile used to be a flat list of unrelated roots and a storefront profile had magento and then a thousand-row drop straight to individual queries.

Each entry point now reports its own row, and everything else hangs underneath it:

CLI:indexer:reindex                             bin/magento, by command name
WEBAPI:GET /V1/products/:sku                    REST, by matched route template
GRAPHQL:query (getProducts)                     GraphQL, by operation name
CONTROLLER:checkout_index_index                 storefront and adminhtml, by full action name

CONTROLLER: is wired on ActionInterface, so it covers every controller — including the ones core does not time. Core only times controllers extending the deprecated Magento\Framework\App\Action\Action base class, which emits CONTROLLER_ACTION: from its own dispatch(). Anything implementing ActionInterface directly — the modern majority, and every Hyvä controller — went through FrontController::processRequest, which has no per-action timer at all.

Controllers that do extend the legacy base class are skipped deliberately, so core keeps them and the same work is never reported twice under two names. A profile therefore shows CONTROLLER: or CONTROLLER_ACTION: for a given page, never both.

There is no area flag for it. One timer per request is too cheap to be worth a switch, and it is the row every other row hangs from.

SQL Query Profiling

Every query is timed and grouped, so a slow reindex shows which tables it is spending its time in rather than one opaque total.

# which tables dominate a reindex?
MAGE_PROFILER=tabular MAGE_PROFILER_FILTER='/^SQL/' bin/magento indexer:reindex

# operation mix only, no per-table breakdown
MAGE_PROFILER=tabular MAGE_PROFILER_SQL=operation bin/magento indexer:reindex

# off, without touching the rest of the profiler
MAGE_PROFILER=tabular MAGE_PROFILER_SQL=0 bin/magento indexer:reindex

Capturing The Statement Itself

MAGE_PROFILER_SQL=query records the statement and its bind params onto every SQL span in the json report, so a viewer can resolve a SQL: row back to the query behind it. Without it the report tells you SQL:SELECT (catalog_product_entity +3) cost 157 ms but never which query that was.

MAGE_PROFILER=json MAGE_PROFILER_SQL=query bin/magento indexer:reindex

For a single storefront request, set it as a second cookie next to MAGE_PROFILER — area flags are otherwise read from the environment only, which would turn capture on for every request the container serves:

Cookie: MAGE_PROFILER=json
Cookie: MAGE_PROFILER_SQL=query

Cookie-supplied flags are honoured under exactly the gate that guards cookie activation itself: developer mode, or a matching MAGE_PROFILER_SECRET. Activating by environment variable does not open the door — otherwise a passing visitor could upgrade an operator's run to capture statements.

The modes are mutually exclusive. operation exists to shed detail and query to gather it, so there is no operation,query; use MAGE_PROFILER_MAX_DETAIL if you want shorter ids while capturing.

Variable	Default	Meaning
`MAGE_PROFILER_SQL_MAXLEN`	`1000`	Longest captured statement, cut at the tail with `...`. A storefront `SELECT` with a few joins is 400-900 bytes
`MAGE_PROFILER_SQL_BUDGET`	`1048576`	Total captured bytes per request. Once spent, later spans carry no statement and the CPU cost stops too

meta.sql_captured in the report counts the spans that carried a statement, so a run that hit the budget is distinguishable from one recorded with capture off.

Two things worth knowing before turning it on:

Pair it with a shorter retention. 1 MiB per report against the default MAGE_PROFILER_KEEP=100 is ~130 MB in var/log/profiler. MAGE_PROFILER_KEEP=10 is a sensible companion.
MAGE_PROFILER_MAX_SPANS=0 captures nothing, because the statement lives on the span. The reverse is a nice property though: once the per-prefix id cap collapses ids into SQL:<overflow>, the aggregate row is useless but the per-span statement is not.

full is reserved for a later release: the same capture plus the call stack that issued the query.

Search Engine Profiling

Two layers. SEARCH: times the search adapter, so a storefront request shows which container was queried. OPENSEARCH: times the OpenSearch client underneath it — which index, which operation, how big the indexing batches were. The write path never goes through the adapter, so without the second layer a catalogsearch_fulltext reindex looks like pure SQL:

CLI:indexer:reindex
 |- INDEXER:catalogsearch_fulltext::reindexAll
     |- OPENSEARCH:indexExists (magento2_product_1_v*)
     |- OPENSEARCH:createIndex (magento2_product_1_v*)
     |- OPENSEARCH:addFieldsMapping (magento2_product_1_v*)
     |- OPENSEARCH:bulkQuery (magento2_product_1_v* x100)   Cnt 12
     |- OPENSEARCH:updateAlias (magento2_product_1)
     |- OPENSEARCH:deleteIndex (magento2_product_1_v*)

magento
 |- SEARCH:SearchAdapter\Adapter (quick_search_container)
     |- OPENSEARCH:query (magento2_product_1)

Reads report the alias; writes target a physical index whose version increments on every full reindex, so magento2_product_1_v37 is folded to magento2_product_1_v* — otherwise each run would add a permanent new row and eat into the per-prefix id cap. Bulk batches carry their size snapped to a power of ten (x100, x1k), which keeps the id count small while making batch cost readable straight off the Cnt / Time / Avg columns. A response that timed out, lost a shard, or reported bulk errors opens a nested zero-duration OPENSEARCH:query:degraded / OPENSEARCH:bulkQuery:errors marker, whose Cnt is the failure count.

# what does a catalogsearch reindex actually spend its time on?
MAGE_PROFILER=tabular MAGE_PROFILER_FILTER='/SEARCH/' bin/magento indexer:reindex catalogsearch_fulltext

# operations only, no index names
MAGE_PROFILER=tabular MAGE_PROFILER_SEARCH=operation bin/magento indexer:reindex

# both search layers off
MAGE_PROFILER=tabular MAGE_PROFILER_SEARCH=0 bin/magento indexer:reindex

Cache And Redis Profiling

Cache rows are named after the backend doing the work — REDIS:load, FILE:save, DATABASE:clean — so a profile says which store the time went to without a second column. Those rows are on by default.

The Redis client itself can be instrumented as well, giving every command its own row. That is opt-in — MAGE_PROFILER_REDIS=1. Wire commands nest inside the cache operation that issued them, so leaving them on by default meant every report carried a second, finer copy of what the rows above them already said, and a cache-cold page turned into hundreds of extra spans. Ask for them when the question is specifically what is this frontend call doing on the wire:

REDIS:save (ADMINHTML)              Cnt  32   132.206 ms
 |- REDIS:MGET (ADMINHTML)          Cnt  32     1.133 ms
 |- REDIS:MULTI                     Cnt  15     0.031 ms
 |- REDIS:SETEX (ADMINHTML)         Cnt   4     0.427 ms
 |- REDIS:SADD (CACHE_ALL_IDS)      Cnt  71     0.068 ms
 |- REDIS:EXEC                      Cnt  15     0.398 ms
REDIS:load (CUSTOM_BLOCK)           Cnt  19     0.948 ms
 |- REDIS:MGET (CUSTOM_BLOCK)       Cnt  19     0.571 ms

The parenthesised part is the key family, not the key: CUSTOM_BLOCK_0D87A5… becomes CUSTOM_BLOCK, CAT_P_828 becomes CAT_P, a bare hash becomes <hash>, and a multi-key command adds a count — MGET (CAT_P +4). Leading tokens are kept until the first entity id or hash, three at most.

That reduction is not decoration. Magento's cache ids are per-entity, so putting them in a timer id would give one row per product and per block on a single page — a report nobody can read, a per-prefix cardinality cap exhausted in one request, and customer- and URL-derived identifiers written into a log file that outlives it. The family answers the question you actually have (which kind of key is costing me) and stays at a few dozen values.

When you are chasing one specific key, MAGE_PROFILER_REDIS=keys puts the whole id back — REDIS:load (global|primary|plugin-list) — with all the cardinality and disclosure that implies. Pair it with MAGE_PROFILER_FILTER and treat the log as sensitive.

Operations are lowercase, commands uppercase, and commands nest under the operation that issued them. That split answers the question the frontend row alone cannot: in the run above, 132ms of save contains under 3ms of actual Redis traffic — the rest is serialization and tag bookkeeping in PHP, which is a very different fix from "Redis is slow".

Tag traffic (SADD, SREM, SUNION, SINTER) is included, and some of it fires outside any load/save window — deferred writes are committed on shutdown — so a few command rows legitimately have no cache-operation parent.

MAGE_PROFILER_REDIS is unset by default, which means off. 1, on, true, yes or keys turn the command rows on; MAGE_PROFILER_CACHE=0 drops the frontend rows as well.

What Was On The Wire

With the command rows on, each one also carries the command it ran, recorded on the span exactly as a captured SQL statement is:

REDIS:MGET (BLOCK)          MGET 69d_:BLOCK_9a8b7c 69d_:BLOCK_1f2e3d
REDIS:SADD (CACHE_ALL_IDS)  SADD cache:all_ids GLOBAL__RESOURCESCACHE
REDIS:SETEX (BLOCK)         SETEX 69d_:BLOCK_9a8b7c 7200
                            └ value: <igbinary 668.9 KB>

Keys and set members are written in full — they are identifiers, and they are the answer to which keys a command touched, which the key family in the timer id deliberately drops. Value arguments are separated out and bounded: readable payloads are cut at 96 characters, and a serialized or compressed one is reported by encoding and size rather than content, because Magento's Redis backend serializes and compresses above compress_threshold and a raw payload in a log file is unreadable at best and a terminal escape sequence at worst.

The command line is only assembled when a json / timeline run is recording — a tabular run has no column for it and pays nothing. A command line is capped at 2 KB, arguments at 24, and the whole request at 256 KB, after which capture stops.

Treat a report recorded this way as sensitive: the values are fragments of whatever is in the cache, and the cache holds rendered blocks. See Security.

One core quirk worth knowing, because it is visible in every 2.4.9 profile: App\Cache\Frontend\Factory applies its decorator list twice — once inside createSymfonyCache() (Factory.php:595) and again in create() (:196) — so every configured cache decorator is built wrapping itself. Magento's own Decorator\Profiler shows the symptom as cache_load nested inside cache_load. This module detects the duplicate and makes the outer instance a pass-through, so cache operations are reported once, by the instance closest to the backend.

Two things to know before reading the numbers:

Time overlaps between the layers. REDIS:MGET runs inside REDIS:load, so the same milliseconds appear in both rows and the % column can sum past 100. That is ordinary inclusive-time behaviour — the per-span self time in the json report is what separates them.
Volume. A cache-cold page can issue hundreds of commands, and each one is a span. With the default MAGE_PROFILER_MAX_SPANS=5000 a Redis-heavy request will hit the cap and the Timeline will truncate; raise the cap, or simply leave MAGE_PROFILER_REDIS unset when you are profiling something else. This is the reason the area is opt-in.

Only the cache client is instrumented. Session Redis traffic goes through a Credis client that Magento constructs with no injection point of any kind, so it stays behind the single SESSION:read / SESSION:write timers.

The Quiet Costs

Subsystems that spend real time and report none of it anywhere you would look.

HTTP:POST (gateway.example.com)     1    842.106 ms   <- payment gateway, via the Zend transport
LOCK:lock (CUSTOM_BLOCK)            2      3.506 ms   <- queued behind another process
FPC:load                            1      8.916 ms
 |- FPC:load:miss                   1      0.007 ms   <- Cnt is the hit/miss count
IMAGE:open (Gd2)                    1     80.448 ms
IMAGE:resize (Gd2)                  1     14.218 ms
MAIL:send (Model\Transport)         1    311.400 ms   <- inside the request that placed the order
QUEUE:publish (product_action_attribute.update)
QUEUE:consume (Consumer)

CLI:cron:run                        1   1145.267 ms
 |- CRON:catalog_index_refresh_price      1      4.796 ms
 |- CRON:sales_clean_orders               1      8.392 ms   <- 29 jobs, not one opaque row

Area	What it covers	Env
`HTTP:`	Every outbound path: `HTTP\ClientInterface` (curl and socket, plus third-party clients implementing it), `AsyncClientInterface`, `HTTP\Adapter\Curl`, and `LaminasClient::send()` — the last is what PayPal Payflow, USPS, DHL and the currency imports actually use, and it reaches neither of the other two, so the slowest call in a checkout used to be invisible	`MAGE_PROFILER_HTTP`
`LOCK:`	`LockManagerInterface`. A lock wait is dead time: no query, no cache call, just a request queued behind another process — the usual reason a page is fast alone and slow under load	`MAGE_PROFILER_LOCK`
`FPC:`	Magento's built-in full page cache, with the hit or miss recorded as a nested marker. Silent behind Varnish, which is itself worth knowing	`MAGE_PROFILER_FPC`
`IMAGE:`	GD / ImageMagick work. The first uncached view of a category page generates every thumbnail it shows	`MAGE_PROFILER_IMAGE`
`MAIL:`	`TransportInterface::sendMessage`. Transactional mail is sent synchronously, so a slow relay is charged to the customer	`MAGE_PROFILER_MAIL`
`QUEUE:`	Publishing and consuming. Consumers are long-running CLI processes — the workload most worth profiling, and the one whose SQL previously had nothing to attribute it to	`MAGE_PROFILER_QUEUE`
`CRON:`	Each cron job separately. Core does time them — against a private `Stat` that it JSON-logs and never routes through `\Magento\Framework\Profiler`, so `cron:run` otherwise profiles as one opaque row with an entire run hidden inside it	`MAGE_PROFILER_CLI`

Details stay bounded the same way everywhere: hosts without query strings, adapters rather than file paths, transports rather than recipients, and lock names through the cache-key family reduction — Magento locks per cache entry and per price context, so the raw names are per-entity.

Checkout Arithmetic

The first area here that instruments Magento's own application rather than the infrastructure under it. Everything else times something Magento talks to — a database, a cache, a search engine, an HTTP endpoint. This times what checkout does with the answers, which on a real store is where the time goes.

TOTALS:collectAddressTotals              1    412.663 ms
 |- TOTALS:Quote\Subtotal                 1      8.104 ms
 |- TOTALS:Quote\Shipping                 1    311.229 ms
 |   |- SHIPPING:collectRates             1    309.870 ms
 |       |- SHIPPING:collectCarrierRates (ups)        1   298.114 ms   <- one carrier, most of the checkout
 |       |- SHIPPING:collectCarrierRates (flatrate)   1     2.947 ms
 |       |- SHIPPING:collectCarrierRates (tablerate)  1     2.951 ms
 |- TOTALS:Quote\Discount                 1     71.402 ms
 |   |- RULE:process (12)                24     58.113 ms   <- 24 = rules x items
 |   |- RULE:process (3)                 24      9.556 ms
 |- TOTALS:Quote\Weee                     1      0.284 ms

Three reasons this is worth its own area:

Totals collection runs on every quote change — every qty edit, every address change, every coupon attempt — and collectors run in sequence from sales.xml, so one slow third-party collector is charged to a page that looks like it is doing nothing. The per-collector row names it.
A live carrier is an HTTP call inside the request, while the customer waits. HTTP: already reports that call, but by host — and a rate aggregator answers for several carriers on one host. The carrier code is what tells you which one to switch off.
Rule evaluation is rules × items. A store that has accumulated forty rules over a few years pays for all forty on every totals collection. The rule id in the detail is what lets one row be traced back to one row in the admin grid; rule names are admin-entered free text and never reach the id.

Switch the whole area off with MAGE_PROFILER_CHECKOUT=0.

Totals are hooked at two levels, and the per-collector plugin is wired on Quote\Address\Total\CollectorInterface rather than on AbstractTotal: a collector is only required to implement the interface, and the ones that skip the abstract class are third-party — exactly the ones worth timing.

Timeline

The json output writes one file per run into var/log/profiler/, indexed by index.jsonl so a run picker can be built without opening every report.

Each report holds both the aggregate rows a tabular report shows and the per-call spans behind them — every call's start offset, duration and nesting depth. That is enough to reconstruct a flame chart or diff two runs, and the index means tooling can list runs without parsing any of them. MAGE_PROFILER_MAX_SPANS=0 writes an aggregate-only file when the span detail is not wanted.

{"ts":"2026-08-04T02:07:35+00:00","sapi":"fpm-fcgi","request":"GET /rest/V1/directory/currency",
 "rows":[{"id":"magento","count":1,"time":0.069795,"avg":0.069795}],
 "spans":[{"id":"magento","start":0.0,"time":0.069795,"depth":0}]}

This is the format MageOS_ProfilerAdminUi reads (see Demo); anything else that can parse JSON can read it just as well.

Instrument Your Own Code

use MageOS\Profiler\Util\Benchmark;

Benchmark::start('my.expensive.thing');
// ...
Benchmark::stop('my.expensive.thing');

Timers nest automatically and appear in both outputs alongside the framework's own.

🛠️ Installation

1 Using Composer (Preferred)

composer require mage-os/module-profiler

2 Using Modman

modman init
modman clone git@github.com:mage-os-lab/module-profiler.git

3 Using Zip File

Download the Extension Zip File
Extract & upload the module files to /path/to/magento2/app/code/MageOS/Profiler/

After installation by either means, activate the extension with following steps

Enable the module

php bin/magento module:enable MageOS_Profiler --clear-static-content
php bin/magento setup:upgrade

Flush the store cache

php bin/magento cache:flush

Deploy static content - in Production mode only

rm -rf pub/static/* var/view_preprocessed/*
php bin/magento setup:static-content:deploy

Profile something

MAGE_PROFILER=tabular php bin/magento cache:clean
tail -f var/log/profiler_tabular.log

The extension creates no tables of its own.

Configuration

Stores > Configuration > Advanced > Developer > Profiler Settings

These control the output only — they cannot switch profiling on. Environment variables win over admin config.

Magento hides the whole Developer section in production mode, so in production these are reachable only through the environment variables below or bin/magento config:set dev/profiler/<field>.

Setting	Env override	Default
Write Output	—	Yes
Log File Path (relative to Magento root)	`MAGE_PROFILER_LOG`	`var/log/profiler_tabular.log`
Minimum Timer Duration (ms)	`MAGE_PROFILER_MIN_MS`	`0` — show everything
Timer Id Filter (PCRE)	`MAGE_PROFILER_FILTER`	none
Print To STDERR On CLI	`MAGE_PROFILER_CLI_STDERR`	Yes

Instrumentation itself is environment-only: MAGE_PROFILER_SQL (0 off, operation for no table names, query to capture the statement), MAGE_PROFILER_REDIS (opt-in — unset means off; 1 for wire commands and their captured command line, keys to also put the raw key in the id), MAGE_PROFILER_LOCK, MAGE_PROFILER_FPC, MAGE_PROFILER_MAIL, MAGE_PROFILER_IMAGE, MAGE_PROFILER_QUEUE, MAGE_PROFILER_CHECKOUT, MAGE_PROFILER_SEARCH (0 off, operation for no index names), MAGE_PROFILER_SQL_MAXLEN, MAGE_PROFILER_SQL_BUDGET, MAGE_PROFILER_MAX_DETAIL, MAGE_PROFILER_MAX_IDS, MAGE_PROFILER_MAX_SPANS, MAGE_PROFILER_REPORT_DIR, MAGE_PROFILER_KEEP_DAYS, MAGE_PROFILER_KEEP_QUERY.

Security

This extension is intended for development and staging environments. The gates below exist to contain the damage of a production run, not to make one safe.

MAGE_PROFILER_REDIS=1 writes the command line of every Redis command, keys and set members included, and a bounded fragment of each value argument. The cache holds rendered blocks, so those fragments can carry customer names, addresses and cart contents. Serialized and compressed payloads are reported by encoding and size rather than content, which on a stock install is most of them - but that is a property of how Magento stores the data, not a redaction, and it does not hold for a store with compression off. The area is off unless asked for, and the same handling applies as below.

MAGE_PROFILER_SQL=query writes the statement and its bound values into the report. Those values routinely include customer data - email addresses, names, tokens. No redaction is attempted, because positional binds carry no column name and any heuristic would be theatre. Treat a report recorded with capture on exactly as you would treat a query log: it is off by default, and var/log/profiler should not be world-readable.

Cookie activation lets an unauthenticated visitor make the server write to disk and expose internal timing. It is therefore honoured only when:

MAGE_MODE is developer, or
the cookie carries the shared secret — MAGE_PROFILER=tabular:<secret> matching the MAGE_PROFILER_SECRET environment variable (compared with hash_equals)

Otherwise the cookie is ignored outright. MAGE_PROFILER env-var and var/profiler.flag activation are ungated — both already require server-side access.

The report path is always confined to var/log/ and always written with a .log extension: traversal segments are dropped and anything outside is folded back in, so a mistyped or hostile path cannot put the report somewhere web-served or executable. Request query strings are stripped from the report label by default, since API calls routinely carry tokens in them (MAGE_PROFILER_KEEP_QUERY=1 to keep them).

Production checklist

If the profiler is installed on a production store, it should be dormant. Before and after any live run:

Leave MAGE_PROFILER_SECRET unset unless actively profiling — an unset secret means the cookie is ignored outright outside developer mode.
Never leave var/profiler.flag behind. It arms every request until removed.
Keep MAGE_PROFILER_SQL off, or at operation. Only query writes bound values to disk.
Rotate var/log/profiler_tabular.log — it appends forever and has no rotation of its own. An unattended flag file plus no rotation will fill the disk.
Remember that instrumentation is not free: the DB adapter, search client, Redis commands and cache frontend are all wrapped while profiling is armed.
Verify with bin/magento dev:profiler:status, which prints the current gate state.

Developer Notes

Activation runs before the ObjectManager

bootstrap.php is included by Composer's files autoload, which is why it can arm the profiler before Magento starts. That file therefore cannot use DI, the request abstractions or the store config — superglobals and filesystem functions are the only option, and the sniff exclusions in it are deliberate.

What gets instrumented

Plugins wrap Magento\Framework\DB\Adapter\Pdo\Mysql, Magento\Framework\Search\AdapterInterface, Magento\OpenSearch\Model\SearchClient, Magento\Framework\HTTP\Client\Curl, Magento\Framework\HTTP\AsyncClientInterface, the GraphQL query processor and resolvers, the Web API request and output processors, Magento\Framework\App\ActionInterface, Magento\Quote\Model\Quote\TotalsCollector, Magento\Quote\Model\Quote\Address\Total\CollectorInterface, Magento\Shipping\Model\Shipping, Magento\SalesRule\Model\Validator, Magento\Indexer\Model\Indexer, Magento\Framework\Mview\ActionInterface, Magento\Framework\Session\SaveHandler, Magento\Framework\Profiler\Driver\Standard\Stat, Magento\Framework\App\Cache\Frontend\Factory and Symfony\Component\Console\Command\Command.

Two of those need a word of explanation.

ActionInterface is wrapped on the interface, so every controller is timed as CONTROLLER:<full action name>. Controllers still extending the deprecated Magento\Framework\App\Action\Action base class are skipped deliberately: core already times those itself as CONTROLLER_ACTION:, and wrapping both would report the same work twice under two names.

Stat is not instrumentation of the profiler - it is how cron timings are recovered. Cron\Observer\ProcessCronQueueObserver measures every job against its own Stat instance and writes the result out as JSON, so none of it reaches \Magento\Framework\Profiler. The plugin mirrors those job <code> timers in as CRON:<code>. Note that it therefore fires for every timer this module records, its own included; a strncmp against cron's prefix is what keeps that cheap and what stops the mirroring recursing.

Static analysis

# standalone, from this package's checkout — the same thing CI runs
composer update
vendor/bin/phpstan analyse
vendor/bin/phpunit -c phpunit.xml.dist

# or against an install, from the Magento root
vendor/bin/phpcs --standard=Magento2 app/code/MageOS/Profiler/
vendor/bin/phpunit -c dev/tests/unit/phpunit.xml.dist app/code/MageOS/Profiler/Test/Unit

Unit tests live in Test/Unit and cover the tabular renderer, the timer id builder, the SQL plugin, the OpenSearch client plugin and the benchmark helper.

Authors

Raj KB — original author, who contributed this module to Mage-OS.

To Contribute

Any contribution to the development of Mage-OS Profiler is highly welcome. The best possibility to provide any code is to open a pull request on GitHub.

Need Support?

If you encounter any problems or bugs, please create an issue on GitHub.

License

Dual-licensed under the Open Software License 3.0 and the Academic Free License 3.0, matching Mage-OS and Magento Open Source.

mage-os / module-profiler

Maintainers

Package info

Statistics

Security

README

Mage-OS Profiler

Overview

Demo

tabular — a table you can read anywhere

json — the same run, in the admin

Key Features

Feature Highlights

What Stock Magento Cannot Do

Output Types

Turning It On

Every Request Type Gets A Root

SQL Query Profiling

Capturing The Statement Itself

Search Engine Profiling

Cache And Redis Profiling

What Was On The Wire

The Quiet Costs

Checkout Arithmetic

Timeline

Instrument Your Own Code

🛠️ Installation

1 Using Composer (Preferred)

2 Using Modman

3 Using Zip File

Configuration

Security

Production checklist

Developer Notes

Activation runs before the ObjectManager

What gets instrumented

Static analysis

Authors

To Contribute

Need Support?

License

`tabular` — a table you can read anywhere

`json` — the same run, in the admin
