konradmichalik/typo3-solr-dashboard-widgets

Solr Dashboard Widgets for TYPO3 Backend

0.1.1 2026-04-16 11:53 UTC

Requires

• php: ~8.2.0 || ~8.3.0 || ~8.4.0 || ~8.5.0
• apache-solr-for-typo3/solr: ^13.0 || ^14.0@alpha
• psr/http-message: ^1.0 || ^2.0
• typo3/cms-backend: ^13.0 || ^14.0
• typo3/cms-core: ^13.0 || ^14.0
• typo3/cms-dashboard: ^13.0 || ^14.0

Requires (Dev)

• eliashaeussler/version-bumper: ^2.4 || ^3.0
• phpunit/phpcov: ^10.0 || ^11.0
• phpunit/phpunit: ^11.0 || ^12.0
• typo3/cms-base-distribution: ^13.4 || ^14.0

GPL-2.0-or-later

• Konrad Michalik

README

TYPO3 extension typo3_solr_dashboard_widgets

This extension adds a ready-to-use Solr Overview dashboard to the TYPO3 backend with a set of widgets that surface the most relevant information about your EXT:solr installation at a glance:

• Connection & Health — live ping status per site/core and JVM/query metrics
• Indexing — queue status, errors, last and next scheduler run
• Search — volume trend, top queries, queries without results
• Index content — document counts per type across all cores
• Caching — Solr cache hit rates

Warning

Warning This package is in early development stage and may change significantly in the future. I am working steadily to release a stable version as soon as possible.

Note

Props to the Apache Solr for TYPO3 team — this extension stands entirely on their shoulders. Everything you see here is just a different lens on the data EXT:solr already provides.

🔥 Installation

Requirements

• TYPO3 13.4 or 14.x
• PHP 8.2+
• EXT:solr ^13.0 or ^14.0-alpha
• typo3/cms-dashboard

Composer

composer require konradmichalik/typo3-solr-dashboard-widgets

TER

Download the zip file from TYPO3 extension repository (TER).

Setup

vendor/bin/typo3 extension:setup --extension=typo3_solr_dashboard_widgets

Open Dashboard in the TYPO3 backend, click + in a tab strip and pick Solr Overview from the presets.

🧰 Widgets

All widgets appear in a dedicated Apache Solr group in the "Add widget" dialog. Each widget reads data from Solr and/or EXT:solr directly — no persistent state of its own is stored.

Widget	Source
Connection Status	EXT:solr connections
Solr Health	Solr /admin/metrics + /admin/info/system
Last Indexing Run	tx_scheduler_task
Index Queue Status	tx_solr_indexqueue_item
Index Queue Errors	tx_solr_indexqueue_item
Documents in Index by Type	Solr facet API
Search Volume (last 14 days)	tx_solr_statistics
Search Terms	tx_solr_statistics
Cache Hit Rates	Solr /admin/metrics

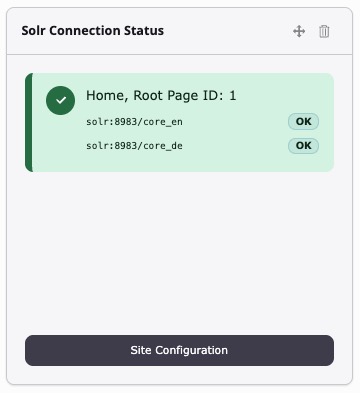

Connection Status

One card per configured TYPO3 site, listing every Solr core with a live ping result (OK / offline). Reaches out to Solr on every dashboard refresh.

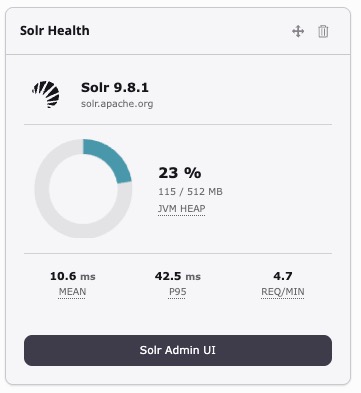

Solr Health

Combined node-level health check:

• Solr version with a link to the upstream project page
• JVM heap donut (used / max) with traffic-light color shift at 70 % / 85 %
• Mean / p95 response time and requests per minute aggregated across all cores

Data is pulled from Solr's /admin/metrics and /admin/info/system endpoints, cached for the request.

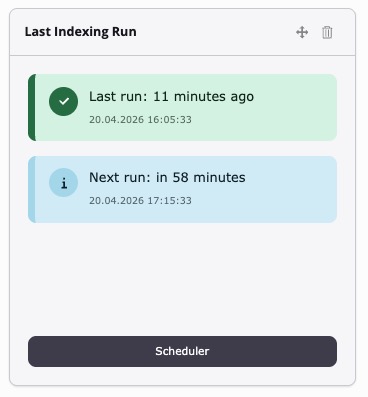

Last Indexing Run

Shows the most recent execution of any Solr-related scheduler task (e.g. IndexQueueWorkerTask) with a human-readable "N minutes ago" and a status badge (OK / warning / error based on age thresholds). Also lists the next scheduled run.

Tip

The footer button navigates to the Scheduler module. The widget resolves the correct route identifier for both TYPO3 v13 (scheduler_manage) and v14 (scheduler) automatically.

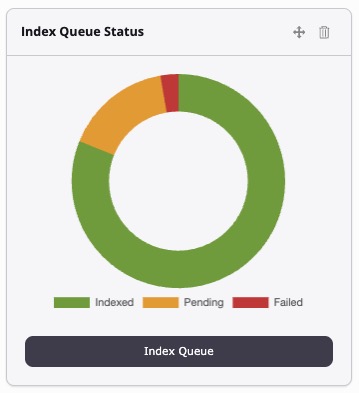

Index Queue Status

Doughnut chart of tx_solr_indexqueue_item entries grouped into Indexed / Pending / Failed.

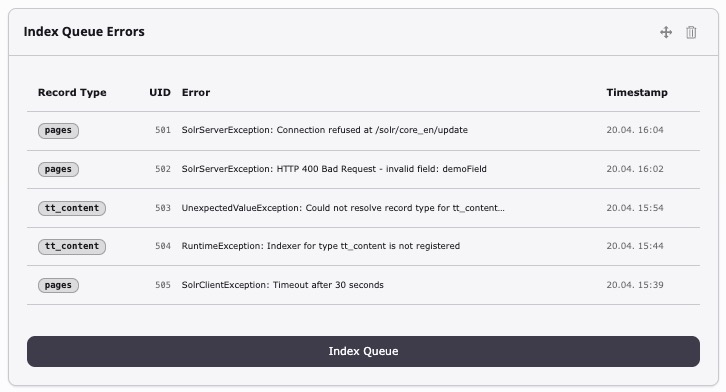

Index Queue Errors

Table of the most recent queue entries with a non-empty errors column, including record type, uid, truncated error message (full text on hover), and timestamp.

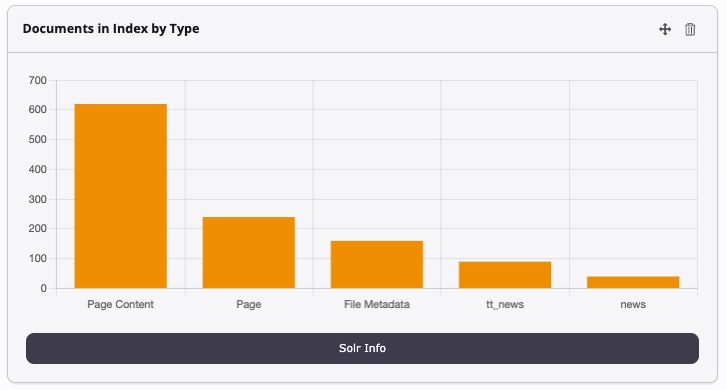

Documents in Index by Type

Bar chart of document counts per type field value, aggregated across all reachable cores via Solr's facet API (facet.field=type). Reflects what is actually in the index, not what is waiting in the TYPO3 queue.

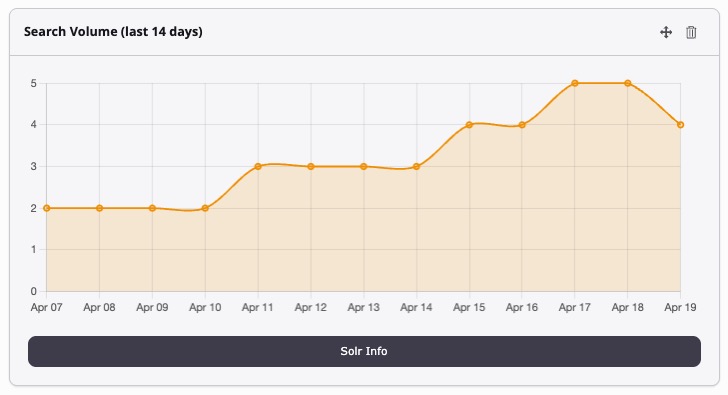

Search Volume (last 14 days)

Line chart of daily search volume over the last 14 days, read from tx_solr_statistics.

Important

Statistics logging must be enabled in TypoScript for this widget to show data:

plugin.tx_solr.statistics = 1

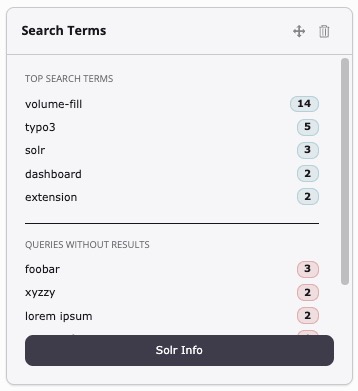

Search Terms

Two stacked lists: Top Queries (top 5 by count) and Queries Without Results. Uses the same tx_solr_statistics data source as Search Volume — the same TypoScript flag is required.

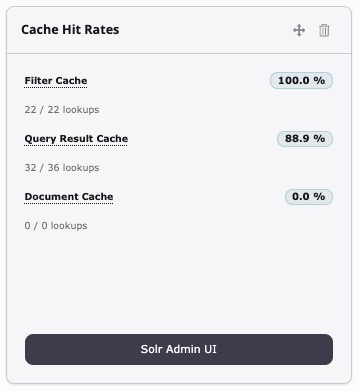

Cache Hit Rates

Note

The three Solr searcher caches:

• Filter Cache — stores results of filter queries (fq). A low hit rate often means highly unique or frequently changing filter combinations.
• Query Result Cache — caches ordered document-ID lists for query + sort combinations. Drops when users rarely repeat the same search.
• Document Cache — caches stored-field lookups by document ID. Low rates indicate many unique documents being fetched (typically fine for diverse indices).

Aggregated hit ratios shown as progress bars. Useful for spotting cache tuning opportunities.

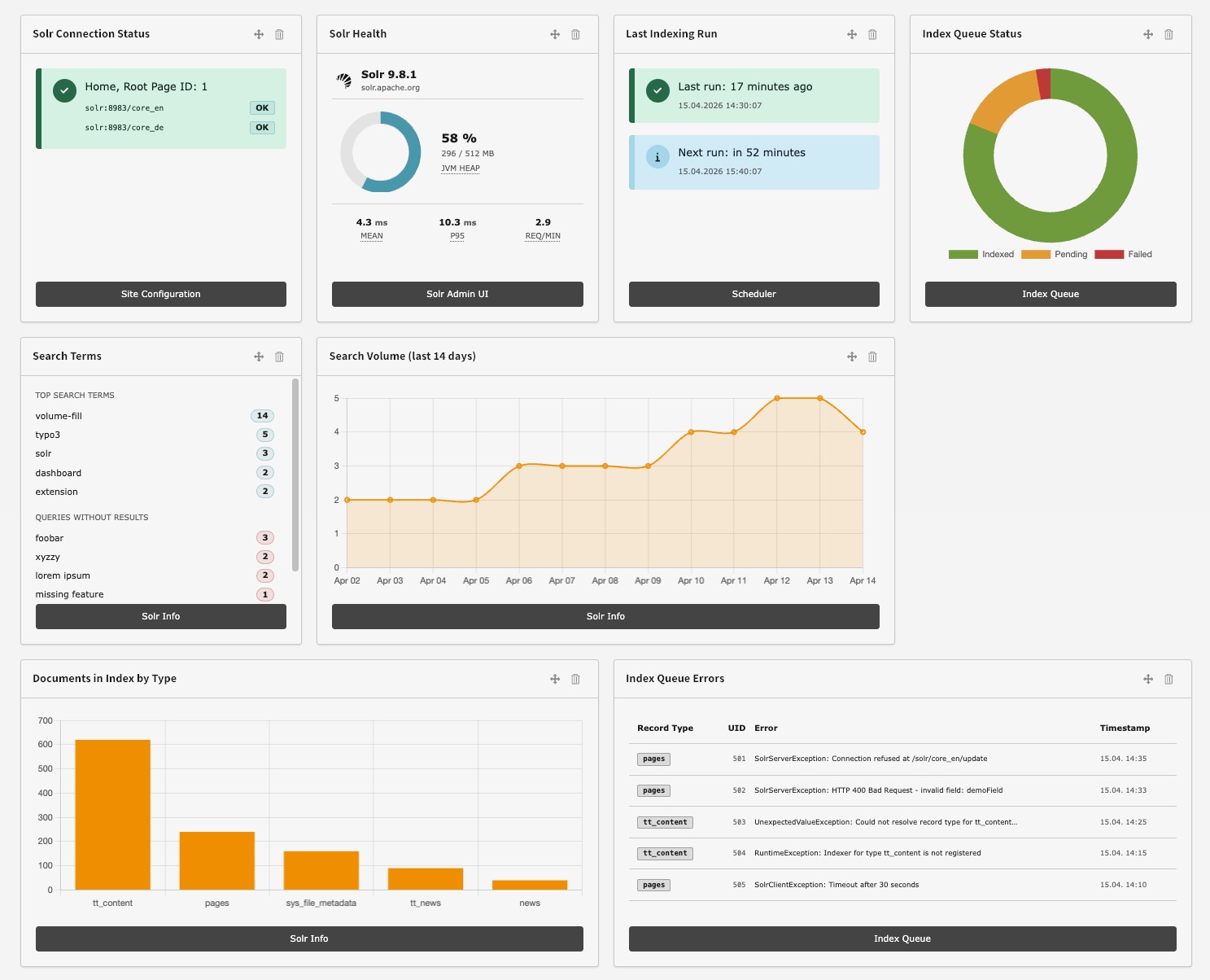

🎯 Dashboard preset

The extension ships a Solr Overview preset (solrOverview) that arranges the eight default widgets in the following order:

Connection Status · Solr Health · Last Indexing Run · Search Terms · Index Queue Status · Search Volume · Documents in Index · Index Queue Errors

New dashboards → + → Solr Overview.

🙌 Credits

• Apache Solr for TYPO3 — every bit of data surfaced by this dashboard (index queue, statistics table, Solr connection objects, scheduler task) originates from the EXT:solr team's work.
• Apache Solr — the search platform itself and its admin /metrics + /admin/info/system endpoints, which power the Solr Health and Cache Hit Rates widgets.

🧑‍💻 Contributing

Please have a look at CONTRIBUTING.md.

⭐ License

This project is licensed under GNU General Public License 2.0 (or later).
