README

A Neos CMS UI plugin that adds an interactive focal point editor for images in the Neos Inspector.

What it does

This package registers a custom property editor in the Neos backend that allows editors to visually select a focal point on an image. The selected coordinates are stored as a JSON string {"x": number, "y": number} (integer pixel values) and can then be used in Fusion to influence image rendering or cropping.

The editor displays a scaled preview of the image (respecting any crop and resize adjustments applied in the media module) and lets the user click to place the focal point.

In general, the package can be used to provide a two-dimensional coordinate selector for various different purposes like positioning an element on top of an image at a chosen position.

Requirements

Neos UI ^9.0

Installation

Install via Composer:

composer require jvmtech/neos-imagefocalpointeditor

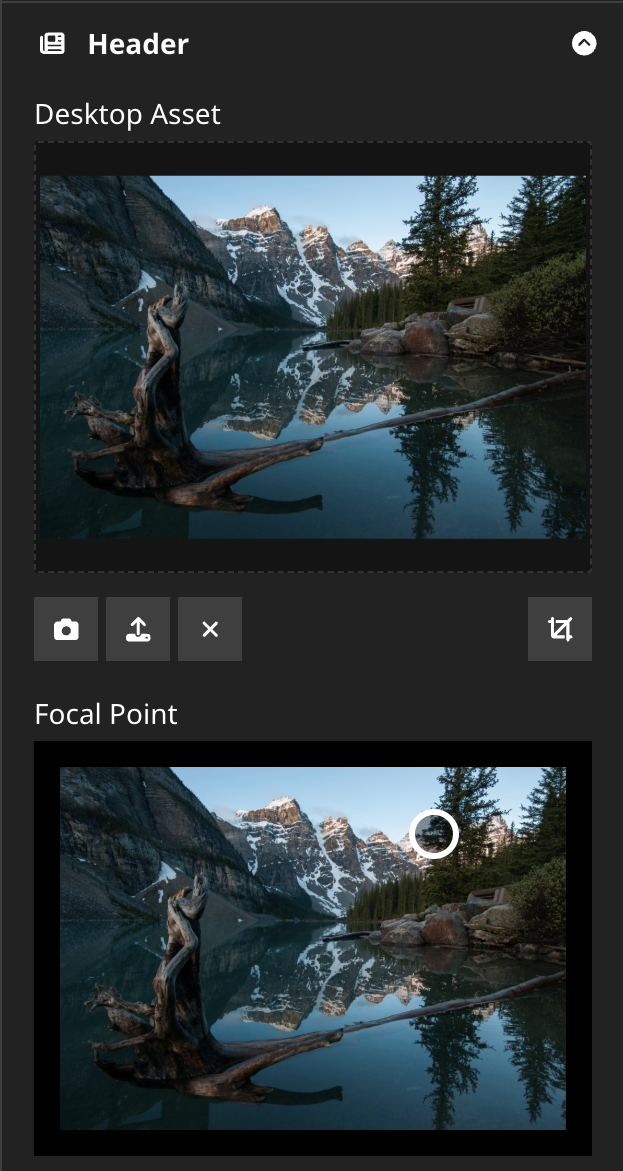

Example

Configuration

Add the editor to a node type property using the editor key JvMTECH.Neos.ImageFocalPointEditor/ImageFocalPointEditor:

'Your.Package:YourNodeType':
  properties:
    focalPoint:
      type: string
      ui:
        label: 'Focal Point'
        inspector:
          group: 'image'
          editor: 'JvMTECH.Neos.ImageFocalPointEditor/ImageFocalPointEditor'
          editorOptions:
            imageProperty: 'image'

Editor Options

Option	Type	Description
`imageProperty`	string	The name of the image property on the same node to use as the preview. Prefix with `parent:` to reference a property on the parent node (e.g. `parent:image`).

Referencing a parent node's image

If the focal point property lives on a child node but the image is on the parent node, use the parent: prefix:

editorOptions:
  imageProperty: 'parent:image'

Stored value format

The property value is a JSON string with x/y coordinates as integer percentages (0–100):

{"x": 42, "y": 30}

Fusion: ObjectPosition augmenter

The package ships a ready-to-use Fusion prototype that applies the focal point as a CSS object-position inline style via Neos.Fusion:Augmenter:

prototype(JvMTECH.Neos.ImageFocalPointEditor:ObjectPosition)

It wraps any content and injects style="object-position: {x}% {y}%;". When no focal point is set the value falls back to initial.

Props

Prop	Default	Description
`focalPoint`	`Neos.Fusion:DataStructure` (empty)	Parsed focal point object with `x` and `y` keys
`cssProperty`	`object-position`	CSS property name written into the style attribute
`content`	—	The child markup to augment

Example usage

renderer = afx`
    <JvMTECH.Neos.ImageFocalPointEditor:ObjectPosition
        focalPoint={Json.parse(q(node).property('focalPoint'))}
    >
        <Neos.Neos:ImageTag asset={q(node).property('image')} />
    </JvMTECH.Neos.ImageFocalPointEditor:ObjectPosition>
`

Development

The frontend source lives in Resources/Private/Scripts/. It is built with esbuild and outputs to Resources/Public/ImageFocalPointEditor/.

cd Resources/Private/Scripts

# Install dependencies
yarn install

# Production build
yarn build

# Watch mode
yarn watch

Tech stack

React + TypeScript
Redux (connected to Neos UI store)
@lemoncode/react-image-focal-point for the picker UI
esbuild for bundling
