Laravel package for inter-service communication in microservice architecture. Provides HTTP transport with failover, HMAC signing, route discovery via Redis, and idempotency.

Requirements
Installation
Schema
Configuration
Client
Security
Idempotency
Route Discovery
Health Tracking
Events
Artisan Commands
Redis Keys
Testing

Requirements

PHP >= 8.2
Laravel 11.x or higher
Redis
Guzzle 7+

Installation

composer require jurager/microservice

Publish the configuration file:

php artisan vendor:publish --tag=microservice-config

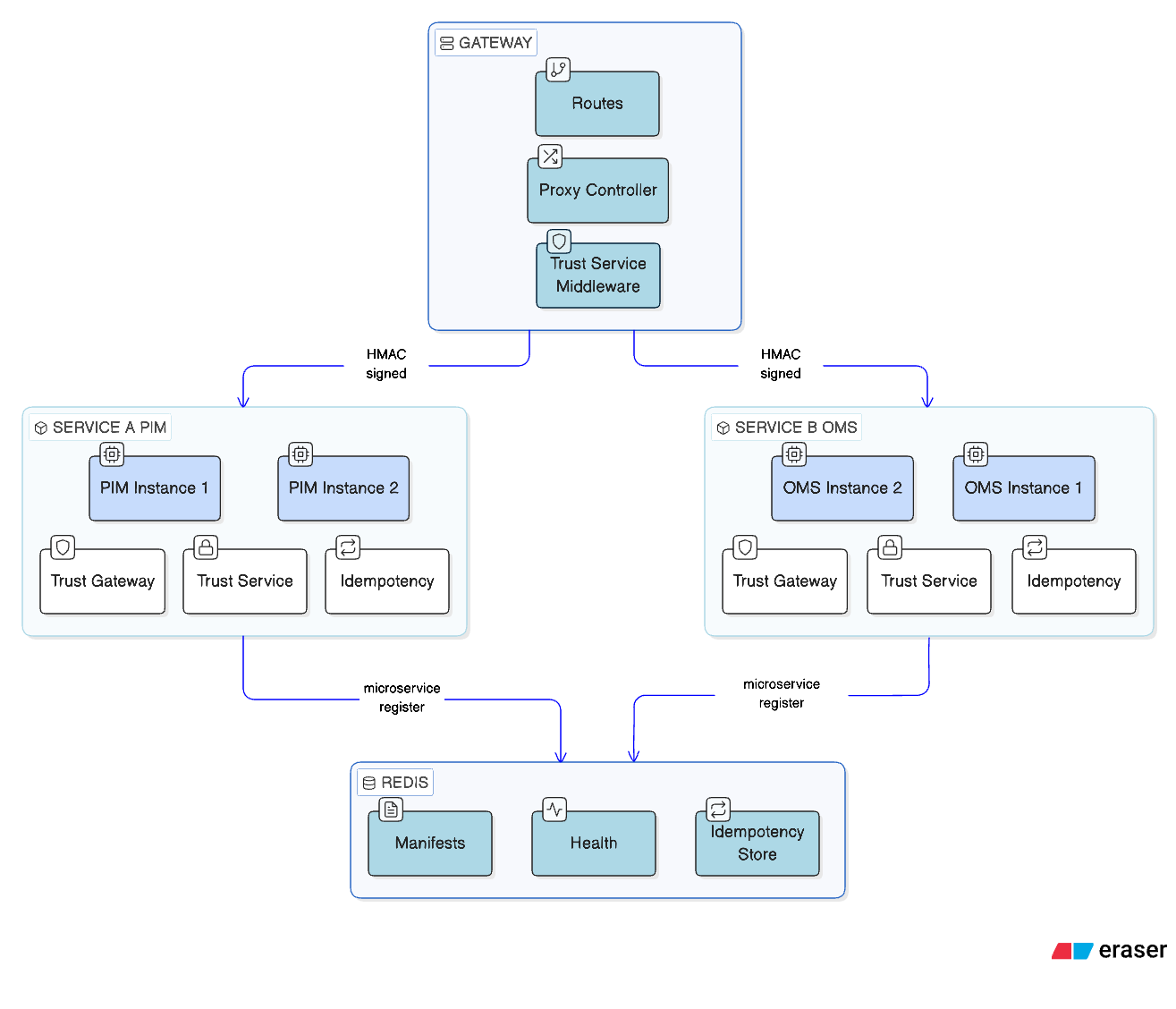

Schema

Each service can run multiple instances (base_urls in config). The client distributes requests across instances with automatic failover and health tracking.

Flow:

Each microservice registers its routes in Redis via microservice:register
The gateway reads manifests and creates Laravel routes via Gateway::routes()
Incoming requests are proxied to the target service by ProxyController
Services communicate directly via ServiceClient (HMAC-signed, verified by TrustService)
Unhealthy instances are excluded from rotation; the client fails over to the next available instance

Configuration

config/microservice.php:

Service identity

'name'   => env('SERVICE_NAME', 'app'),       // unique service identifier
'secret' => env('SERVICE_SECRET', ''),         // shared HMAC secret (openssl rand -base64 32)

'algorithm'           => 'sha256',             // HMAC hash algorithm
'timestamp_tolerance' => 60,                   // max age of signed request in seconds

All services in the cluster must use the same secret.

Services registry

'services' => [
    'oms' => [
        'base_urls' => ['http://oms-1:8000', 'http://oms-2:8000'],
        'timeout'   => 5,     // optional, overrides defaults.timeout
        'retries'   => 2,     // optional, overrides defaults.retries
    ],
],

Multiple base_urls enable failover — the client tries each instance in order until one responds.

Defaults

'defaults' => [
    'timeout'     => 5,     // request timeout in seconds
    'retries'     => 2,     // retry attempts per instance
    'retry_delay' => 100,   // delay between retries in milliseconds
],

'redis' => [
    'connection' => env('SERVICE_REDIS_CONNECTION', 'default'),
    'prefix'     => 'microservice:',
],

'health' => [
    'failure_threshold' => 3,    // failures before marking instance unhealthy
    'recovery_timeout'  => 30,   // seconds before retrying unhealthy instance
],

'manifest' => [
    'ttl'     => 300,                                 // manifest TTL in Redis (seconds)
    'prefix'  => 'api',                               // only routes with this URI prefix are registered
    'gateway' => env('MANIFEST_GATEWAY_SERVICE'),     // gateway service name, or null for local Redis
],

'idempotency' => [
    'ttl'          => 60,   // cached response TTL in seconds
    'lock_timeout' => 10,   // distributed lock TTL in seconds
],

Client

Sending requests

use Jurager\Microservice\Client\ServiceClient;

$client = app(ServiceClient::class);

// GET
$response = $client->service('oms')->get('/api/orders/123')->send();
$order = $response->json('data');

// POST with body and custom headers
$response = $client->service('oms')
    ->post('/api/orders', ['product_id' => 1, 'quantity' => 5])
    ->withHeaders(['X-Locale' => 'en'])
    ->timeout(10)
    ->send();

// PUT, PATCH, DELETE
$client->service('wms')->put('/api/stock/42', ['quantity' => 100])->send();
$client->service('wms')->patch('/api/stock/42', ['quantity' => 50])->send();
$client->service('oms')->delete('/api/orders/123')->send();

Request builder

Method	Description
`get(path)`	GET request
`post(path, body?)`	POST request with optional body
`put(path, body?)`	PUT request with optional body
`patch(path, body?)`	PATCH request with optional body
`delete(path)`	DELETE request
`withHeaders(array)`	Merge additional headers (e.g. `X-Locale`, `X-Request-Id`)
`withQuery(array)`	Merge query parameters
`withBody(array)`	Override request body
`timeout(seconds)`	Override timeout for this request
`retries(count)`	Override retry count for this request
`send()`	Execute and return `ServiceResponse`

Priority for timeout / retries: explicit method call > per-service config > defaults.

ServiceResponse

$response->status();           // 200
$response->ok();               // true for 2xx
$response->failed();           // true for non-2xx
$response->json();             // full decoded body as array
$response->json('data.id');    // dot-notation access via data_get()
$response->json('key', 'def'); // with default value
$response->body();             // raw string
$response->header('X-Total');  // single header value or null
$response->headers();          // all headers as array
$response->throw();            // throws ServiceRequestException if failed, returns $this otherwise
$response->toPsrResponse();   // underlying PSR-7 ResponseInterface

Error handling

use Jurager\Microservice\Exceptions\ServiceUnavailableException;
use Jurager\Microservice\Exceptions\ServiceRequestException;

try {
    $response = $client->service('oms')->get('/api/orders/123')->send()->throw();
} catch (ServiceUnavailableException $e) {
    // All instances failed or no instances configured
    Log::error("Service unavailable: {$e->service}");
} catch (ServiceRequestException $e) {
    // Non-2xx response (thrown by ->throw())
    $status = $e->response->status();
    $body = $e->response->json();
}

Exception	When
`ServiceUnavailableException`	All instances exhausted after retries, or service not configured
`ServiceRequestException`	Thrown by `->throw()` when response is non-2xx

Failover and retry

The client iterates through base_urls from the service config. For each instance it retries up to retries times with retry_delay between attempts.

5xx / connection errors — retry, then failover to the next instance
4xx responses — returned immediately, no retry
If all healthy instances fail, the client falls back to the full instance list as a last resort
If all instances are exhausted, ServiceUnavailableException is thrown

Security

HMAC signature

All outgoing requests via ServiceClient are signed automatically. Headers added to every request:

Header	Description
`X-Signature`	HMAC signature
`X-Timestamp`	Unix timestamp
`X-Service-Name`	Sender service name (from `microservice.name`)
`X-Request-Id`	Unique request ID (auto-generated UUID, or custom via `withHeaders`)
`Content-Type`	`application/json`

Signature payload:

payload   = "{METHOD}\n{PATH}\n{TIMESTAMP}\n{BODY}"
signature = hash_hmac('sha256', payload, SERVICE_SECRET)

Body is encoded with JSON_UNESCAPED_UNICODE | JSON_UNESCAPED_SLASHES, or empty string if absent. Verification uses timing-safe hash_equals(). Requests older than timestamp_tolerance seconds are rejected.

TrustGateway middleware

Verifies HMAC signature on incoming requests. Apply to routes that receive requests from the gateway:

use Jurager\Microservice\Http\Middleware\TrustGateway;

Route::middleware(TrustGateway::class)->group(function () {
    Route::apiResource('products', ProductController::class);
});

Required headers: X-Signature, X-Timestamp. Returns 401 if missing or invalid.

TrustService middleware

Extends TrustGateway — additionally requires X-Service-Name header. Use for direct service-to-service routes:

use Jurager\Microservice\Http\Middleware\TrustService;

Route::middleware(TrustService::class)->group(function () {
    Route::post('/internal/sync', [SyncController::class, 'handle']);
});

Idempotency

The Idempotency middleware caches successful (2xx) responses by X-Request-Id header. Repeated requests with the same ID return the cached response without executing the handler.

use Jurager\Microservice\Http\Middleware\Idempotency;

Route::middleware(Idempotency::class)->group(function () {
    Route::post('/api/orders', [OrderController::class, 'store']);
});

Behavior:

Only non-safe methods (POST, PUT, PATCH, DELETE) with an X-Request-Id header are processed
Safe methods (GET, HEAD, OPTIONS) and requests without X-Request-Id pass through
ServiceClient generates X-Request-Id automatically on every outgoing request
A distributed lock prevents concurrent processing of the same request — returns 409 Conflict
Only successful (2xx) responses are cached; failed responses are not
Cached responses include the X-Idempotency-Cache-Hit: true header
Response headers date and set-cookie are excluded from cache

Configuration: microservice.idempotency.ttl (cache TTL) and microservice.idempotency.lock_timeout (lock TTL).

Route Discovery

Services register their routes in Redis for automatic gateway discovery. This eliminates route duplication — routes are defined once in the microservice and automatically appear on the gateway.

Microservice setup

Configure the gateway as a service and set manifest.gateway:

// config/microservice.php
'services' => [
    'gateway' => [
        'base_urls' => ['http://gateway:8000'],
    ],
],

'manifest' => [
    'gateway' => 'gateway',   // or env('MANIFEST_GATEWAY_SERVICE')
    'prefix'  => 'api',       // only routes starting with 'api' are registered
],

Attach metadata to routes (optional):

$route = Route::get('/products', [ProductController::class, 'index'])
    ->name('products.index');

$route->setAction(array_merge($route->getAction(), [
    'permissions' => ['products.view'],
    'rate_limit'  => 60,
]));

Any keys not in the excluded list are forwarded to the gateway as route metadata.

php artisan microservice:register

// bootstrap/app.php
->withSchedule(function (Schedule $schedule) {
    $schedule->command('microservice:register')->everyFiveMinutes();
})

When the service stops and stops re-registering, the manifest expires from Redis and the gateway stops routing to it.

Excluded action keys

The following Laravel internal keys are automatically excluded from manifest metadata:

uses, controller, middleware, as, prefix, namespace, where, domain, excluded_middleware, withoutMiddleware

Receiving manifests (gateway)

The package auto-registers POST /microservice/manifest, protected by TrustService middleware. When a microservice runs microservice:register with manifest.gateway set, the manifest is pushed to this endpoint and stored in the gateway's Redis. No additional setup needed.

If manifest.gateway is null, the manifest is stored in local Redis (useful for single-node setups or testing).

Gateway — registering routes

Gateway::routes() reads manifests from Redis and registers them as real Laravel routes. Each route is proxied to the corresponding service by ProxyController.

// gateway/routes/api.php
use Jurager\Microservice\Gateway\Gateway;

Route::middleware(['auth:sanctum'])->group(function () {
    Gateway::routes();
});

All metadata from setAction() (permissions, rate_limit, etc.) is available on the gateway:

$request->route()->getAction('permissions'); // ['products.view']
$request->route()->getAction('rate_limit');  // 60
$request->route()->getAction('_service');    // 'pim'

Filter by service

Gateway::routes(services: ['pim', 'oms']);

Route prefixes

If services have overlapping URIs (e.g., both PIM and OMS expose /api/products), add a prefix per service:

use Jurager\Microservice\Gateway\GatewayRoutes;

Gateway::routes(function (GatewayRoutes $routes) {
    $routes->service('pim')->prefix('catalog');
    $routes->service('oms')->prefix('orders');
});

The prefix is inserted after the first URI segment (api):

Service	Manifest URI	Gateway URI
pim	`/api/products`	`/api/catalog/products`
pim	`/api/products/{product}`	`/api/catalog/products/{product}`
oms	`/api/orders`	`/api/orders/orders`

The ProxyController forwards the original path (without prefix) to the service.

Customizing gateway routes

use Jurager\Microservice\Gateway\GatewayRoutes;

Gateway::routes(function (GatewayRoutes $routes) {
    // Middleware for all routes of a service
    $routes->service('pim')->middleware(['analytics']);

    // Middleware for a specific route (ProxyController stays)
    $routes->service('oms')
        ->post('/api/orders')->middleware(['audit']);

    // Override controller for a specific route
    $routes->service('pim')
        ->get('/api/products/{product}', [ProductController::class, 'show']);

    // Override controller + middleware
    $routes->service('pim')
        ->post('/api/products/import', [ImportController::class, 'store'])
        ->middleware(['queue']);
});

All routes (including overridden) receive manifest metadata via $request->route()->getAction().

ProxyController

The default ProxyController proxies each request to the target service via ServiceClient:

Forwards HTTP method, path, JSON body and query parameters
Signs the request with HMAC automatically
Returns the service response with original status code and headers
Filters out Transfer-Encoding and Connection headers
Benefits from failover, retry and health tracking

To replace the default controller for all routes:

Gateway::routes(controller: App\Http\Controllers\MyProxyController::class);

Route caching

Gateway::routes() reads manifests from Redis on every request. For production, use Laravel's route cache:

php artisan route:cache

Routes are serialized to a file — no Redis calls at runtime. When a service pushes a new manifest via POST /microservice/manifest, the route cache is cleared automatically. Rebuild after all services have registered:

php artisan route:cache

Manual route resolution

For cases where you don't use Gateway::routes():

use Jurager\Microservice\Registry\RouteRegistry;

$registry = app(RouteRegistry::class);

// Find which service handles a specific endpoint
$match = $registry->resolve('GET', '/api/products/123');
// ['service' => 'pim', 'method' => 'GET', 'uri' => '/api/products/{product}', 'permissions' => [...]]

// Get all registered routes across all services
$routes = $registry->getAllRoutes();
// [['service' => 'pim', 'method' => 'GET', 'uri' => '/api/products', 'name' => 'products.index'], ...]

// Get all manifests keyed by service name
$manifests = $registry->getAllManifests();

Permission checking (jurager/teams)

Create a middleware on the gateway that reads permissions from route metadata:

// gateway/app/Http/Middleware/CheckPermissions.php

class CheckPermissions
{
    public function handle(Request $request, Closure $next)
    {
        $permissions = $request->route()->getAction('permissions');

        if (!empty($permissions)) {
            $team = $request->user()->currentTeam;

            if (!$request->user()->hasTeamPermission($team, $permissions)) {
                abort(403);
            }
        }

        return $next($request);
    }
}

// gateway/routes/api.php
Route::middleware(['auth:sanctum', CheckPermissions::class])->group(function () {
    Gateway::routes();
});

Health Tracking

The HealthRegistry tracks instance failures in Redis. An instance is marked unhealthy after failure_threshold consecutive failures. After recovery_timeout seconds, the instance is given another chance.

Action	Effect
`markFailure(service, url)`	Increments failure counter, stored with TTL = `recovery_timeout * 2`
`markSuccess(service, url)`	Deletes the health key entirely (full reset)

Health is evaluated per-instance:

Below threshold — instance is healthy, included in rotation
At/above threshold, within recovery timeout — instance is excluded
At/above threshold, beyond recovery timeout — instance gets another chance

php artisan service:health

+----------+--------------------+----------+---------------------+-----------+
| Service  | URL                | Failures | Last Failure        | Status    |
+----------+--------------------+----------+---------------------+-----------+
| oms      | http://oms-1:8000  | 0        | -                   | healthy   |
| oms      | http://oms-2:8000  | 5        | 2025-01-15 14:30:00 | unhealthy |
+----------+--------------------+----------+---------------------+-----------+

Events

Event	When	Properties
`ServiceRequestFailed`	Every failed attempt (5xx, connection error) before failover	`$service`, `$url`, `$method`, `$path`, `$statusCode`, `$message`

// app/Listeners/LogServiceFailure.php
use Jurager\Microservice\Events\ServiceRequestFailed;

class LogServiceFailure
{
    public function handle(ServiceRequestFailed $event): void
    {
        Log::warning("Service request failed", [
            'service' => $event->service,
            'url'     => $event->url,
            'method'  => $event->method,
            'path'    => $event->path,
            'status'  => $event->statusCode,
            'message' => $event->message,
        ]);
    }
}

Artisan Commands

Command	Description
`microservice:register`	Build and register the service route manifest. Pushes to gateway if `manifest.gateway` is set, otherwise stores in local Redis. Displays registered routes in a table.
`service:health`	Display health status of all configured service instances with failure counts and status.

Redis Keys

All keys are prefixed with microservice.redis.prefix (default microservice:).

Key Pattern	Purpose	TTL
`{prefix}health:{service}:{md5(url)}`	Instance failure counter and last failure timestamp	`recovery_timeout * 2`
`{prefix}manifest:{service}`	Service route manifest (JSON)	`manifest.ttl` (300s)
`{prefix}idempotency:{request_id}`	Cached response (status, headers, content)	`idempotency.ttl` (60s)
`{prefix}idempotency:{request_id}:lock`	Distributed processing lock	`idempotency.lock_timeout` (10s)

Testing

composer test

The package uses Orchestra Testbench for testing. Redis interactions are mocked via Mockery — no running Redis instance required for tests.

jurager / microservice

Maintainers

Details
