One Time Password Component Magento2 Module.

A comprehensive One-Time Password (OTP) component module that provides both frontend and backend implementations for secure email-based verification workflows.

If you're excited about this project and want to support its ongoing development, consider buying me a coffee! Your support means a lot and helps keep this project alive.

Features

Frontend Component

Multiple Integration Options: Can be used in CMS pages, blocks, or widgets
Form Integration: Seamlessly integrates with existing forms
Multiple Instances: Support for multiple concurrent forms on the same page
reCAPTCHA Integration: Built-in support for reCAPTCHA v2 (invisible mode)
Customizable Fields: Hidden fields that can be overridden (e.g., Date of Birth)
Event-Driven Architecture: Custom validation and action events

Backend Component

UI Component: Knockout.js-based backend interface
Admin Integration: Native admin panel integration with menu links
Single Instance: Optimized for single-instance backend usage
Test Interface: Built-in test pages for both frontend and backend

Core Functionality

6-Digit OTP: Secure email-based verification codes
Two-Step Process: Initial form submission followed by OTP verification
Custom Actions: Configurable post-verification actions (database saves, API calls, etc.)
Validation Hooks: Custom validation logic integration

How It Works

Initial Form Submission: User fills out the basic form data and clicks Send button
OTP Generation: A 6-digit code is generated and sent to the provided email address
Code Verification: User enters the received code in the verification step
Action Execution: Upon successful verification, configured actions are executed

Installation

You can find the module on Packagist. To install:

cd YourProject
composer require jaroslawzielinski/otpcomponent-m2

Configuration

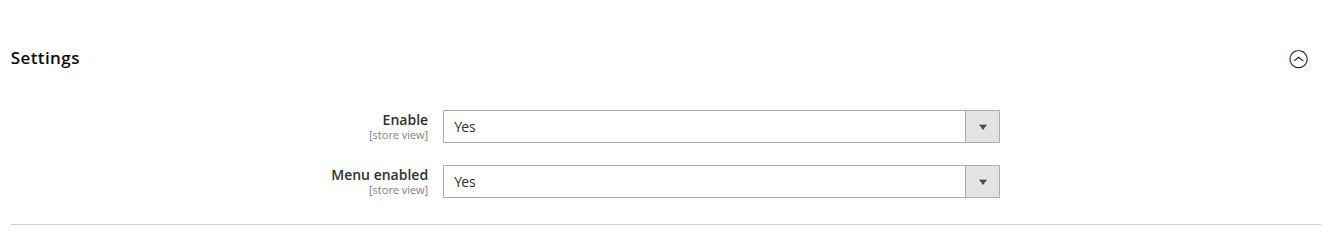

Settings

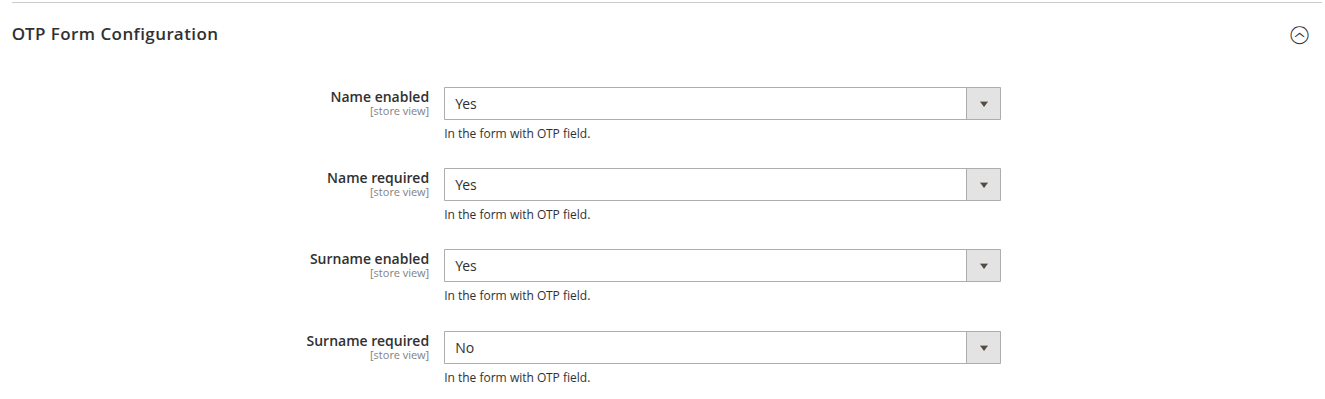

OTP Form Configuration

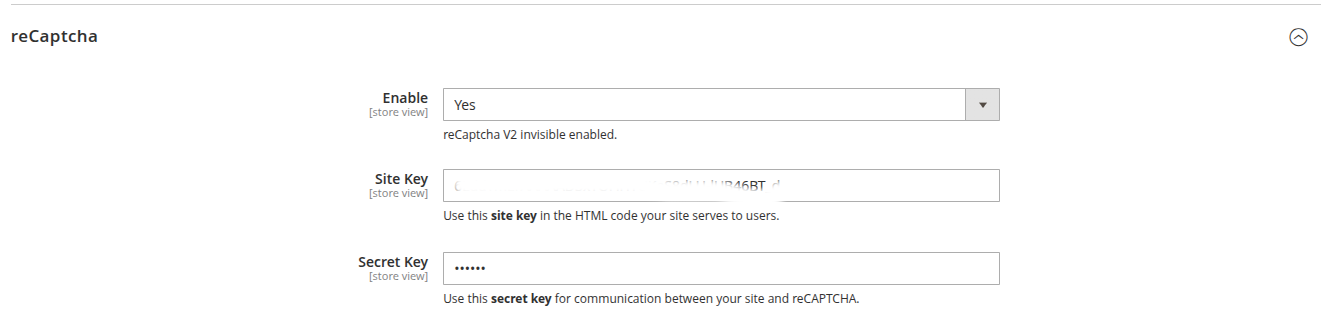

reCaptcha

Configure reCAPTCHA v2 (invisible mode):

Widget Separation

Multiple frontend forms are supported through unique widget IDs (opt_widget_id)

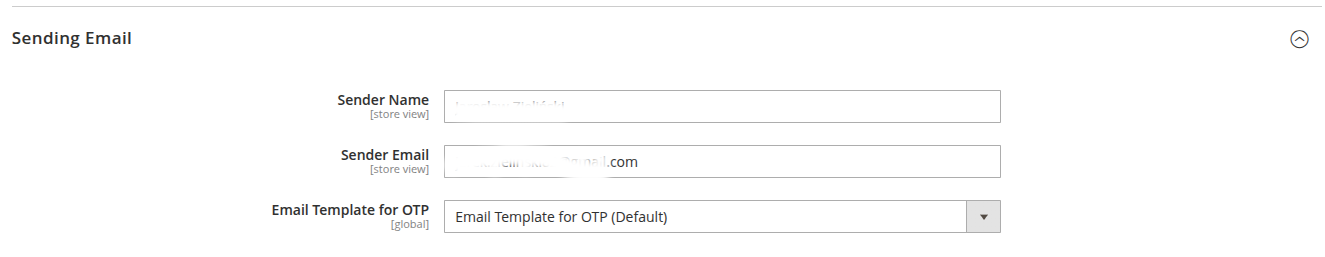

Sending Email

Usage Examples

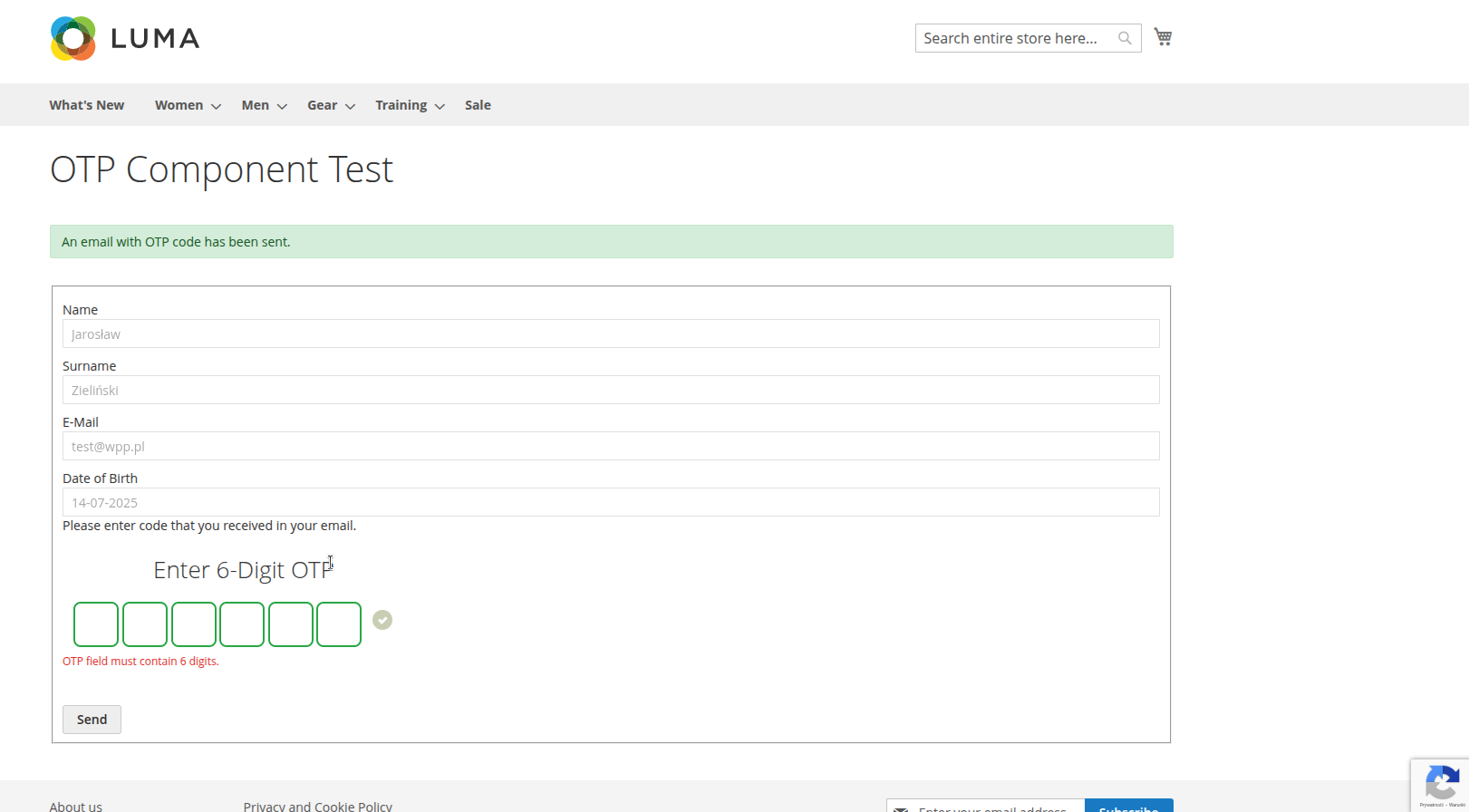

Frontend Widget Implementation

Use this code to implement OTP Component in your form:

<block class="JaroslawZielinski\OTPComponent\Block\Container\Form\Otp" name="otp_widget" as="otp_widget">
    <arguments>
        <argument name="config" xsi:type="array">
            <item name="name" xsi:type="string">otp6_value</item>

            <item name="initialValue" xsi:type="string"/>
        </argument>

        <argument name="view_model" xsi:type="object">JaroslawZielinski\OTPComponent\ViewModel\Otp</argument>
    </arguments>
</block>

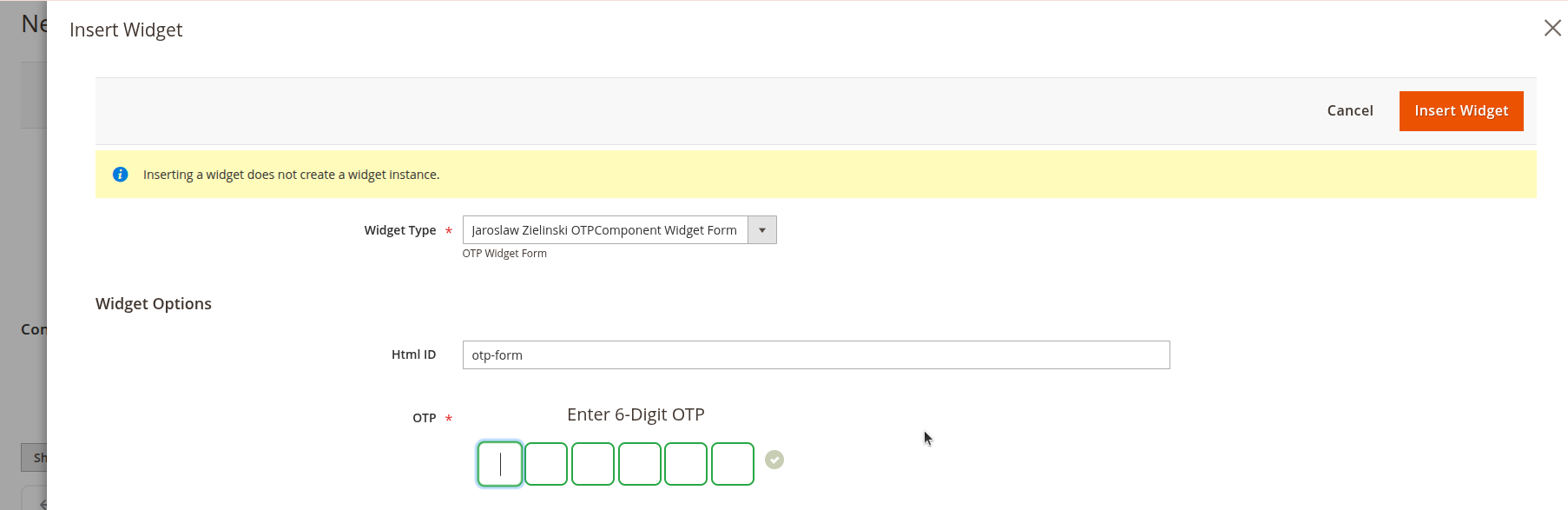

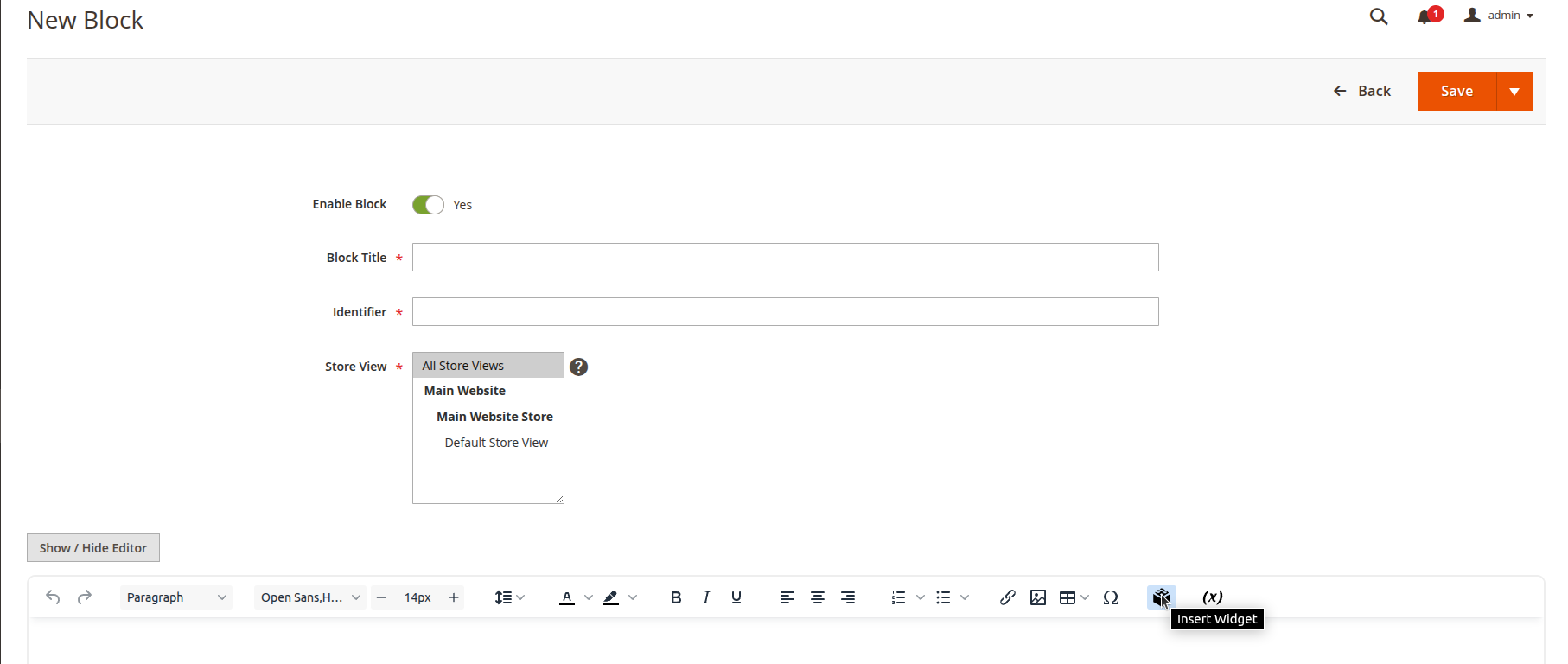

CMS Page/Block/Widget Usages

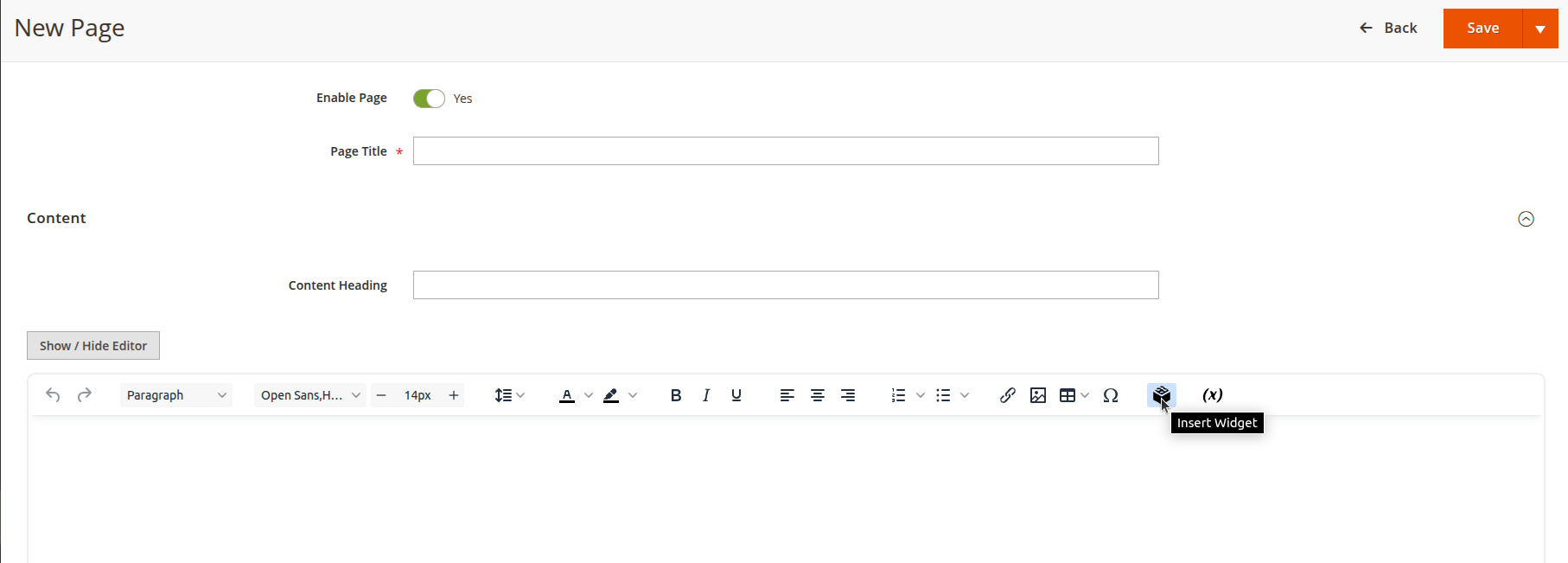

Admin Panel -> CONTENT -> Elements -> Pages

Admin Panel -> CONTENT -> Elements -> Blocks

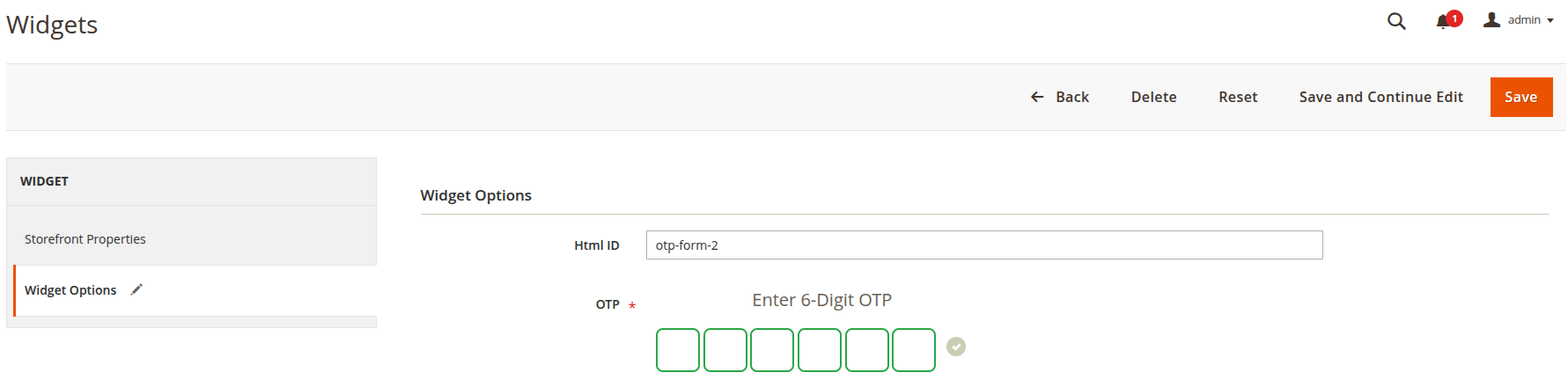

Admin Panel -> CONTENT -> Elements -> Widgets

NOTE: Just remember to use different Html ID of forms in order to proper working.

Backend UI Component

<field name="otp6_value" formElement="input">
    <argument name="data" xsi:type="array">
        <item name="config" xsi:type="array">
            <item name="component" xsi:type="string">JaroslawZielinski_OTPComponent/js/form/element/otp</item>

            <item name="template" xsi:type="string">JaroslawZielinski_OTPComponent/form/element/otp</item>

            <item name="digits" xsi:type="number">6</item>
        </item>
    </argument>

    <settings>
        <dataType>text</dataType>

        <label translate="true">OTP Code</label>

        <notice translate="true">Enter the 6-digit verification code</notice>

        <validation>
            <rule name="required-entry" xsi:type="boolean">true</rule>

            <rule name="validate-digits" xsi:type="boolean">true</rule>

            <rule name="min_text_length" xsi:type="number">6</rule>

            <rule name="max_text_length" xsi:type="number">6</rule>
        </validation>
    </settings>
</field>

Events

Frontend Events

Validation Event:

<event name="otpcomponent_controller_validation"...

implementation of a dispatcher:

$this->eventManager->dispatch('otpcomponent_controller_validation', [
    'request' => $request
]);

NOTE: Validation of all fields in the form. You may add your custom validation there.

Action Event:

<event name="otpcomponent_controller_authenticated"...

implementation of a dispatcher:

$this->eventManager->dispatch('otpcomponent_controller_authenticated', [
    'tuple' => $tuple,
    'totals' => &$totals
]);

where $tuple is user form data, and $totals are array return in json response.

NOTE: Your custom action. In this example it is addition of new entry User in data base after success OTP authentication.

Backend Events

Similar event structure available for backend implementations.

Menu Integration

The module automatically adds menu items for testing:

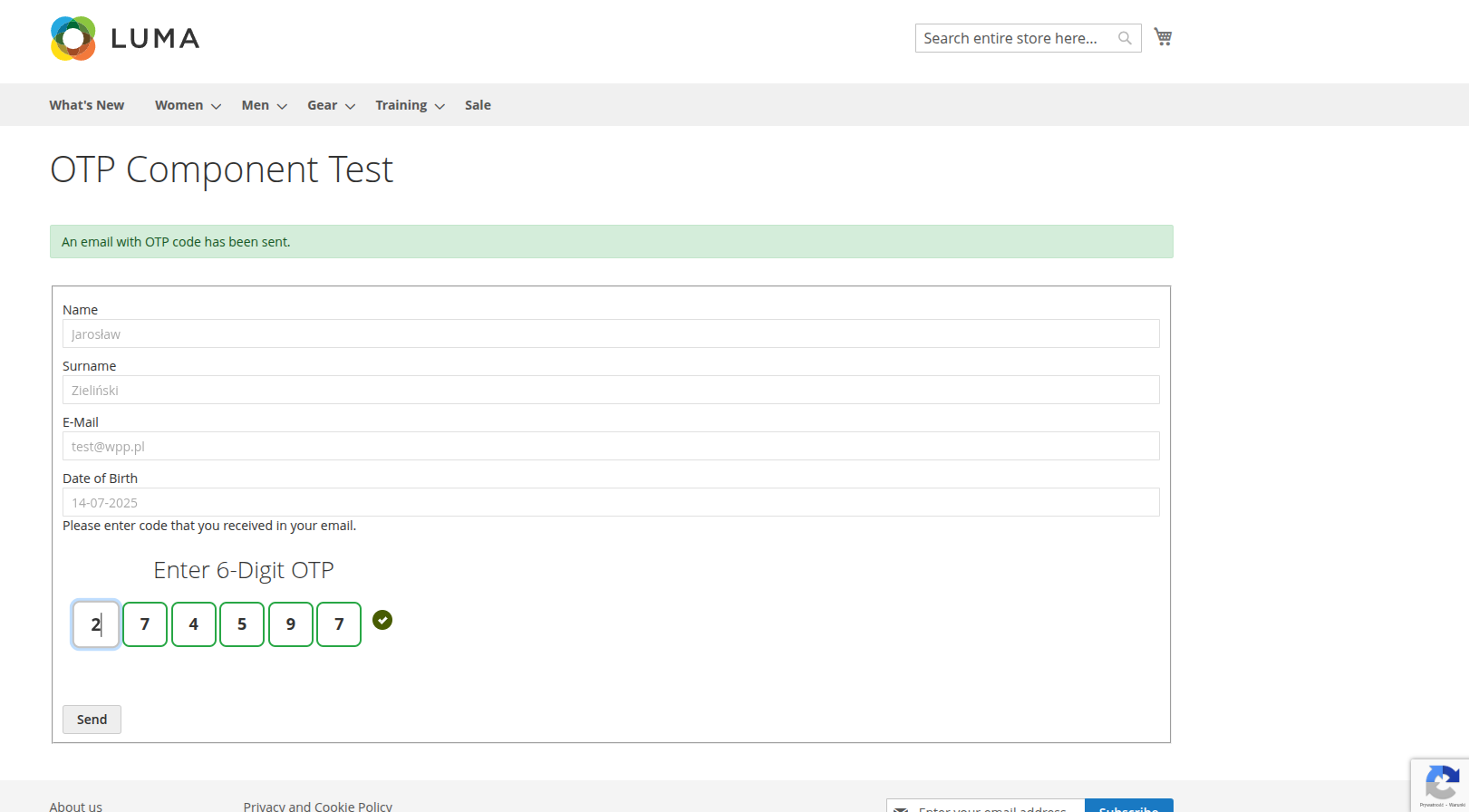

Frontend Test: otpcomponent/form/test

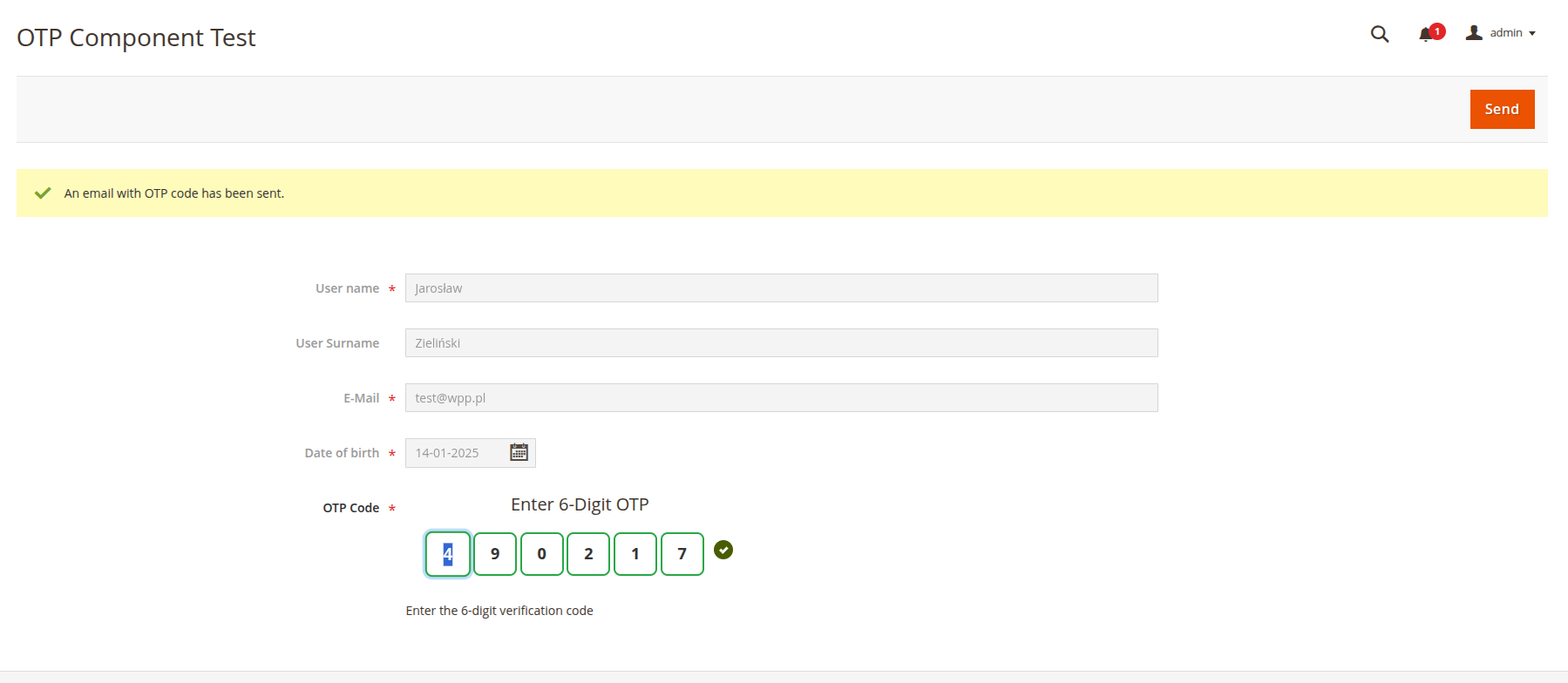

Backend Test: jaroslawzielinski_otpcomponent/form/test

Field Customization

1 Override extra hidden fields in the OTP Form by editing files:

1.1 Hidden Extra Fields in `view/frontend/layout/jaroslawzielinski_otpcomponent_form_test.xml`

<block class="JaroslawZielinski\OTPComponent\Block\Container\Form\HiddenExtraFields" name="hidden_extra_fields"
    as="hidden_extra_fields">
    <arguments>
        <argument name="fields" xsi:type="array">
            <item name="dob" xsi:type="string">dob</item>
        </argument>
    </arguments>
</block>

Note: Edit arguments. Change fields section only.

1.2 Hidden Extra Fields in `etc/frontend/di.xml`

<virtualType name="JaroslawZielinski\OTPComponent\Block\Container\Form\HiddenExtraFields"
    type="JaroslawZielinski\OTPComponent\Block\Container\Form\Fields">
    <arguments>
        <argument name="template" xsi:type="string">JaroslawZielinski_OTPComponent::container/form/hiddenextrafields.phtml</argument>

        <argument name="data" xsi:type="array">
            <item name="fields" xsi:type="array">
                <item name="dob" xsi:type="string">dob</item>
            </item>
        </argument>
    </arguments>
</virtualType>

Note: Edit arguments. Change data section only.

2 Override extra fields in the OTP Form by editing files:

2.1 Extra Fields in `etc/frontend/di.xml`

<virtualType name="JaroslawZielinski\OTPComponent\Block\Container\Form\ExtraFields"
    type="JaroslawZielinski\OTPComponent\Block\Container\Form\Fields">
    <arguments>
        <argument name="template" xsi:type="string">Vendor_OTPComponent::container/form/extrafields.phtml</argument>
    </arguments>
</virtualType>

Note: Edit arguments. Change template section only. Provide your .phtml template with your fields.

For example:

view/frontend/templates/container/form/extrafields.phtml

<?php
    /** @var \Magento\Framework\View\Element\Template $block */
    /** @var \JaroslawZielinski\OTPComponent\Block\Container\Form $parentBlock */
    $parentBlock = $block->getParentBlock();
    $formId = $parentBlock->getFormId();
    $isDisabledFields = $parentBlock->getDisableFields();
    $format = \JaroslawZielinski\OTPComponent\Observer\Validation::JS_DATE_FORMAT;
?>
<div class="row">
    <div class="col-24 col-sm-24">
        <div class="subrow">
            <label for="dob-<?= $formId; ?>"><?= __('Date of Birth'); ?></label>
            <input type="text" class="dob-date" id="dob-<?= $formId; ?>" name="dob"
                placeholder="<?= __('Select your birth date'); ?>" readonly
                <?php if ($isDisabledFields):?>disabled<?php endif; ?> value="<?= $parentBlock->getDob(); ?>"
                <?= $parentBlock->getRequired(); ?>>
        </div>
    </div>
</div>
<script type="text/javascript">
    require([
        'jquery',
        'mage/translate',
        'jquery/ui'
    ], function ($, $t) {
        $(document).ready(function() {
            $('#dob-<?= $formId; ?>').datepicker({
                dateFormat: '<?= $format; ?>',
                maxDate: 0, // Prevent future dates
                yearRange: '1900:c+0', // Years from 1900 to current year
                changeMonth: true,
                changeYear: true,
                showButtonPanel: false
            });
        });
    });
</script>

3 Override Submit Script:

3.1 Submit Script in `view/frontend/layout/jaroslawzielinski_otpcomponent_form_test.xml`

<block class="JaroslawZielinski\OTPComponent\Block\Container\Form\SubmitScript" name="submit-script"
    as="submit-script">
    <arguments>
        <argument name="form_id" xsi:type="string">otp-form</argument>

        <argument name="recaptcha_block" xsi:type="string">recaptcha.v2.invisible</argument>
    </arguments>
</block>

Browser Support

Modern browsers with JavaScript enabled
jQuery 1.9+
Knockout.js 3.0+ (for backend components)

Contributing

Fork the repository
Create your feature branch (git checkout -b feature/amazing-feature)
Commit your changes (git commit -m 'Add some amazing feature')
Push to the branch (git push origin feature/amazing-feature)
Open a Pull Request

License

This project is licensed under the MIT License - see the LICENSE file for details.

Support

For support and questions, please open an issue in the GitHub repository.

Explore these features, play with the settings, and see how this module can elevate your Magento2 site! And if you find value in this, I'd greatly appreciate your support on Buy Me a Coffee — it helps keep projects like this alive.

Happy Coding! 🚀
