README

Pindle

Your team marks up PDFs inside your app, instead of emailing them around.

Highlights and comment threads pinned to exact coordinates on the page — stored in your database, governed by your policies, on your servers.

composer require heyosseus/pindle

<x-pindle::viewer :for="$invoice" />

No npm. No Vite config. No build step in your application. No document leaves your infrastructure.

The problem it solves

Somebody has to approve the invoice, redline the contract, check the claim, mark the coursework. Today that means downloading the PDF, scribbling in Preview or Acrobat, and emailing it back — and the comments end up in an inbox instead of in your application, where nothing can query them, nothing can enforce who saw what, and nobody can tell you which contracts still have objections open.

Your three options have been:

	What it costs
Build it on PDF.js	Weeks. Coordinate maths that breaks on the first retina screen, then persistence, then authorisation, then the fact that the PDF gets re-uploaded
License an SDK (Nutrient/PSPDFKit, Apryse)	Commercial per-application licensing, a license key in your build, and a vendor in the middle of your document pipeline
Use a hosted viewer	Your contracts on somebody else's servers

Pindle is the fourth: composer require, MIT, self-hosted, and the annotations land in two ordinary tables next to your own.

What you actually get

The marks are rows you can query.

$invoice->pindleReview()->open;        // 3
$invoice->pindleReview()->orphaned;    // 1
$invoice->pindleReview()->isSettled(); // false

Invoice::whereHas('annotations', fn ($q) => $q->unresolved())->get();

That is the whole reason not to flatten comments into the PDF or hand them to a SaaS. A flattened comment cannot be reopened, counted, or blocked on.

It notices when the document is replaced — and can go and find the words again.

Every annotation records the sha256 of the bytes it was drawn on. Re-upload the contract and the old marks are flagged, not silently left pointing at whatever now sits at those coordinates. Then Pindle offers to search the new revision for the text the mark was made on, and move it there if you agree.

Nothing else does this. It is the difference between a review process you can trust and one that quietly lies to you after the third revision.

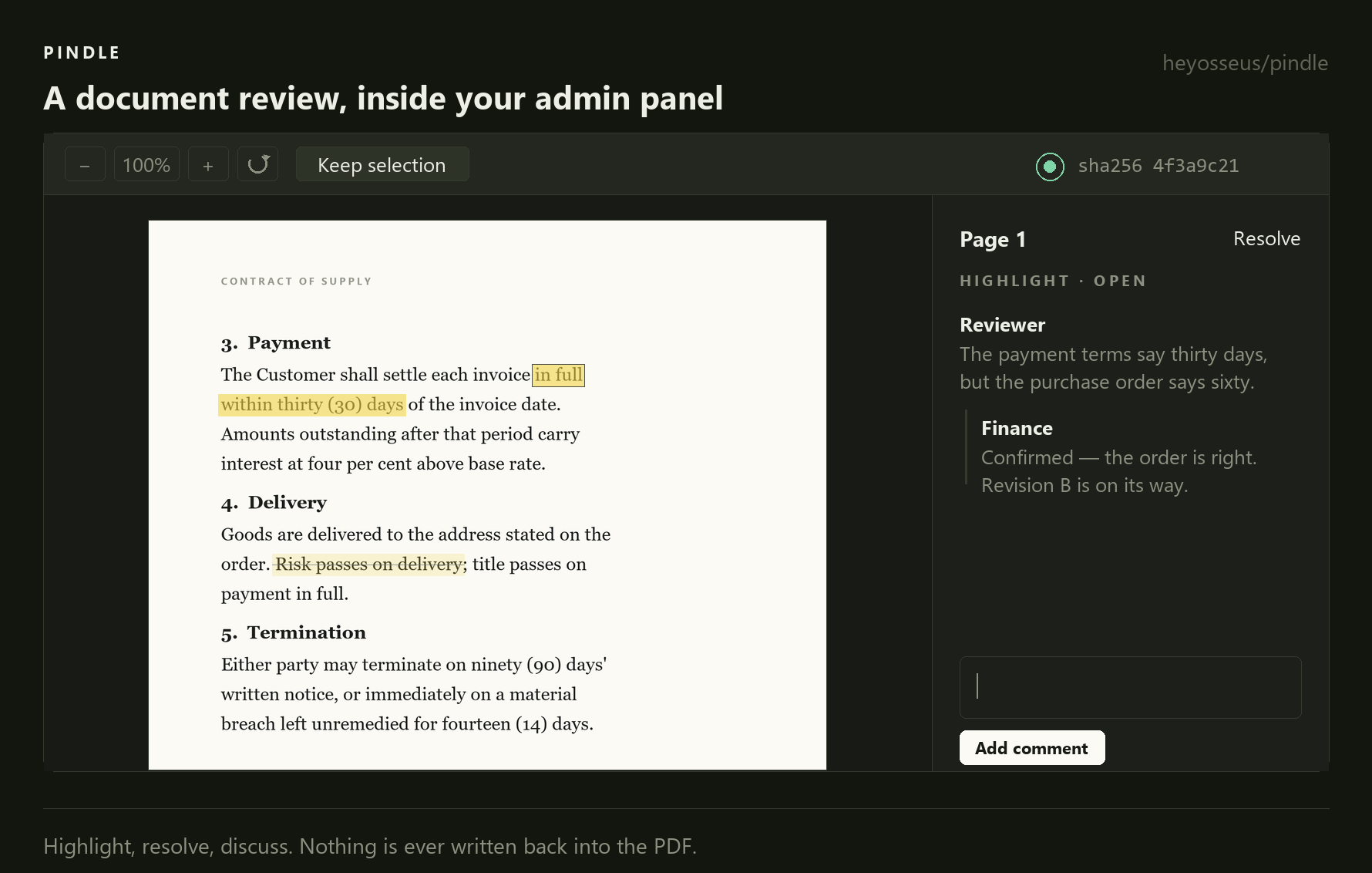

It shows up where your team already works.

PindleReviewColumn::make('review')   // "3 open · 1 orphaned" on your Filament table
PindleViewer::make('pdf_path')       // the viewer as a form field
PindleEntry::make('pdf_path')        // ...or an infolist entry

And it answers "what did legal say?" from a terminal.

php artisan pindle:export "App\Models\Contract" 4471 --format=md

Install · Use it · Requirements
Review state — the part that makes it worth keeping in your database
When the document changes — orphan detection and re-anchoring
Authorisation · Multi-tenancy · Private disks
Filament · Livewire · Events
Keyboard · Exporting a review · Housekeeping
How the anchoring works · Why not…
What it deliberately does not do

Requirements


PHP	8.3+
Laravel	11, 12, 13
Livewire	3 or 4 (optional)
Filament	4 or 5 (optional)

Filament and Livewire are suggest, never require. A CI leg runs the whole suite with neither installed.

Laravel 11 is tested on every commit and works, but it has left Laravel's own security-support window — so Composer may warn you about the framework, not about this package. Pindle keeps supporting it because applications still on 11 are the ones a package should not abandon; upgrading the framework is the real fix, and nothing here stands in the way of it.

Install

composer require heyosseus/pindle

php artisan vendor:publish --tag=pindle-migrations
php artisan vendor:publish --tag=pindle-assets
php artisan migrate

pindle-assets writes the pre-compiled viewer to public/vendor/pindle. That is the only build step there is, and Pindle already ran it.

Add the directive to your layout, once:

    @pindleScripts
</body>

Use it

Put the trait on the model the PDF belongs to:

use Pindle\Concerns\HasAnnotations;

class Invoice extends Model
{
    use HasAnnotations;
}

That is enough if the path lives on pdf_path. For anything else — or for more than one document per model:

protected array $pindleDocuments = [
    'default'       => 'pdf_path',
    'delivery_note' => 'delivery_pdf_path',
];

And render it:

<x-pindle::viewer :for="$invoice" />
<x-pindle::viewer :for="$invoice" document="delivery_note" :height="640" :readonly="true" />

Review state

$review = $invoice->pindleReview();          // one document
$reviews = $invoice->pindleReviews();        // all of them, keyed

$review->total;           // 4
$review->open;            // 3
$review->resolved;        // 1
$review->orphaned;        // 1
$review->comments;        // 9
$review->lastActivityAt;  // Carbon
$review->isSettled();     // false — nothing open and nothing orphaned
$review->label();         // "3 open · 1 resolved · 1 orphaned"

Three queries however many annotations there are, and the document is hashed once rather than once per mark. Use it to guard an approval button, badge a table, or fail a nightly report.

Note that isSettled() counts orphans as unsettled even when they are resolved: a closed objection to text that has since been replaced is a closed objection to something that may no longer be there, and somebody should look.

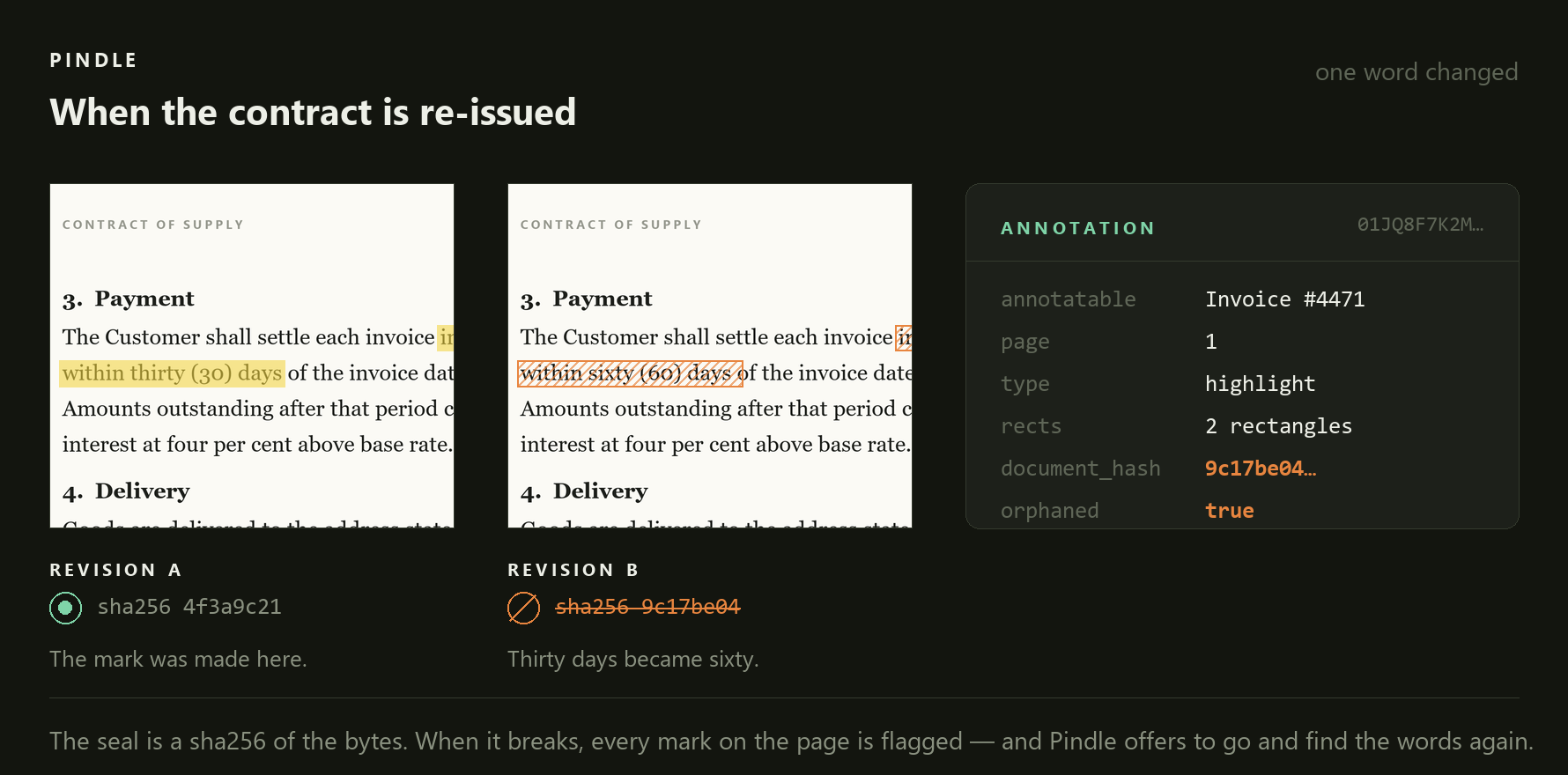

When the document changes

This is the part nothing else has.

Every annotation stores the sha256 of the document at the moment it was drawn. When a document is loaded whose hash differs, affected annotations come back with "orphaned": true and are drawn with a warning rather than at coordinates that now point somewhere else.

Pindle never re-anchors on its own. It offers:

The reviewer opens the flagged mark and presses Find these words in this version.
Pindle searches the new document's text layer for the snippet recorded when the mark was made, and says which page it found it on — and whether those words appear more than once.
If the reviewer accepts, POST /annotations/{id}/reanchor moves the mark and re-hashes it against the new bytes, firing AnnotationReanchored with the hash it replaced.

Moving somebody's objection automatically, onto text an algorithm thought looked similar, would be a worse failure than leaving it flagged. So a person decides.

Authorisation

Every endpoint asks your policy about the owning model, never about the annotation:

class InvoicePolicy
{
    public function view(User $user, Invoice $invoice): bool { /* ... */ }
    public function update(User $user, Invoice $invoice): bool { /* ... */ }
}

Being able to see an invoice lets you read its annotations; being able to edit one lets you write on it. Separate them by naming an ability of your own:

// config/pindle.php
'policy' => [
    'abilities' => [
        'viewAny' => 'view',
        'create'  => 'annotate',
        'update'  => 'annotate',
        'delete'  => 'annotate',
        'resolve' => 'annotate',
    ],
],

An unmapped ability denies. Emptying the map closes the door; it never opens it.

Rate limiting

The write endpoints ship behind throttle:60,1; the read endpoints deliberately do not. Rendering one page of a large PDF is a burst of range requests — PDFium asks for whatever byte spans it needs and asks again on every scroll — so a limit tight enough to matter for writing would break reading. Posting a comment is one request a person makes, which is the shape a rate limit is actually for.

// config/pindle.php
'routes' => [
    'throttle' => env('PINDLE_THROTTLE', '60,1'), // a rate, or the name of a limiter
],

Set it to null if you would rather limit these routes yourself; pindle:doctor will mention that you did, once.

Multi-tenancy

Pindle has no tenant column, and does not need one. An annotation is reachable only through a model you can already see, so whatever isolates your invoices isolates the marks on them — one constraint in one place, rather than a second weaker copy that can drift out of step.

Filament tenancy, stancl/tenancy and hand-rolled global scopes all work with no configuration. tests/Feature/Http/IsolationTest.php enumerates all nine routes and proves a user of tenant A reaches none of tenant B's through any of them.

For constraints not expressible on the owning model:

Pindle::scopeUsing(fn (Builder $query) => $query->where('created_at', '>', $cutoff));

Private disks

Pindle never serves documents from a public disk and never hands out a disk URL. Bytes go through a signed, expiring route that re-authorises through your policy on every request — so a link minted while somebody had access stops working the moment they lose it, even though the signature is still valid. A link is also refused to anyone it was not minted for.

'documents' => [
    'disk'    => env('PINDLE_DISK', 'local'),  // keep this private
    'url_ttl' => 300,
],

Filament

use Pindle\Filament\{PindleEntry, PindlePlugin, PindleReviewColumn, PindleReviewEntry, PindleViewer};

// The index screen: which records still have something open
PindleReviewColumn::make('review')

// The record page
PindleReviewEntry::make('review')
PindleEntry::make('pdf_path')->readonly()

// A form
PindleViewer::make('pdf_path')->documentKey('default')->viewerHeight(640)

// Panel-wide defaults
$panel->plugin(PindlePlugin::make()->viewerHeight(640))

The viewer field stores nothing — annotations live in Pindle's own tables — so it never appears in what your form saves.

Livewire

The Blade component is Livewire-safe on its own: its root carries wire:ignore, so a re-render never disturbs the canvas, and the bundle re-mounts after a navigation.

The optional wrapper is for when you want the server to react:

<livewire:pindle-viewer :for="$invoice" />

#[On('pindle:annotation-created')]
public function annotated(array $detail): void { /* ... */ }

Events

AnnotationCreated, AnnotationUpdated, AnnotationDeleted, AnnotationResolved, AnnotationReanchored, CommentPosted.

Each carries the record and the acting authenticatable, and each fires from the model rather than the controller — so a listener hears about an annotation whether it arrived over HTTP, from an importer, or from a job.

These are the extension point for approval workflows, which is why Pindle does not build one.

Keyboard

The viewer is meant to be worked through, not browsed.

Key
`n` / `j`	Next mark wanting attention
`p` / `k`	Previous
`r`	Resolve or reopen the selected mark
`Esc`	Put the thread away

Bound to the viewer's own element, so two viewers on a page never fight, and typing in a comment box never triggers anything.

Exporting a review

php artisan pindle:export "App\Models\Invoice" 4471
php artisan pindle:export invoice 4471 --format=json --path=review.json

Or from code:

(new ReviewExport($invoice))->toMarkdown();

Ordered by page and then by when each point was raised — the order a reader goes through a document in.

Housekeeping

Deleting soft-deletes, so the audit trail survives. pindle:prune eventually forgets:

php artisan pindle:prune --days=90

Switch on pindle.pruning.enabled to have Pindle schedule it, or leave the cadence null and schedule it yourself.

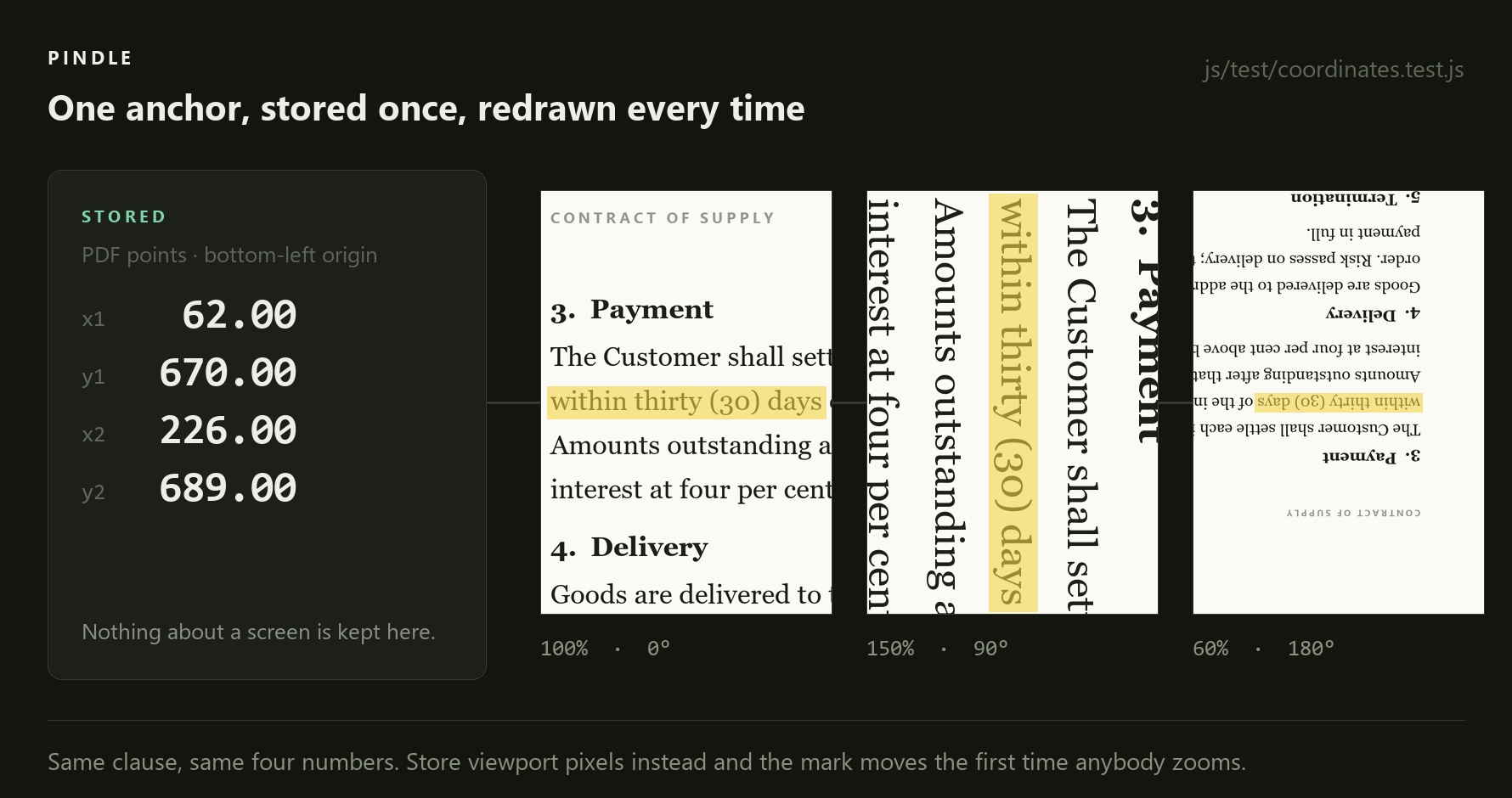

How the anchoring works

Anchors are stored as rectangles in PDF user space — bottom-left origin, in points:

[{ "x1": 72.0, "y1": 640.2, "x2": 310.5, "y2": 655.8 }]

A highlight over three lines is three rectangles. Nothing scale-dependent, rotation-dependent or viewport-dependent is ever persisted, which is why a mark lands on the same word at 50% zoom, at 400%, on a phone, and with the page turned sideways.

The conversion is proven on both sides: a round trip through the model in PHP, and the client-side maths at four rotations and five zoom levels in js/test/coordinates.test.js.

Why not…

…just use PDF.js? You can, and you will spend the weeks on the parts this package is: coordinate stability, persistence, authorisation, and knowing what to do when the file is replaced. PDF.js's own annotation editor writes into the PDF, which means the comments are not queryable and not reopenable.

…flatten annotations into the PDF? Then they cannot be resolved, reassigned, counted or withdrawn, and every change rewrites the file. Pindle deliberately never touches your PDFs.

…license a commercial SDK? If you need redaction, forms, digital signatures and OCR, do — those are real products and this is not trying to be one. If you need a team to comment on documents in your admin panel, this is composer require and MIT.

What it deliberately does not do

No OCR, no text reflow, no data extraction, no e-signatures, no approval state machines, and no writing annotations back into the PDF. Each is a real product in its own right, and doing any of them badly would be worse than not doing them.

Testing

composer test    # rector, pint, phpstan (max), 100% type coverage, 100% line coverage
npm test         # the viewer's coordinate, API, store and re-anchoring tests

Contributing · Security · License

CONTRIBUTING.md · SECURITY.md · MIT, see LICENSE.md.
