Real frontend previews in the TYPO3 page module for the content elements of Camino, the default theme of TYPO3 v14. Built on Look (flowd/typo3-look).

Editors see hero, teaser grid, text teaser, author card and the other Camino elements in the page module exactly as the website renders them, inside Look's isolated preview frame. Camino's own previews (text summaries and crop thumbnails) are replaced for all content types the theme ships.

The extension works out of the box with Camino, but it is just as much a showcase: a complete, small example of how to wire Look into a TypoScript based theme. Two Fluid templates and one page TSconfig file are all it takes. If your site has its own theme, copy the pattern into your site package rather than installing this extension; the How it works section walks through it.

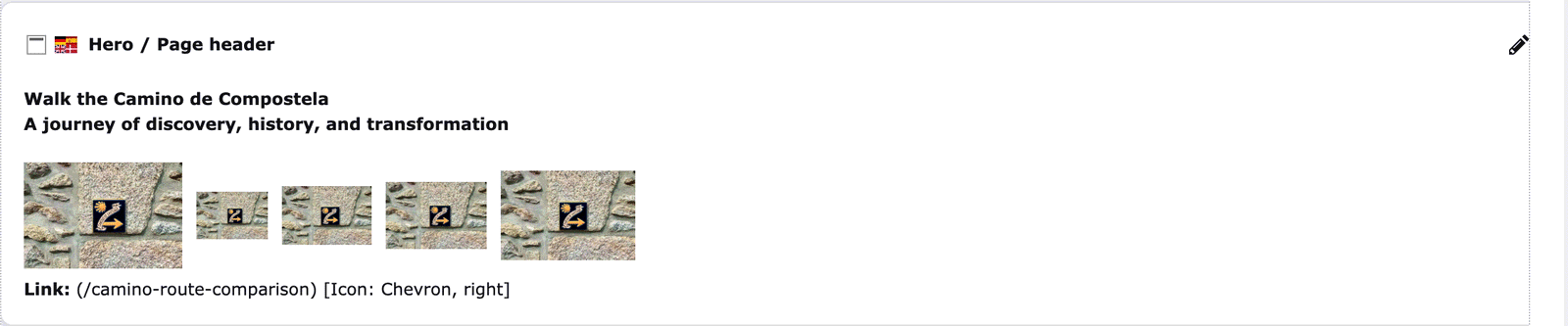

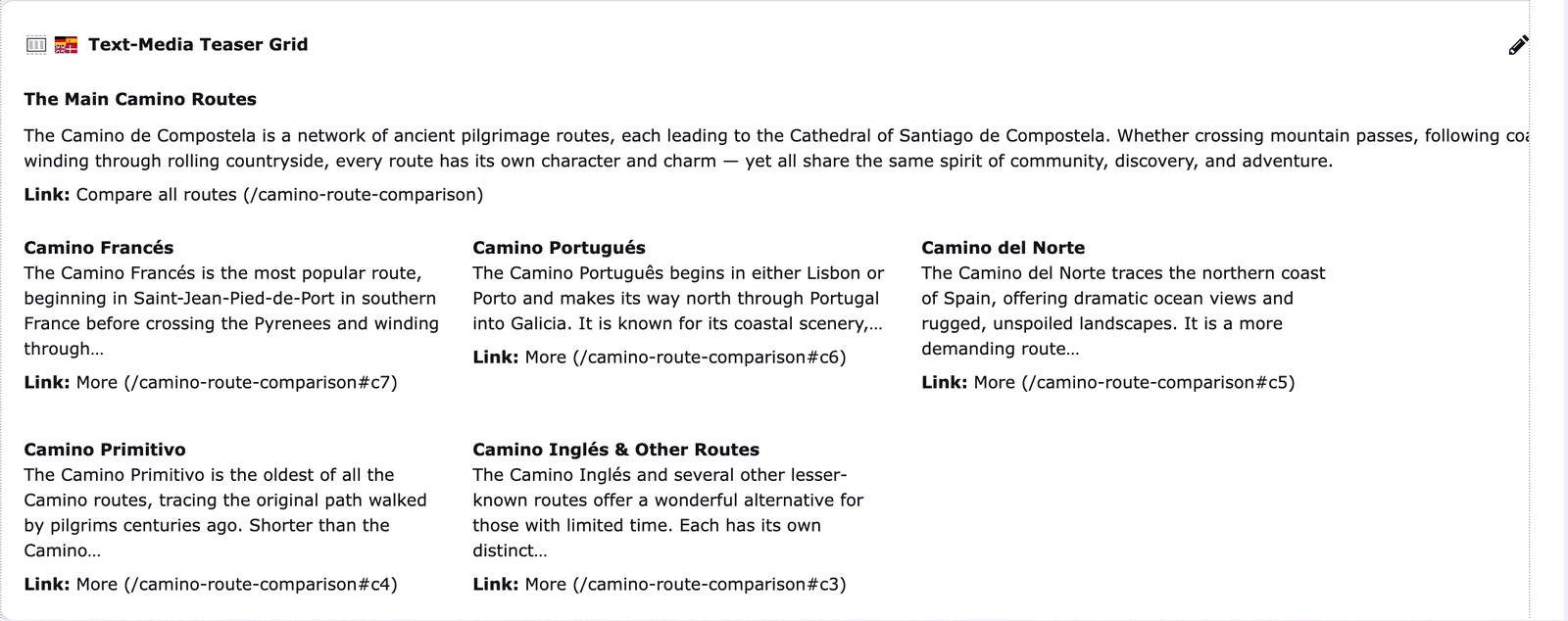

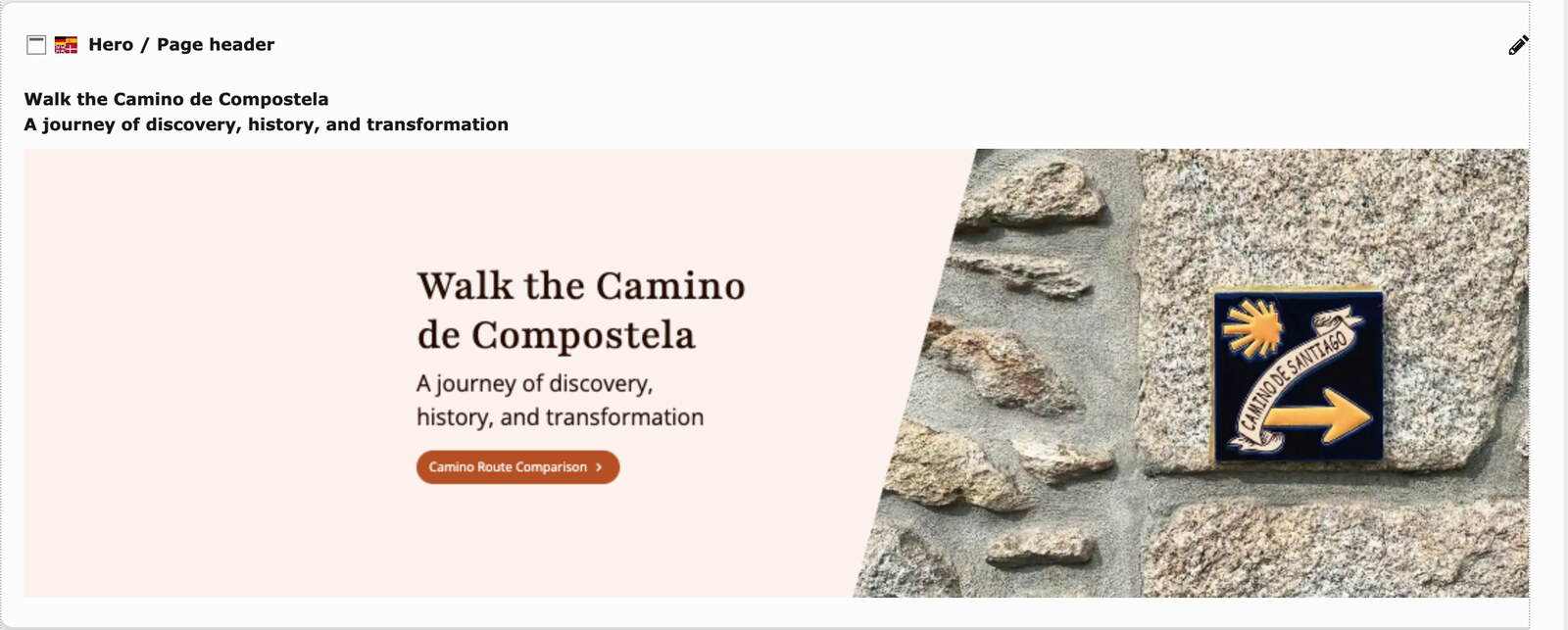

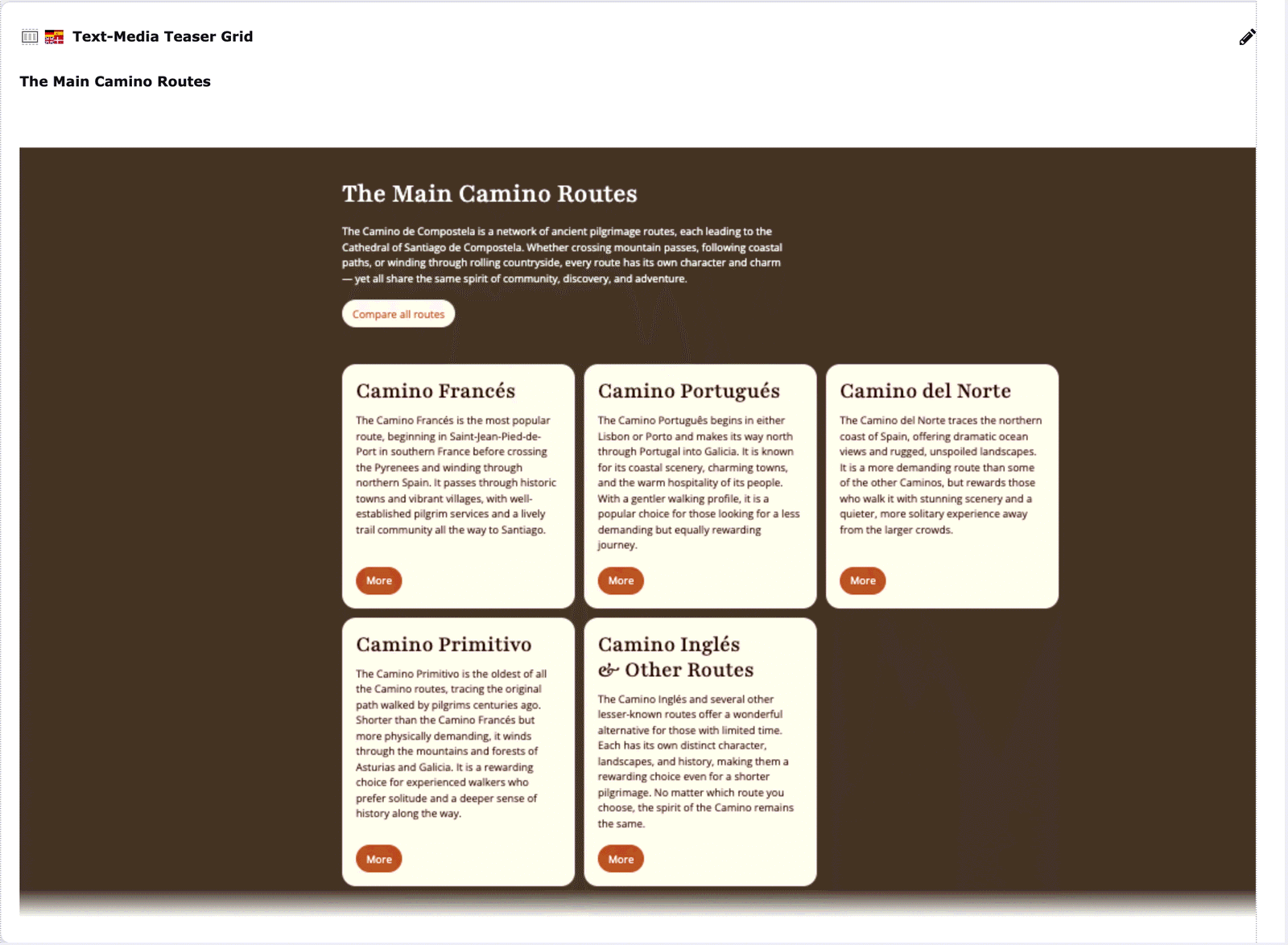

Camino's preview	With Look

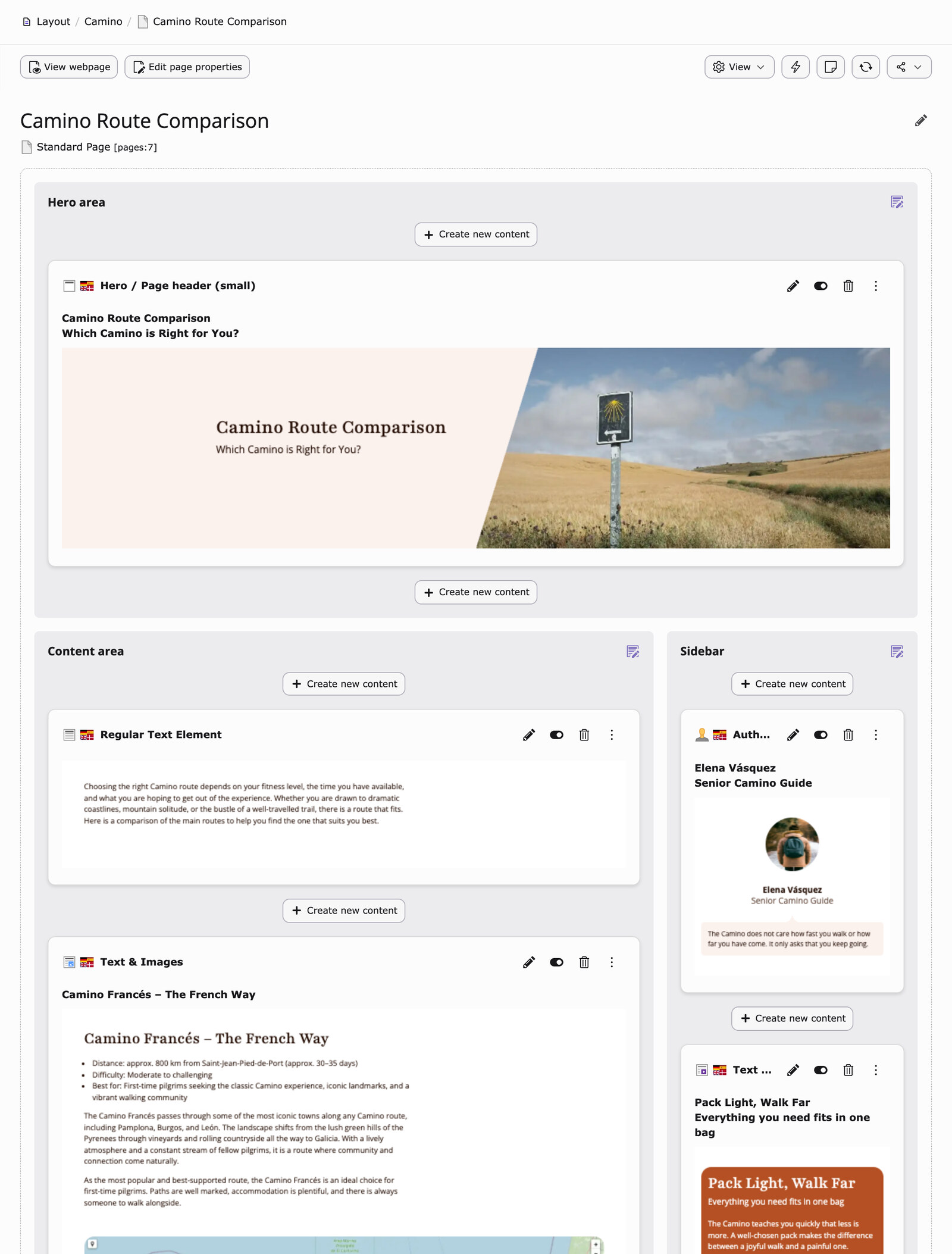

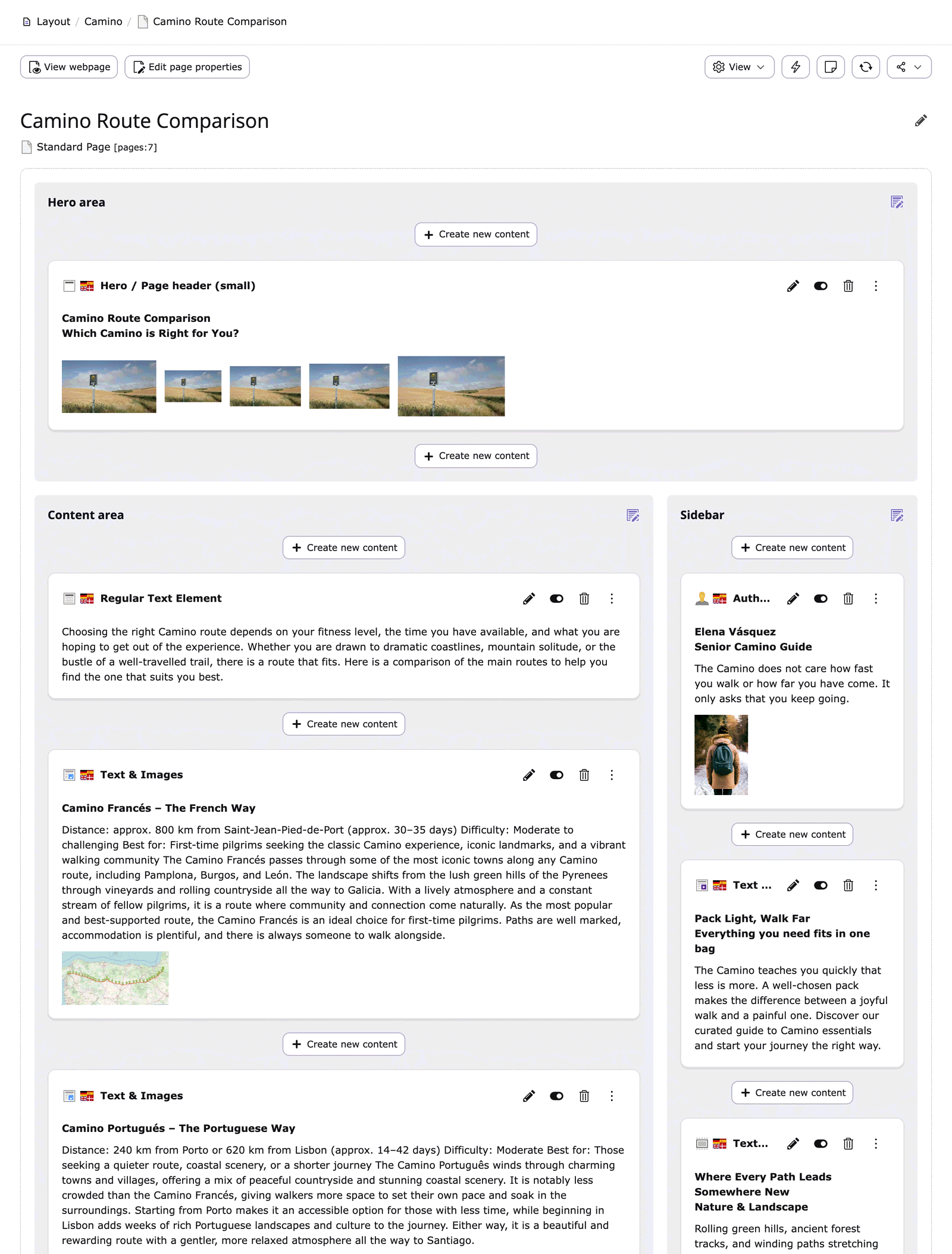

The whole page module, the page "Camino Route Comparison" from the Camino demo content:

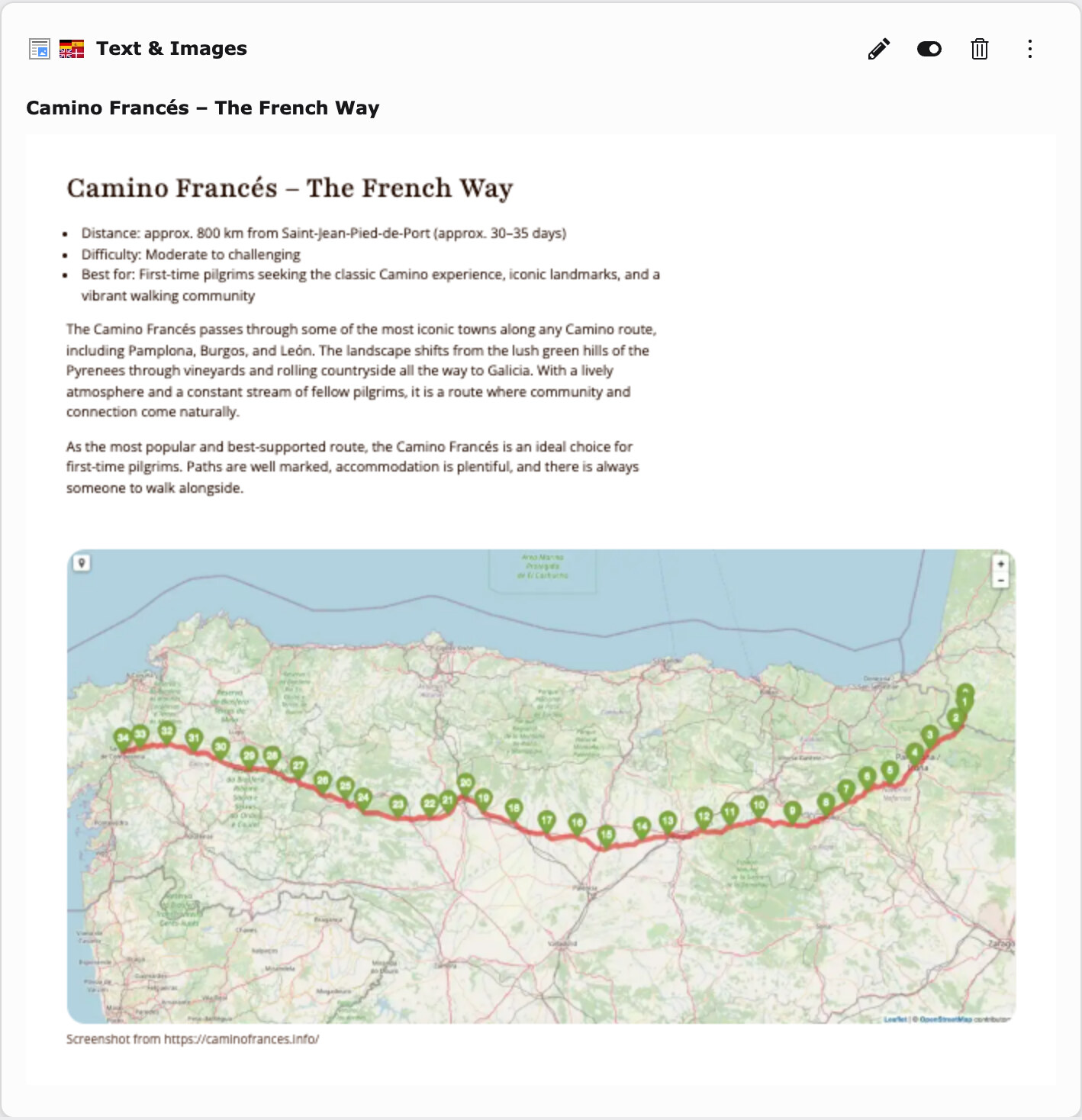

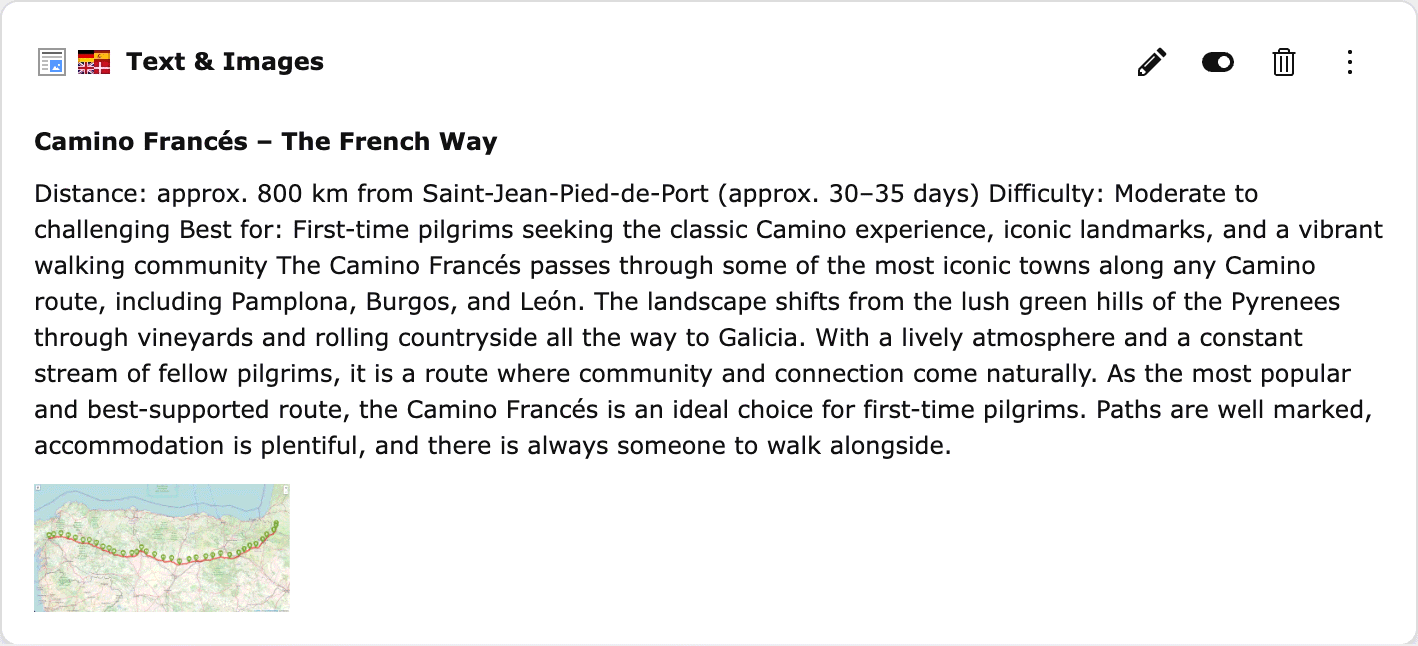

Camino's preview	With Look

Documentation: https://docs.typo3.org/p/flowd/typo3-look-camino/main/en-us/

Requirements

TYPO3 14.3 or later, PHP 8.2 or later
typo3/theme-camino and flowd/typo3-look 1.1 or later, both installed automatically

Camino itself requires TYPO3 14, so this extension does too.

Installation

composer require flowd/typo3-look-camino
vendor/bin/typo3 extension:setup

Add the site set Look previews for Camino (flowd/typo3-look-camino) to your site under Sites > Setup, next to Theme: Camino. The set brings the page TSconfig that routes the Camino content types to the Look preview. No further configuration is needed. Reload the page module.

How it works

The extension is configuration only, which is what makes it a usable template for your own site package. Its site set maps every Camino content type to one preview template (Resources/Private/Templates/Preview/Content.html):

<look:backend.contentPreview
    record="{record}"
    bodyClass="{look:site.setting(pageUid: record.pid, name: 'camino.colorScheme')}"
    css="{0: 'EXT:theme_camino/Resources/Public/Css/main.css'}"
    js="{0: 'EXT:theme_camino/Resources/Public/JavaScript/main.js'}" />

With record, Look renders the element with the frontend TypoScript of its page in a separate request, so Camino's templates, partials and data processors apply as on the website, including overrides from your site package, and none of that PHP runs inside the page module. look:site.setting puts the colour scheme from the site settings on the body of the preview frame, so switching the scheme switches the previews:

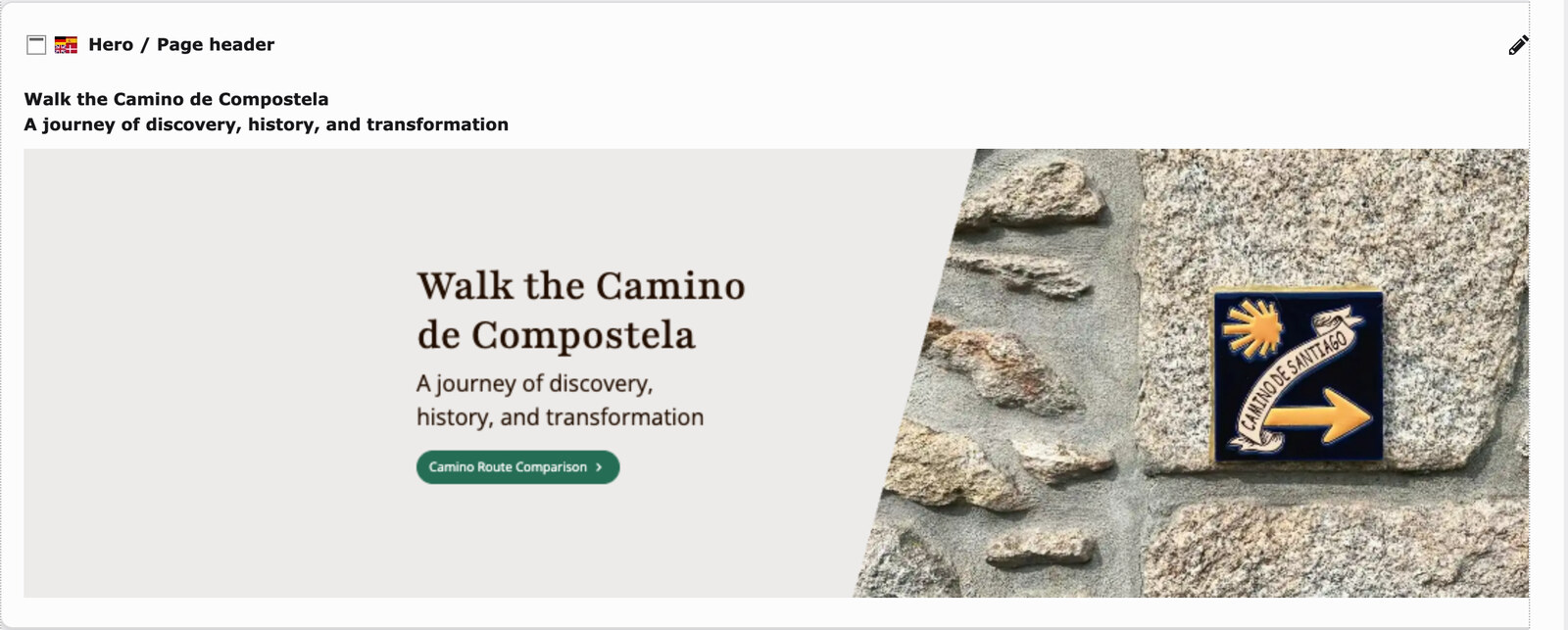

Caramel Cream	Forest Mist

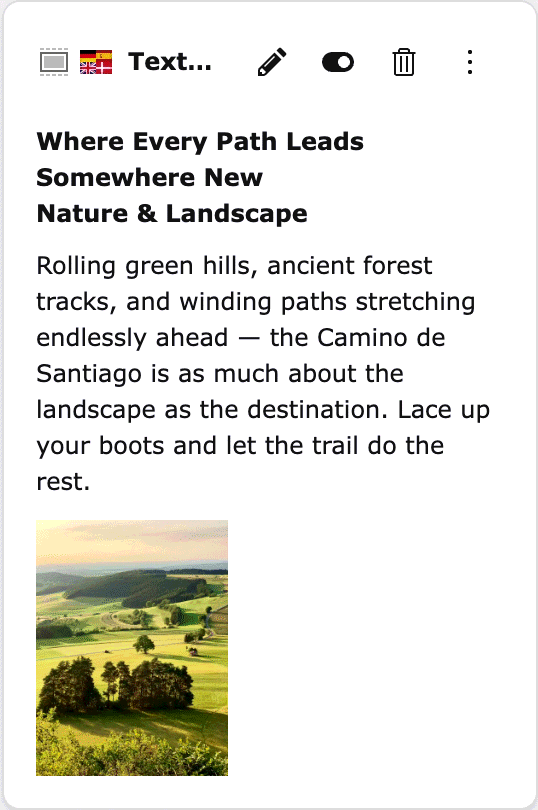

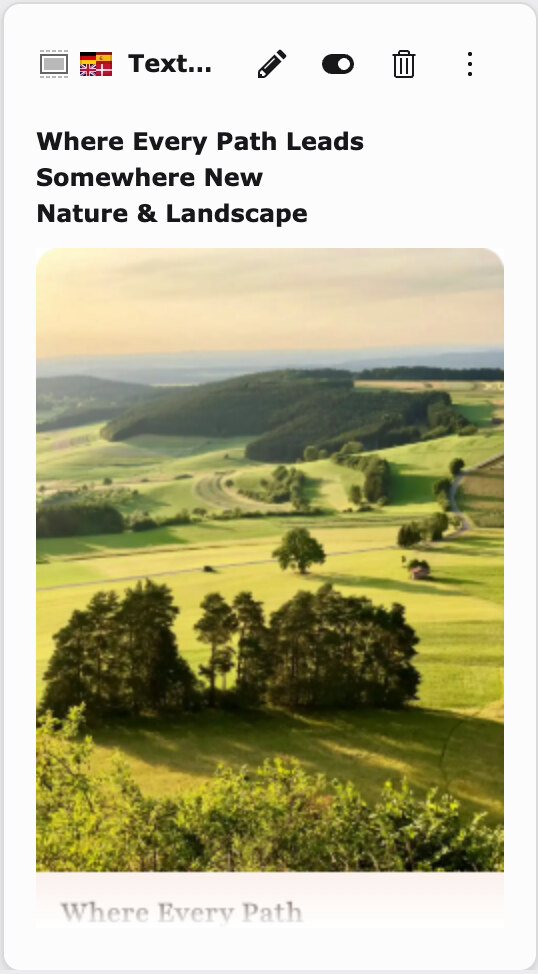

Sidebar teasers get a second template (Teaser.html) with a fixed height, as an example of a per-type setting. The fade-out shows editors that the element continues:

Camino's preview	With Look

Using the pattern in your own project

For a theme other than Camino, take the three pieces and adjust them:

A preview template that hands the record to Look and loads the stylesheet of your theme (css, optionally js and bodyClass).
Page TSconfig that maps your content types to that template via mod.web_layout.tt_content.preview.<CType>.
A site set (or your existing one) that ships the TSconfig.

The Look documentation explains the view helper arguments and when to prefer Content Blocks with Fluid Components instead.

Options

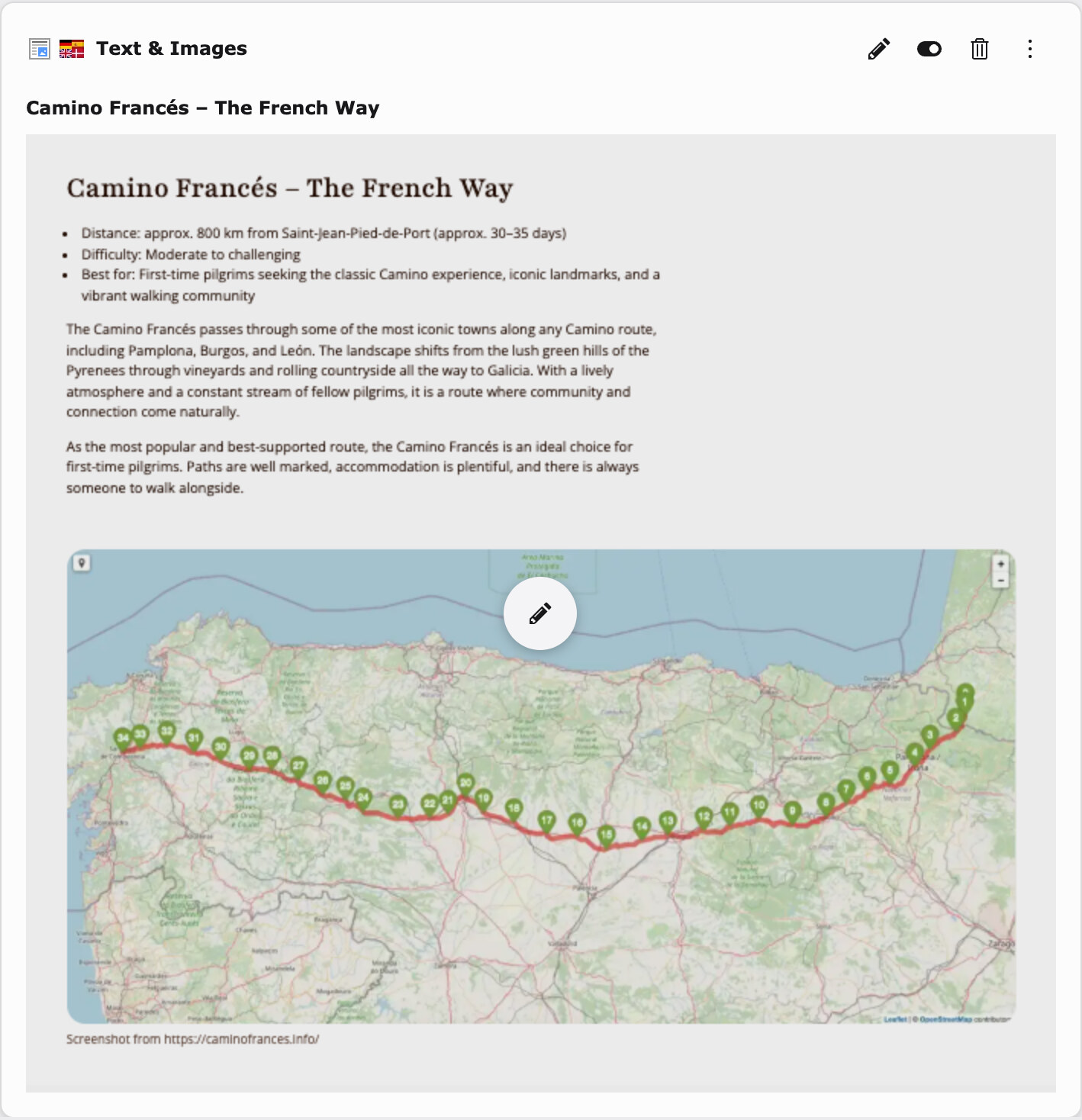

Look's extension configuration and feature flags apply unchanged: scale and maximum height of the previews, editOverlay for click-to-edit, allowSiteScripts for Camino's JavaScript inside the frame, allowMedia for videos. See the Look documentation.

Camino's web fonts are loaded cross-origin inside the preview frame. The web server has to send Access-Control-Allow-Origin for /_assets/*/Fonts/, see Installation in the Look documentation.

License

GPL-2.0-or-later. Made by Flowd GmbH.
