README

📍 A Google Maps location picker component for Filament 4 with search, draggable marker, and reverse geocoding support.

Features

🔍 Search location - Using Google Places Autocomplete
📍 Click to set marker - Click anywhere on the map to place a marker
✋ Draggable marker - Drag the marker to fine-tune the location
📱 Current location - Get user's current device location
⭕ Radius support - Display and edit radius around the location
🏠 Reverse geocoding - Auto-fill address fields from coordinates
🌙 Dark mode support - Fully compatible with Filament's dark mode
🌐 Multi-language support - Translations for EN, AR, NL, ID
⚙️ Fully configurable - Customize height, zoom, default location, and more

Requirements

PHP 8.1+
Laravel 10+ / 11+ / 12+
Filament 4.0+
Google Maps API Key with the following APIs enabled:
- Maps JavaScript API
- Places API
- Geocoding API

Installation

Install the package via Composer:

composer require fahiem/filament-pinpoint

Configuration

1. Set your Google Maps API Key

Add your Google Maps API key to your .env file:

GOOGLE_MAPS_API_KEY=your_api_key_here

2. Publish the config file (optional)

php artisan vendor:publish --tag="filament-pinpoint-config"

This will publish the config file to config/filament-pinpoint.php:

return [
    'api_key' => env('GOOGLE_MAPS_API_KEY'),

    'default' => [
        'lat' => env('GOOGLE_MAPS_DEFAULT_LAT', -0.5050),
        'lng' => env('GOOGLE_MAPS_DEFAULT_LNG', 117.1500),
        'zoom' => env('GOOGLE_MAPS_DEFAULT_ZOOM', 13),
        'height' => env('GOOGLE_MAPS_DEFAULT_HEIGHT', 400),
    ],
];

You can also set default values via environment variables:

GOOGLE_MAPS_API_KEY=your_api_key_here
GOOGLE_MAPS_DEFAULT_LAT=-6.200000
GOOGLE_MAPS_DEFAULT_LNG=106.816666
GOOGLE_MAPS_DEFAULT_ZOOM=15
GOOGLE_MAPS_DEFAULT_HEIGHT=500

Usage

Basic Usage

use Fahiem\FilamentPinpoint\Pinpoint;

public static function form(Form $form): Form
{
    return $form
        ->schema([
            Pinpoint::make('location')
                ->label('Location')
                ->latField('lat')
                ->lngField('lng'),

            TextInput::make('lat')
                ->label('Latitude')
                ->readOnly(),

            TextInput::make('lng')
                ->label('Longitude')
                ->readOnly(),
        ]);
}

Full Example with All Options

use Fahiem\FilamentPinpoint\Pinpoint;

Pinpoint::make('location')
    ->label('Business Location')
    ->defaultLocation(-6.200000, 106.816666) // Jakarta
    ->defaultZoom(15)
    ->height(400)
    ->draggable()
    ->searchable()
    ->latField('lat')
    ->lngField('lng')
    ->addressField('address')            // Auto-fill address field
    ->shortAddressField('short_address') // Auto-fill short address field (exclude province, city, district, village, and postal code)
    ->provinceField('province')          // Auto-fill province field
    ->cityField('city')                  // Auto-fill city/county field
    ->districtField('district')          // Auto-fill district field
    ->villageField('village')            // Auto-fill village/district field
    ->postalCodeField('postal_code')     // Auto-fill postal/zip code field
    ->countryField('country')            // Auto-fill country field
    ->radiusField('radius')             // Auto-fill radius field (in meters)
    ->defaultRadius(1000)               // Default radius in meters
    ->columnSpanFull()

Radius Support

You can enable radius support by using radiusField():

Pinpoint::make('location')
    ->radiusField('radius') // 'radius' is the column name in your database
    ->defaultRadius(500)    // Default 500 meters

When radiusField is configured, an interactive blue circle will appear on the map. You can:

Resize the radius by dragging the small white handle on the circle's edge
View the radius visually on the map
The radius value (in meters) is automatically saved to your database field in real-time
The circle uses proper z-index layering so the marker always appears on top

Visual hierarchy:

Marker (pin): zIndex 200 - always on top
Circle (radius): zIndex 100 - below the marker

Disable Features

Pinpoint::make('location')
    ->draggable(false)  // Disable marker dragging
    ->searchable(false) // Hide search box

Using with Repeater

Pinpoint fully supports Filament's Repeater component. Each repeater item gets its own independent map and fields:

use Fahiem\FilamentPinpoint\Pinpoint;
use Filament\Forms\Components\Repeater;
use Filament\Forms\Components\TextInput;

Repeater::make('branches')
    ->schema([
        TextInput::make('branch_name')
            ->label('Branch Name')
            ->required(),

        Pinpoint::make('location')
            ->label('Location')
            ->latField('latitude')
            ->lngField('longitude')
            ->addressField('address')
            ->draggable()
            ->searchable()
            ->height(300),

        TextInput::make('latitude')
            ->label('Latitude')
            ->readOnly(),

        TextInput::make('longitude')
            ->label('Longitude')
            ->readOnly(),

        TextInput::make('address')
            ->label('Address')
            ->readOnly()
            ->columnSpanFull(),
    ])
    ->columns(2)
    ->columnSpanFull()

Note: When using with Repeater, the field paths are automatically calculated (e.g., data.branches.0.latitude for the first item).

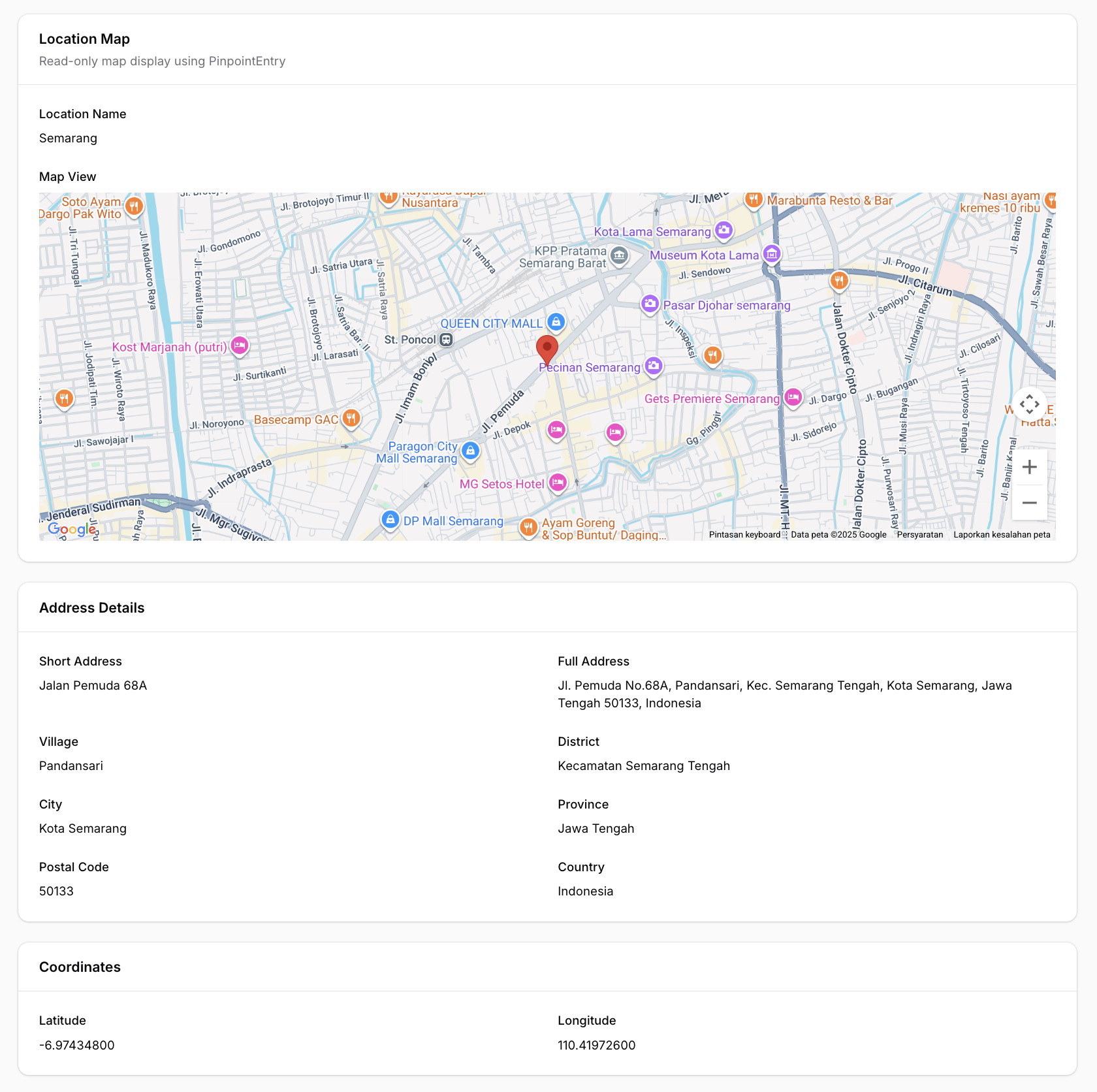

Infolist Entry (Read-Only Display)

For displaying locations in infolists (view mode), use the PinpointEntry component. It displays a clean, read-only Google Map with a marker at the specified coordinates.

Single Marker

use Fahiem\FilamentPinpoint\PinpointEntry;

public static function infolist(Infolist $infolist): Infolist
{
    return $infolist
        ->schema([
            PinpointEntry::make('location')
                ->label('Location')
                ->latField('lat')
                ->lngField('lng')
                ->columnSpanFull(),
        ]);
}

Multiple Markers (New in v1.1.3)

Display multiple locations on a single map:

PinpointEntry::make('branches')
    ->label('Branch Locations')
    ->pins([
        [
            'lat' => -6.200000,
            'lng' => 106.816666,
            'label' => 'Jakarta Office',
            'color' => 'red',
        ],
        [
            'lat' => -6.914744,
            'lng' => 107.609810,
            'label' => 'Bandung Office',
            'color' => 'blue',
        ],
        [
            'lat' => -7.797068,
            'lng' => 110.370529,
            'label' => 'Yogyakarta Office',
            'color' => 'green',
        ],
    ])
    ->fitBounds() // Auto-zoom to show all markers
    ->height(500)
    ->columnSpanFull()

Pin Customization Options

Each pin in the pins() array supports:

Option	Type	Description
`lat`	`float`	Required. Latitude coordinate
`lng`	`float`	Required. Longitude coordinate
`label`	`string`	Optional. Marker title (shows on hover and in info window)
`color`	`string`	Optional. Predefined color: `red`, `blue`, `green`, `yellow`, `purple`, `pink`, `orange`, `ltblue`
`icon`	`string`	Optional. Custom marker icon URL (overrides `color`)
`info`	`string`	Optional. Custom HTML content for info window (overrides default label)

Custom Marker Icons

PinpointEntry::make('locations')
    ->pins([
        [
            'lat' => -6.200000,
            'lng' => 106.816666,
            'label' => 'Main Office',
            'icon' => 'https://example.com/custom-marker.png', // Custom icon URL
        ],
        [
            'lat' => -6.914744,
            'lng' => 107.609810,
            'label' => 'Warehouse',
            'info' => '<div style="padding: 10px;"><strong>Warehouse A</strong><br>Open 24/7</div>', // Custom HTML
        ],
    ])
    ->columnSpanFull()

Customization Options

PinpointEntry::make('location')
    ->label('Business Location')
    ->defaultLocation(-6.200000, 106.816666) // Jakarta
    ->defaultZoom(15)
    ->height(400)
    ->latField('lat')
    ->lngField('lng')
    ->fitBounds(false) // Disable auto-fit bounds
    ->columnSpanFull()

The PinpointEntry displays:

A read-only Google Map with single or multiple markers
Optional info windows with labels or custom HTML content
Auto-fit bounds to display all markers
Full dark mode support

Available Methods

Pinpoint (Form Field)

Method	Description	Default
`defaultLocation(float $lat, float $lng)`	Set default center location	`-0.5050, 117.1500`
`defaultZoom(int $zoom)`	Set default zoom level	`13`
`height(int $height)`	Set map height in pixels	`400`
`latField(string $field)`	Field name for latitude	`'lat'`
`lngField(string $field)`	Field name for longitude	`'lng'`
`addressField(string $field)`	Field name for auto-fill address	`null`
`shortAddressField(string $field)`	Field name for auto-fill short address	`null`
`provinceField(string $field)`	Field name for auto-fill province	`null`
`cityField(string $field)`	Field name for auto-fill city/county	`null`
`districtField(string $field)`	Field name for auto-fill district	`null`
`villageField(string $field)`	Field name for auto-fill village/sub-district	`null`
`postalCodeField(string $field)`	Field name for auto-fill postal/zip code	`null`
`countryField(string $field)`	Field name for auto-fill country	`null`
`radiusField(string $field)`	Field name for auto-fill radius	`null`
`defaultRadius(int $radius)`	Set default radius in meters	`500`
`draggable(bool $draggable)`	Enable/disable marker dragging	`true`
`searchable(bool $searchable)`	Enable/disable search box	`true`

PinpointEntry (Infolist Entry)

Method	Description	Default
`defaultLocation(float $lat, float $lng)`	Set default center location	`-0.5050, 117.1500`
`defaultZoom(int $zoom)`	Set default zoom level	`13`
`height(int $height)`	Set map height in pixels	`400`
`latField(string $field)`	Field name for latitude	`'lat'`
`lngField(string $field)`	Field name for longitude	`'lng'`
`radiusField(string $field)`	Field name for radius	`null`
`pins(array $pins)`	Set array of multiple markers with lat, lng, label, color, icon, info	`null`
`fitBounds(bool $fit)`	Auto-zoom map to show all markers	`true`
`getLat()`	Get latitude from record	Returns field value or default
`getLng()`	Get longitude from record	Returns field value or default
`getPins()`	Get pins array	Returns pins or null
`hasPins()`	Check if pins are set	Returns boolean

Getting a Google Maps API Key

Go to Google Cloud Console
Create a new project or select an existing one
Enable the following APIs:
- Maps JavaScript API
- Places API
- Geocoding API
Go to Credentials and create an API key
(Recommended) Restrict your API key to specific domains

Database Migration

Make sure your table has columns for latitude and longitude:

Schema::create('locations', function (Blueprint $table) {
    $table->id();
    $table->string('name');
    $table->decimal('lat', 10, 7)->nullable();
    $table->decimal('lng', 10, 7)->nullable();
    $table->text('address')->nullable();
    $table->text('short_address')->nullable();
    $table->string('province')->nullable();
    $table->string('city')->nullable();
    $table->string('district')->nullable();
    $table->string('village')->nullable();
    $table->string('postal_code')->nullable();
    $table->string('country')->nullable();
    $table->timestamps();
});

Translations

This package supports multiple languages out of the box:

Language	Code
English	`en`
Arabic	`ar`
Dutch	`nl`
Indonesian	`id`

Publishing Translations

To customize the translations, publish them to your application:

php artisan vendor:publish --tag="filament-pinpoint-translations"

This will publish the translation files to lang/vendor/filament-pinpoint/.

Adding New Languages

Create a new folder in lang/vendor/filament-pinpoint/{locale}/ with a pinpoint.php file:

<?php

return [
    'search' => 'Your translation...',
    'use_my_location' => 'Your translation...',
    'instructions' => 'Your translation...',
    'loading_map' => 'Your translation...',
];

Changelog

Please see CHANGELOG for more information on what has changed recently.

Contributing

Please see CONTRIBUTING for details.

Security

If you discover any security-related issues, please email amfahiem010502@gmail.com instead of using the issue tracker.

Credits

License

The MIT License (MIT). Please see License File for more information.
