README

Show something in the right colours while your photos are still loading.

Add |lqipStyle to an image in a Twig template and it gets a low-quality image placeholder (LQIP): a flat colour, a gradient or a blurred preview, painted behind the image until the real photo arrives.

Three Twig filters: |lqip, |lqipStyle, |lqipSize. They take Media Library paths, |media URLs, file attachments, or null.
Made on upload. New images get their placeholder as they are uploaded.
Cached in the database. Each image is processed once, not on every page view.
Never breaks a page. A missing or broken image gives an empty string, never an exception.
Settings page, queued generation, console commands. GD or Imagick.

Built on bonniss26/lqip, which does the image work and can also be used without Winter.

Install
Use it in templates
Choosing a mode
Going to production
Settings and configuration
Housekeeping
For developers

Install

composer require bonniss26/wn-imagery-plugin
php artisan winter:up

Requirements: Winter CMS 1.2, PHP 8.0.2+, and ext-gd or ext-imagick. Imagick is about 3.5× faster on large JPEGs; either works.

Use it in templates

{# Most common: a placeholder behind an <img> #}
<img src="{{ photo|media }}" style="{{ photo|lqipStyle }}" loading="lazy">

{# Only the value, to layer under your own background-image.
   Check it first: "url(...), " followed by nothing is invalid CSS,
   and the browser would drop the photo too. #}
{% set placeholder = photo|lqip %}
<div style="background-image: url({{ photo|media }}){{ placeholder ? ', ' ~ placeholder }}; background-size: cover"></div>

{# Override an option for one call (but see "Going to production") #}
<img src="{{ photo|media }}" style="{{ photo|lqipStyle({mode: 'blur'}) }}">

{# Reserve the photo's space, so the page does not jump when it arrives #}
{% set size = photo|lqipSize %}
<img src="{{ photo|media }}" style="{{ photo|lqipStyle }}"
     {% if size %}width="{{ size.width }}" height="{{ size.height }}"{% endif %}>

{# ...or, for an element without fixed dimensions #}
<div style="{{ photo|lqipStyle({aspect_ratio: true}) }}"></div>

|lqipSize gives {width, height}, stored beside the placeholder, so the image is not downloaded again to measure it. It is the size the photo is displayed at: portrait phone photos are often stored sideways with a flag to rotate them, and this accounts for that. It is null while the placeholder itself has not been made yet.

Use |lqipStyle rather than building the style yourself where you can: it adds background-size: cover, without which the blur placeholder, a 16 px image, is tiled across the element instead of stretched over it.

photo can be any of these:

a Media Library path (photos/a.jpg);
the output of |media;
a System\Models\File;
an attachOne / attachMany relation (the first file is used);
null, which gives an empty string.

From PHP, use the Imagery facade:

Imagery::style($post->featured_image);  // "background-image:...;background-size:cover" or ""
Imagery::css('photos/a.jpg');           // "linear-gradient(#b5b2a5,#b5b2a5)" or ""
Imagery::dimensions('photos/a.jpg');    // ['width' => 800, 'height' => 533] or null
Imagery::result($file);                 // Bonniss26\Lqip\LqipResult or null

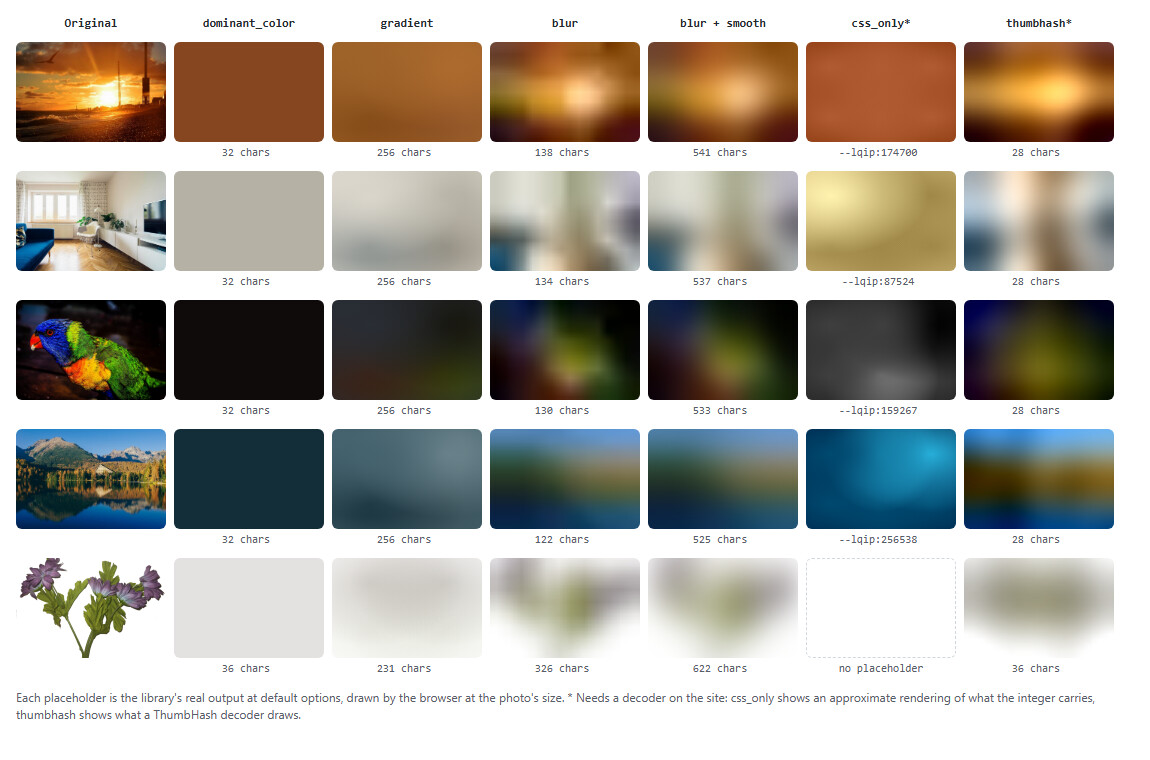

Choosing a mode

Pick the mode in Settings → CMS → Image placeholders. You can also override it per call, as above.

Mode	Looks like	Size per image	Good for
`dominant_color` (default)	One flat colour	~32 chars	Lightest; works everywhere
`blur`	A blurred thumbnail	~130 chars	Looks most like the photo. Recommended for most sites
`blur` + Smooth	The same, without visible blocks	~530 chars	The nicest look, if you can spare the bytes
`gradient`	Four soft colour patches	~256 chars	Servers whose GD/Imagick lacks WebP
`thumbhash`	A hash your JS or app decodes	~28 chars (more with transparency)	APIs and headless front ends. Not CSS
`css_only`	Colour plus coarse layout	~13 chars	Experimental. Needs your own decode stylesheet

The library's README explains each mode in more detail.

|lqip always returns a background-image value. If the mode is css_only (a CSS variable) or thumbhash (a hash), |lqip uses dominant_color instead, so an editor changing the mode cannot break a template. |lqipStyle renders css_only as --lqip:87524, and falls back for thumbhash.

To serve the hash itself, for example from an API endpoint, set the mode to thumbhash in Settings (so uploads and imagery:warm produce it) and read it with:

$hash = Imagery::result($image)?->value(); // null until it has been generated

Logos and cut-out product shots keep their transparency: the placeholder takes the image's own colour and shape instead of a box. If you would rather put them on your page colour, set Background for transparent images.

blur uses a data: URI. If your site sends a strict Content-Security-Policy, allow img-src data: or the placeholder will not show.

Going to production

Generating a placeholder means decoding the original photo. That takes about 20 ms per megapixel with GD, so a 24 MP photo costs half a second. The plugin therefore avoids doing it while a page renders.

New uploads are handled for you. When an image is uploaded through the Media Manager or attached to a record, its placeholder is made right away: in a background job if you have a real queue, otherwise during the upload, where the editor is already waiting. Renaming, moving or deleting a file in the Media Manager keeps the cache in step.

Images that were there before - or anything added another way, such as FTP or a script - need one warm-up:

php artisan imagery:warm             # Media Library images
php artisan imagery:warm --files     # ...and file attachments
php artisan imagery:warm --limit=200 # stop after 200 new placeholders
php artisan imagery:warm --force     # redo everything, even what is cached

It skips images that are already done and unchanged, so it is safe to run as often as you like, for example after each deploy or from the scheduler.

If an image still has no placeholder when a page shows it:

Your setup	What happens
A real queue (`database`, `redis`, ...)	A background job generates it; it appears on a later page view
Debug mode (`app.debug`), or `lazy` on	Generated during the render, at most 5 per request
Otherwise	No placeholder for that image until it is warmed

What uploads and imagery:warm produce is what Settings say. A different mode or option passed in a template (|lqipStyle({mode: 'blur'})) is only generated by a queue or by lazy. So on a production site without a queue, configure the look in Settings rather than per call, and run imagery:warm after changing Settings.

When an image fails

An image that cannot be processed (corrupt, an unsupported format, over 60 megapixels) is recorded, not retried on every page view: the next tries come after 15, 30, 60 and 120 minutes, and after the fifth failure it waits until you replace the file, run imagery:purge --failed, or run imagery:warm. The schedule is set by cache.retry in the config.

Upgrading from 1.0

composer update bonniss26/wn-imagery-plugin   # also brings bonniss26/lqip 0.3
php artisan winter:up
php artisan imagery:warm

Existing placeholders keep working in between. The warm-up adds the image sizes that |lqipSize needs, and redoes transparent images, which 1.0 placed on black.

Settings

Settings → CMS → Image placeholders sets the mode, the engine (GD or Imagick), the blur options including Smooth, and the background for transparent images. Leave a field blank to use the configuration file's value; the blank option shows what that currently is.

Nothing needs clearing after a change, because the options are part of the cache key: pages pick up new placeholders as they are made - by the queue, by lazy, or by running imagery:warm. Switching engine keeps existing placeholders, since both engines produce equivalent ones (except blur when the new engine cannot write WebP).

Who may open the page is the bonniss26.imagery.manage_settings permission, given to the Developer and Publisher roles by default.

Configuration

Override any key of config/config.php in your app at config/bonniss26/imagery/config.php. The ones you are most likely to want:

Key	Default	What it does
`enabled`	`true`	Master switch. Off: every filter returns an empty string
`generation`	library defaults	Default options: `mode`, `driver`, `smooth`, `background`, `long_edge`, `quality`, ...
`settings_override_config`	`true`	Set `false` to make this file win over the backend settings
`generate_on_upload`	`true`	Make placeholders when images are uploaded, and follow renames and deletes
`lazy`	`null` (follows `app.debug`)	Generate during page renders when no queue is set up
`request_budget`	`5`	Most placeholders generated in one request
`sources.allow_absolute_paths`	`false`	Accept raw filesystem paths...
`sources.allowed_roots`	`[]`	...but only inside these directories
`cache.retry`	5 tries from 15 min	Backoff for failed images: `max_attempts`, `base_minutes`, `max_minutes`
`cache.remote_identity`	`full`	On S3 and similar disks, `path_only` skips checking each file's modification time
`queue.connection`	`null` (default queue)	Queue connection for generation jobs
`register_alias`	`true`	Register the global `Imagery` alias; turn off if the name clashes

URLs to other sites are never fetched.

Housekeeping

php artisan imagery:purge --failed     # retry failed images on the next view
php artisan imagery:purge --stale      # rows made with options other than the current settings
                                       # (including per-call overrides in templates)
php artisan imagery:purge --orphaned   # rows whose image no longer exists
php artisan imagery:purge --all

None of these is required; they reclaim database space.

For developers

How it is built

The plugin is a thin Winter layer over the library. Almost all of the logic is in plain classes that are given their collaborators, so it is unit-tested without booting Winter:

Class	Responsibility
`classes/Imagery`	The service behind the filters and facade: look up the cache, decide what to do on a miss, record failures, prepare uploads
`classes/MediaEvents`	What an upload, rename, move or delete does to the cache. `Plugin.php` binds it to Winter's events
`classes/OptionResolver`	Merges per-call overrides, settings, config and library defaults, in that order
`classes/SourceResolver`	Turns whatever a template passes into a `Source`. Refuses path traversal, foreign URLs and paths outside `allowed_roots`
`classes/CacheKey`	`sha1` of the source and the options that change the output. The driver is deliberately not one of them, and options added after 1.0 are left out at their defaults so 1.0's keys stay valid
`classes/RetryPolicy`	Exponential backoff for failed images
`classes/RequestBudget`	The per-request cap on inline generation
`classes/Defaults`	Option names, which ones change the output, available modes and drivers

A mode registered with the library's PlaceholderGenerator::extend() appears in the Settings dropdown automatically. The plugin cannot know whether it produces CSS, so |lqip treats it as it treats css_only and falls back to dominant_color; |lqipStyle renders it.

The Winter-specific parts are adapters behind interfaces: WinterMediaStorage (MediaStorage), DatabaseStore + models/Placeholder (PlaceholderStore), jobs/GeneratePlaceholder, the console commands, and Plugin.php, which wires them together and registers the Twig filters.

Running the tests

The library is resolved from a sibling checkout during development, through a Composer path repository. Composer only reads repositories from the root package, so this does not affect people installing the plugin.

git clone https://github.com/bonniss/lqip
git clone https://github.com/bonniss/wn-imagery-plugin
cd wn-imagery-plugin
composer install
composer test

The unit suite needs no Winter install. CI does the same: it clones the library next to the plugin and runs the suite on PHP 8.0 to 8.4. Behaviour inside Winter (filters, migrations, queue, commands, upload events) is checked by installing the plugin into a Winter 1.2 app, including upgrading one that holds 1.0 data. There is no automated integration suite yet.

Contributing

Templates must never break. Every public path returns '' or null on failure instead of throwing.
Policy belongs in the plain classes, with a unit test. The Winter adapters should stay thin.
Image work belongs in the library, not here. A new mode or engine is a library change.
Keep composer test green, one logical change per commit, and explain why in the commit message.

License

MIT.
