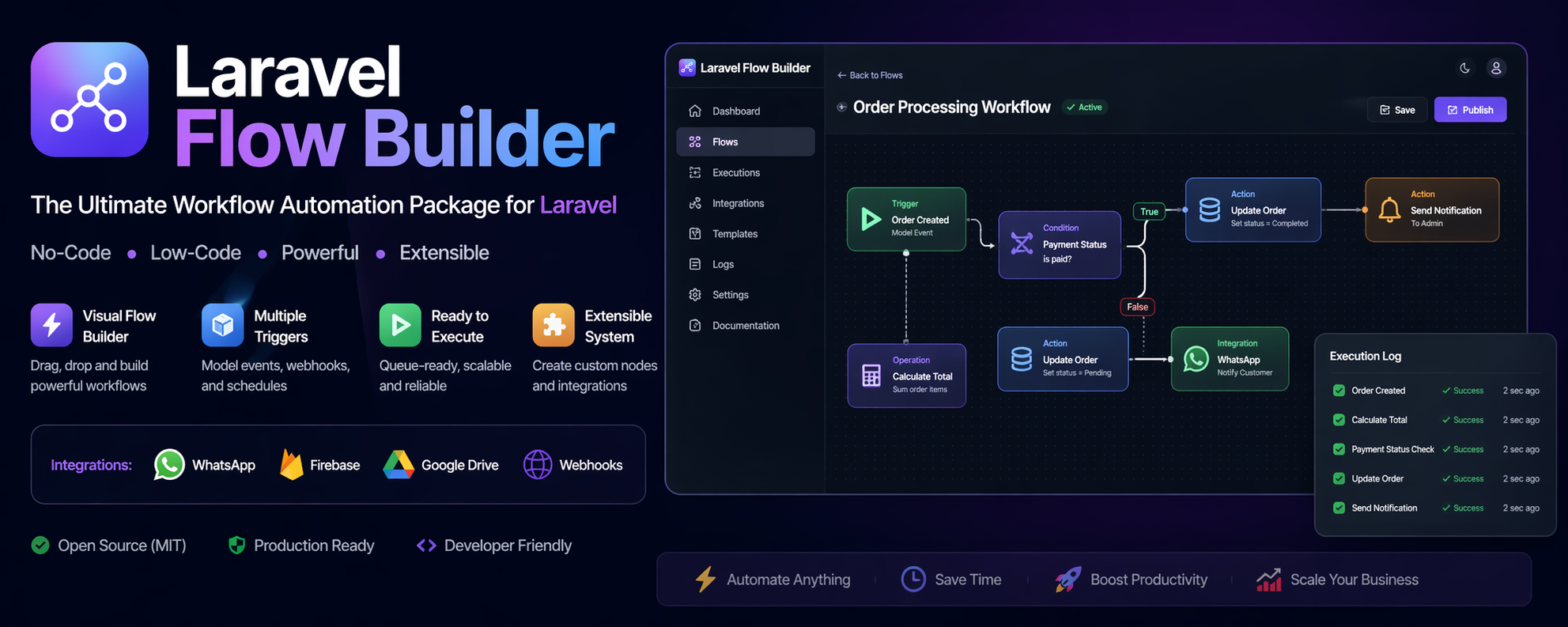

Laravel Flow Builder

A production-ready Laravel package for no-code and low-code workflow automation.

Build business flows using triggers and visual nodes, then execute them through model events, webhooks, or scheduled tasks.

Why Laravel Flow Builder?

Replace complex business logic with visual flows
Reduce development time
Centralize automation
Scalable & queue-ready

Use Cases

E-commerce automation
CRM workflows
Notifications pipelines
ERP systems

Features
Requirements
Download and Installation
Publish Assets
Configuration
Package UI and Routes
API Endpoints
Quick Start
Node Types
Trigger Types
Artisan Commands
Queue and Scheduler Setup
Extend with Custom Executors
Manual Execution in Code
Environment Variables
License

Features

Visual flow builder UI for creating and managing flows
Trigger-based execution: model events, webhook calls, and schedule
Built-in node system:
- trigger
- condition
- action
- operation
- integration
Action operations for CRUD, query, notifications, email, and WhatsApp
Operation nodes for sum, subtract, multiply, divide, text formatting, and loops
Integration nodes for webhook, WhatsApp, Firebase, and Google Drive placeholder
Template variable resolution with mustache syntax, for example {{order.total}}
Per-node execution logs and flow execution history
Queue-ready architecture for asynchronous execution
Infinite loop protection via configurable node execution limits
Extensible executor map for custom node types

Requirements

PHP 8.1 or higher
Laravel 10, 11, or 12

Download and Installation

Install from Packagist:

composer require arabiacode/laravel-flow-builder

Run migrations:

php artisan migrate

Publish Assets

Publish configuration file:

php artisan vendor:publish --tag=flow-builder-config

Publish package views (optional customization):

php artisan vendor:publish --tag=flow-builder-views

Configuration

After publishing, configure the package in config/flow-builder.php.

Key options:

queue.enabled: Enable or disable queue execution (default: false)
queue.connection: Queue connection name
queue.queue: Queue name (default: flows)
retry.max_attempts: Retry attempts for failed jobs
retry.delay: Delay between retries
max_node_executions: Loop protection threshold
route_prefix: API prefix (default: api/flow-builder)
route_middleware: API middleware stack
web_prefix: Web UI prefix (default: flow-builder)
web_middleware: Web UI middleware stack
logging.enabled: Enable flow logging
logging.channel: Log channel override
executors: Register custom executors
integrations: Service credentials for WhatsApp, Firebase, and Google Drive

Package UI and Routes

Web UI base route:

/flow-builder

Main UI pages:

Dashboard
Flows
Executions
Integrations
Package Guide

All UI route settings can be changed through config/flow-builder.php.

API Endpoints

Default API prefix: /api/flow-builder

POST /webhook/{flow}
POST /flows/{flow}/execute

Both endpoints accept JSON payloads as flow input.

Quick Start

1) Create a flow

use Arabiacode\LaravelFlowBuilder\Models\Flow;

$flow = Flow::create([
    'name' => 'Order Processing',
    'description' => 'Process new orders automatically',
    'is_active' => true,
]);

2) Add a trigger

use Arabiacode\LaravelFlowBuilder\Models\FlowTrigger;

FlowTrigger::create([
    'flow_id' => $flow->id,
    'type' => 'model',
    'model_class' => \App\Models\Order::class,
    'event' => 'created',
]);

3) Add nodes and connections

Use the builder UI, or create nodes programmatically with FlowNode and FlowConnection.

4) Execute manually via API

curl -X POST http://localhost/api/flow-builder/flows/1/execute \
  -H "Content-Type: application/json" \
  -d '{"order_id":1,"status":"new"}'

Node Types

trigger

Entry point for flow execution and payload mapping.

condition

Evaluates logical rules and follows true or false branch connections.

Supported operators include:

equals
not_equals
greater_than
less_than
greater_or_equal
less_or_equal
contains
not_contains
starts_with
ends_with
in
exists
not_exists

action

Supported built-in actions:

create
update
delete
increment
decrement
get
first
find
send_notification
send_email
send_whatsapp

operation

Supported operation types:

sum
subtract
multiply
divide
format_text
loop

integration

Supported integration types:

webhook
whatsapp
firebase
google_drive (placeholder implementation)

Trigger Types

model: Triggered by Eloquent model events
webhook: Triggered by external HTTP request
schedule: Triggered by cron expression via command

Artisan Commands

php artisan flow-builder:run-scheduled
php artisan flow-builder:clear-cache

Queue and Scheduler Setup

If you use scheduled triggers, register this command in your scheduler:

$schedule->command('flow-builder:run-scheduled')->everyMinute();

If queue execution is enabled, make sure your queue worker is running:

php artisan queue:work --queue=flows

Extend with Custom Executors

Implement the executor contract:

use Arabiacode\LaravelFlowBuilder\Contracts\NodeExecutor;
use Arabiacode\LaravelFlowBuilder\Engine\FlowState;
use Arabiacode\LaravelFlowBuilder\Models\FlowNode;

class SmsExecutor implements NodeExecutor
{
    public function execute(FlowNode $node, FlowState $state): mixed
    {
        return ['ok' => true];
    }
}

'executors' => [
    'sms' => \App\FlowExecutors\SmsExecutor::class,
],

Manual Execution in Code

use Arabiacode\LaravelFlowBuilder\Facades\FlowBuilder;
use Arabiacode\LaravelFlowBuilder\Models\Flow;

$flow = Flow::findOrFail(1);

$execution = FlowBuilder::execute($flow, [
    'order_id' => 1201,
    'customer_name' => 'Sara',
]);

$status = $execution->status;

Environment Variables

FLOW_BUILDER_QUEUE_ENABLED
FLOW_BUILDER_QUEUE_CONNECTION
FLOW_BUILDER_QUEUE_NAME
FLOW_BUILDER_LOG_CHANNEL
FLOW_BUILDER_WHATSAPP_API_URL
FLOW_BUILDER_WHATSAPP_API_KEY
FLOW_BUILDER_FIREBASE_SERVER_KEY
FLOW_BUILDER_GOOGLE_DRIVE_CREDENTIALS

License

MIT. See LICENSE for details.

Developed by ArabiaCode.
