README

Contributors: alleyinteractive

Tags: alleyinteractive, openapi, swagger, rest-api

Stable tag: 0.1.0

Requires at least: 6.5

Tested up to: 7.1

Requires PHP: 8.1

License: GPL v2 or later

Generate an OpenAPI 3.1 document for the WordPress REST API, and browse and call it with Swagger UI.

The document is built from the routes registered with the REST server, so WordPress core, custom post types and taxonomies, other plugins, and your own register_rest_route() calls are all documented without extra work. Route arguments describe the request, and route schemas describe the response.

• Installation
• Quick start
• How routes become OpenAPI
• Documenting your own routes
• Customizing the document
• Settings and access
• Limitations
• Development

Installation

Install the plugin with Composer and activate it:

composer require alleyinteractive/wp-openapi-generator
wp plugin activate wp-openapi-generator

The plugin has no runtime dependencies and loads its own classes when Composer's autoloader isn't present, so you can also clone or download it into wp-content/plugins and activate it without running composer install.

Quick start

Once the plugin is active, there are three ways to get the document.

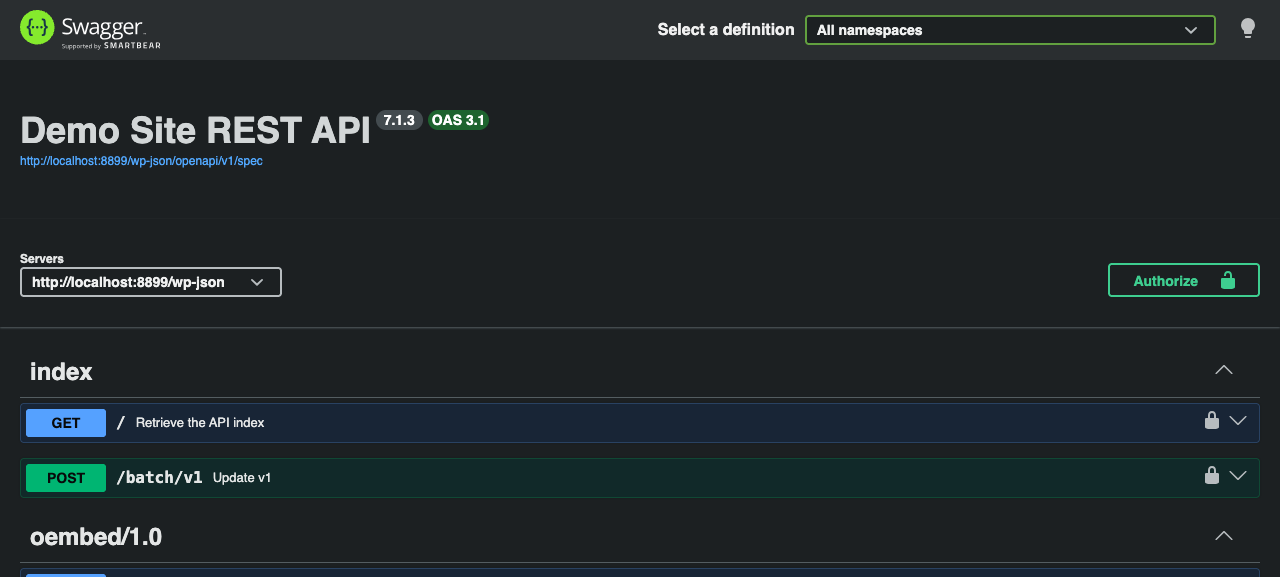

Browse it. Visit /openapi/ on your site while logged in as an administrator. Pick a namespace from the "Select a definition" menu, narrow the list with the tag filter, and use "Try it out" to send real requests. Requests are sent with your login session and a REST nonce, so endpoints that need authentication work too.

Fetch it. The JSON document is served from the REST API:

GET /wp-json/openapi/v1/spec
GET /wp-json/openapi/v1/spec?namespace=wp/v2,my-plugin/v1

Generate it. Write it to a file with WP-CLI, for example to commit it alongside your code or feed a client generator:

wp openapi generate --output=openapi.json
wp openapi generate --namespace=my-plugin/v1 --compact

# Generate TypeScript types from it.
npx openapi-typescript openapi.json -o src/types/wordpress-api.ts

How routes become OpenAPI

WordPress	OpenAPI
Route regex /wp/v2/posts/(?P<id>[\d]+)	Path /wp/v2/posts/{id} with a required id path parameter
args on GET and DELETE endpoints	Query parameters. Arrays are sent comma-separated (?include=1,2), which WordPress accepts.
args on POST, PUT, and PATCH endpoints	A JSON request body
type, enum, default, format, minimum, items, properties, and other schema keywords	The same JSON Schema keywords
required => true on an argument or schema property	The parent's required list
readonly => true	readOnly: true
The route's schema callback	A shared schema under components/schemas, used as the response body
A GET endpoint with page or per_page arguments	A response that is an array of items, with X-WP-Total and X-WP-TotalPages headers
POST to that same route	A 201 Created response
DELETE with a force argument	The trashed item, or { deleted, previous } when permanently deleted
Creating media (POST /wp/v2/media)	A multipart/form-data file upload
Namespace and first path segment	A tag such as wp/v2/posts
show_in_index => false	Left out of the document

WordPress-only keys such as context, arg_options, sanitize_callback, and validate_callback are dropped. Every operation gets a generated operationId, a summary such as "List posts" or "Update post", and a default error response that matches the shape of a WP_Error. Application passwords and cookie nonces are declared as security schemes.

Documenting your own routes

The plugin documents what you already pass to register_rest_route(), so the best way to improve your documentation is to give every argument a type and description, and give every route a schema:

register_rest_route(
	'my-plugin/v1',
	'/widgets/(?P<id>\d+)',
	[
		[
			'methods'             => WP_REST_Server::READABLE,
			'callback'            => 'my_plugin_get_widget',
			'permission_callback' => '__return_true',
			'args'                => [
				'id' => [
					'description' => 'Widget ID.',
					'type'        => 'integer',
				],
			],
		],
		[
			'methods'             => WP_REST_Server::EDITABLE,
			'callback'            => 'my_plugin_update_widget',
			'permission_callback' => 'my_plugin_can_edit_widgets',
			'args'                => [
				'name' => [
					'description' => 'Widget name.',
					'type'        => 'string',
					'required'    => true,
				],
			],
		],
		'schema' => fn () => [
			'$schema'    => 'http://json-schema.org/draft-04/schema#',
			'title'      => 'widget',
			'type'       => 'object',
			'properties' => [
				'id'   => [ 'type' => 'integer', 'readonly' => true ],
				'name' => [ 'type' => 'string' ],
			],
		],
	]
);

The openapi endpoint option

Add an openapi array to an endpoint to set or replace any key of the generated operation. Keys you set replace the generated ones entirely:

[
	'methods'             => WP_REST_Server::CREATABLE,
	'callback'            => 'my_plugin_create_widget',
	'permission_callback' => 'my_plugin_can_edit_widgets',
	'openapi'             => [
		'summary'     => 'Create a widget',
		'description' => 'Creates a widget and returns it. Requires the `edit_widgets` capability.',
		'security'    => [ [ 'applicationPassword' => [] ] ],
	],
]

Set 'openapi' => false to leave an endpoint out of the document.

Customizing the document

Everything the plugin generates can be changed with filters. The narrower filters are applied first, and wp_openapi_generator_spec sees the finished document last.

Filter	Use it to	Arguments
wp_openapi_generator_include_route	Include or exclude whole routes	bool $include, string $route, array $handlers, array $options, string $path
wp_openapi_generator_endpoint_args	Change an endpoint's arguments, in WordPress format, before they become parameters or a request body	array $args, string $method, string $route, array $handler
wp_openapi_generator_route_schema	Change a route's response schema, in WordPress format, before it is converted	?array $schema, string $route, array $options
wp_openapi_generator_responses	Change an operation's responses	array $responses, string $method, string $route, array $handler, ?string $schema_ref
wp_openapi_generator_operation	Change anything about one operation, or return [] to remove it	array $operation, string $method, string $route, array $handler
wp_openapi_generator_info	Change the title, version, description, contact, or license	array $info
wp_openapi_generator_servers	Change the server URLs	array $servers
wp_openapi_generator_security_schemes	Add, replace, or remove security schemes	array $schemes
wp_openapi_generator_security	Change the document-wide security requirements	array $security
wp_openapi_generator_spec	Change the finished document	array $spec, string[] $namespaces
wp_openapi_generator_is_public	Make the docs public or private, overriding the setting	bool $is_public
wp_openapi_generator_capability	Change who can view private docs	string $capability (default manage_options)
wp_openapi_generator_swagger_ui_url	Load Swagger UI from somewhere other than jsDelivr	string $base_url

$method is always lowercase, and $route is the route regex exactly as registered, such as /wp/v2/posts/(?P<id>[\d]+).

Exclude routes

For simple cases, use the path patterns setting. For anything more involved, use the filter. It receives both the route regex and the OpenAPI path:

add_filter(
	'wp_openapi_generator_include_route',
	function ( bool $include, string $route ): bool {
		return $include && ! str_starts_with( $route, '/my-plugin/v1/internal' );
	},
	10,
	2
);

To hide whole namespaces from the default document, remove them in the same filter, or link to a filtered document such as /wp-json/openapi/v1/spec?namespace=my-plugin/v1.

Change request arguments

Arguments are filtered in the format register_rest_route() uses, so you can describe a request the way you would register it:

add_filter(
	'wp_openapi_generator_endpoint_args',
	function ( array $args, string $method, string $route ): array {
		if ( 'post' === $method && '/my-plugin/v1/widgets' === $route ) {
			$args['color'] = [
				'description' => 'Widget color.',
				'type'        => 'string',
				'enum'        => [ 'red', 'green', 'blue' ],
			];
		}

		return $args;
	},
	10,
	3
);

Change responses

Change the shared response schema for a route, in WordPress format:

add_filter(
	'wp_openapi_generator_route_schema',
	function ( ?array $schema, string $route ): ?array {
		if ( '/my-plugin/v1/stats' === $route ) {
			return [
				'title'      => 'stats',
				'type'       => 'object',
				'properties' => [
					'views'    => [ 'type' => 'integer' ],
					'visitors' => [ 'type' => 'integer' ],
				],
			];
		}

		return $schema;
	},
	10,
	2
);

Or change individual responses, in OpenAPI format:

add_filter(
	'wp_openapi_generator_responses',
	function ( array $responses, string $method, string $route, array $handler, ?string $schema_ref ): array {
		if ( 'get' === $method && $schema_ref && str_ends_with( $route, '(?P<id>[\d]+)' ) ) {
			$responses['404'] = [
				'description' => 'Not found.',
				'content'     => [
					'application/json' => [ 'schema' => [ '$ref' => '#/components/schemas/WP_Error' ] ],
				],
			];
		}

		return $responses;
	},
	10,
	5
);

Override the servers

By default the document has one server, the site's REST URL. Point it somewhere else, or list several environments:

add_filter(
	'wp_openapi_generator_servers',
	fn () => [
		[ 'url' => 'https://example.com/wp-json', 'description' => 'Production' ],
		[ 'url' => 'https://staging.example.com/wp-json', 'description' => 'Staging' ],
	]
);

Override authentication

The document declares two security schemes, applicationPassword (HTTP Basic) and cookieNonce (the X-WP-Nonce header), and allows anonymous requests. The requirements are built from the schemes you declare, so replacing the schemes is usually enough:

// Document a JWT plugin instead of the core methods.
add_filter(
	'wp_openapi_generator_security_schemes',
	fn () => [
		'jwt' => [
			'type'         => 'http',
			'scheme'       => 'bearer',
			'bearerFormat' => 'JWT',
		],
	]
);

// Require authentication on every operation, instead of allowing anonymous requests.
add_filter(
	'wp_openapi_generator_security',
	fn ( array $security ) => array_values( array_filter( $security, 'is_array' ) )
);

To change one operation's requirements, set security with the openapi endpoint option or the wp_openapi_generator_operation filter. Return an empty array from both security filters to remove authentication from the document.

Change the info block

add_filter(
	'wp_openapi_generator_info',
	fn ( array $info ) => [
		...$info,
		'title'   => 'Example API',
		'version' => '2.0.0',
		'contact' => [ 'email' => '[e-mail]' ],
	]
);

Settings and access

Go to Settings > OpenAPI to:

• Make the documentation public. By default, only users with the manage_options capability can open the documentation page or fetch the JSON; everyone else gets a 404 page, and the JSON endpoint returns a 401 or 403. Turn on public access to let anyone view both. Endpoints still enforce their own permissions either way: public docs show what an endpoint accepts, not data the visitor can't otherwise reach.
• Change the documentation path from openapi to something like api/docs.
• Limit which paths are documented. List path patterns, one per line, and choose whether the list is an allow list ("only include paths that match a pattern") or a deny list ("exclude paths that match a pattern"). Leave the list empty to document everything.

Patterns match the OpenAPI path, such as wp/v2/posts/{id}, without the leading slash. * matches any characters, including slashes, and matching ignores case:

Pattern	Matches
wp/v2/posts	Only /wp/v2/posts
wp/v2/posts/*	Everything under it: /wp/v2/posts/{id}, /wp/v2/posts/{parent}/revisions, and so on, but not /wp/v2/posts itself
wp/v2/posts*	/wp/v2/posts and everything under it
wp/v2/*/revisions	The revisions route of every post type
my-plugin/*	Everything in the my-plugin namespaces

The patterns apply to the documentation page, the JSON endpoint, and WP-CLI. Namespaces left with no paths are dropped from the documentation page's menu.

Finding missing shapes

The settings page ends with an expandable Missing shapes list: every documented operation that has no response schema, or has arguments without a type or description. It reads the generated document, so anything you fill in with the openapi option or a filter drops off the list. Namespace index routes are left out.

Without pretty permalinks, the documentation page is at /?wp_openapi_generator_docs=1.

Swagger UI is loaded from jsDelivr (swagger-ui-dist, pinned to a specific version). If your content security policy blocks the CDN, host the files yourself and point the wp_openapi_generator_swagger_ui_url filter at them.

Limitations

WordPress doesn't record everything OpenAPI can describe, so some of the document is inferred:

• Permissions. A permission_callback can't be inspected, so the document doesn't say which operations need authentication. Set security per operation with the openapi option if you need it.
• Responses. The response body comes from the route's schema. Routes without one get an untyped response, and responses that differ from the schema, such as custom envelopes, need the openapi option or a filter.
• Overlapping routes. OpenAPI can't hold two paths that differ only by parameter name, such as /icons/{collection} and /icons/{name}. The route registered first is kept.
• Optional path segments. OpenAPI path parameters are always required, so a route with an optional segment, such as /items(?:/(?P<id>\d+))?, is documented with the segment present.
• Arguments that accept an array or an object, such as core's categories filter, are documented as arrays, because query strings send them comma-separated.
• Media uploads document only the file field. Set the title, alt text, and other fields with a follow-up update request.

Development

composer install
composer test        # PHPCS, PHPStan, and PHPUnit
composer phpunit     # PHPUnit only

The tests use Mantle's testing framework with SQLite, so they don't need a database. Run them from a checkout that isn't inside an existing WordPress install; otherwise Mantle uses that install and its database.

Releasing

The built release workflow tags a release whenever the version in composer.json or the plugin header changes on develop.

Changelog

See CHANGELOG.

Credits

This project is actively maintained by Alley Interactive. Like what you see? Come work with us.

• Sean Fisher
• All Contributors

License

The GNU General Public License (GPL) license. Please see License File for more information.
